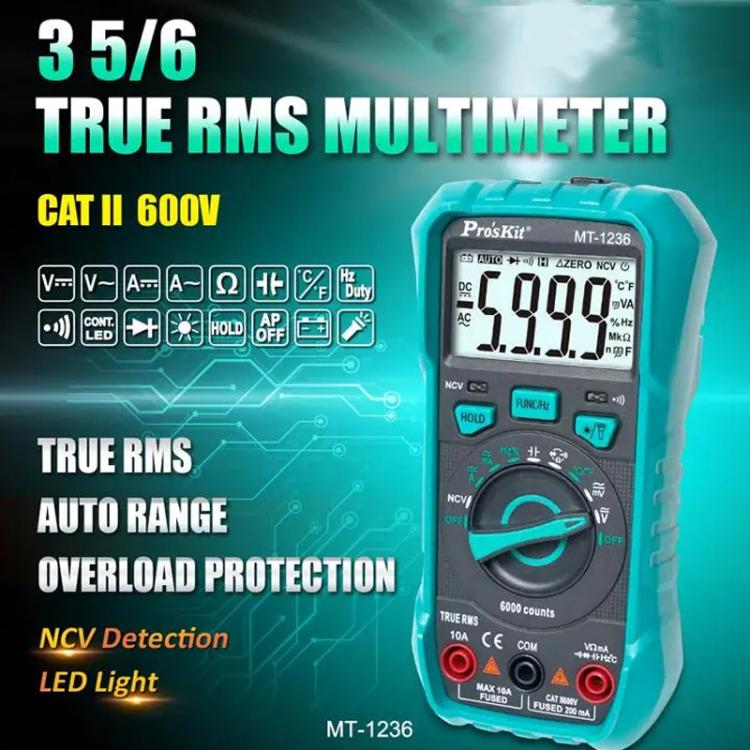

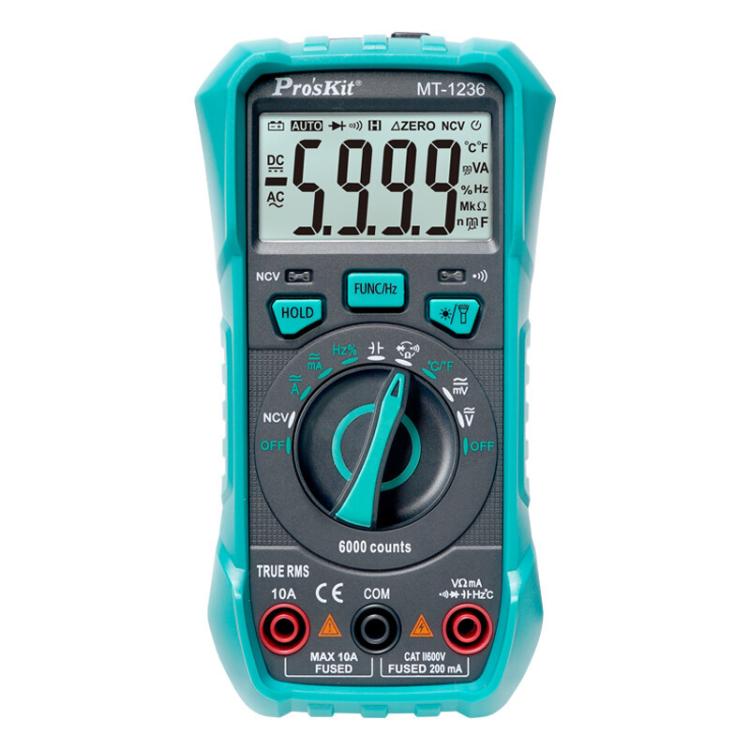

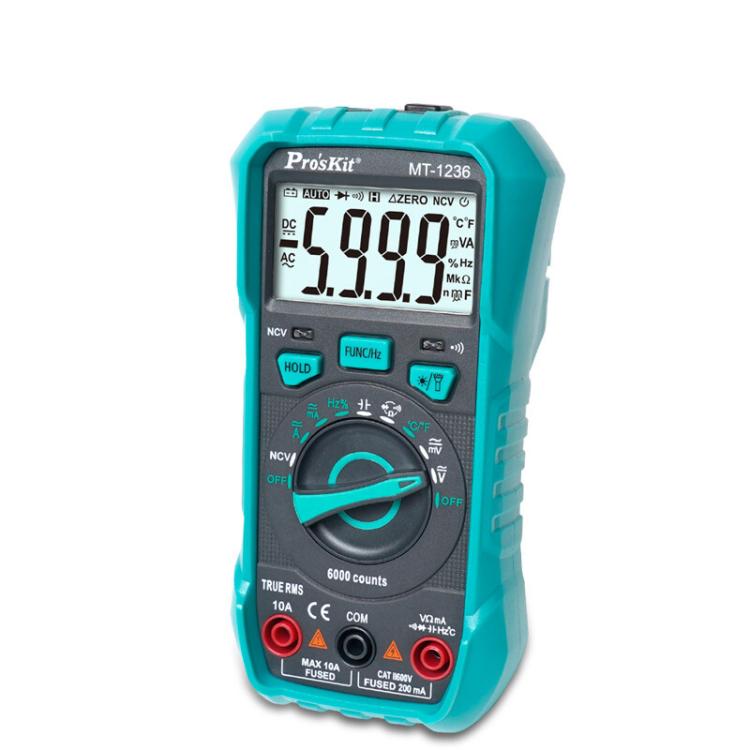

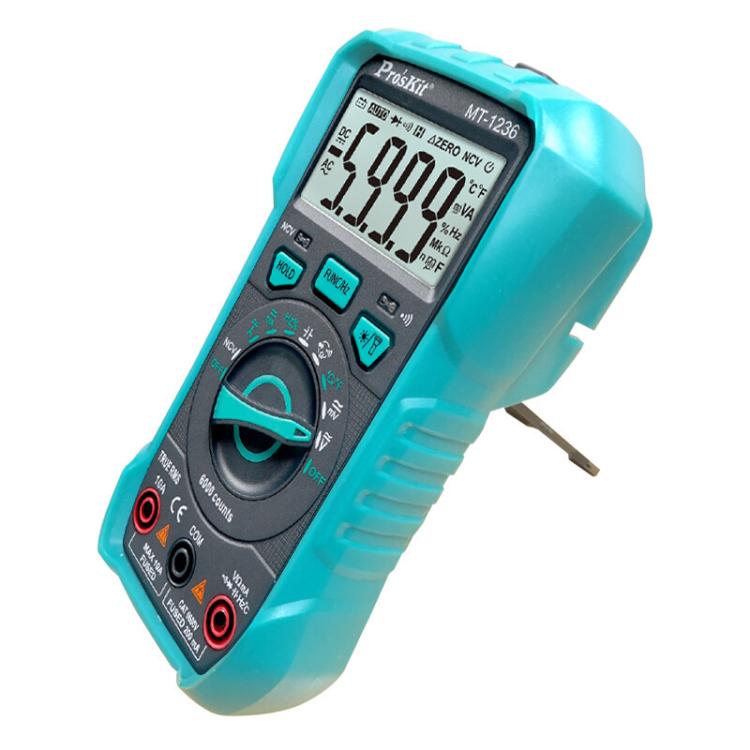

ProsKit MT-1236-C 3-5/6 True-RMS Digital Multimeter For ACA, ACV, DCA, DCV, Frequency, Cycle Duty, Diode Test(Green)

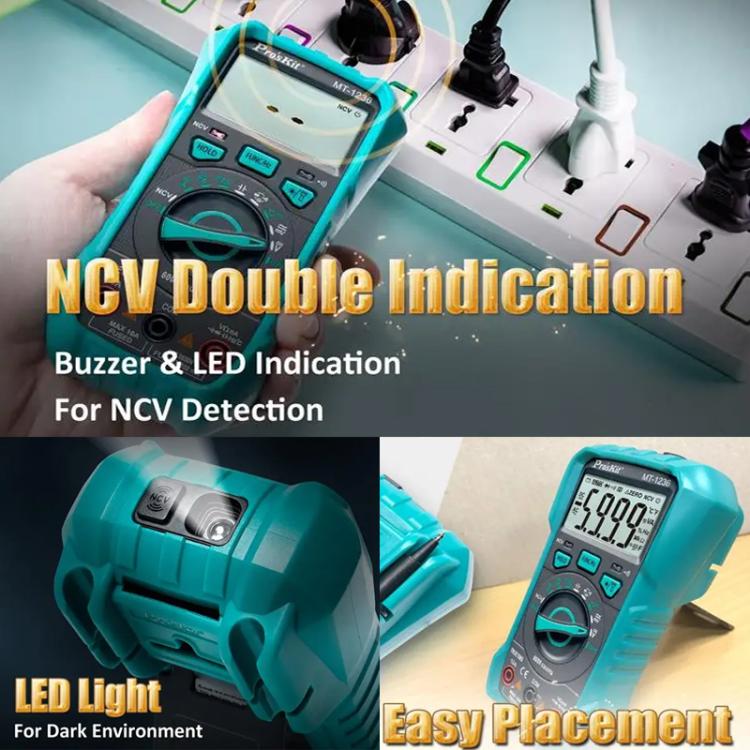

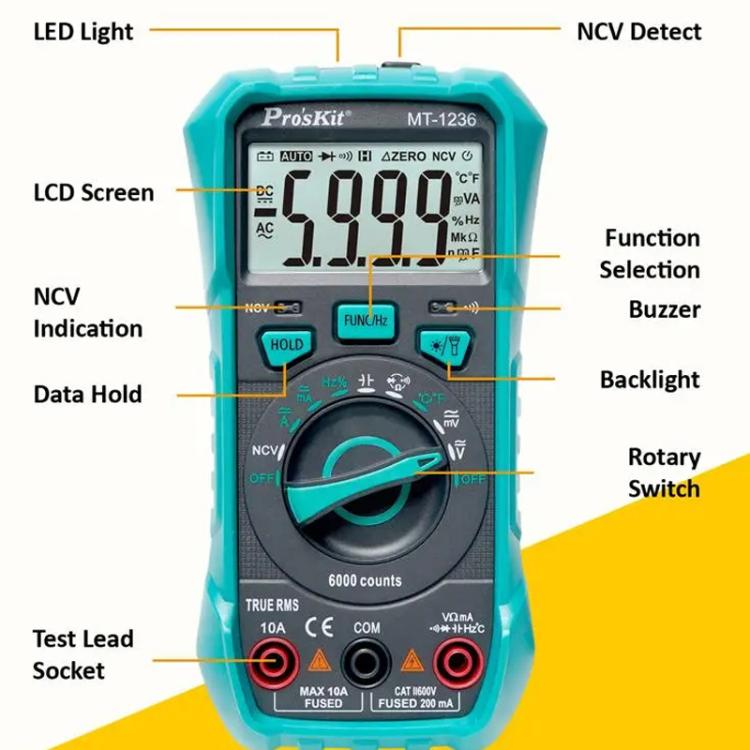

1. This multi-function multimeter has high accuracy and performance and can measure DC/AC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle, among other things. It also has functions such as NCV detection (non-contact voltage), temperature test, LED light, and more!

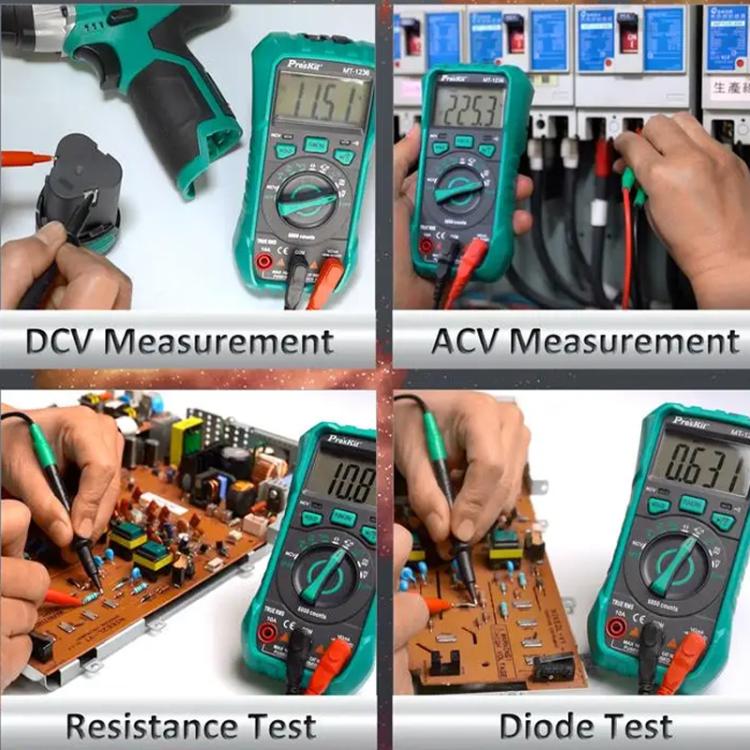

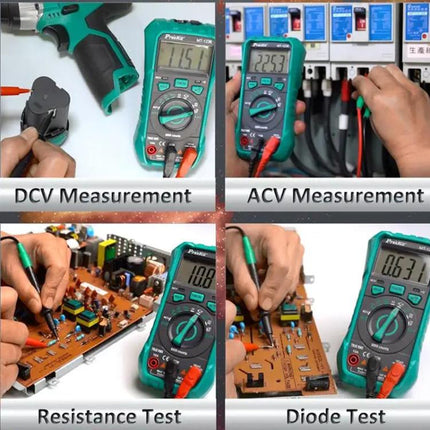

2. Suitable for ACA, ACV, DCA, DCV, frequency, cycle duty cycle, diode test, etc.
3. Accurate value, with ACV ACA true RMS measurement
4. Overload protection to ensure user safety
5. Backlight design, clear reading without effort
6. Can be tilted/hung, convenient for measurement and reading, test lead storage slot design

Parameters:
1. Display: 3 5/6, maximum display 5999
2. Manual/automatic: automatic
3. Safety level: CAT II 600V
4. DC voltage: 600mV/6V/60V/600V accuracy +/-(0.5%+5d)
4. AC voltage: 600mV/6V/60V/600V accuracy +/-(1%+4d) TRUE RMS
5. DC current: 60mA/ 600mA accuracy +/-(1.2%+5d) 10A accuracy +/-(3.0%+5d)
6. AC current: 60mA/600mA accuracy +/-(1.5%+5d) 10A accuracy +/-(3.0%+5d) TRUE RMS
7. Resistance: 600 ohms/6k / 60k / 600k / 6M / 60MΩ accuracy +/-(0.8%+5d)
8. Frequency: 9.999Hz/ 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz accuracy +/-(1.5% +5d)
9. ??Duty cycle: 1%-99% accuracy ±(2.5%+5d)

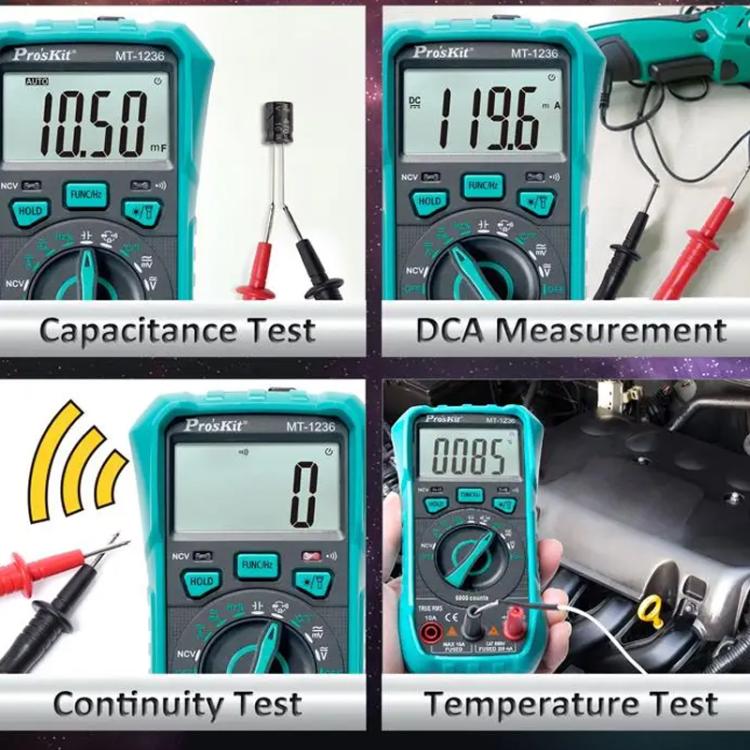

10. Capacitance: 60nF / 600nF /6uF / 60uF / 600uF /6mF Accuracy +/-(4% +5d); 100mF +/-(4% +10d)
11. Temperature: -20~1000 degrees Celsius / -4-1832 degrees Fahrenheit, Accuracy +/-(1% +3d)
12. Continuity buzzer: Less than or equal to 30 ohms, buzzer sounds
13. Diode measurement: Yes
14. Auxiliary lighting LED: Yes
15. Low voltage display: Yes
16. Data retention: Yes
17. Buzzer warning: Yes
18. Backlight: Yes
19. Non-contact voltage test: Yes (AC30V-600V 50/60Hz)
20. Battery: 1.5V AAAx 3 (not included)

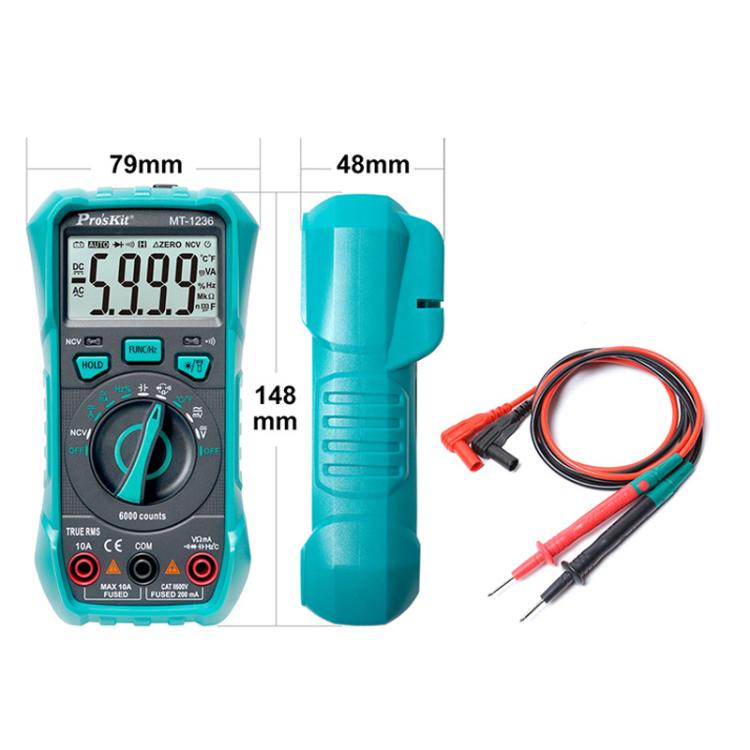

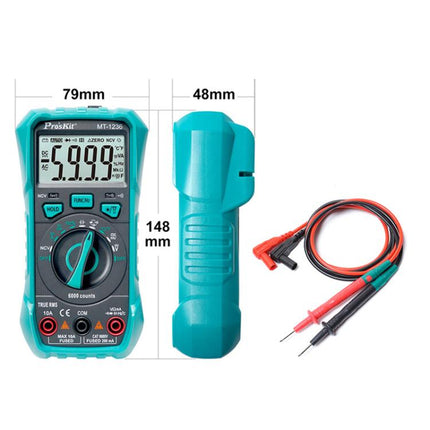

21. Dimensions: 148 x 79 x 48mm


Specification:
Package Weight
One Package Weight 0.40kgs / 0.89lb
One Package Size 20cm * 12cm * 7cm / 7.87inch * 4.72inch * 2.76inch
Qty per Carton 30
Carton Weight 13.10kgs / 28.88lb
Carton Size 42cm * 38cm * 37cm / 16.54inch * 14.96inch * 14.57inch
Loading Container 20GP: 451 cartons * 30 pcs = 13530 pcs
40HQ: 1048 cartons * 30 pcs = 31440 pcs

ProsKit MT-1236-C 3-5/6 True-RMS Digital Multimeter For ACA, ACV, DCA, DCV, Frequency, Cycle Duty, Diode Test(Green)

Product form

SKU: TBD0605592501A

  • In stock (Processing Time 1 - 72 hours)

€35,89

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. This multi-function multimeter has high accuracy and performance and can measure DC/AC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle, among other things. It also has functions such as NCV detection (non-contact voltage), temperature test, LED light, and more!
    2. Suitable for ACA, ACV, DCA, DCV, frequency, cycle duty cycle, diode test, etc.
    3. Accurate value, with ACV ACA true RMS measurement
    4. Overload protection to ensure user safety
    5. Backlight design, clear reading without effort
    6. Can be tilted/hung, convenient for measurement and reading, test lead storage slot design

    Parameters:
    1. Display: 3 5/6, maximum display 5999
    2. Manual/automatic: automatic
    3. Safety level: CAT II 600V
    4. DC voltage: 600mV/6V/60V/600V accuracy +/-(0.5%+5d)
    4. AC voltage: 600mV/6V/60V/600V accuracy +/-(1%+4d) TRUE RMS
    5. DC current: 60mA/ 600mA accuracy +/-(1.2%+5d) 10A accuracy +/-(3.0%+5d)
    6. AC current: 60mA/600mA accuracy +/-(1.5%+5d) 10A accuracy +/-(3.0%+5d) TRUE RMS
    7. Resistance: 600 ohms/6k / 60k / 600k / 6M / 60MΩ accuracy +/-(0.8%+5d)
    8. Frequency: 9.999Hz/ 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz accuracy +/-(1.5% +5d)
    9. ??Duty cycle: 1%-99% accuracy ±(2.5%+5d)
    10. Capacitance: 60nF / 600nF /6uF / 60uF / 600uF /6mF Accuracy +/-(4% +5d); 100mF +/-(4% +10d)
    11. Temperature: -20~1000 degrees Celsius / -4-1832 degrees Fahrenheit, Accuracy +/-(1% +3d)
    12. Continuity buzzer: Less than or equal to 30 ohms, buzzer sounds
    13. Diode measurement: Yes
    14. Auxiliary lighting LED: Yes
    15. Low voltage display: Yes
    16. Data retention: Yes
    17. Buzzer warning: Yes
    18. Backlight: Yes
    19. Non-contact voltage test: Yes (AC30V-600V 50/60Hz)
    20. Battery: 1.5V AAAx 3 (not included)
    21. Dimensions: 148 x 79 x 48mm


    Specification:
    Package Weight
    One Package Weight 0.40kgs / 0.89lb
    One Package Size 20cm * 12cm * 7cm / 7.87inch * 4.72inch * 2.76inch
    Qty per Carton 30
    Carton Weight 13.10kgs / 28.88lb
    Carton Size 42cm * 38cm * 37cm / 16.54inch * 14.96inch * 14.57inch
    Loading Container 20GP: 451 cartons * 30 pcs = 13530 pcs
    40HQ: 1048 cartons * 30 pcs = 31440 pcs
