Waveshare ESP32-C6 1.28inch LCD Display Development Board, 240 × 240 Resolution, 65K Color With Metal Case


1. Powered by ESP32-C6 high-performance 32-bit RISC-V processor with main frequency up to 160 MHz.
2. Integrates Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, delivering excellent RF performance.
3. Built-in 512 KB HP SRAM, 16 KB LP SRAM, and 320 KB ROM, with external 16 MB Flash memory.
4. Uses a Type-C connector, eliminating worry about plug orientation.

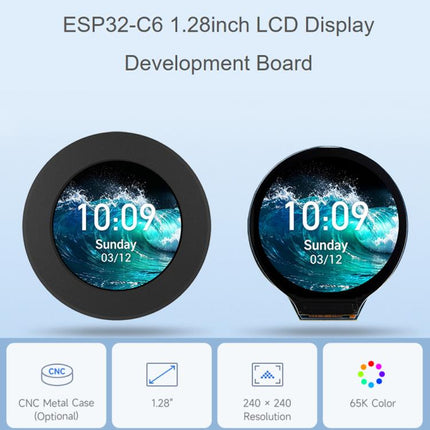

5. Onboard 1.28-inch capacitive LCD screen with 240 x 240 resolution and 65K color for clear displaying of colorful images.

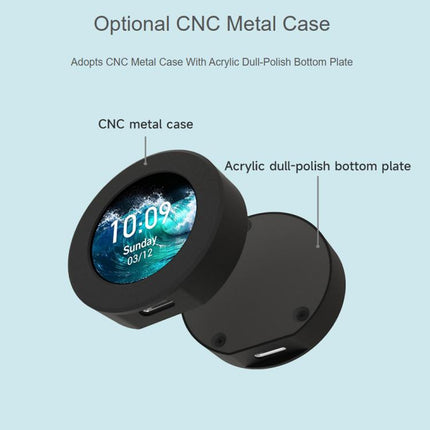

6. CNC metal top enclosure paired with an acrylic frosted back plate (optional).
7. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope).
8. Onboard PCF85063 RTC chip for easy implementation of Real-Time Clock functions.
9. Onboard 3.7V MX1.25 lithium battery charging and discharging interface.

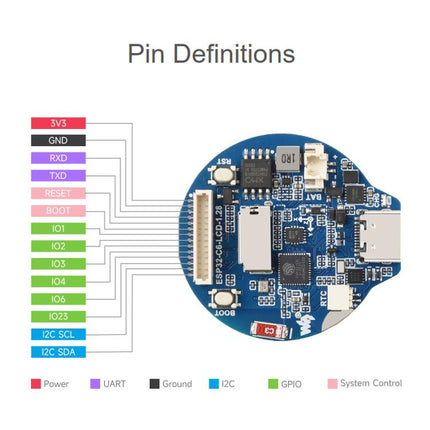

10. Onboard SH1.0 14-PIN expansion header, routing out 6 GPIOs, 1 UART, and 1 I2C.
11. Onboard MicroSD (TF) card slot for storage expansion and high-speed data transfer, enhancing flexibility.

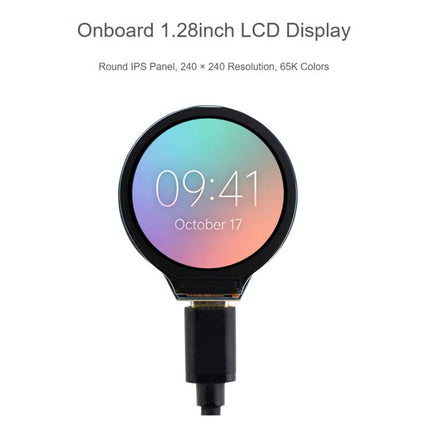

LCD Parameters:
1. Display Panel: IPS
2. Display Size: 1.28 inches
3. Display Resolution: 240 x 240 pixels
4. Display Colors: 65K
5. Display Brightness: 400 cd/m2
6. Contrast Ratio: 1100:1
7. Communication Interface: SPI
8. Driver IC: GC9A01A
Specification:
Package Weight
One Package Weight 0.05kgs / 0.12lb
One Package Size 7cm * 7cm * 5cm / 2.76inch * 2.76inch * 1.97inch
Qty per Carton 160
Carton Weight 9.10kgs / 20.06lb
Carton Size 30cm * 37cm * 42cm / 11.81inch * 14.57inch * 16.54inch
Loading Container 20GP: 572 cartons * 160 pcs = 91520 pcs
40HQ: 1327 cartons * 160 pcs = 212320 pcs
