WAVESHARE GNSS L1+L2+L5 Multi-Satellite Multi-Frequency Four-Wire Helical Active Precision Positioning Antenna, Version: Q23


1. Connector type: SMA inner pin
2. Protection level: IP67
3. Four-wire helical antenna for GNSS, with high gain and wide circular polarization coverage angle
4. Capable of receiving more low-zenith angle satellite signals, thereby improving positioning performance, suitable for applications such as smart home, smart agriculture, and high-precision mapping
5. Four-wire helical structure, with wide circular polarization coverage angle, enhancing the ability to receive low-zenith angle satellite signals
6. High gain, low noise coefficient design, supporting multi-frequency and multi-system GNSS signal reception
7. Small size, light weight, flexible installation method, suitable for various devices and applications
8. Adopting SMA interface, supporting RF transmission and coaxial DC bias feeding function
9. Complies with IP67 protection level requirements, suitable for long-term stable operation in outdoor environments

Antenna characteristics
1. Frequency range:
- GPS: L1/L2/L5
- BDS: B1/B2a/B2b
- GLONASS: G1/G2
- Galileo: E1/E5a/E5b
2. Antenna gain: Q23 2dBi
3. Characteristic impedance: 50 ohms
4. Polarization mode: RHCP (right-hand circular polarization)
5. Coverage angle: 360 degrees

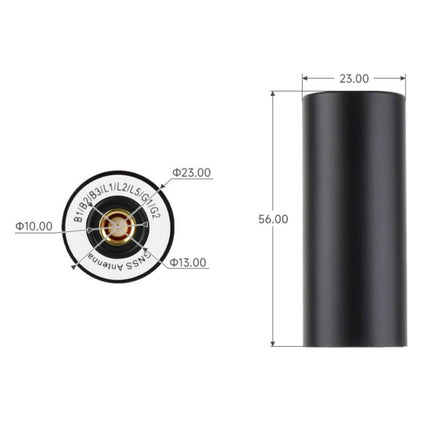

6. Size: 56 x 23 (mm)

Amplifier characteristics
1. Gain: 28dB
2. Noise figure: 1.5dB
3. Operating voltage: 3.3V ~ 16V DC
4. Operating current: 13mA
Specification:
Package Weight
One Package Weight 0.08kgs / 0.19lb
One Package Size 8cm * 8cm * 5cm / 3.15inch * 3.15inch * 1.97inch
Qty per Carton 144
Carton Weight 12.70kgs / 28.00lb
Carton Size 50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch
Loading Container 20GP: 490 cartons * 144 pcs = 70560 pcs
40HQ: 1137 cartons * 144 pcs = 163728 pcs

WAVESHARE GNSS L1+L2+L5 Multi-Satellite Multi-Frequency Four-Wire Helical Active Precision Positioning Antenna, Version: Q23

Product form

SKU: TBD0607084701

  • In stock (Processing Time 1 - 72 hours)

€34,44

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Connector type: SMA inner pin
    2. Protection level: IP67
    3. Four-wire helical antenna for GNSS, with high gain and wide circular polarization coverage angle
    4. Capable of receiving more low-zenith angle satellite signals, thereby improving positioning performance, suitable for applications such as smart home, smart agriculture, and high-precision mapping
    5. Four-wire helical structure, with wide circular polarization coverage angle, enhancing the ability to receive low-zenith angle satellite signals
    6. High gain, low noise coefficient design, supporting multi-frequency and multi-system GNSS signal reception
    7. Small size, light weight, flexible installation method, suitable for various devices and applications
    8. Adopting SMA interface, supporting RF transmission and coaxial DC bias feeding function
    9. Complies with IP67 protection level requirements, suitable for long-term stable operation in outdoor environments

    Antenna characteristics
    1. Frequency range:
    - GPS: L1/L2/L5
    - BDS: B1/B2a/B2b
    - GLONASS: G1/G2
    - Galileo: E1/E5a/E5b
    2. Antenna gain: Q23 2dBi
    3. Characteristic impedance: 50 ohms
    4. Polarization mode: RHCP (right-hand circular polarization)
    5. Coverage angle: 360 degrees
    6. Size: 56 x 23 (mm)

    Amplifier characteristics
    1. Gain: 28dB
    2. Noise figure: 1.5dB
    3. Operating voltage: 3.3V ~ 16V DC
    4. Operating current: 13mA
    Specification:
    Package Weight
    One Package Weight 0.08kgs / 0.19lb
    One Package Size 8cm * 8cm * 5cm / 3.15inch * 3.15inch * 1.97inch
    Qty per Carton 144
    Carton Weight 12.70kgs / 28.00lb
    Carton Size 50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch
    Loading Container 20GP: 490 cartons * 144 pcs = 70560 pcs
    40HQ: 1137 cartons * 144 pcs = 163728 pcs
