Waveshare RS485-HUB-8P Industrial-grade Isolated 8-ch RS485 Hub, Rail-mount Support, Wide Baud Rate Range

Description


1. Interface standard: compliant with RS485 standard
2. Physical interface: RS485 wiring terminal
3. Communication rate: 300-460800bps baud rate (adaptive)
4. Support points: each RS485 interface can support up to 32 nodes
5. Communication distance: 1200m (9600bps), the higher the communication rate, the shorter the distance
6. Working mode: RS485 two-wire (A, B), half-duplex transparent transmission
7. Power supply voltage: DC 9-24V
8. Transmission medium: ordinary parallel wire/twisted pair
9. Size: about 12.1 x 7.2 x 3cm

Features:

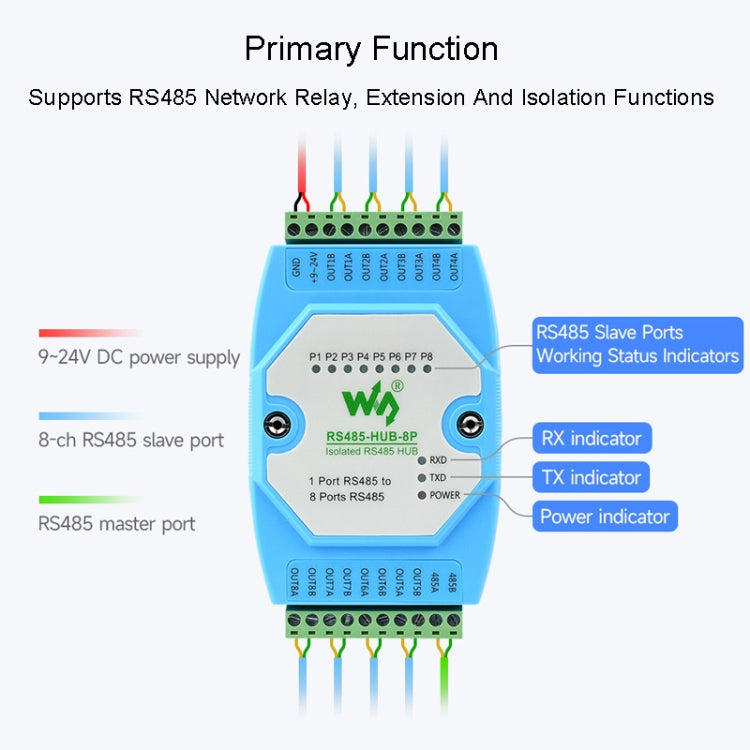

1. 8-way RS485 slave port can be extended by one 485 master port with isolation and relay
2. RS485 network relay, extension and isolation functions can be realized
3. The isolated RS485 interface at the RS485 master port can be connected to RS485 master control devices, and the extended 8-way isolated RS485 interface can be externally connected to various RS485 slave devices, such as RS485 sensors, etc.
4. Built-in optoelectronic isolation protection circuit, RS485 master and slave devices are isolated, which can effectively protect RS485 master and slave devices from the damage of ground potential difference between devices, static electricity, surge, which can be applied to industrial environment with high requirements of reliability and safety
5. Wide baud rate range, support 300-460800bps wide baud rate communication range (self-adaptive)
6. Support 35mm standard rail with rail clips, easy to install

Waveshare RS485-HUB-8P Industrial-grade Isolated 8-ch RS485 Hub, Rail-mount Support, Wide Baud Rate Range

Product form

SKU: TBD04144801

  • In stock (Processing Time 1 - 72 hours)

491,94 kr

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Interface standard: compliant with RS485 standard
    2. Physical interface: RS485 wiring terminal
    3. Communication rate: 300-460800bps baud rate (adaptive)
    4. Support points: each RS485 interface can support up to 32 nodes
    5. Communication distance: 1200m (9600bps), the higher the communication rate, the shorter the distance
    6. Working mode: RS485 two-wire (A, B), half-duplex transparent transmission
    7. Power supply voltage: DC 9-24V
    8. Transmission medium: ordinary parallel wire/twisted pair
    9. Size: about 12.1 x 7.2 x 3cm

    Features:
    1. 8-way RS485 slave port can be extended by one 485 master port with isolation and relay
    2. RS485 network relay, extension and isolation functions can be realized
    3. The isolated RS485 interface at the RS485 master port can be connected to RS485 master control devices, and the extended 8-way isolated RS485 interface can be externally connected to various RS485 slave devices, such as RS485 sensors, etc.
    4. Built-in optoelectronic isolation protection circuit, RS485 master and slave devices are isolated, which can effectively protect RS485 master and slave devices from the damage of ground potential difference between devices, static electricity, surge, which can be applied to industrial environment with high requirements of reliability and safety
    5. Wide baud rate range, support 300-460800bps wide baud rate communication range (self-adaptive)
    6. Support 35mm standard rail with rail clips, easy to install
