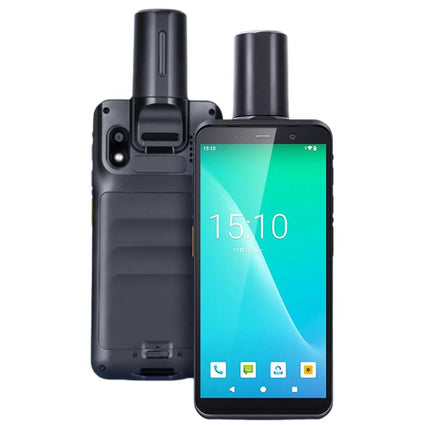

Yokoscan TC60RTK Android Dynamic Positioning Mapping Handheld Terminal UK Plug


1. Features a 6.0-inch high-brightness full-screen display that ensures clear visibility of screen content even in bright light and direct sunlight
2. Equipped with an 8-megapixel front-facing camera and a 13-megapixel rear main camera with a flash; the flash delivers a maximum current output of 1A and can serve as an emergency flashlight, ensuring clear images for everyday photography and on-site evidence collection

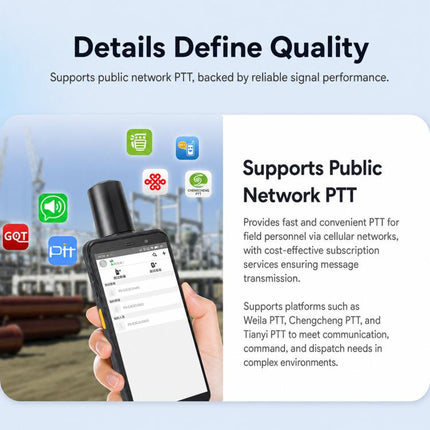

3. Supports public network PTT (Push-to-Talk) for one-touch communication, enabling real-time two-way radio communication for field personnel via cellular networks

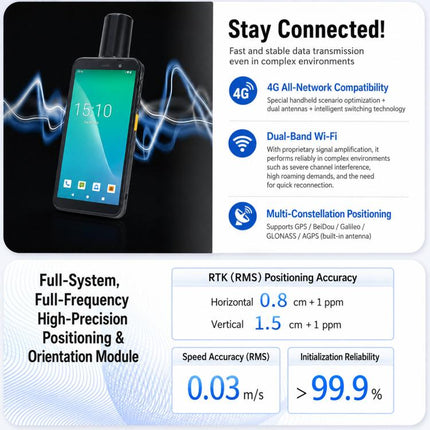

4. Equipped with dual-band Wi-Fi and a dedicated signal amplification module for stable, uninterrupted network connectivity
5. Compatible with multiple satellite systems including GPS, BeiDou, Galileo, GLONASS, and AGPS; features a built-in positioning antenna for precise location tracking
6. High-capacity removable lithium battery for long-lasting battery life
7. Reinforced overall structure; the body is water-resistant, and the casing is highly durable, scratch-resistant, and wear-resistant
8. Octa-core processor delivers high-performance computing and smooth operation

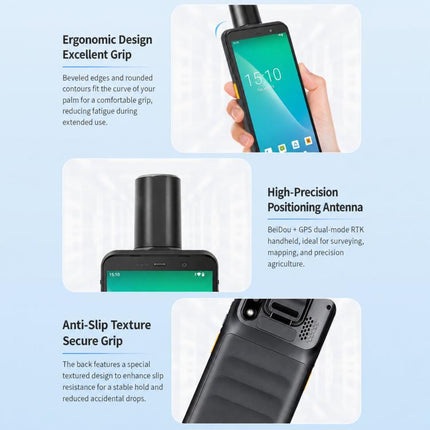

9. Ergonomic body design minimizes soreness and fatigue during extended use

Specifications
1. CPU: MTK8781, octa-core 2.2GHz, 2 x Arm Cortex-A76 up to 2.2GHz, 6 x Arm Cortex-A55 up to 2.0GHz
2. Operating System: Android 14
3. Memory: RAM: 4GB LPDDR4X 4266MHz; ROM: 64GB
4. Expandable storage: supported; MicroSD up to 1TB; supports SDIO-encrypted T-cards
5. Display: 5.99-inch TFT (IPS)
6. Resolution: HD+, 720 x 1440
7. Touchscreen: INCELL multi-touch capacitive

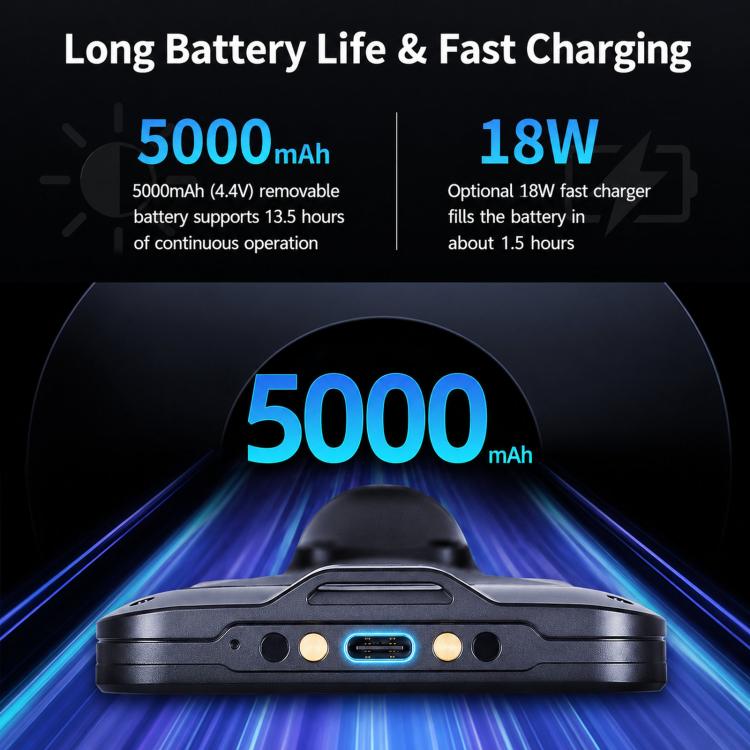

8. Main battery: 5000mAh (4.4V), tool-free removal of the integrated battery (lithium-polymer, supports 0V charging); supports RTC battery (on-board button cell battery for maintaining time during battery replacement)
9. Cover glass: full lamination (1.1mm tempered glass cover)
10. Charging time: about 4.5 hours (using a 10W charger) about 3 hours (using a 15W fast charger)
11. Standby time: 168 hours (7 days); operating time: 13.5 hours; about 9.5 hours with LCD brightness and volume set to maximum
12. Audio: supports MIC (dual silicone microphones); supports noise cancellation; supports PA-type audio; supports speaker (100dB loudspeaker); Supports motor; supports earpiece
13. Port: USB Type-C port
14. I/O ports: USB x 1: standard Type-C port (USB 2.0 device, supports OTG), waterproof body; 2-pin charging dock x 1 (5V~2A, supports UC100 universal charging dock)
15. Buttons: left side of the device (FN key + 2 volume keys); right side of the device (FN key + Power key + FN key)
16. Cameras: front camera: 8 MP, fixed focus (FF), f/2.4; main camera: 13 MP, PDAF, f/2.2; supports flash (maximum current 1A, supports flashlight function)
17. Sensors: proximity sensor, gravity accelerometer, Hall sensor, geomagnetic sensor, gyroscope
18. Card slot type: SIM card slots: NanoSIM + NanoSIM/TF (built-in choose two out of three card tray-style battery compartment)
19. Status indicator: three-color LED: Slow flashing for low battery, red for charging, green for full charge
20. SIM mode: supports dual-SIM dual-standby; supports primary/secondary SIM switching
21. Voice solutions: VoLTE, ViLTE, VoWiFi
22. Positioning: GPS/Beidou/Galileo/GLONASS/AGPS (built-in antenna)
23. NFC: ISO 18092, ISO 14443 A/B, ISO 15693 protocols, Mifare compliance
24. Bluetooth: BLE 5.2, 3.0+HS, 2.1+EDR
25. Operating temperature: -20°C to 55°C
26. Storage temperature: -40°C to 70°C
27. Humidity: 5%RH to 95%RH (non-condensing)

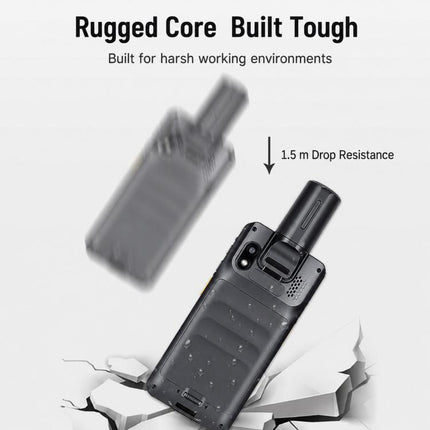

28. Drop resistance: withstands multiple drops from a height of 1.5 meters onto a smooth concrete surface
29. IP Rating: IP67 (waterproof, dustproof, and shockproof)
30. Electrostatic discharge (ESD) protection: ±12 kV air discharge, ±8 kV contact discharge
31. Material: high-strength engineering plastic
Specification:
Package Weight
One Package Weight 0.46kgs / 1.02lb
One Package Size 25cm * 14cm * 6cm / 9.84inch * 5.51inch * 2.36inch
Qty per Carton 16
Carton Weight 9.00kgs / 19.84lb
Carton Size 50cm * 30cm * 27cm / 19.69inch * 11.81inch * 10.63inch
Loading Container 20GP: 658 cartons * 16 pcs = 10528 pcs
40HQ: 1528 cartons * 16 pcs = 24448 pcs

Yokoscan TC60RTK Android Dynamic Positioning Mapping Handheld Terminal UK Plug

Product form

SKU: TBD0607085403

  • In stock (Processing Time 1 - 72 hours)

7.302,45 kr

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Features a 6.0-inch high-brightness full-screen display that ensures clear visibility of screen content even in bright light and direct sunlight
    2. Equipped with an 8-megapixel front-facing camera and a 13-megapixel rear main camera with a flash; the flash delivers a maximum current output of 1A and can serve as an emergency flashlight, ensuring clear images for everyday photography and on-site evidence collection
    3. Supports public network PTT (Push-to-Talk) for one-touch communication, enabling real-time two-way radio communication for field personnel via cellular networks
    4. Equipped with dual-band Wi-Fi and a dedicated signal amplification module for stable, uninterrupted network connectivity
    5. Compatible with multiple satellite systems including GPS, BeiDou, Galileo, GLONASS, and AGPS; features a built-in positioning antenna for precise location tracking
    6. High-capacity removable lithium battery for long-lasting battery life
    7. Reinforced overall structure; the body is water-resistant, and the casing is highly durable, scratch-resistant, and wear-resistant
    8. Octa-core processor delivers high-performance computing and smooth operation
    9. Ergonomic body design minimizes soreness and fatigue during extended use

    Specifications
    1. CPU: MTK8781, octa-core 2.2GHz, 2 x Arm Cortex-A76 up to 2.2GHz, 6 x Arm Cortex-A55 up to 2.0GHz
    2. Operating System: Android 14
    3. Memory: RAM: 4GB LPDDR4X 4266MHz; ROM: 64GB
    4. Expandable storage: supported; MicroSD up to 1TB; supports SDIO-encrypted T-cards
    5. Display: 5.99-inch TFT (IPS)
    6. Resolution: HD+, 720 x 1440
    7. Touchscreen: INCELL multi-touch capacitive
    8. Main battery: 5000mAh (4.4V), tool-free removal of the integrated battery (lithium-polymer, supports 0V charging); supports RTC battery (on-board button cell battery for maintaining time during battery replacement)
    9. Cover glass: full lamination (1.1mm tempered glass cover)
    10. Charging time: about 4.5 hours (using a 10W charger) about 3 hours (using a 15W fast charger)
    11. Standby time: 168 hours (7 days); operating time: 13.5 hours; about 9.5 hours with LCD brightness and volume set to maximum
    12. Audio: supports MIC (dual silicone microphones); supports noise cancellation; supports PA-type audio; supports speaker (100dB loudspeaker); Supports motor; supports earpiece
    13. Port: USB Type-C port
    14. I/O ports: USB x 1: standard Type-C port (USB 2.0 device, supports OTG), waterproof body; 2-pin charging dock x 1 (5V~2A, supports UC100 universal charging dock)
    15. Buttons: left side of the device (FN key + 2 volume keys); right side of the device (FN key + Power key + FN key)
    16. Cameras: front camera: 8 MP, fixed focus (FF), f/2.4; main camera: 13 MP, PDAF, f/2.2; supports flash (maximum current 1A, supports flashlight function)
    17. Sensors: proximity sensor, gravity accelerometer, Hall sensor, geomagnetic sensor, gyroscope
    18. Card slot type: SIM card slots: NanoSIM + NanoSIM/TF (built-in choose two out of three card tray-style battery compartment)
    19. Status indicator: three-color LED: Slow flashing for low battery, red for charging, green for full charge
    20. SIM mode: supports dual-SIM dual-standby; supports primary/secondary SIM switching
    21. Voice solutions: VoLTE, ViLTE, VoWiFi
    22. Positioning: GPS/Beidou/Galileo/GLONASS/AGPS (built-in antenna)
    23. NFC: ISO 18092, ISO 14443 A/B, ISO 15693 protocols, Mifare compliance
    24. Bluetooth: BLE 5.2, 3.0+HS, 2.1+EDR
    25. Operating temperature: -20°C to 55°C
    26. Storage temperature: -40°C to 70°C
    27. Humidity: 5%RH to 95%RH (non-condensing)
    28. Drop resistance: withstands multiple drops from a height of 1.5 meters onto a smooth concrete surface
    29. IP Rating: IP67 (waterproof, dustproof, and shockproof)
    30. Electrostatic discharge (ESD) protection: ±12 kV air discharge, ±8 kV contact discharge
    31. Material: high-strength engineering plastic
    Specification:
    Package Weight
    One Package Weight 0.46kgs / 1.02lb
    One Package Size 25cm * 14cm * 6cm / 9.84inch * 5.51inch * 2.36inch
    Qty per Carton 16
    Carton Weight 9.00kgs / 19.84lb
    Carton Size 50cm * 30cm * 27cm / 19.69inch * 11.81inch * 10.63inch
    Loading Container 20GP: 658 cartons * 16 pcs = 10528 pcs
    40HQ: 1528 cartons * 16 pcs = 24448 pcs
