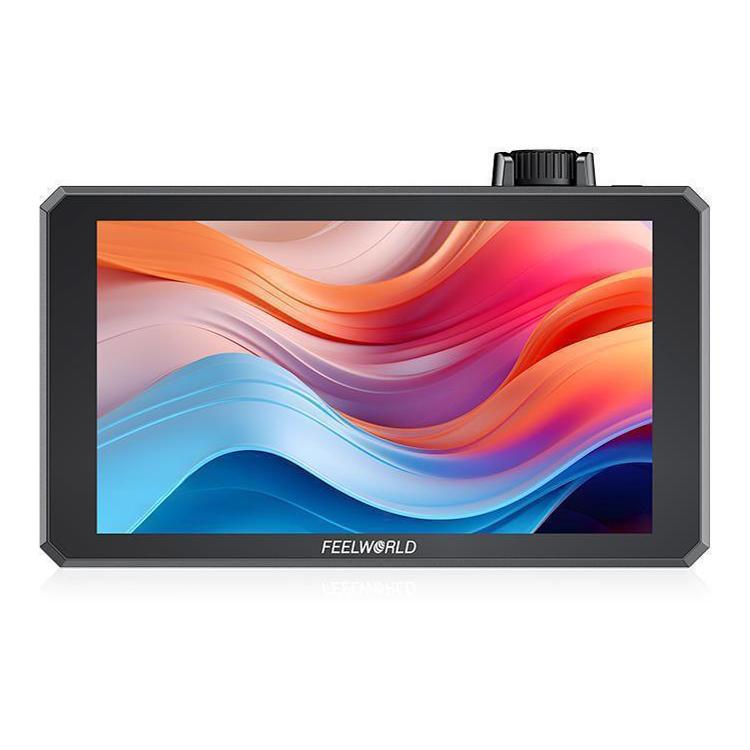

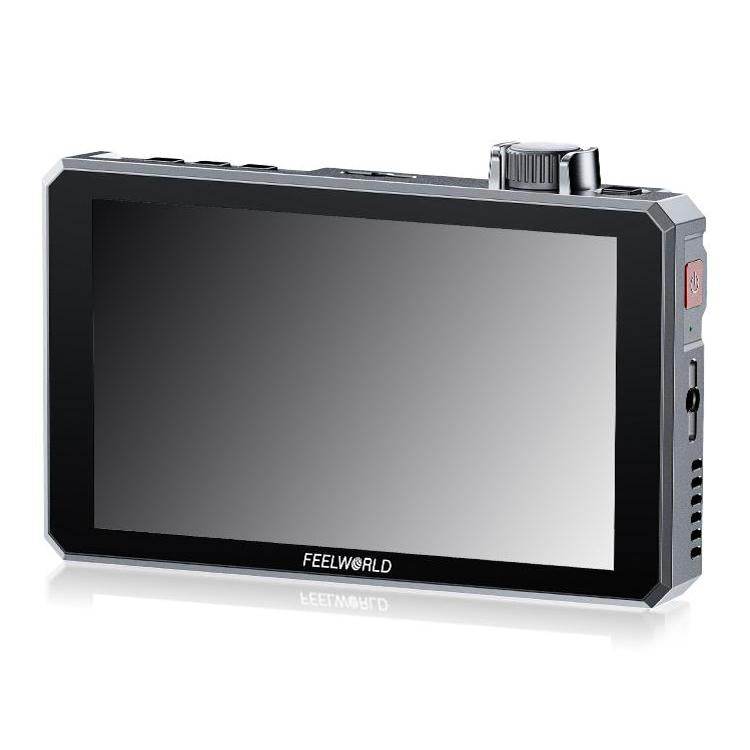

FEELWORLD SC6 6-inch 1500nit High Brightness Aluminium Filed Camera Video Monitor 3G SDI 4K HDMI-compatible 60Hz 1920 x 1080 IPS Screen(Black)

Display Spec.
1. Model: SC6
2. Screen Size: 6 inch IPS
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.069(L) x 0.069(W) mm (mm)
5. Color Depth: 8bit
6. Aspect Ratio: 16:9

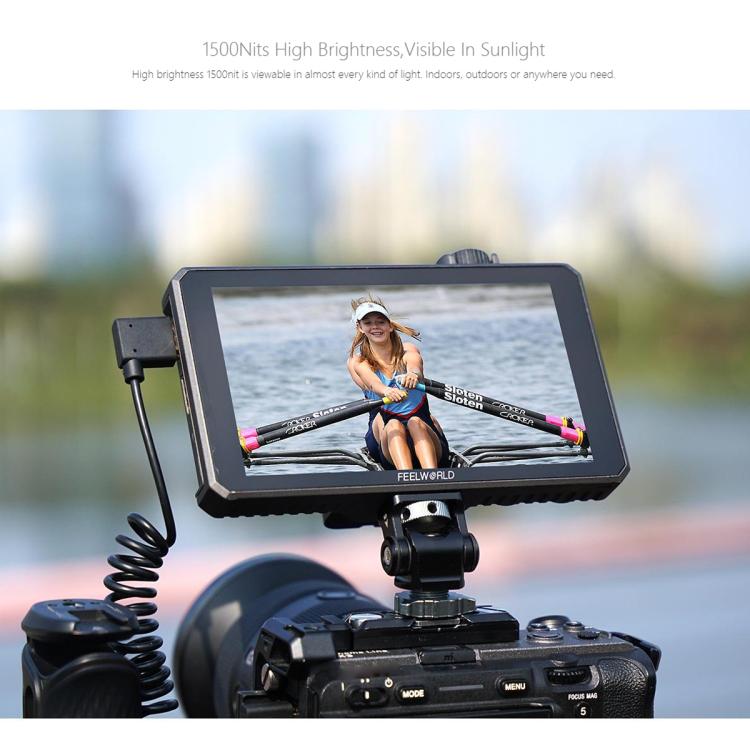

7. Brightness: 1500cd/m2
8. Contrast Ratio: 1000:1
9. Response Time: Ton+Toff=35ms
10. Backlight: LED
11. Viewing Angle: 80 degree /80 degree (L/R) / 80 degree / 80 degree (U/D)

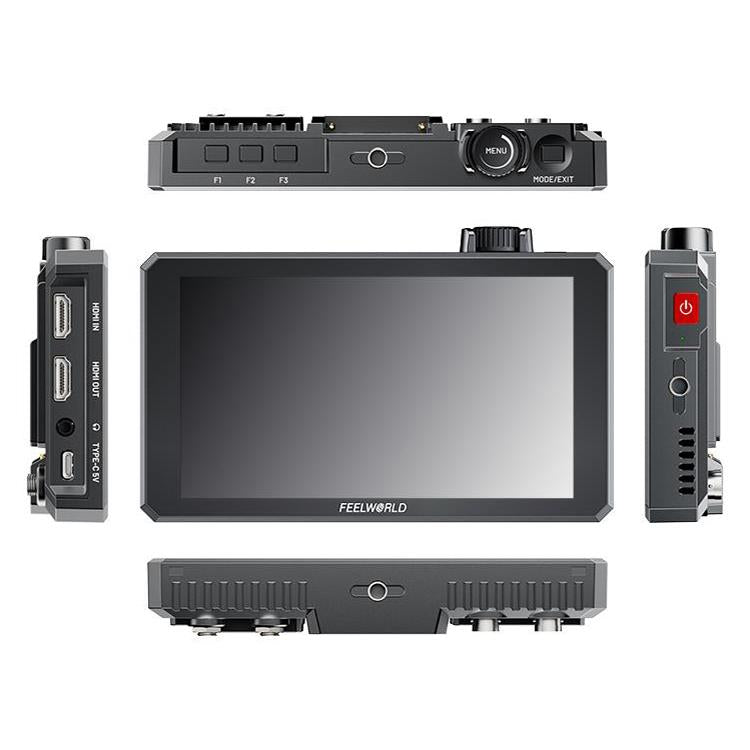

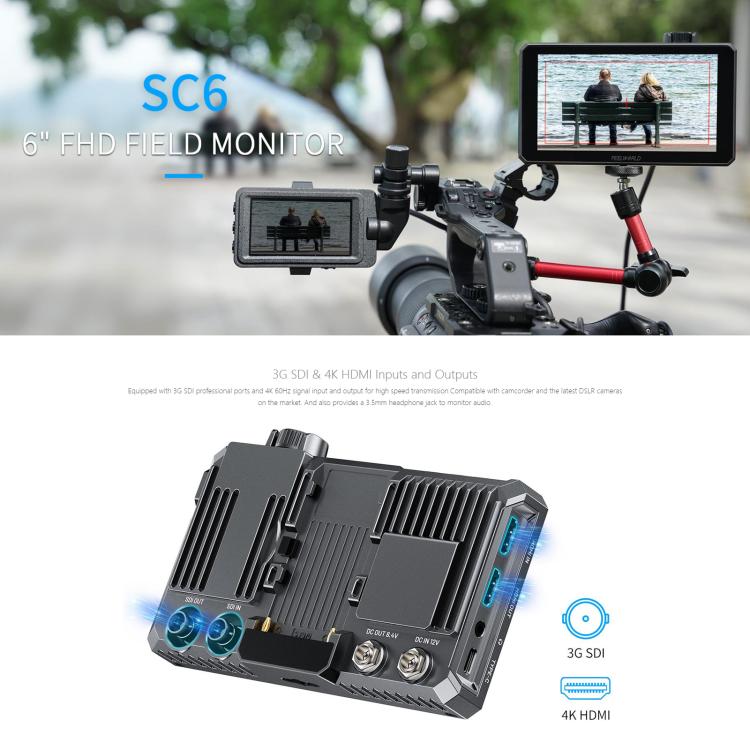

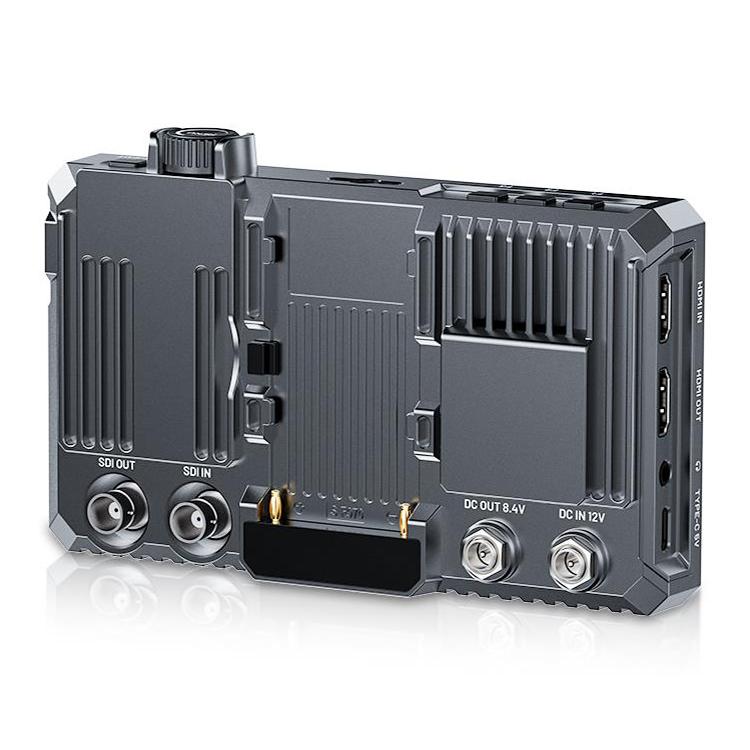

Input
1. 1 x SDI: 3G-SDI
2. 1 x HDMI-compatible: HDMI-compatible 2.0
3. 1 x USB: USB-C(LUT file import and Firmware update)

Output
1. 1 x SDI: 3G-SDI
2. 1 x HDMI-compatible : HDMI-compatible 2.0

Audio
Audio: 3.5mm Stereo Headphone

3G-SDI Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI-compatible Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
5. 4K 4096 x 2160p(60/50/30/29.97/25/24/23.98)

General

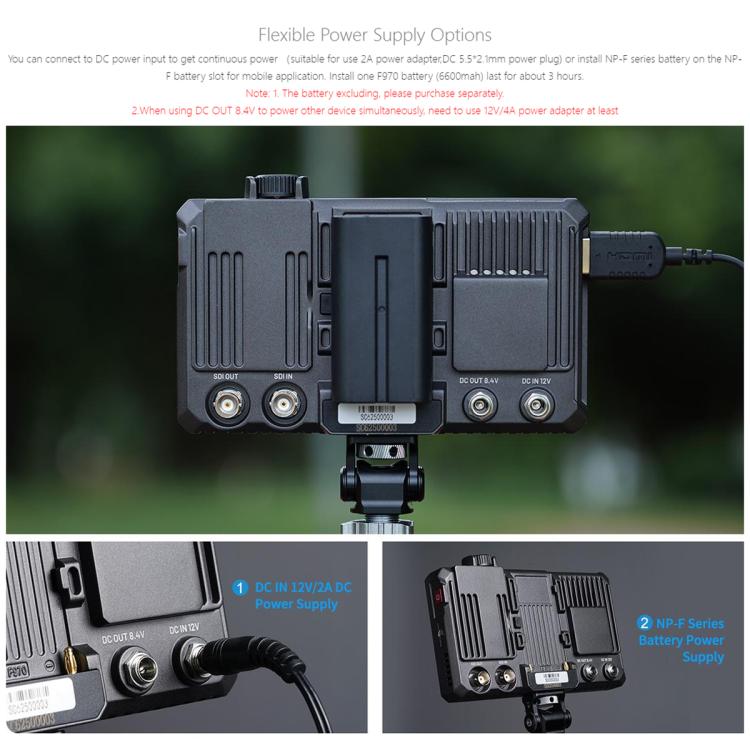

1. Power Input: DC IN 12V, Barrel (5.5mm outer, 2.1mm inner)
2. Power Output: DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner)Can be power for DSLR or mirrorless camera
3. Input Voltage: DC7~24V
4. Power Consumption: Less than or equal to 18W
5. Battery Slot: NP-F Battery Slot
6. Working Temperature: -20 degree C~50 degree C
7. Storage Temperature: -30 degree C~60 degree C
8. Install Way: 1/4-20 Thread Point (Top, Right side, bottom)
9. Unit Size: 165x103x28.8 (mm)
10. Unit Weight: 398g

Advanced Features

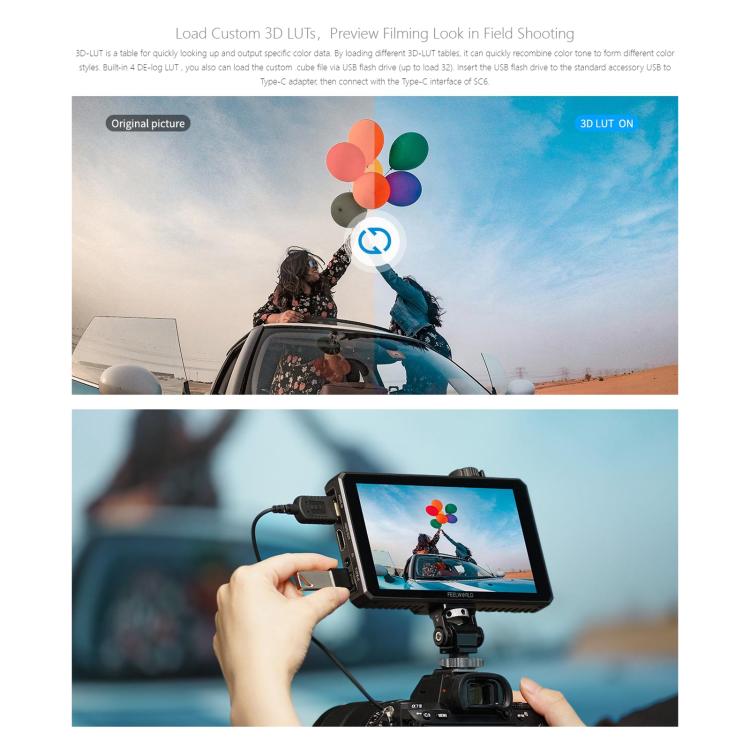

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

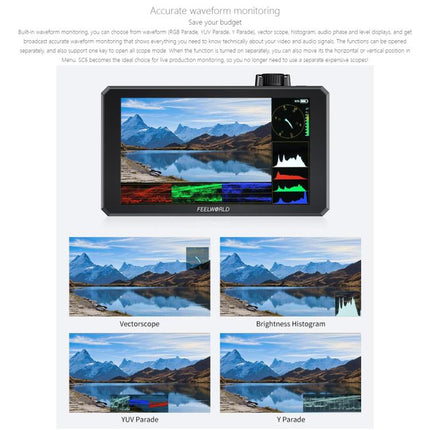

2. All waves

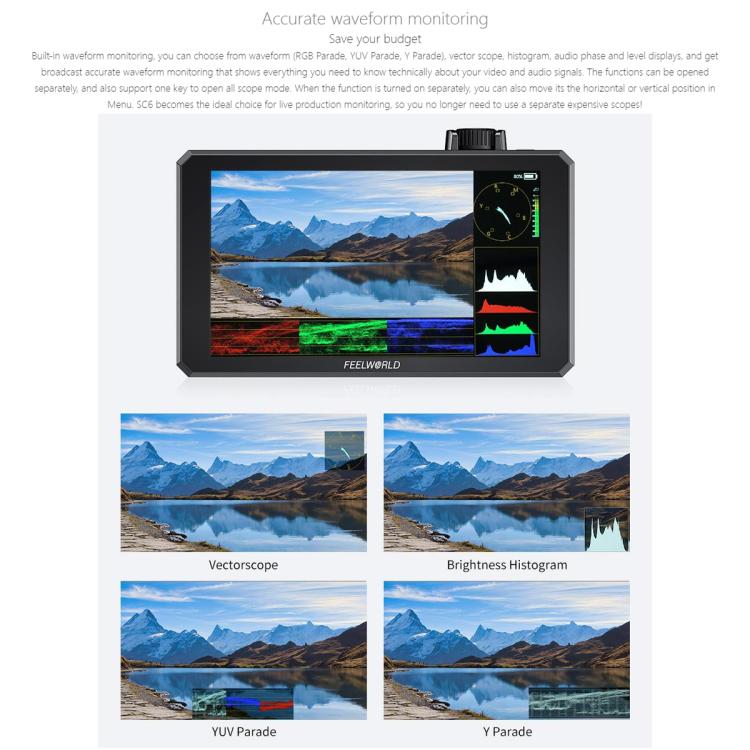

3. Waveform (RGB, YUV, Y)
4. HDR
5. Vector
6. Histogram (RGB1, RGB2, Y)
7. Embedded Audio

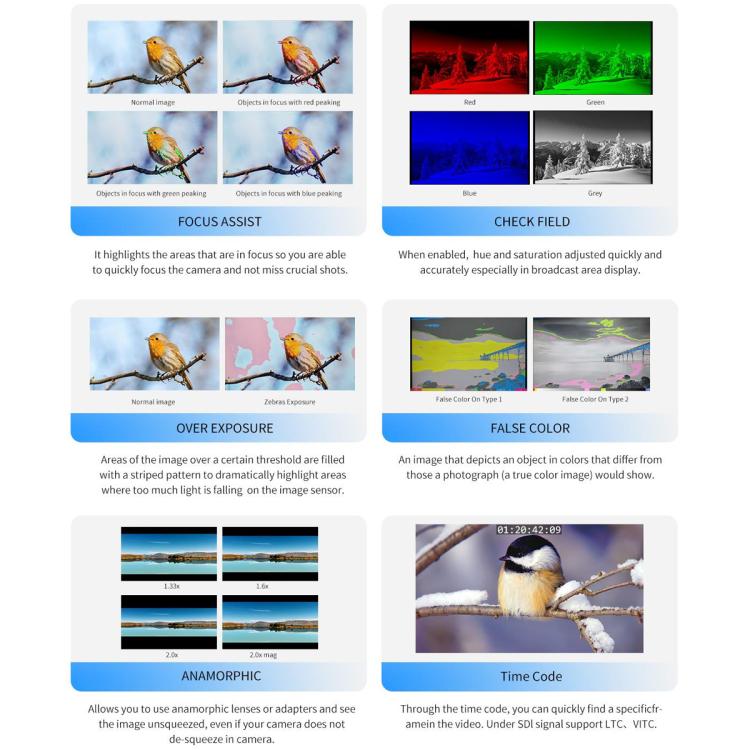

8. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
9. False Colors (Normal, ARRI)
10. Zebra Pattern (10IRE~100IRE adjustable)
11. Check Field (Red, Green, Blue, Mono)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
14. Image Flip (H Flip, V Flip, H_V Flip )
15. Image Freeze
16. Center Marker
17. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)

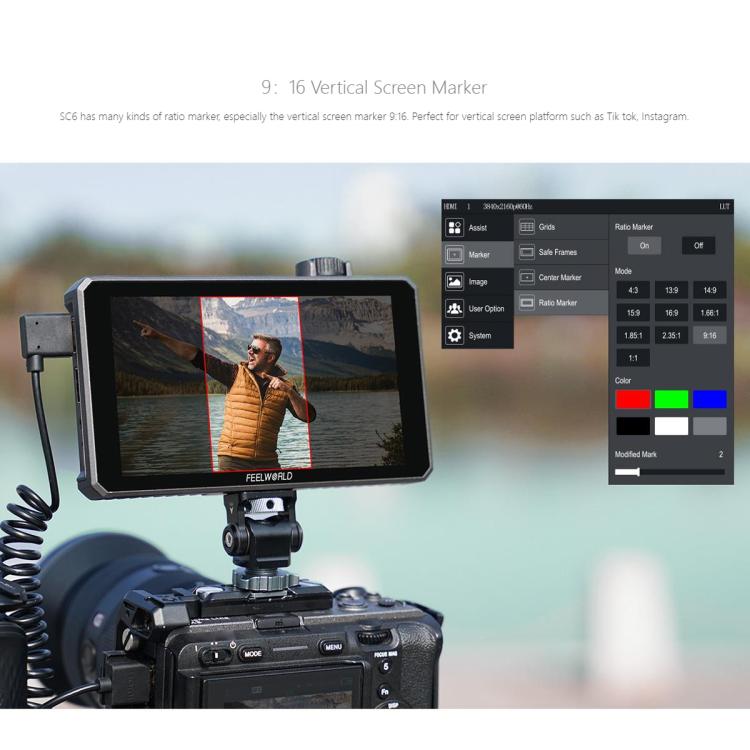

19. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
20. Marker Color (Red, Green, Blue, Black, White, Gray)
21. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9)
22. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%)
23. Pixel to Pixel
24. SDI Time Code(LTC, VITC)
25. Display Range( Auto, Limit, Full)
26. EDID Settings(2.0,1.4)

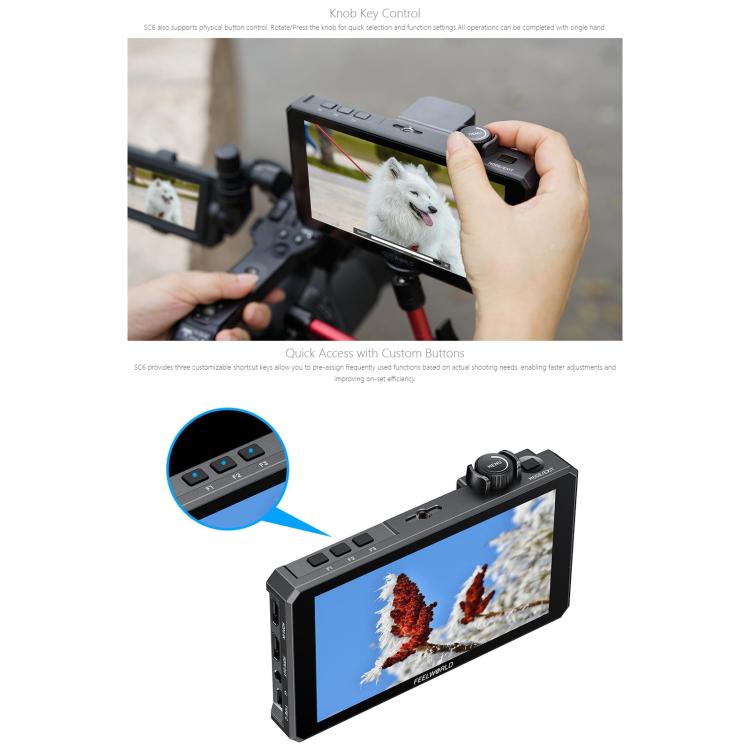

27. User Switch (1~4)
28. OSD Time(Off, 15Sec, 30Sec, 45Sec)
29. OSD Transparency (Off, 25%, 50%, 75%)
30. The background color of screen when no signal (Red, Green, Blue, Black, White, Gray)

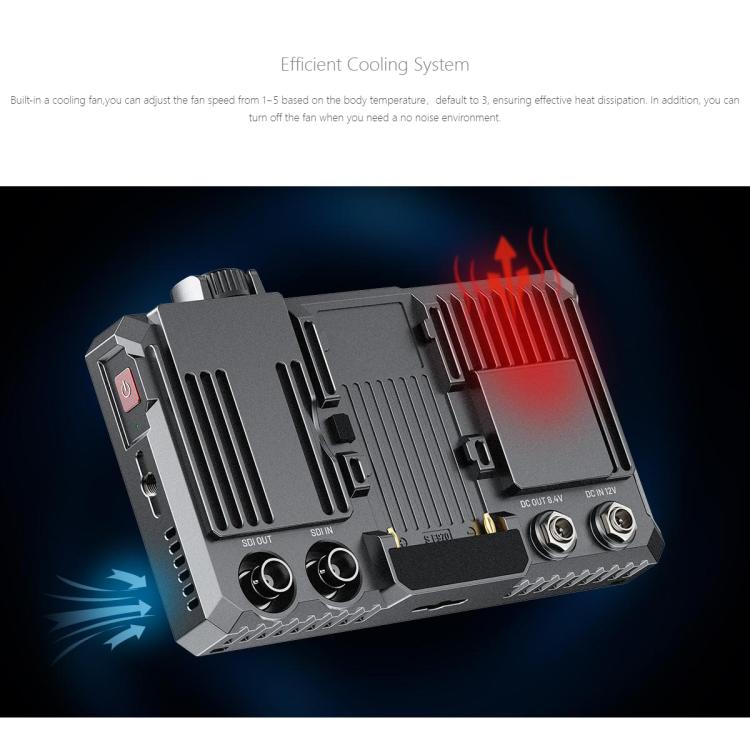

31. Cooling Fan (1~5 can be adjusted)
32. Power Settings (Auto, Manual)
33. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)

Packaging List:
1. Monitor x 1
2. Micro HDMI-compatible Cable x 1
3. HDMI-compatible Cable x 1

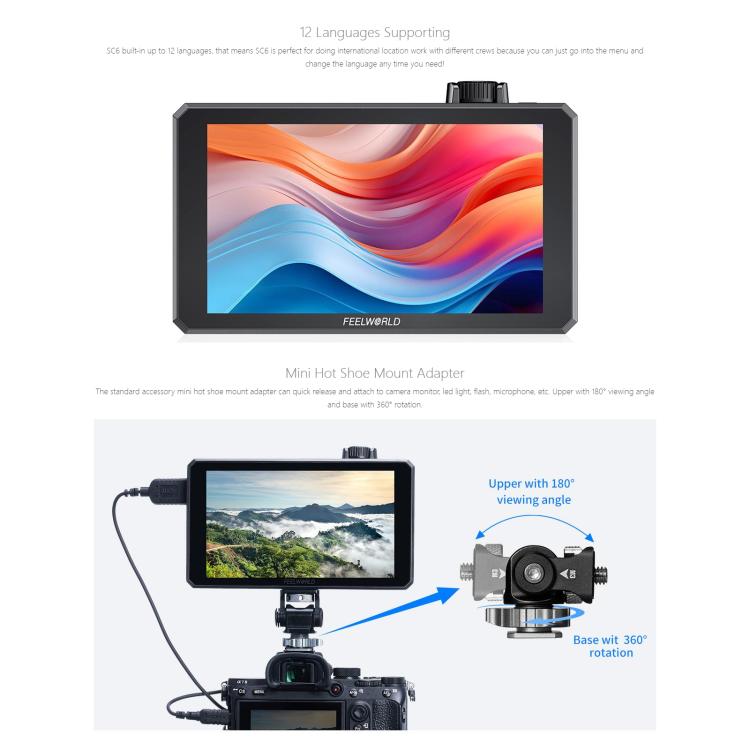

4. Mini Hot shoe mount + Hex Wrench x 1
5. USB-A to USB-C Adapter x 1

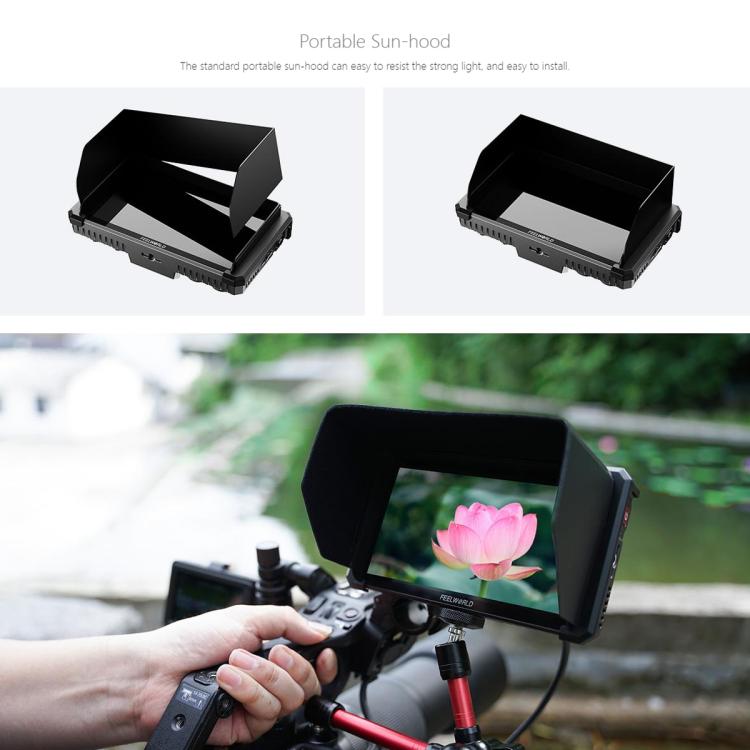

6. Sun Shade + Frame x 1
7. Cable Management Tie x 1
8. Manual x 1


Specification:
Package Weight
One Package Weight 0.80kgs / 1.77lb
One Package Size 24cm * 15cm * 10cm / 9.45inch * 5.91inch * 3.94inch
Qty per Carton 10
Carton Weight 9.00kgs / 19.84lb
Carton Size 50cm * 24cm * 34cm / 19.69inch * 9.45inch * 13.39inch
Loading Container 20GP: 653 cartons * 10 pcs = 6530 pcs
40HQ: 1517 cartons * 10 pcs = 15170 pcs
