WAVESHARE 34958 ESP32-C5 2.8 Inch IPS Capacitive Touch Display Development Board Integrated Dual-Band Wi-Fi & Bluetooth 5 No Battery

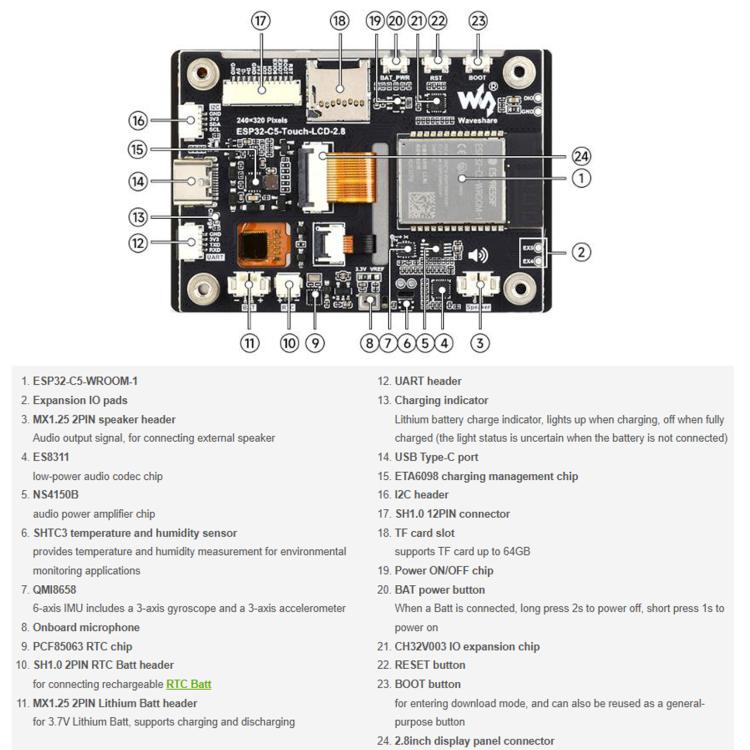

1. Utilizing the ESP32-C5-WROOM-1 series module, equipped with a 32-bit RISC-V processor with a maximum frequency of 240 MHz
2. Integrating 384KB SRAM, 320KB ROM, 8MB PSRAM and 32MB Flash, meeting the requirements for program execution, graphical interface and data storage
3. Integrating 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE) and IEEE 802.15.4 (supporting Zigbee 3.0 and Thread) wireless communication, featuring excellent radio performance
4. Built-in battery charging management module, with a reserved 3.7V MX1.25 lithium battery interface, allowing external battery connection for power supply
5. Using Type-C interface, eliminating the need to worry about the orientation of insertion, improving user convenience and device compatibility
6. Built-in 2.8-inch LCD screen, with a resolution of 240 x 320 pixels and 262K color
7. Supports I2C interface control for capacitive touch and interrupts

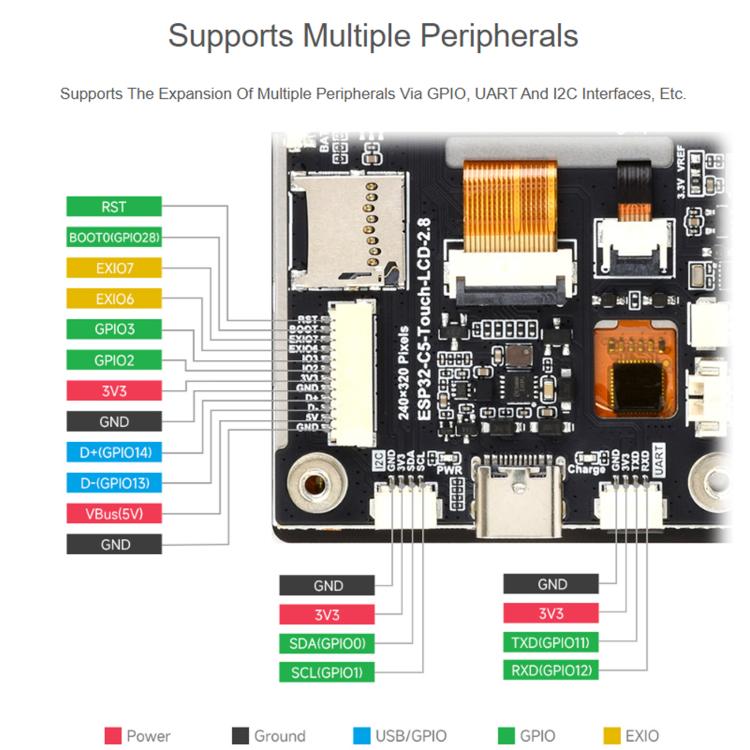

8. Exports UART, I2C and some IO interfaces, integrates full-speed USB serial port
9. Built-in QMI8658 six-axis sensor, RTC clock sensor, SHTC3 temperature and humidity sensor and Micro SD card slot
10. Supports flexible clock, various power modes for precise control, achieving low-power modes in multiple scenarios
11. Built-in ES8311 audio codec chip, NS4150B power amplifier chip, microphone and speaker, enabling smooth gaming with Xiaozhi AI
12. Supports ESP-IDF / Arduino development environments, with abundant resources and easy to get started

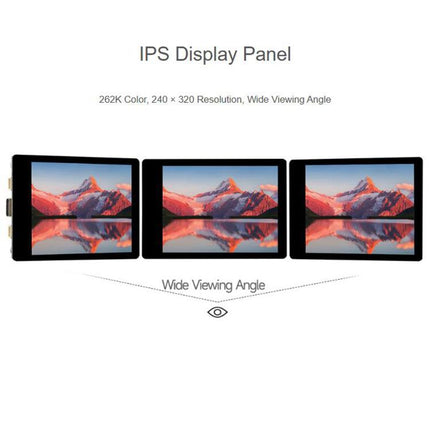

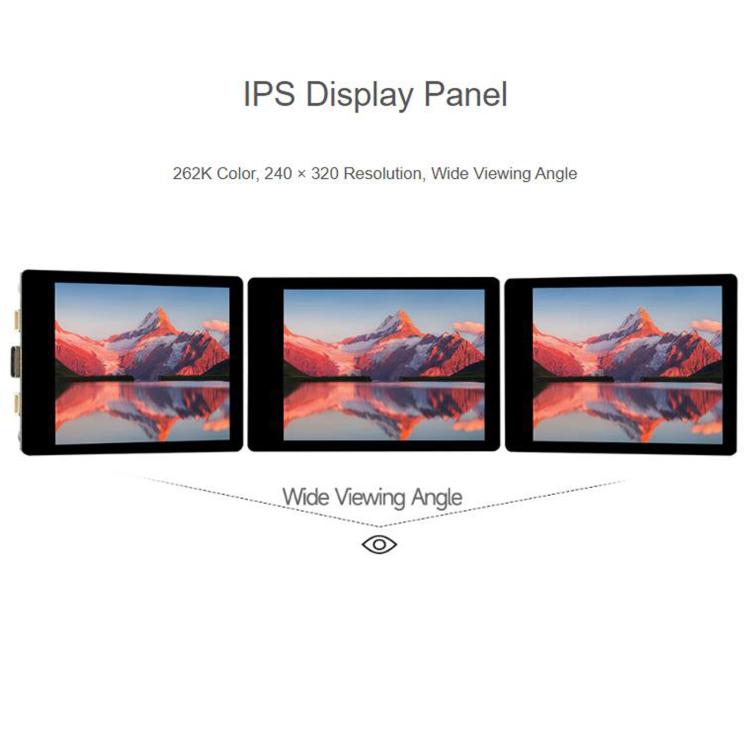

LCD screen parameters
1. Display panel: IPS
2. Display size: 2.8 inches
3. Display resolution: 240 x 320 pixels
4. Display color: 262K
5. Communication interface: 4-wire SPI
6. Driving IC: ST7789
7. Touch IC: CST3530
8. Touch type: capacitive sensing type

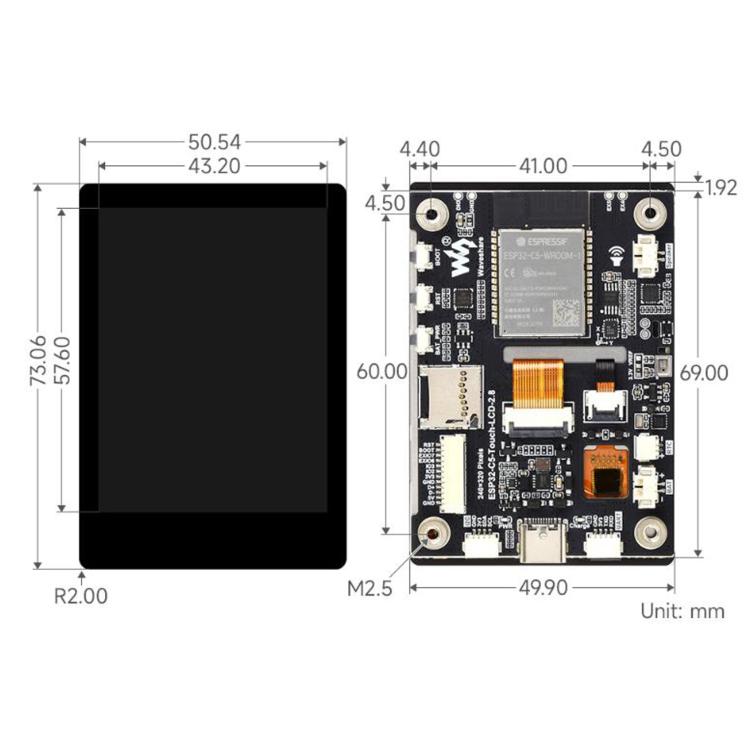

9. Screen effective size: about 5.76 x 4.32 cm
Specification:
Package Weight
One Package Weight 0.06kgs / 0.14lb
One Package Size 10cm * 9cm * 5cm / 3.94inch * 3.54inch * 1.97inch
Qty per Carton 108
Carton Weight 8.00kgs / 17.64lb
Carton Size 47cm * 38cm * 32cm / 18.5inch * 14.96inch * 12.6inch
Loading Container 20GP: 466 cartons * 108 pcs = 50328 pcs
40HQ: 1083 cartons * 108 pcs = 116964 pcs

WAVESHARE 34958 ESP32-C5 2.8 Inch IPS Capacitive Touch Display Development Board Integrated Dual-Band Wi-Fi & Bluetooth 5 No Battery

Product form

SKU: TBD0607132101

  • In stock (Processing Time 1 - 72 hours)

€51,77

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Utilizing the ESP32-C5-WROOM-1 series module, equipped with a 32-bit RISC-V processor with a maximum frequency of 240 MHz
    2. Integrating 384KB SRAM, 320KB ROM, 8MB PSRAM and 32MB Flash, meeting the requirements for program execution, graphical interface and data storage
    3. Integrating 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE) and IEEE 802.15.4 (supporting Zigbee 3.0 and Thread) wireless communication, featuring excellent radio performance
    4. Built-in battery charging management module, with a reserved 3.7V MX1.25 lithium battery interface, allowing external battery connection for power supply
    5. Using Type-C interface, eliminating the need to worry about the orientation of insertion, improving user convenience and device compatibility
    6. Built-in 2.8-inch LCD screen, with a resolution of 240 x 320 pixels and 262K color
    7. Supports I2C interface control for capacitive touch and interrupts
    8. Exports UART, I2C and some IO interfaces, integrates full-speed USB serial port
    9. Built-in QMI8658 six-axis sensor, RTC clock sensor, SHTC3 temperature and humidity sensor and Micro SD card slot
    10. Supports flexible clock, various power modes for precise control, achieving low-power modes in multiple scenarios
    11. Built-in ES8311 audio codec chip, NS4150B power amplifier chip, microphone and speaker, enabling smooth gaming with Xiaozhi AI
    12. Supports ESP-IDF / Arduino development environments, with abundant resources and easy to get started

    LCD screen parameters
    1. Display panel: IPS
    2. Display size: 2.8 inches
    3. Display resolution: 240 x 320 pixels
    4. Display color: 262K
    5. Communication interface: 4-wire SPI
    6. Driving IC: ST7789
    7. Touch IC: CST3530
    8. Touch type: capacitive sensing type
    9. Screen effective size: about 5.76 x 4.32 cm
    Specification:
    Package Weight
    One Package Weight 0.06kgs / 0.14lb
    One Package Size 10cm * 9cm * 5cm / 3.94inch * 3.54inch * 1.97inch
    Qty per Carton 108
    Carton Weight 8.00kgs / 17.64lb
    Carton Size 47cm * 38cm * 32cm / 18.5inch * 14.96inch * 12.6inch
    Loading Container 20GP: 466 cartons * 108 pcs = 50328 pcs
    40HQ: 1083 cartons * 108 pcs = 116964 pcs
