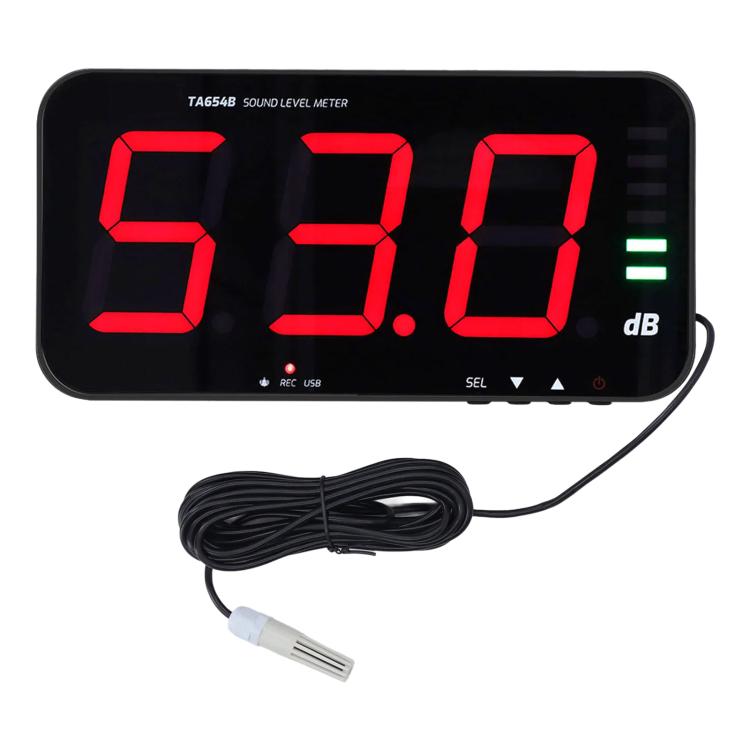

TRSI TA654B Large Screen Wall-mounted Noise Meter Decibel Detector Device

Features:

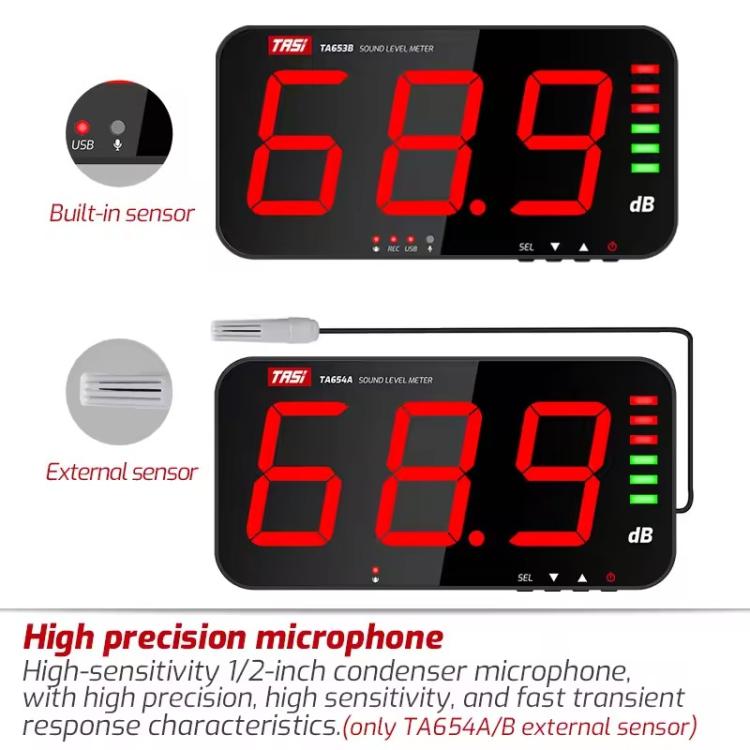

1. High-precision microphone: High-sensitivity 1/2-inch condenser microphone with high precision, high sensitivity and fast instantaneous response characteristics.

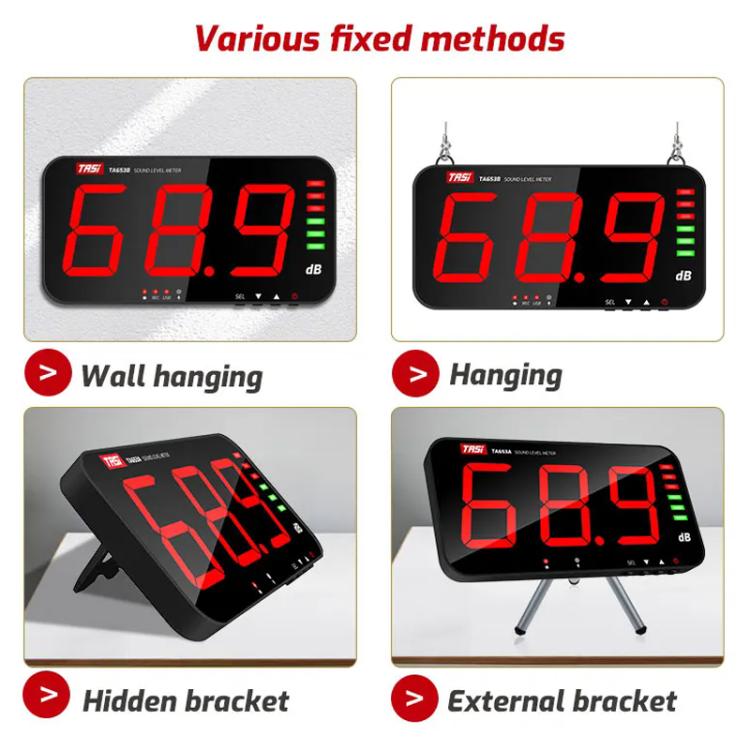

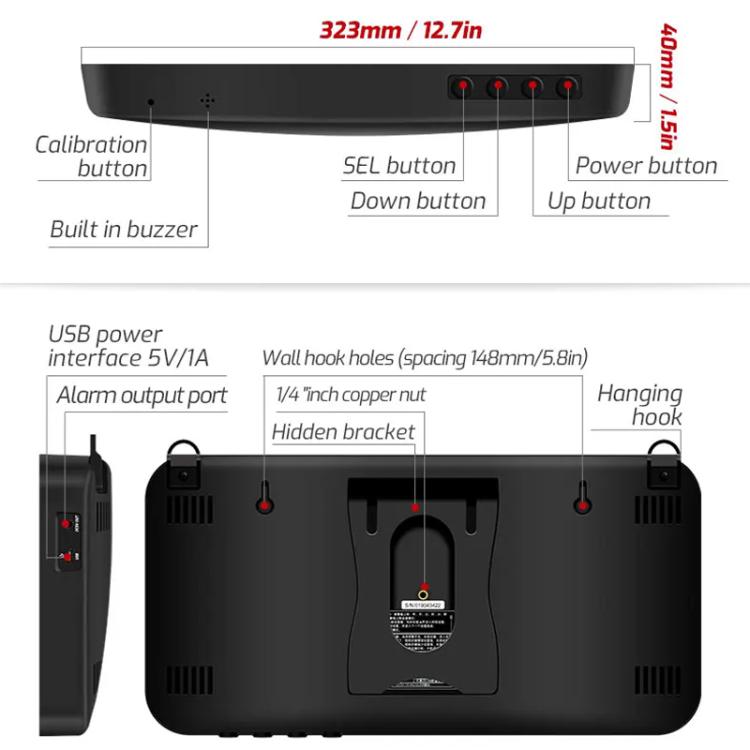

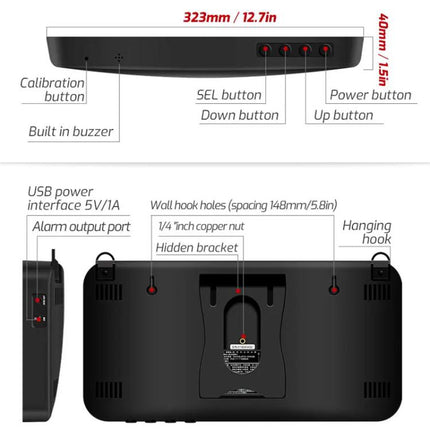

2. Back bracket design: Hidden bracket design, can be placed on the desktop.

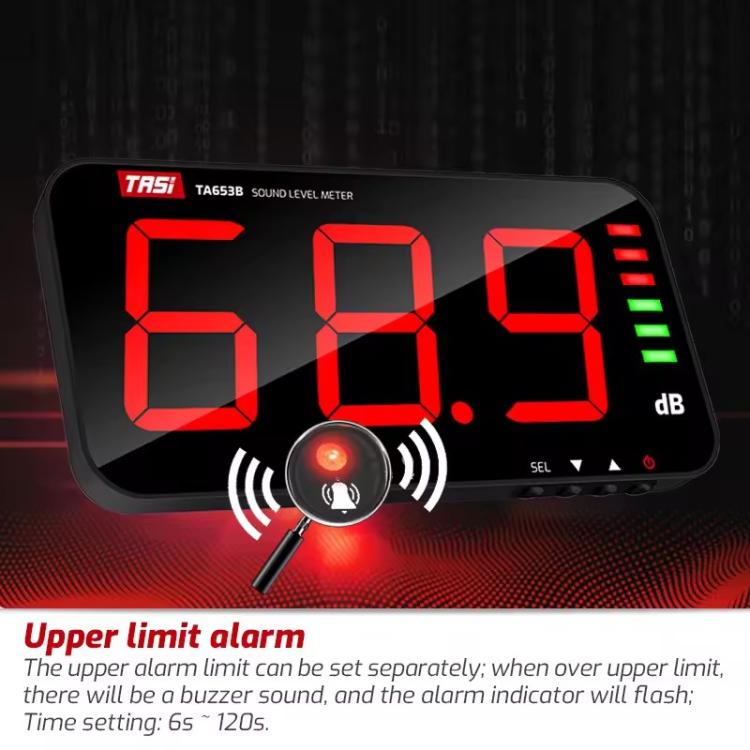

3. Upper limit alarm prompt: The upper limit alarm threshold can be set; when the measurement is higher than the set threshold, the buzzer will sound an alarm prompt, and the alarm prompt light will flash. The time can be set to: 6s~120s.

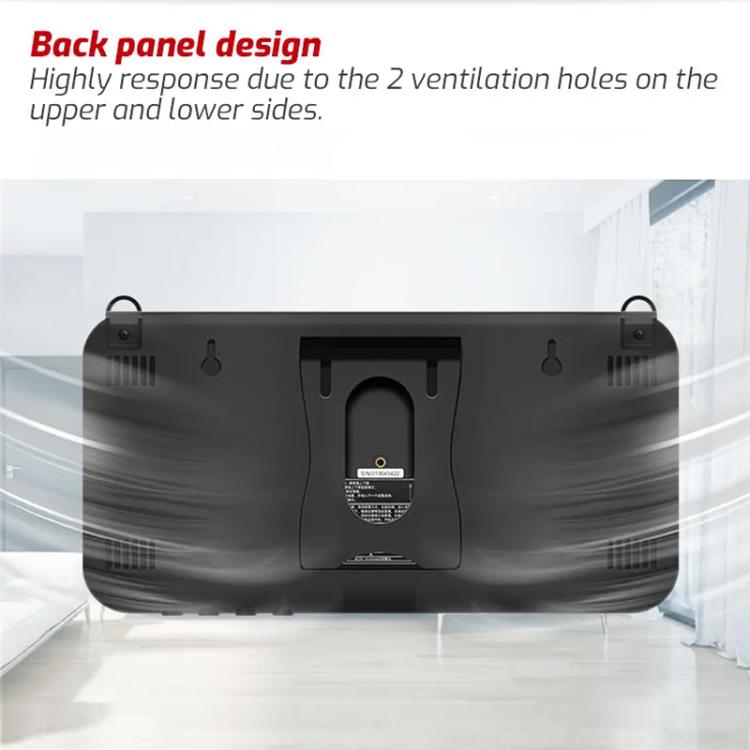

4. Back panel design: There are 2 ventilation holes on the top and bottom, and the response speed is more sensitive.

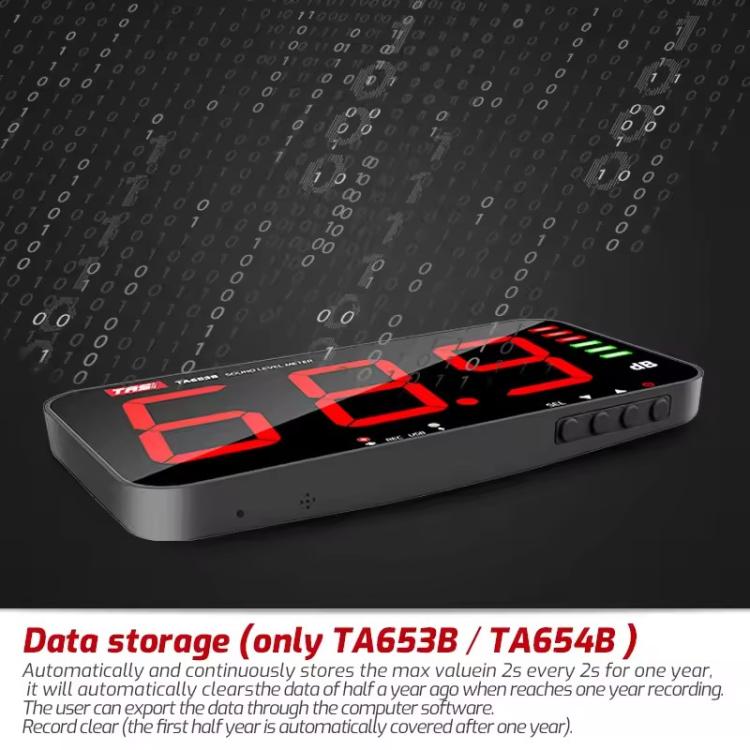

5. Data storage: The instrument automatically stores data every 2s, and the stored value is the maximum noise value in 2s. The instrument can store data continuously for one year. After one year, the instrument automatically clears the data six months ago, and the user can export the data through the computer software. The record can be cleared (automatically overwrite the first half of the year after one year)

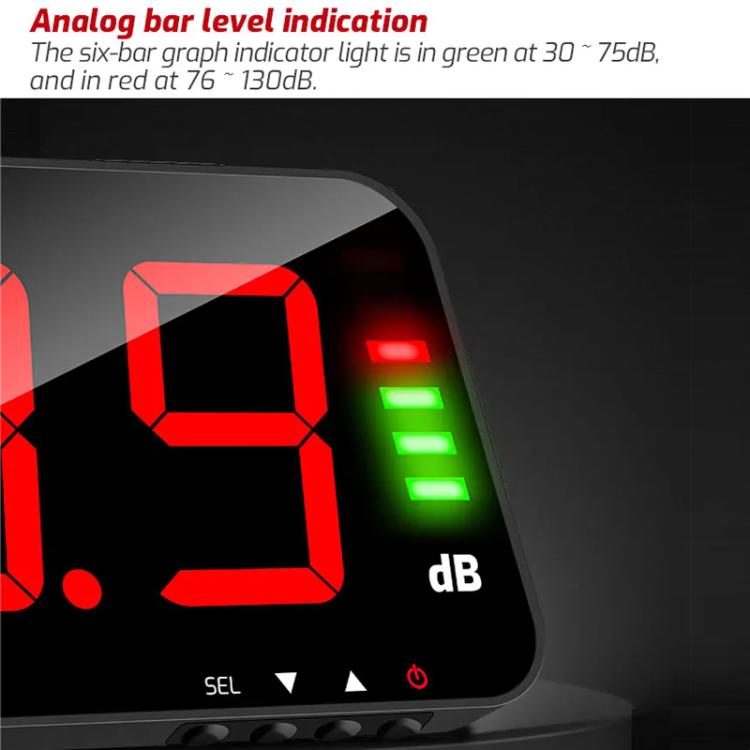

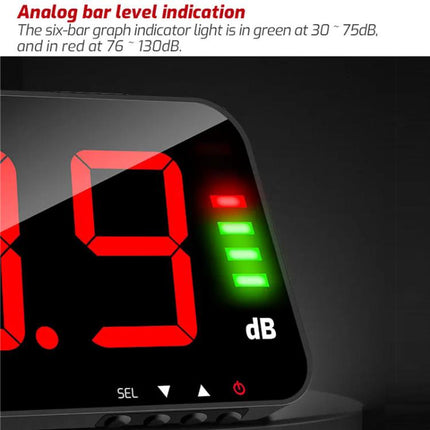

6. Analog bar level indication: The six-grid indicator light 30~75dB displays green, and 76~130dB displays red.

Parameters:
1. Measuring range: 30dB~130dB
2. Accuracy: +/-1.5dB (based on standard sound source, 94dB 1KHz)
3. Resolution: 0.1dB (less than 100dB), 1dB (greater than 100dB)
4. Frequency weighting: A weighting
5. Frequency response: 31.5Hz~8.5KHz
6. Sampling rate: 2 times/second
7. Time weighting: fast 0.5 seconds
8. Sensor type: 6mm condenser microphone sensor
9. Test line length: 5 meters
10. Display mode: LED digital tube, single word 4 inches

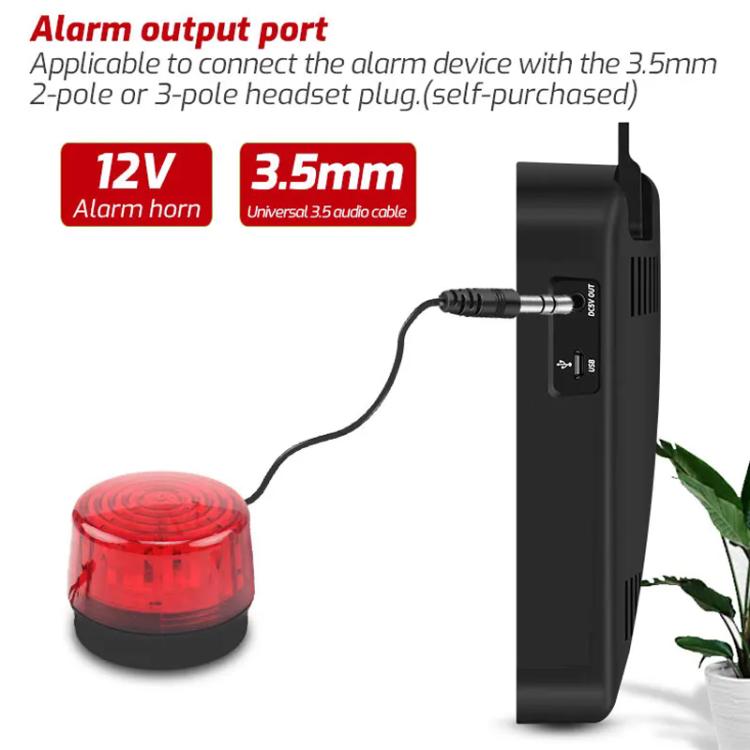

11. Alarm output: 12V high level
12. Alarm prompt: sound + prompt
13. Data storage: support

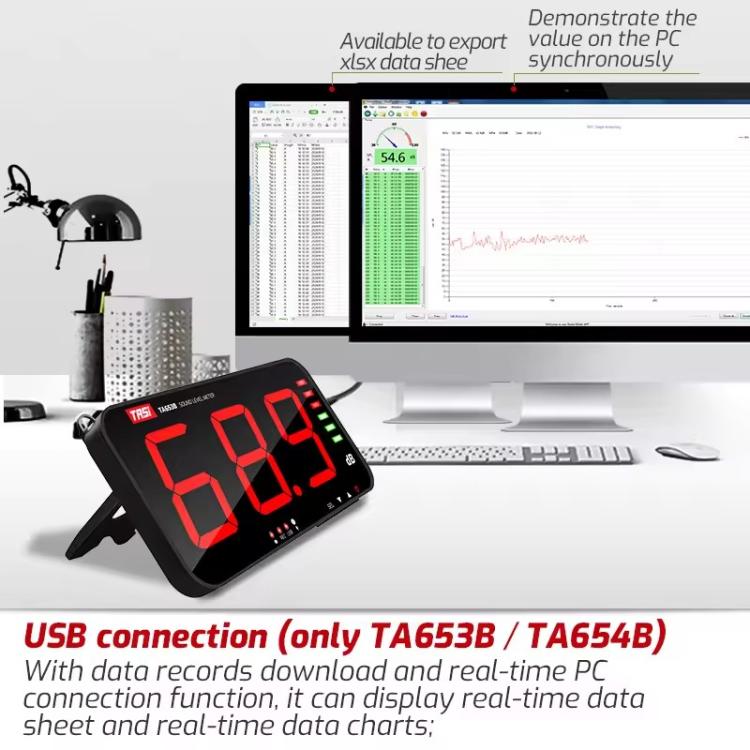

13. USB computer communication: support
14. Operating environment: 0~40 degrees Celsius, maximum 80% relative humidity, indoor altitude less than 2000m
15. Storage environment: -10~60 degrees Celsius, maximum 70% relative humidity

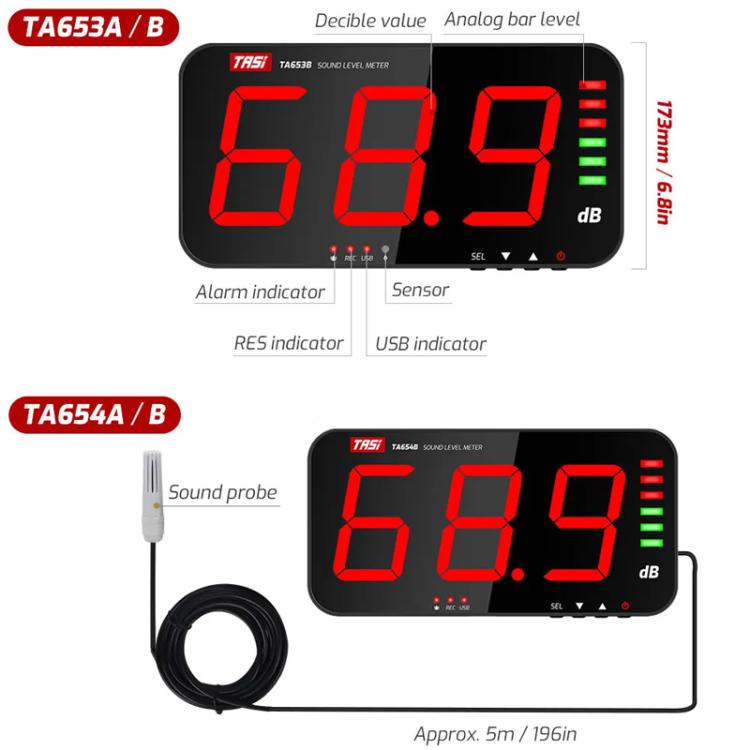

16. Dimensions: 323x173x40mm
17. Weight: about 980g
18. Power supply: DC 5V 1A


Specification:
Package Weight
One Package Weight 1.50kgs / 3.32lb
One Package Size 40cm * 24cm * 9cm / 15.75inch * 9.45inch * 3.54inch
Qty per Carton 10
Carton Weight 16.00kgs / 35.27lb
Carton Size 46cm * 41cm * 51cm / 18.11inch * 16.14inch * 20.08inch
Loading Container 20GP: 277 cartons * 10 pcs = 2770 pcs
40HQ: 643 cartons * 10 pcs = 6430 pcs

TRSI TA654B Large Screen Wall-mounted Noise Meter Decibel Detector Device

Product form

SKU: EDA0081260

  • In stock (Processing Time 1 - 72 hours)

€103,70

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    Features:
    1. High-precision microphone: High-sensitivity 1/2-inch condenser microphone with high precision, high sensitivity and fast instantaneous response characteristics.
    2. Back bracket design: Hidden bracket design, can be placed on the desktop.
    3. Upper limit alarm prompt: The upper limit alarm threshold can be set; when the measurement is higher than the set threshold, the buzzer will sound an alarm prompt, and the alarm prompt light will flash. The time can be set to: 6s~120s.
    4. Back panel design: There are 2 ventilation holes on the top and bottom, and the response speed is more sensitive.
    5. Data storage: The instrument automatically stores data every 2s, and the stored value is the maximum noise value in 2s. The instrument can store data continuously for one year. After one year, the instrument automatically clears the data six months ago, and the user can export the data through the computer software. The record can be cleared (automatically overwrite the first half of the year after one year)
    6. Analog bar level indication: The six-grid indicator light 30~75dB displays green, and 76~130dB displays red.

    Parameters:
    1. Measuring range: 30dB~130dB
    2. Accuracy: +/-1.5dB (based on standard sound source, 94dB 1KHz)
    3. Resolution: 0.1dB (less than 100dB), 1dB (greater than 100dB)
    4. Frequency weighting: A weighting
    5. Frequency response: 31.5Hz~8.5KHz
    6. Sampling rate: 2 times/second
    7. Time weighting: fast 0.5 seconds
    8. Sensor type: 6mm condenser microphone sensor
    9. Test line length: 5 meters
    10. Display mode: LED digital tube, single word 4 inches
    11. Alarm output: 12V high level
    12. Alarm prompt: sound + prompt
    13. Data storage: support
    13. USB computer communication: support
    14. Operating environment: 0~40 degrees Celsius, maximum 80% relative humidity, indoor altitude less than 2000m
    15. Storage environment: -10~60 degrees Celsius, maximum 70% relative humidity
    16. Dimensions: 323x173x40mm
    17. Weight: about 980g
    18. Power supply: DC 5V 1A


    Specification:
    Package Weight
    One Package Weight 1.50kgs / 3.32lb
    One Package Size 40cm * 24cm * 9cm / 15.75inch * 9.45inch * 3.54inch
    Qty per Carton 10
    Carton Weight 16.00kgs / 35.27lb
    Carton Size 46cm * 41cm * 51cm / 18.11inch * 16.14inch * 20.08inch
    Loading Container 20GP: 277 cartons * 10 pcs = 2770 pcs
    40HQ: 643 cartons * 10 pcs = 6430 pcs
