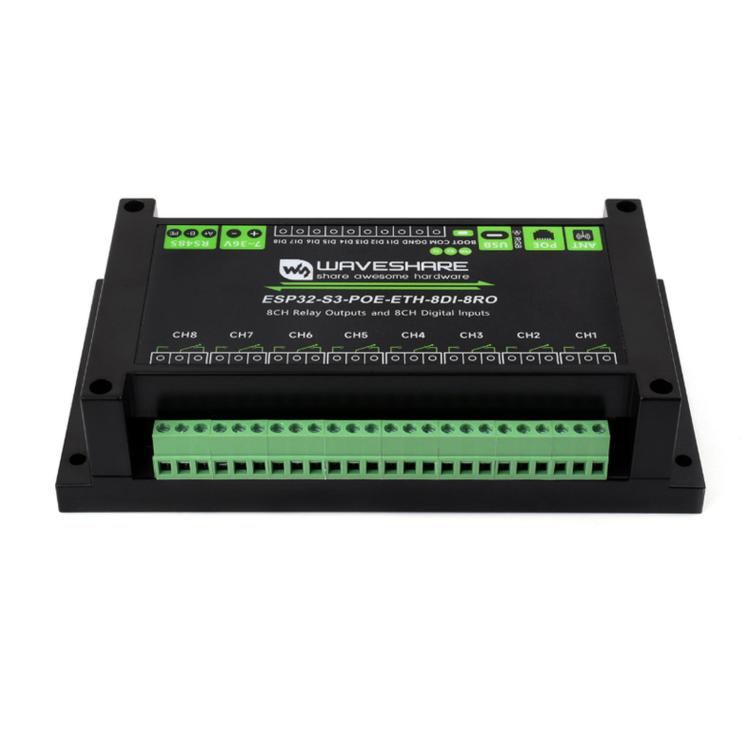

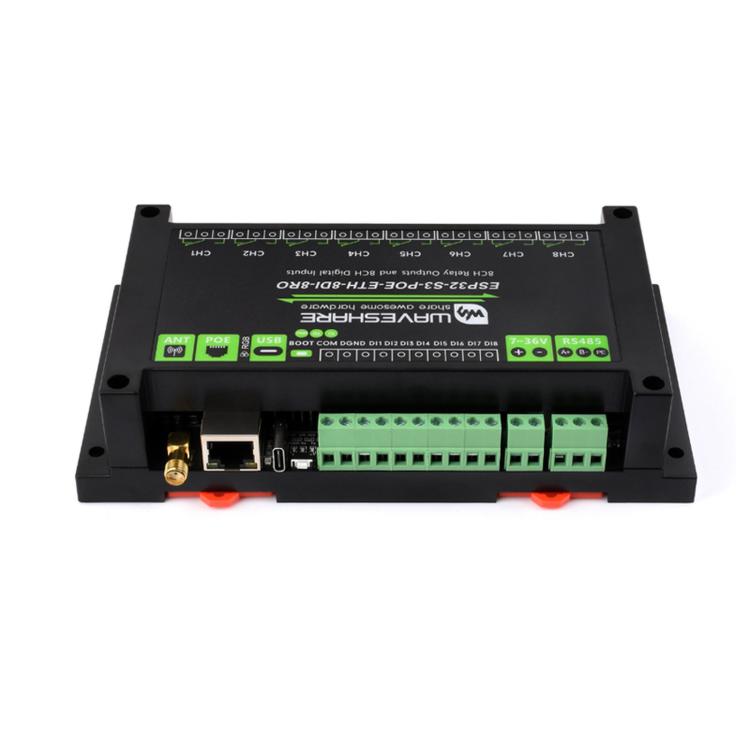

Waveshare ESP32-S3 Industrial Control Board With 8-Channel Wi-Fi Network Relays, Version: PoE Port


1. Microcontroller: ESP32-S3 (default module: ESP32-S3-WROOM-1U-N16R8)
2. Wireless communication: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5, BLE
3. Interface type: USB Type-C
4. Supply voltage: 5V
5. Functions: device power supply, USB communication, firmware download, etc.
6. Interface types: standard ethernet RS485; PoE ethernet CAN
7. Interface form: terminal block
8. Direction control: hardware automatically detects and controls data transmission direction
9. Interface protection: equipped with TVS diode protection, surge and ESD protection
10. Matching resistor: Default NC, reserved 120Ω matching resistor, can be enabled via jumper cap

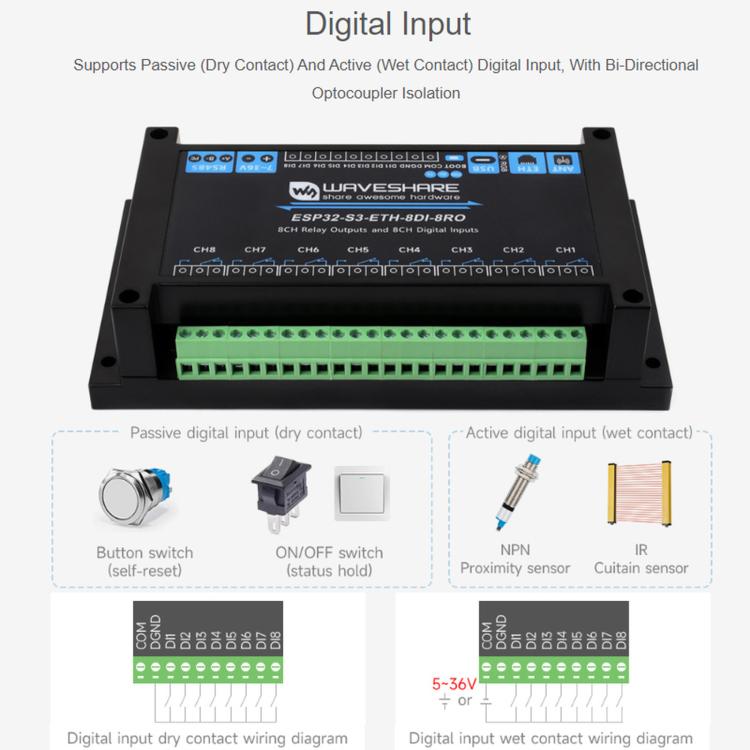

11. Input channels: 8 channels
12. Input voltage range: 5V–36V
13. Input type: passive input / active input (NPN or PNP type)
14. Isolation type: bidirectional optocoupler isolation
15. Relay channels: 8 channels
16. Contact type: one normally open, one normally closed
17. Isolation type: optocoupler isolation
18. Indicator LEDs:
- RGB: colorful LED, customizable display colors
- PWR: power indicator; turns red when USB is connected and voltage detected
- TXD: transmit indicator; turns green when data is sent via RS485/CAN interface
- RXD: receive indicator; turns blue when data is received via RS485/CAN interface
19. Operating voltage range: 7V–36V

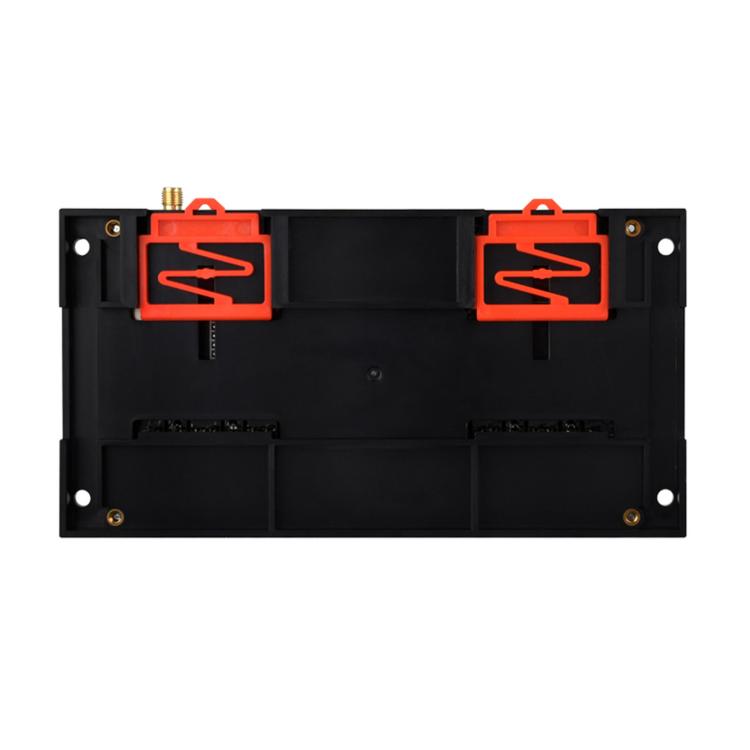

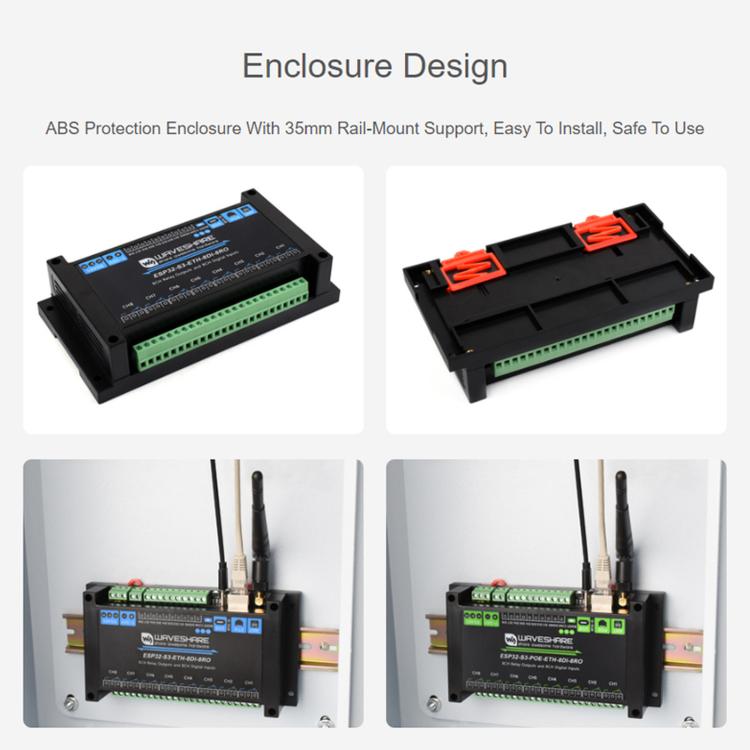

20. Housing: rail-mounted ABS protective enclosure

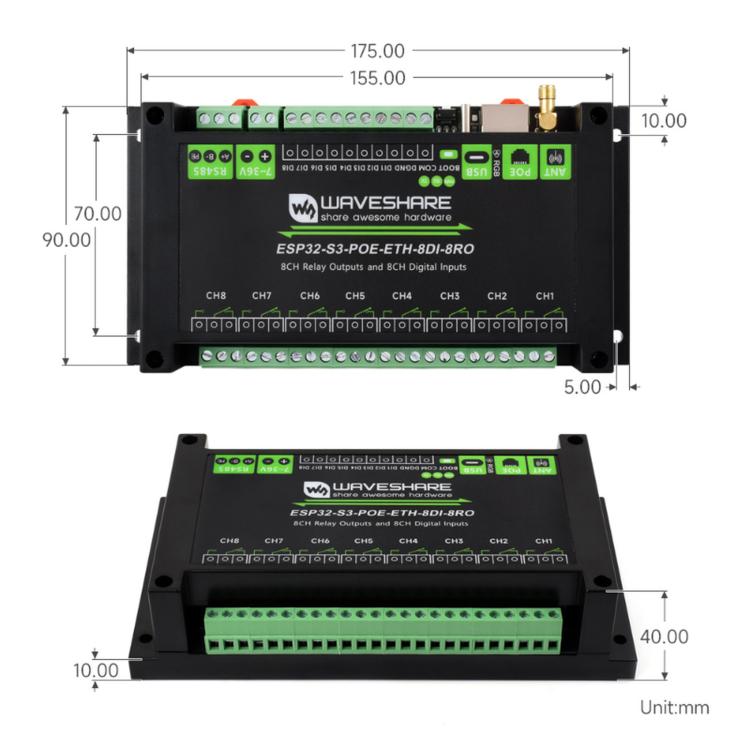

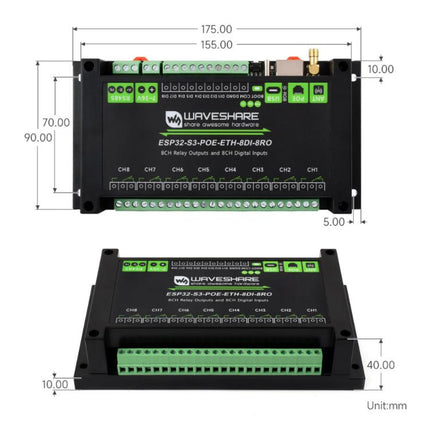

21. Dimensions: 175 x 90 x 40 mm

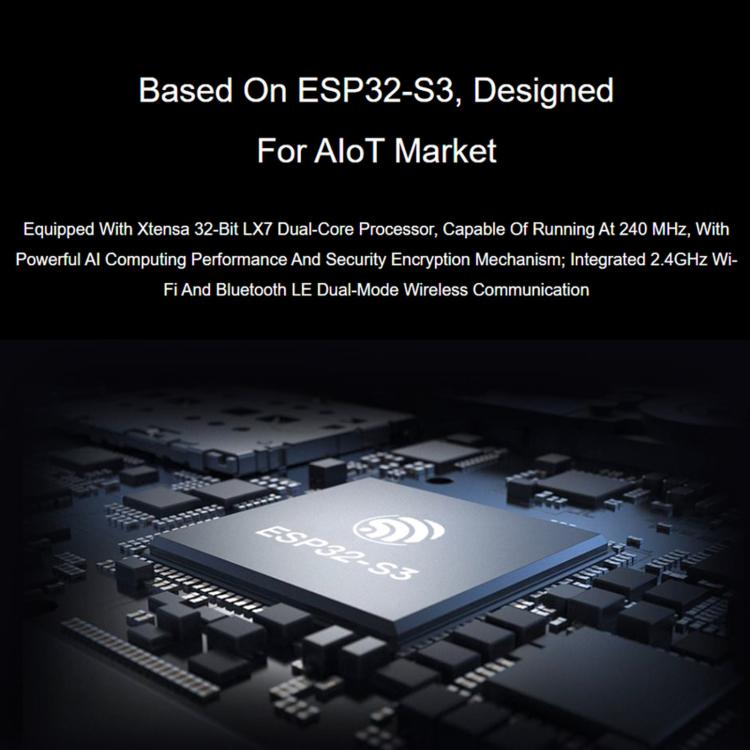

22. Based on the ESP32-S3 microcontroller, featuring an integrated Xtensa 32-bit LX7 dual-core processor with a maximum frequency of 240MHz
23. Integrated 2.4GHz Wi-Fi and low-power Bluetooth (Bluetooth LE) dual-mode wireless communication with excellent RF performance

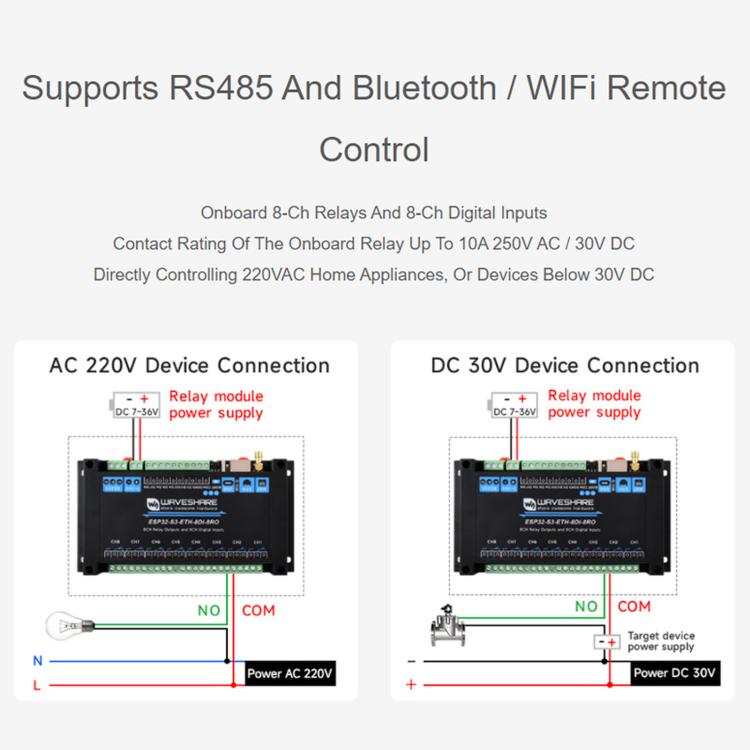

24. Uses high-quality relays supporting load up to 10A 250V AC or 10A 30V DC

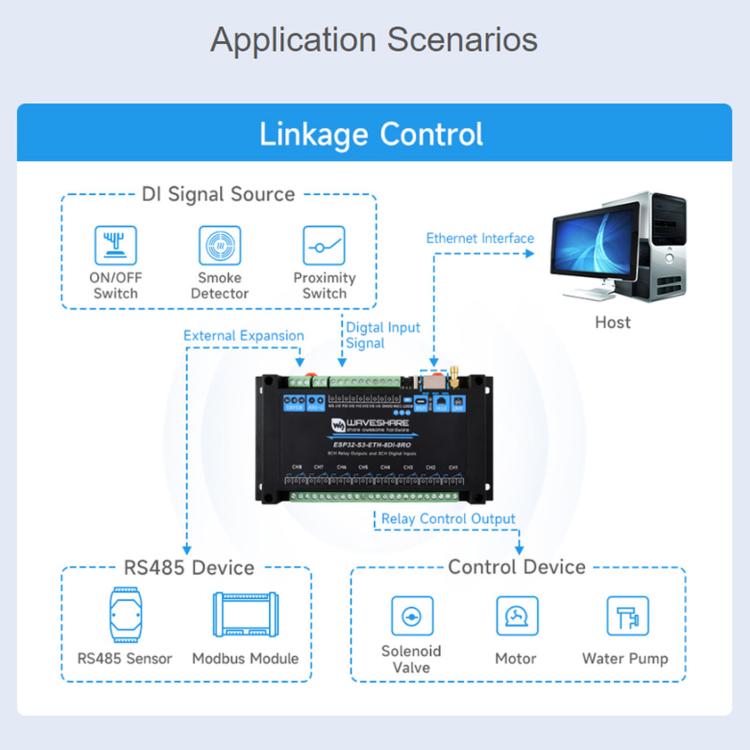

25. Digital inputs with bidirectional optocoupler isolation, supporting both passive and active digital inputs; relays support联动 mode control for input signals

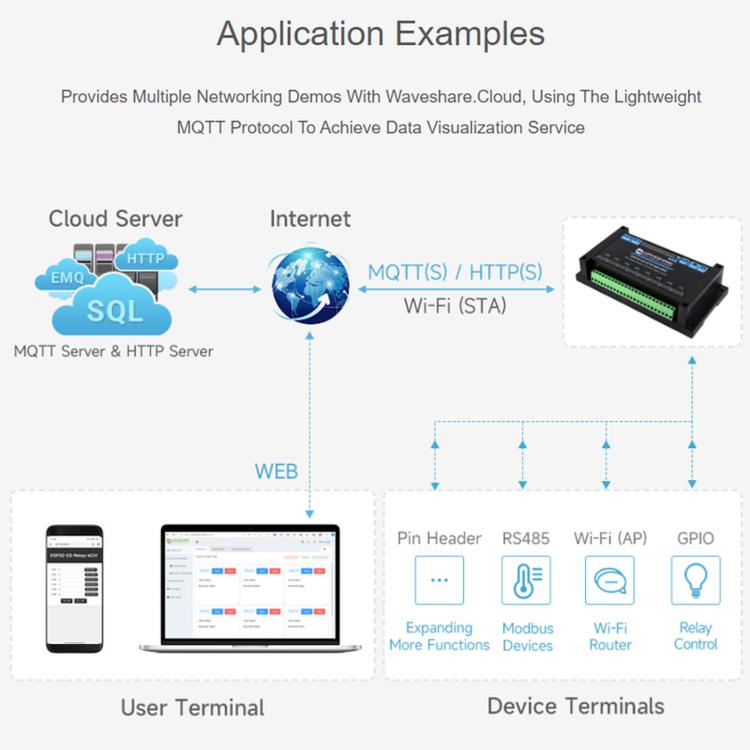

26. Onboard isolated RS485 interface enables easy expansion with various RS485 Modbus industrial modules or sensors
27. Onboard header pins allow connection to other devices
28. Onboard USB Type-C interface supports power supply and firmware download/debugging, convenient for development
29. Onboard terminal block power input supports wide voltage range from 7V to 36V, suitable for industrial power applications
30. Onboard RTC clock chip supports scheduled tasks
31. Onboard W5500 Ethernet chip provides 10/100Mbps network connectivity via SPI interface

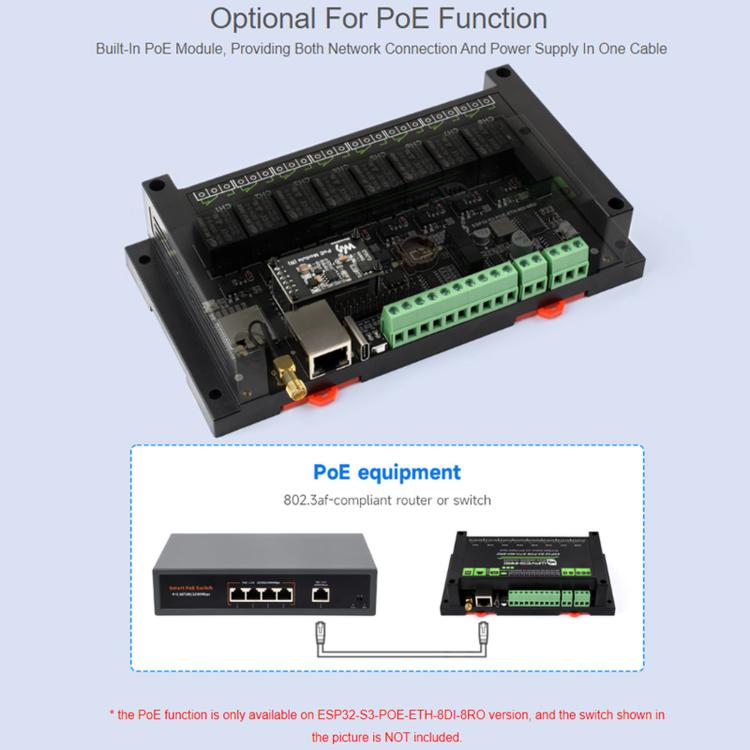

32. PoE Ethernet version supports external PoE module for Power over Ethernet functionality (compliant with IEEE 802.3af standard)

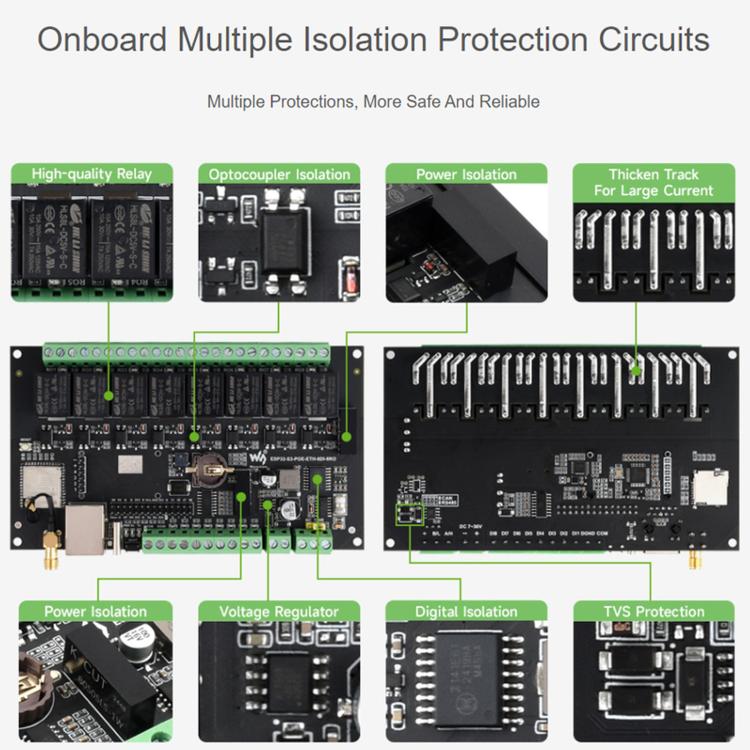

33. Onboard optocoupler isolation prevents interference from high-voltage circuits connected to relays affecting the control chip
34. Onboard digital isolation prevents external signal interference to the control chip
35. Integrated onboard power isolation provides stable isolated voltage; no additional power supply required at the isolated side 36. Built-in Micro SD card slot for external SD card storage of images or files
37. Onboard buzzer, RGB LED, power, and RS485 transmit/receive indicator lights to easily monitor device operation status

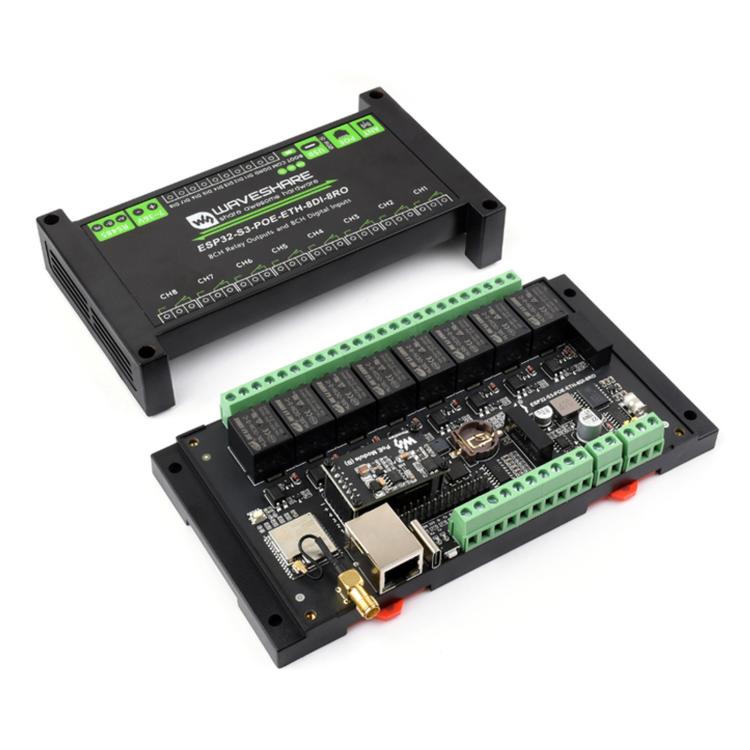

38. Rail-mounted ABS protective housing for convenient installation and safer operation
Specification:
Package Weight
One Package Weight 0.20kgs / 0.45lb
One Package Size 20cm * 11cm * 6cm / 7.87inch * 4.33inch * 2.36inch
Qty per Carton 30
Carton Weight 7.10kgs / 15.65lb
Carton Size 42cm * 35cm * 32cm / 16.54inch * 13.78inch * 12.6inch
Loading Container 20GP: 566 cartons * 30 pcs = 16980 pcs
40HQ: 1316 cartons * 30 pcs = 39480 pcs

Waveshare ESP32-S3 Industrial Control Board With 8-Channel Wi-Fi Network Relays, Version: PoE Port

Product form

SKU: TBD0607081002

  • In stock (Processing Time 1 - 72 hours)

€92,99

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Microcontroller: ESP32-S3 (default module: ESP32-S3-WROOM-1U-N16R8)
    2. Wireless communication: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5, BLE
    3. Interface type: USB Type-C
    4. Supply voltage: 5V
    5. Functions: device power supply, USB communication, firmware download, etc.
    6. Interface types: standard ethernet RS485; PoE ethernet CAN
    7. Interface form: terminal block
    8. Direction control: hardware automatically detects and controls data transmission direction
    9. Interface protection: equipped with TVS diode protection, surge and ESD protection
    10. Matching resistor: Default NC, reserved 120Ω matching resistor, can be enabled via jumper cap
    11. Input channels: 8 channels
    12. Input voltage range: 5V–36V
    13. Input type: passive input / active input (NPN or PNP type)
    14. Isolation type: bidirectional optocoupler isolation
    15. Relay channels: 8 channels
    16. Contact type: one normally open, one normally closed
    17. Isolation type: optocoupler isolation
    18. Indicator LEDs:
    - RGB: colorful LED, customizable display colors
    - PWR: power indicator; turns red when USB is connected and voltage detected
    - TXD: transmit indicator; turns green when data is sent via RS485/CAN interface
    - RXD: receive indicator; turns blue when data is received via RS485/CAN interface
    19. Operating voltage range: 7V–36V
    20. Housing: rail-mounted ABS protective enclosure
    21. Dimensions: 175 x 90 x 40 mm
    22. Based on the ESP32-S3 microcontroller, featuring an integrated Xtensa 32-bit LX7 dual-core processor with a maximum frequency of 240MHz
    23. Integrated 2.4GHz Wi-Fi and low-power Bluetooth (Bluetooth LE) dual-mode wireless communication with excellent RF performance
    24. Uses high-quality relays supporting load up to 10A 250V AC or 10A 30V DC
    25. Digital inputs with bidirectional optocoupler isolation, supporting both passive and active digital inputs; relays support联动 mode control for input signals
    26. Onboard isolated RS485 interface enables easy expansion with various RS485 Modbus industrial modules or sensors
    27. Onboard header pins allow connection to other devices
    28. Onboard USB Type-C interface supports power supply and firmware download/debugging, convenient for development
    29. Onboard terminal block power input supports wide voltage range from 7V to 36V, suitable for industrial power applications
    30. Onboard RTC clock chip supports scheduled tasks
    31. Onboard W5500 Ethernet chip provides 10/100Mbps network connectivity via SPI interface
    32. PoE Ethernet version supports external PoE module for Power over Ethernet functionality (compliant with IEEE 802.3af standard)
    33. Onboard optocoupler isolation prevents interference from high-voltage circuits connected to relays affecting the control chip
    34. Onboard digital isolation prevents external signal interference to the control chip
    35. Integrated onboard power isolation provides stable isolated voltage; no additional power supply required at the isolated side 36. Built-in Micro SD card slot for external SD card storage of images or files
    37. Onboard buzzer, RGB LED, power, and RS485 transmit/receive indicator lights to easily monitor device operation status
    38. Rail-mounted ABS protective housing for convenient installation and safer operation
    Specification:
    Package Weight
    One Package Weight 0.20kgs / 0.45lb
    One Package Size 20cm * 11cm * 6cm / 7.87inch * 4.33inch * 2.36inch
    Qty per Carton 30
    Carton Weight 7.10kgs / 15.65lb
    Carton Size 42cm * 35cm * 32cm / 16.54inch * 13.78inch * 12.6inch
    Loading Container 20GP: 566 cartons * 30 pcs = 16980 pcs
    40HQ: 1316 cartons * 30 pcs = 39480 pcs
