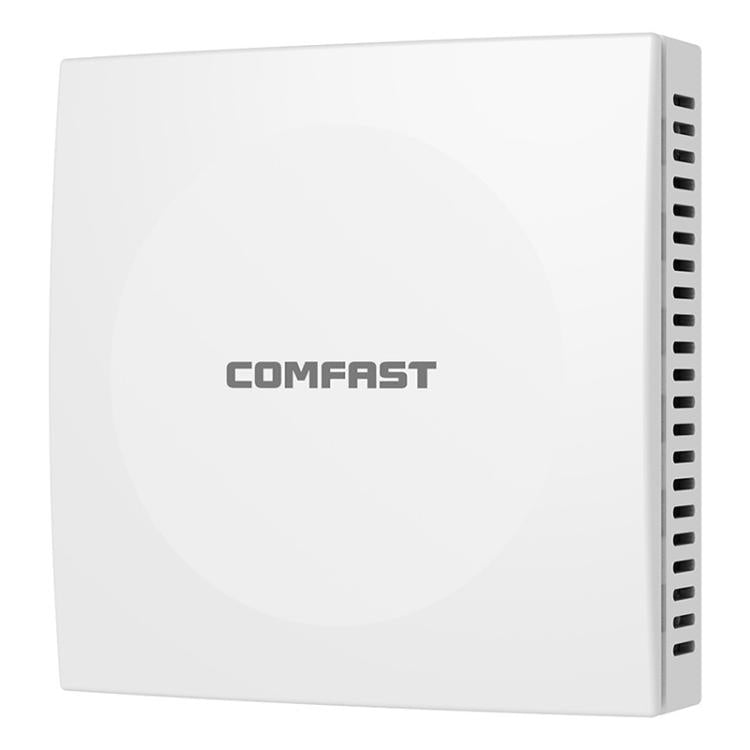

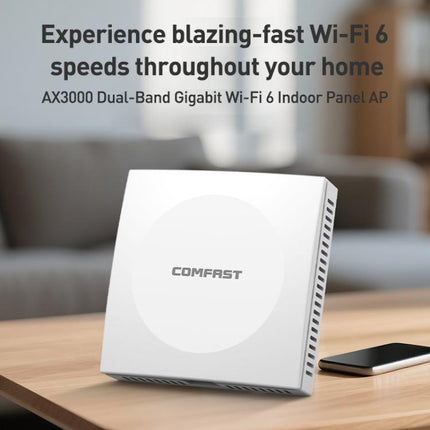

COMFAST CF-E593AX 3000Mbps Dual-Band WiFi6 In-Wall AP(White)

Feature
1. MT7981B+MT7976CN+AN8801SB brand chip solution, stable performance
2. 3000Mbps wireless speed, high-speed transmission, and an enhanced Internet experience
3. Concurrent 2.4GHz & 5.8GHz dual-band, more stable signal, and efficient interference resistance

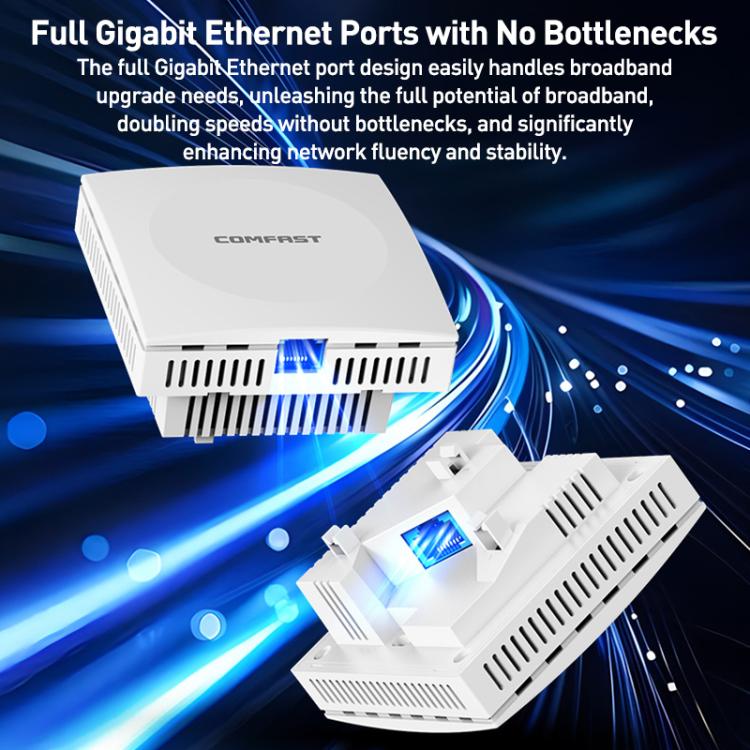

4. Full Gigabit Ethernet ports, unlimited bandwidth, and smoother signal

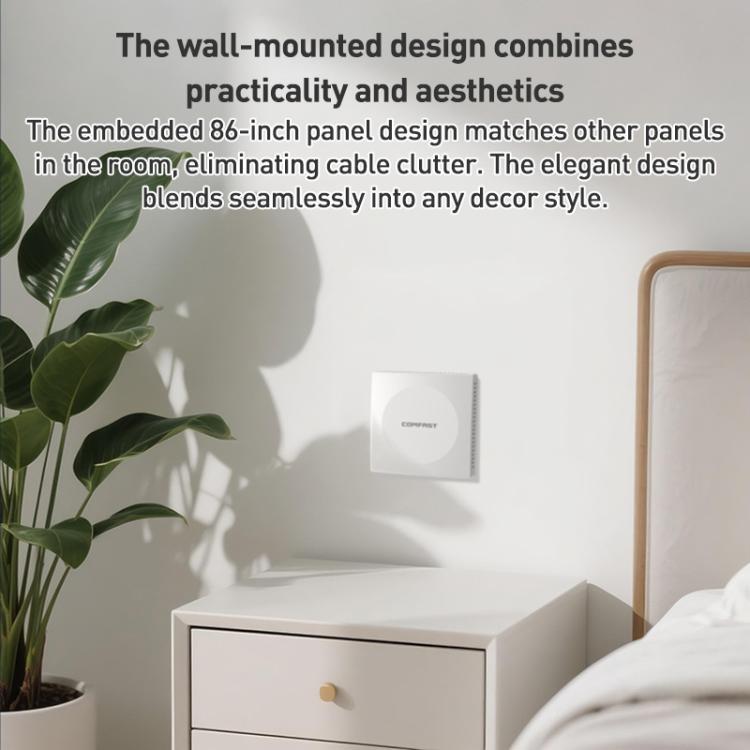

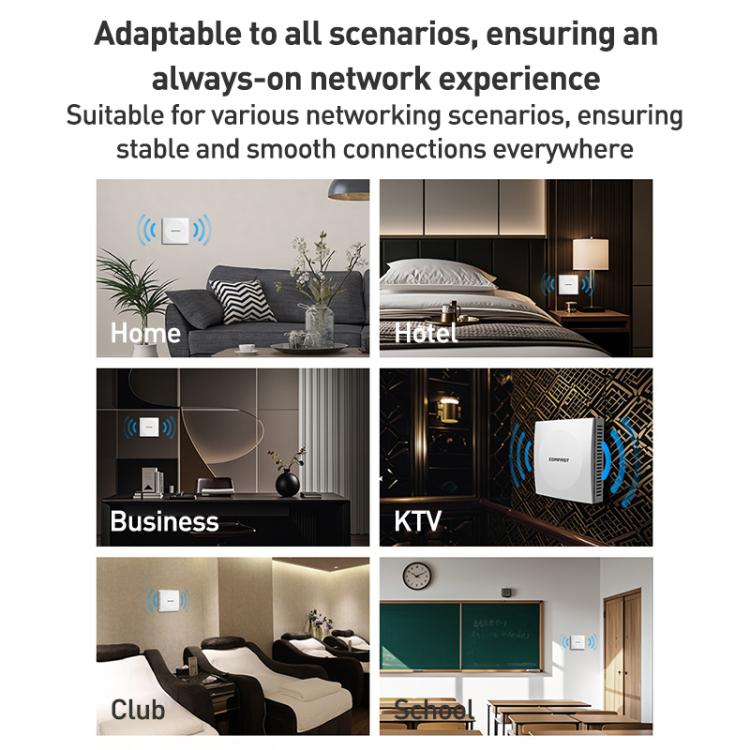

5. Standard 86-inch panel AP, suitable for a wide range of applications

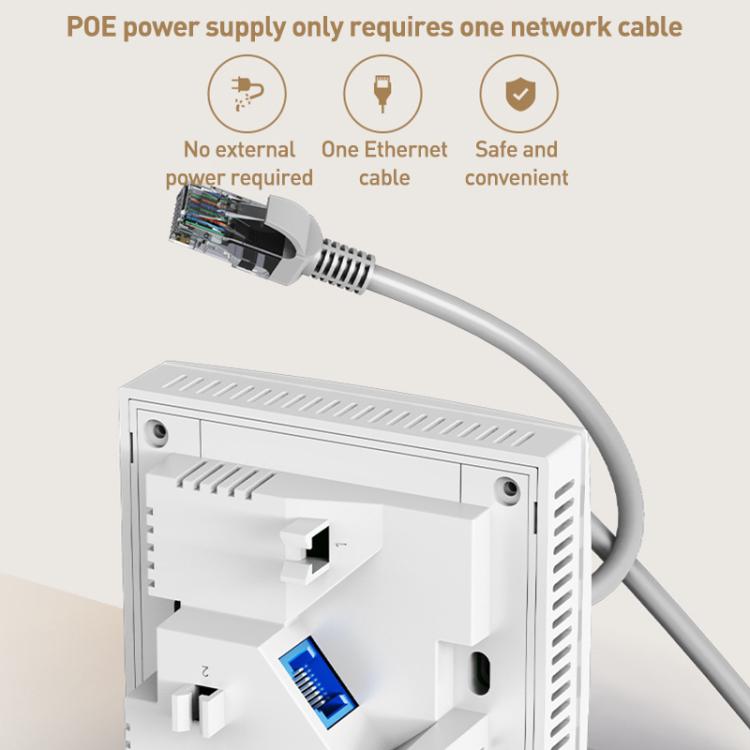

6. 48V standard POE power supply, guaranteed safety, and easier installation

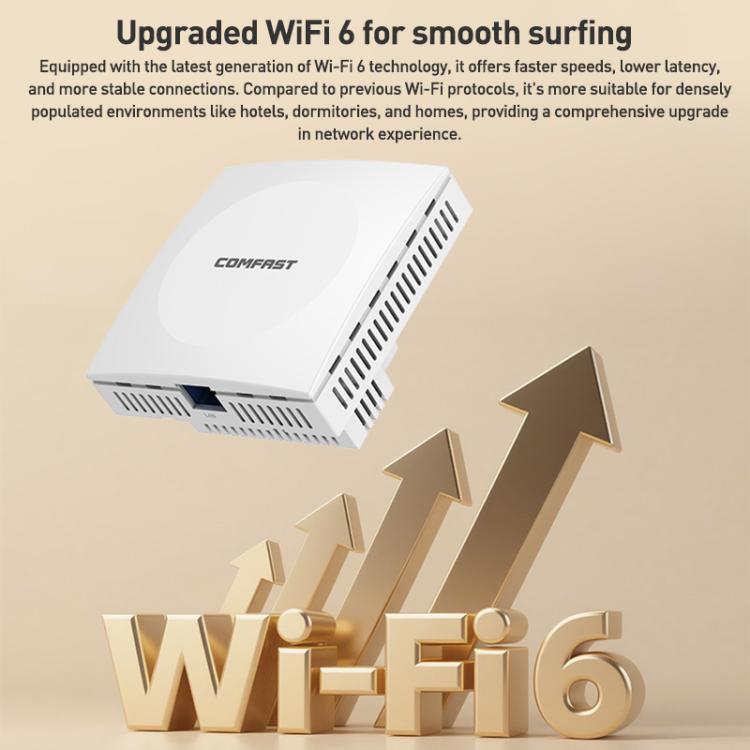

7. Standard wireless protocol, supports IEEE802.11a/b/g/n/ac/ax
8. Built-in smart antenna, strong signal, low latency, and high reliability

Specifications
1. Hardware: Memory: 256MB, Flash: 128MB
2. Wireless Speed: 2.4GHz: 574Mbps, 5GHz: 2402Mbps
3. Physical Ports: 1 10/100/1000Mbps WAN RJ45 port (supports 48V POE), 1 10/100/1000Mbps LAN RJ45 port, 1 RESET button
4. Power Supply: 48V POE (maximum range 100 meters)
5. Power Adapter: 48V/0.32A POE Power Adapter
6. Wireless Standard: IEEE 802.11b/g/n/ac
7. Power Consumption: Less than 12W
8. Indicator: Three-color light
10. Protection Rating: IP41
11. Material: ABS
12. Dimensions: 86x86x49.5mm
13. Operating Temperature: 0-40°C
14. Storage Temperature: -40-70°C
15. Operating Humidity: 10-90% RH (non-condensing)
16. Storage Humidity: 5-90% RH (non-condensing)

RF Parameters:
1. Maximum Transmit Power: 200mW (23dBm)
2. Minimum Receive Sensitivity: -96dBm
3. Operating Frequency: 802.11ac/n/ax: 5.180GHz-5.825GHz, 802.11b/g/n: 2.412GHz-2.484GHz

Modulation Parameters:
1. 11b: DSS: CCK 5.5/11Mbps, DQPSK 2Mbps, DBPSK 1Mbps
2. 11a/g: OFDM: 64QAM 48/54Mbps, 16QAM 24Mbps, QPSK 12/18Mbps, BPSK 6/9Mbps
3. 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
4. 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
5. 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM


Specification:
Package Weight
One Package Weight 0.25kgs / 0.56lb
One Package Size 11cm * 10cm * 6cm / 4.33inch * 3.94inch * 2.36inch
Qty per Carton 45
Carton Weight 11.42kgs / 25.18lb
Carton Size 34cm * 30cm * 33cm / 13.39inch * 11.81inch * 12.99inch
Loading Container 20GP: 792 cartons * 45 pcs = 35640 pcs
40HQ: 1839 cartons * 45 pcs = 82755 pcs

COMFAST CF-E593AX 3000Mbps Dual-Band WiFi6 In-Wall AP(White)

Product form

SKU: EDA008595701A

  • In stock (Processing Time 1 - 72 hours)

€61,57

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    Feature
    1. MT7981B+MT7976CN+AN8801SB brand chip solution, stable performance
    2. 3000Mbps wireless speed, high-speed transmission, and an enhanced Internet experience
    3. Concurrent 2.4GHz & 5.8GHz dual-band, more stable signal, and efficient interference resistance
    4. Full Gigabit Ethernet ports, unlimited bandwidth, and smoother signal
    5. Standard 86-inch panel AP, suitable for a wide range of applications
    6. 48V standard POE power supply, guaranteed safety, and easier installation
    7. Standard wireless protocol, supports IEEE802.11a/b/g/n/ac/ax
    8. Built-in smart antenna, strong signal, low latency, and high reliability

    Specifications
    1. Hardware: Memory: 256MB, Flash: 128MB
    2. Wireless Speed: 2.4GHz: 574Mbps, 5GHz: 2402Mbps
    3. Physical Ports: 1 10/100/1000Mbps WAN RJ45 port (supports 48V POE), 1 10/100/1000Mbps LAN RJ45 port, 1 RESET button
    4. Power Supply: 48V POE (maximum range 100 meters)
    5. Power Adapter: 48V/0.32A POE Power Adapter
    6. Wireless Standard: IEEE 802.11b/g/n/ac
    7. Power Consumption: Less than 12W
    8. Indicator: Three-color light
    10. Protection Rating: IP41
    11. Material: ABS
    12. Dimensions: 86x86x49.5mm
    13. Operating Temperature: 0-40°C
    14. Storage Temperature: -40-70°C
    15. Operating Humidity: 10-90% RH (non-condensing)
    16. Storage Humidity: 5-90% RH (non-condensing)

    RF Parameters:
    1. Maximum Transmit Power: 200mW (23dBm)
    2. Minimum Receive Sensitivity: -96dBm
    3. Operating Frequency: 802.11ac/n/ax: 5.180GHz-5.825GHz, 802.11b/g/n: 2.412GHz-2.484GHz

    Modulation Parameters:
    1. 11b: DSS: CCK 5.5/11Mbps, DQPSK 2Mbps, DBPSK 1Mbps
    2. 11a/g: OFDM: 64QAM 48/54Mbps, 16QAM 24Mbps, QPSK 12/18Mbps, BPSK 6/9Mbps
    3. 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
    4. 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
    5. 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM


    Specification:
    Package Weight
    One Package Weight 0.25kgs / 0.56lb
    One Package Size 11cm * 10cm * 6cm / 4.33inch * 3.94inch * 2.36inch
    Qty per Carton 45
    Carton Weight 11.42kgs / 25.18lb
    Carton Size 34cm * 30cm * 33cm / 13.39inch * 11.81inch * 12.99inch
    Loading Container 20GP: 792 cartons * 45 pcs = 35640 pcs
    40HQ: 1839 cartons * 45 pcs = 82755 pcs
