YNS-03 DDR4 / DDR5 2-in-1 Memory Tester Memory Test Card Notebook Memory Stick Tester

1. Applicable scenarios: SO DDR4/DDR5 memory test card is suitable for laptop DDR4/DDR5 memory testing
2. Computer memory failure: The failure of computer memory is mainly due to poor contact of gold pins, wear of gold pins, damage to PCB, data line exclusion damage, open circuit and short circuit of video memory, poor memory performance, etc.
3. LED indicator: The LED indicator is used to test all data lines of memory, and normal brightness is normal. When there is a hardware failure in these data line loops, there will be an abnormal situation of lighting or not lighting
4. Purpose: If the test indicator light flashes, it means that the gold pin contact is poor. If there is no indicator light, it means that the hardware has an open circuit failure. Check the wear of the gold pins to exclude whether it is damaged and whether the PCB is disconnected
5. How to use: Insert the CR2032 battery into the battery holder of the test card, or connect the C-type cable, and then insert the memory card for testing

Laptop DDR4/DDR5 memory test steps:
1. Install the CR2032 button battery horizontally into the button battery holder of the test card, and make sure the battery silk screen side faces up (it must not be installed upside down)
2. According to the specifications of the memory stick (the position of the U-shaped notch in the middle of the DDR4/DDR5 gold finger is different), insert the memory stick into the black slot at an angle of 45 degrees, and press it down after it is inserted to the bottom so that the silver metal ear buckle can clamp the memory stick

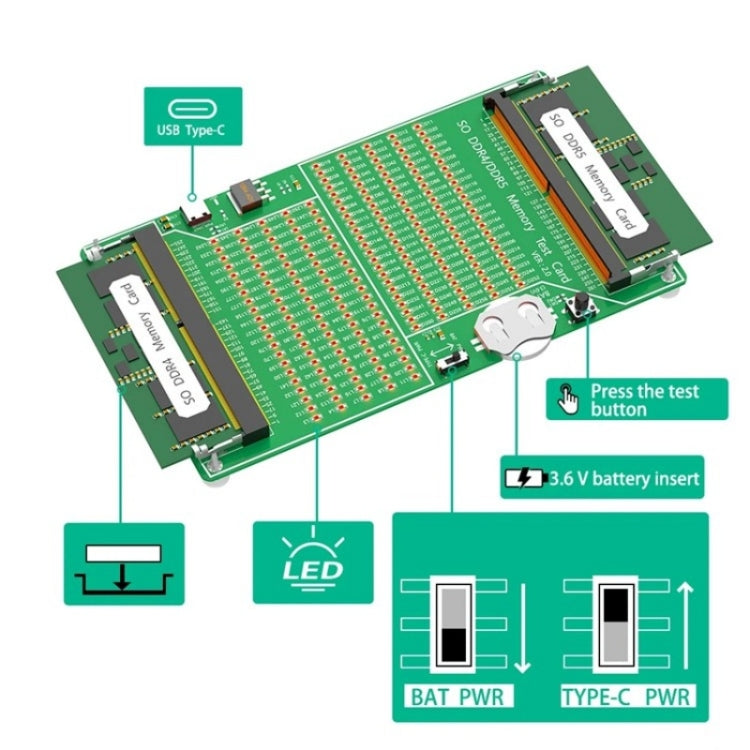

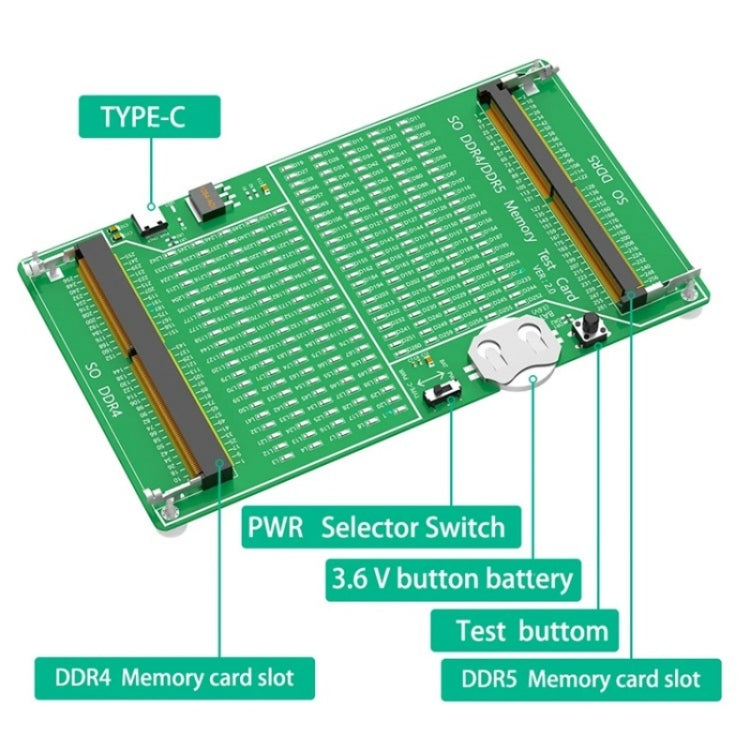

3. Select the voltage switch position, one side is powered by the CR2032 button battery, and the other side is powered by the TYPE-C external power supply (the TYPE-C data cable needs to be connected)
4. Then press the black button (Test SW) on the test card. If the memory stick is a good product, the LED lights on the test card will all light up. If the memory stick is a defective product, the corresponding LED will not light up. According to the silk screen position number of the unlit LED, you can find the defective position of the memory stick gold finger
5. When the test is completed, release the black button, pry open the silver metal buckle of the memory slot with both hands at the same time, and pull out the memory stick at an angle of 45 degrees


Specification:
Package Weight
One Package Weight 0.09kgs / 0.20lb
One Package Size 20cm * 15cm * 2cm / 7.87inch * 5.91inch * 0.79inch
Qty per Carton 100
Carton Weight 9.50kgs / 20.94lb
Carton Size 52cm * 42cm * 32cm / 20.47inch * 16.54inch * 12.6inch
Loading Container 20GP: 381 cartons * 100 pcs = 38100 pcs
40HQ: 885 cartons * 100 pcs = 88500 pcs

YNS-03 DDR4 / DDR5 2-in-1 Memory Tester Memory Test Card Notebook Memory Stick Tester

Product form

SKU: SYA0026315

  • In stock (Processing Time 1 - 72 hours)

288.16 kr

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    1. Applicable scenarios: SO DDR4/DDR5 memory test card is suitable for laptop DDR4/DDR5 memory testing
    2. Computer memory failure: The failure of computer memory is mainly due to poor contact of gold pins, wear of gold pins, damage to PCB, data line exclusion damage, open circuit and short circuit of video memory, poor memory performance, etc.
    3. LED indicator: The LED indicator is used to test all data lines of memory, and normal brightness is normal. When there is a hardware failure in these data line loops, there will be an abnormal situation of lighting or not lighting
    4. Purpose: If the test indicator light flashes, it means that the gold pin contact is poor. If there is no indicator light, it means that the hardware has an open circuit failure. Check the wear of the gold pins to exclude whether it is damaged and whether the PCB is disconnected
    5. How to use: Insert the CR2032 battery into the battery holder of the test card, or connect the C-type cable, and then insert the memory card for testing

    Laptop DDR4/DDR5 memory test steps:
    1. Install the CR2032 button battery horizontally into the button battery holder of the test card, and make sure the battery silk screen side faces up (it must not be installed upside down)
    2. According to the specifications of the memory stick (the position of the U-shaped notch in the middle of the DDR4/DDR5 gold finger is different), insert the memory stick into the black slot at an angle of 45 degrees, and press it down after it is inserted to the bottom so that the silver metal ear buckle can clamp the memory stick
    3. Select the voltage switch position, one side is powered by the CR2032 button battery, and the other side is powered by the TYPE-C external power supply (the TYPE-C data cable needs to be connected)
    4. Then press the black button (Test SW) on the test card. If the memory stick is a good product, the LED lights on the test card will all light up. If the memory stick is a defective product, the corresponding LED will not light up. According to the silk screen position number of the unlit LED, you can find the defective position of the memory stick gold finger
    5. When the test is completed, release the black button, pry open the silver metal buckle of the memory slot with both hands at the same time, and pull out the memory stick at an angle of 45 degrees


    Specification:
    Package Weight
    One Package Weight 0.09kgs / 0.20lb
    One Package Size 20cm * 15cm * 2cm / 7.87inch * 5.91inch * 0.79inch
    Qty per Carton 100
    Carton Weight 9.50kgs / 20.94lb
    Carton Size 52cm * 42cm * 32cm / 20.47inch * 16.54inch * 12.6inch
    Loading Container 20GP: 381 cartons * 100 pcs = 38100 pcs
    40HQ: 885 cartons * 100 pcs = 88500 pcs
