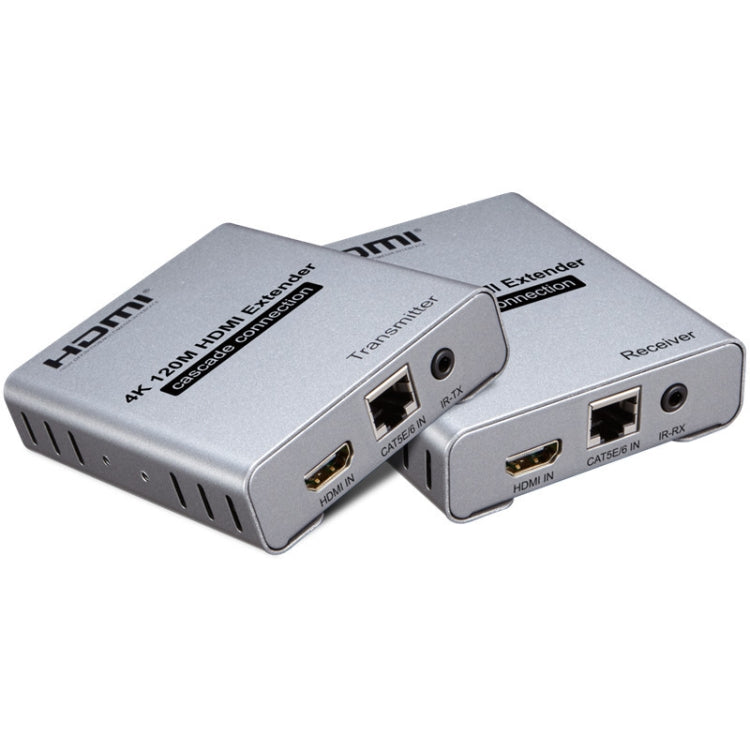

HDMI Single Cable 120m Transmitter / Receiver Extender 4K HD Transmitter UK Plug(Gray)


1. Extended distance: up to 120 meters
2. Input video signal: 5Volts p-p (TTL)
3. Video resolution support: up to 3840x2160/30Hz
4. Support audio format: DTS/Dolby/LPCM
5. Support video format: 4K/1080P/720P, etc.
6. Maximum wideband transmission: 340MHz
7. Maximum transmission rate: 3x3.4Gbps
8. Input/output cable length: within 15M AWG26 HDMI standard cable
9. Maximum operating current: TX: 350mA; RX: 200mA
10. Power adapter specifications: input: AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
11. Operating temperature range: -10 - 45 degrees Celsius

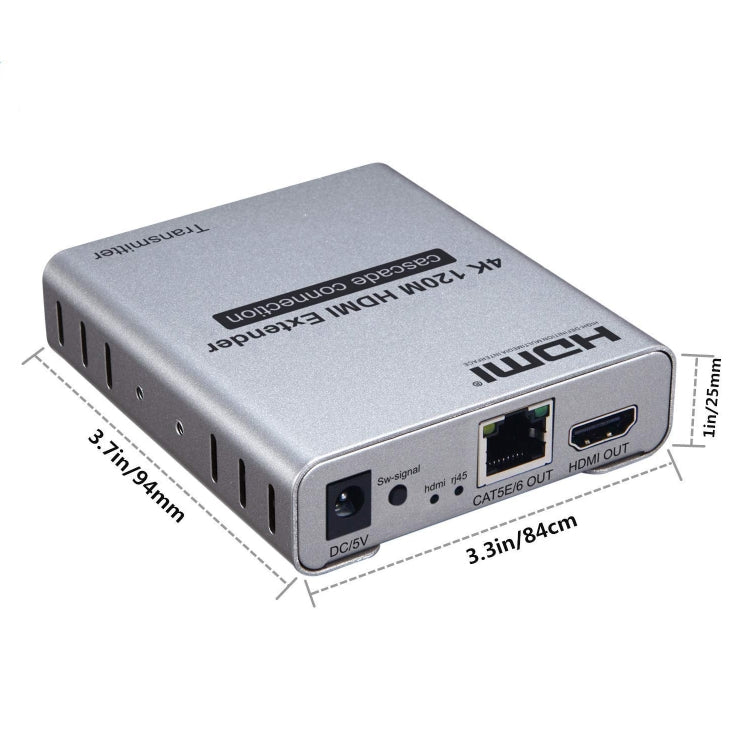

12. Size: about 9.4 x 8.4 x 2.4cm
13. Weight: about 223g

Features:

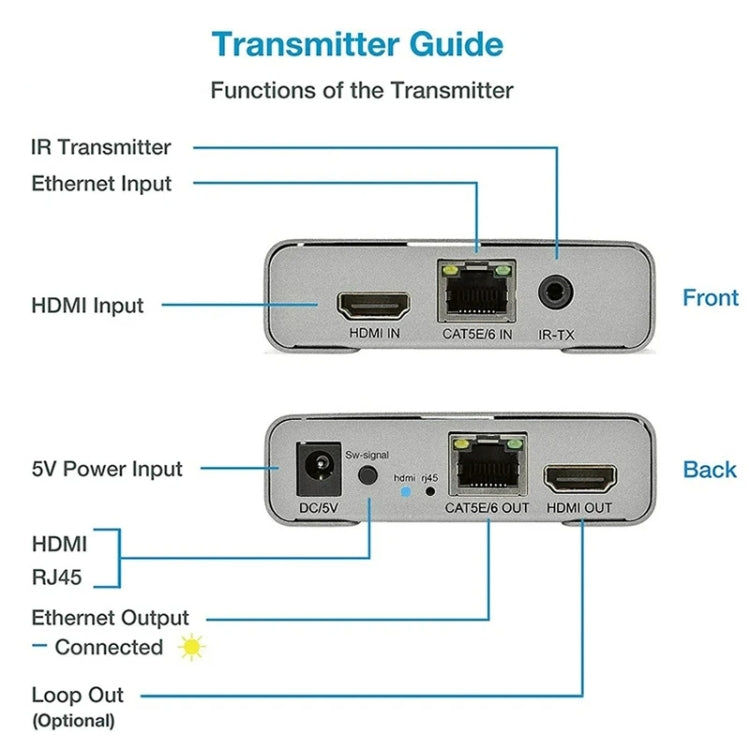

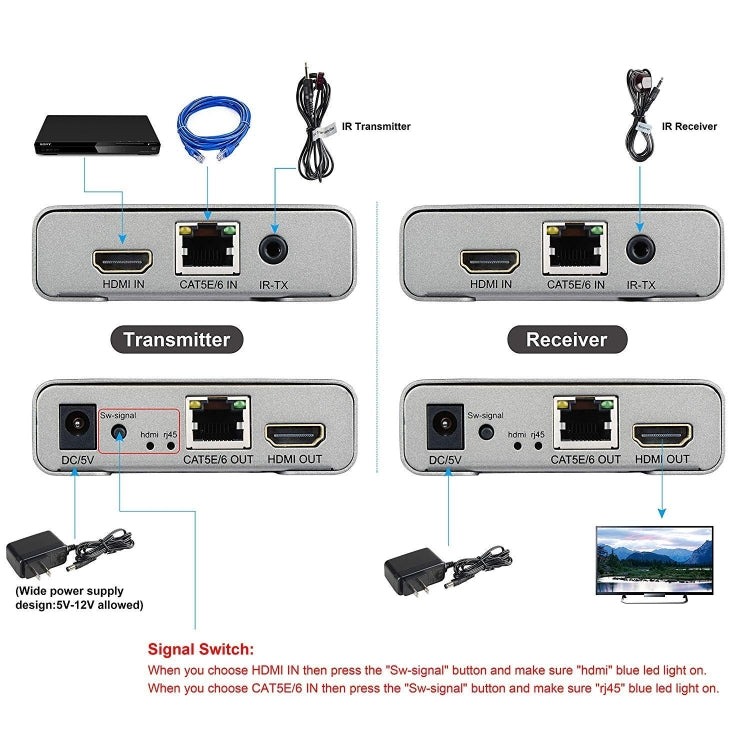

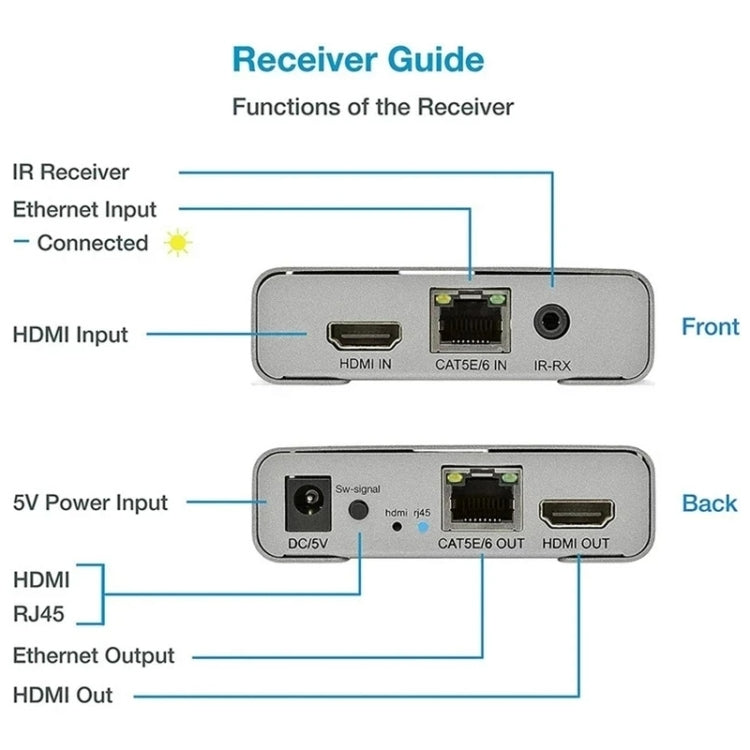

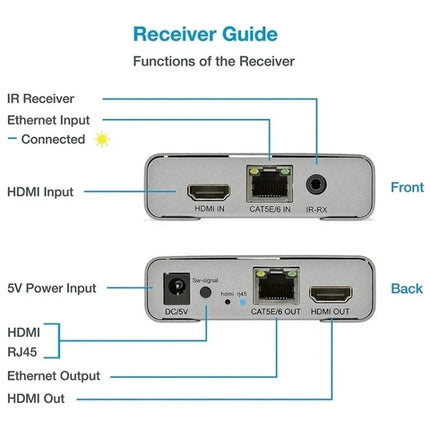

1. HDMI and network port two-way HD signal input, you can switch the signal according to the use of the scene

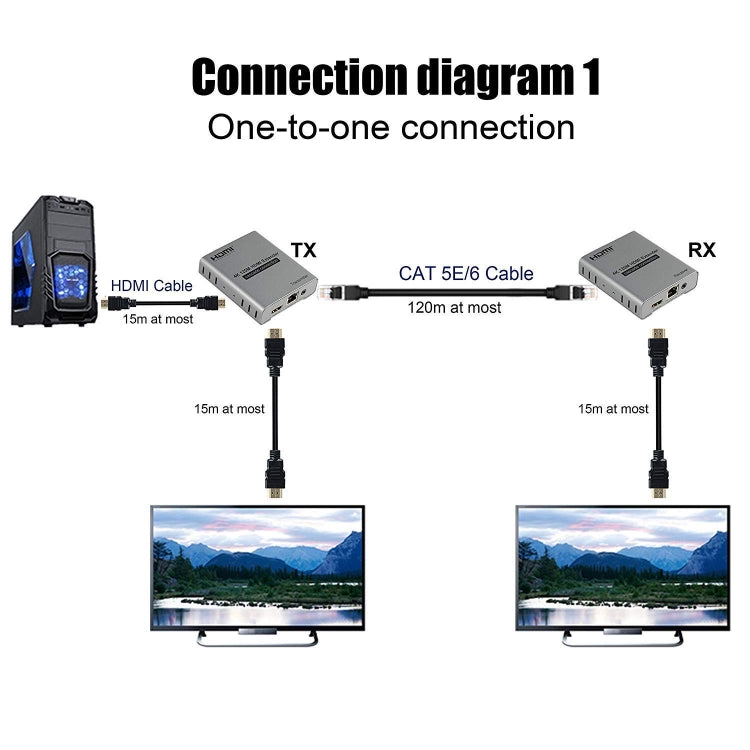

2. HDMI OUT port HD signal output, connect to the monitor, CAT5E/6 OUT port connect to the network cable, long-distance transmission of HD signals
3. Anti-static technology, better protection of the product (test data reference: can prevent external 8KV voltage)
4. Wide power supply design, can use 5-12V voltage power supply, more convenient (factory default DC/5V power supply)

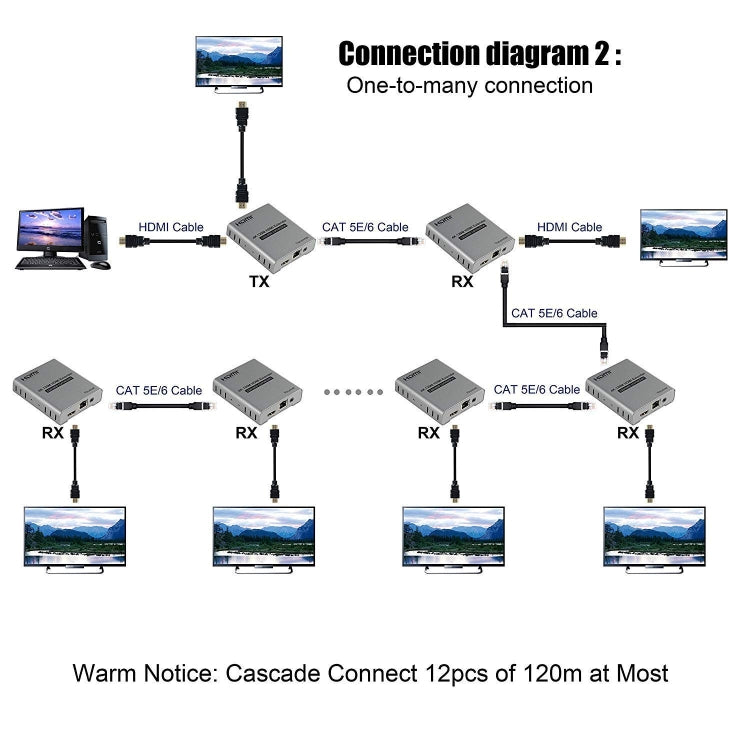

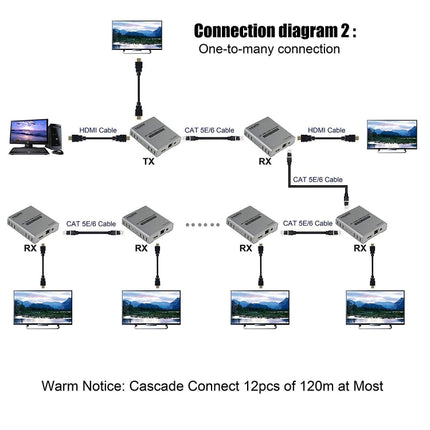

5. Using series cascade transmission, convenient wiring, no need to connect the fiber optic switch, direct series cascade, convenient, simple, direct

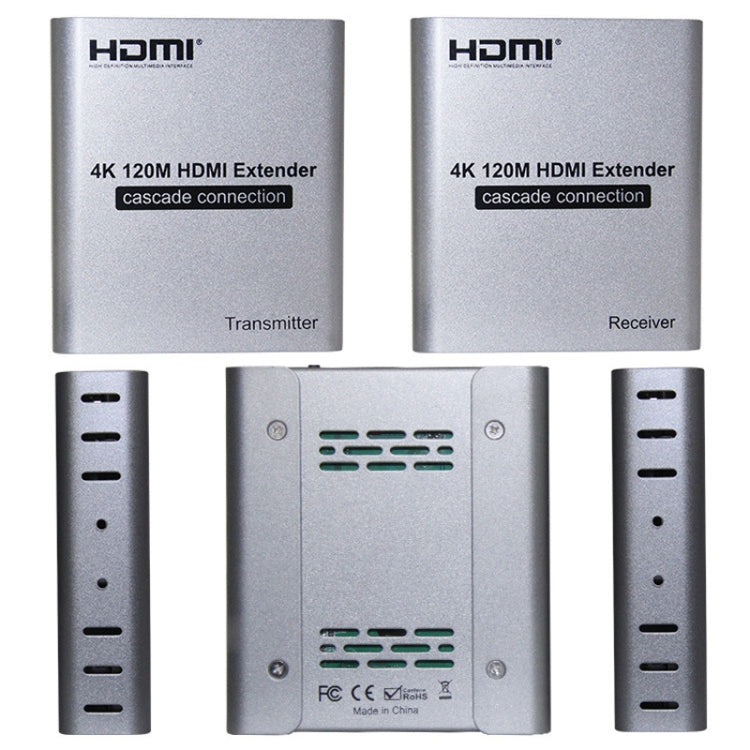

6. Three heat dissipation surfaces, multiple heat sinks, prevent heat generation, low power operation, high safety performance
7. High-performance technology chip, no computer control, convenient and quick, plug and play
8. 4K HD signal transmission, the use of HD transmission technology, support for 3840x2160 resolution, presenting a higher color space, so that more pictures come to life
9. Isolation transformer, enhance the signal, so that the transmission distance is farther, more stable, the chip end and the external isolation, anti-interference ability to enhance the chip to add a great deal of protection (such as surge)

Packing list:
- TX transmitter x 1
- RX receiver x 1
- Infrared transmitter, receiver line x 1
- Power adapter x 2
- User manual x 1


Specification:
Package Weight
One Package Weight 0.77kgs / 1.71lb
One Package Size 20cm * 15cm * 10cm / 7.87inch * 5.91inch * 3.94inch
Qty per Carton 20
Carton Weight 16.40kgs / 36.16lb
Carton Size 47cm * 41cm * 30cm / 18.5inch * 16.14inch * 11.81inch
Loading Container 20GP: 461 cartons * 20 pcs = 9220 pcs
40HQ: 1070 cartons * 20 pcs = 21400 pcs
