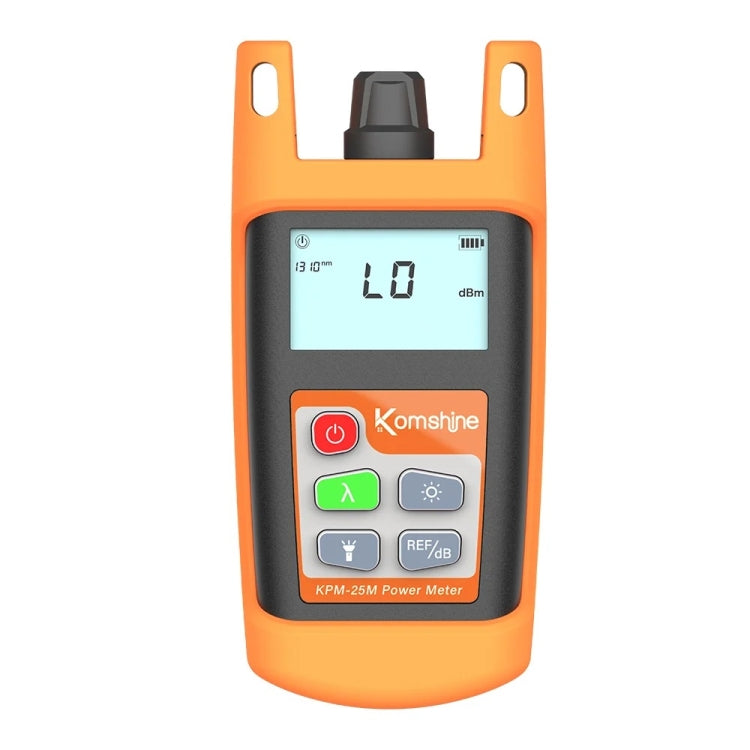

Komshine Mini Handheld Optical Power Meter Fiber Loss Measurement, Specification: KPM-25M-A/-70DBM to +6DBM


1. Wavelength range: 800 ~1700nm
2. Probe type: InGaAs
3. Power measurement range: -70~+6dBm/-50~+26dBm

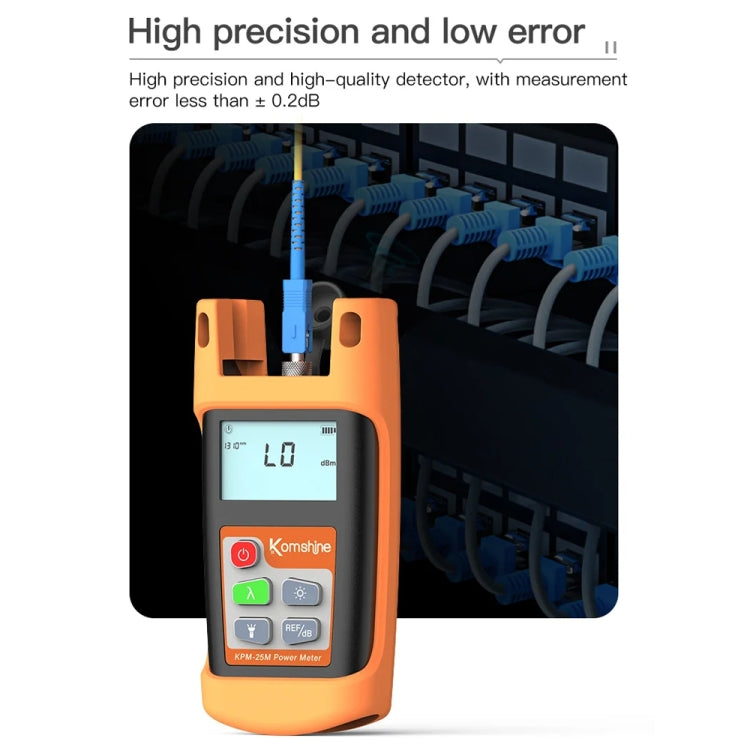

4. Accuracy: 0.2dB

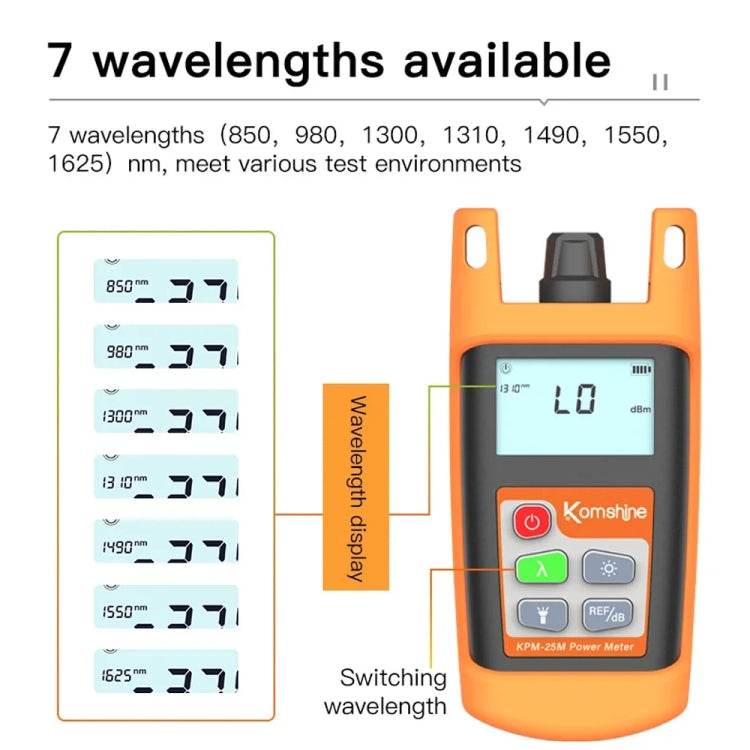

5. Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625nm
6. Display resolution: 0.01dB
7. Automatic shutdown time: 10min
8. Battery working time: 20h
9. Type A: -70dBm~+6dBm (mainly used in telecommunications, mobile, China Unicom, etc.)
10. Type C: -50dBm~+26dBm (mainly used in radio and television, monitoring, etc.)
11. Power supply: alkaline battery 2xAAA 1.5V battery (not included)

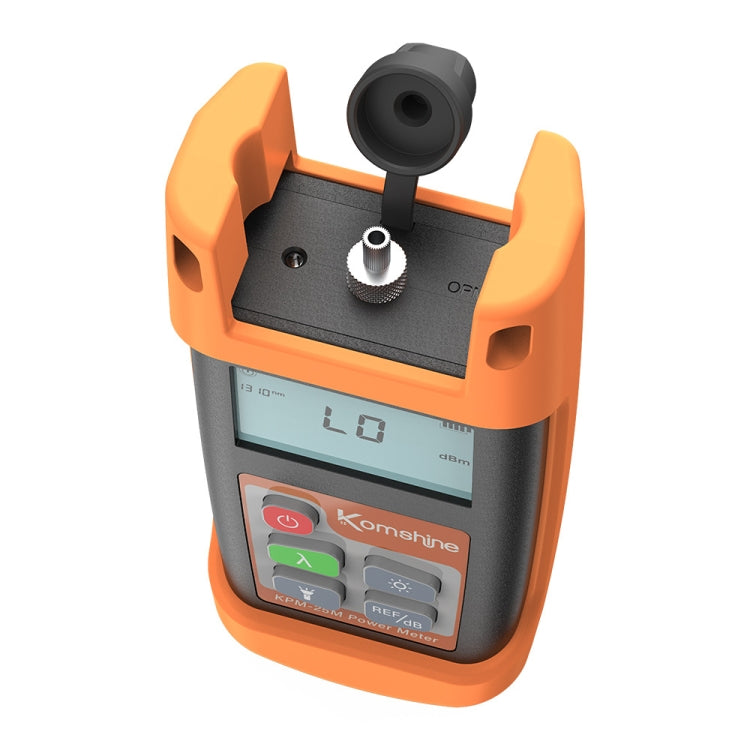

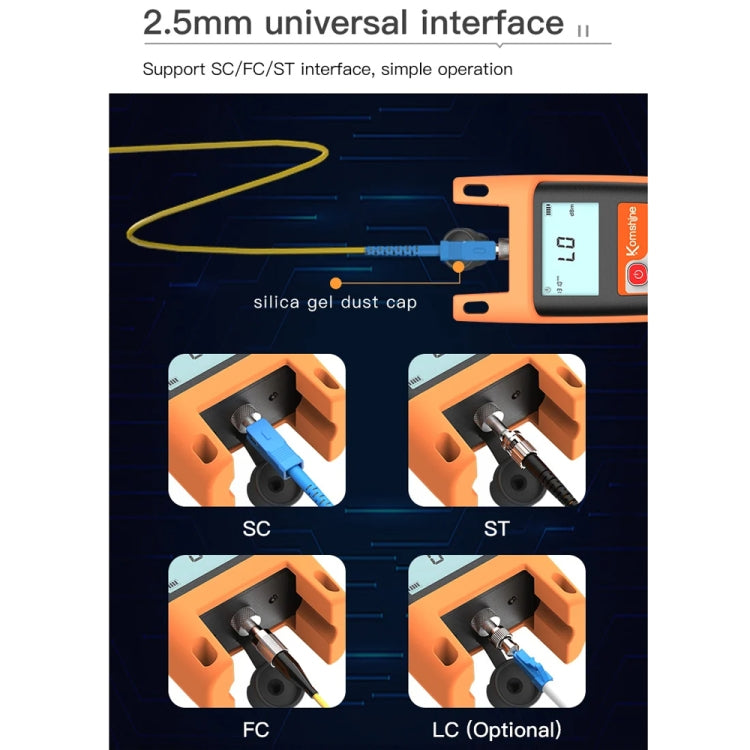

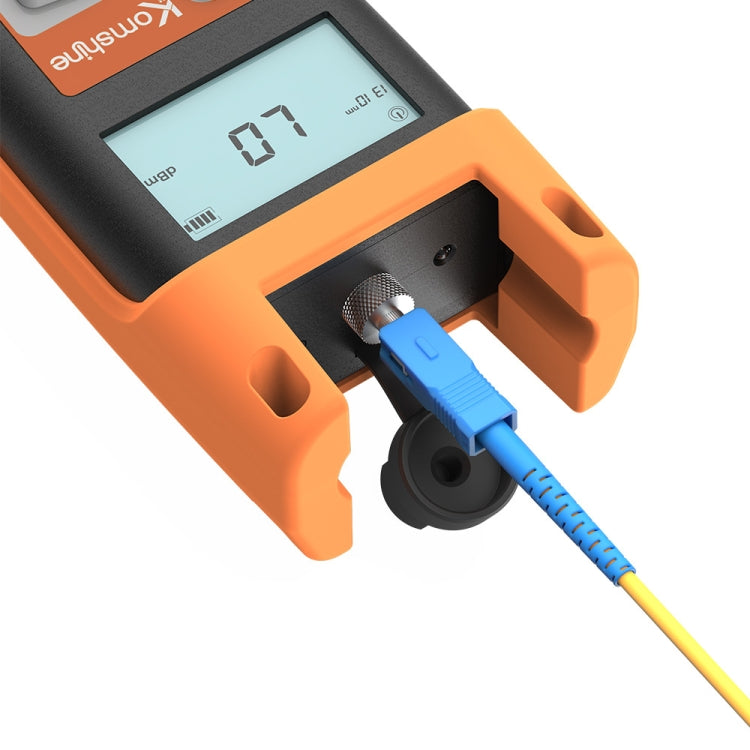

12. 2.5mm universal interface design support, SC/FC/ST interface, simple operation

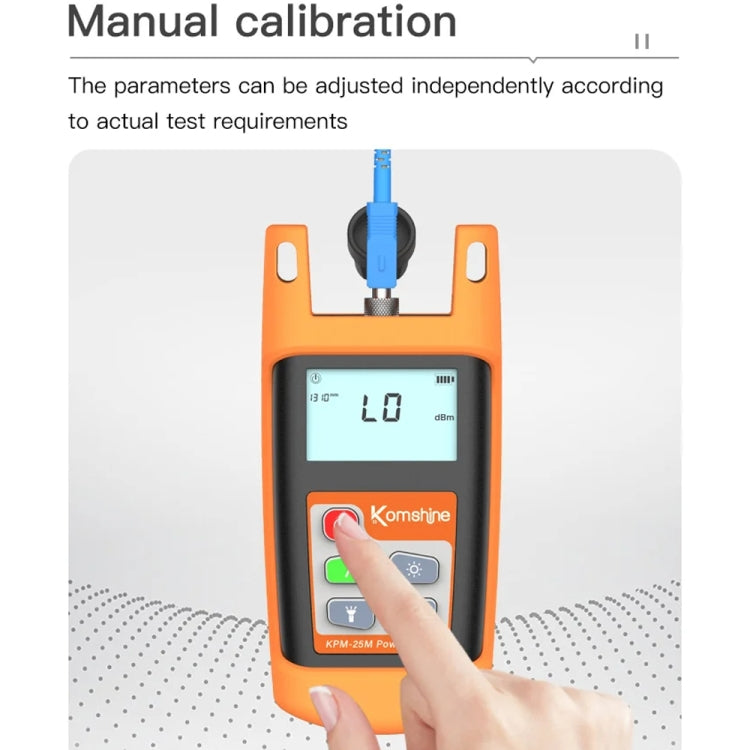

13. Manual calibration is possible, and test parameters can be adjusted independently according to actual test needs.

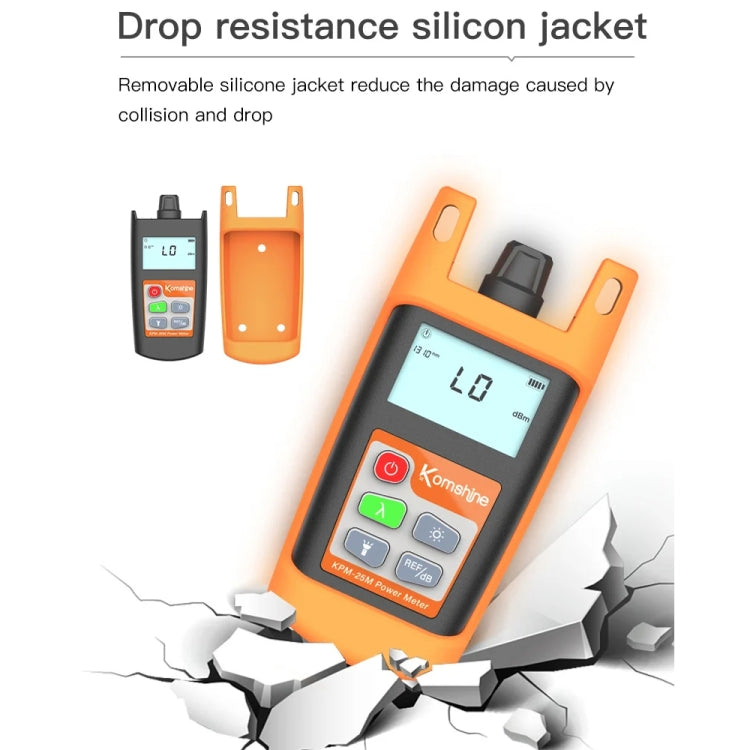

14. Removable silicone cover, split design provides better protection and can reduce damage caused by collision and falling to a certain extent.

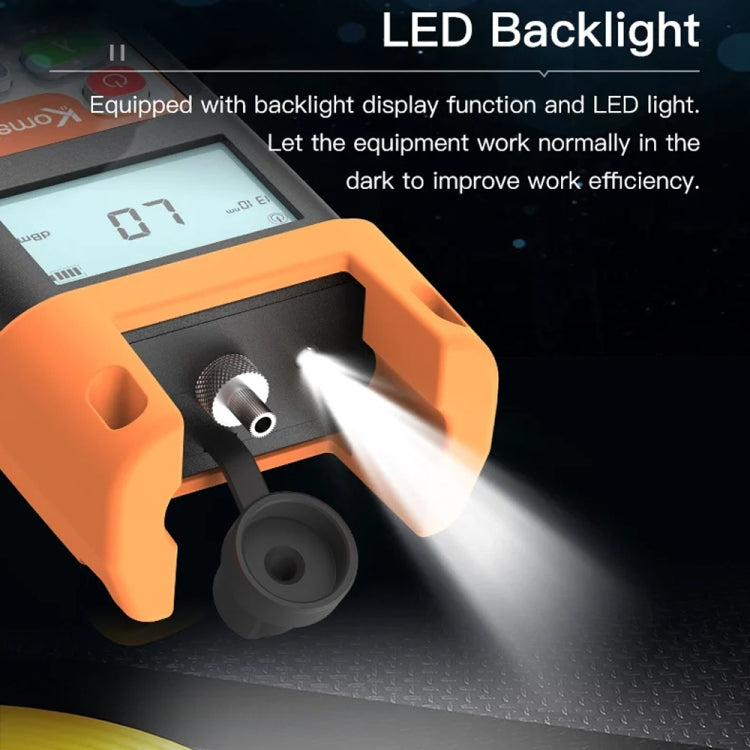

15. It has a built-in backlight display function and is equipped with a high-brightness LED flashlight, so that the device can work normally in the dark, thus improving work efficiency.

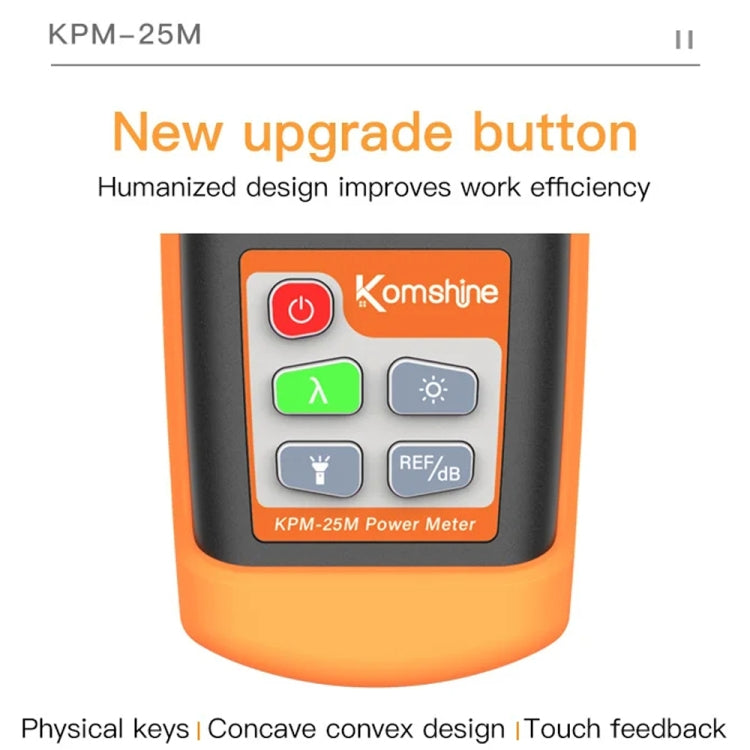

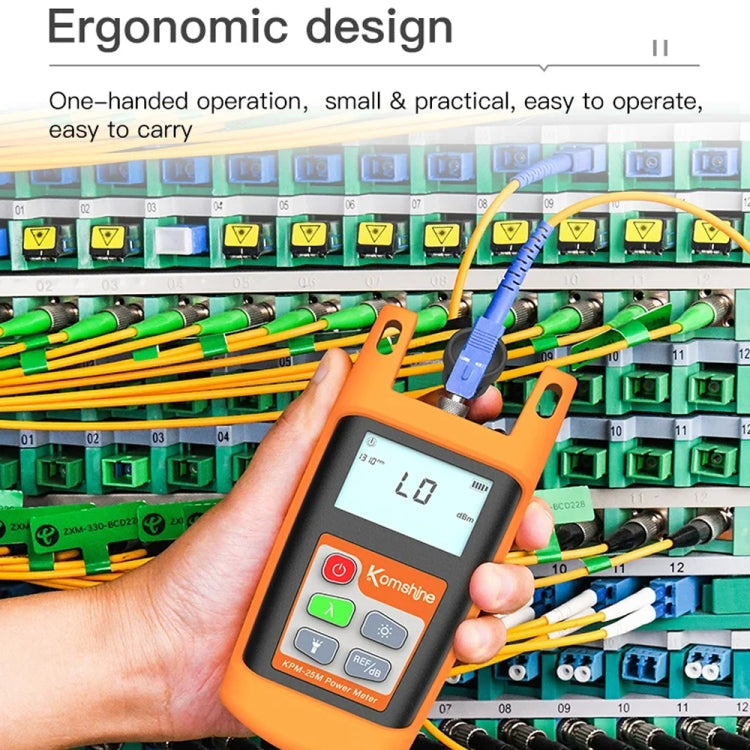

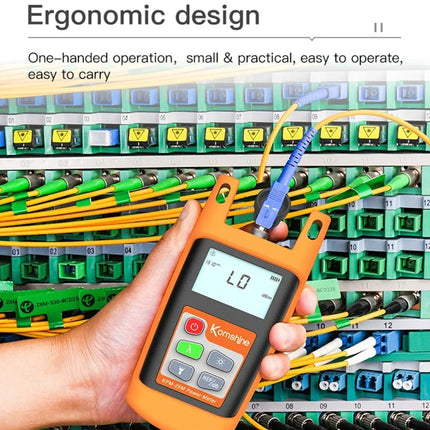

16. Ergonomic design, operable with one hand, small and practical, easy to carry

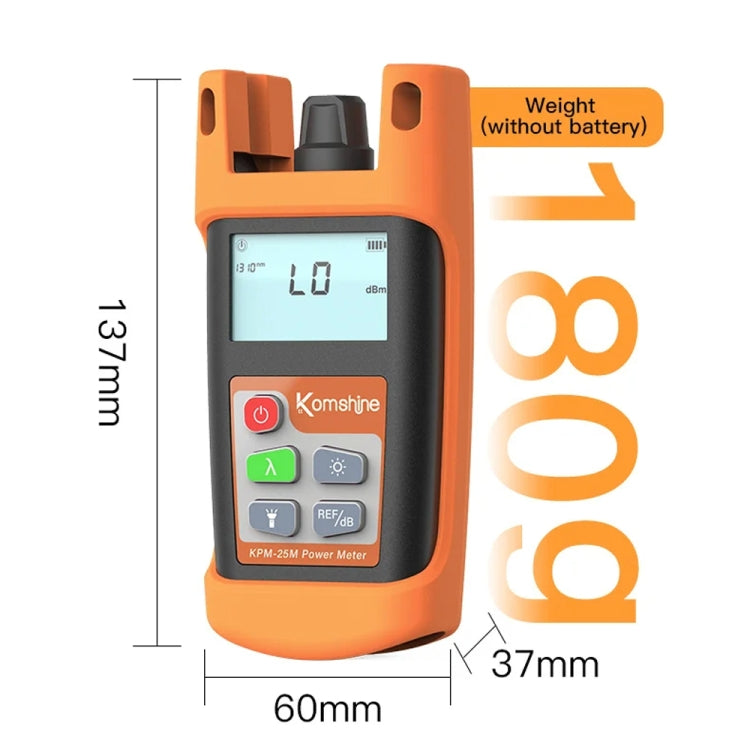

17. Weight: 180g
18. Overall dimensions: 137x60x37 mm


Specification:
Package Weight
One Package Weight 0.20kgs / 0.45lb
One Package Size 16cm * 9cm * 6cm / 6.3inch * 3.54inch * 2.36inch
Qty per Carton 60
Carton Weight 13.10kgs / 28.88lb
Carton Size 50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
Loading Container 20GP: 438 cartons * 60 pcs = 26280 pcs
40HQ: 1018 cartons * 60 pcs = 61080 pcs

Komshine Mini Handheld Optical Power Meter Fiber Loss Measurement, Specification: KPM-25M-A/-70DBM to +6DBM

Product form

SKU: TBD0604219401

  • In stock (Processing Time 1 - 72 hours)

€24,23

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Wavelength range: 800 ~1700nm
    2. Probe type: InGaAs
    3. Power measurement range: -70~+6dBm/-50~+26dBm
    4. Accuracy: 0.2dB
    5. Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625nm
    6. Display resolution: 0.01dB
    7. Automatic shutdown time: 10min
    8. Battery working time: 20h
    9. Type A: -70dBm~+6dBm (mainly used in telecommunications, mobile, China Unicom, etc.)
    10. Type C: -50dBm~+26dBm (mainly used in radio and television, monitoring, etc.)
    11. Power supply: alkaline battery 2xAAA 1.5V battery (not included)
    12. 2.5mm universal interface design support, SC/FC/ST interface, simple operation
    13. Manual calibration is possible, and test parameters can be adjusted independently according to actual test needs.
    14. Removable silicone cover, split design provides better protection and can reduce damage caused by collision and falling to a certain extent.
    15. It has a built-in backlight display function and is equipped with a high-brightness LED flashlight, so that the device can work normally in the dark, thus improving work efficiency.
    16. Ergonomic design, operable with one hand, small and practical, easy to carry
    17. Weight: 180g
    18. Overall dimensions: 137x60x37 mm


    Specification:
    Package Weight
    One Package Weight 0.20kgs / 0.45lb
    One Package Size 16cm * 9cm * 6cm / 6.3inch * 3.54inch * 2.36inch
    Qty per Carton 60
    Carton Weight 13.10kgs / 28.88lb
    Carton Size 50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
    Loading Container 20GP: 438 cartons * 60 pcs = 26280 pcs
    40HQ: 1018 cartons * 60 pcs = 61080 pcs
