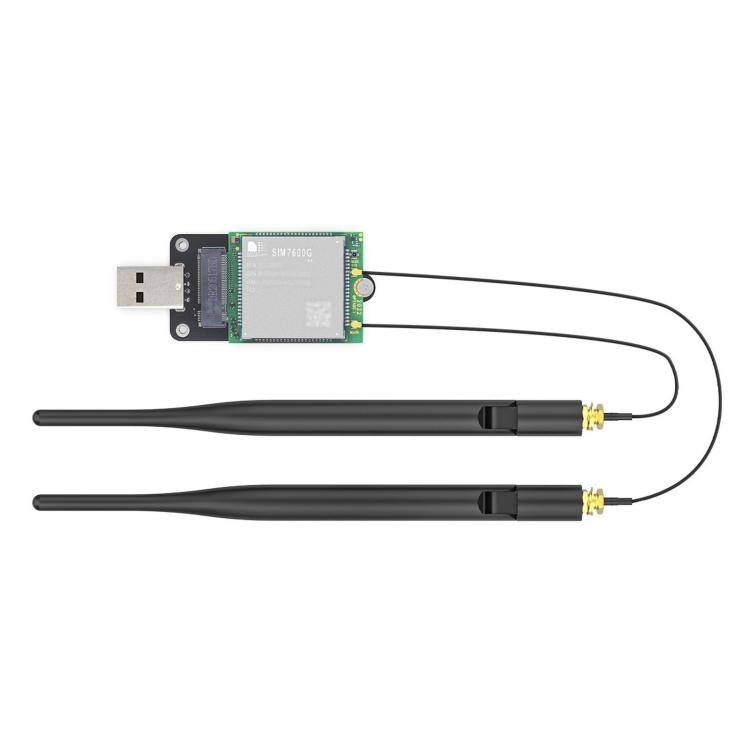

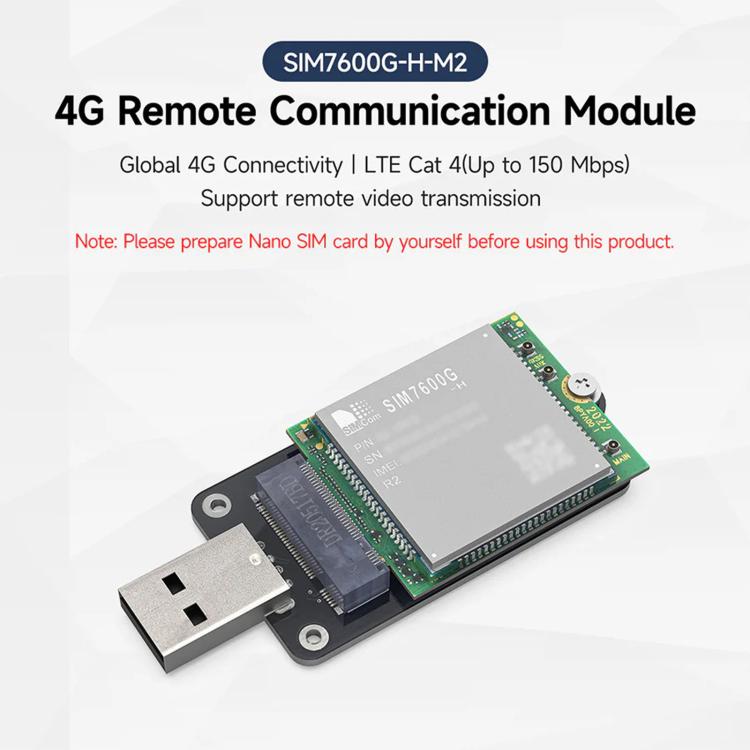

Yahboom SIM7600G-H-M2 Global Band 4G LTE Cat4 Cellular Module with Antennas & USB Expansion Board

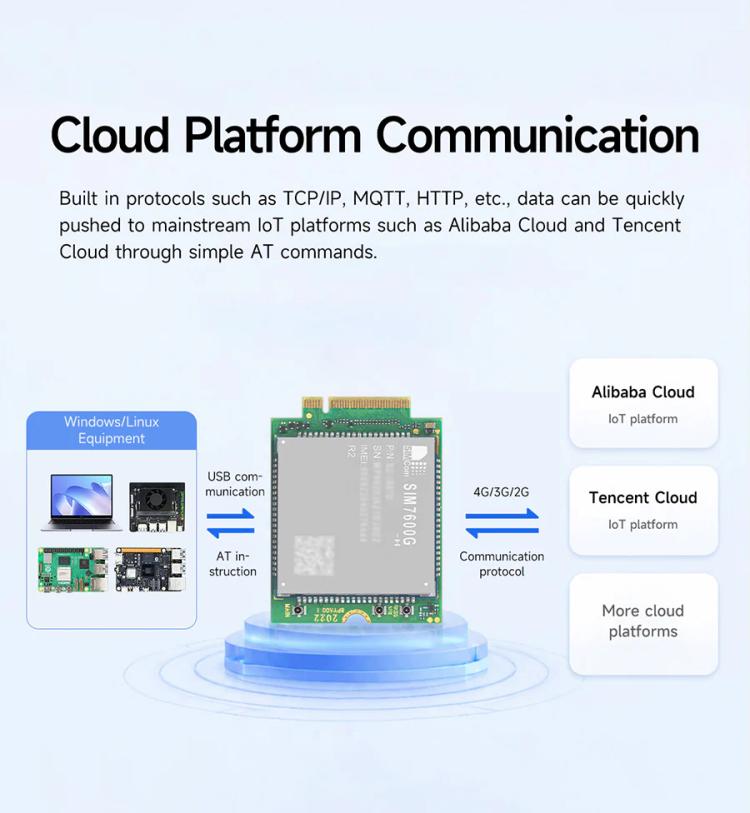

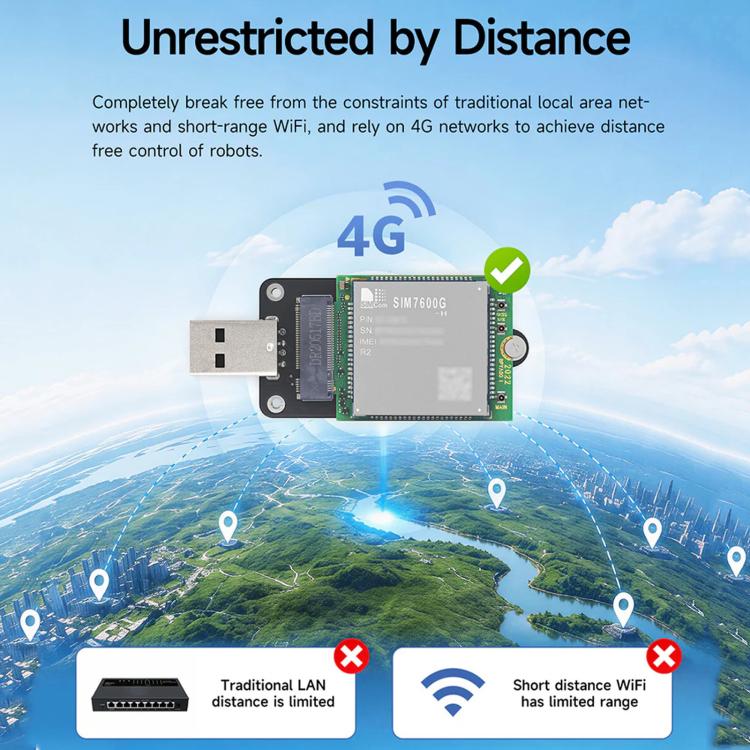

1. Powered by the highly stable SIM7600G-H-M2 core chip, this module supports the mainstream cellular network bands of most countries worldwide (backward compatible with 3G/2G). Utilizing LTE Cat 4 technology, it delivers downlink speeds up to 150 Mbps, supporting remote device management, real-time video transmission, and cloud connectivity. Its integrated GNSS positioning function (requires an external GNSS antenna) further extends its capabilities in navigation, tracking, and smart mobile applications.

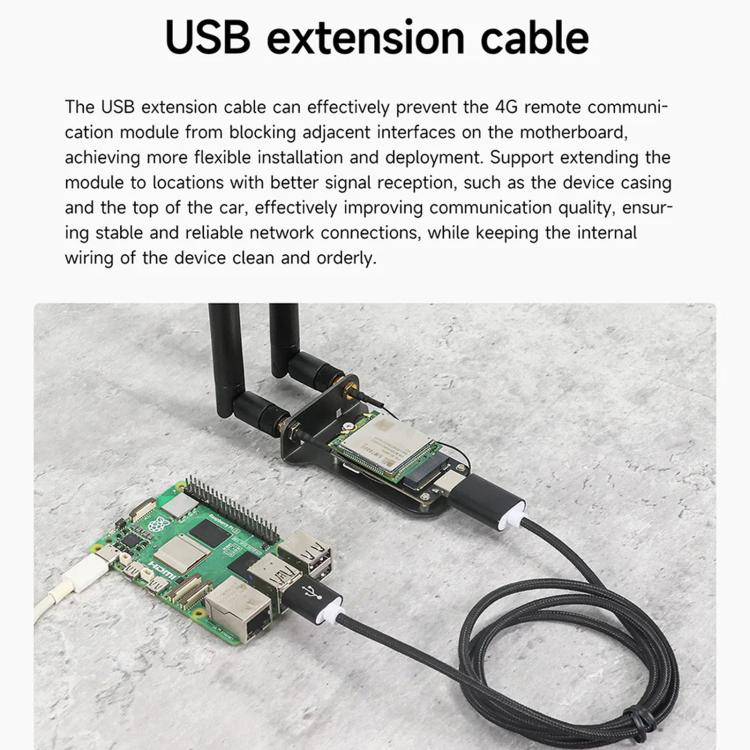

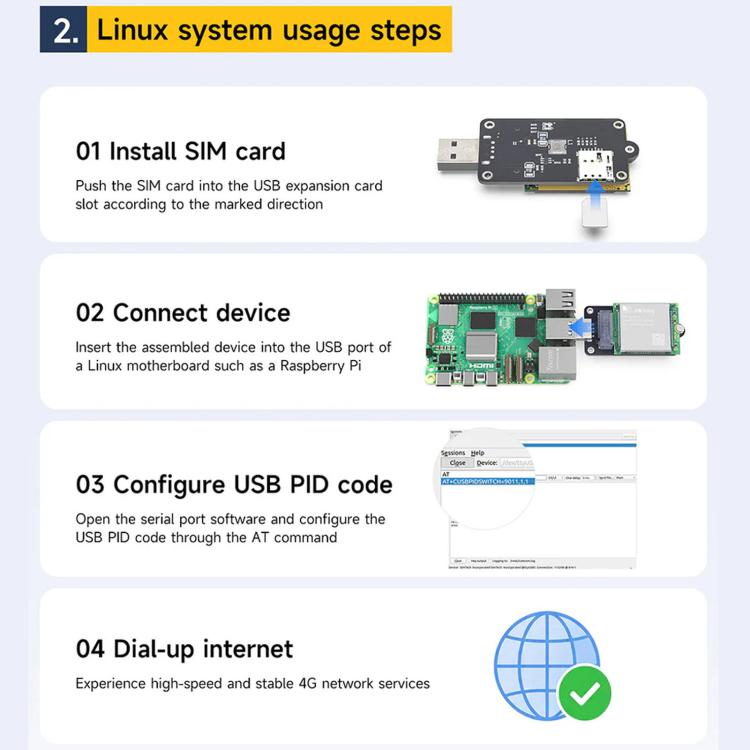

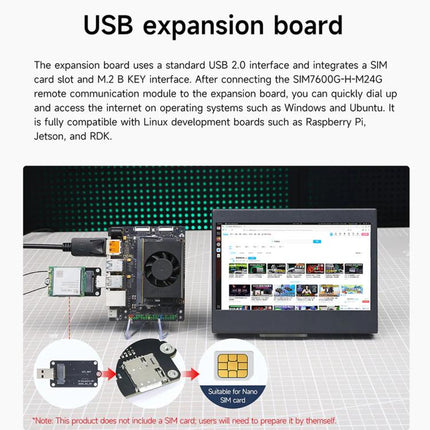

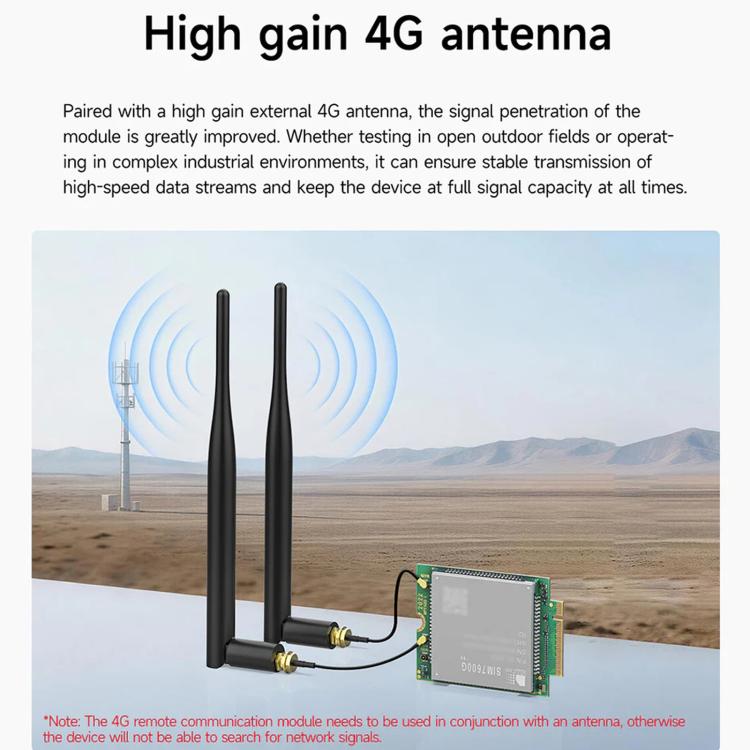

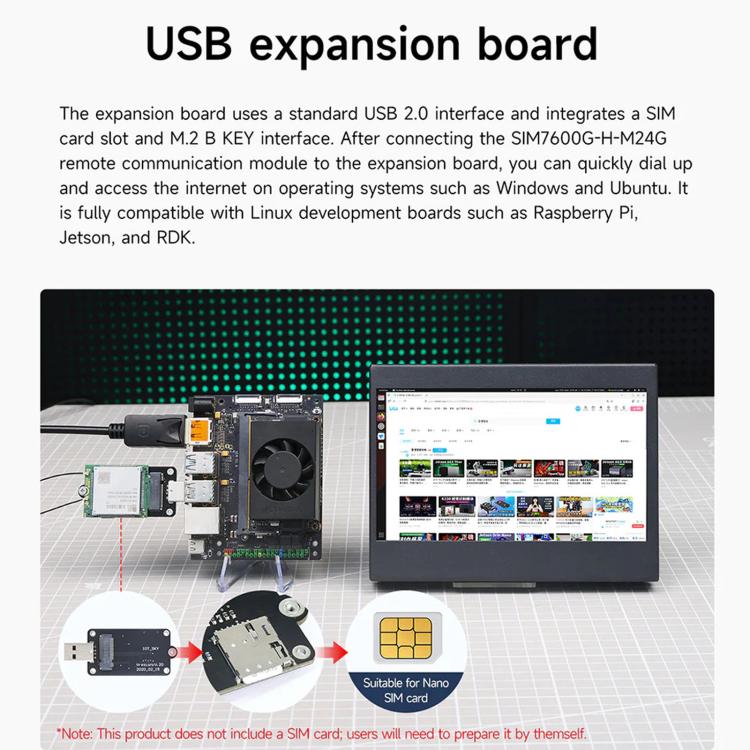

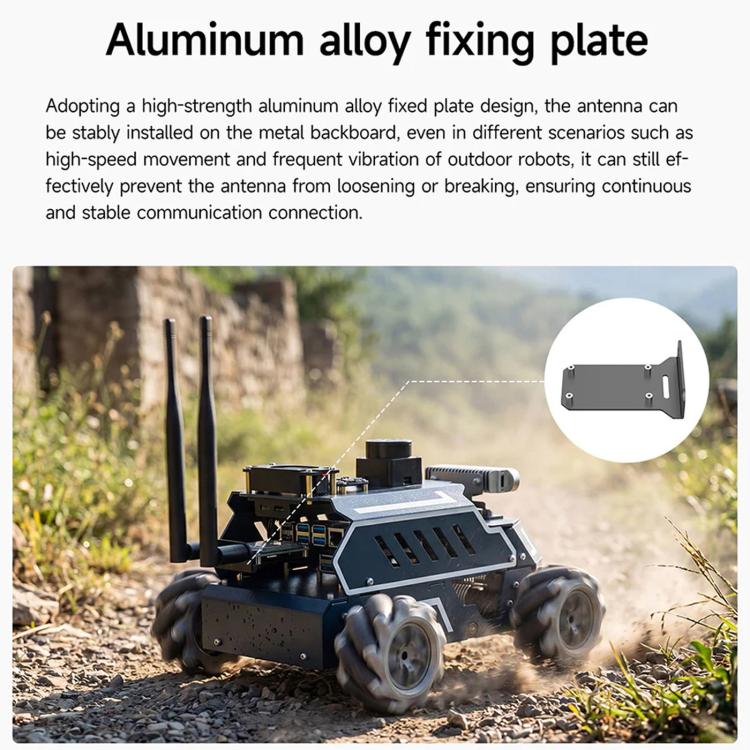

2. We provide four tiered configurations to match various development stages: if your motherboard already has an integrated slot, you can choose the "Standard Module"; if you need to boost the signal, choose the "Module + Dual Antennas Edition"; for single-board computers like Raspberry Pi that lack an M.2 slot, choose the "Driver-free USB Adapter Board Kit"; for outdoor unmanned equipment, we highly recommend the "Ultimate Robot Edition," which comes equipped with an aluminum alloy anti-vibration chassis and a 1 m shielded cable.
3. Standard M.2 B-KEY interface with strong compatibility.
4. Important Note: Please prepare a Nano SIM card yourself before using this product.

Specifications

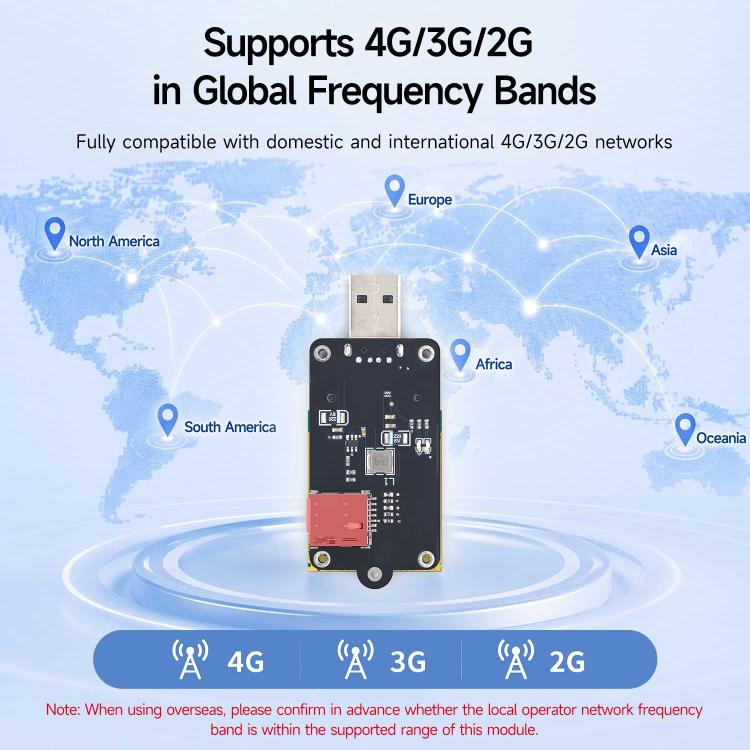

Operating Frequency Bands:
--LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
--LTE-TDD: B34, B38, B39, B40, B41
--UMTS/HSPA+: B1, B2, B4, B5, B6, B8, B19
--GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz

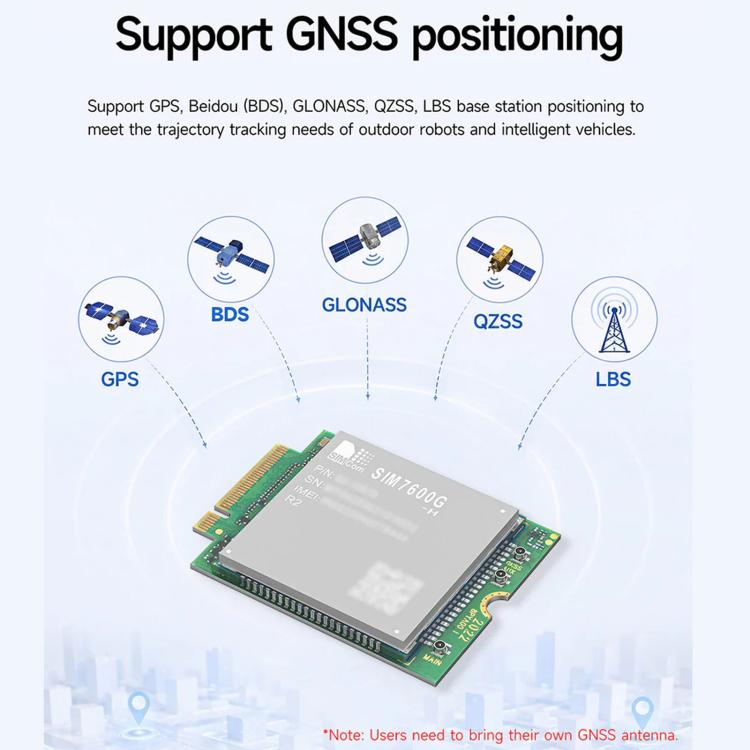

--GNSS: GPS, BeiDou, GLONASS, Galileo, QZSS

Data Transmission:
--LTE: 150 Mbps (DL) / 50 Mbps (UL)
--HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
--UMTS: 384 Kbps (DL) / 384 Kbps (UL)
--EDGE: 236.8 Kbps (DL) / 236.8 Kbps (UL)
--GPRS: 85.6 Kbps (DL) / 85.6 Kbps (UL)

Software Functions:

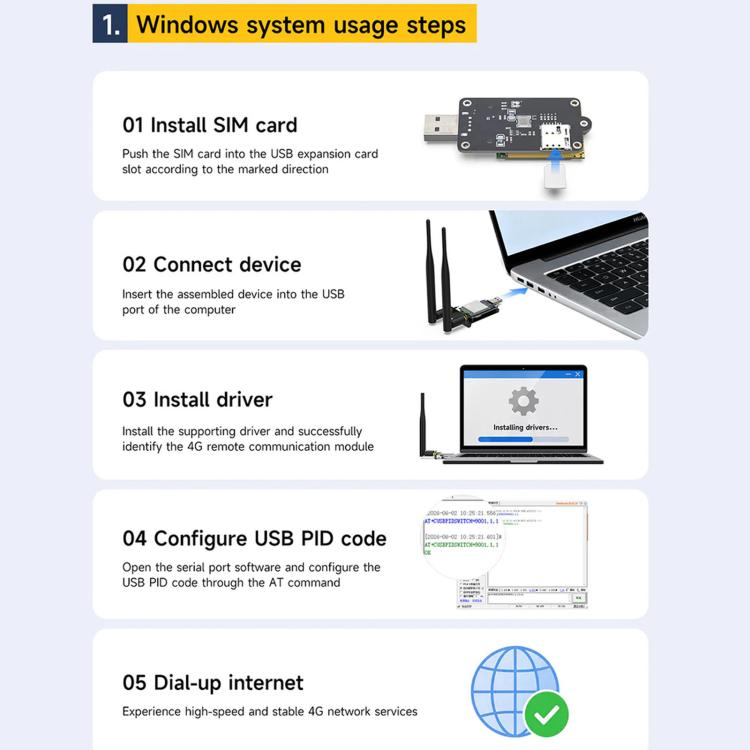

--Operating Systems: Windows / Linux / Android
--Communication Protocols: TCP, IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
--SMS: Supports MT, MO, CB, Text, PDU
--Firmware Upgrade: Supports firmware upgrades via USB/FOTA interfaces

Hardware Description:
--SIM Card: 1.8 V / 3.0 V
--Antenna Interface: Generation 4 IPEX connectors (LTE Main Antenna + LTE Diversity Antenna + GNSS Antenna)
--Power Supply Voltage: 3.4 V - 4.2 V
--Form Factor / Package: M.2 B-KEY

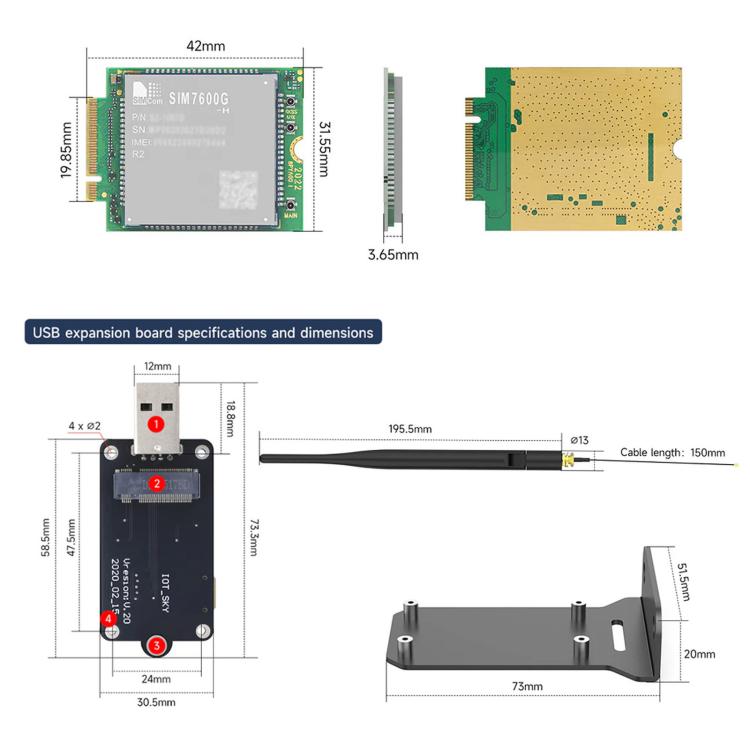

--Product Dimensions: 42 x 31.55 x 3.65 mm


Specification:
Package Weight
One Package Weight 0.12kgs / 0.27lb
One Package Size 16cm * 10cm * 4cm / 6.3inch * 3.94inch * 1.57inch
Qty per Carton 120
Carton Weight 15.50kgs / 34.17lb
Carton Size 50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
Loading Container 20GP: 438 cartons * 120 pcs = 52560 pcs
40HQ: 1018 cartons * 120 pcs = 122160 pcs
