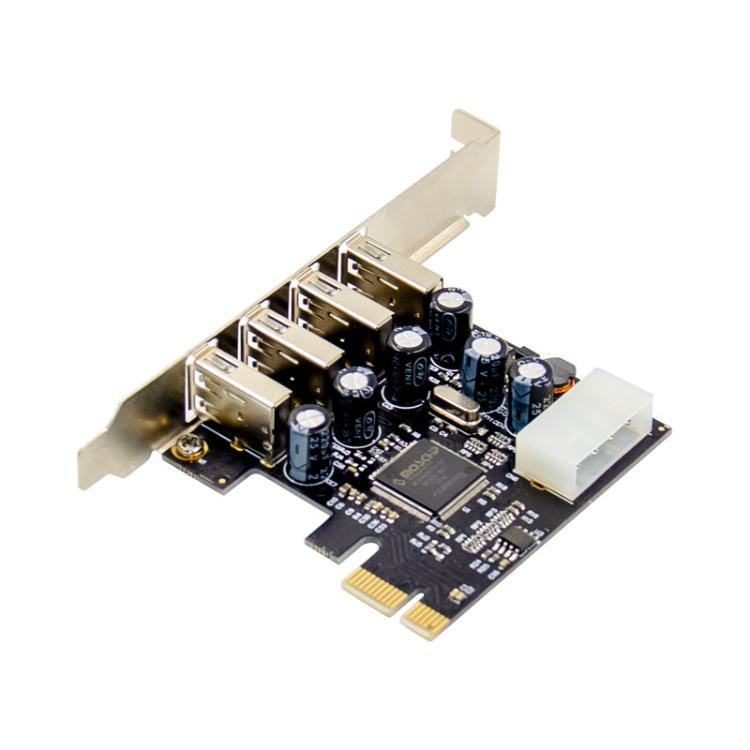

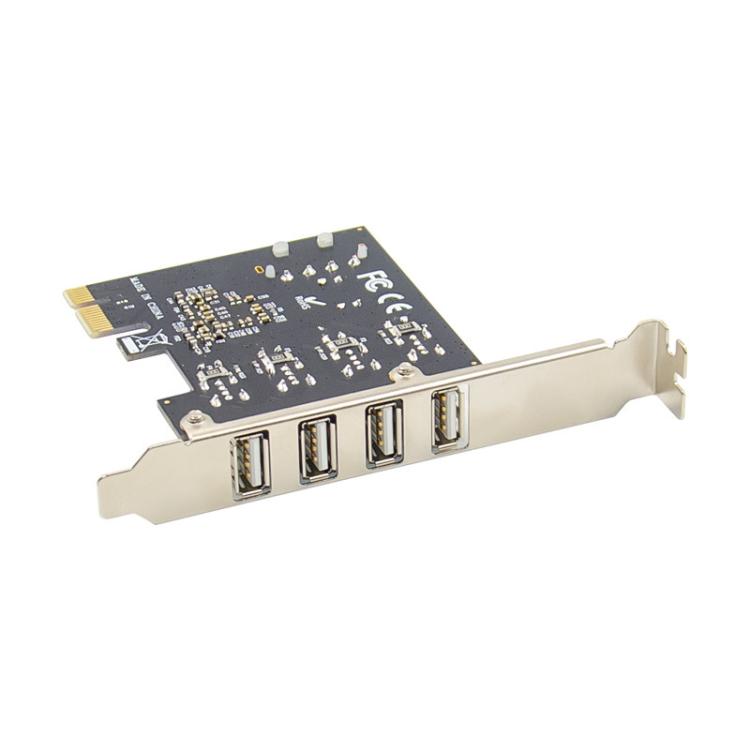

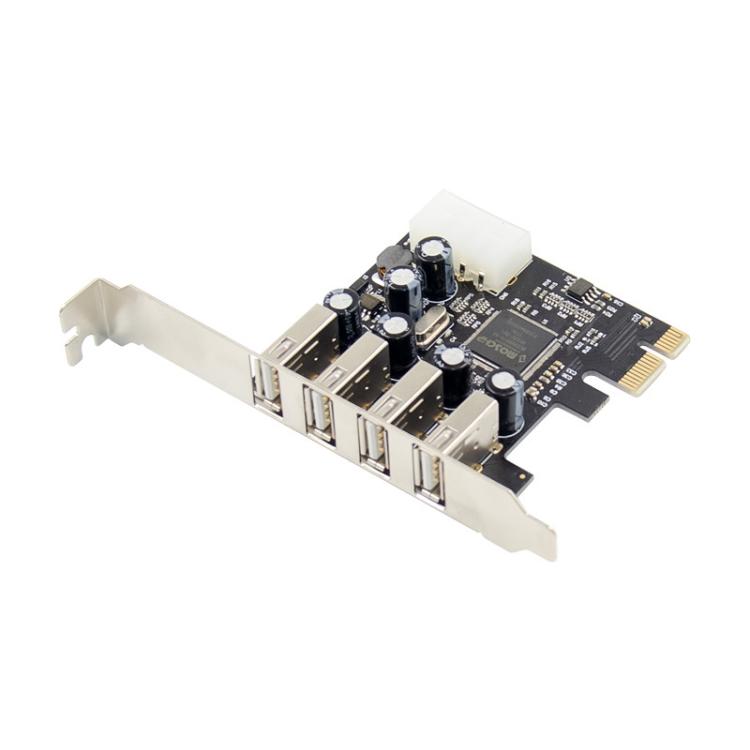

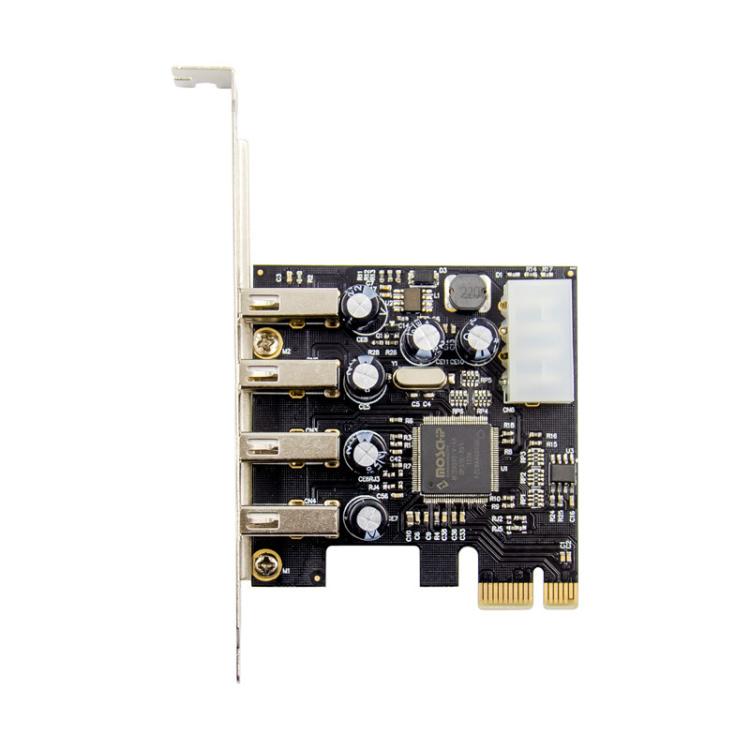

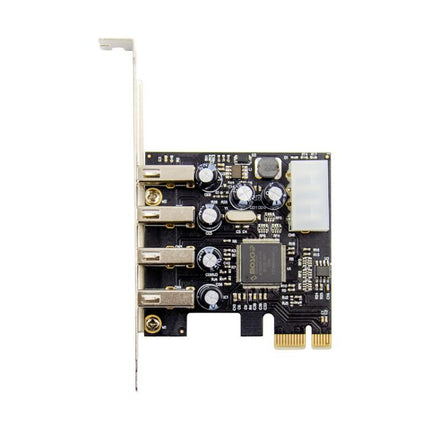

SUNWEIT ST623 PCIe x1 MCS9990 4 Ports USB2.0 Industrial Computer High Speed Expansion Card


1. Supports two operation modes, USB host mode and OTG mode, which can be selected through the device mode selection pin
2. USB host mode supports four USB2.0 host ports and four USB host controllers
3. OTG mode supports two USB2.0 host ports, one USB OTG port, and provides the function of selecting GPIO or ISA interface
4. Four USB2.0 host ports are integrated with on-chip transceivers and support four enhanced host controller interfaces (EHCI) and four open host controller interfaces (OHCI)
5. The USB OTG port is integrated with OTG PHY and supports host and device operations
6. The temporary ISA interface supports up to four serial ports and/or up to two parallel ports
7. The temporary 24 GPIO pins can be programmed as input or output
8. Can be used with various types of USB devices, including hubs, removable drives, digital cameras, scanners, CD-RW, DVD-ROM, PC cameras, printers, etc.
9. Chip: ASIX MCS9990

PCI Express:
1. Single-channel (x1) PCI Express endpoint controller with integrated PHY
2. Compliant with PCI Express base specification revision 1.1
3. Compliant with PCI Express card specification
4. Supports multiple DMA transactions
5. Supports eight PCI Express functions
6. Supports message TLP (error) generation
7. Supports legacy and MSI interrupt mechanisms
8. Supports PCIe power management through ASPM support

USB functions:
1. Four USB 2.0 host ports with on-chip transceivers that can handle high-speed (480Mbps), full-speed (12Mbps), and low-speed (1.5Mbps) rates
2. USB 2.0 host ports can support OTG functions
3. Four enhanced host controller interface (EHCI) controllers
4. Four companion open host controller interface (OHCI) controllers
5. Compatible with bulk, interrupt, and isochronous USB devices, multiple high-performance USB devices running simultaneously, and support USB power management
6. As a peripheral device, OTG supports high-speed (HS)/full-speed (FS) operation
7. As a peripheral device, OTG supports the following endpoints:
- 1 control endpoint
- 1 interrupt IN endpoint
- 2 Bulk IN endpoints
- 2 Bulk OUT endpoints
8. Support hot-swap function, you can connect/disconnect devices without shutting down the system first

Packing list:
- PCIe MCS9990 4-port USB 2.0 card x 1
- Short iron sheet x 1


Specification:
Package Weight
One Package Weight 0.10kgs / 0.23lb
One Package Size 15cm * 14cm * 3cm / 5.91inch * 5.51inch * 1.18inch
Qty per Carton 60
Carton Weight 7.00kgs / 15.43lb
Carton Size 50cm * 32cm * 30cm / 19.69inch * 12.6inch * 11.81inch
Loading Container 20GP: 555 cartons * 60 pcs = 33300 pcs
40HQ: 1289 cartons * 60 pcs = 77340 pcs

SUNWEIT ST623 PCIe x1 MCS9990 4 Ports USB2.0 Industrial Computer High Speed Expansion Card

Product form

SKU: TBD06060309

  • In stock (Processing Time 1 - 72 hours)

137,47 lei

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Supports two operation modes, USB host mode and OTG mode, which can be selected through the device mode selection pin
    2. USB host mode supports four USB2.0 host ports and four USB host controllers
    3. OTG mode supports two USB2.0 host ports, one USB OTG port, and provides the function of selecting GPIO or ISA interface
    4. Four USB2.0 host ports are integrated with on-chip transceivers and support four enhanced host controller interfaces (EHCI) and four open host controller interfaces (OHCI)
    5. The USB OTG port is integrated with OTG PHY and supports host and device operations
    6. The temporary ISA interface supports up to four serial ports and/or up to two parallel ports
    7. The temporary 24 GPIO pins can be programmed as input or output
    8. Can be used with various types of USB devices, including hubs, removable drives, digital cameras, scanners, CD-RW, DVD-ROM, PC cameras, printers, etc.
    9. Chip: ASIX MCS9990

    PCI Express:
    1. Single-channel (x1) PCI Express endpoint controller with integrated PHY
    2. Compliant with PCI Express base specification revision 1.1
    3. Compliant with PCI Express card specification
    4. Supports multiple DMA transactions
    5. Supports eight PCI Express functions
    6. Supports message TLP (error) generation
    7. Supports legacy and MSI interrupt mechanisms
    8. Supports PCIe power management through ASPM support

    USB functions:
    1. Four USB 2.0 host ports with on-chip transceivers that can handle high-speed (480Mbps), full-speed (12Mbps), and low-speed (1.5Mbps) rates
    2. USB 2.0 host ports can support OTG functions
    3. Four enhanced host controller interface (EHCI) controllers
    4. Four companion open host controller interface (OHCI) controllers
    5. Compatible with bulk, interrupt, and isochronous USB devices, multiple high-performance USB devices running simultaneously, and support USB power management
    6. As a peripheral device, OTG supports high-speed (HS)/full-speed (FS) operation
    7. As a peripheral device, OTG supports the following endpoints:
    - 1 control endpoint
    - 1 interrupt IN endpoint
    - 2 Bulk IN endpoints
    - 2 Bulk OUT endpoints
    8. Support hot-swap function, you can connect/disconnect devices without shutting down the system first

    Packing list:
    - PCIe MCS9990 4-port USB 2.0 card x 1
    - Short iron sheet x 1


    Specification:
    Package Weight
    One Package Weight 0.10kgs / 0.23lb
    One Package Size 15cm * 14cm * 3cm / 5.91inch * 5.51inch * 1.18inch
    Qty per Carton 60
    Carton Weight 7.00kgs / 15.43lb
    Carton Size 50cm * 32cm * 30cm / 19.69inch * 12.6inch * 11.81inch
    Loading Container 20GP: 555 cartons * 60 pcs = 33300 pcs
    40HQ: 1289 cartons * 60 pcs = 77340 pcs
