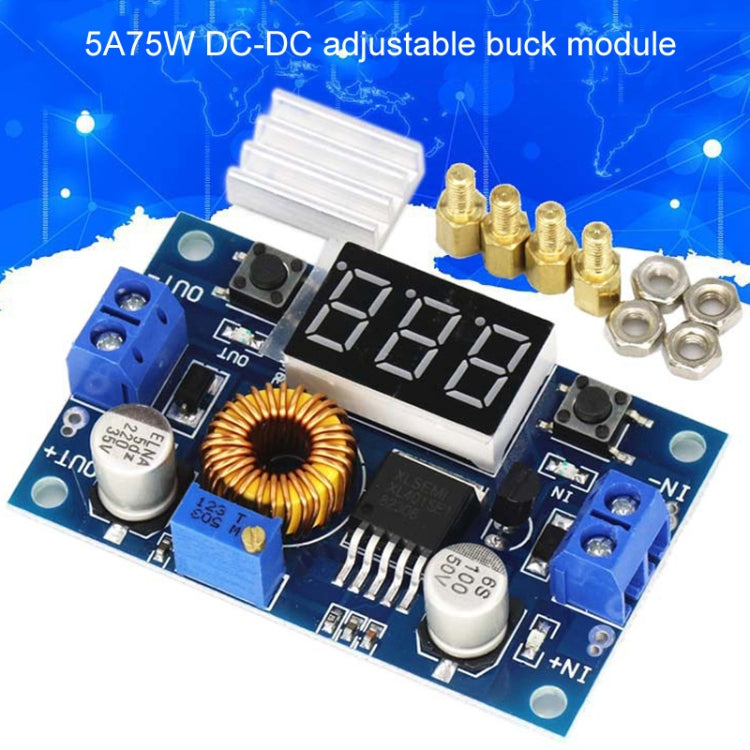

XL4015E 5A 75W DC-DC Adjustable Step-Down Module Regulated Power Supply Module With Voltage Display

Description


Module performance and features:

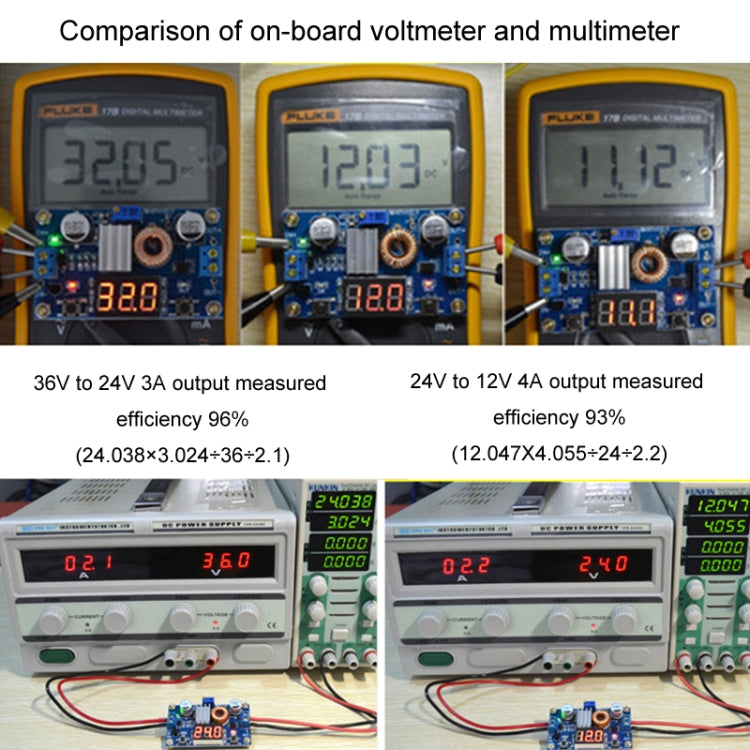

1. With voltmeter display and voltmeter can be self-calibrating, using a more advanced voltage microprocessor, voltmeter error 0.05V, range 0-40V (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)
2. With power indicator, touching the button to switch the measurement of input or output voltage, and there is an indicator to show which voltage is being measured, and save the settings, even if the power is off and on again
3. Voltmeter can be turned off, when not needed when touching the left button can be easily realized
4. With terminal block, easy to use without soldering iron, and retain the soldering wire junction point
5. Input voltage 4.0-38V (input voltage must be higher than output voltage by more than 1.5V)
6. Adjustable output voltage range 1.25V-36V continuously adjustable (input voltage must be 1.5V higher than output voltage)
7. Output current up to 5A, it is recommended to use within 4.5A
8. Output power up to 75W, more than 50W, please strengthen the chip cooling (that is, must add a small heat sink)
9. High conversion efficiency, up to 96% (efficiency and input and output voltage, current, pressure difference)
10. Operating frequency: 180KHZ
11. Load adjustment rate S (I) less than 0.8 percent, voltage adjustment rate S (u) less than 0.8 percent
12. With thermal protection and short-circuit protection (but short-circuit there is an accident, try not to short-circuit)
13. Board size: about 7 x 4.7 cm

Applications:
DC/DC step-down module is used in the field of input voltage higher than the output voltage step-down, such as batteries, power transformers, DIY adjustable voltage regulator power supply, LCD monitors and LCD TVs, portable instrument power supply, telecom/network equipment, 24V car laptop power supply, industrial equipment step-down, 12V step-down to 3.3V, 12V step-down to 5V, 24V step-down to 5V, 24V step-down to 12V, 36V to 24V, etc.

XL4015E 5A 75W DC-DC Adjustable Step-Down Module Regulated Power Supply Module With Voltage Display

Product form

SKU: TBD06043956

  • In stock (Processing Time 1 - 72 hours)

37,70 lei

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    Module performance and features:
    1. With voltmeter display and voltmeter can be self-calibrating, using a more advanced voltage microprocessor, voltmeter error 0.05V, range 0-40V (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)
    2. With power indicator, touching the button to switch the measurement of input or output voltage, and there is an indicator to show which voltage is being measured, and save the settings, even if the power is off and on again
    3. Voltmeter can be turned off, when not needed when touching the left button can be easily realized
    4. With terminal block, easy to use without soldering iron, and retain the soldering wire junction point
    5. Input voltage 4.0-38V (input voltage must be higher than output voltage by more than 1.5V)
    6. Adjustable output voltage range 1.25V-36V continuously adjustable (input voltage must be 1.5V higher than output voltage)
    7. Output current up to 5A, it is recommended to use within 4.5A
    8. Output power up to 75W, more than 50W, please strengthen the chip cooling (that is, must add a small heat sink)
    9. High conversion efficiency, up to 96% (efficiency and input and output voltage, current, pressure difference)
    10. Operating frequency: 180KHZ
    11. Load adjustment rate S (I) less than 0.8 percent, voltage adjustment rate S (u) less than 0.8 percent
    12. With thermal protection and short-circuit protection (but short-circuit there is an accident, try not to short-circuit)
    13. Board size: about 7 x 4.7 cm

    Applications:
    DC/DC step-down module is used in the field of input voltage higher than the output voltage step-down, such as batteries, power transformers, DIY adjustable voltage regulator power supply, LCD monitors and LCD TVs, portable instrument power supply, telecom/network equipment, 24V car laptop power supply, industrial equipment step-down, 12V step-down to 3.3V, 12V step-down to 5V, 24V step-down to 5V, 24V step-down to 12V, 36V to 24V, etc.
