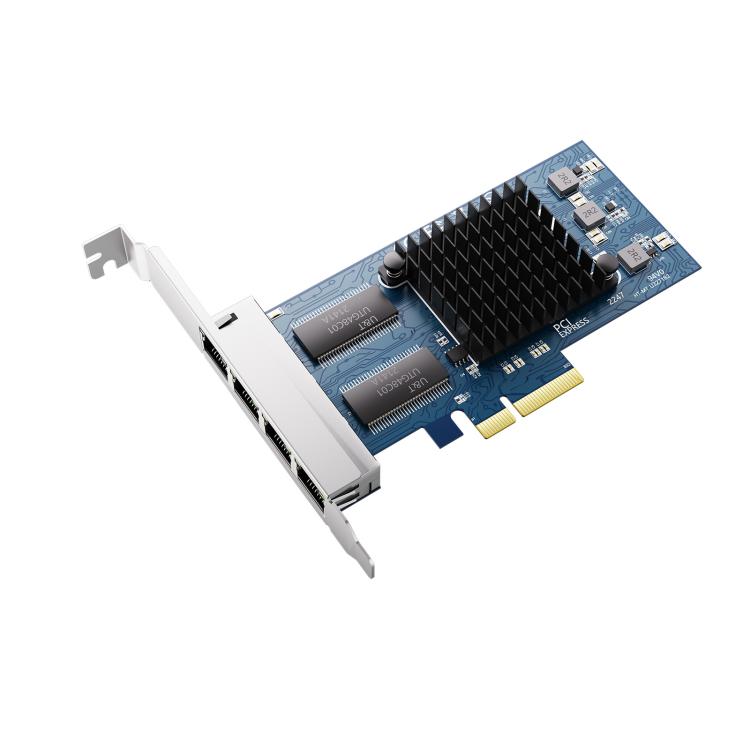

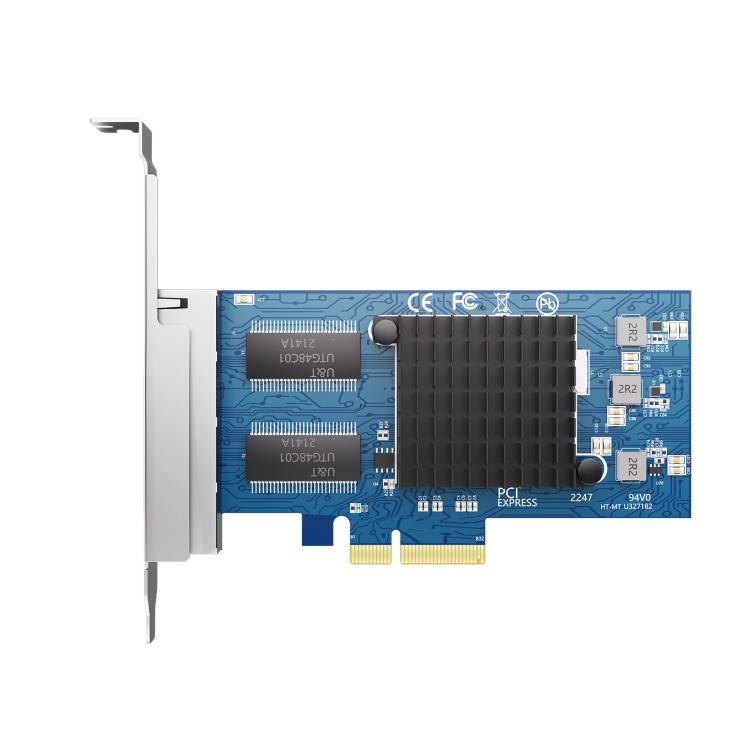

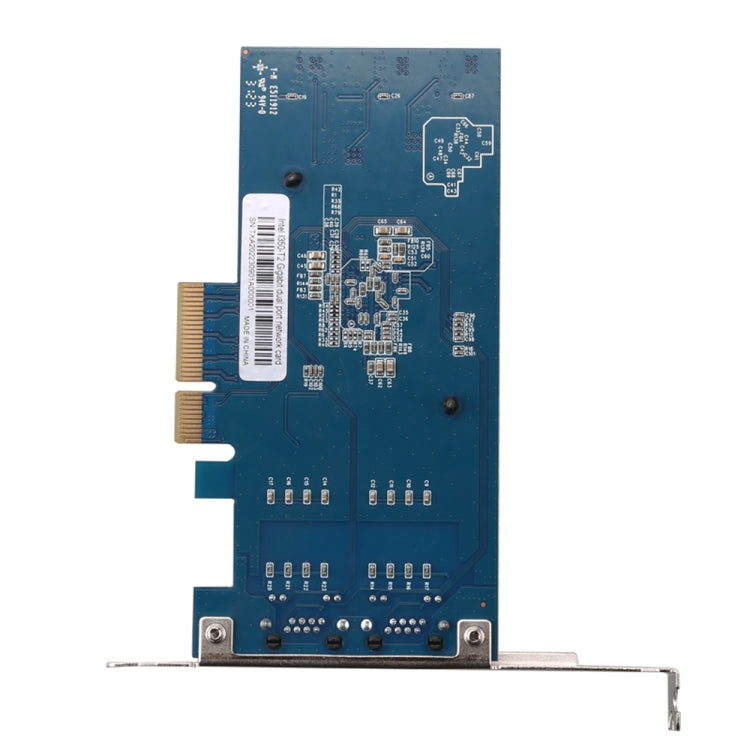

Intel I350_PCIe 4x Server 4Port Lan Card

1. Chipset: Intel I350 Ethernet controller
2. Port number: 4xRJ45
3. Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
4. Data rate: 10/100/1000Mbps
5. Interface: PCI express 4x
6. LED indicator: 8 LEDs 10/100/1000Mb (link/action)
7. Dimensions: 130x68.5x17mm
8. Supported operating systems: DOS, Novell ODI Windows XP 32-bit (64-bit), Windows Server 2003 32-bit (64-bit), Windows Vista 32-bit (64-bit), Windows7 32-bit (64.bit)
Windows 8 32-bit (64-bit), Windows 8.1 32-bit (64-bit) Windows Server 2008 32-bit (64-bit), Windows Server 2008 R2 32-bit (64.bit) and Windows Server 2012
Windows Server 2012 R2 Linux 2.4 series kernel, 2.6.x, 3.x FreeBSD 7.x or most FreeBSD, UnixWare/Open Unix 8 Sun Solaris x86, VMware, Xen4
9. Environment: Operating temperature: 0℃-55℃, relative humidity: 10%-90% (non-condensing), storage temperature: -0℃-80℃, relative temperature: 5%-90% (non-condensing)
10. Other features: Halogen-free dual-port Gigabit Ethernet adapter with fiber interface option Innovative power management features, including Energy Efficient Ethernet (EEE) and DMA aggregation to improve efficiency and reduce power consumption Flexible I/O virtualization, enabling port partitioning and up to 32 quality of service (QoS) virtual ports
Scalable iSCSI performance provides cost-effective SAN connectivity, supports PCI Expressx2.1 generation 5GT/s high-performance bridgeless design, supports PCI ExpressxV2.1 (5 GT/s), low profile and standard height full, automatic crossover detection function (MDI/MDI-X), IEEE 1588 protocol and 802.1AS implementation
11. Chipset Description: Intel Ethernet Controller I350 is a single, compact, low-power component that supports quad-port as well as dual-port Gigabit Ethernet designs. The device provides four fully integrated Gigabit Ethernet media, access control (MAC), physical layer (PHY) ports and four SGMII/SerDes ports that can be connected to external PHYs. The I350 supports PCI Expressx (PCIe v2.1 (2.5GT/s and 5GT/s)). The device supports two-port or four-port 1000BASE-T implementations using integrated PHYs. It can be used in server system configurations such as rack-mounted or pedestal servers, in add-on NICs or LAN on motherboard (LOM) designs. Another possible system configuration is for blade servers. Here the I350 can support up to 4 SerDes ports as LOM or mezzanine cards. It can also be used in embedded applications such as switch add-in cards and network appliances.


Specification:
Package Weight
One Package Weight 0.06kgs / 0.13lb
One Package Size 20cm * 10cm * 3cm / 7.87inch * 3.94inch * 1.18inch
Qty per Carton 40
Carton Weight 2.60kgs / 5.73lb
Carton Size 40cm * 25cm * 25cm / 15.75inch * 9.84inch * 9.84inch
Loading Container 20GP: 1066 cartons * 40 pcs = 42640 pcs
40HQ: 2476 cartons * 40 pcs = 99040 pcs

Intel I350_PCIe 4x Server 4Port Lan Card

Product form

SKU: SYA0026225

  • In stock (Processing Time 1 - 72 hours)

2.337,88 Kč

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    1. Chipset: Intel I350 Ethernet controller
    2. Port number: 4xRJ45
    3. Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
    4. Data rate: 10/100/1000Mbps
    5. Interface: PCI express 4x
    6. LED indicator: 8 LEDs 10/100/1000Mb (link/action)
    7. Dimensions: 130x68.5x17mm
    8. Supported operating systems: DOS, Novell ODI Windows XP 32-bit (64-bit), Windows Server 2003 32-bit (64-bit), Windows Vista 32-bit (64-bit), Windows7 32-bit (64.bit)
    Windows 8 32-bit (64-bit), Windows 8.1 32-bit (64-bit) Windows Server 2008 32-bit (64-bit), Windows Server 2008 R2 32-bit (64.bit) and Windows Server 2012
    Windows Server 2012 R2 Linux 2.4 series kernel, 2.6.x, 3.x FreeBSD 7.x or most FreeBSD, UnixWare/Open Unix 8 Sun Solaris x86, VMware, Xen4
    9. Environment: Operating temperature: 0℃-55℃, relative humidity: 10%-90% (non-condensing), storage temperature: -0℃-80℃, relative temperature: 5%-90% (non-condensing)
    10. Other features: Halogen-free dual-port Gigabit Ethernet adapter with fiber interface option Innovative power management features, including Energy Efficient Ethernet (EEE) and DMA aggregation to improve efficiency and reduce power consumption Flexible I/O virtualization, enabling port partitioning and up to 32 quality of service (QoS) virtual ports
    Scalable iSCSI performance provides cost-effective SAN connectivity, supports PCI Expressx2.1 generation 5GT/s high-performance bridgeless design, supports PCI ExpressxV2.1 (5 GT/s), low profile and standard height full, automatic crossover detection function (MDI/MDI-X), IEEE 1588 protocol and 802.1AS implementation
    11. Chipset Description: Intel Ethernet Controller I350 is a single, compact, low-power component that supports quad-port as well as dual-port Gigabit Ethernet designs. The device provides four fully integrated Gigabit Ethernet media, access control (MAC), physical layer (PHY) ports and four SGMII/SerDes ports that can be connected to external PHYs. The I350 supports PCI Expressx (PCIe v2.1 (2.5GT/s and 5GT/s)). The device supports two-port or four-port 1000BASE-T implementations using integrated PHYs. It can be used in server system configurations such as rack-mounted or pedestal servers, in add-on NICs or LAN on motherboard (LOM) designs. Another possible system configuration is for blade servers. Here the I350 can support up to 4 SerDes ports as LOM or mezzanine cards. It can also be used in embedded applications such as switch add-in cards and network appliances.


    Specification:
    Package Weight
    One Package Weight 0.06kgs / 0.13lb
    One Package Size 20cm * 10cm * 3cm / 7.87inch * 3.94inch * 1.18inch
    Qty per Carton 40
    Carton Weight 2.60kgs / 5.73lb
    Carton Size 40cm * 25cm * 25cm / 15.75inch * 9.84inch * 9.84inch
    Loading Container 20GP: 1066 cartons * 40 pcs = 42640 pcs
    40HQ: 2476 cartons * 40 pcs = 99040 pcs
