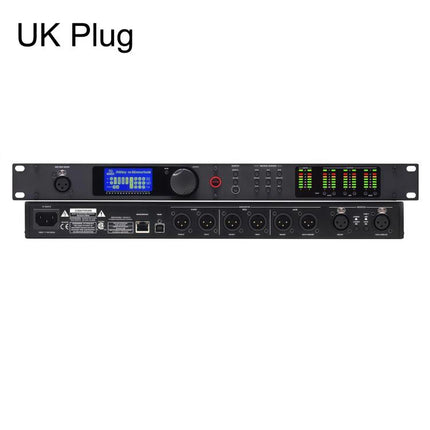

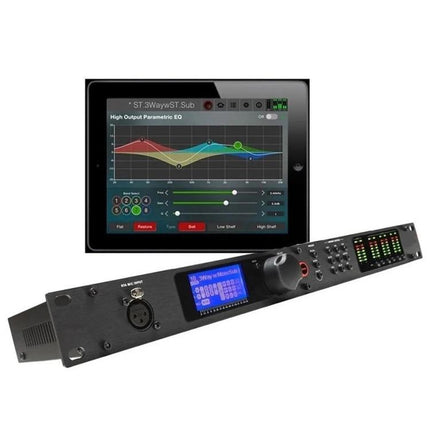

PA2 Digital Audio Processor Speaker Management System 2 Input 6 Output Crossover DSP UK Plug


1. Input/Output Latency: 1.847 ms
2. Power Supply Voltage: 100-120V AC 50/60Hz or 220-240V AC 50/60Hz
3. Power Consumption: 22W
4. Weight: Approx. 2.4 kg

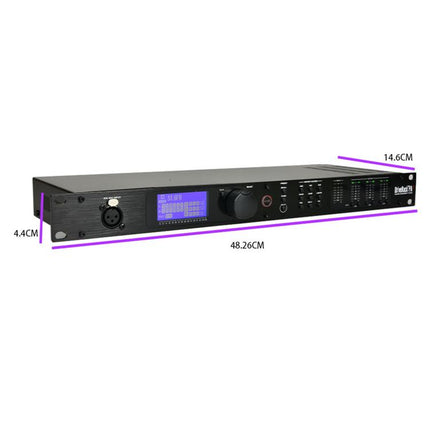

5. Dimensions: Approx. 48.26 x 14.6 x 4.4 cm

Analog Inputs:
1. Number of Inputs: 2 inputs, 1 RTA microphone input
2. Connectors: 2 XLR female inputs, 1 XLR female RTA input
3. Microphone Input: Electronically balanced / RF filtered circuitry
4. Input Impedance: >50k ohm
5. Max Input Level (Line Input): >+20 dBu
6. CMRR: >45 dB
7. Mic Preamp Phantom Power: +15V DC

Analog Outputs:
1. Number of Outputs: 6 line outputs
2. Connectors: XLR male
3. Type: Electronically balanced, RF filtered
4. Impedance: 12 ohm
5. Max Output Level: +20 dBu
6. Alignment Delay: Up to 10 ms per output channel

A/D Performance:
1. A/D Dynamic Range: 24-bit A/D converter with dbx Type IVTM conversion system; 112 dB / 110 dB
2. Type IV Dynamic Range: +123 dB (transient material, 22kHz BW); 121 dB (unweighted, 22kHz BW); 115 dB (typical, program material, 22kHz BW)
3. D/A Converter: 24-bit
4. Dynamic Range: 112 dB / 110 dB

System Performance:
1. Internal Processing Word Length: 32-bit floating point
2. Sample Rate: 48 kHz 3. Dynamic Range: +110 dB / -107 dB
4. THD+N: Typical value 0.003% (+4 dBu, 1 kHz, 0 dB)
5. Frequency Response: 20 Hz–20 kHz, +0/-0.5 dB (Crosstalk between signal channels)

Features:
1. Features 2 XLR balanced inputs and 6 XLR balanced outputs (with independent crossover outputs for high, mid, and low frequencies); designed to provide precise multi-channel digital crossover and routing management for stage, KTV, conference, and commercial sound systems.

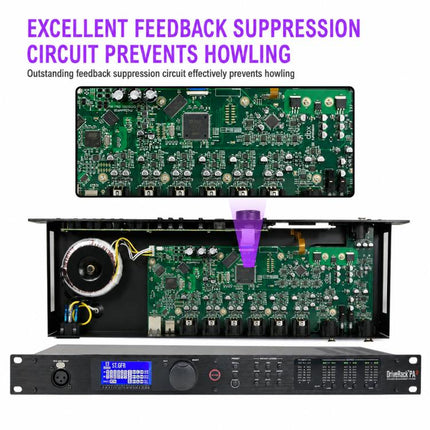

2. Built-in dedicated automatic feedback suppression circuitry rapidly detects and eliminates acoustic feedback (howling) in live environments, protecting loudspeakers while maintaining smooth, natural sound quality.
3. Equipped with a 32-bit floating-point processor and high-precision 24-bit A/D and D/A converters; supports core processing functions such as Graphic EQ (GEQ), Parametric EQ (PEQ), limiters, and delay for detailed tonal adjustment.

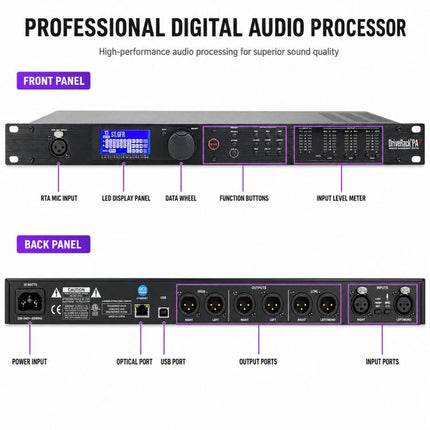

4. Front panel includes a dedicated RTA microphone input; rear panel features optical network and USB interfaces, enabling connection to a computer or other compatible devices for intuitive graphical tuning and parameter control.
5. Standard 19-inch, 1U rack-mount design.
6. Front panel features a large LED status display and precise multi-segment input/output level meters for easy monitoring during live operation.


Specification:
Package Weight
One Package Weight 3.10kgs / 6.84lb
One Package Size 54cm * 25cm * 10cm / 21.26inch * 9.84inch * 3.94inch
Qty per Carton 5
Carton Weight 16.80kgs / 37.04lb
Carton Size 55cm * 50cm * 26cm / 21.65inch * 19.69inch * 10.24inch
Loading Container 20GP: 372 cartons * 5 pcs = 1860 pcs
40HQ: 865 cartons * 5 pcs = 4325 pcs

PA2 Digital Audio Processor Speaker Management System 2 Input 6 Output Crossover DSP UK Plug

Product form

SKU: TBD0607032003

  • In stock (Processing Time 1 - 72 hours)

9.175,20 Kč

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Input/Output Latency: 1.847 ms
    2. Power Supply Voltage: 100-120V AC 50/60Hz or 220-240V AC 50/60Hz
    3. Power Consumption: 22W
    4. Weight: Approx. 2.4 kg
    5. Dimensions: Approx. 48.26 x 14.6 x 4.4 cm

    Analog Inputs:
    1. Number of Inputs: 2 inputs, 1 RTA microphone input
    2. Connectors: 2 XLR female inputs, 1 XLR female RTA input
    3. Microphone Input: Electronically balanced / RF filtered circuitry
    4. Input Impedance: >50k ohm
    5. Max Input Level (Line Input): >+20 dBu
    6. CMRR: >45 dB
    7. Mic Preamp Phantom Power: +15V DC

    Analog Outputs:
    1. Number of Outputs: 6 line outputs
    2. Connectors: XLR male
    3. Type: Electronically balanced, RF filtered
    4. Impedance: 12 ohm
    5. Max Output Level: +20 dBu
    6. Alignment Delay: Up to 10 ms per output channel

    A/D Performance:
    1. A/D Dynamic Range: 24-bit A/D converter with dbx Type IVTM conversion system; 112 dB / 110 dB
    2. Type IV Dynamic Range: +123 dB (transient material, 22kHz BW); 121 dB (unweighted, 22kHz BW); 115 dB (typical, program material, 22kHz BW)
    3. D/A Converter: 24-bit
    4. Dynamic Range: 112 dB / 110 dB

    System Performance:
    1. Internal Processing Word Length: 32-bit floating point
    2. Sample Rate: 48 kHz 3. Dynamic Range: +110 dB / -107 dB
    4. THD+N: Typical value 0.003% (+4 dBu, 1 kHz, 0 dB)
    5. Frequency Response: 20 Hz–20 kHz, +0/-0.5 dB (Crosstalk between signal channels)

    Features:
    1. Features 2 XLR balanced inputs and 6 XLR balanced outputs (with independent crossover outputs for high, mid, and low frequencies); designed to provide precise multi-channel digital crossover and routing management for stage, KTV, conference, and commercial sound systems.
    2. Built-in dedicated automatic feedback suppression circuitry rapidly detects and eliminates acoustic feedback (howling) in live environments, protecting loudspeakers while maintaining smooth, natural sound quality.
    3. Equipped with a 32-bit floating-point processor and high-precision 24-bit A/D and D/A converters; supports core processing functions such as Graphic EQ (GEQ), Parametric EQ (PEQ), limiters, and delay for detailed tonal adjustment.
    4. Front panel includes a dedicated RTA microphone input; rear panel features optical network and USB interfaces, enabling connection to a computer or other compatible devices for intuitive graphical tuning and parameter control.
    5. Standard 19-inch, 1U rack-mount design.
    6. Front panel features a large LED status display and precise multi-segment input/output level meters for easy monitoring during live operation.


    Specification:
    Package Weight
    One Package Weight 3.10kgs / 6.84lb
    One Package Size 54cm * 25cm * 10cm / 21.26inch * 9.84inch * 3.94inch
    Qty per Carton 5
    Carton Weight 16.80kgs / 37.04lb
    Carton Size 55cm * 50cm * 26cm / 21.65inch * 19.69inch * 10.24inch
    Loading Container 20GP: 372 cartons * 5 pcs = 1860 pcs
    40HQ: 865 cartons * 5 pcs = 4325 pcs
