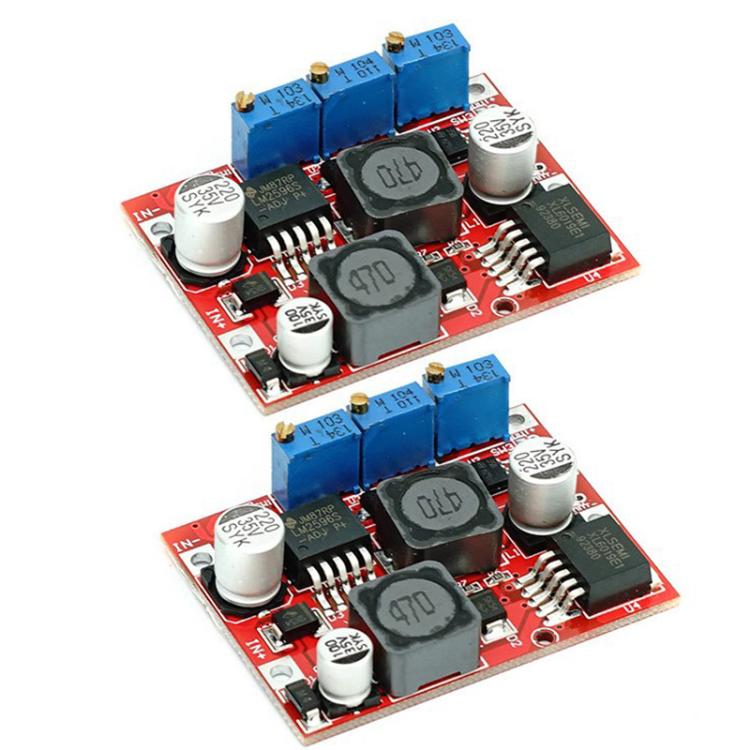

2pcs DC Automatic Buck-Boost Constant Current Constant Voltage Charging Module LM2596 XL6019 Chips


1. Input voltage: 4 - 35V (Note: for constant current input, the minimum required is 7V or above)
2. Output voltage: 1.25 - 25V adjustable continuously, default shipping voltage is 4.2A with a current of 1A
3. Output current: 12V to 5V, 2A (Constant current range: 0.2A - 2A adjustable)

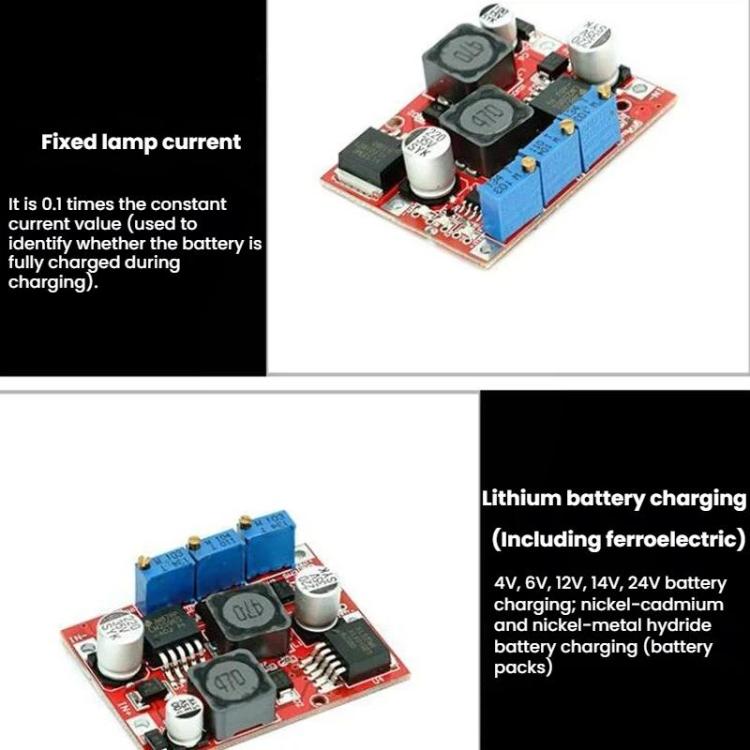

4. Transistor current: fixed at 1/10 of the set constant current value
5. Output power: natural cooling 10W, 15W requires a heat sink installation
6. Conversion efficiency: 80% (The higher the output voltage, the higher the efficiency)
7. Operating temperature: industrial grade -40°C to +85°C (If the ambient temperature exceeds 40°C, reduce the power usage or enhance the heat dissipation)
8. Full-load temperature rise: 45°C

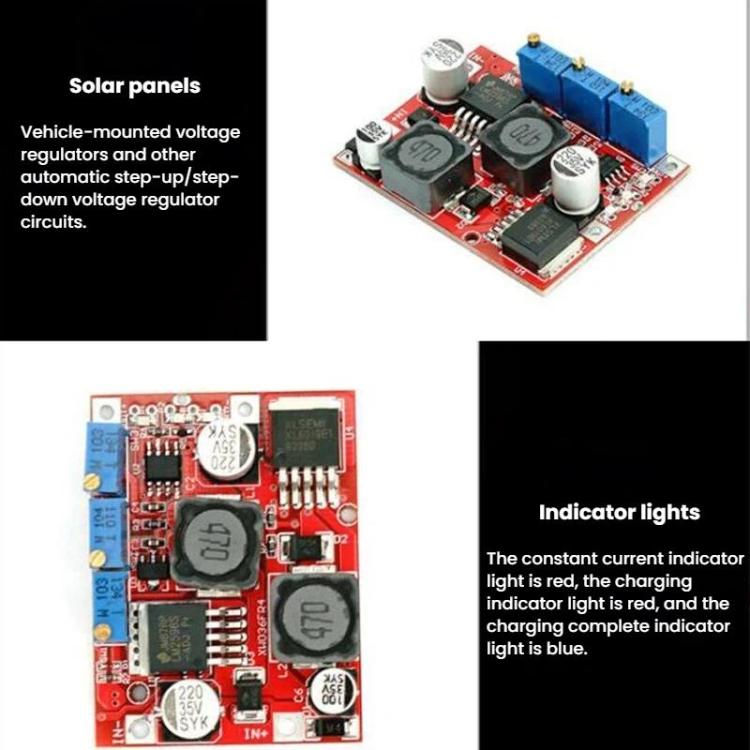

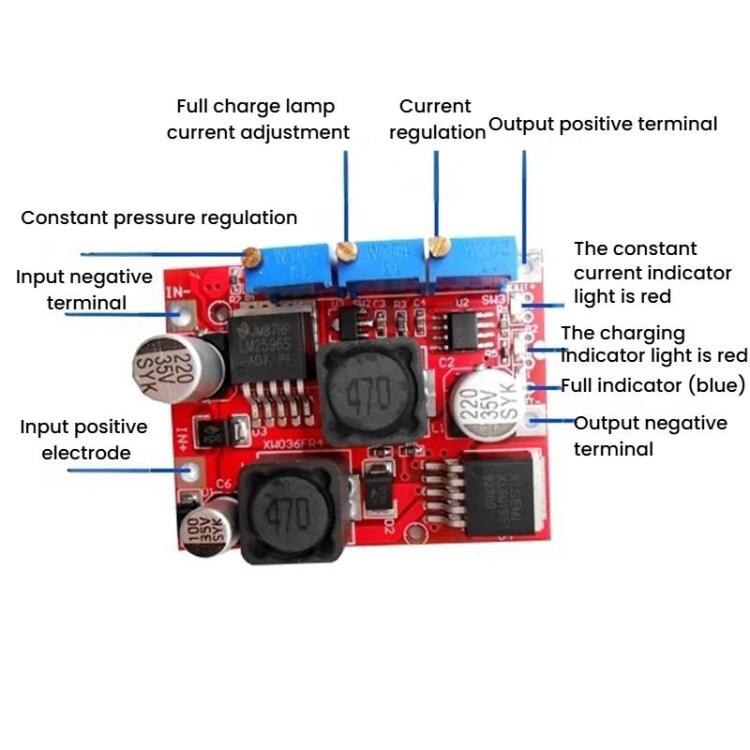

9. Indicator lights: constant current indicator light is red, charging in progress indicator light is red, charging complete indicator light is green
10. Output short-circuit protection: es, for constant current (current set at the current value)
11. Wiring method: can be directly wired and soldered onto the PCB

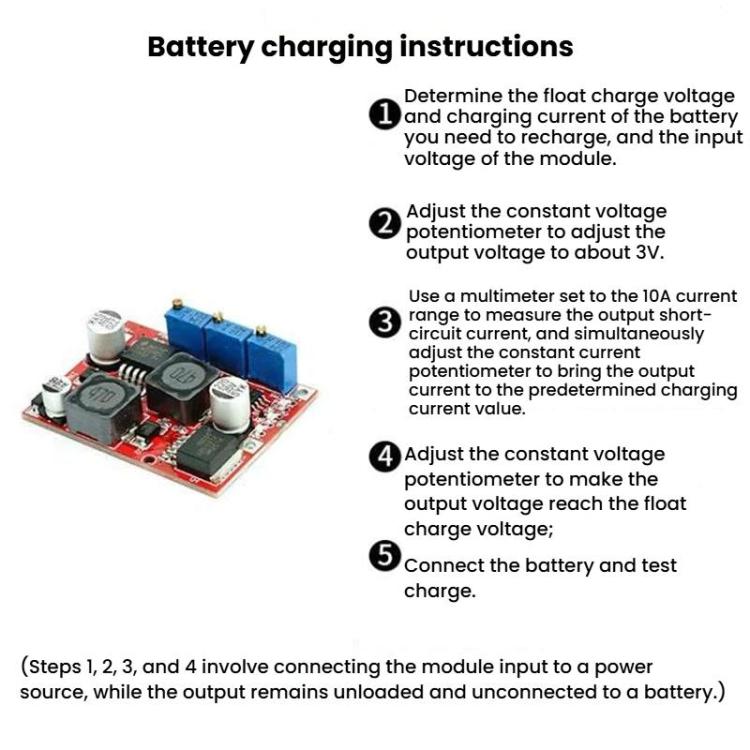

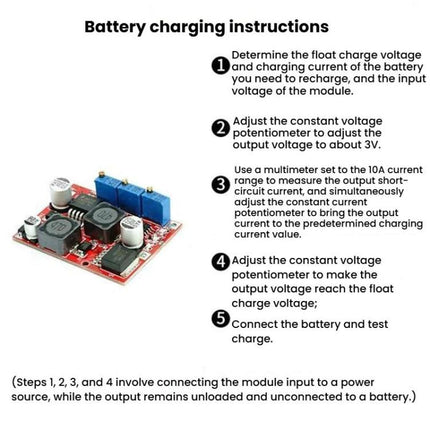

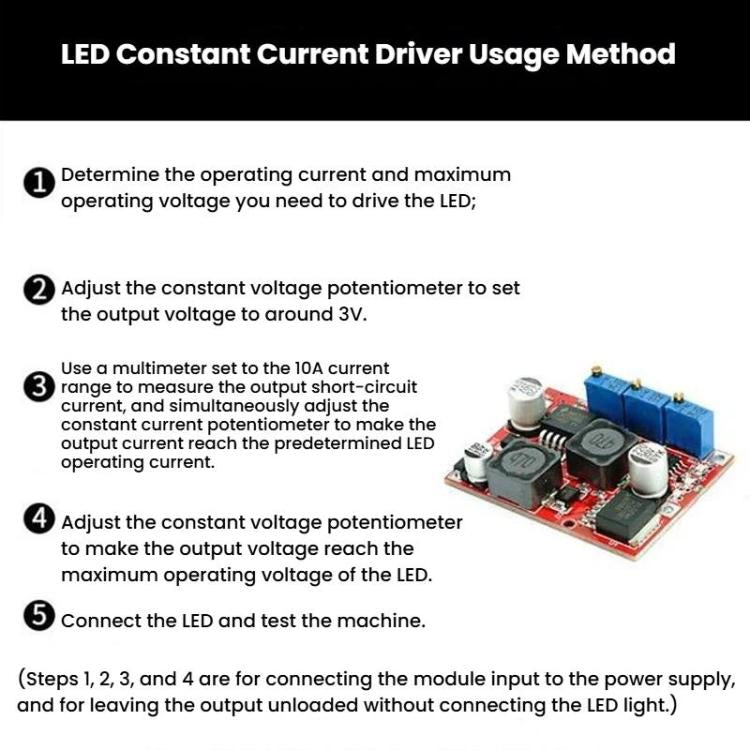

12. Adjustment method: first, connect the input power correctly (between 4 - 35V), then use a multimeter to monitor the output voltage and adjust the potentiometer (generally, rotate clockwise to increase voltage, counterclockwise to decrease voltage)
13. Size: about 5 x 3.7 x 1.3 cm


Specification:
Package Weight
One Package Weight 0.04kgs / 0.10lb
One Package Size 7cm * 5cm * 4cm / 2.76inch * 1.97inch * 1.57inch
Qty per Carton 324
Carton Weight 15.00kgs / 33.07lb
Carton Size 47cm * 38cm * 30cm / 18.5inch * 14.96inch * 11.81inch
Loading Container 20GP: 497 cartons * 324 pcs = 161028 pcs
40HQ: 1155 cartons * 324 pcs = 374220 pcs

2pcs DC Automatic Buck-Boost Constant Current Constant Voltage Charging Module LM2596 XL6019 Chips

Product form

SKU: TBD06064516

  • In stock (Processing Time 1 - 72 hours)

€14,90

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Input voltage: 4 - 35V (Note: for constant current input, the minimum required is 7V or above)
    2. Output voltage: 1.25 - 25V adjustable continuously, default shipping voltage is 4.2A with a current of 1A
    3. Output current: 12V to 5V, 2A (Constant current range: 0.2A - 2A adjustable)
    4. Transistor current: fixed at 1/10 of the set constant current value
    5. Output power: natural cooling 10W, 15W requires a heat sink installation
    6. Conversion efficiency: 80% (The higher the output voltage, the higher the efficiency)
    7. Operating temperature: industrial grade -40°C to +85°C (If the ambient temperature exceeds 40°C, reduce the power usage or enhance the heat dissipation)
    8. Full-load temperature rise: 45°C
    9. Indicator lights: constant current indicator light is red, charging in progress indicator light is red, charging complete indicator light is green
    10. Output short-circuit protection: es, for constant current (current set at the current value)
    11. Wiring method: can be directly wired and soldered onto the PCB
    12. Adjustment method: first, connect the input power correctly (between 4 - 35V), then use a multimeter to monitor the output voltage and adjust the potentiometer (generally, rotate clockwise to increase voltage, counterclockwise to decrease voltage)
    13. Size: about 5 x 3.7 x 1.3 cm


    Specification:
    Package Weight
    One Package Weight 0.04kgs / 0.10lb
    One Package Size 7cm * 5cm * 4cm / 2.76inch * 1.97inch * 1.57inch
    Qty per Carton 324
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 47cm * 38cm * 30cm / 18.5inch * 14.96inch * 11.81inch
    Loading Container 20GP: 497 cartons * 324 pcs = 161028 pcs
    40HQ: 1155 cartons * 324 pcs = 374220 pcs
