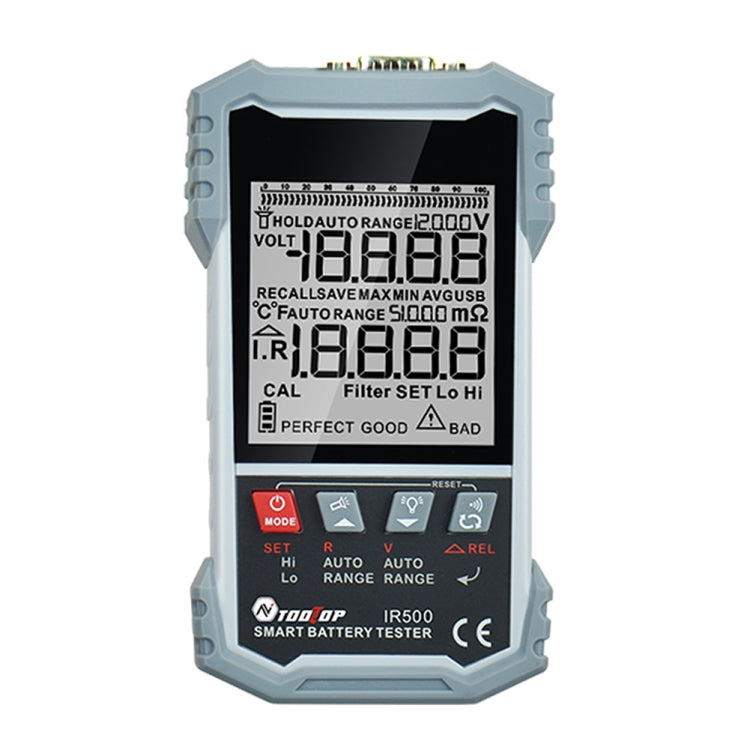

Battery Internal Resistance Tester Lead-Acid Alkaline Lithium Battery Tester, Model: IR500


1. Voltage: 0.00V~120V
2. Internal resistance measurement: 0.000mΩ~500Ω
3. Input voltage: DC 120V (regardless of polarity), AC input is not allowed
4. Measurement current: 50mA~50uAAC
5. Measurement speed: 3 times/second
6. Measurement signal frequency: 1KHz

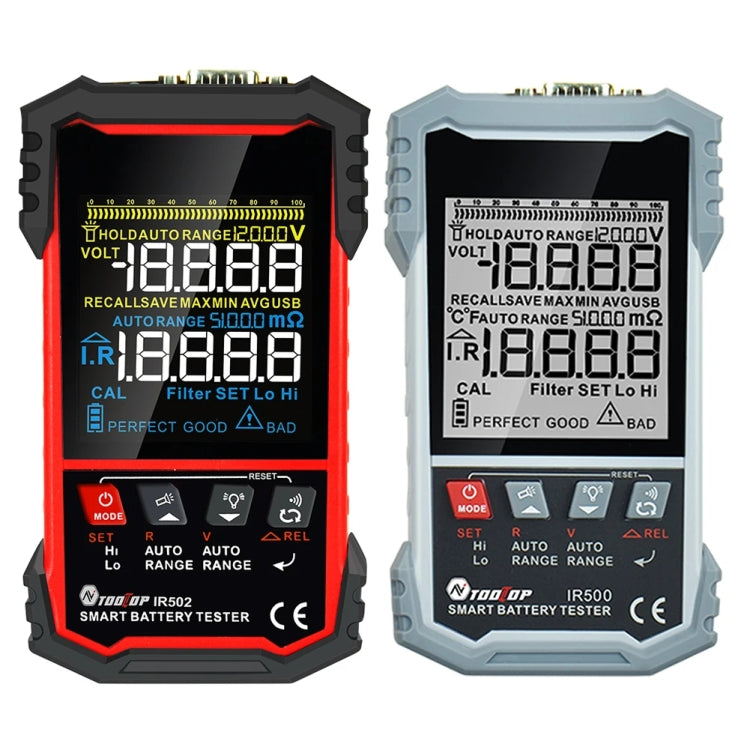

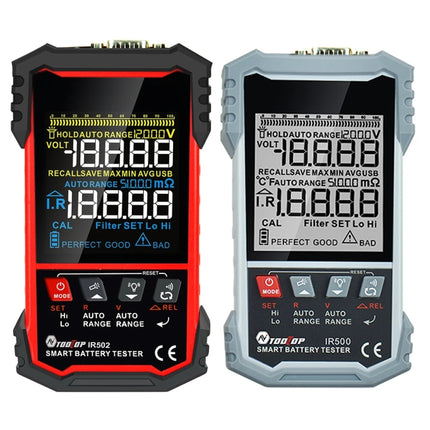

7. Screen and size: IR500 55x57mmTN black and white screen; IR 502 55x57mmTN color screen
8. Power supply: 3.7V 1200mAh lithium battery

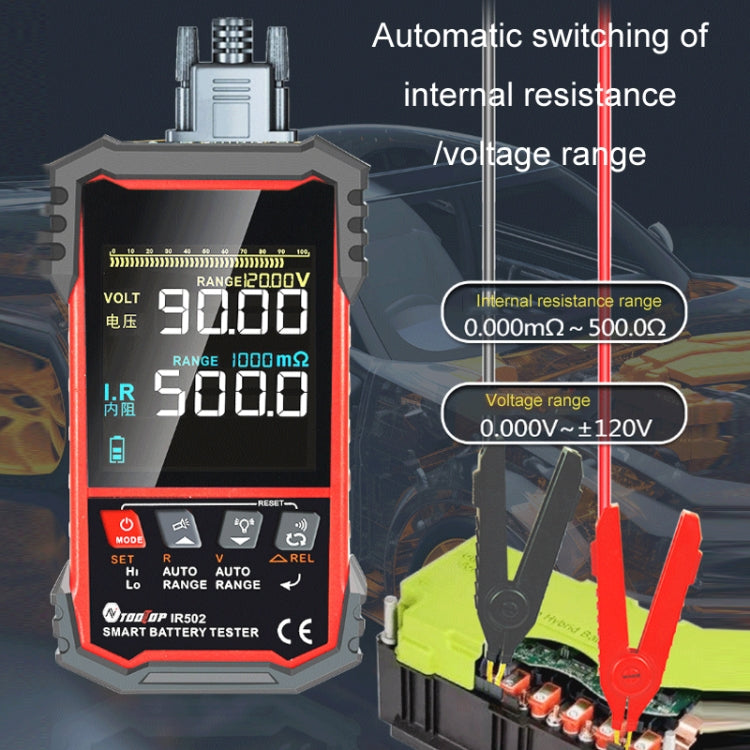

9. Automatic switching of internal resistance/voltage range
10. Can be used for various battery detection such as lithium battery, lead-acid battery, carbon battery, alkaline battery, button battery, etc.

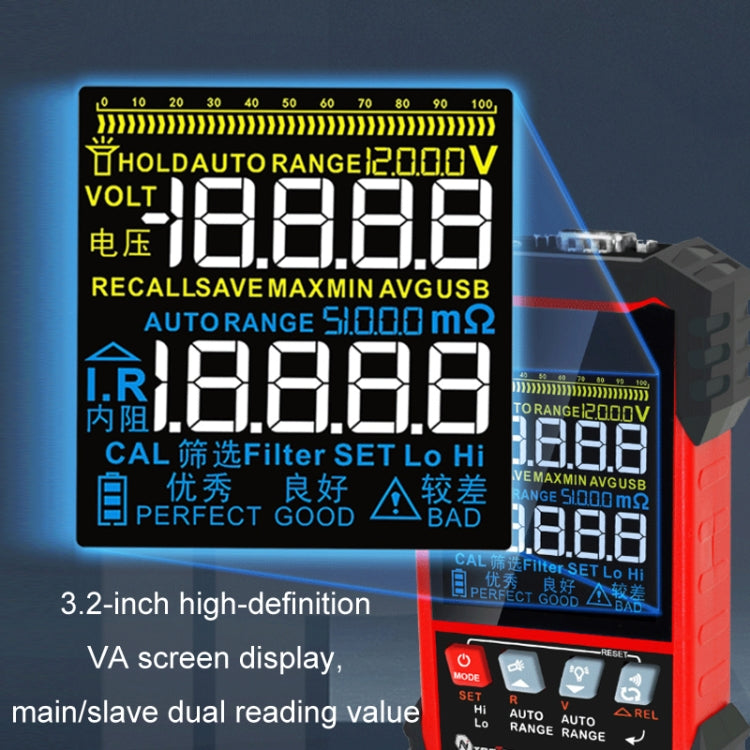

11. 3.2-inch high-definition VA screen display, main/slave dual reading value

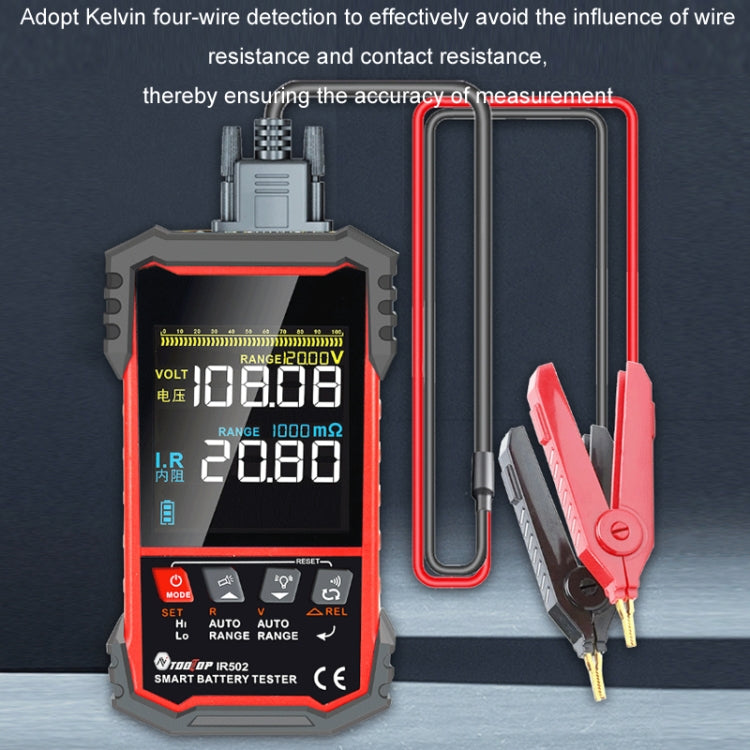

12. Kelvin four-wire detection is used to effectively avoid the influence of wire resistance and contact resistance, thereby ensuring the accuracy of measurement

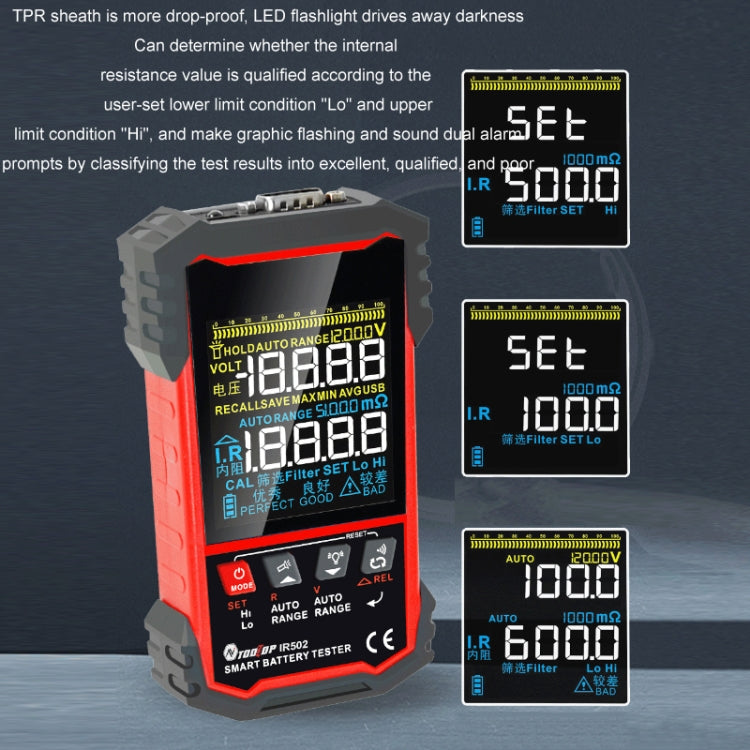

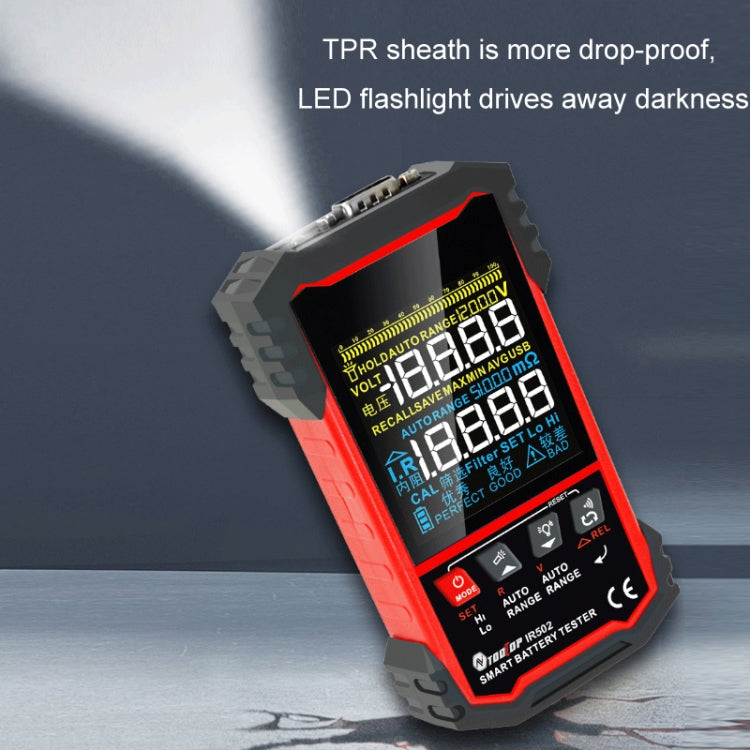

13. TPR sheath is more shatterproof, and LED flashlight drives away darkness

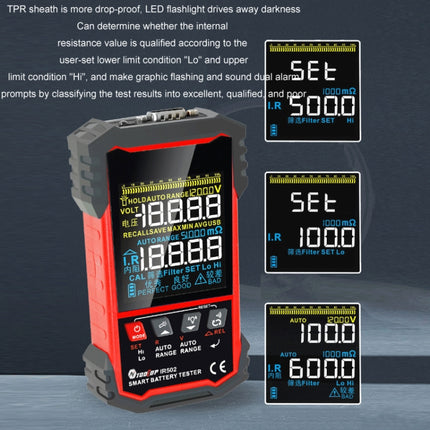

14. The internal resistance value can be determined based on the lower limit condition "Lo" and the upper limit condition "Hi" set by the user, and the test results are classified into excellent, qualified, and poor to make a double alarm prompt with flashing graphics and sound

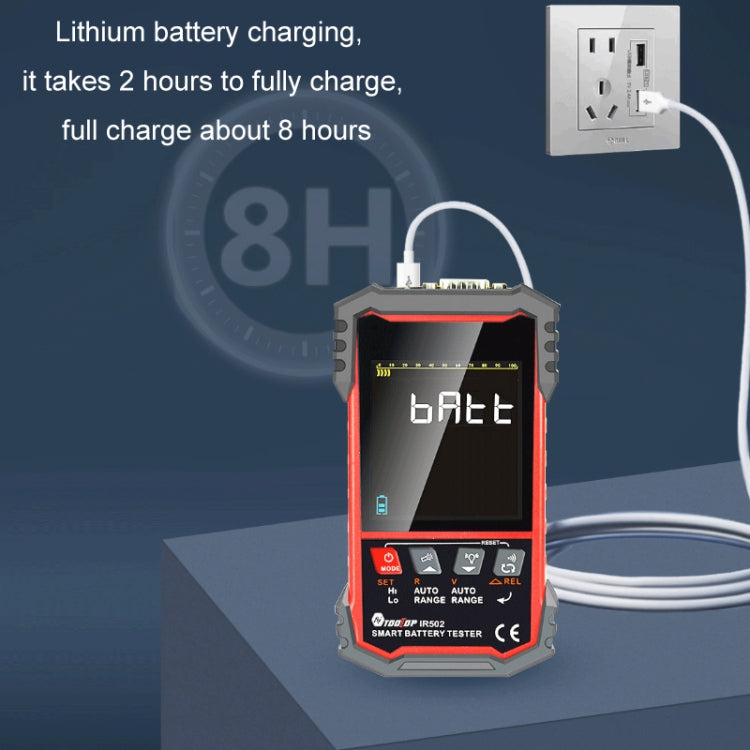

15. The lithium battery needs 2 hours to be fully charged, and a full charge works for about 8 hours
16. The instrument automatically shuts down if there is no button operation within 20 minutes

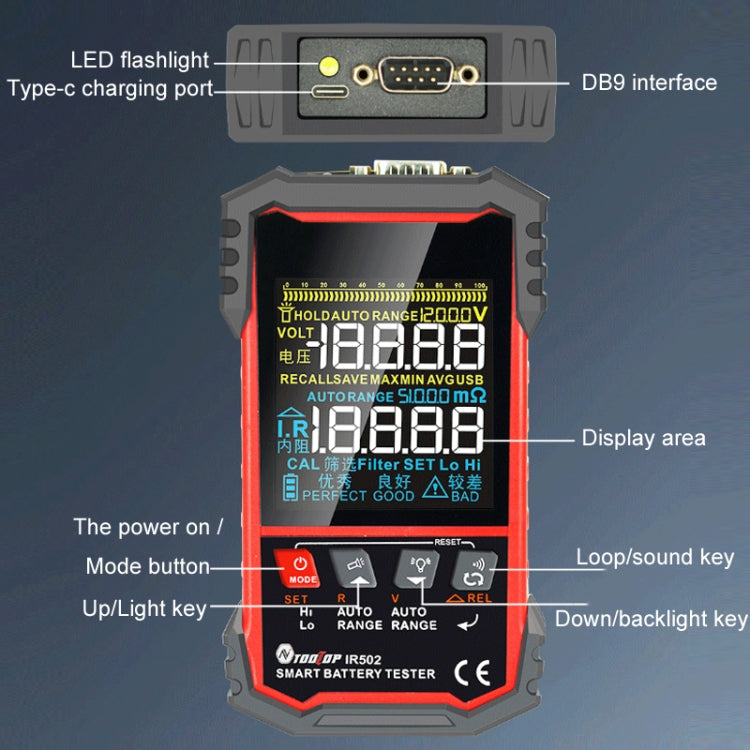

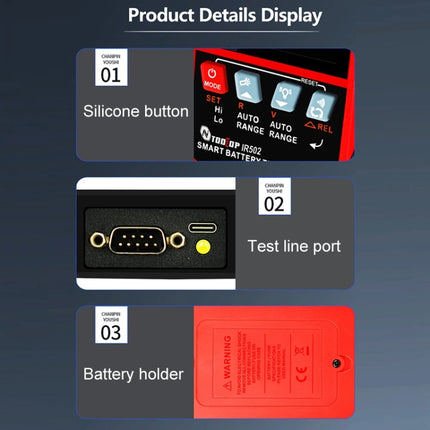

17. The host and the test clip are connected through the DB9 interface, where pin 1 is empty, pins 2, 6 and 5, 9 correspond to the red line and white line connected to the two sides of the red clip; pins 4, 8 and 3, 7 correspond to the yellow line and black line connected to the two sides of the black clip


Specification:
Package Weight
One Package Weight 0.50kgs / 1.11lb
One Package Size 23cm * 16cm * 6cm / 9.06inch * 6.3inch * 2.36inch
Qty per Carton 20
Carton Weight 11.10kgs / 24.47lb
Carton Size 48cm * 34cm * 32cm / 18.9inch * 13.39inch * 12.6inch
Loading Container 20GP: 510 cartons * 20 pcs = 10200 pcs
40HQ: 1185 cartons * 20 pcs = 23700 pcs

Battery Internal Resistance Tester Lead-Acid Alkaline Lithium Battery Tester, Model: IR500

Product form

SKU: TBD0605087801

  • In stock (Processing Time 1 - 72 hours)

€59,75

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Voltage: 0.00V~120V
    2. Internal resistance measurement: 0.000mΩ~500Ω
    3. Input voltage: DC 120V (regardless of polarity), AC input is not allowed
    4. Measurement current: 50mA~50uAAC
    5. Measurement speed: 3 times/second
    6. Measurement signal frequency: 1KHz
    7. Screen and size: IR500 55x57mmTN black and white screen; IR 502 55x57mmTN color screen
    8. Power supply: 3.7V 1200mAh lithium battery
    9. Automatic switching of internal resistance/voltage range
    10. Can be used for various battery detection such as lithium battery, lead-acid battery, carbon battery, alkaline battery, button battery, etc.
    11. 3.2-inch high-definition VA screen display, main/slave dual reading value
    12. Kelvin four-wire detection is used to effectively avoid the influence of wire resistance and contact resistance, thereby ensuring the accuracy of measurement
    13. TPR sheath is more shatterproof, and LED flashlight drives away darkness
    14. The internal resistance value can be determined based on the lower limit condition "Lo" and the upper limit condition "Hi" set by the user, and the test results are classified into excellent, qualified, and poor to make a double alarm prompt with flashing graphics and sound
    15. The lithium battery needs 2 hours to be fully charged, and a full charge works for about 8 hours
    16. The instrument automatically shuts down if there is no button operation within 20 minutes
    17. The host and the test clip are connected through the DB9 interface, where pin 1 is empty, pins 2, 6 and 5, 9 correspond to the red line and white line connected to the two sides of the red clip; pins 4, 8 and 3, 7 correspond to the yellow line and black line connected to the two sides of the black clip


    Specification:
    Package Weight
    One Package Weight 0.50kgs / 1.11lb
    One Package Size 23cm * 16cm * 6cm / 9.06inch * 6.3inch * 2.36inch
    Qty per Carton 20
    Carton Weight 11.10kgs / 24.47lb
    Carton Size 48cm * 34cm * 32cm / 18.9inch * 13.39inch * 12.6inch
    Loading Container 20GP: 510 cartons * 20 pcs = 10200 pcs
    40HQ: 1185 cartons * 20 pcs = 23700 pcs
