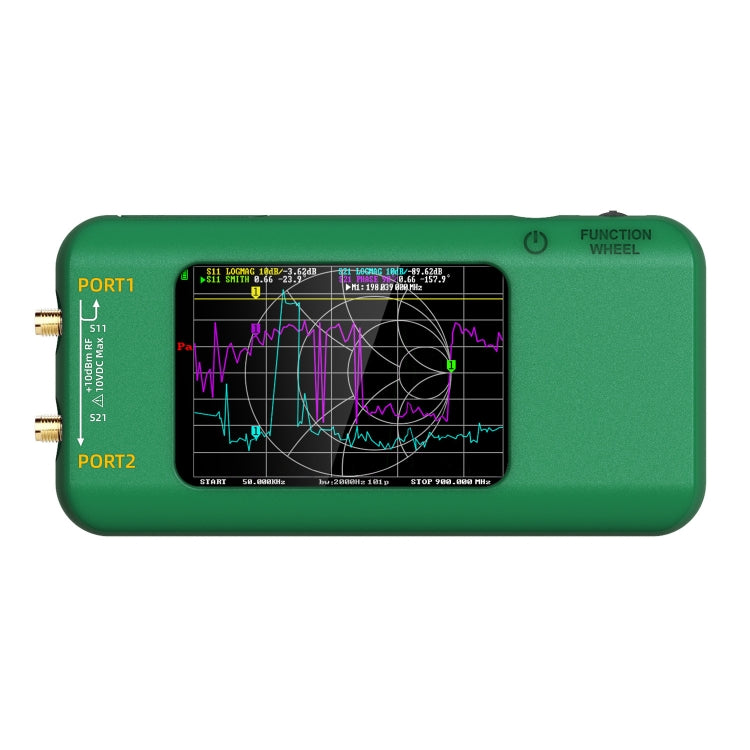

BSIDE P5 Handheld Vector Network Analyser Colorful Screen Network Tester


1. Measuring frequency: 10kHz-1.5GHz
2. RF output: 10dBm
3. Frequency accuracy: less than 2ppm
4. Frequency stability: less than 0.5ppm
5. Measurement range: 70dB(50kHz-300MHz)/60dB(300-900MHz) /40dB(0.9G-1.5GHz)
6. Port SWR: less than 1.1
7. Display: 3.98-inch TFT colour screen (320 x 480)
8. Power supply: built-in 3000mAh lithium battery, maximum charging current 2A
9. Number of calibration points: maximum 401 (optional), unlimited when connected to a PC
10. Number of scanning points: maximum 401 (optional), unrestricted when connected to a PC
11. Scanning point speed: greater than 600 p/s (RBW = 4000Hz)
12. Display tracking: 4
13. Marker: 8
14. Setting save: 7

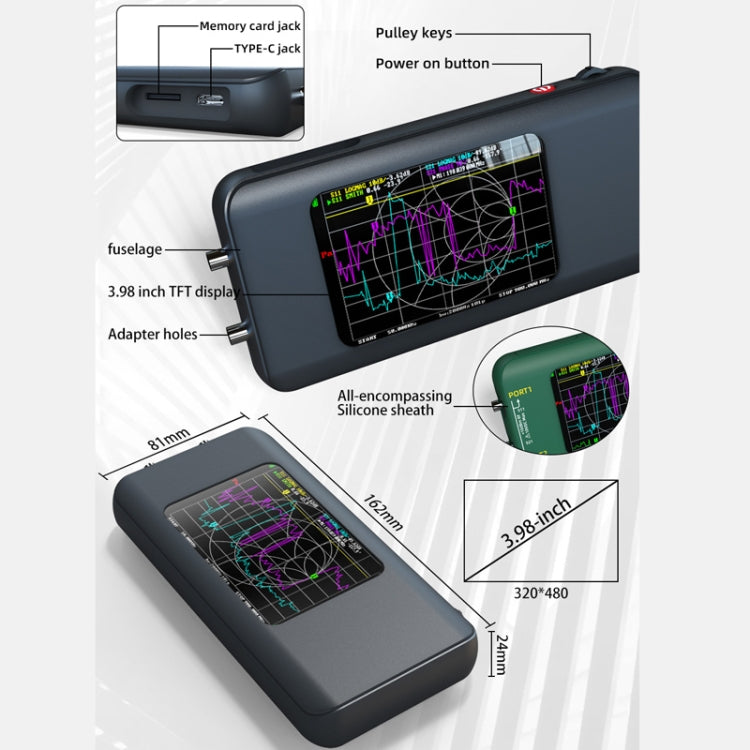

15. Size: about 16.2 x 8.1 x 2.4cm
16. Weight: about 251g

Features:

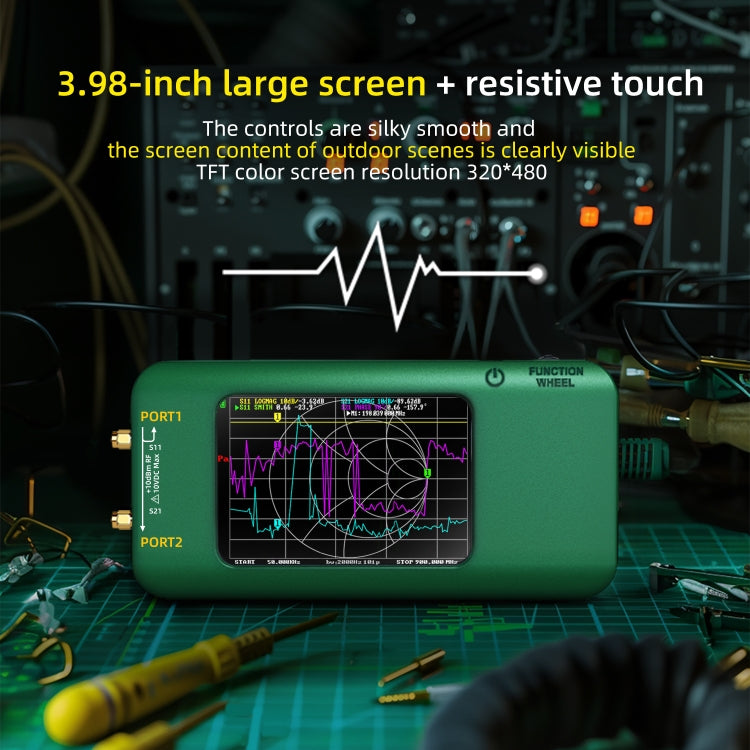

1. 3.98-inch full-view angle TFT LCD, silky smooth control, outdoor scene screen content is clearly visible

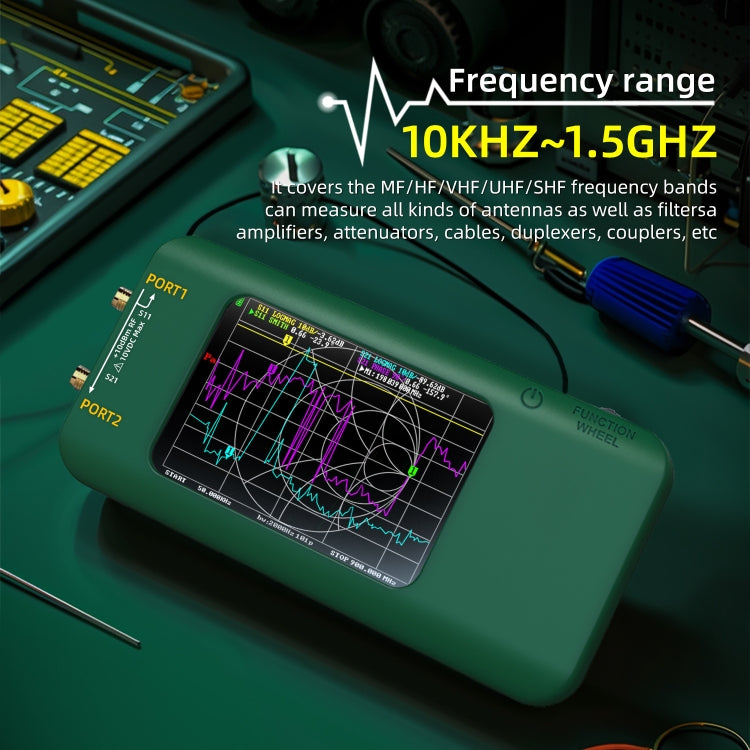

2. Covering MF/HE/VHF/UHF/SHF bands, can measure all kinds of antennas as well as filters, amplifiers, attenuators, cables, duplexers, couplers, etc.
3. Easy to manage the image data, can be connected to the computer via USB cable for secondary analysis
4. Intelligent chip, accurate and fast measurement, fast response/high accuracy/large range/wide range

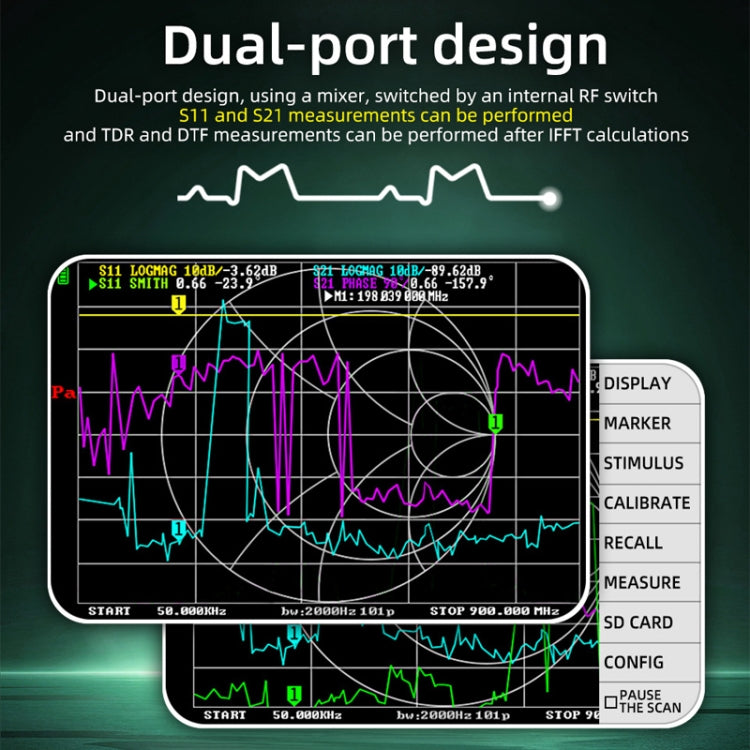

5. Dual-port design, using a mixer, through the internal RF switch switch can be S11, S21 measurements, and through the IFFT calculation can be TDR and DTF measurements

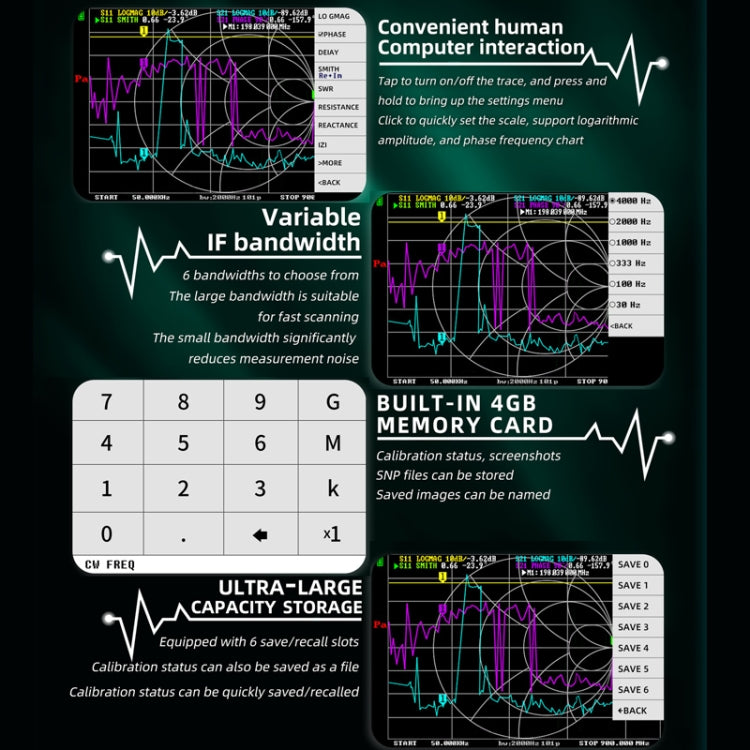

6. 6 bandwidths are available, large bandwidth is suitable for fast scanning, small bandwidth can significantly reduce the measurement noise
7. Built-in 4GB memory card, can store calibration status, screenshot images, snp file storage images can be named
8. Equipped with 6 save/callback slots, can quickly save/callback the calibration state, and support to save the calibration state in the form of a file, the number of storage is limited only by the capacity of the memory card

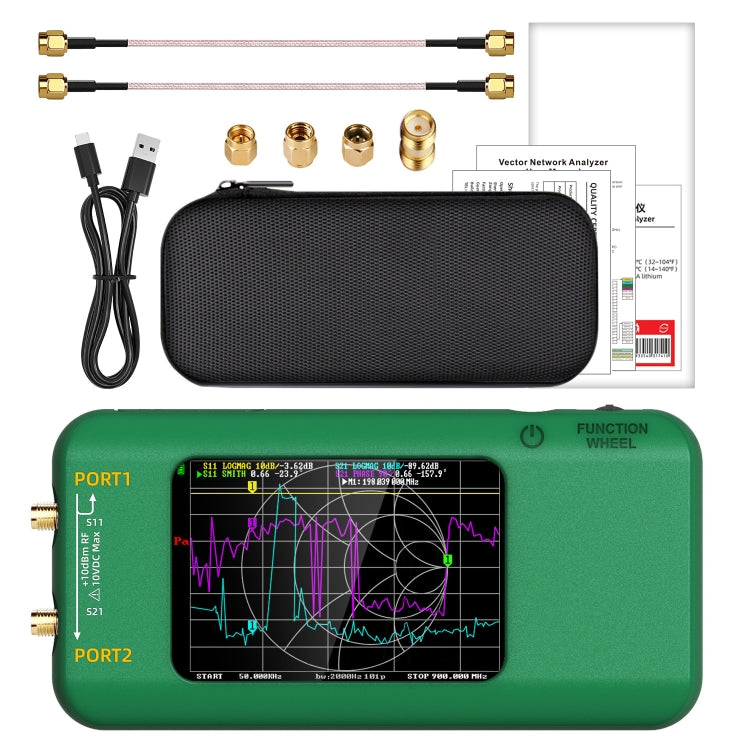

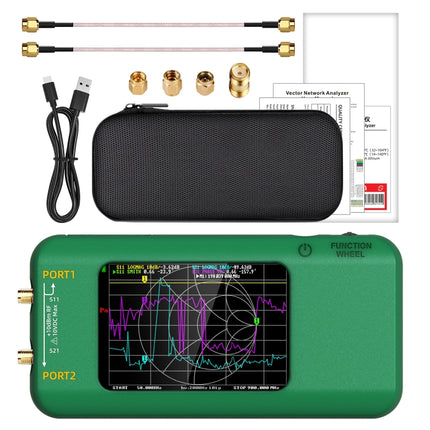

Packing list:
- Network analyser x 1
- Connector x 4
- SMA extension cable x 2
- Type-C cable x 1
- EVA storage bag x 1


Specification:
Package Weight
One Package Weight 0.40kgs / 0.89lb
One Package Size 20cm * 12cm * 7cm / 7.87inch * 4.72inch * 2.76inch
Qty per Carton 50
Carton Weight 21.00kgs / 46.30lb
Carton Size 47cm * 39cm * 32cm / 18.5inch * 15.35inch * 12.6inch
Loading Container 20GP: 454 cartons * 50 pcs = 22700 pcs
40HQ: 1055 cartons * 50 pcs = 52750 pcs

BSIDE P5 Handheld Vector Network Analyser Colorful Screen Network Tester

Product form

SKU: TBD0605568201

  • In stock (Processing Time 1 - 72 hours)

€134,35

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Measuring frequency: 10kHz-1.5GHz
    2. RF output: 10dBm
    3. Frequency accuracy: less than 2ppm
    4. Frequency stability: less than 0.5ppm
    5. Measurement range: 70dB(50kHz-300MHz)/60dB(300-900MHz) /40dB(0.9G-1.5GHz)
    6. Port SWR: less than 1.1
    7. Display: 3.98-inch TFT colour screen (320 x 480)
    8. Power supply: built-in 3000mAh lithium battery, maximum charging current 2A
    9. Number of calibration points: maximum 401 (optional), unlimited when connected to a PC
    10. Number of scanning points: maximum 401 (optional), unrestricted when connected to a PC
    11. Scanning point speed: greater than 600 p/s (RBW = 4000Hz)
    12. Display tracking: 4
    13. Marker: 8
    14. Setting save: 7
    15. Size: about 16.2 x 8.1 x 2.4cm
    16. Weight: about 251g

    Features:
    1. 3.98-inch full-view angle TFT LCD, silky smooth control, outdoor scene screen content is clearly visible
    2. Covering MF/HE/VHF/UHF/SHF bands, can measure all kinds of antennas as well as filters, amplifiers, attenuators, cables, duplexers, couplers, etc.
    3. Easy to manage the image data, can be connected to the computer via USB cable for secondary analysis
    4. Intelligent chip, accurate and fast measurement, fast response/high accuracy/large range/wide range
    5. Dual-port design, using a mixer, through the internal RF switch switch can be S11, S21 measurements, and through the IFFT calculation can be TDR and DTF measurements
    6. 6 bandwidths are available, large bandwidth is suitable for fast scanning, small bandwidth can significantly reduce the measurement noise
    7. Built-in 4GB memory card, can store calibration status, screenshot images, snp file storage images can be named
    8. Equipped with 6 save/callback slots, can quickly save/callback the calibration state, and support to save the calibration state in the form of a file, the number of storage is limited only by the capacity of the memory card

    Packing list:
    - Network analyser x 1
    - Connector x 4
    - SMA extension cable x 2
    - Type-C cable x 1
    - EVA storage bag x 1


    Specification:
    Package Weight
    One Package Weight 0.40kgs / 0.89lb
    One Package Size 20cm * 12cm * 7cm / 7.87inch * 4.72inch * 2.76inch
    Qty per Carton 50
    Carton Weight 21.00kgs / 46.30lb
    Carton Size 47cm * 39cm * 32cm / 18.5inch * 15.35inch * 12.6inch
    Loading Container 20GP: 454 cartons * 50 pcs = 22700 pcs
    40HQ: 1055 cartons * 50 pcs = 52750 pcs
