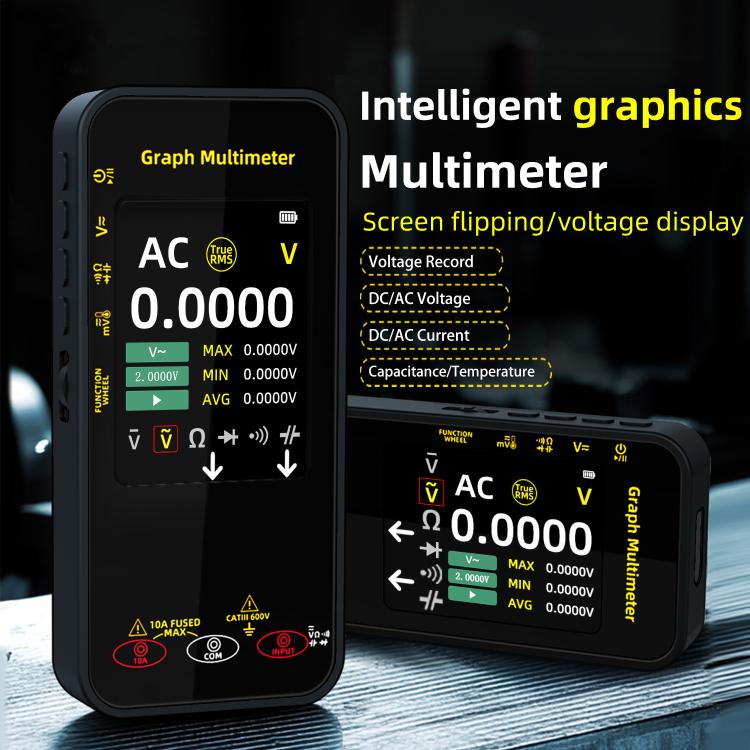

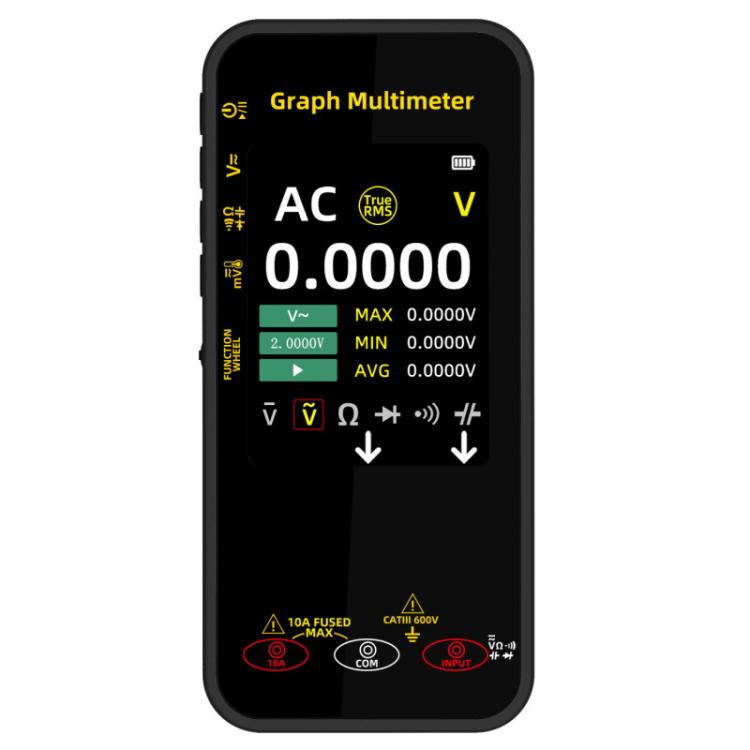

BSIDE S500 High-Precision Digital Graphic Recording Multimeter Color Screen 20000-Character Multimeter

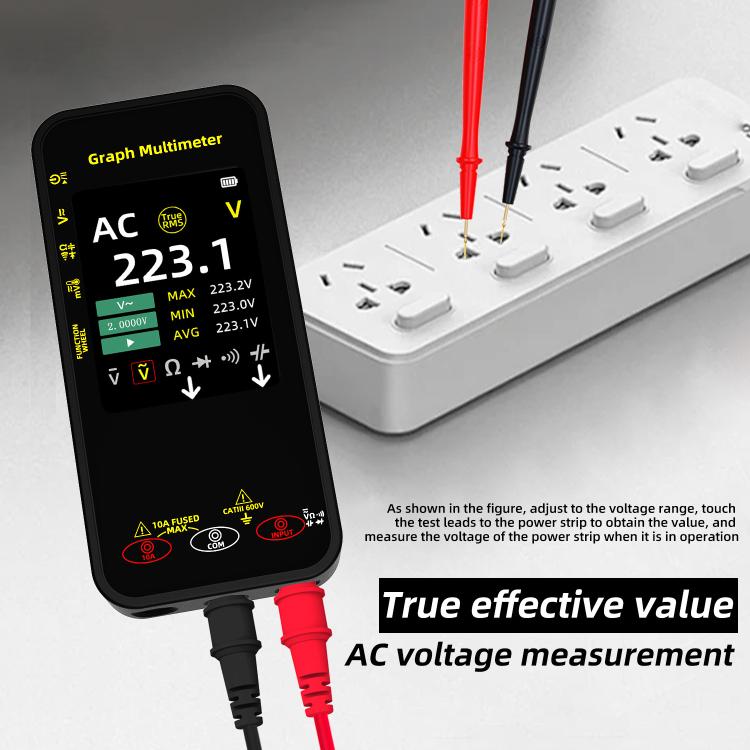

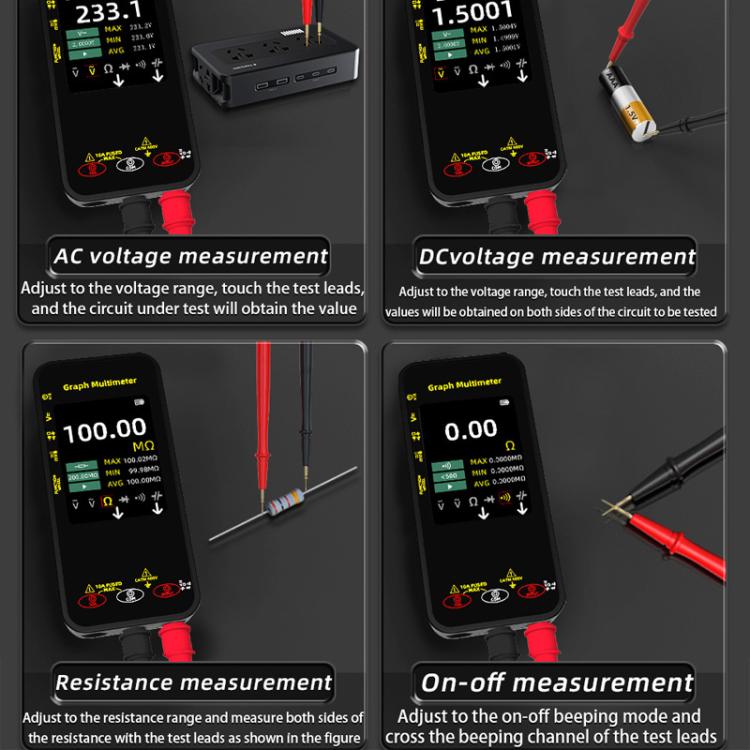

1. DC voltage (V) range/resolution: 2.0000V-1000V/0.0001-0.1V
2. AC voltage (V) range/resolution: 2.0000V-750V/0.0001-0.1V
3. DC/AC voltage (mV) range/resolution: 20.000-200.00mV/0.001-0.01mV
4. Resistance range/resolution: 200.00 ohm/0.01 ohm, 2.0000-200.00 kilohm/0.0001-0.01 kilohm, 2.0000-200.00 megohm/0.0001-0.01 megohm
5. Capacitance range/resolution: 999.99nF/0.01nF, 9.999-999.99uF/0.001-0.01uF, 99.999mF/0.001mF
6. DC/AC current range/resolution: 2.0000-10.000A/0.0001-0.001A
7. AC current frequency response: 40Hz - 1kHZ
8. Temperature range/resolution: -20 - 1300 degrees Celsius/1 degree Celsius, -4 - 2372 degrees Fahrenheit/1 degree Fahrenheit

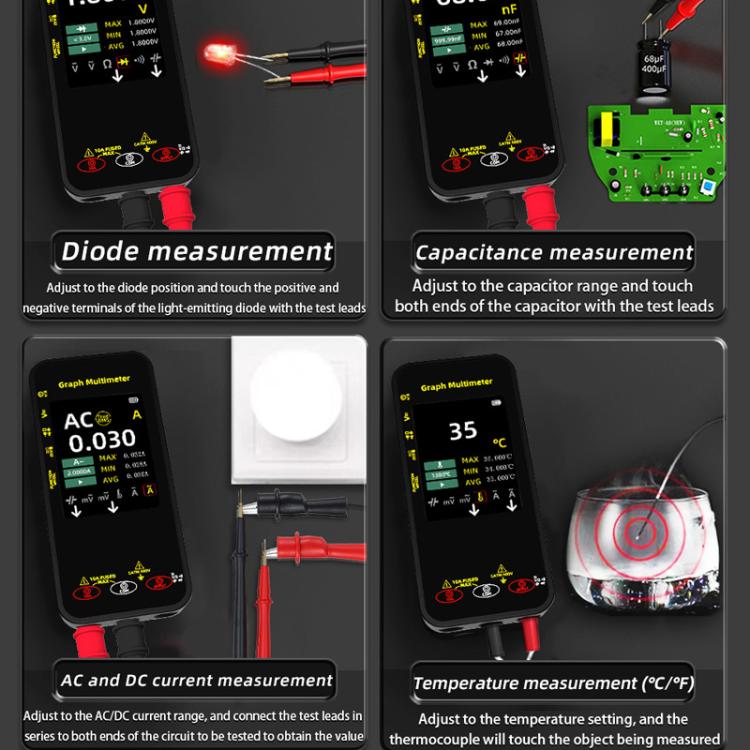

9. Function: diode, on/off, adjustable backlight brightness, low battery prompt, automatic shutdown
10. Display: 3.98-inch TFT capacitive touch screen
11. Display resolution: 320 x 480

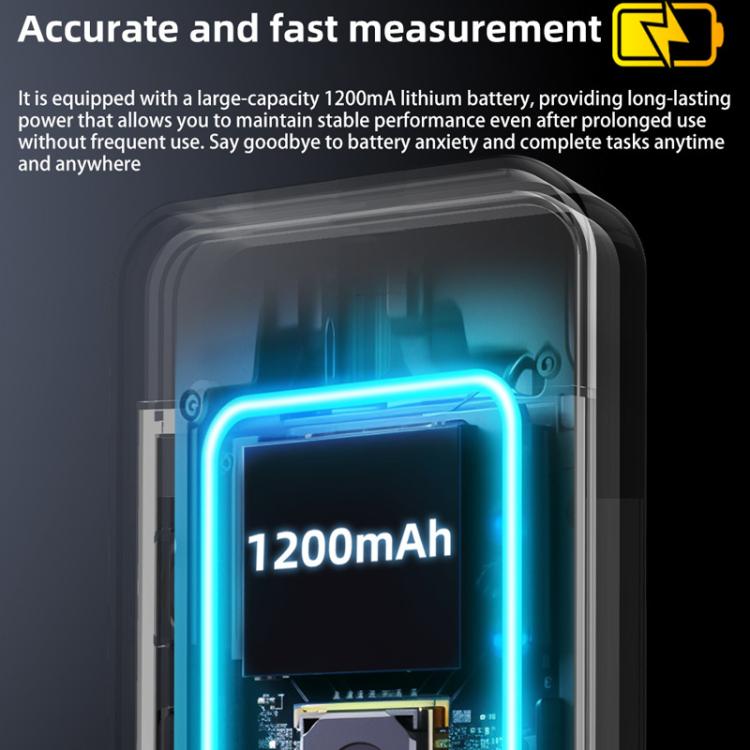

12. Battery capacity: 1200mAh
13. Working temperature: 0 - 40 degrees Celsius
14. Storage temperature: -20 - 60 degrees Celsius
15. Storage humidity: less than 80%RH
16. Working humidity: less than 75%RH

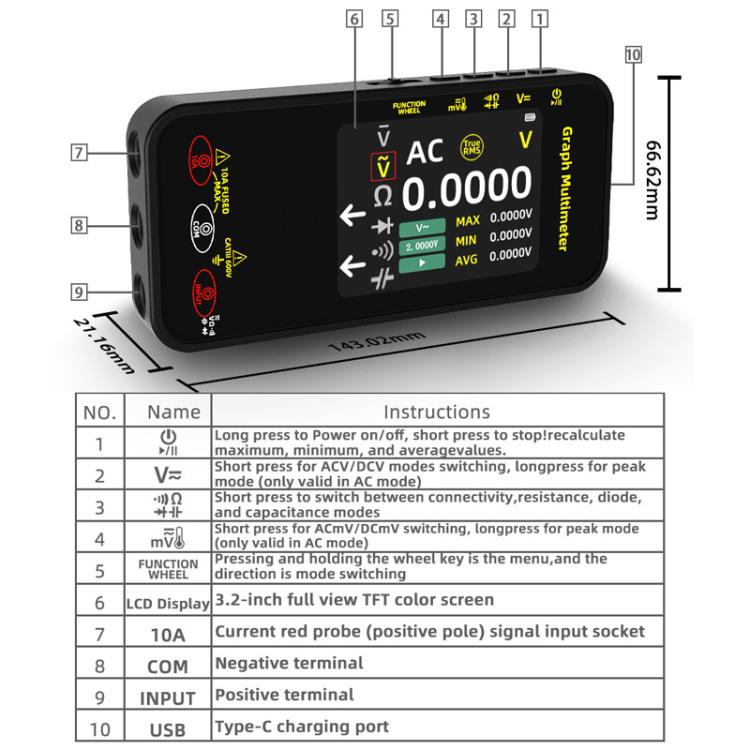

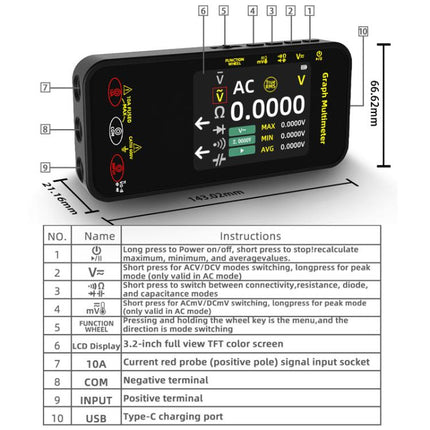

17. Size: about 14.3 x 6.66 x 2.12cm
18. Weight: about 159.5g

Features:

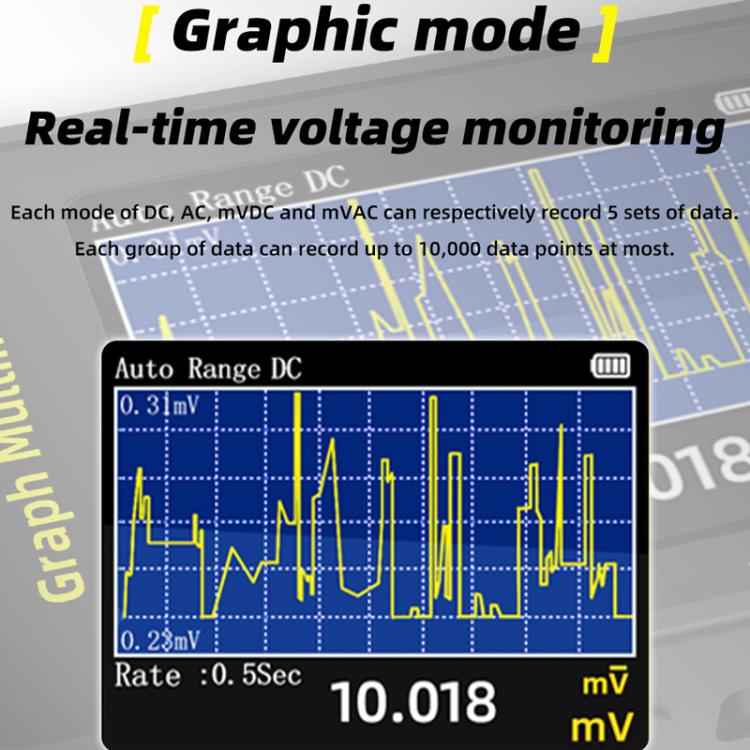

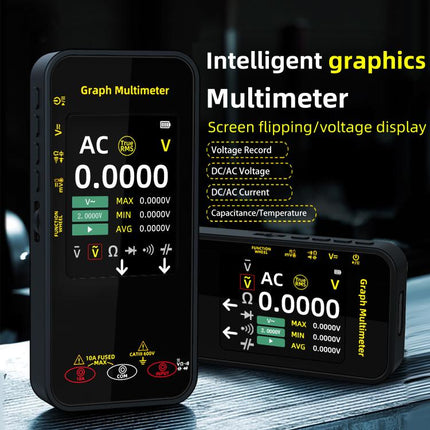

1. Graphic mode, real-time voltage monitoring, DC, AV, mVDC, mVAC each mode can record 5 sets of data, 0.31 each set of data can record up to 10,000 data
2. Smart chip, accurate and fast measurement

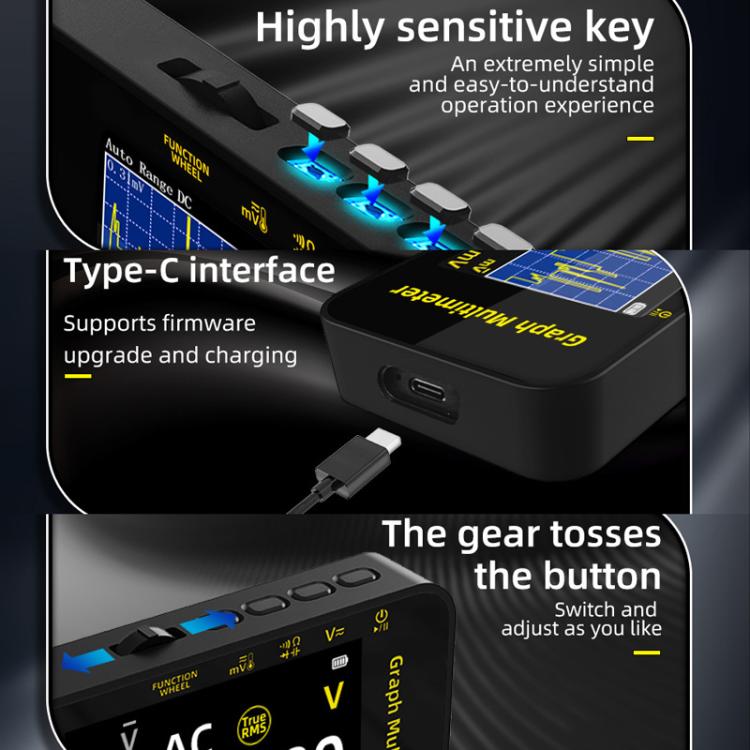

3. Highly sensitive buttons, super simple and easy to understand operation experience
4. Type-C interface, support firmware upgrade and charging
5. Gear toggle button, switch and adjust at will

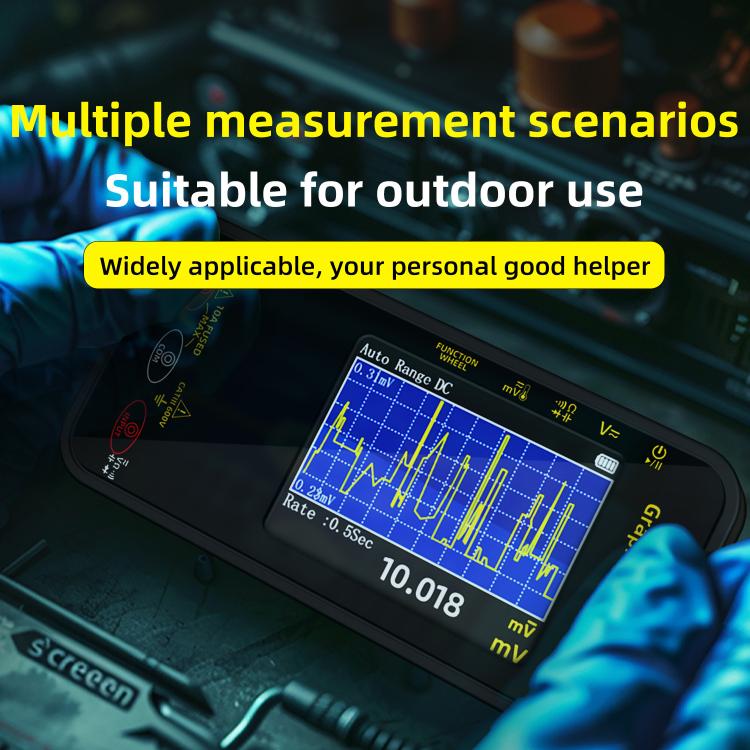

6. Multiple measurement scenarios, suitable for outdoor use

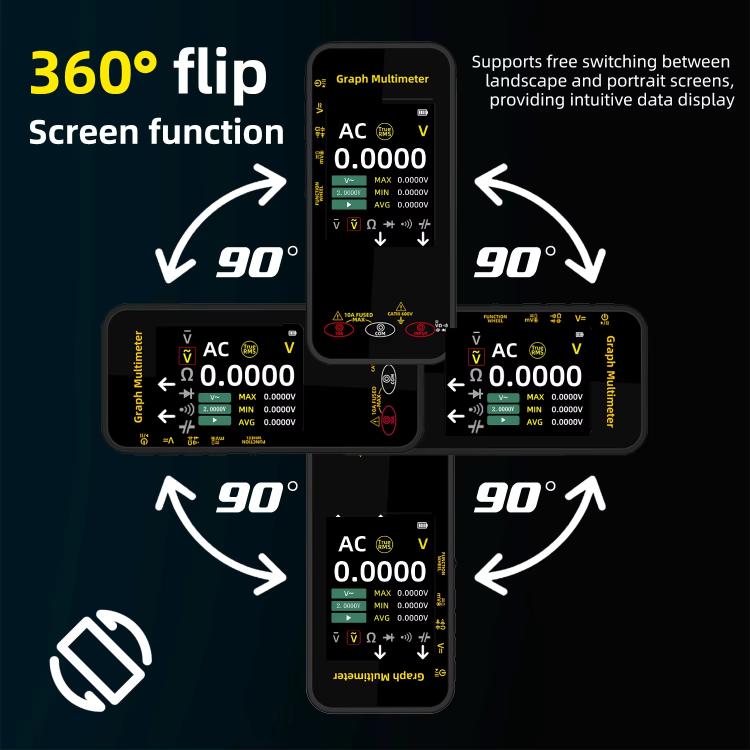

7. Support free switching between horizontal and vertical screens, intuitive data display

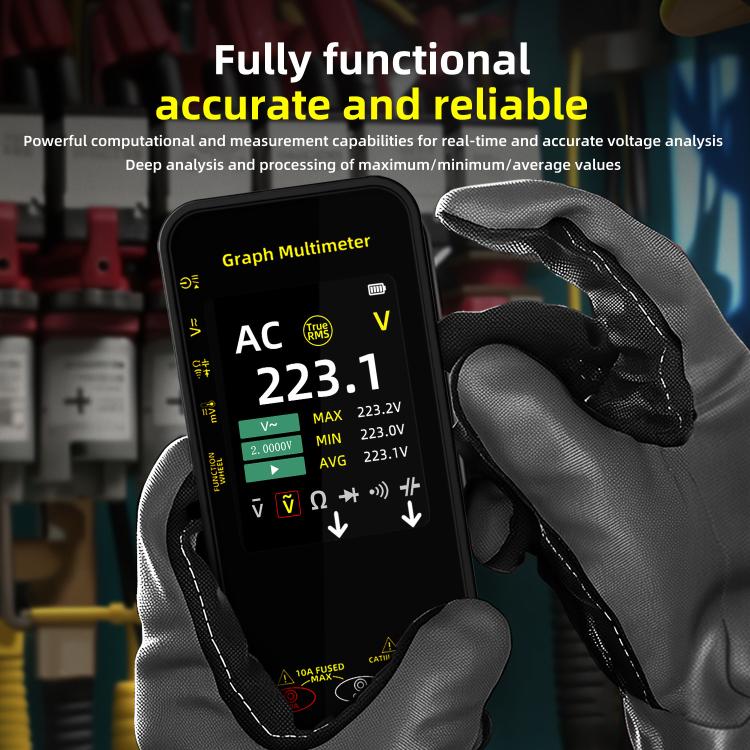

8. Powerful computing and measuring capabilities, capable of real-time and accurate voltage analysis, in-depth analysis and processing of maximum/minimum/average values

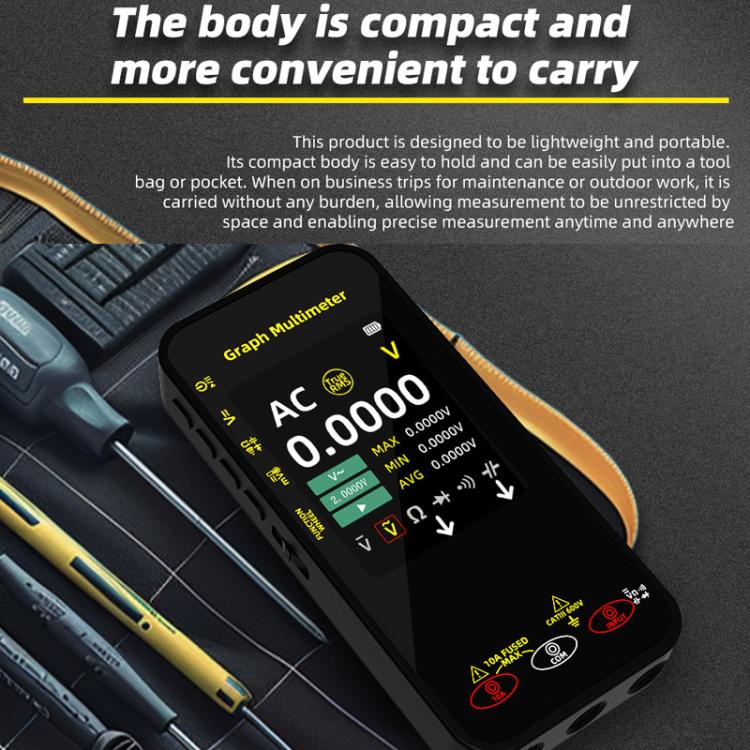

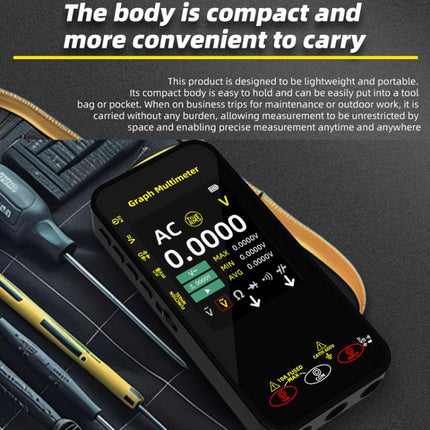

9. Compact body, more convenient to carry

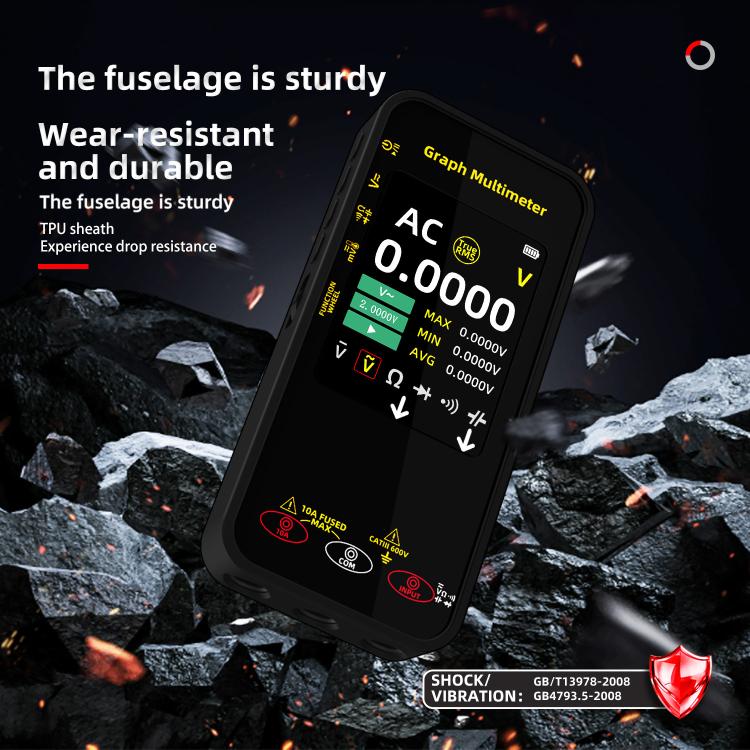

10. Strong body, wear-resistant and durable

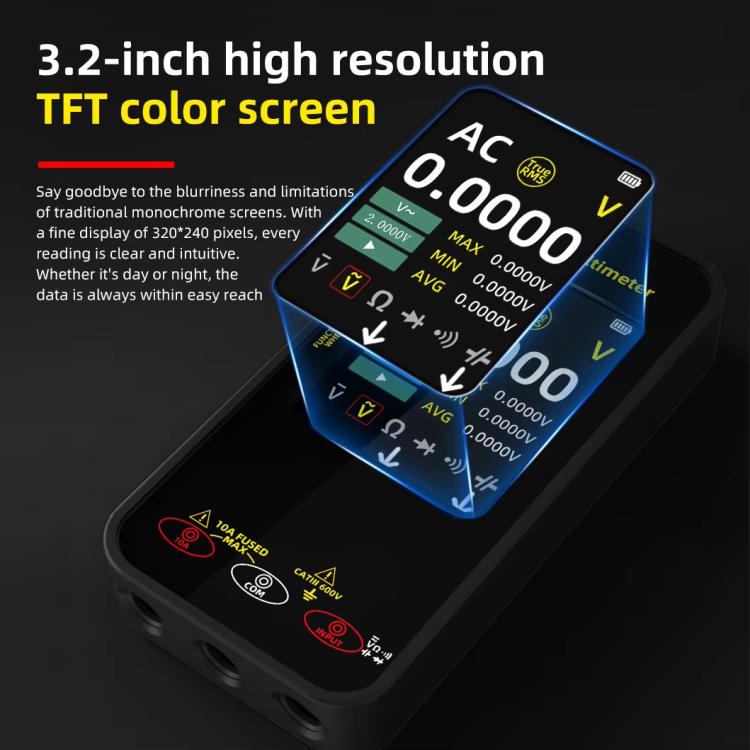

11. 3.2 inch high-resolution TFT color screen

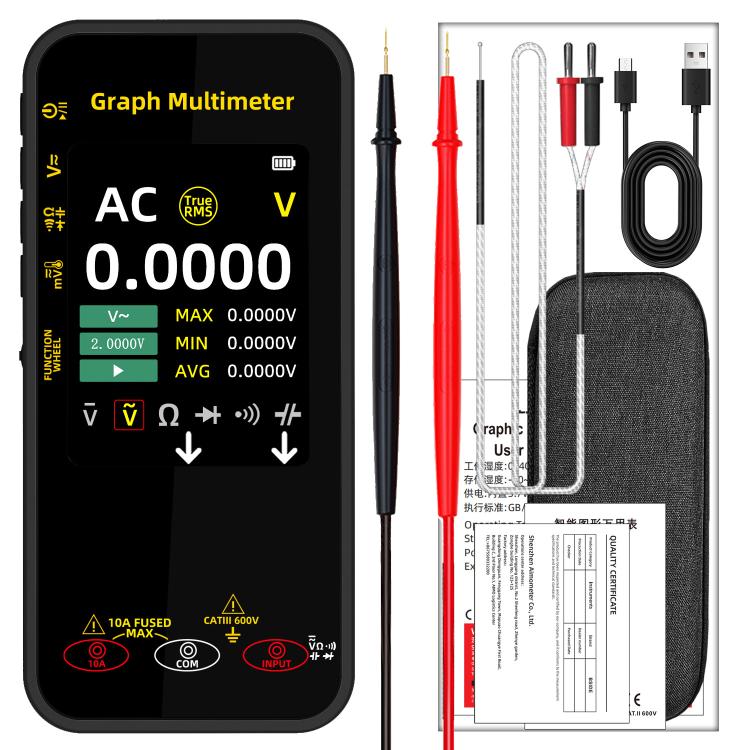

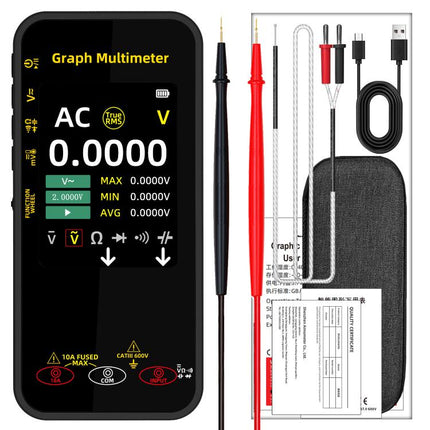

Packaging list:
- Multimeter x 1
- Data cable x 1
- Manual x 1
- Thermocouple x 1
- Storage bag x 1
- Special tip test pen x 1


Specification:
Package Weight
One Package Weight 0.45kgs / 1.00lb
One Package Size 19cm * 10cm * 5cm / 7.48inch * 3.94inch * 1.97inch
Qty per Carton 40
Carton Weight 19.00kgs / 41.89lb
Carton Size 40cm * 37cm * 32cm / 15.75inch * 14.57inch * 12.6inch
Loading Container 20GP: 563 cartons * 40 pcs = 22520 pcs
40HQ: 1307 cartons * 40 pcs = 52280 pcs

BSIDE S500 High-Precision Digital Graphic Recording Multimeter Color Screen 20000-Character Multimeter

Product form

SKU: TBD0606126101

  • In stock (Processing Time 1 - 72 hours)

€82,52

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. DC voltage (V) range/resolution: 2.0000V-1000V/0.0001-0.1V
    2. AC voltage (V) range/resolution: 2.0000V-750V/0.0001-0.1V
    3. DC/AC voltage (mV) range/resolution: 20.000-200.00mV/0.001-0.01mV
    4. Resistance range/resolution: 200.00 ohm/0.01 ohm, 2.0000-200.00 kilohm/0.0001-0.01 kilohm, 2.0000-200.00 megohm/0.0001-0.01 megohm
    5. Capacitance range/resolution: 999.99nF/0.01nF, 9.999-999.99uF/0.001-0.01uF, 99.999mF/0.001mF
    6. DC/AC current range/resolution: 2.0000-10.000A/0.0001-0.001A
    7. AC current frequency response: 40Hz - 1kHZ
    8. Temperature range/resolution: -20 - 1300 degrees Celsius/1 degree Celsius, -4 - 2372 degrees Fahrenheit/1 degree Fahrenheit
    9. Function: diode, on/off, adjustable backlight brightness, low battery prompt, automatic shutdown
    10. Display: 3.98-inch TFT capacitive touch screen
    11. Display resolution: 320 x 480
    12. Battery capacity: 1200mAh
    13. Working temperature: 0 - 40 degrees Celsius
    14. Storage temperature: -20 - 60 degrees Celsius
    15. Storage humidity: less than 80%RH
    16. Working humidity: less than 75%RH
    17. Size: about 14.3 x 6.66 x 2.12cm
    18. Weight: about 159.5g

    Features:
    1. Graphic mode, real-time voltage monitoring, DC, AV, mVDC, mVAC each mode can record 5 sets of data, 0.31 each set of data can record up to 10,000 data
    2. Smart chip, accurate and fast measurement
    3. Highly sensitive buttons, super simple and easy to understand operation experience
    4. Type-C interface, support firmware upgrade and charging
    5. Gear toggle button, switch and adjust at will
    6. Multiple measurement scenarios, suitable for outdoor use
    7. Support free switching between horizontal and vertical screens, intuitive data display
    8. Powerful computing and measuring capabilities, capable of real-time and accurate voltage analysis, in-depth analysis and processing of maximum/minimum/average values
    9. Compact body, more convenient to carry
    10. Strong body, wear-resistant and durable
    11. 3.2 inch high-resolution TFT color screen

    Packaging list:
    - Multimeter x 1
    - Data cable x 1
    - Manual x 1
    - Thermocouple x 1
    - Storage bag x 1
    - Special tip test pen x 1


    Specification:
    Package Weight
    One Package Weight 0.45kgs / 1.00lb
    One Package Size 19cm * 10cm * 5cm / 7.48inch * 3.94inch * 1.97inch
    Qty per Carton 40
    Carton Weight 19.00kgs / 41.89lb
    Carton Size 40cm * 37cm * 32cm / 15.75inch * 14.57inch * 12.6inch
    Loading Container 20GP: 563 cartons * 40 pcs = 22520 pcs
    40HQ: 1307 cartons * 40 pcs = 52280 pcs
