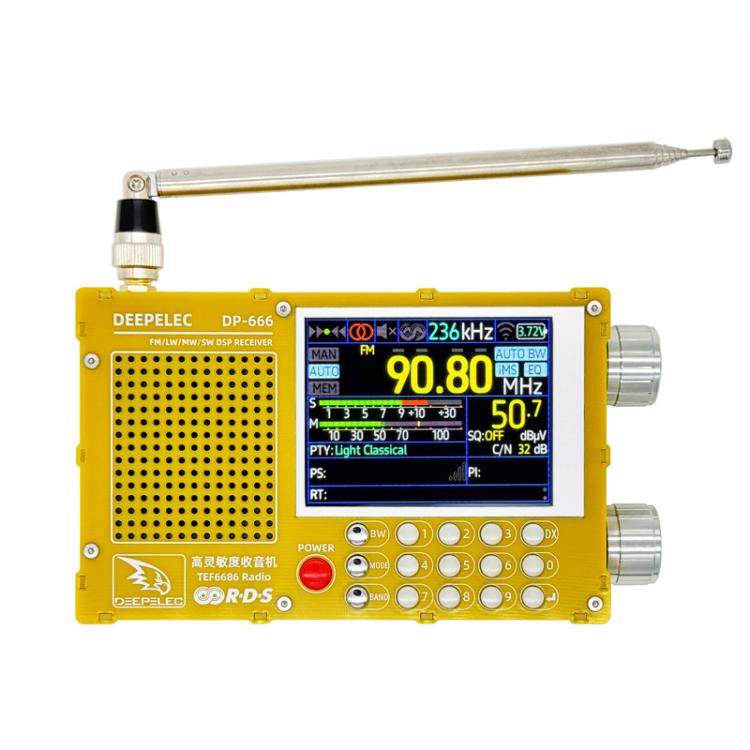

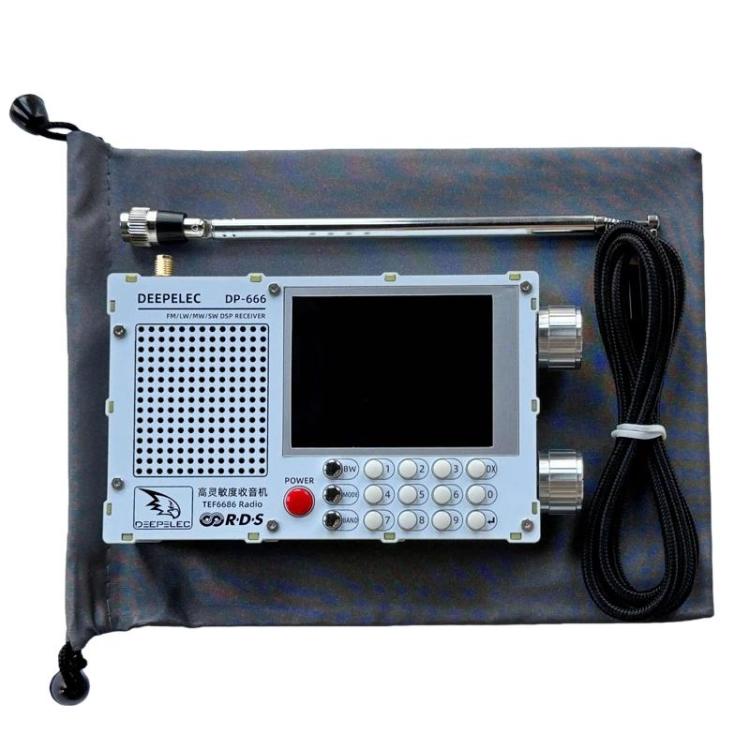

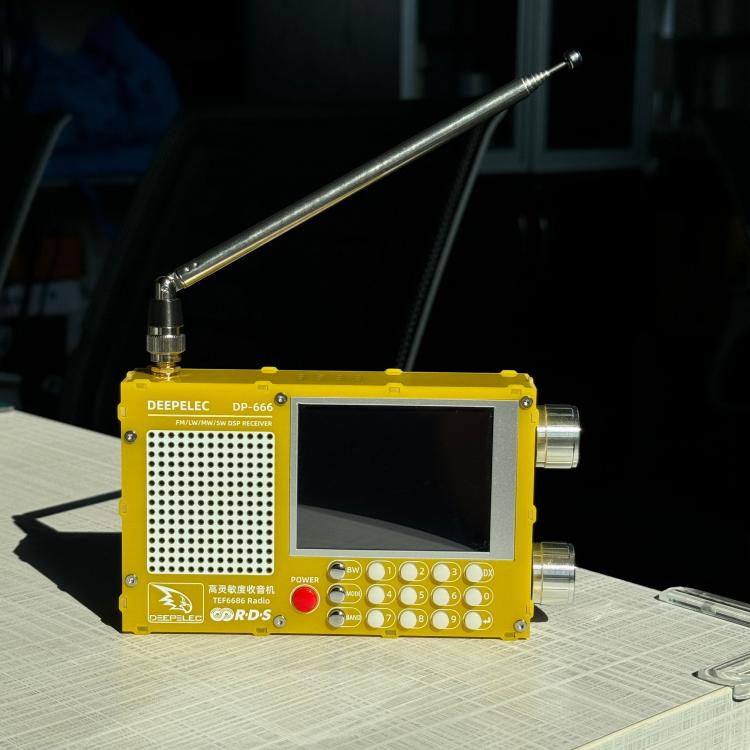

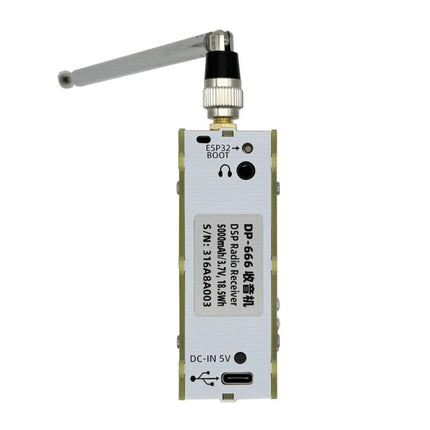

DEEPELEC DP-666 Touch Screen TEF6686 Radio Full Band FM High Sensitivity Radio(Yellow)


1. Functions: RDS (Radio Data System) data display, automatic/manual station scanning, squelch function, battery voltage display, variable themes, multi-language, station presets, etc.

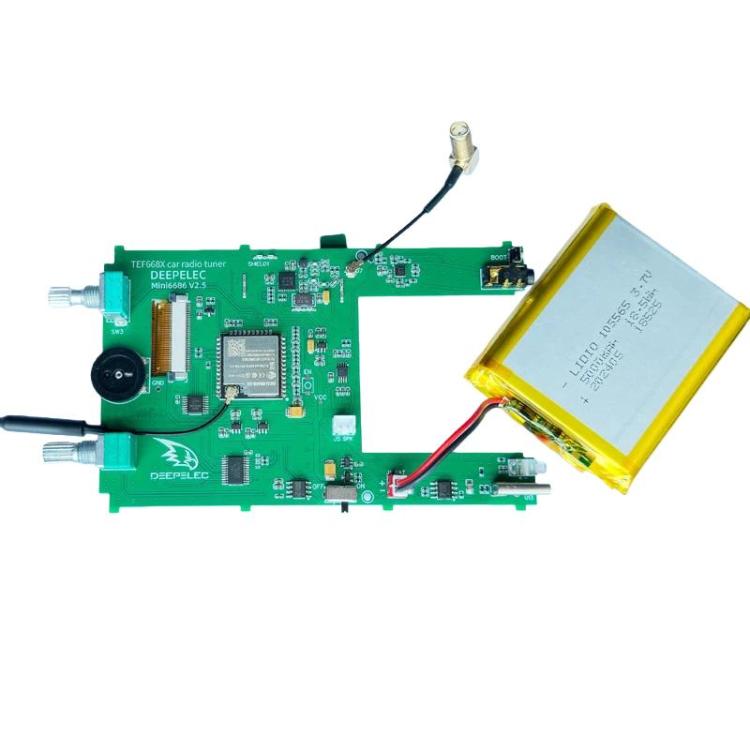

2. Main control chip: ESP32-WROOM-32U, Flash 4MB, Wi-Fi+ Bluetooth dual-core module

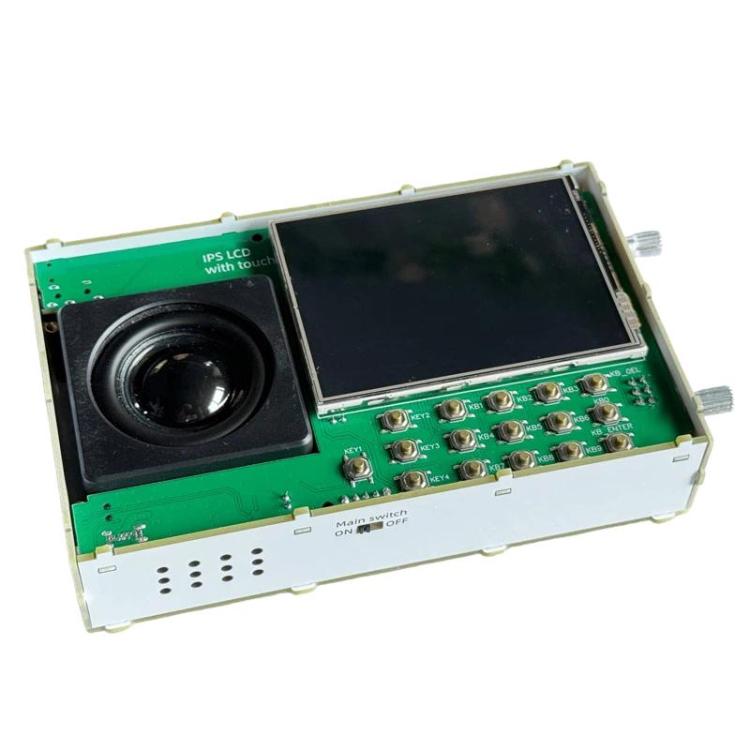

3. Display: 2.8 inch 320x240 resolution, IPS full-viewing angle LCD screen, with resistive touch

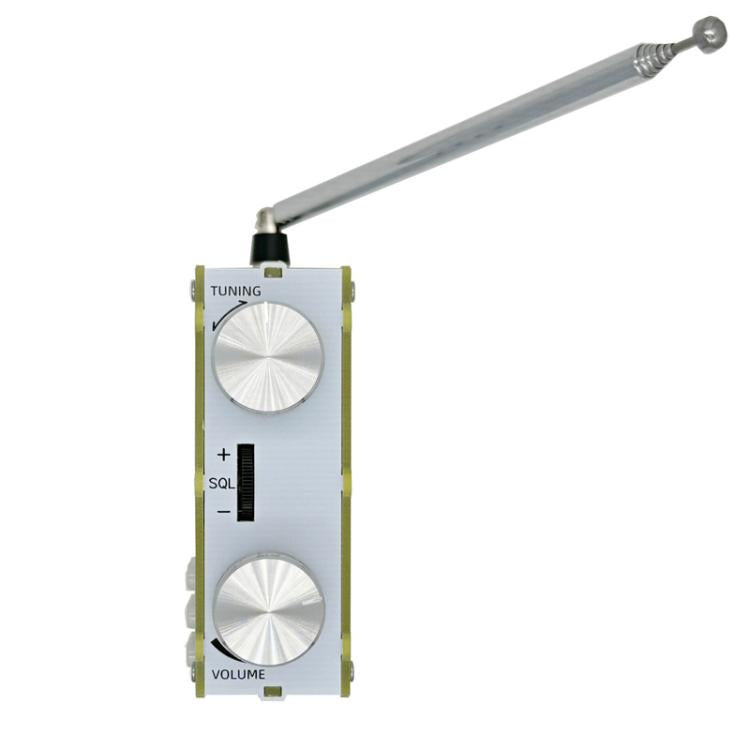

4. Control mode: default digital keyboard input and knob tuning mode, also support third-party touch screen firmware
5. Antenna interface: full-band using external antenna, standard SMA external screw female connector
6. Speaker output: TI audio amplifier chip TPA6211A1, drive 45 x 45mm large size cavity speaker, power 4 ohms / 3W, output noise is lower, less distortion
7. Headphone output: AD headphone amplifier chip MAX97220, standard 3.5mm 8. audio connector output, speakers and headphones independent bi-amplifier design, respectively, optimize each other does not affect

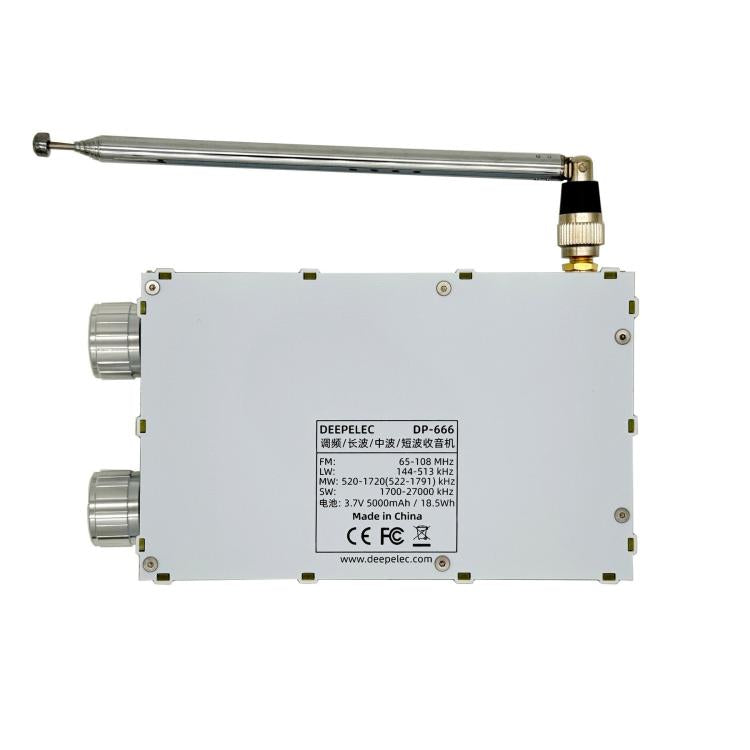

9. Battery capacity: 3.7V/5000mAh, 18.5wh
10. Current consumption: about 3.7V/350mA, using time about 15 hours

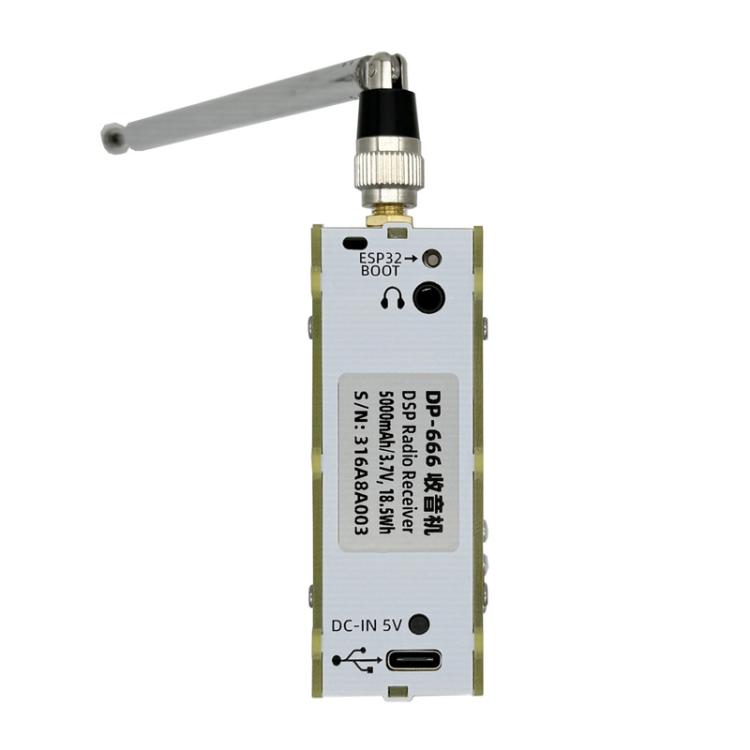

11. Communication interface: built-in CH340 USB to serial chip, external communication through Type-C interface
12. Size: about 14.2 x 3 x 8cm (without antenna connector and antenna)
13. Weight: about 300g
Specification:
Package Weight
One Package Weight 0.50kgs / 1.11lb
One Package Size 16cm * 12cm * 6cm / 6.3inch * 4.72inch * 2.36inch
Qty per Carton 48
Carton Weight 25.00kgs / 55.12lb
Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
Loading Container 20GP: 412 cartons * 48 pcs = 19776 pcs
40HQ: 958 cartons * 48 pcs = 45984 pcs

DEEPELEC DP-666 Touch Screen TEF6686 Radio Full Band FM High Sensitivity Radio(Yellow)

Product form

SKU: TBD0606428301C

  • In stock (Processing Time 1 - 72 hours)

€134,27

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Functions: RDS (Radio Data System) data display, automatic/manual station scanning, squelch function, battery voltage display, variable themes, multi-language, station presets, etc.
    2. Main control chip: ESP32-WROOM-32U, Flash 4MB, Wi-Fi+ Bluetooth dual-core module
    3. Display: 2.8 inch 320x240 resolution, IPS full-viewing angle LCD screen, with resistive touch
    4. Control mode: default digital keyboard input and knob tuning mode, also support third-party touch screen firmware
    5. Antenna interface: full-band using external antenna, standard SMA external screw female connector
    6. Speaker output: TI audio amplifier chip TPA6211A1, drive 45 x 45mm large size cavity speaker, power 4 ohms / 3W, output noise is lower, less distortion
    7. Headphone output: AD headphone amplifier chip MAX97220, standard 3.5mm 8. audio connector output, speakers and headphones independent bi-amplifier design, respectively, optimize each other does not affect
    9. Battery capacity: 3.7V/5000mAh, 18.5wh
    10. Current consumption: about 3.7V/350mA, using time about 15 hours
    11. Communication interface: built-in CH340 USB to serial chip, external communication through Type-C interface
    12. Size: about 14.2 x 3 x 8cm (without antenna connector and antenna)
    13. Weight: about 300g
    Specification:
    Package Weight
    One Package Weight 0.50kgs / 1.11lb
    One Package Size 16cm * 12cm * 6cm / 6.3inch * 4.72inch * 2.36inch
    Qty per Carton 48
    Carton Weight 25.00kgs / 55.12lb
    Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
    Loading Container 20GP: 412 cartons * 48 pcs = 19776 pcs
    40HQ: 958 cartons * 48 pcs = 45984 pcs
