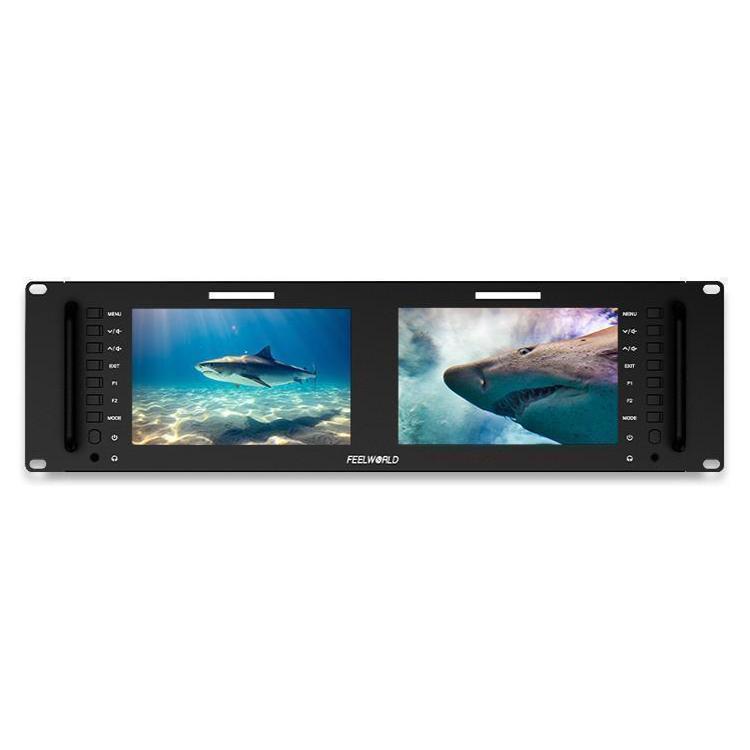

FEELWORLD D71 PLUS-H Dual 7 inch 3RU Rackmount Monitor 4K HDMI 1920 x 1200 IPS Monitor (US Plug)

Features
1. 2x7 Inch 1920x1200 full HD IPS screen

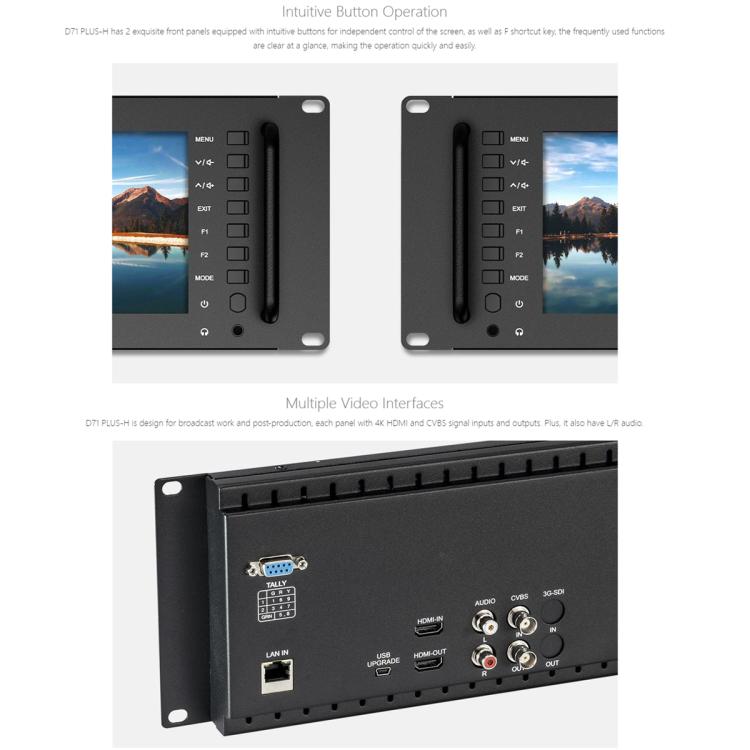

2. Intuitive buttons + new menu interface, convenient to operation

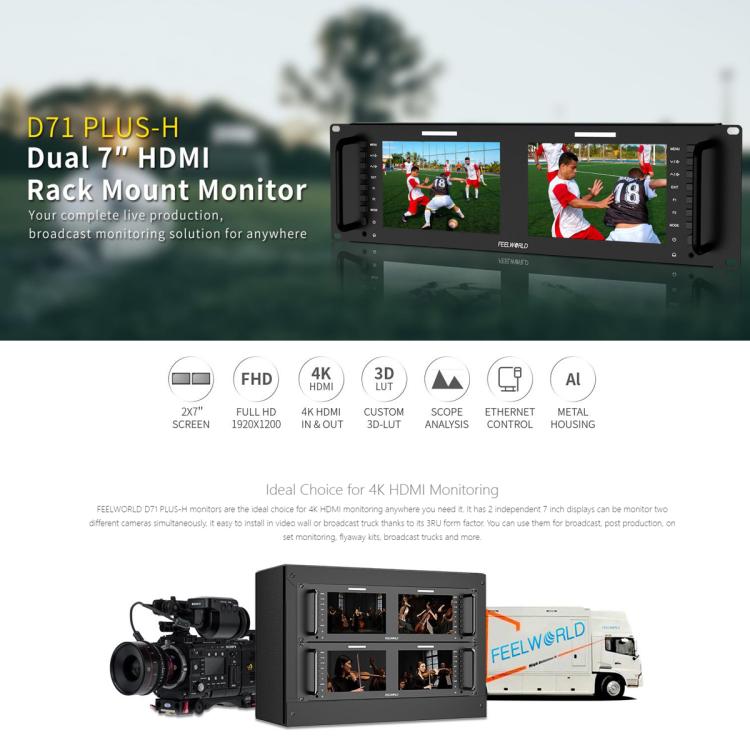

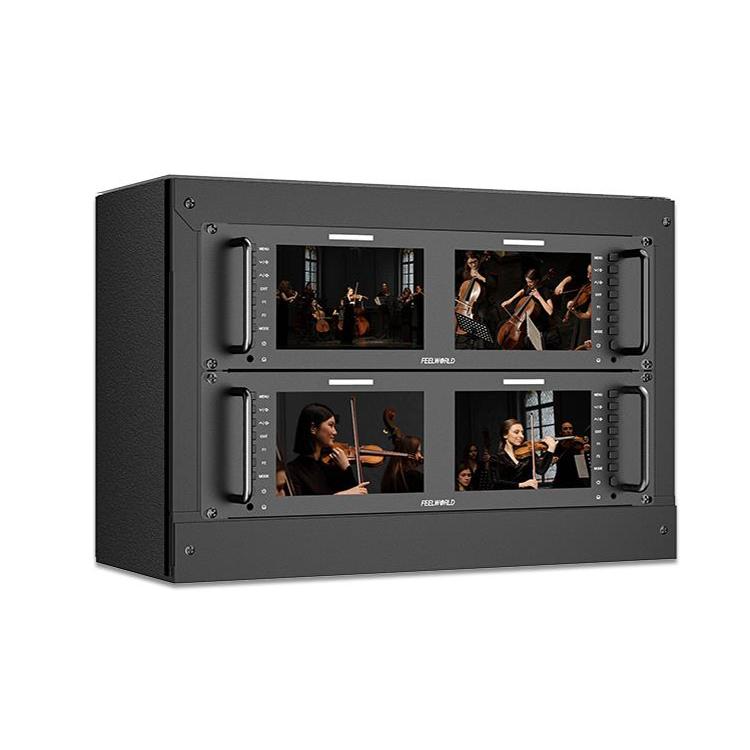

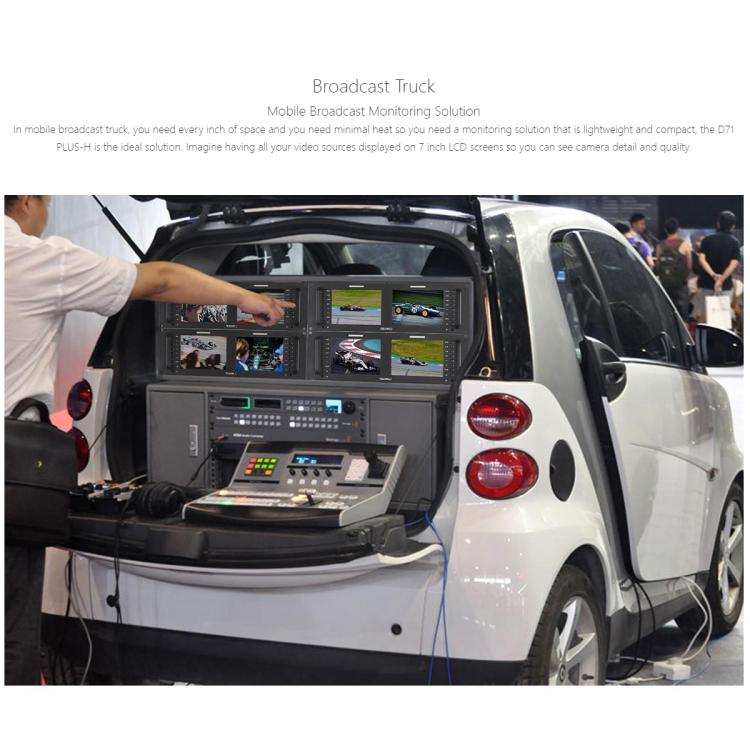

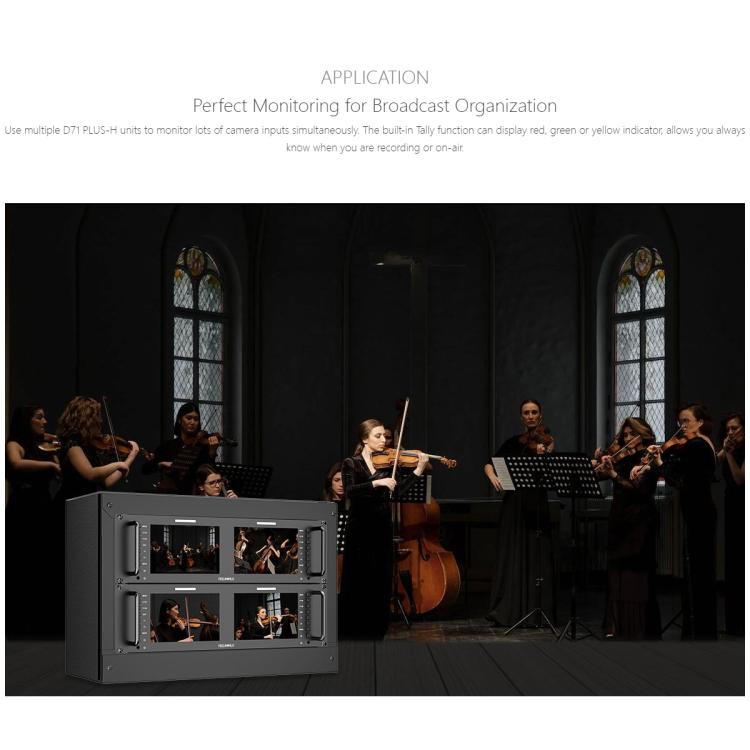

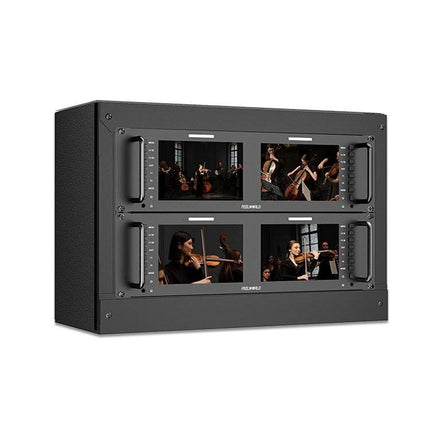

3. 3RU rack mount design, easy to mount on TV wall or broadcast truck

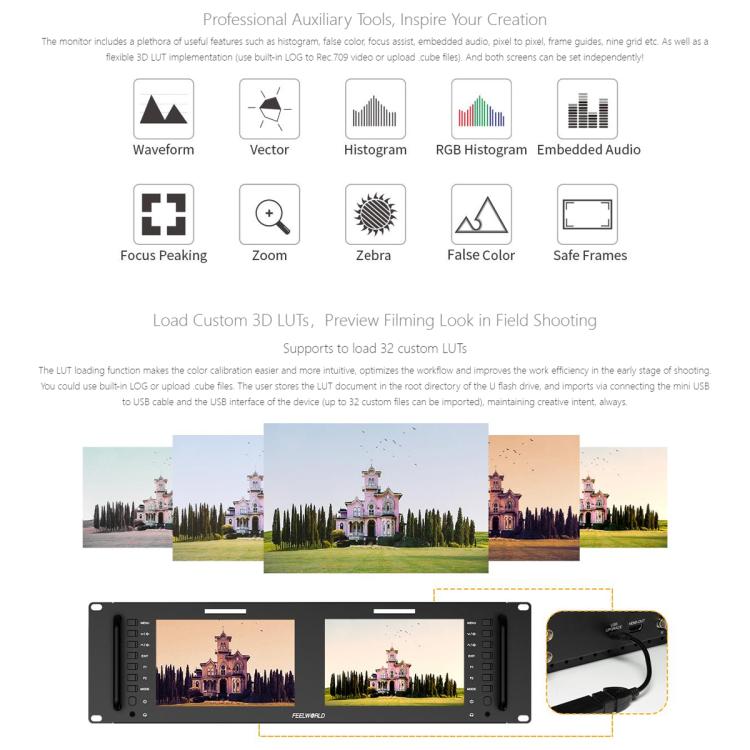

4. Upload custom 3D-LUT, preview film look

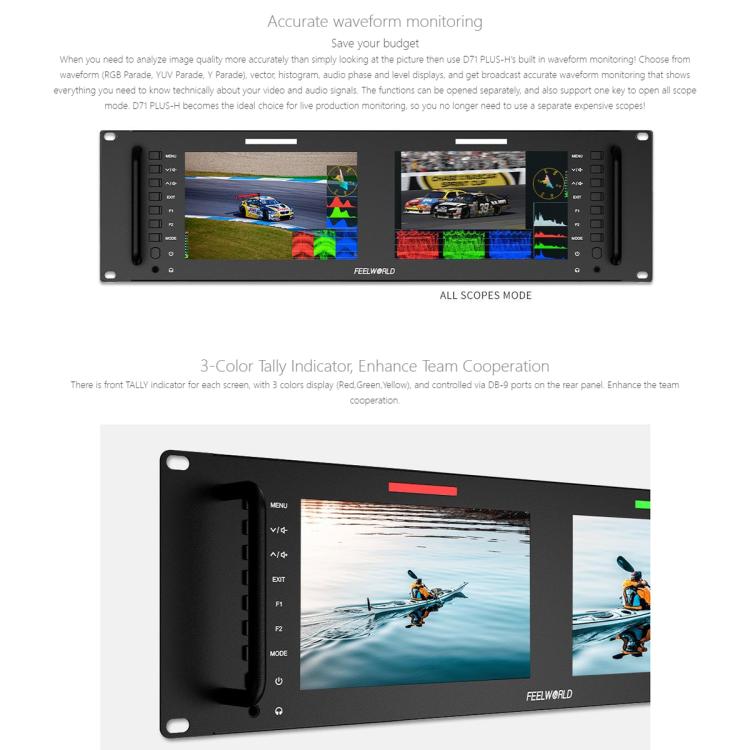

5. With Waveform, Vector scope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot
6. Connect to Ethernet remotely adjust the monitor via software
7. Front panel built-in 3 colors TALLY indicator, enhance shooting cooperation
8. Multiple signal ports (HDMI/CVBS), meet different needs.

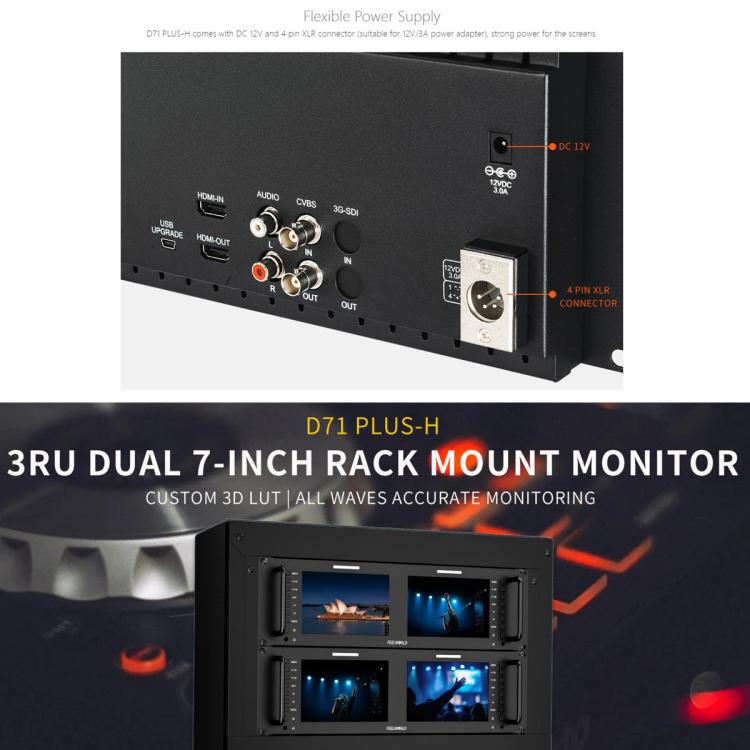

9. Power using included 12-volt supply or use standard 4-pin XLR

Advanced Features
1. Waveform (RGB, YUV, Y)
2. Vectorscope
3. Histogram (RGB1, RGB2, Y)
4. Custom LUTs (up to 32)
5. Focus Assist (Red, Green, Blue)
6. Check Field (Red, Green, Blue, Mono)
7. Embedded Audio
8. Over Exposure
9. Pixel to Pixel
10. Center Marker (Red, Green, Blue, Black, White, Gray)
11. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
12. Image Flip (H, V, H/V)
13. Image Freeze
14. Zoom Mode (2X, 4X, 9X, 16X, User)
15. False Color
16. Scan Mode(Under Scan, Over Scan)
17. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
19. Custom Color Temperature
20. Built-in LED tally indicators (Red, Green, Yellow)

Specifications
Display Spec.
1. Model: D71 PLUS-H

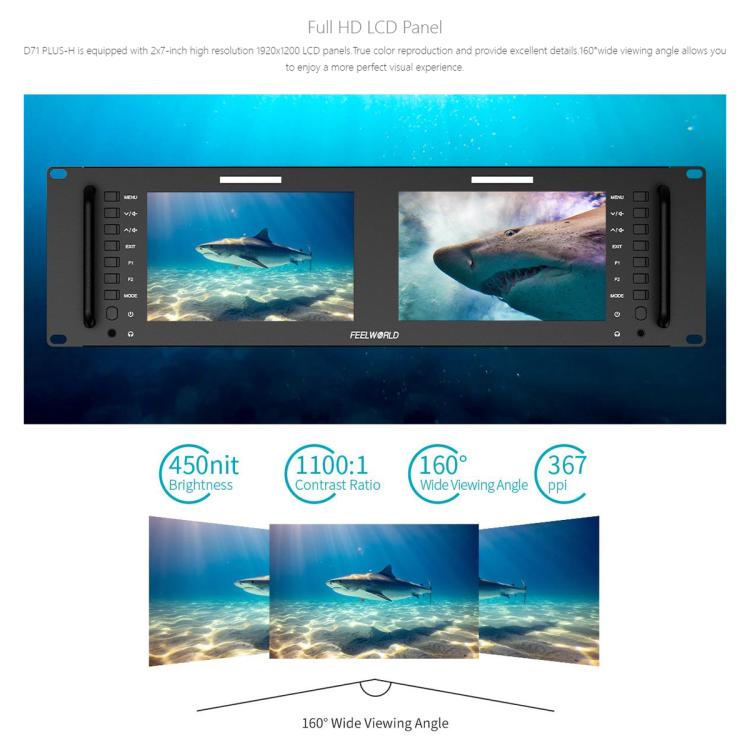

2. Screen Size: 7 inch x 2 IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.07875(H) x 0.07875 (W) mm
5. Aspect Ratio: 16:10
6. Brightness: 450cd/m2
7. Contrast Ratio: 1100:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

Input (Each LCD)
1. 1 x HDMI: HDMI
2. 1 x BNC: Video
3. 2 x RCA: Audio(L/R)

Output (Each LCD)
1. 1 x HDMI: HDMI
2. 1 x BNC: Video

Audio (Each LCD)
Audio Out: Stereo Headphone x 1

HDMI Input/ Output Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 4K UHD 3840 x 2160p (30/29.97/25/24/23.98 Hz)
6. DCI 4K 4096x 2160p (24Hz)

General:
1. Input Voltage: DC 9-24V
2. Power Consumption: Less than or equal to 21W
3. Working Temperature: -20 degree C~50 degree C
4. Storage Temperature: -30 degree C~60 degree C
5. Power Connector: DC/ 4-pin XLR
6. Install Way: 1/4 inch -20 Thread Socket (right, top, bottom)

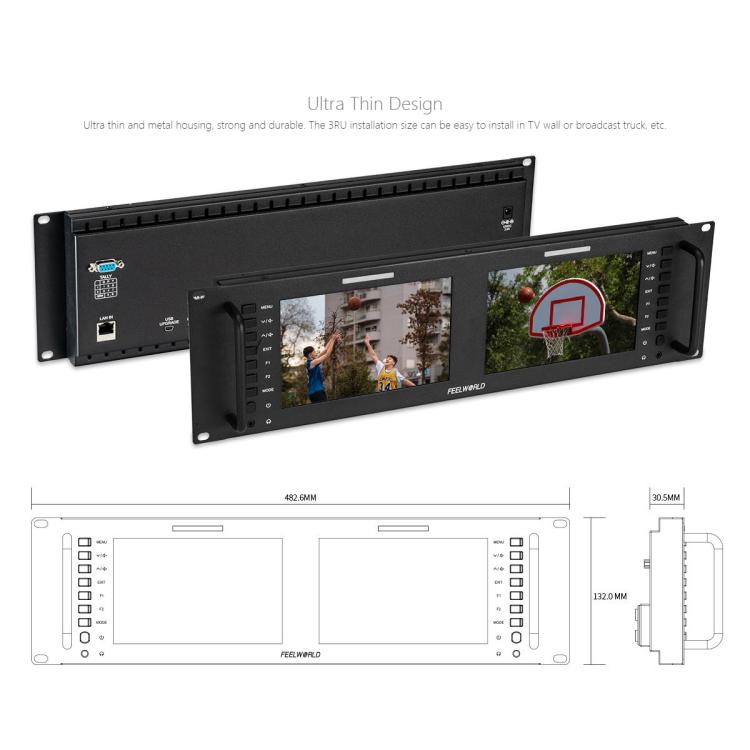

7. Unit Size: 482.6Lx132Hx30.5D(mm)
8. Unit Weight: 1890g

Package List
1. Monitor x 1
2. Tally adapter kit x 1
3. Mini USB to USB cable x 1
4. 3A power adapter x 1
5. Manual x 1


Specification:
Package Weight
One Package Weight 2.86kgs / 6.31lb
One Package Size 50cm * 16cm * 8cm / 19.69inch * 6.3inch * 3.15inch
Qty per Carton 5
Carton Weight 14.80kgs / 32.63lb
Carton Size 64cm * 56cm * 27cm / 25.2inch * 22.05inch * 10.63inch
Loading Container 20GP: 275 cartons * 5 pcs = 1375 pcs
40HQ: 639 cartons * 5 pcs = 3195 pcs

FEELWORLD D71 PLUS-H Dual 7 inch 3RU Rackmount Monitor 4K HDMI 1920 x 1200 IPS Monitor (US Plug)

Product form

SKU: DCA3134US

  • In stock (Processing Time 1 - 72 hours)

€765,76

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.
