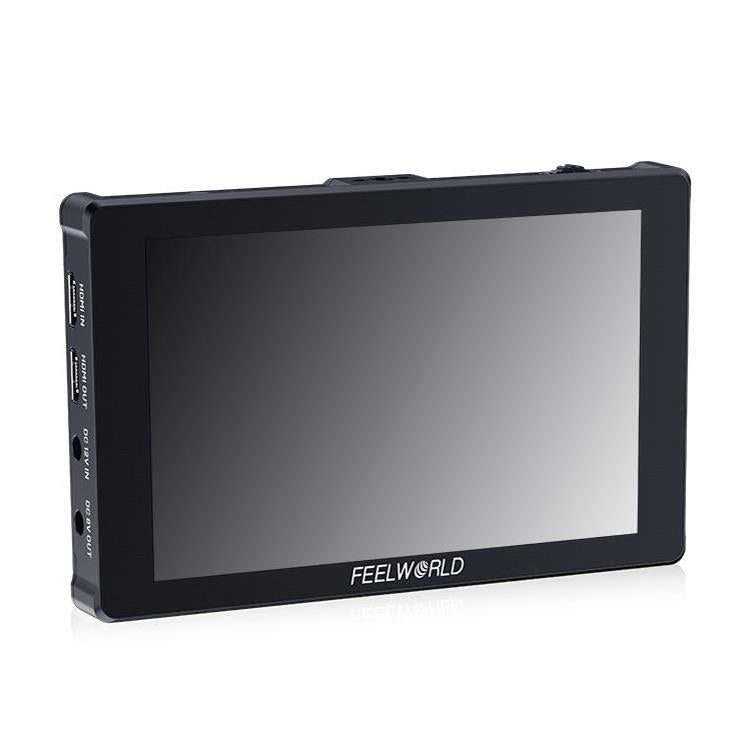

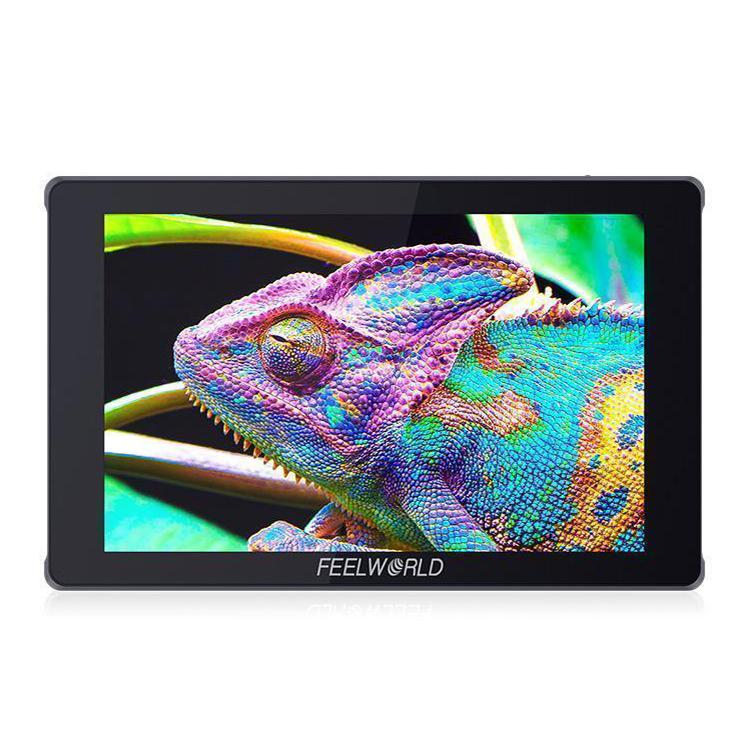

FEELWORLD F7 PLUS 7 inch DSLR Camera Field Monitor Touch Screen 4K HDMI High Brightness 1200nit Monitor (Black)

Features

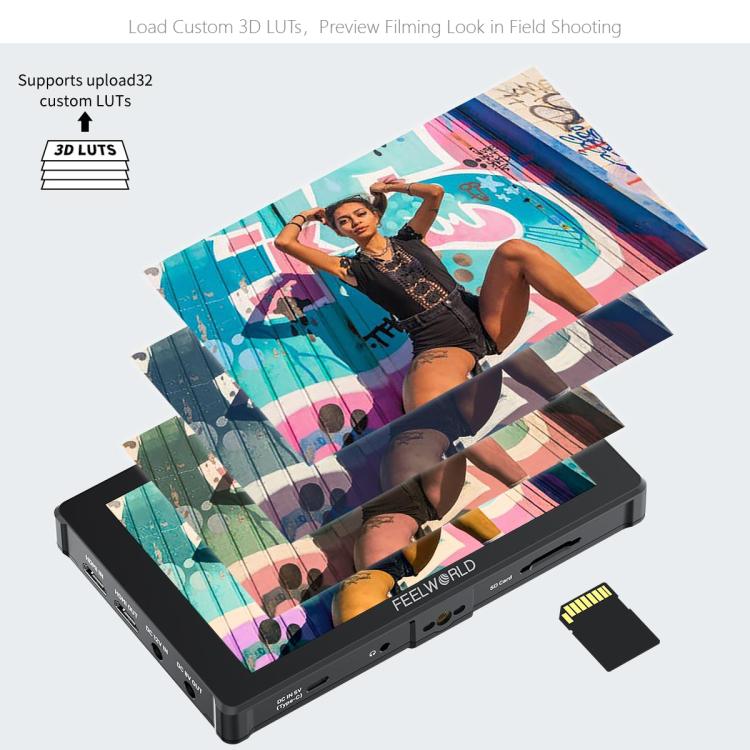

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

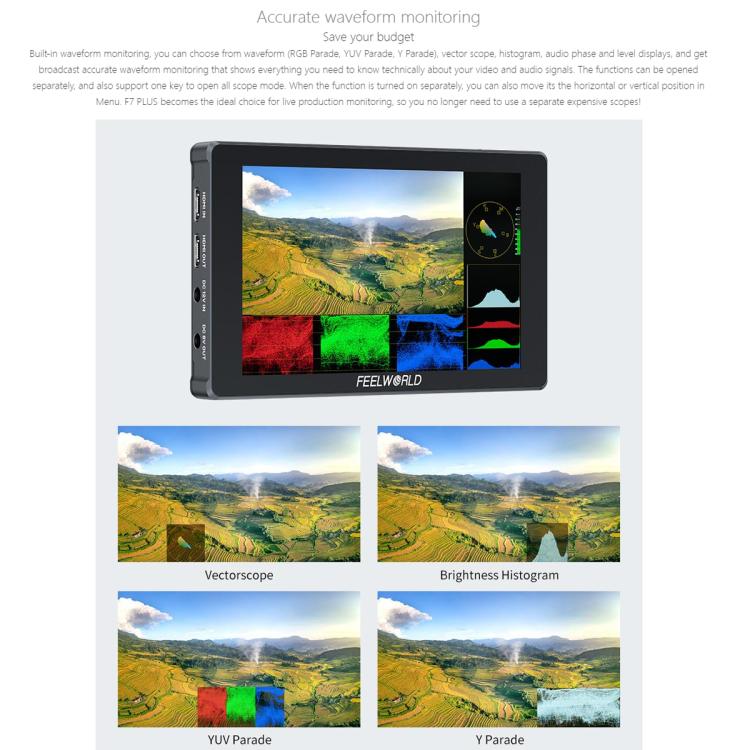

2. Waveform (RGB, YUV, Y)

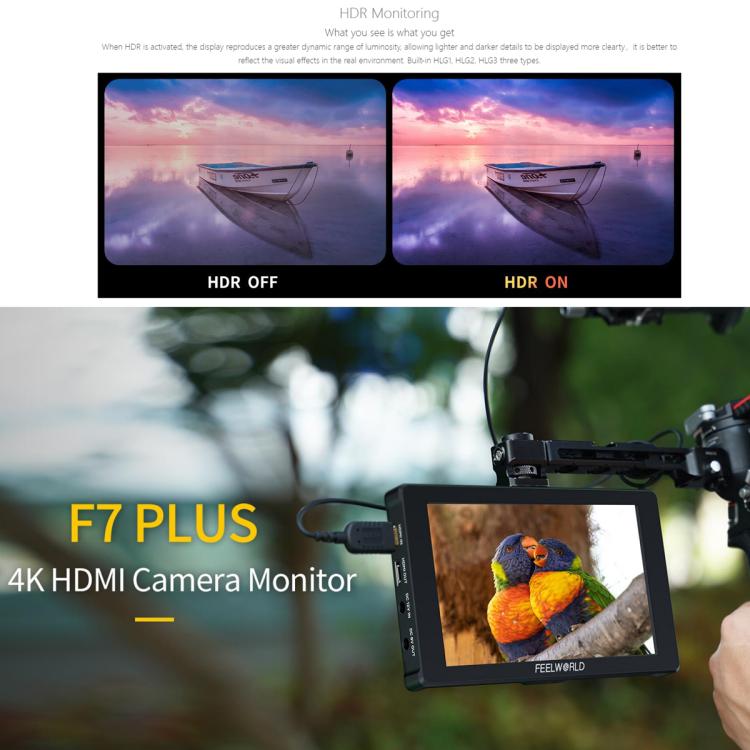

3. HDR
4. Vector
5. Histogram (RGB1, RGB2, Y)
6. Embedded Audio

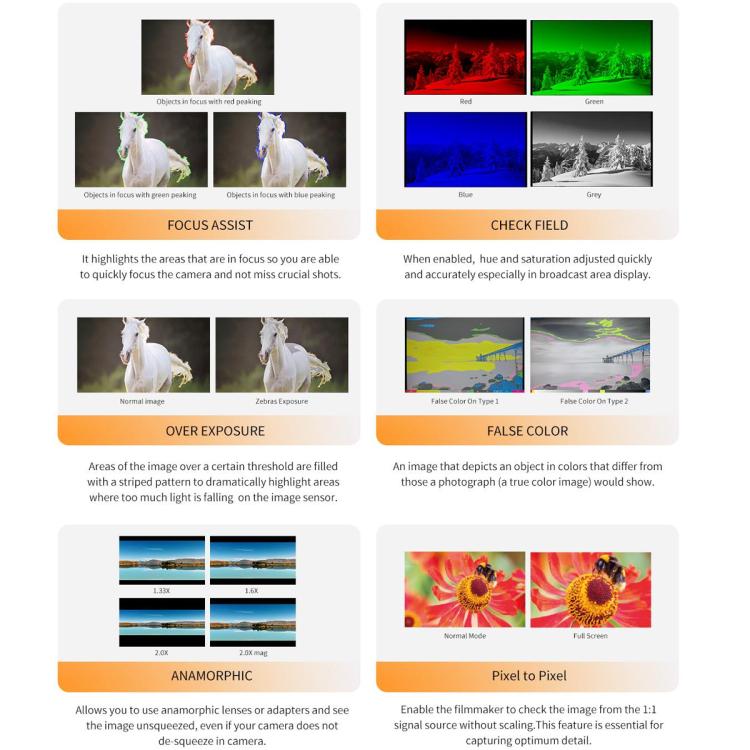

7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10RE~100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Grid (2x2, 3x3, 4x4, 5x5, 6x6,7x7, 8x8,9x9, Custom)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
14. Image Flip ( H Flip, V Flip, H_V Flip )
15. Image Freeze
16. Center Marker
17. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
19. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
20. Marker Color (Red, Green, Blue, Black, White, Gray)

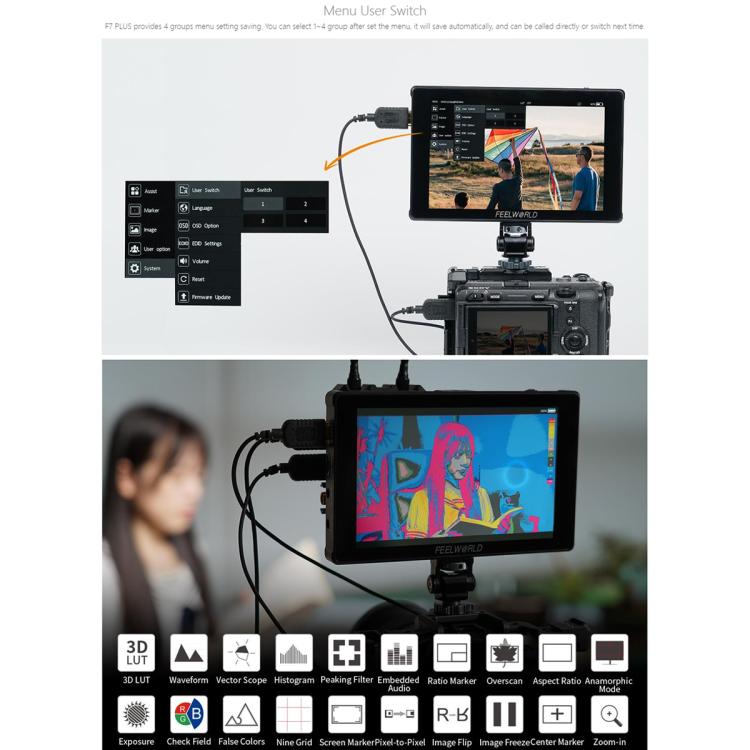

21. User Switch (1-4)
22. Zoom Mode (2X, 4X, 9X, 16X, User)
23. Pixel to Pixel
24. Display Adjustment (can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100)
25. Display Range(Auto, Limit, Full)
26. Built-in fan(can be adjustable 1~5)
27. Color Temp. ( 5600K, 6500K, 9300K, User. Under the "user", the red, green, and blue values of the image can be adjusted 0~255)

Specifications
Display Spec.
1. Model: F7 PLUS

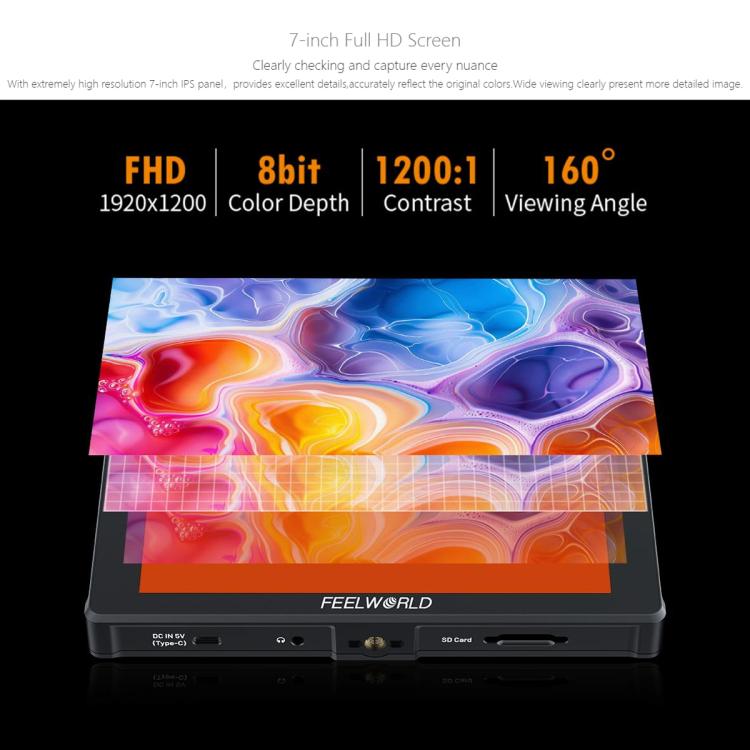

2. Screen Size: 7 inch IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
5. Aspect Ratio: 16:10

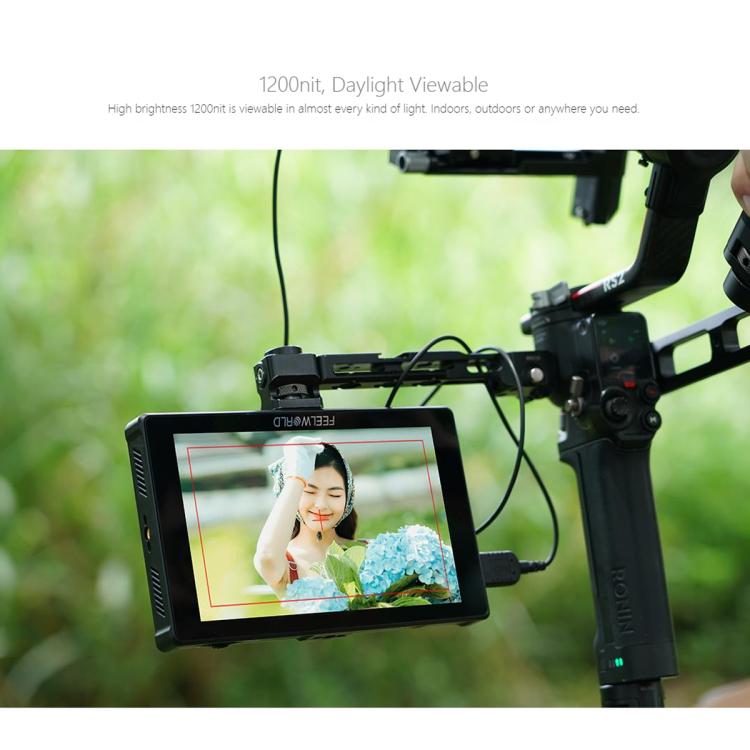

6. Brightness: 1200cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

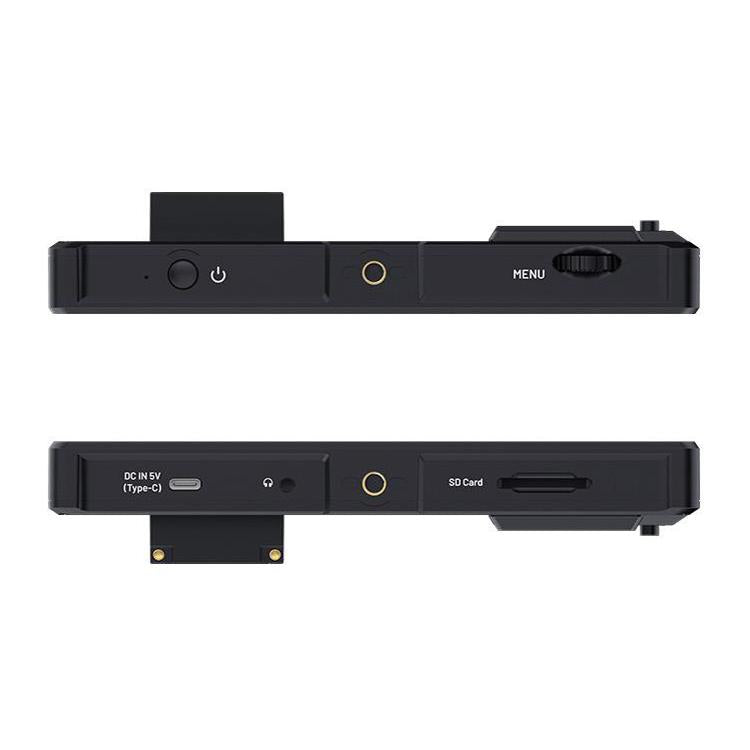

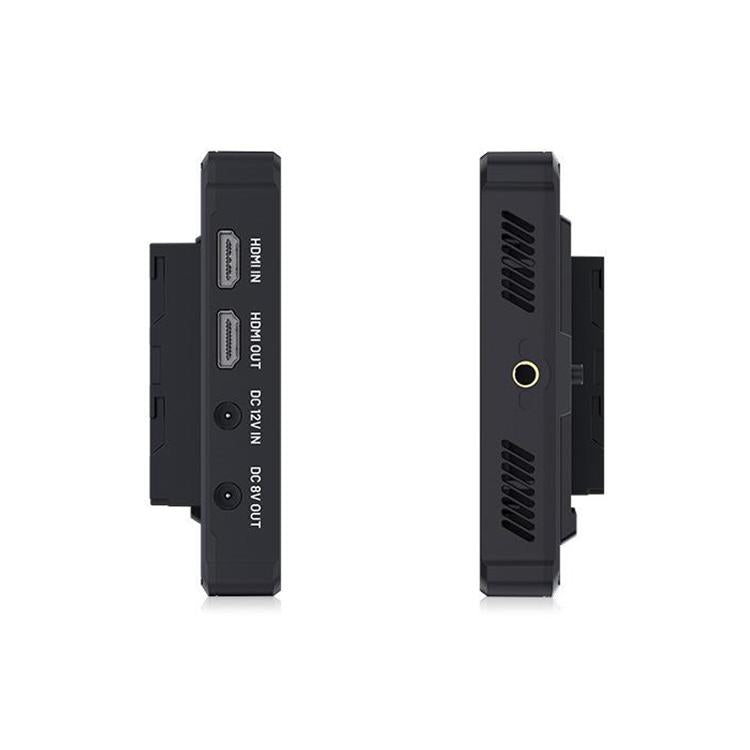

Input
1. 1 x HDMI: HDMI 2.0

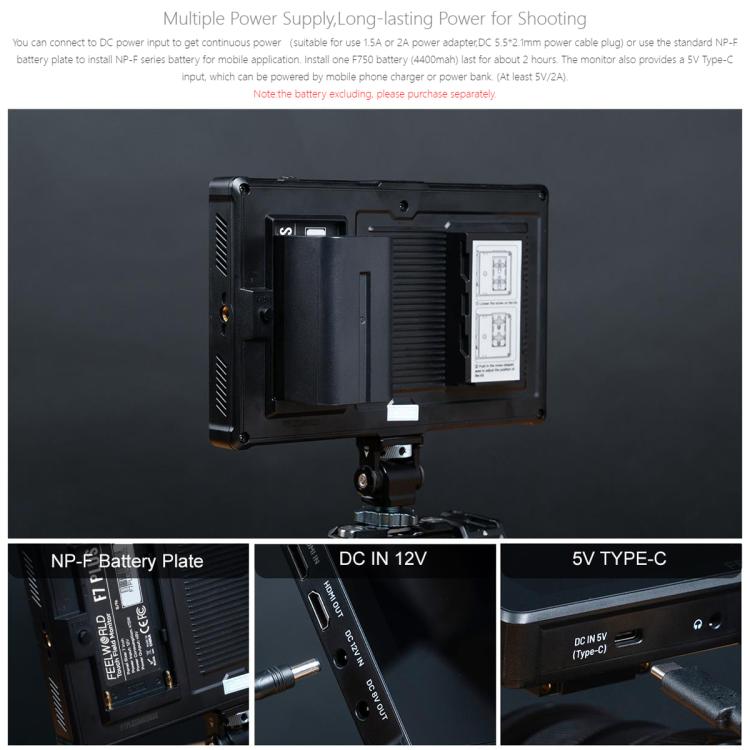

2. 1 x DC: DC IN 12V (suitbale for Barrel DC 5.5 x 21mm power plug)
3. 1 x USB: 5V Type-C (please use 5V/2A or more than 2A Type-C power supply)
4. 1 x SD: SD Card Slot (Firmware update/LUT file upload)

Output
1. 1 x HDMI: HDMI 2.0

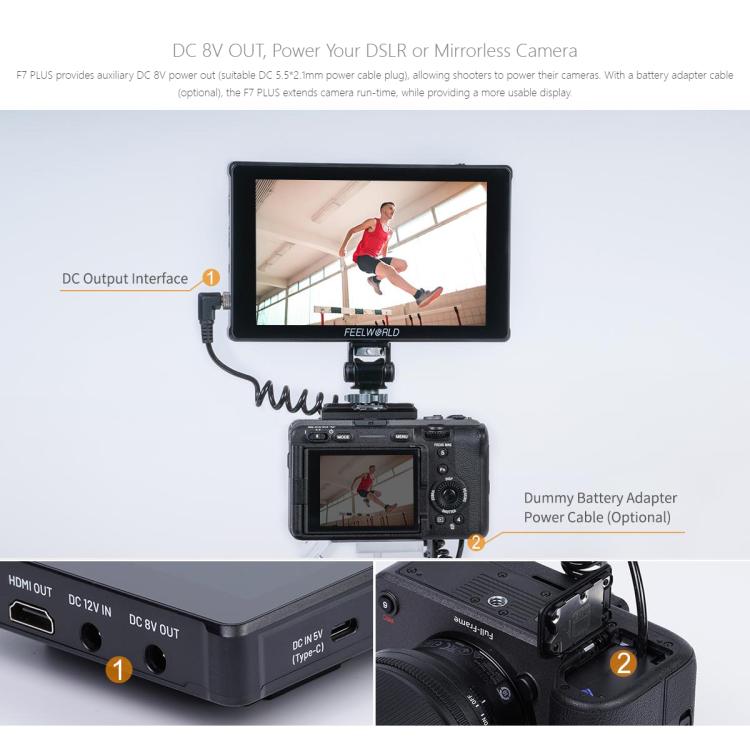

2. 1 x DC: DC OUT 8V (suitbale for Barrel DC 5.5 x 21mm power plug)

Audio
Audio: 3.5mm Stereo Headphone

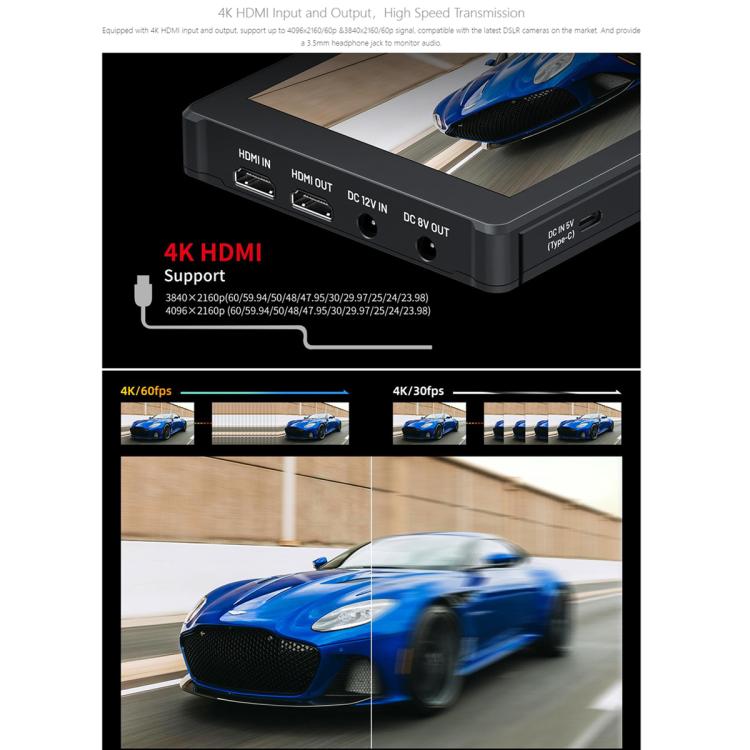

HDMI Input/ Output Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 3840 x 2160p (60/50/30/29.97/25/24/23.98)
6. 4096 x 2160p (60/50/30/29.97/25/24/23.98)

General:
1. Input Voltage: DC 7-24V
2. Power Consumption: Less than or equal to 15W
3. Working Temperature: -20 degree C~50 degree C
4. Storage Temperature: -30 degree C~60 degree C

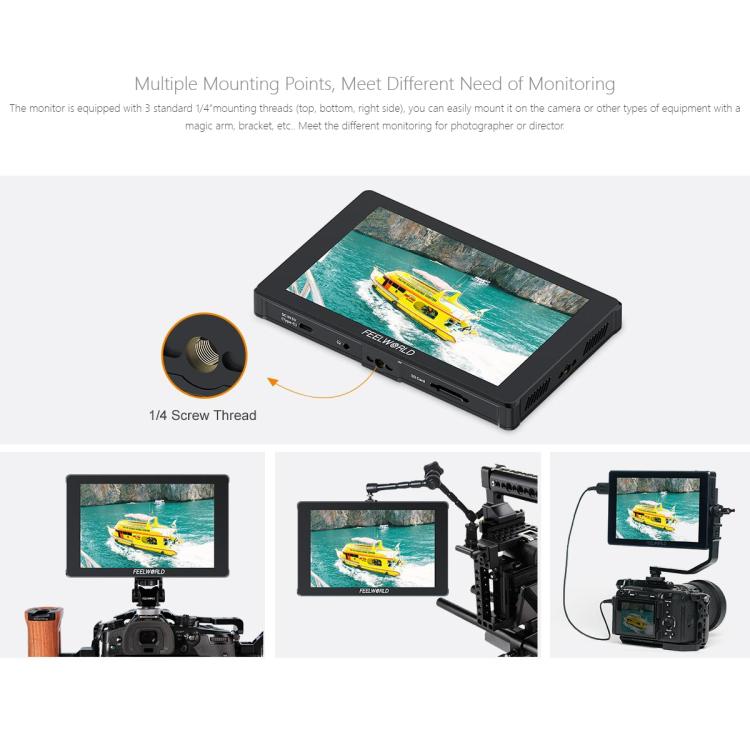

5. Install Way: 1/4 inch -20 Thread Socket (right, top, bottom)
6. Unit Size: 186x117x21(mm)
7. Unit Weight: 389g

Package List
1. Main unit monitor x 1
2. Micro HDMI cable x 1
3. HDMI cable x 1

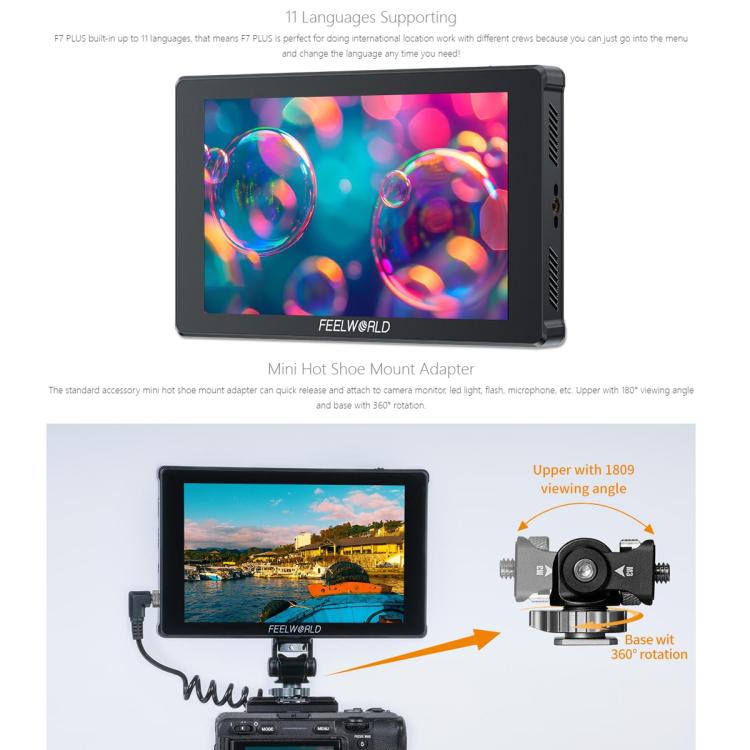

4. Snail gimbal + wrench x 1
5. Disassembly wrench x 1
6. Instruction manual x 1


Specification:
Package Weight
One Package Weight 0.96kgs / 2.11lb
One Package Size 24cm * 16cm * 8cm / 9.45inch * 6.3inch * 3.15inch
Qty per Carton 10
Carton Weight 10.00kgs / 22.05lb
Carton Size 47cm * 24cm * 40cm / 18.5inch * 9.45inch * 15.75inch
Loading Container 20GP: 591 cartons * 10 pcs = 5910 pcs
40HQ: 1372 cartons * 10 pcs = 13720 pcs
