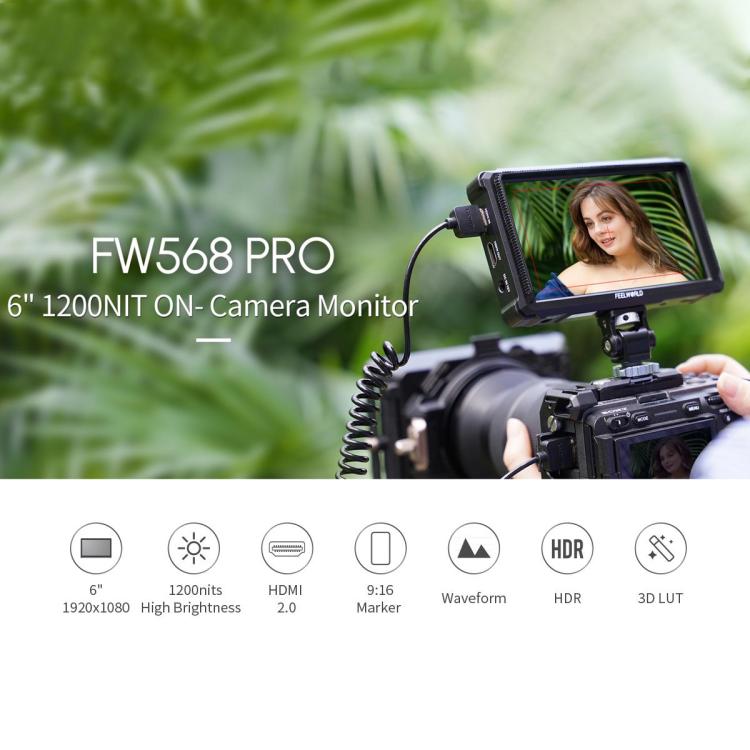

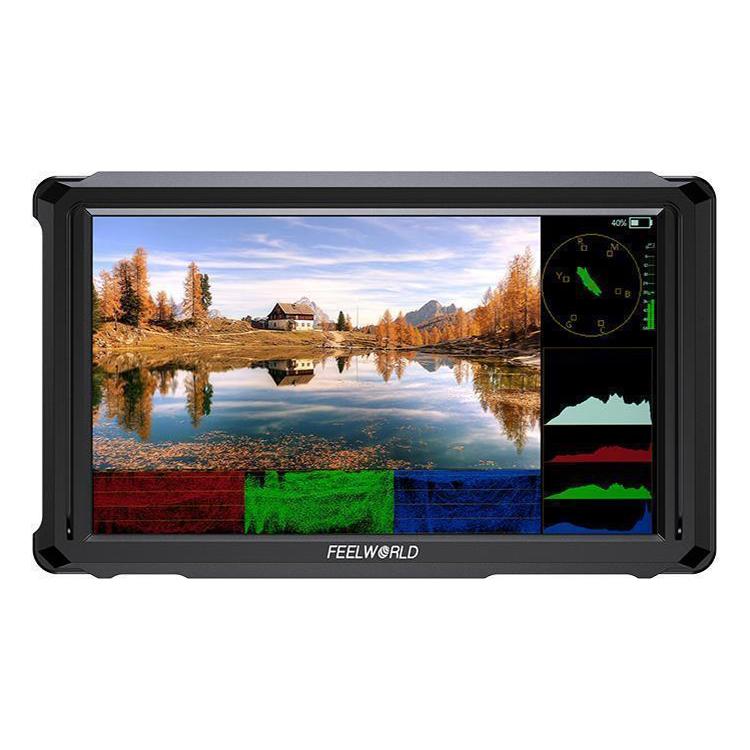

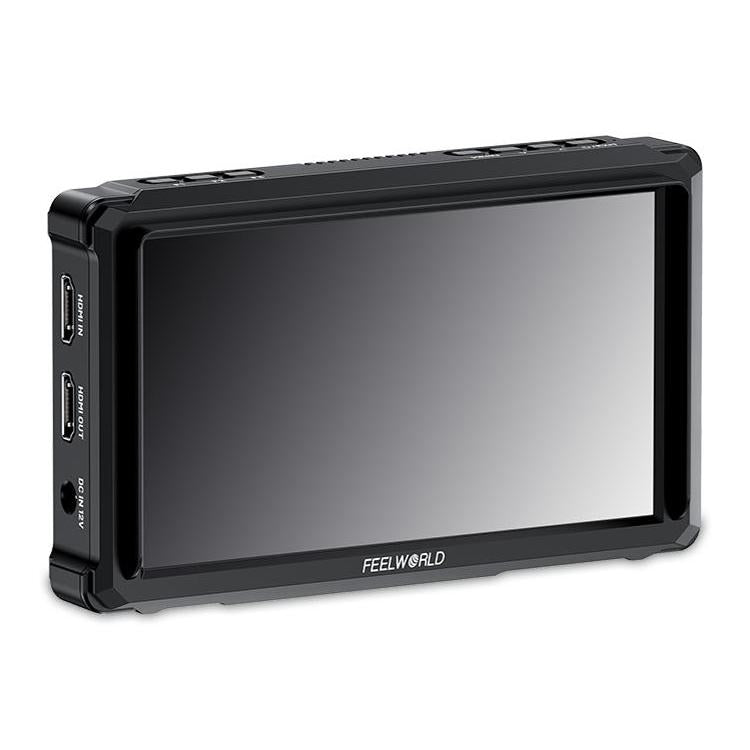

FEELWORLD FW568 Pro 6-inch 1200nit High Bright Camera DSLR Monitor 4K HDMI 60Hz IPS Screen(Black)

Display Spec.
1. Model: FW568 PRO

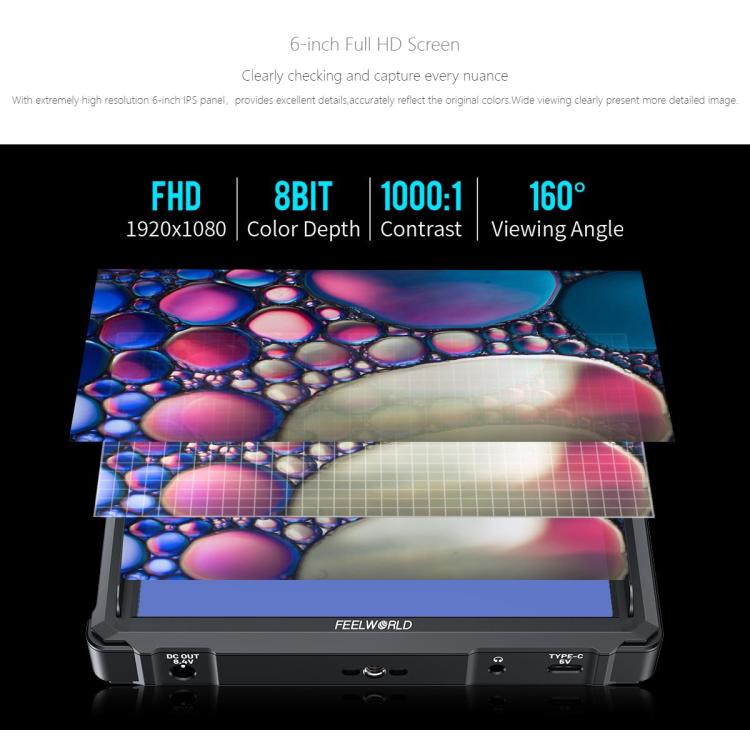

2. Screen Size: 6 inch IPS
3. Resolution: 1920 x 1080 pixels
4. Pixel Pitch: 0.069 (H) x 0.069 (V) mm
5. Aspect Ratio: 16:9

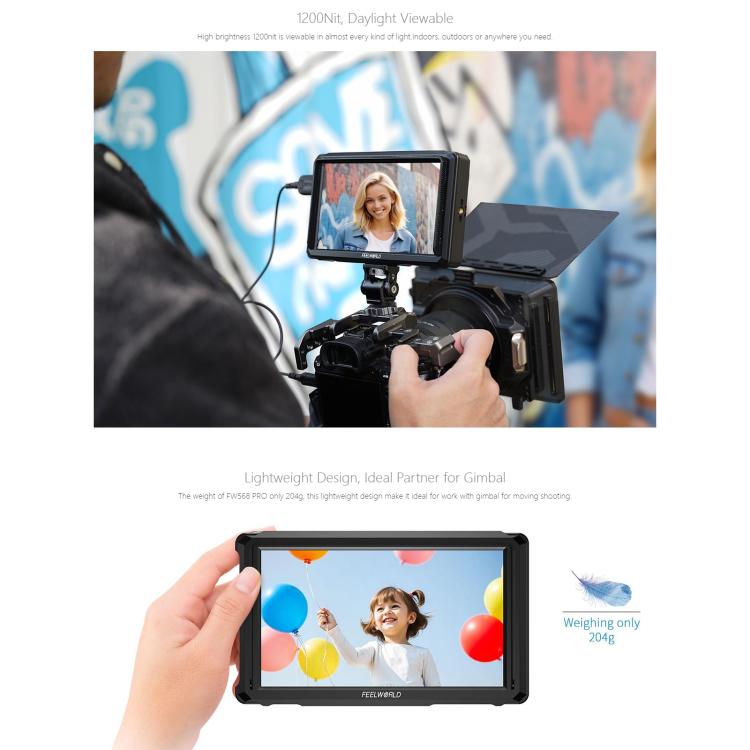

6. Brightness: 1200cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

Input
1. 1 x HDMI-compatible: HDMI-compatible 2.0

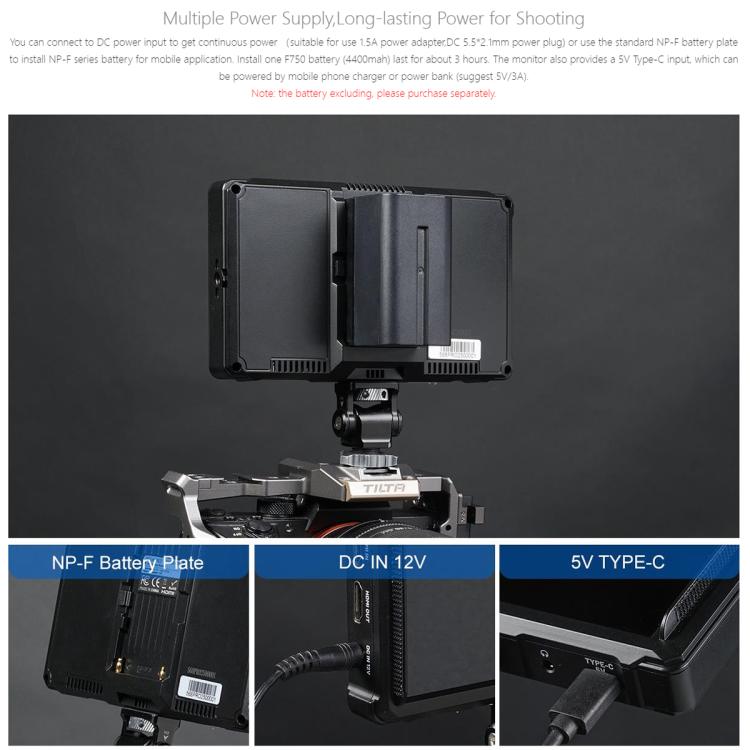

2. 1 x Type-C: 1. 5V Type-C (Note: please use more than 5V/2A Type-C power supply); 2. Firmware update/LUT file import

Output
1. 1 x HDMI: HDMI 2.0

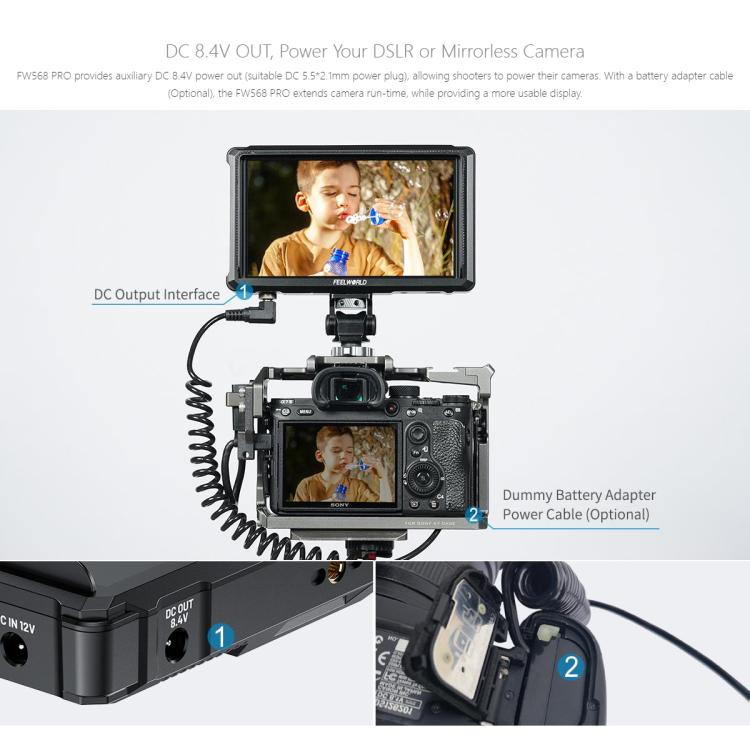

2. 1 x DC Output: DC Output

Audio
Audio: Stereo Headphone

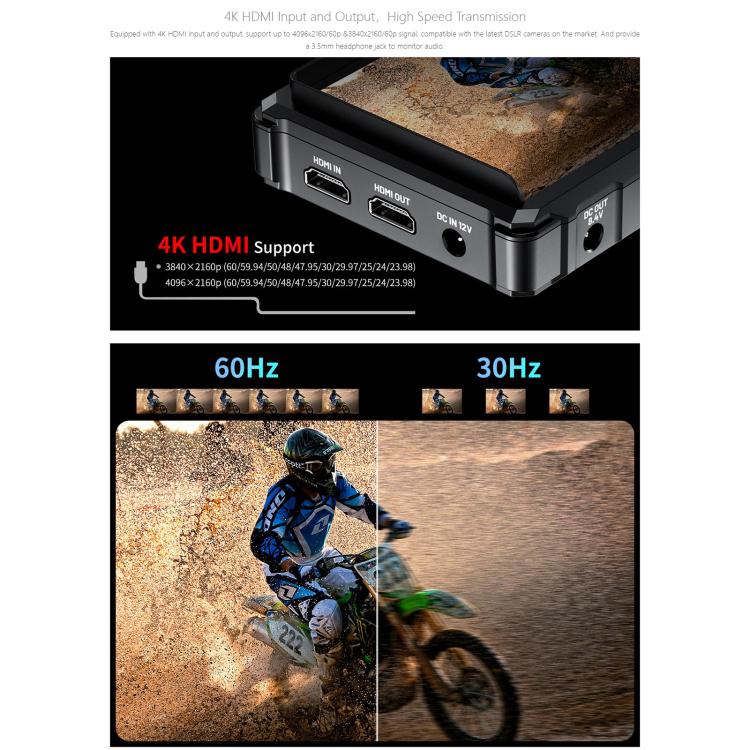

HDMI-compatible Input/ Output Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 3840 x 2160p (60/50/30/29.97/25/24/23.98)
6. 4096 x 2160p (60/50/30/29.97/25/24/23.98)

General
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 11W
3. Power Connector: DC (suitable for 5.5x2.1mm power plug cable)
4. Working Temperature: -0 degree C~50 degree C
5. Storage Temperature: -10 degree C~60 degree C

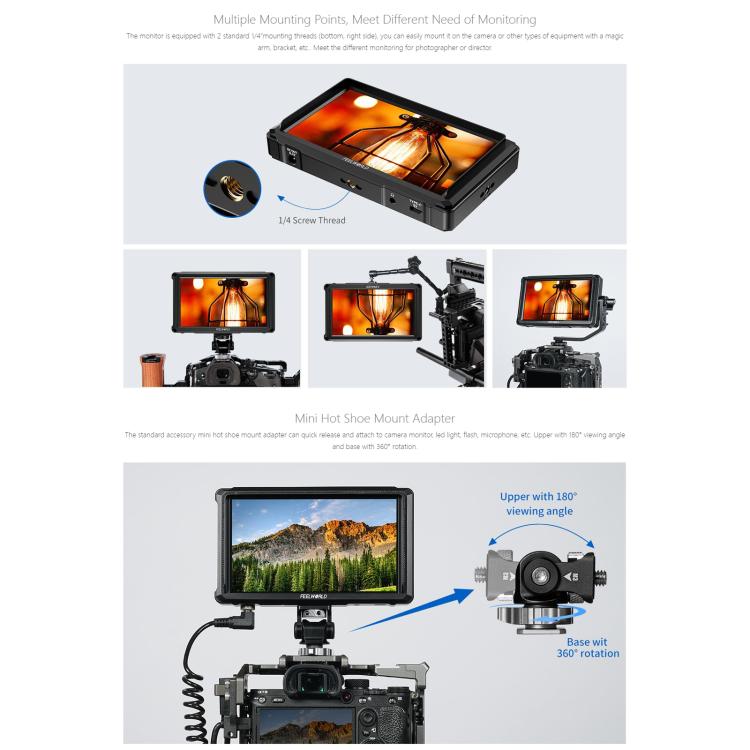

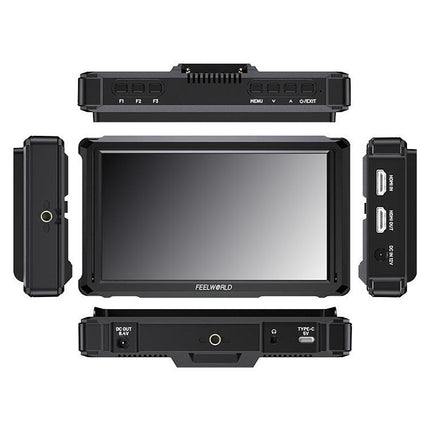

6. Install Way: 1/4 thread points (bottom, right side)
7. Unit Size: 161x96x33.3 (mm)
8. Unit Weight: 204g

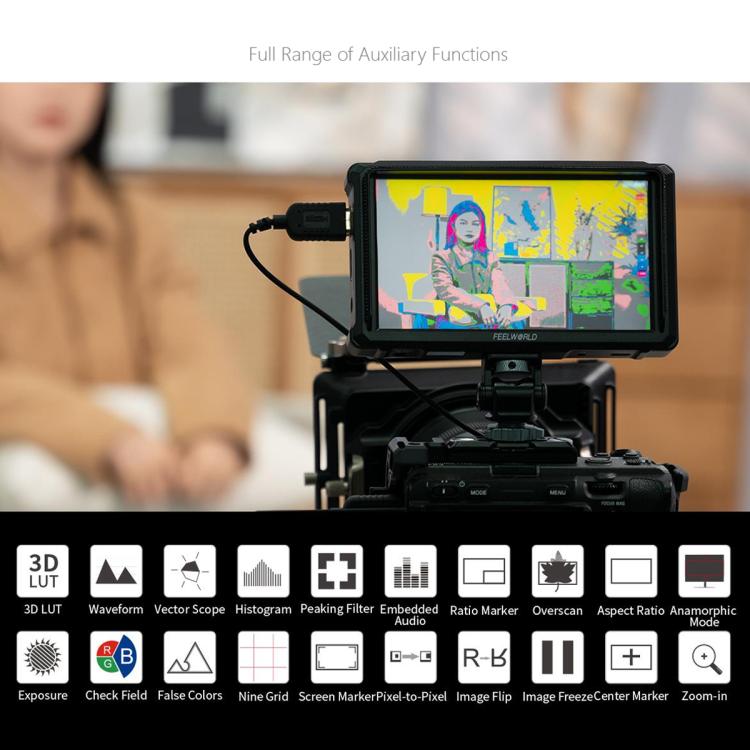

Advanced Features

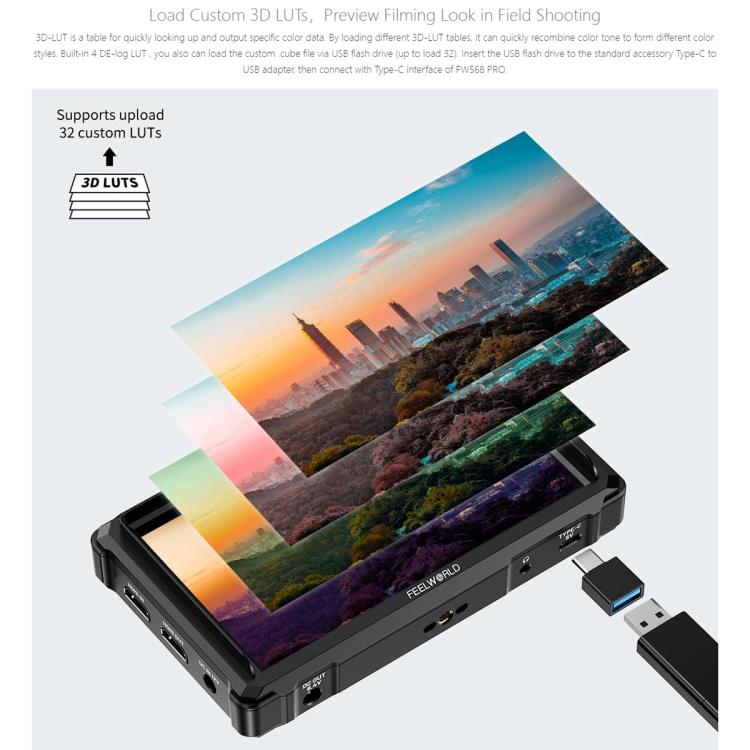

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
2. Waveform (RGB, YUV, Y)

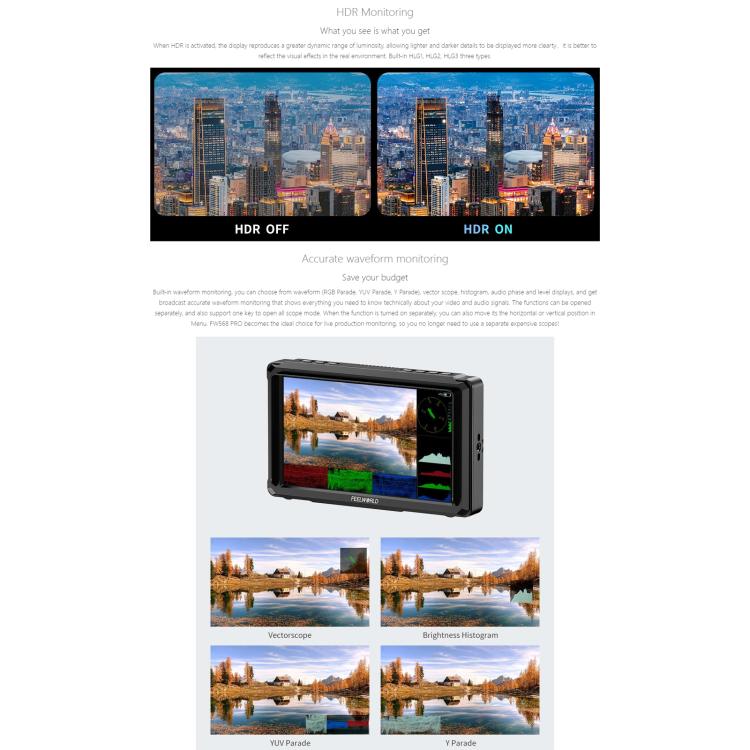

3. HDR
4. Vector
5. Histogram (RGB1,RGB2,Y )
6. Embedded Audio

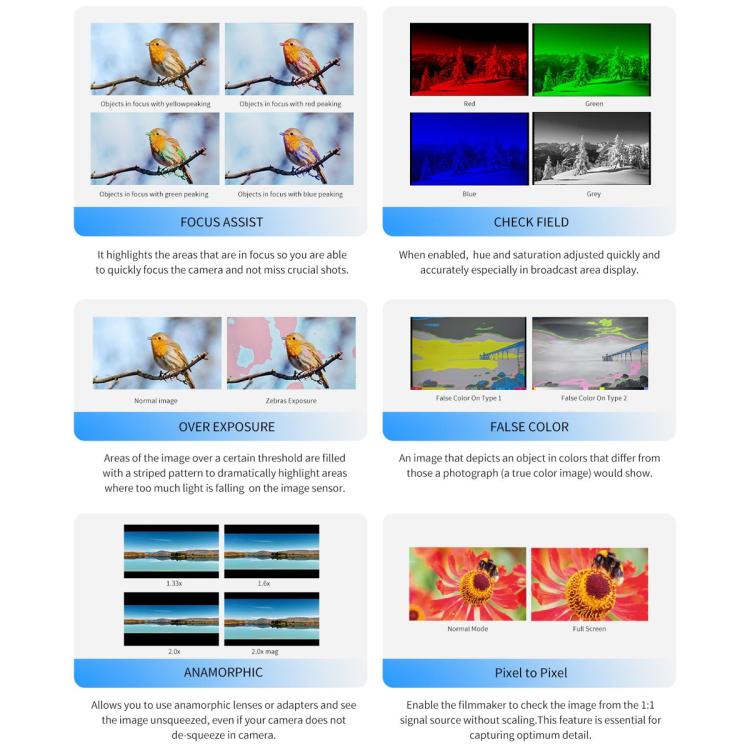

7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10RE~100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
14. Image Flip ( H Flip, V Flip, H_V Flip )
15. Image Freeze
16. Center Marker
17. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1,9:16)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)

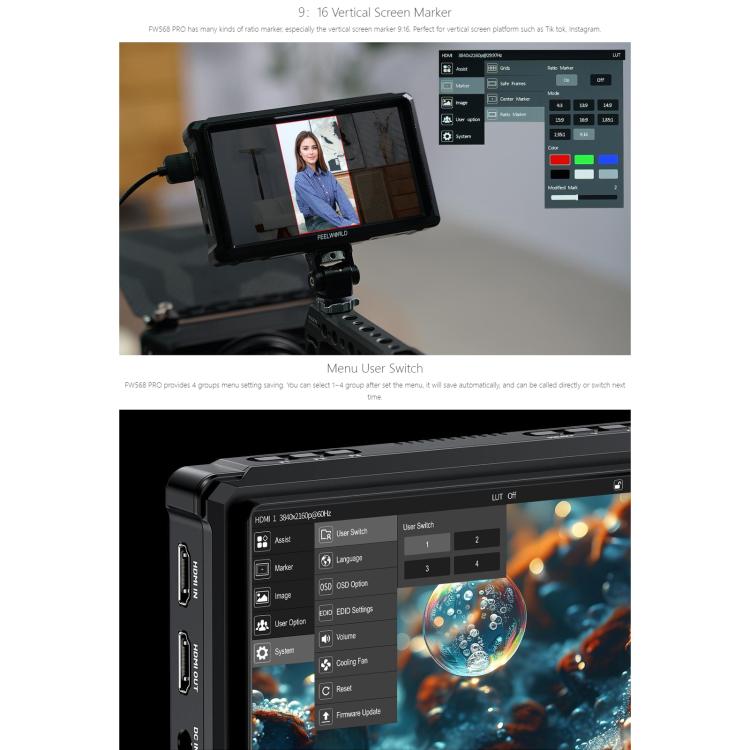

19. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
20. Marker Color (Red, Green, Blue, Black, White, Gray)

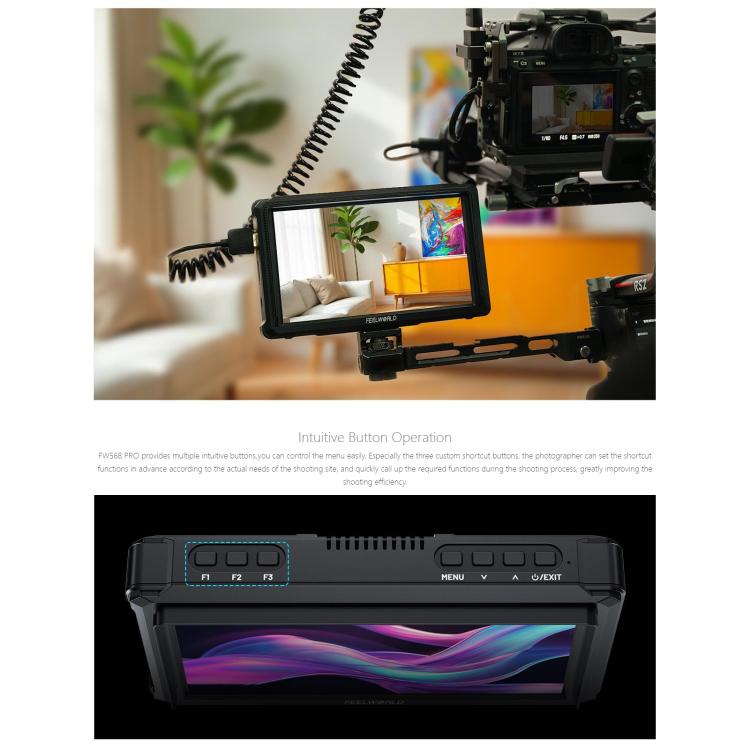

21. User Switch (1~4)
22. Zoom Mode (2X, 4X, 9X, 16X, User)
23. Pixel to Pixel
24. Display Adjustment (can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100)
25. Display Range(Auto, Limit, Full)
26. EDID Setting (1.4, 2.0)
27. Power Setting (Auto, Manual)
28. Color Temp. ( 5600K, 6500K, 9300K, User.Under the "user", the red, green, and blue values of the image can be adjusted 0~255)

Packaging List:
1. Monitor x 1
2. HDMI-compatible Cable x 1
3. Micro HDMI-compatible Cable x 1

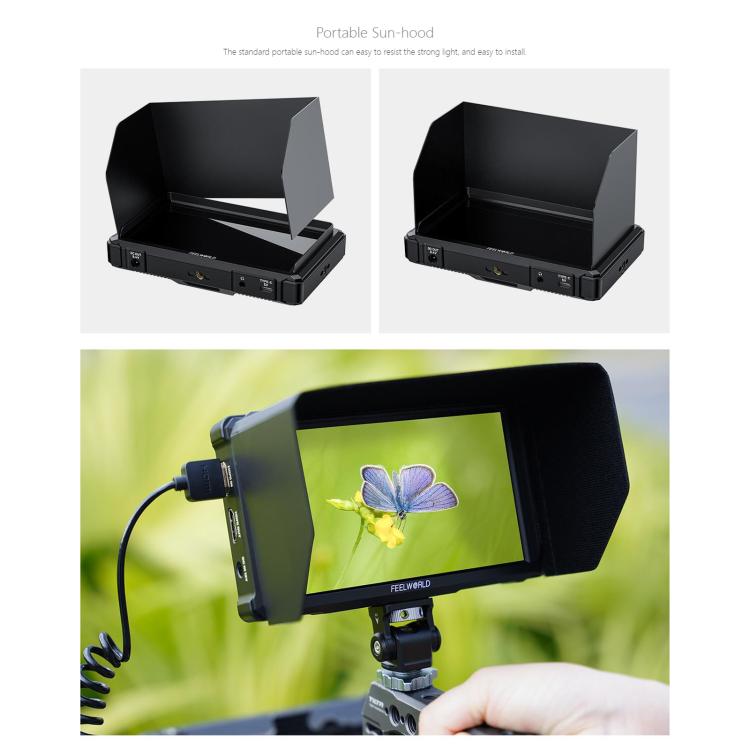

4. Sunshade x 1
5. Mini Hot Shoe Mount+Hex Wrench x 1
6. USB-A to USB-C Adapter x 1
7. Cable Management Tie x 1
8. Manual x 1


Specification:
Package Weight
One Package Weight 0.74kgs / 1.64lb
One Package Size 24cm * 15cm * 10cm / 9.45inch * 5.91inch * 3.94inch
Qty per Carton 10
Carton Weight 8.50kgs / 18.74lb
Carton Size 47cm * 24cm * 34cm / 18.5inch * 9.45inch * 13.39inch
Loading Container 20GP: 695 cartons * 10 pcs = 6950 pcs
40HQ: 1614 cartons * 10 pcs = 16140 pcs
