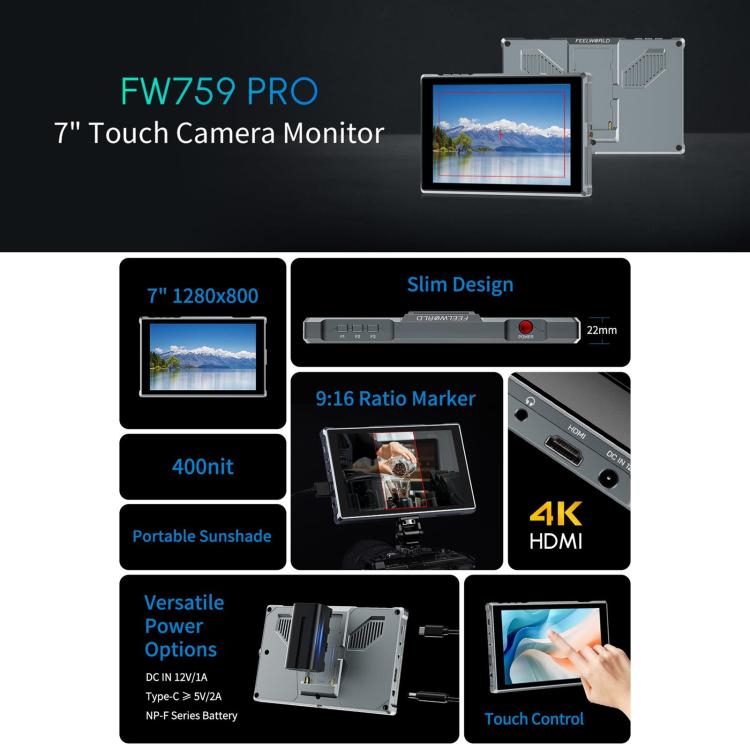

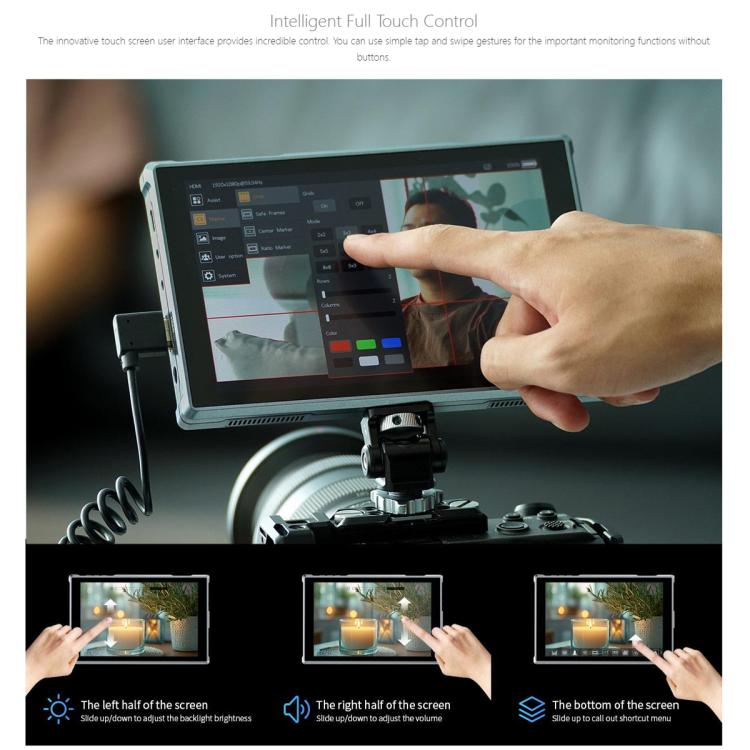

FEELWORLD FW759 Pro 7-inch Touch Screen Camera Field Video Monitor 4K HDMI-compatible 1280 x 800 IPS Screen(Black)

Display Spec.
1. Model: FW759 PRO
2. Screen Size: 7 inch IPS
3. Resolution: 1280 x 800 pixels
4. Pixel Pitch: 39.25(H) x RGB x 117.75(V) mm
5. Color Depth: 8bit
6. Aspect Ratio: 16:10
7. Brightness: 400cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED
10. Viewing Angle: 89 degree /89 degree (L/R) / 89 degree /89 degree (U/D)

Signal Input

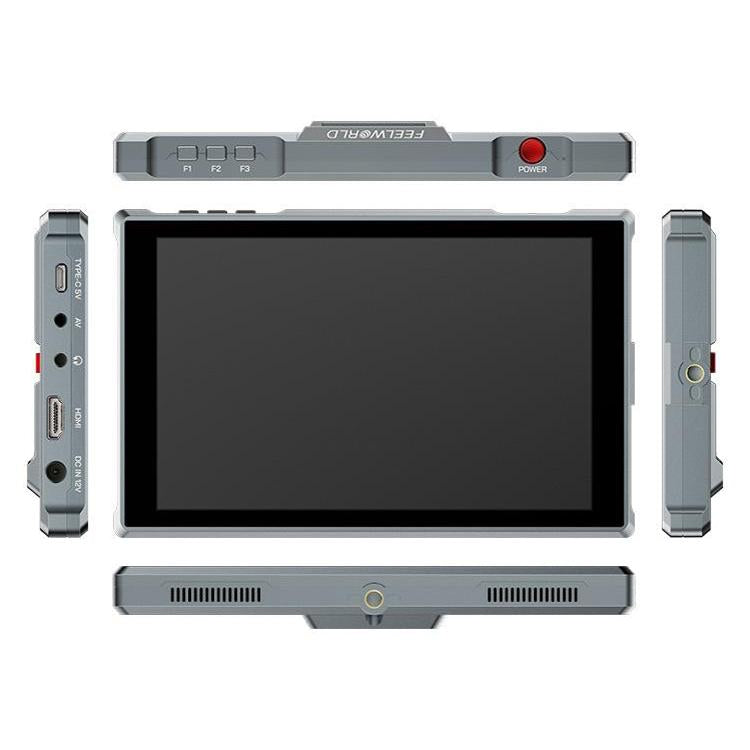

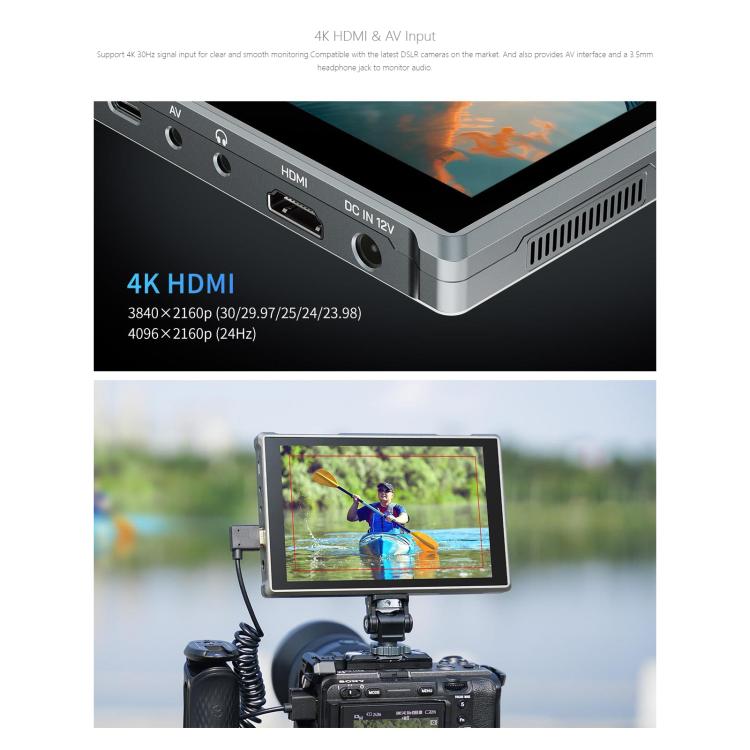

1. 1 x HDMI-compatible: HDMI-compatible 1.4
2. 1 x AV: AV

Audio
Audio: 3.5mm Stereo Headphone

HDMI-compatible Input and Output Support Format
1. 480i /480p /576i /576p
2. 720p (60/59.94/50/30/29.97/25/24/23.98)
3. 1080i (60/59.94/50)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
5. 3840 x 2160p (60/50/30/29.97/25/24/23.98)
6. 4096 x 2160p (24Hz)

General

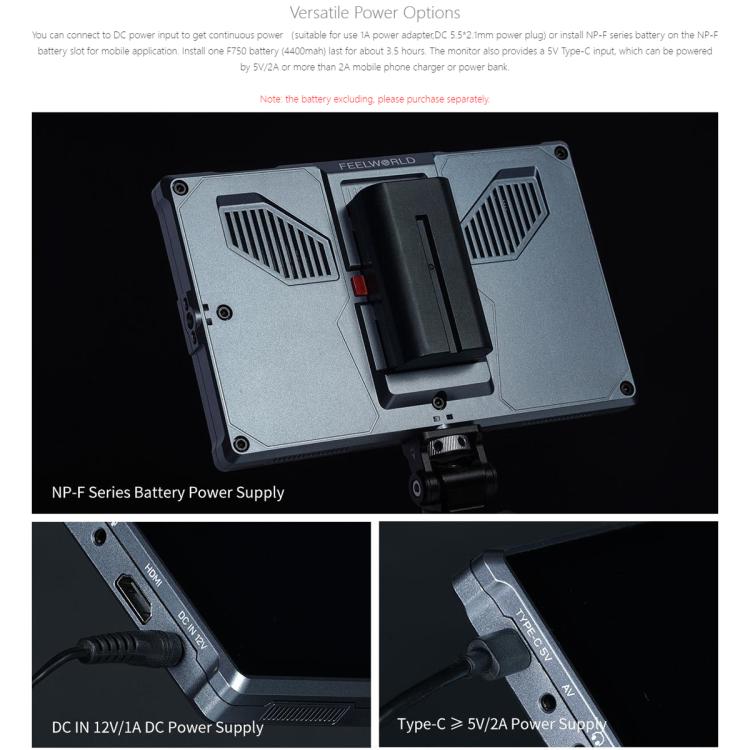

1. Power Input: DC IN 12V, Barrel (5.5mm outer, 2.1mm inner); Type-C 5V(please use 5V/2A or more than 2A Type-C power supply)
2. Power Consumption: Less than or equal to 9W
3. Working Temperature: -20 degree C~50 degree C
4. Storage Temperature: -30 degree C~60 degree C

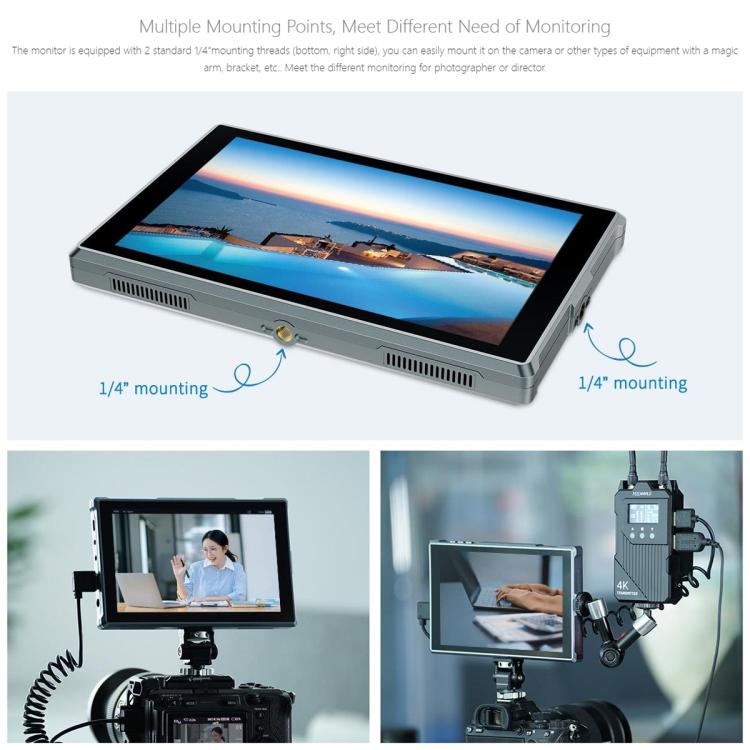

5. Install Way: 1/4 Thread Point (right side, bottom)

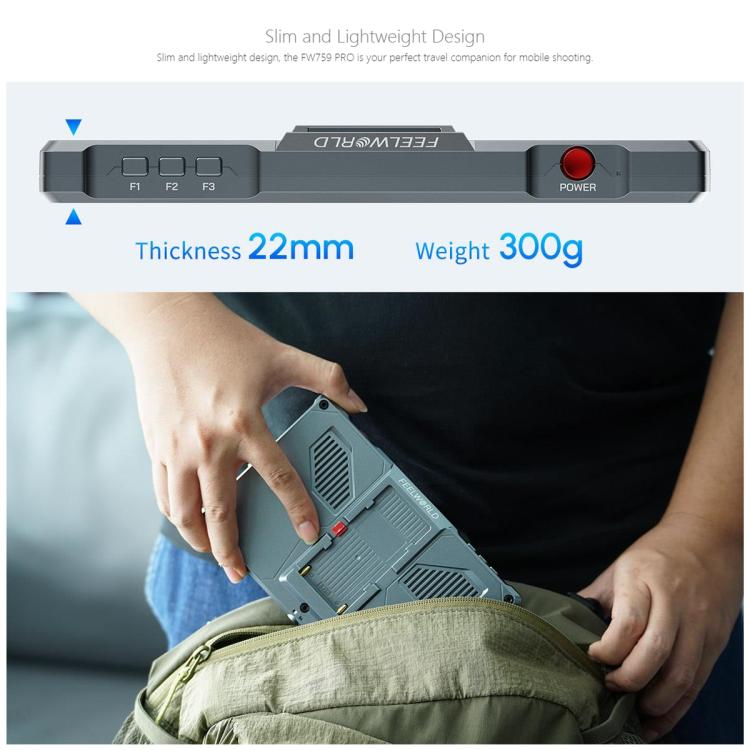

6. Unit Size: 182Lx115Hx22D (mm)
7. Unit Weight: 300g

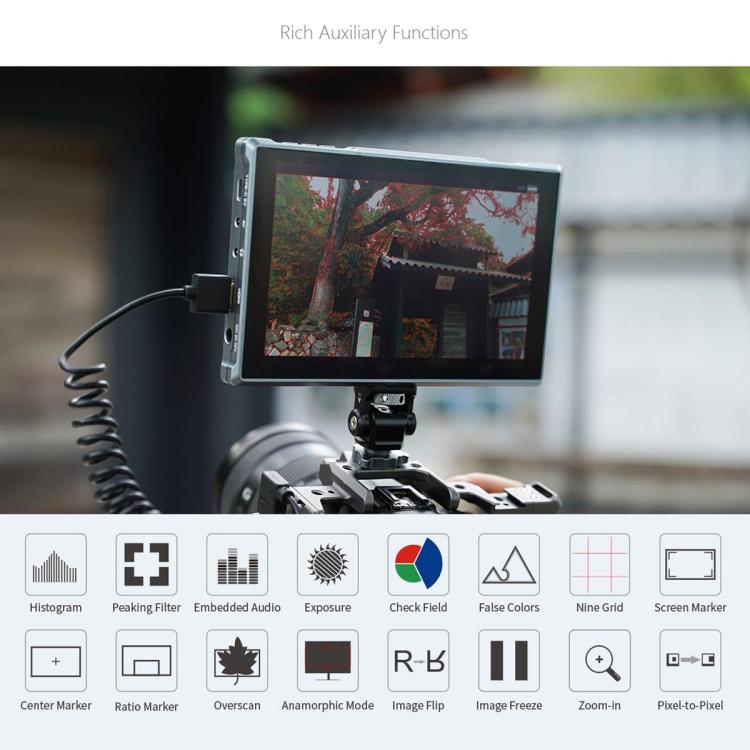

Advanced Features
1. Histogram
2. Embedded Audio

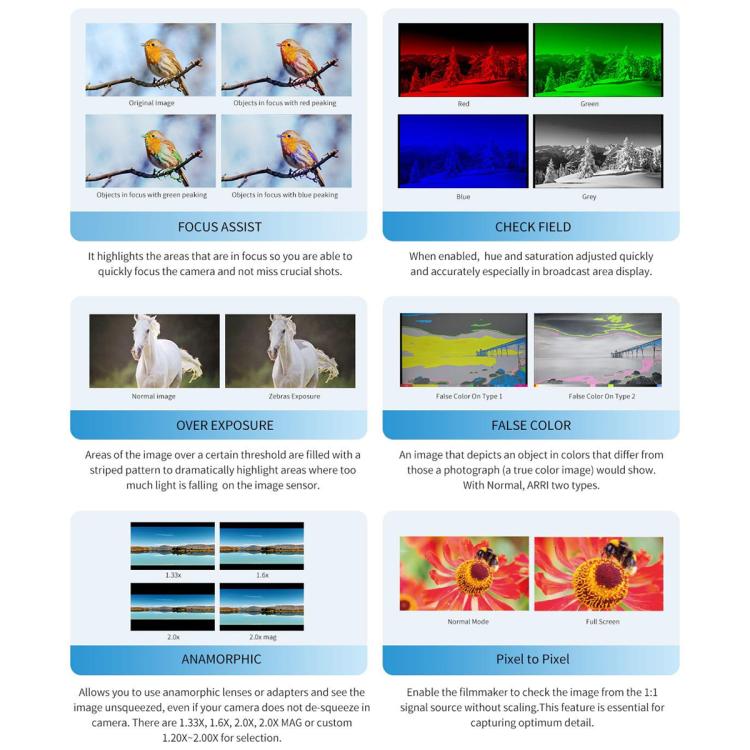

3. Focus Assist(Red, Green, Blue three focus colors optional)
4. False Colors
5. Zebra Pattern (10IRE~100IRE adjustable)
6. Check Field (Red, Green, Blue, Mono)
7. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9)
8. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)
9. Center Marker

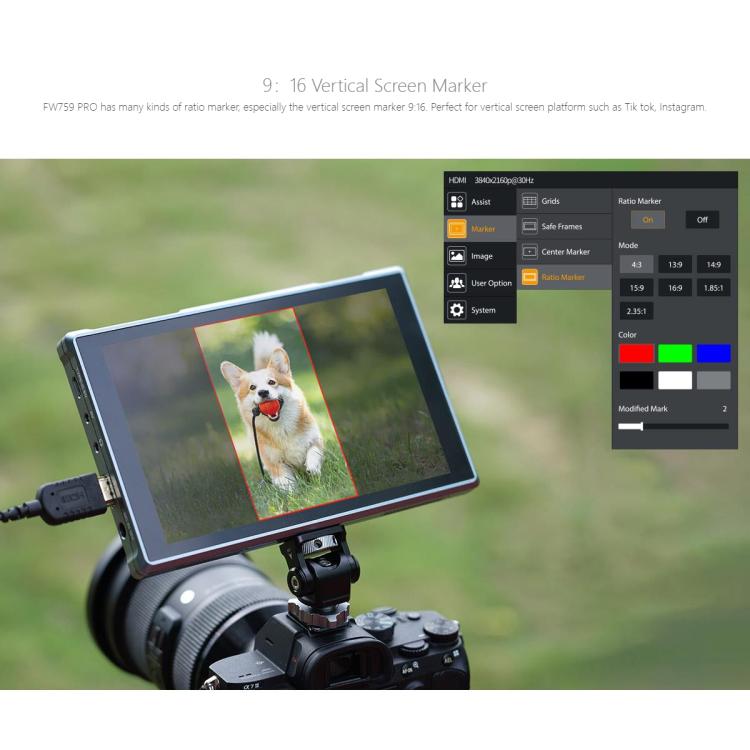

10. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
11. Marker Color (Red, Green, Blue, Black, White, Gray)
12. Scan Mode (Under Scan, Over Scan)
13. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
14. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
15. Image Flip (H Flip, V Flip, H_V Flip )
16. Image Freeze
17. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%)
18. Pixel to Pixel
19. Display Range( Auto, Limit, Full)
20. Display Adjustment (backlight,Brightness, Contrast, Saturation, Tint)

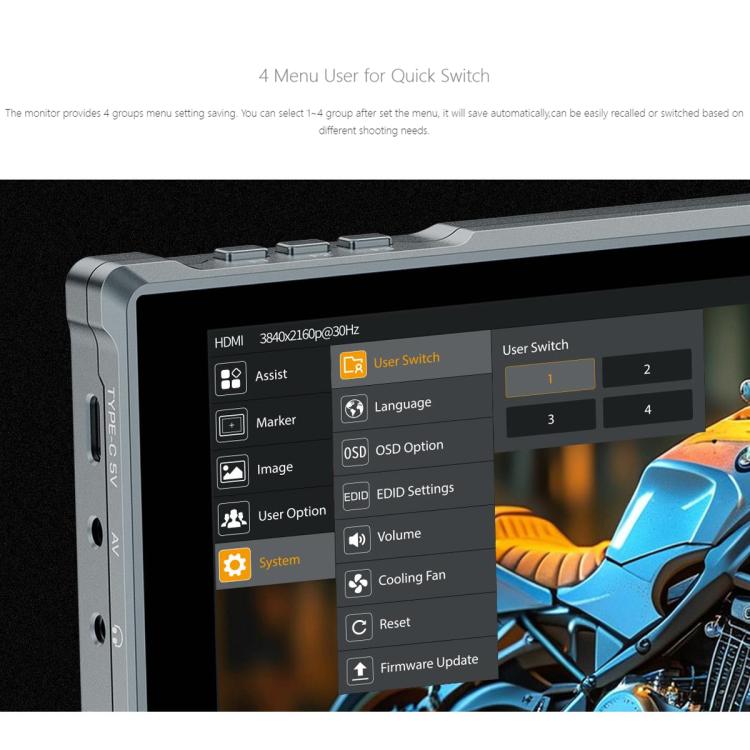

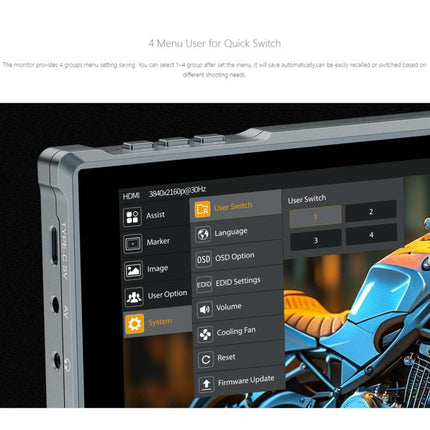

21. User Switch (1~4)
22. OSD Time(Off, 15Sec, 30Sec, 45Sec)
23. OSD Transparency (Off, 25%, 50%, 75%)

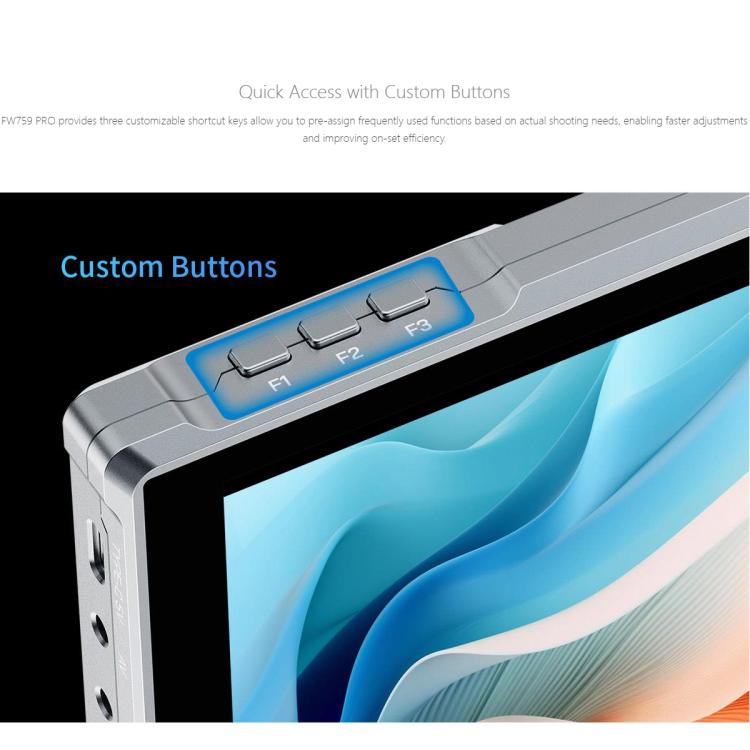

24. Shortcut Key set
25. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)

Packaging List:
1. Monitor x 1
2. HDMI-compatible Cable x 1
3. Micro HDMI-compatible Cable x 1

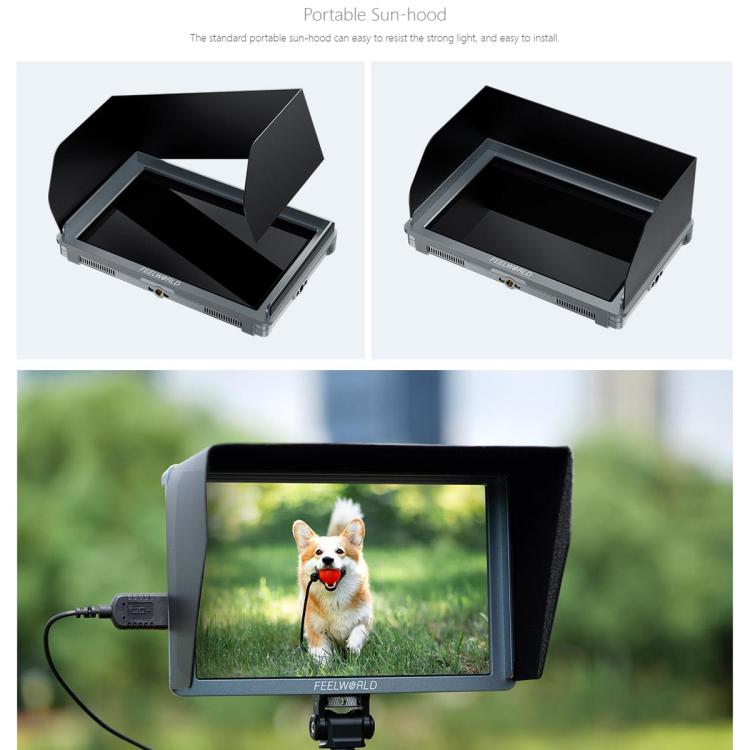

4. Sunshade + Frame x 1

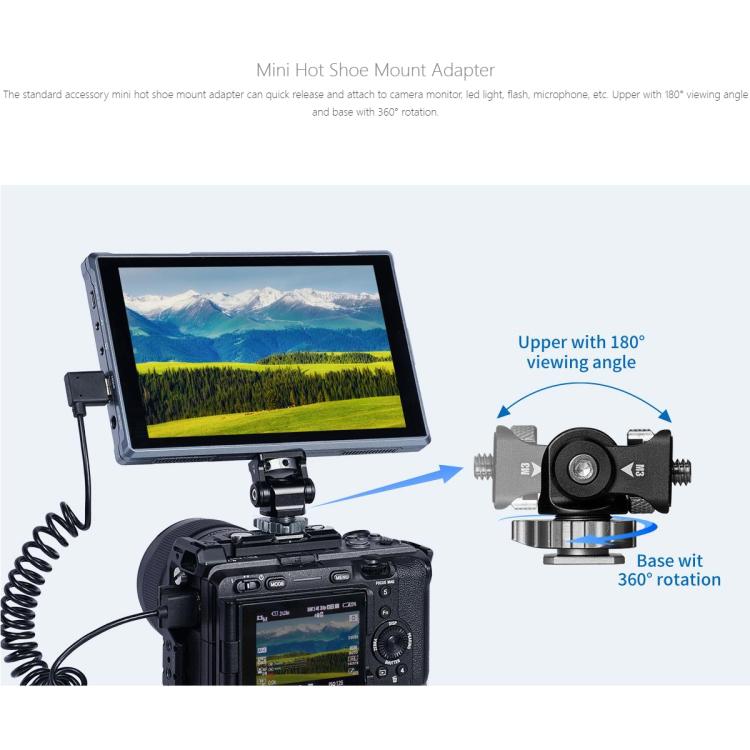

5. Mini Hot Shoe Mount+Hex Wrench x 1
6. USB-A to USB-C Adapter x 1
7. Cable Management Tie x 1
8. Manual x 1


Specification:
Package Weight
One Package Weight 0.85kgs / 1.88lb
One Package Size 25cm * 16cm * 9cm / 9.84inch * 6.3inch * 3.54inch
Qty per Carton 10
Carton Weight 9.50kgs / 20.94lb
Carton Size 45cm * 24cm * 40cm / 17.72inch * 9.45inch * 15.75inch
Loading Container 20GP: 617 cartons * 10 pcs = 6170 pcs
40HQ: 1432 cartons * 10 pcs = 14320 pcs
