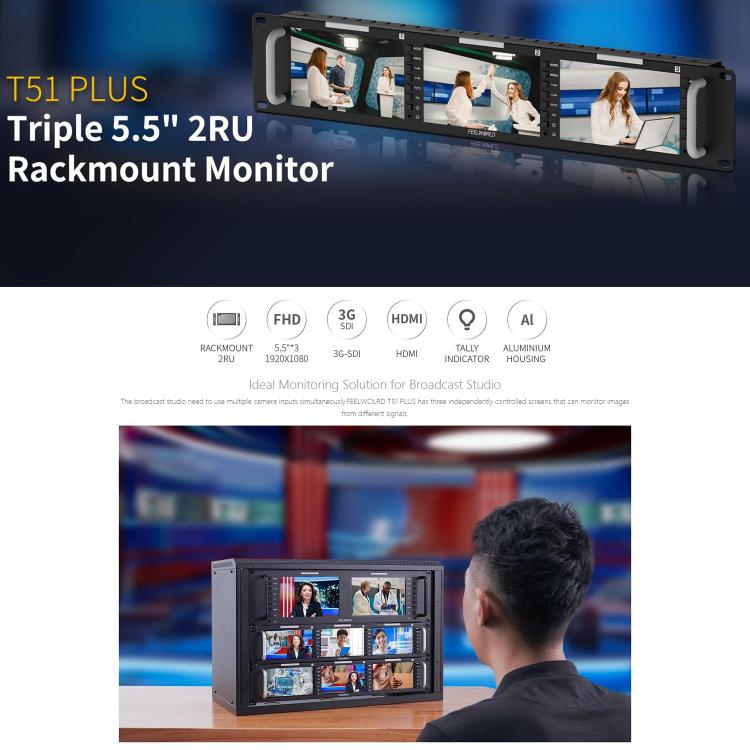

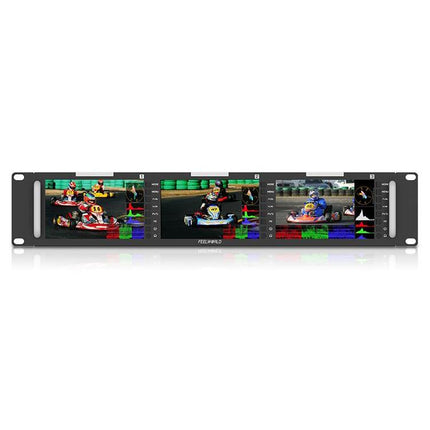

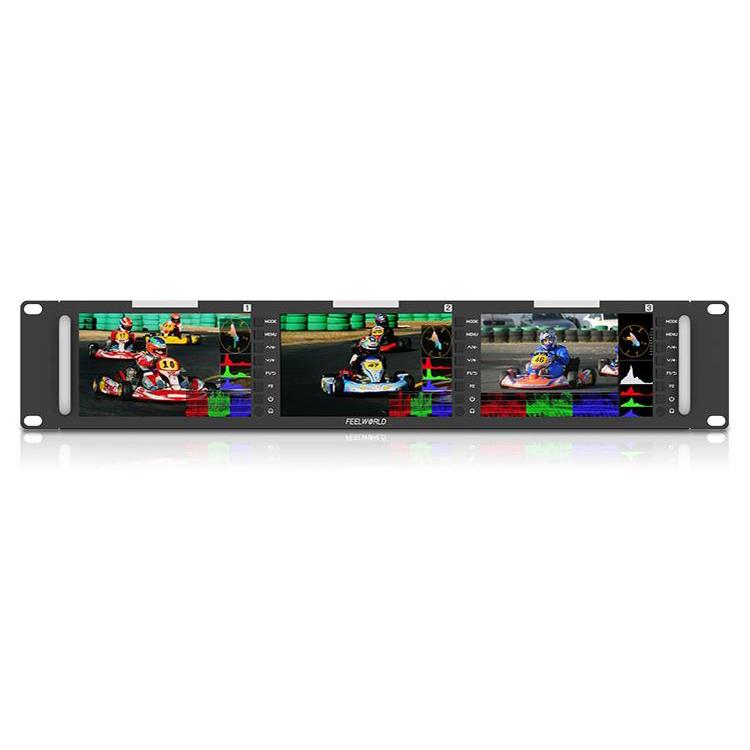

FEELWORLD T51 PLUS Triple 5.5 inch 2RU Rackmount Monitor Full HD 3G-SDI 4KHDMI AV Monitor (EU Plug)

Features
1. FHD1920x1080 IPS, view details with confidence

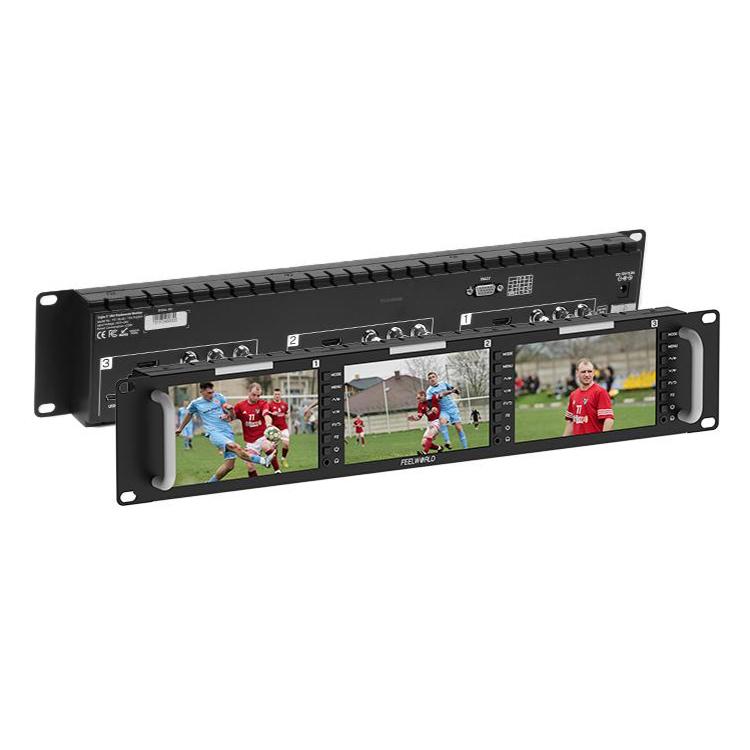

2. Triple 2RU rackmount design, compact thin and lightweight design, which make it suitable for installing where the space is limited and also could be installed in the standard 19-inch rack.

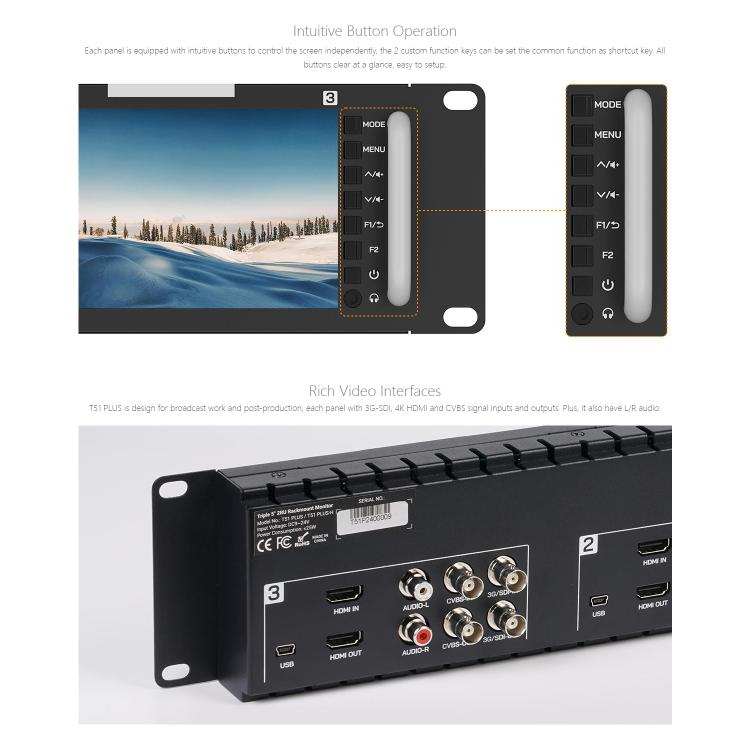

3. Intuitive button operation, easy to setup.

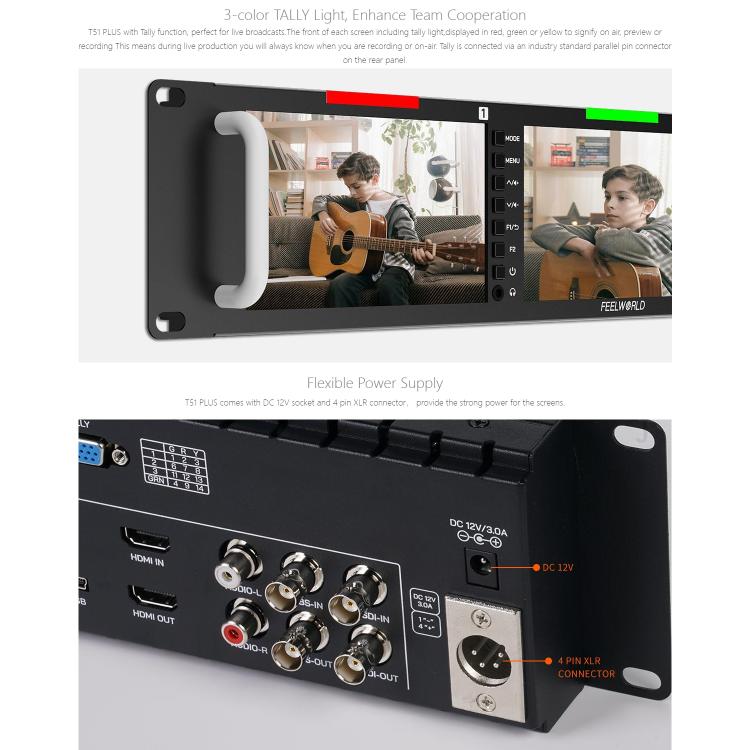

4. Three-color Tally indicator, enhance team cooperation
5. 3G-SDI, HDMI, Video, Audio(L/R) and 3G-SDI, HDMI, Video loop-through output
6. 3.5mm headphone jack output

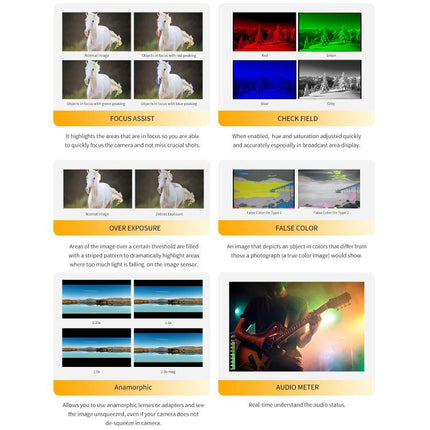

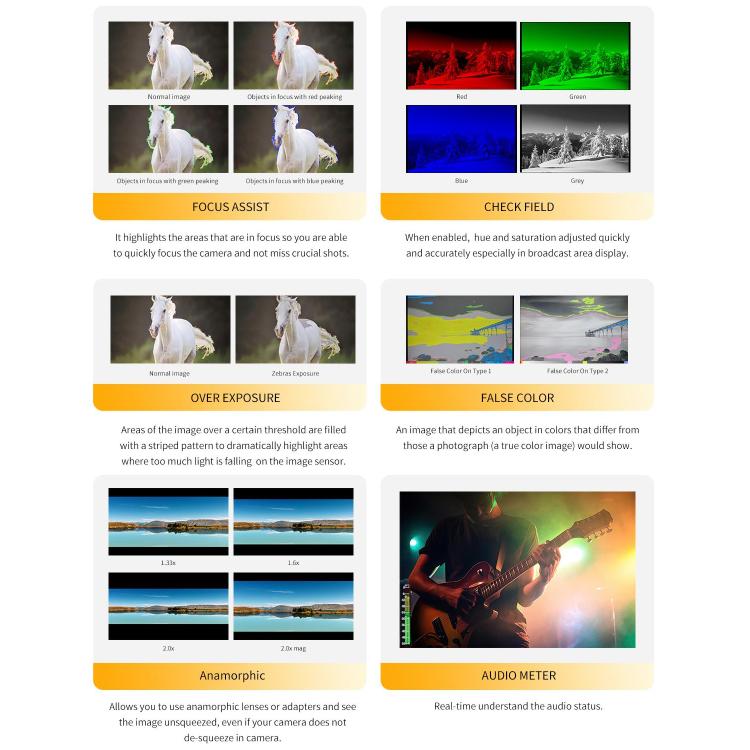

Special Features:

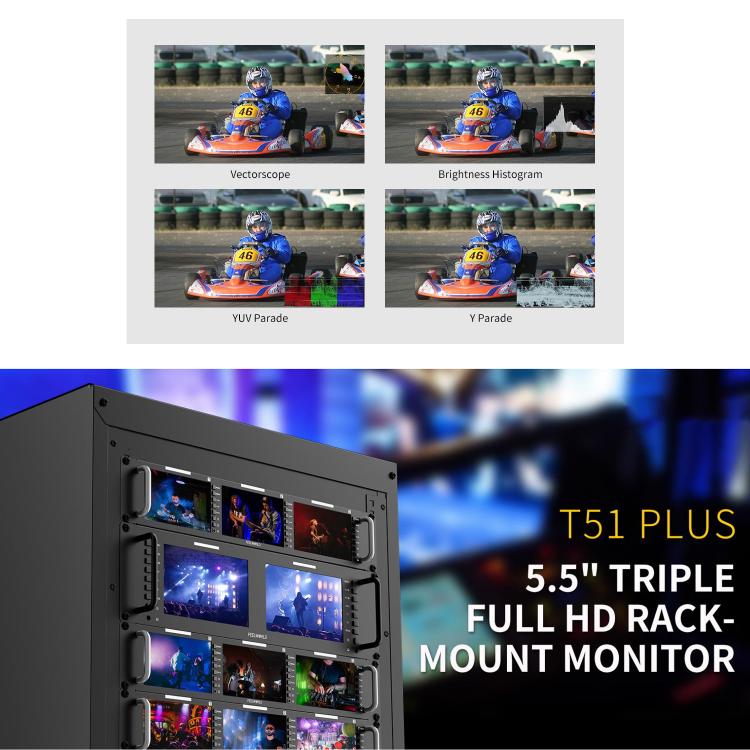

1. Wavefrom (RGB, YUV, Y)
2. Vector scope
3. Histogram (RGB1, RGB2, Y)
4. Focus Assist(Red, Green, Blue), you can adjust the peaking level after turning on 1-10
5. Embedded Audio
6. Over Exposure (you can adjust the exposure level after turning on 10~100???
7. Check Field (Red, Green, Blue, Mono)
8. False Colors
9. Time Code (only under SDI signal with LTC, VITC modes)
10. Nine Grid
11. Safe Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
12. Center Marker
13. Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
14. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
15. Scan Mode (Under Scan, Over Scan)
16. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
17. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User 1.20x~2.00x)
18. Image Flip (Horizontal, Vertical, Hor&Ver)
19. Image Freeze
20. Zoom Mode (2X, 4X, 9X, 16X, User 100%~200%)
21. Pixel to Pixel

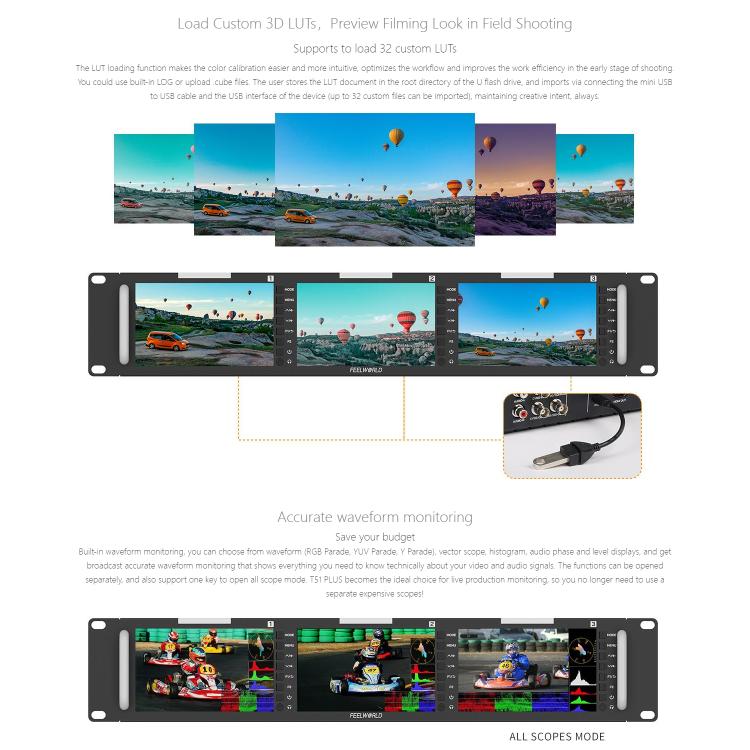

22. 3D-LUT (built-in SLOG2, SLOG3, LOGC, VLOG; can be upload 32 custom LUT)
23. Color Temp. (5600K, 6500K, 9300K, User)

Specifications
Display Spec.
1. Model: T51 PLUS

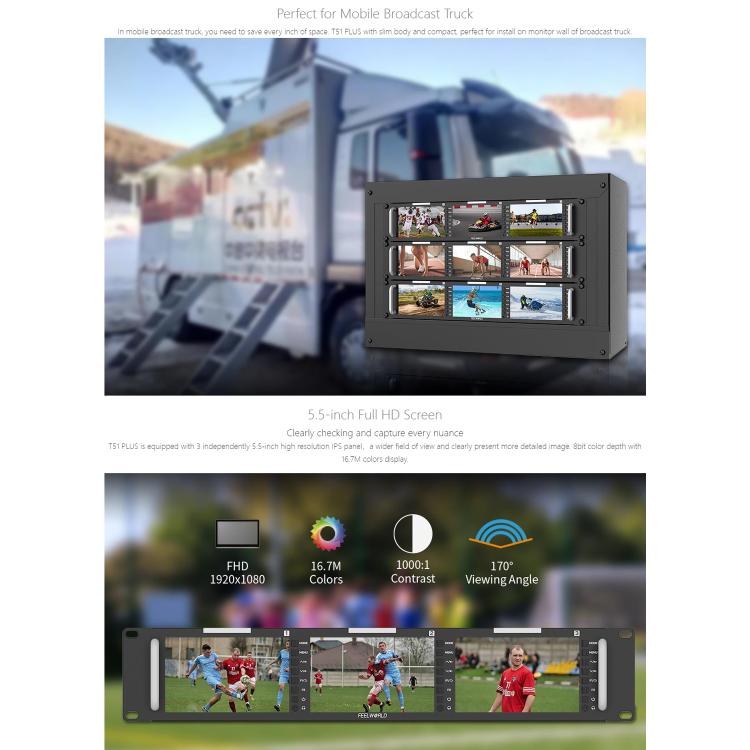

2. Screen Size: 5.5 inch x 3 IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.0639(H) x 0.0213(W) mm
5. Aspect Ratio: 16:10
6. Brightness: 400cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

Input (Each LCD)
1. 1 x BNC: 3G-SDI (optional)
2. 1 x HDMI: HDMI
3. 1 x BNC: Video
4. 2 x RCA: Audio(L/R)

Output (Each LCD)
1. 1 x BNC: 3G-SDI (optional)
2. 1 x HDMI: HDMI
3. 1 x BNC: Video

Audio (Each LCD)
Audio Out: Stereo Headphone x 1

SDI Support Format
1. 720p(60/59.94/50/30/29/25/24/23.98)
2. 1080i(60/59.94/50)
3. 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 3840 x 2160p (30/29.97/25/24/23.98 Hz)
6. 4096 x 2160p (24Hz)

General:
1. Input Voltage: DC 9-24V
2. Power Consumption: Less than or equal to 25W
3. Working Temperature: -20 degree C~55 degree C
4. Storage Temperature: -30 degree C~65 degree C
5. Install Way: Rack Mount

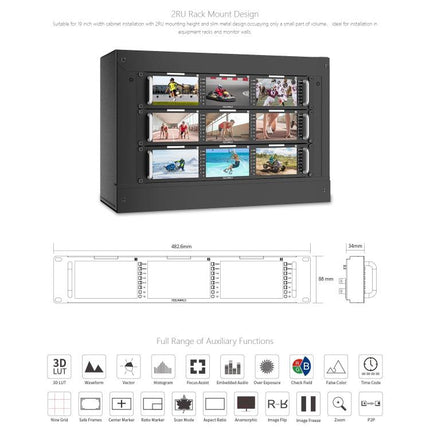

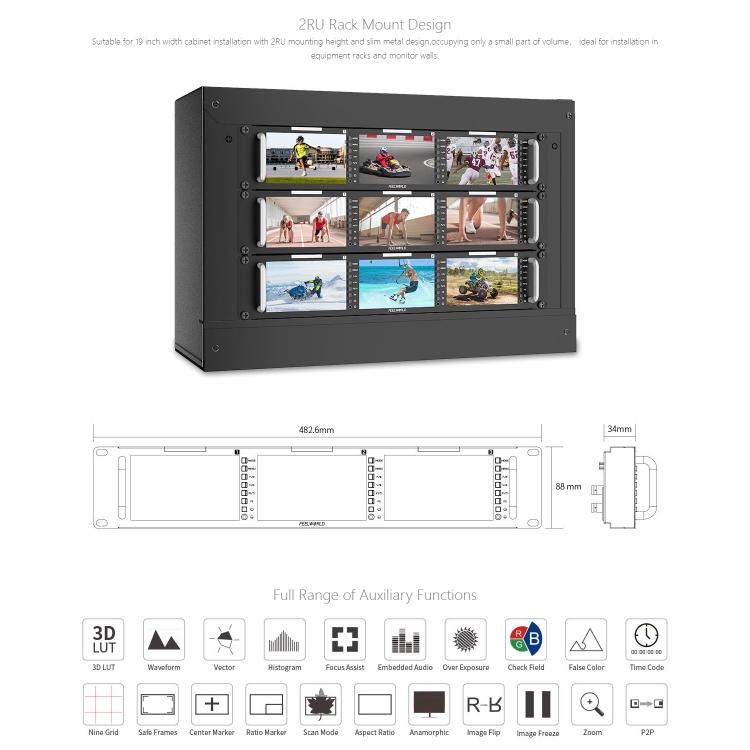

6. Unit Size: 482.6Lx88Hx34D mm
7. Unit Weight: 1418g

Package List
1. Monitor x 1
2. Tally adapter kit x 1
3. Mini USB to USB cable x 1
4. 3A power adapter x 1
5. Manual x 1


Specification:
Package Weight
One Package Weight 2.96kgs / 6.53lb
One Package Size 50cm * 16cm * 8cm / 19.69inch * 6.3inch * 3.15inch
Qty per Carton 5
Carton Weight 15.00kgs / 33.07lb
Carton Size 64cm * 56cm * 27cm / 25.2inch * 22.05inch * 10.63inch
Loading Container 20GP: 275 cartons * 5 pcs = 1375 pcs
40HQ: 639 cartons * 5 pcs = 3195 pcs

FEELWORLD T51 PLUS Triple 5.5 inch 2RU Rackmount Monitor Full HD 3G-SDI 4KHDMI AV Monitor (EU Plug)

Product form

SKU: DCA3122EU

  • In stock (Processing Time 1 - 72 hours)

€1.190,39

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    Features
    1. FHD1920x1080 IPS, view details with confidence
    2. Triple 2RU rackmount design, compact thin and lightweight design, which make it suitable for installing where the space is limited and also could be installed in the standard 19-inch rack.
    3. Intuitive button operation, easy to setup.
    4. Three-color Tally indicator, enhance team cooperation
    5. 3G-SDI, HDMI, Video, Audio(L/R) and 3G-SDI, HDMI, Video loop-through output
    6. 3.5mm headphone jack output

    Special Features:
    1. Wavefrom (RGB, YUV, Y)
    2. Vector scope
    3. Histogram (RGB1, RGB2, Y)
    4. Focus Assist(Red, Green, Blue), you can adjust the peaking level after turning on 1-10
    5. Embedded Audio
    6. Over Exposure (you can adjust the exposure level after turning on 10~100???
    7. Check Field (Red, Green, Blue, Mono)
    8. False Colors
    9. Time Code (only under SDI signal with LTC, VITC modes)
    10. Nine Grid
    11. Safe Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
    12. Center Marker
    13. Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
    14. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
    15. Scan Mode (Under Scan, Over Scan)
    16. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
    17. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User 1.20x~2.00x)
    18. Image Flip (Horizontal, Vertical, Hor&Ver)
    19. Image Freeze
    20. Zoom Mode (2X, 4X, 9X, 16X, User 100%~200%)
    21. Pixel to Pixel
    22. 3D-LUT (built-in SLOG2, SLOG3, LOGC, VLOG; can be upload 32 custom LUT)
    23. Color Temp. (5600K, 6500K, 9300K, User)

    Specifications
    Display Spec.
    1. Model: T51 PLUS
    2. Screen Size: 5.5 inch x 3 IPS
    3. Resolution: 1920 x 1200 pixels
    4. Pixel Pitch: 0.0639(H) x 0.0213(W) mm
    5. Aspect Ratio: 16:10
    6. Brightness: 400cd/m2
    7. Contrast Ratio: 1000:1
    8. Backlight: LED
    9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

    Input (Each LCD)
    1. 1 x BNC: 3G-SDI (optional)
    2. 1 x HDMI: HDMI
    3. 1 x BNC: Video
    4. 2 x RCA: Audio(L/R)

    Output (Each LCD)
    1. 1 x BNC: 3G-SDI (optional)
    2. 1 x HDMI: HDMI
    3. 1 x BNC: Video

    Audio (Each LCD)
    Audio Out: Stereo Headphone x 1

    SDI Support Format
    1. 720p(60/59.94/50/30/29/25/24/23.98)
    2. 1080i(60/59.94/50)
    3. 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

    HDMI Support Format
    1. 480i/576i/480p/576p
    2. 1080i (60/59.94/50)
    3. 720p (60/59.94/50/30/29/25/24/23.98)
    4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
    5. 3840 x 2160p (30/29.97/25/24/23.98 Hz)
    6. 4096 x 2160p (24Hz)

    General:
    1. Input Voltage: DC 9-24V
    2. Power Consumption: Less than or equal to 25W
    3. Working Temperature: -20 degree C~55 degree C
    4. Storage Temperature: -30 degree C~65 degree C
    5. Install Way: Rack Mount
    6. Unit Size: 482.6Lx88Hx34D mm
    7. Unit Weight: 1418g

    Package List
    1. Monitor x 1
    2. Tally adapter kit x 1
    3. Mini USB to USB cable x 1
    4. 3A power adapter x 1
    5. Manual x 1


    Specification:
    Package Weight
    One Package Weight 2.96kgs / 6.53lb
    One Package Size 50cm * 16cm * 8cm / 19.69inch * 6.3inch * 3.15inch
    Qty per Carton 5
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 64cm * 56cm * 27cm / 25.2inch * 22.05inch * 10.63inch
    Loading Container 20GP: 275 cartons * 5 pcs = 1375 pcs
    40HQ: 639 cartons * 5 pcs = 3195 pcs
