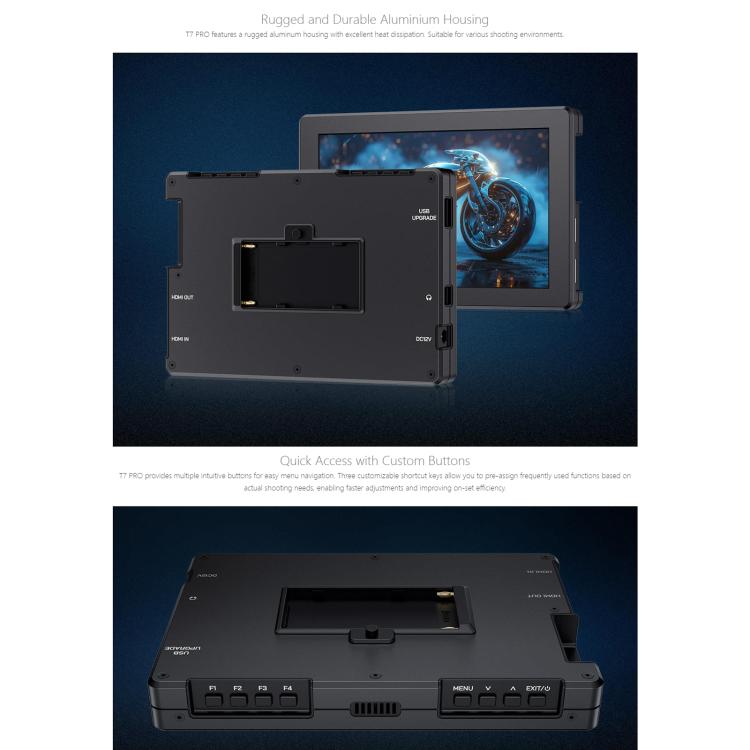

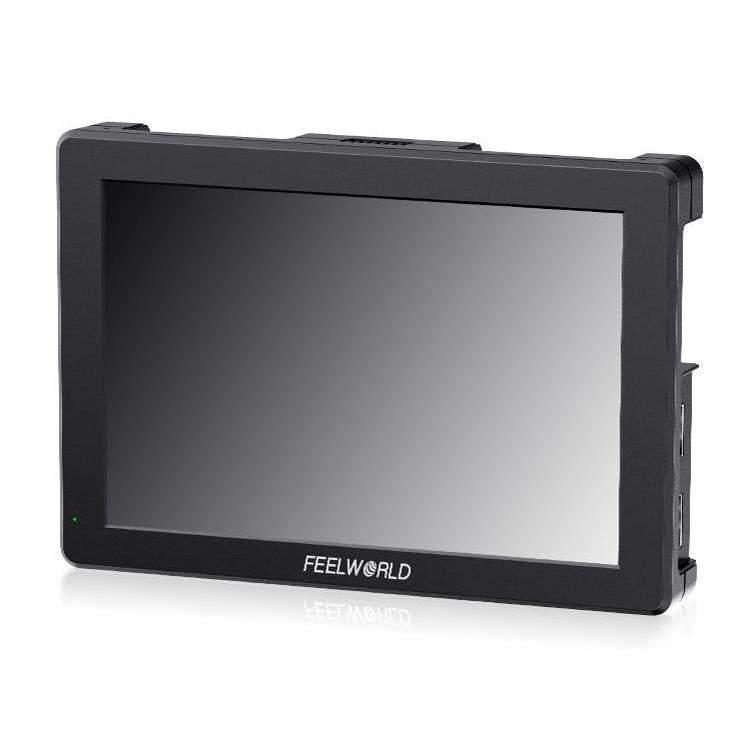

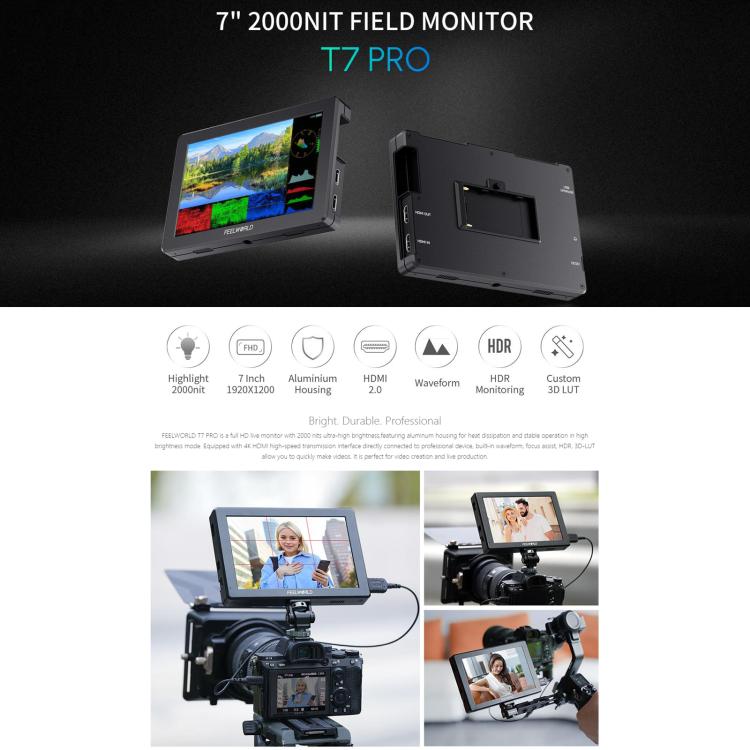

FEELWORLD T7 Pro 7-inch 2000nit Camera Field Video Monitor Aluminium Housing 4K 1920 x 1200 HDMI-compatible IPS Screen(Black)

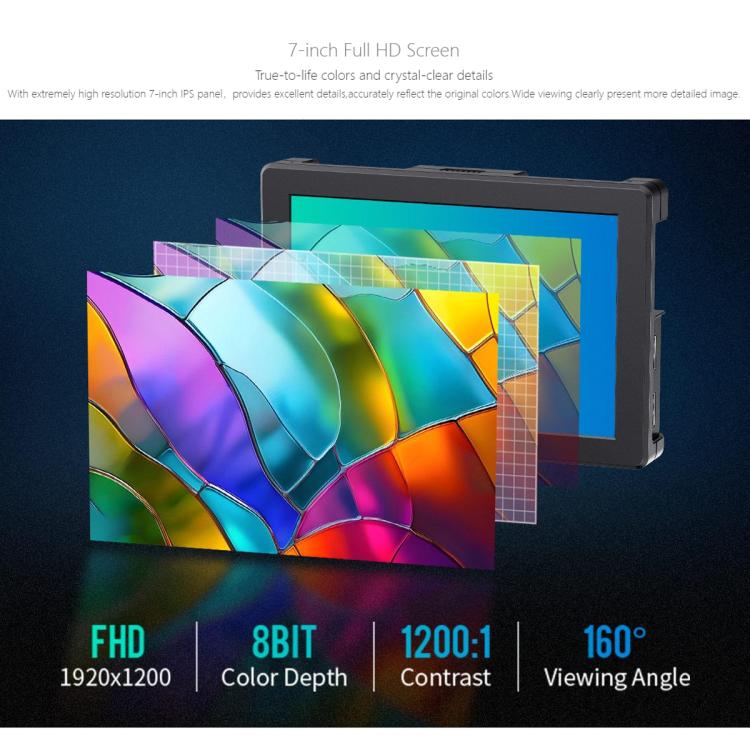

Display Spec.
1. Model: T7 PRO
2. Screen Size: 7 inch IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.07875(W) x 0.07875 (H) (mm)
5. Color Depth: 8bit
6. Aspect Ratio: 16:10

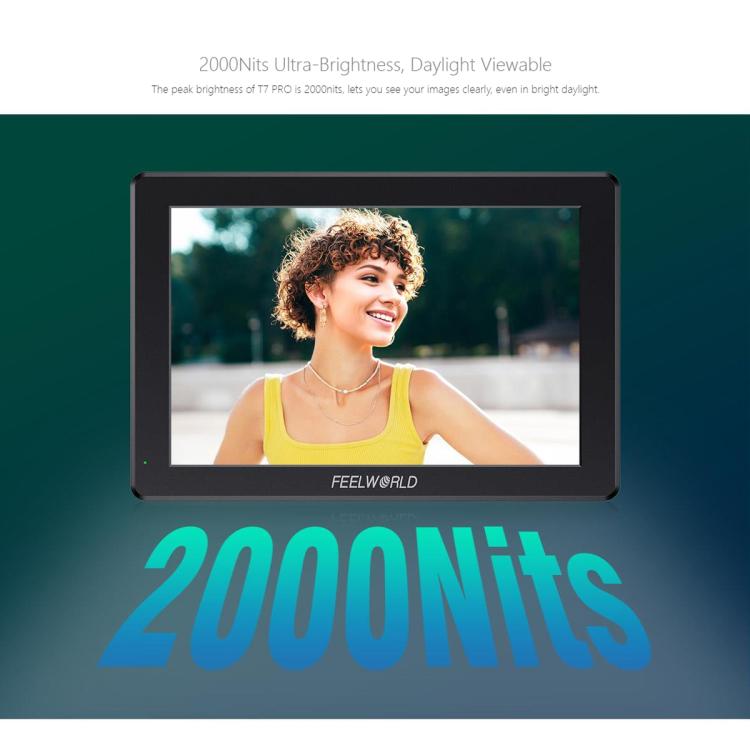

7. Brightness: 2000cd/m2
8. Contrast Ratio: 1200:1
9. Backlight: LED
10. Viewing Angle: 80 degree / 80 degree (L/R) 80 degree / 80 degree (U/D)

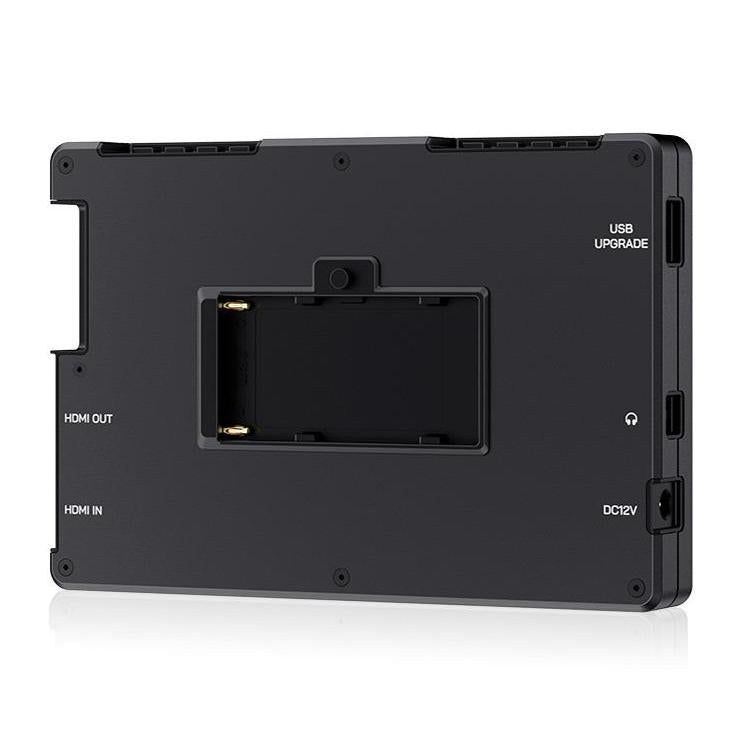

Input

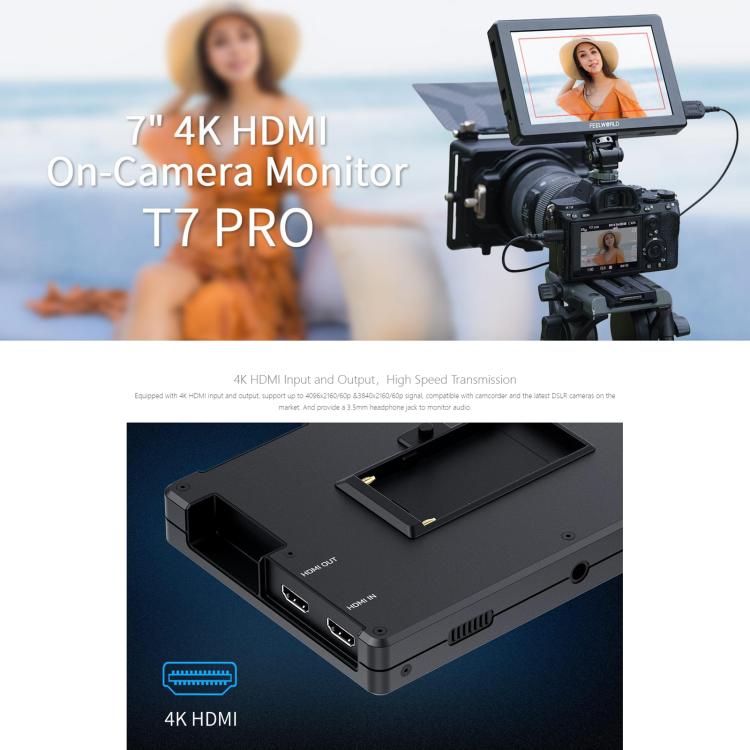

1. 1 x HDMI-compatble: HDMI-compatble 2.0
2. 1 x USB: Mini USB (LUT file import and Firmware update)

Output
1 x HDMI-compatble: HDMI-compatble 2.0

Audio
Audio: 3.5mm Stereo Headphone

HDMI-compatble Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4. 4K 3840x2160p (60/50/30/29.97/25/24/23.98)
5. 4K 4096x2160p(60/50/30/29.97/25/24/23.98)

General

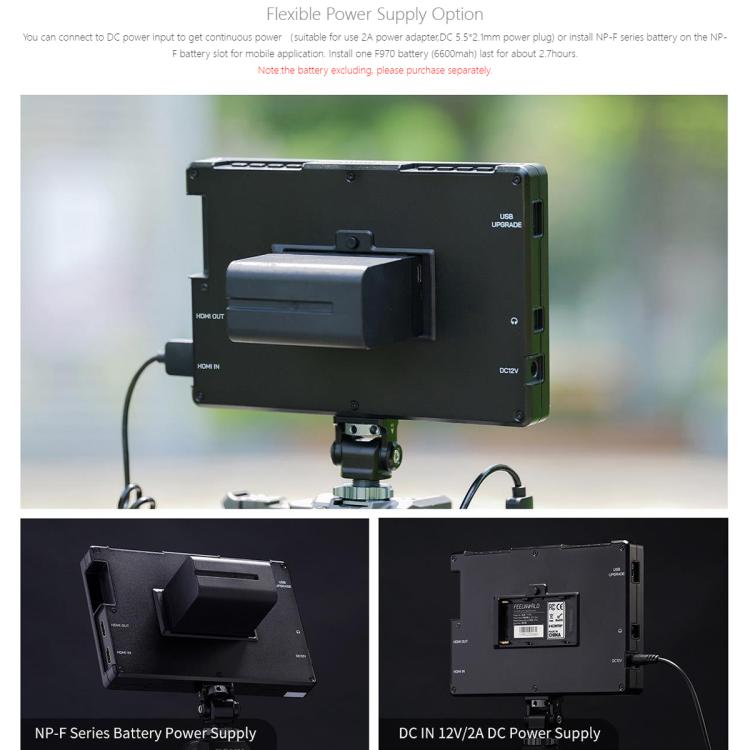

1. Power Connector: DC IN
2. Input Voltage: DC7~24V
3. Power Consumption: Less than or equal to 18W
4. Working Temperature: -20 degree C~55 degree C
5. Storage Temperature: -30 degree C~65 degree C
6. Install Way: 1/4 Thread Point (bottom)
7. Unit Size: 182.8x122.8x24 (mm)
8. Unit Weight: 336g

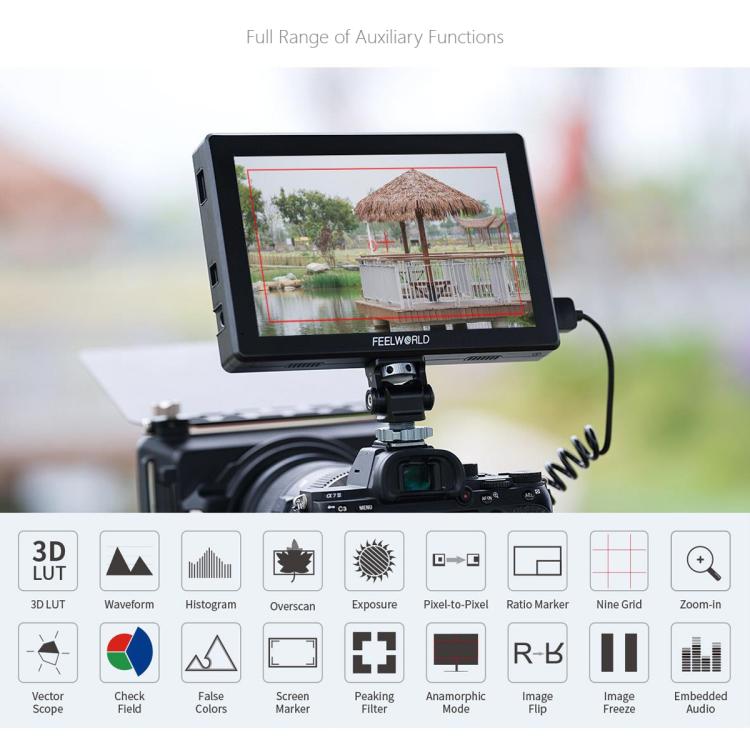

Advanced Features

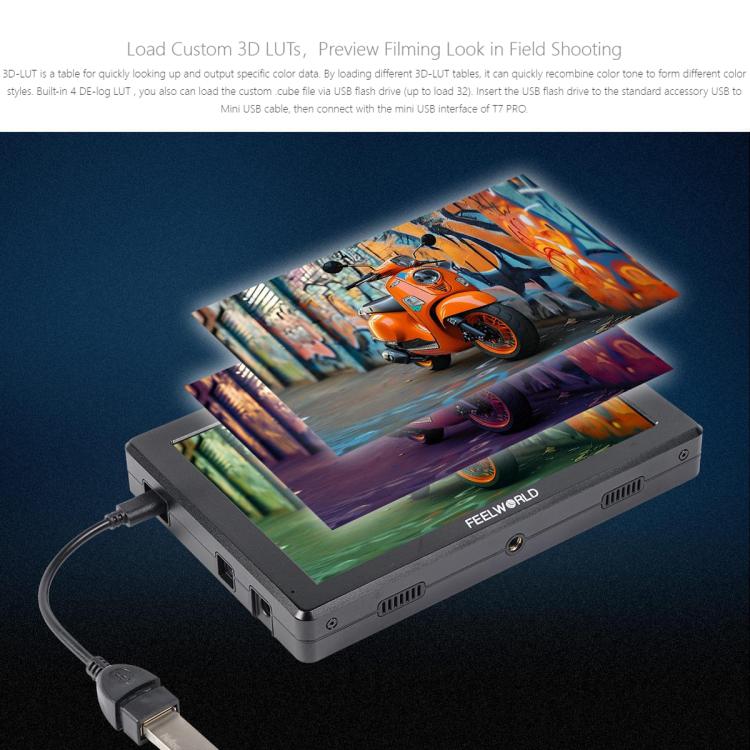

1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

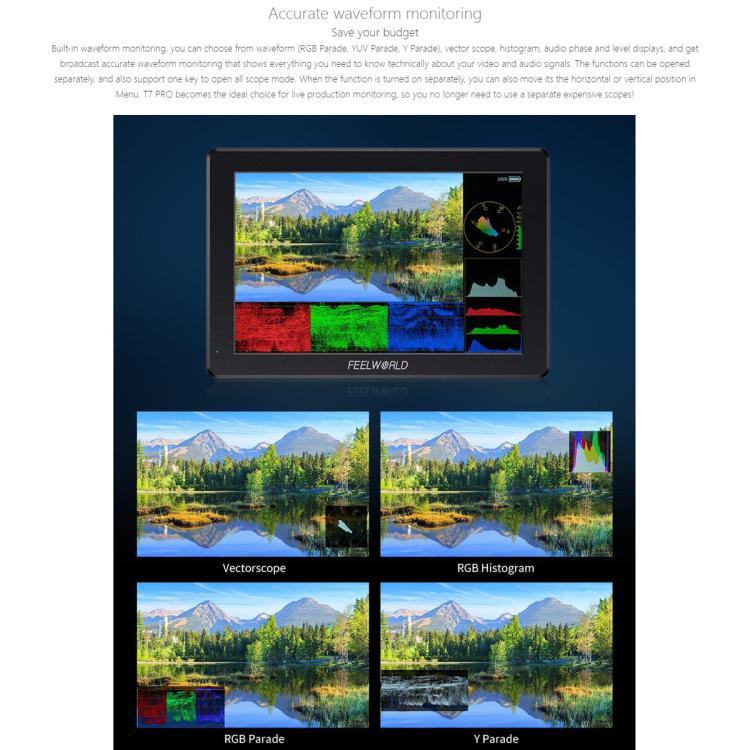

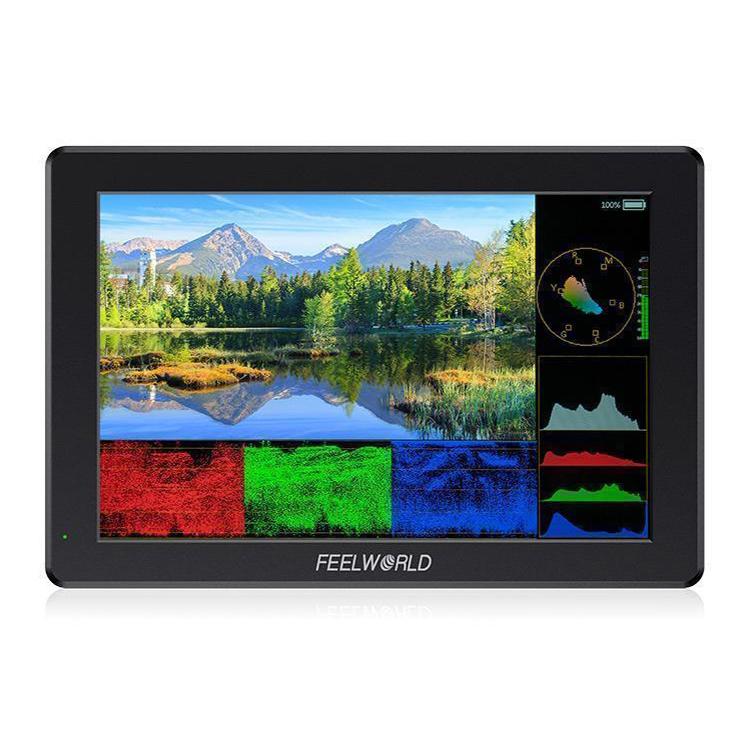

2. Waveform (RGB, YUV, Y)
3. HDR
4. Vector
5. Histogram (RGB,Y )
6. Embedded Audio

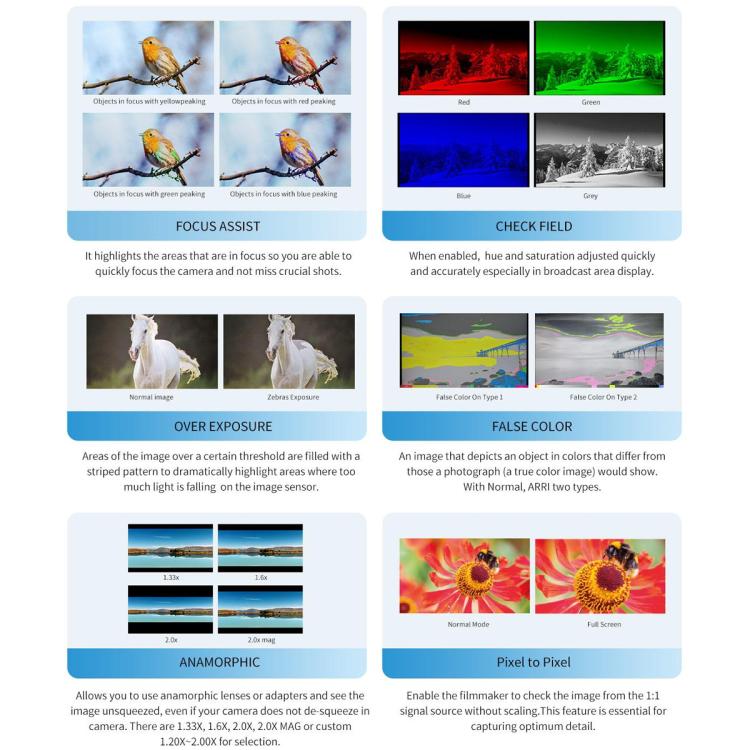

7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10IRE~100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Scan Mode (Under Scan, Over Scan)
12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
13. Image Flip (H Flip, V Flip, H_V Flip )
14. Image Freeze
15. Center Marker
16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)
17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)

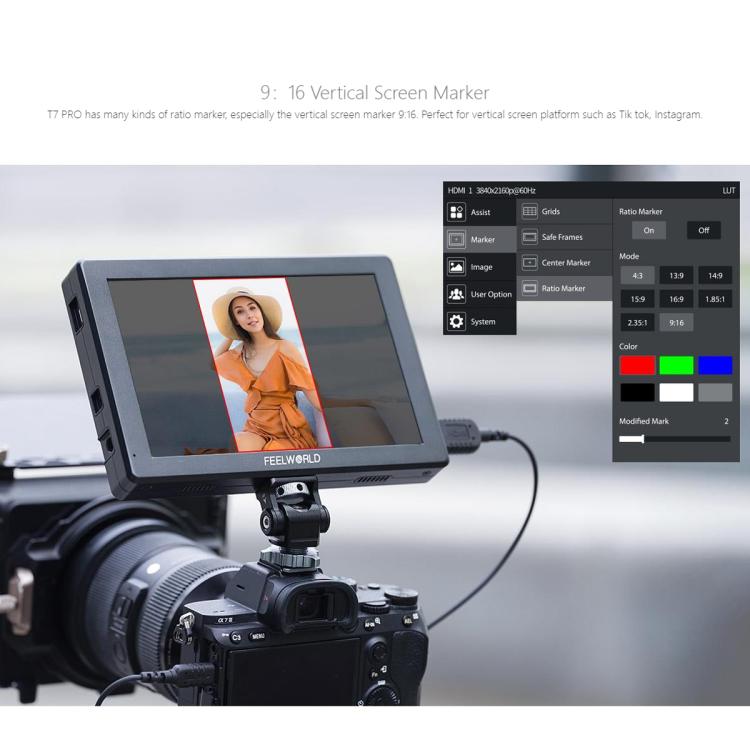

18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
19. Marker Color (Red, Green, Blue, Black, White, Gray)
20. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9)
21. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%)
22. Pixel to Pixel
23. Display Range( Auto, Limit, Full)
24. EDID Settings(2.0,1.4)

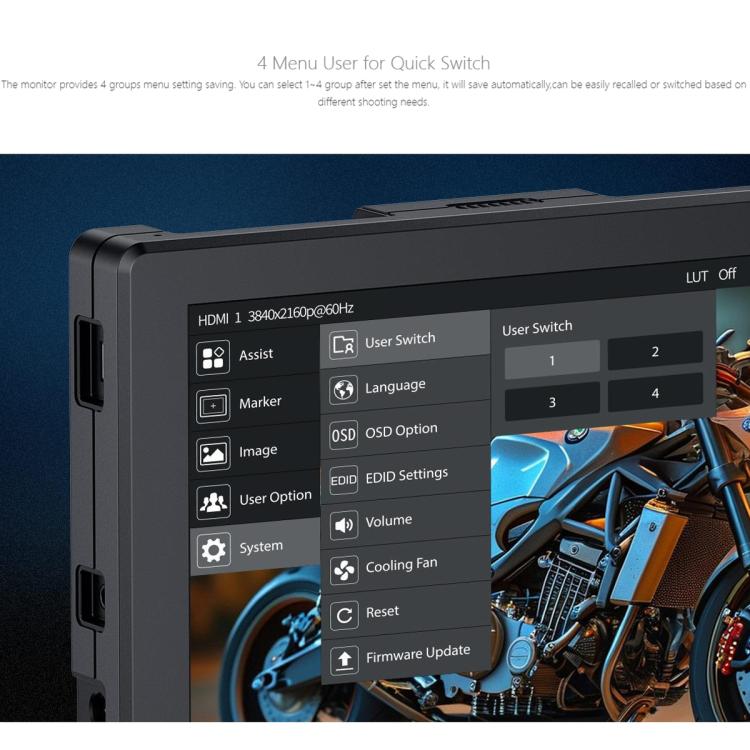

25. User Switch (1~4)
26. OSD Time(Off, 15Sec, 30Sec, 45Sec)
27. OSD Transparency (Off, 25%, 50%, 75%)
28. The background color of screen when no signal (Red, Green, Blue, Black, White, Gray)
29. Power Settings (Auto, Manual)
30. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)

Packaging List:
1. Monitor x 1
2. HDMI-compatible Cable x 1
3. Micro HDMI-compatible Cable x 1

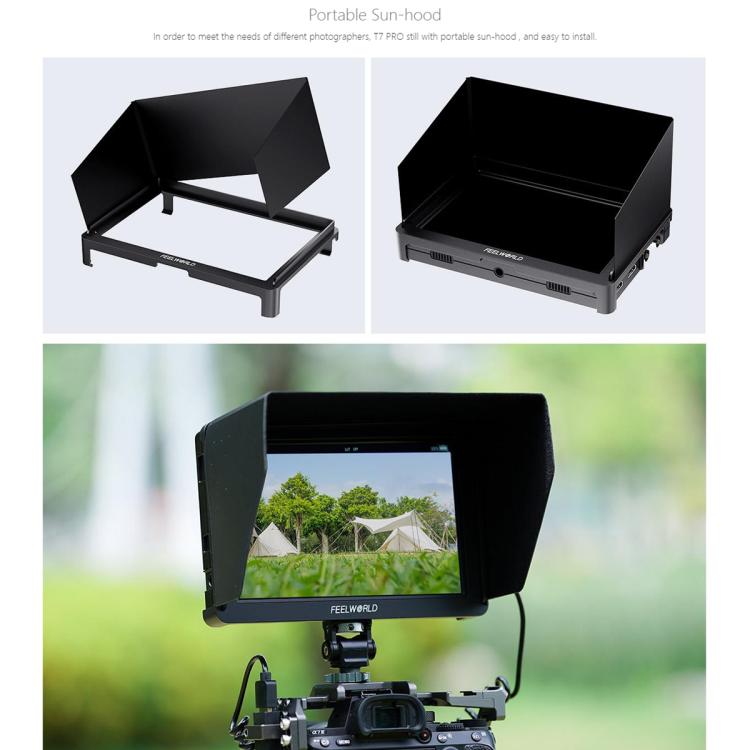

4. Sunshade x 1

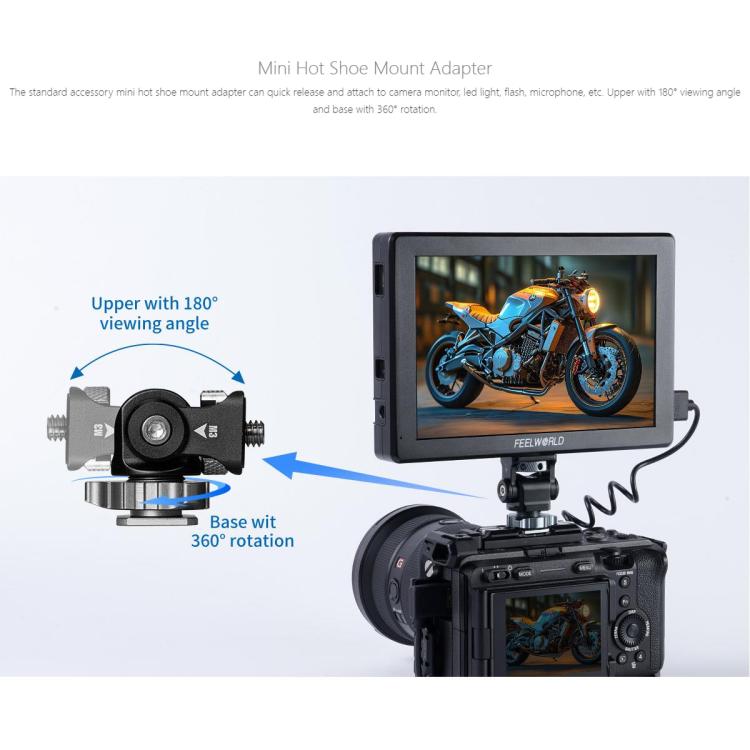

5. Mini Hot Shoe Mount+Hex Wrench x 1
6. USB-A to USB-C Adapter x 1
7. Cable Management Tie x 1
8. Manual x 1


Specification:
Package Weight
One Package Weight 0.90kgs / 1.99lb
One Package Size 25cm * 16cm * 8cm / 9.84inch * 6.3inch * 3.15inch
Qty per Carton 10
Carton Weight 10.00kgs / 22.05lb
Carton Size 52cm * 22cm * 36cm / 20.47inch * 8.66inch * 14.17inch
Loading Container 20GP: 647 cartons * 10 pcs = 6470 pcs
40HQ: 1503 cartons * 10 pcs = 15030 pcs

FEELWORLD T7 Pro 7-inch 2000nit Camera Field Video Monitor Aluminium Housing 4K 1920 x 1200 HDMI-compatible IPS Screen(Black)

Product form

SKU: EDA008617501A

  • In stock (Processing Time 1 - 72 hours)

€288,06

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    Display Spec.
    1. Model: T7 PRO
    2. Screen Size: 7 inch IPS
    3. Resolution: 1920 x 1200 pixels
    4. Pixel Pitch: 0.07875(W) x 0.07875 (H) (mm)
    5. Color Depth: 8bit
    6. Aspect Ratio: 16:10
    7. Brightness: 2000cd/m2
    8. Contrast Ratio: 1200:1
    9. Backlight: LED
    10. Viewing Angle: 80 degree / 80 degree (L/R) 80 degree / 80 degree (U/D)

    Input
    1. 1 x HDMI-compatble: HDMI-compatble 2.0
    2. 1 x USB: Mini USB (LUT file import and Firmware update)

    Output
    1 x HDMI-compatble: HDMI-compatble 2.0

    Audio
    Audio: 3.5mm Stereo Headphone

    HDMI-compatble Input and Output Support Format
    1. 720p (60/59.94/50/30/29.97/25/24/23.98)
    2. 1080i (60/59.94/50)
    3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
    4. 4K 3840x2160p (60/50/30/29.97/25/24/23.98)
    5. 4K 4096x2160p(60/50/30/29.97/25/24/23.98)

    General
    1. Power Connector: DC IN
    2. Input Voltage: DC7~24V
    3. Power Consumption: Less than or equal to 18W
    4. Working Temperature: -20 degree C~55 degree C
    5. Storage Temperature: -30 degree C~65 degree C
    6. Install Way: 1/4 Thread Point (bottom)
    7. Unit Size: 182.8x122.8x24 (mm)
    8. Unit Weight: 336g

    Advanced Features
    1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
    2. Waveform (RGB, YUV, Y)
    3. HDR
    4. Vector
    5. Histogram (RGB,Y )
    6. Embedded Audio
    7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
    8. False Colors (Normal, ARRI)
    9. Over Exposure (10IRE~100IRE adjustable)
    10. Check Field (Red, Green, Blue, Mono)
    11. Scan Mode (Under Scan, Over Scan)
    12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
    13. Image Flip (H Flip, V Flip, H_V Flip )
    14. Image Freeze
    15. Center Marker
    16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)
    17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
    18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
    19. Marker Color (Red, Green, Blue, Black, White, Gray)
    20. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom. When selecting Custom, you can custom the rows and columns from2~9)
    21. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%)
    22. Pixel to Pixel
    23. Display Range( Auto, Limit, Full)
    24. EDID Settings(2.0,1.4)
    25. User Switch (1~4)
    26. OSD Time(Off, 15Sec, 30Sec, 45Sec)
    27. OSD Transparency (Off, 25%, 50%, 75%)
    28. The background color of screen when no signal (Red, Green, Blue, Black, White, Gray)
    29. Power Settings (Auto, Manual)
    30. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)

    Packaging List:
    1. Monitor x 1
    2. HDMI-compatible Cable x 1
    3. Micro HDMI-compatible Cable x 1
    4. Sunshade x 1
    5. Mini Hot Shoe Mount+Hex Wrench x 1
    6. USB-A to USB-C Adapter x 1
    7. Cable Management Tie x 1
    8. Manual x 1


    Specification:
    Package Weight
    One Package Weight 0.90kgs / 1.99lb
    One Package Size 25cm * 16cm * 8cm / 9.84inch * 6.3inch * 3.15inch
    Qty per Carton 10
    Carton Weight 10.00kgs / 22.05lb
    Carton Size 52cm * 22cm * 36cm / 20.47inch * 8.66inch * 14.17inch
    Loading Container 20GP: 647 cartons * 10 pcs = 6470 pcs
    40HQ: 1503 cartons * 10 pcs = 15030 pcs
