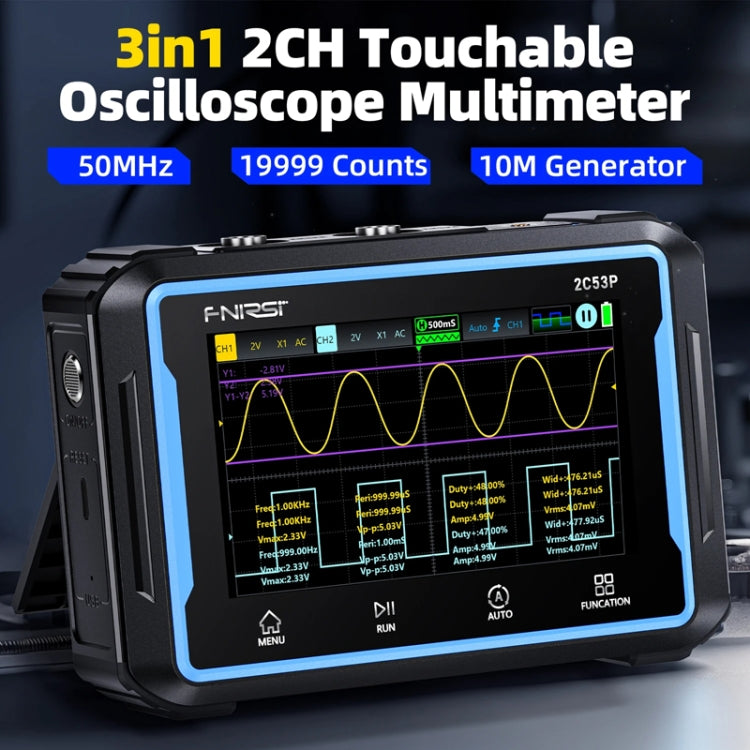

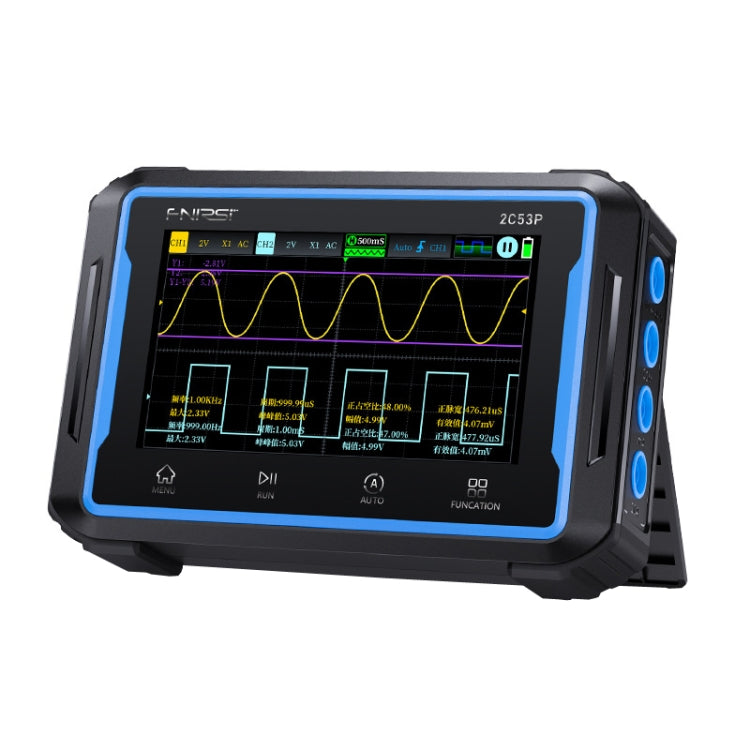

FNIRSI 2C53P Dual Channel Flat Panel Digital Oscilloscope Multimeter Signal Generator 3 In 1(Black)

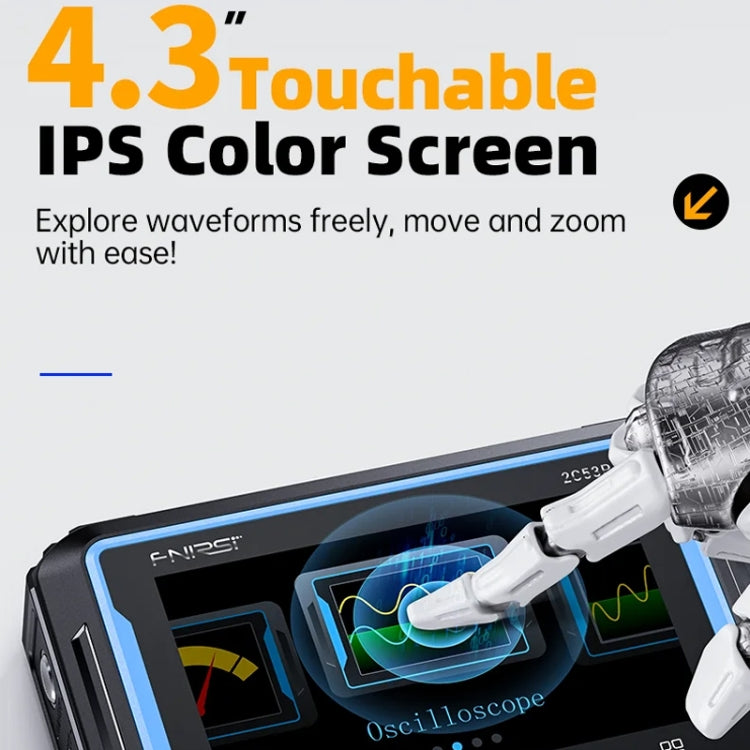

1. 4.3-inch IPS ultra-high definition screen, easy to use
2. Built-in high-capacity lithium battery, long battery life

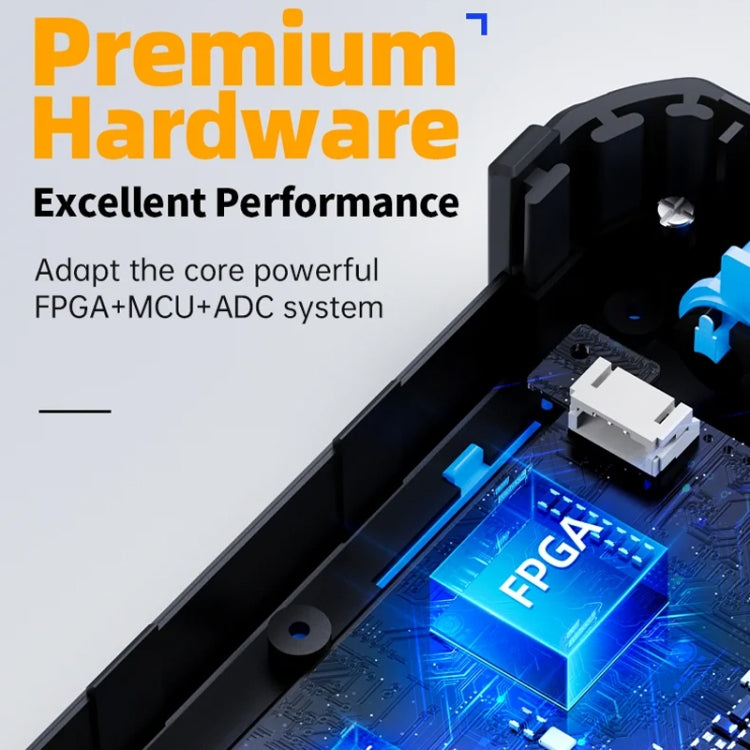

3. Using the core of a powerful FPGA + MCU + high-speed ADC hardware architecture system waveforms smooth and clear
4. Measurement of millivolt level of weak signals, support for 20M bandwidth limits

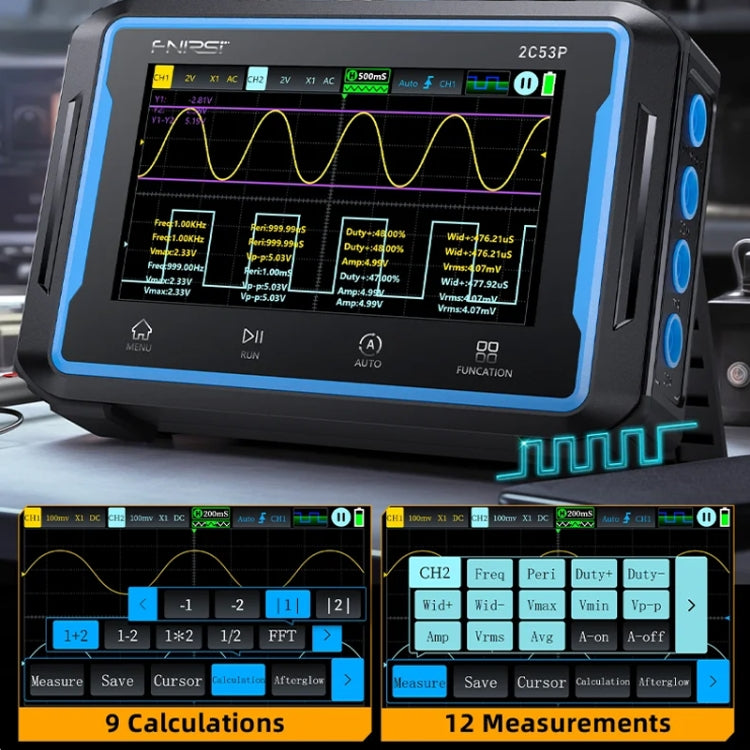

5. Powerful waveform computing capabilities, real-time addition, subtraction, multiplication and division operations, in-depth analysis and processing of complex signals

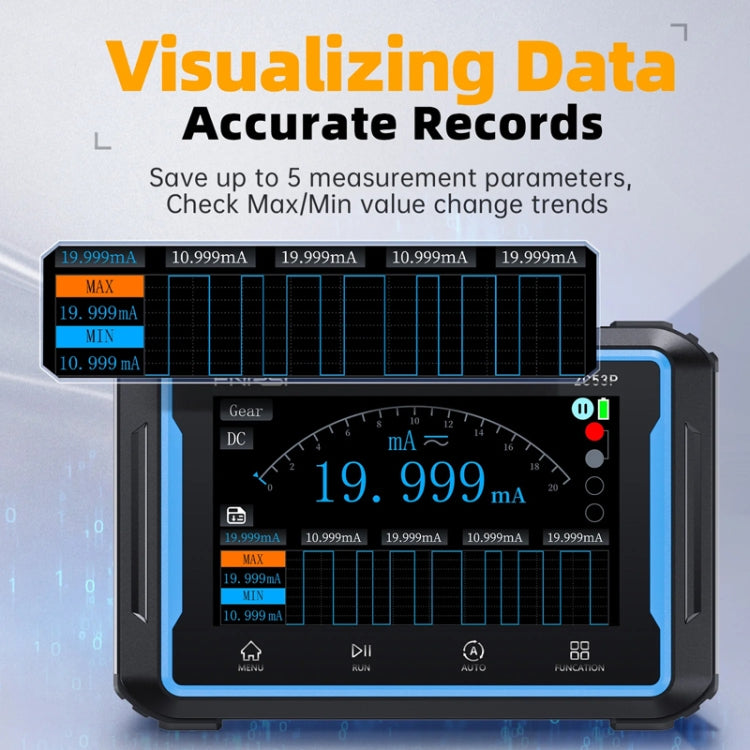

6. Real-time capture and display the changes in a variety of measurement parameters, forming a clear and concise data trend graph, but also has the ability to retain up to 5 groups of measurement data, at a glance
7. Double current fuse, to prevent burning the meter more safely
8. Easy to manage oscillometric images, can be connected to a computer via USB cable for secondary analysis
9. Lightweight, one-handed, easy to put into a pocket or toolkit, convenient to carry

Basic parameters:

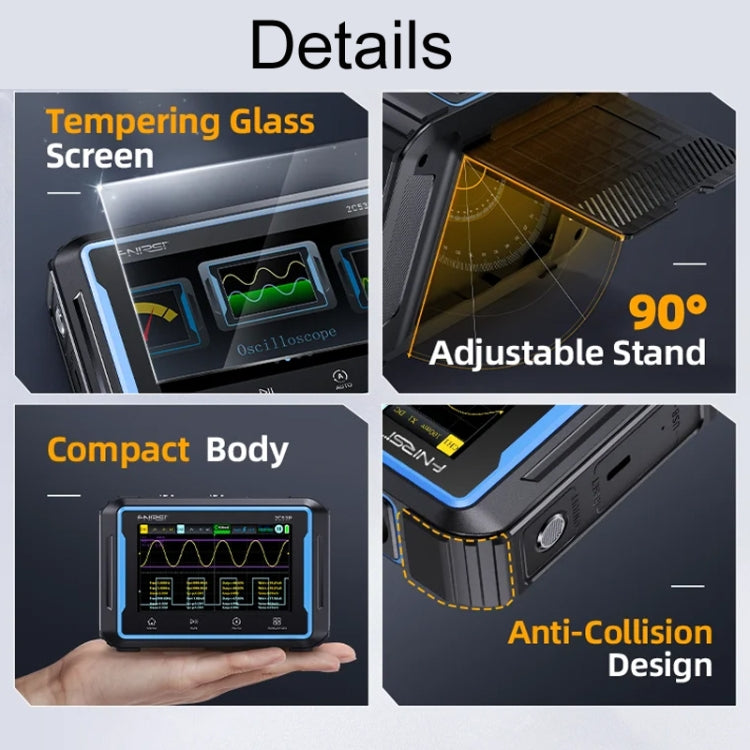

1. Screen material: surface tempered glass + glass GLASS material touch screen + IPS color screen
2. Backlight: backlight brightness can be set
3. Power supply: Type-C (5V/2A)
4. Battery: 4000mAh li-ion battery

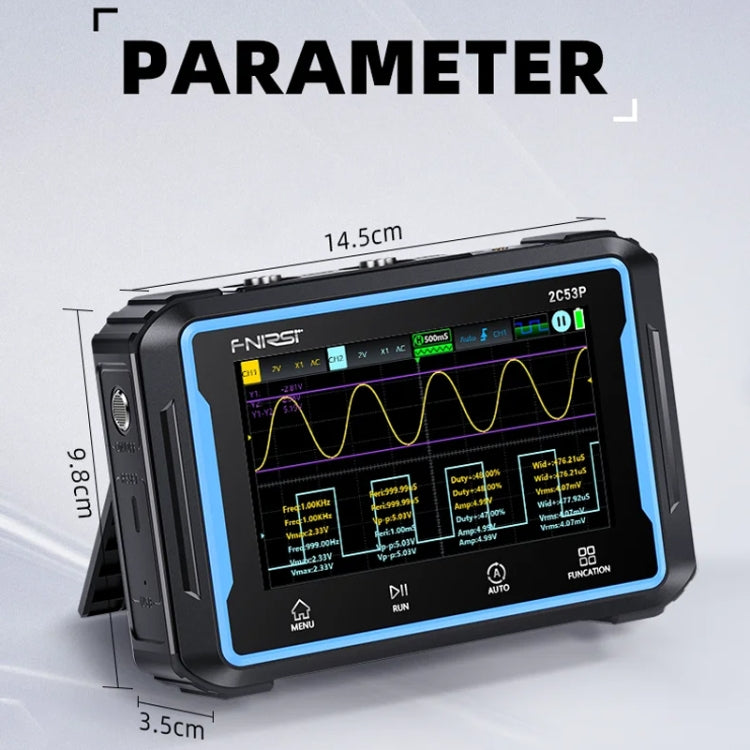

5. Size: 145 x 98 x 35mm
6. Weight: 360g

Oscilloscope parameters:
1. Channel: dual-channel
2. Bandwidth: 50MHz
3. Real-time sampling rate: 250MSa / s
4. Memory depth: up to 64kByte
5. Time base range: 10ns/div-10s/div
6. Vertical sensitivity: 10mv/div-10v/div

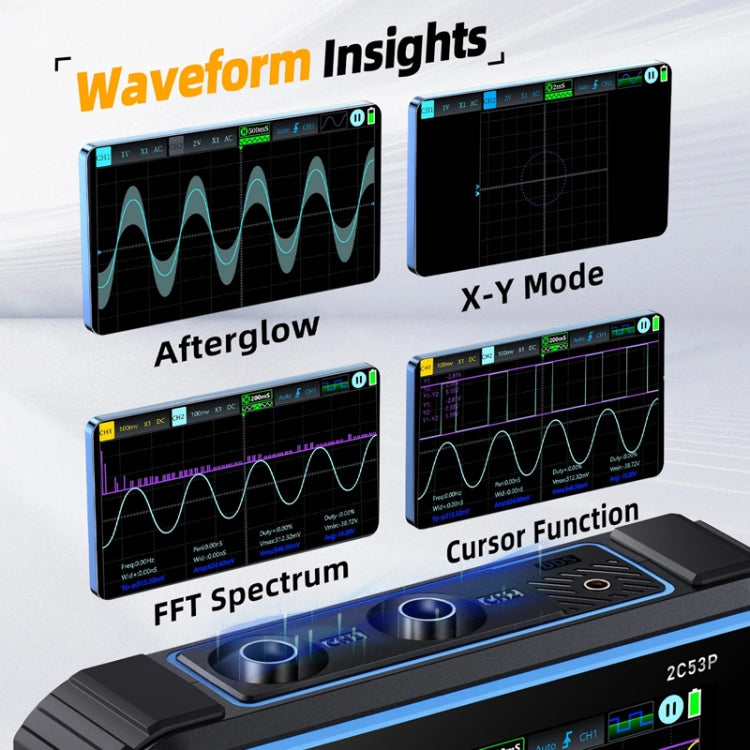

7. Waveform display mode: YT / XY / scrolling
8. Vertical resolution: 8 bits
9. Input impedance: ΙΜΩ
10. Bandwidth limitation: support 20MHz limitation
11. Probe attenuation factor: 1x/10x
12. Input coupling: AC/DC
13. Trigger type: rising edge/falling edge
14. Maximum voltage: +/-400V
15. Trigger level range: 8 cells (positive and negative)

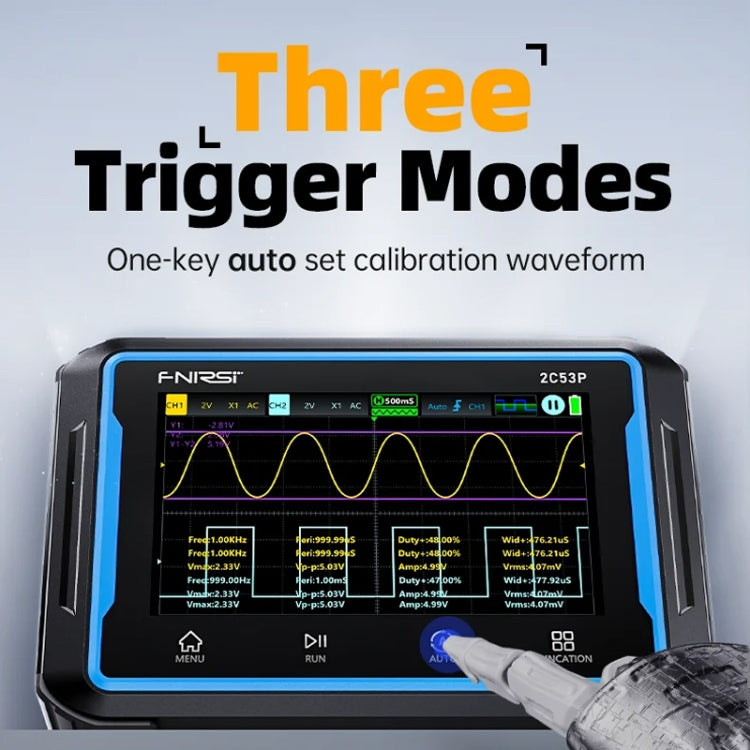

16. Trigger mode: automatic / normal / single
17. Memory space: 13M
18. Measurement data: period, frequency, peak-to-peak value, maximum value, minimum value, average value, RMS value, amplitude, duty cycle and pulse width

Signal generator parameters:
1. Different waveform output frequency: sine wave: 10MHz, other waveforms: 5MHz
2. Waveform frequency: 0-10ΜΗz
3. Waveform amplitude: 0.1V-3.0V
4. Duty cycle of square wave: 0-100 percent

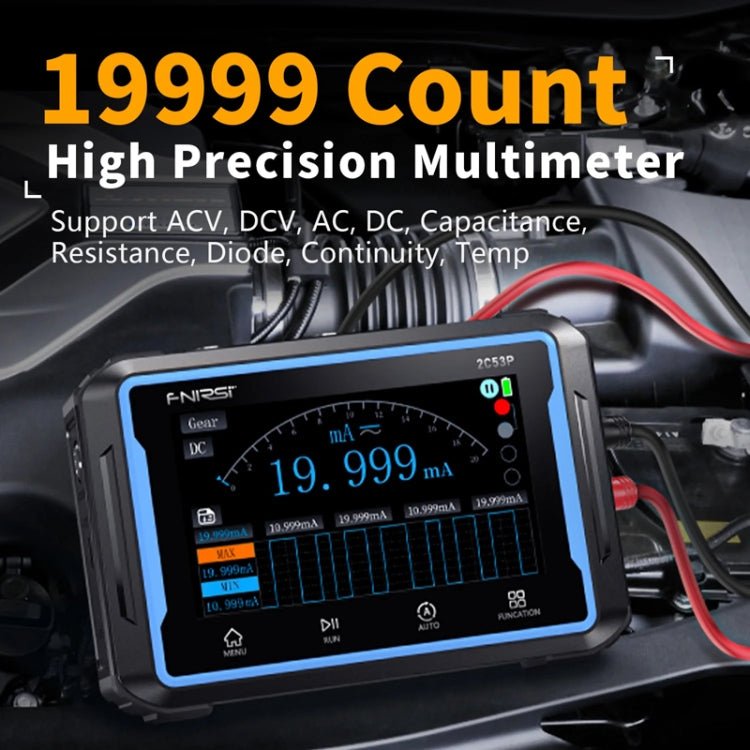

Multimeter parameters:
1. DC voltage: 1.9999V/19.999V/199.99V/1000.0V
2. AC voltage: 1.9999V/19.999V/199.99V/760.0V
3. DC current: 19.999mA/199.99mA/1.9999A/9.999A
4. AC current: 19.999mA/199.99mA/1.9999A/9.999A
5. Resistance: 19.999ΜΩ/1.9999ΜΩ/199.99ΚΩ/19.999ΚΩ/1.9999ΚΩ/199.99Ω
6. Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF9.999mF/99.99mF
7. Temperature: -55-1300 degrees celsius/-67-2372 degrees fahrenheit


Specification:
Package Weight
One Package Weight 0.97kgs / 2.14lb
One Package Size 24cm * 14cm * 7cm / 9.45inch * 5.51inch * 2.76inch
Qty per Carton 20
Carton Weight 21.00kgs / 46.30lb
Carton Size 49cm * 31cm * 39cm / 19.29inch * 12.2inch * 15.35inch
Loading Container 20GP: 450 cartons * 20 pcs = 9000 pcs
40HQ: 1044 cartons * 20 pcs = 20880 pcs

FNIRSI 2C53P Dual Channel Flat Panel Digital Oscilloscope Multimeter Signal Generator 3 In 1(Black)

Product form

SKU: TBD0604844501A

  • In stock (Processing Time 1 - 72 hours)

€177,18

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. 4.3-inch IPS ultra-high definition screen, easy to use
    2. Built-in high-capacity lithium battery, long battery life
    3. Using the core of a powerful FPGA + MCU + high-speed ADC hardware architecture system waveforms smooth and clear
    4. Measurement of millivolt level of weak signals, support for 20M bandwidth limits
    5. Powerful waveform computing capabilities, real-time addition, subtraction, multiplication and division operations, in-depth analysis and processing of complex signals
    6. Real-time capture and display the changes in a variety of measurement parameters, forming a clear and concise data trend graph, but also has the ability to retain up to 5 groups of measurement data, at a glance
    7. Double current fuse, to prevent burning the meter more safely
    8. Easy to manage oscillometric images, can be connected to a computer via USB cable for secondary analysis
    9. Lightweight, one-handed, easy to put into a pocket or toolkit, convenient to carry

    Basic parameters:
    1. Screen material: surface tempered glass + glass GLASS material touch screen + IPS color screen
    2. Backlight: backlight brightness can be set
    3. Power supply: Type-C (5V/2A)
    4. Battery: 4000mAh li-ion battery
    5. Size: 145 x 98 x 35mm
    6. Weight: 360g

    Oscilloscope parameters:
    1. Channel: dual-channel
    2. Bandwidth: 50MHz
    3. Real-time sampling rate: 250MSa / s
    4. Memory depth: up to 64kByte
    5. Time base range: 10ns/div-10s/div
    6. Vertical sensitivity: 10mv/div-10v/div
    7. Waveform display mode: YT / XY / scrolling
    8. Vertical resolution: 8 bits
    9. Input impedance: ΙΜΩ
    10. Bandwidth limitation: support 20MHz limitation
    11. Probe attenuation factor: 1x/10x
    12. Input coupling: AC/DC
    13. Trigger type: rising edge/falling edge
    14. Maximum voltage: +/-400V
    15. Trigger level range: 8 cells (positive and negative)
    16. Trigger mode: automatic / normal / single
    17. Memory space: 13M
    18. Measurement data: period, frequency, peak-to-peak value, maximum value, minimum value, average value, RMS value, amplitude, duty cycle and pulse width

    Signal generator parameters:
    1. Different waveform output frequency: sine wave: 10MHz, other waveforms: 5MHz
    2. Waveform frequency: 0-10ΜΗz
    3. Waveform amplitude: 0.1V-3.0V
    4. Duty cycle of square wave: 0-100 percent

    Multimeter parameters:
    1. DC voltage: 1.9999V/19.999V/199.99V/1000.0V
    2. AC voltage: 1.9999V/19.999V/199.99V/760.0V
    3. DC current: 19.999mA/199.99mA/1.9999A/9.999A
    4. AC current: 19.999mA/199.99mA/1.9999A/9.999A
    5. Resistance: 19.999ΜΩ/1.9999ΜΩ/199.99ΚΩ/19.999ΚΩ/1.9999ΚΩ/199.99Ω
    6. Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF9.999mF/99.99mF
    7. Temperature: -55-1300 degrees celsius/-67-2372 degrees fahrenheit


    Specification:
    Package Weight
    One Package Weight 0.97kgs / 2.14lb
    One Package Size 24cm * 14cm * 7cm / 9.45inch * 5.51inch * 2.76inch
    Qty per Carton 20
    Carton Weight 21.00kgs / 46.30lb
    Carton Size 49cm * 31cm * 39cm / 19.29inch * 12.2inch * 15.35inch
    Loading Container 20GP: 450 cartons * 20 pcs = 9000 pcs
    40HQ: 1044 cartons * 20 pcs = 20880 pcs
