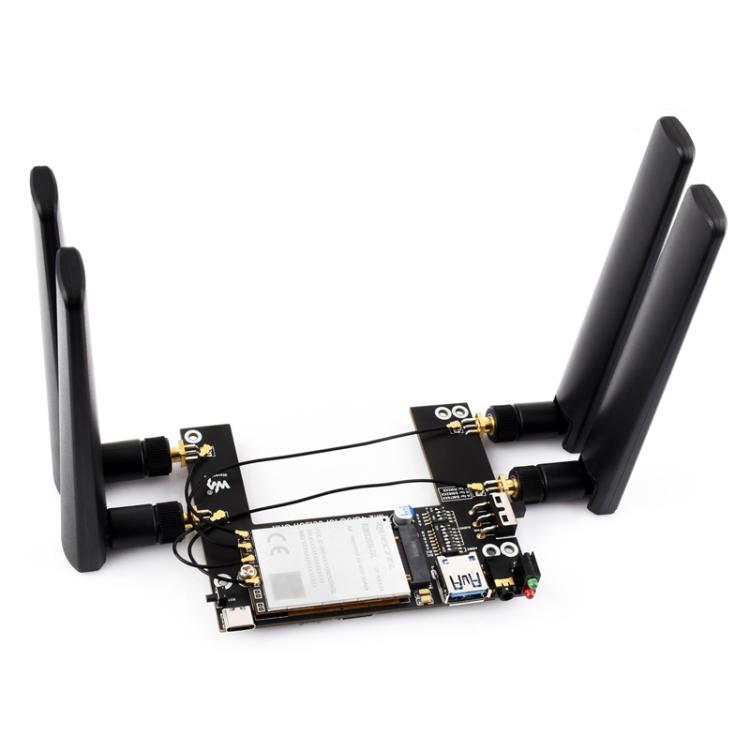

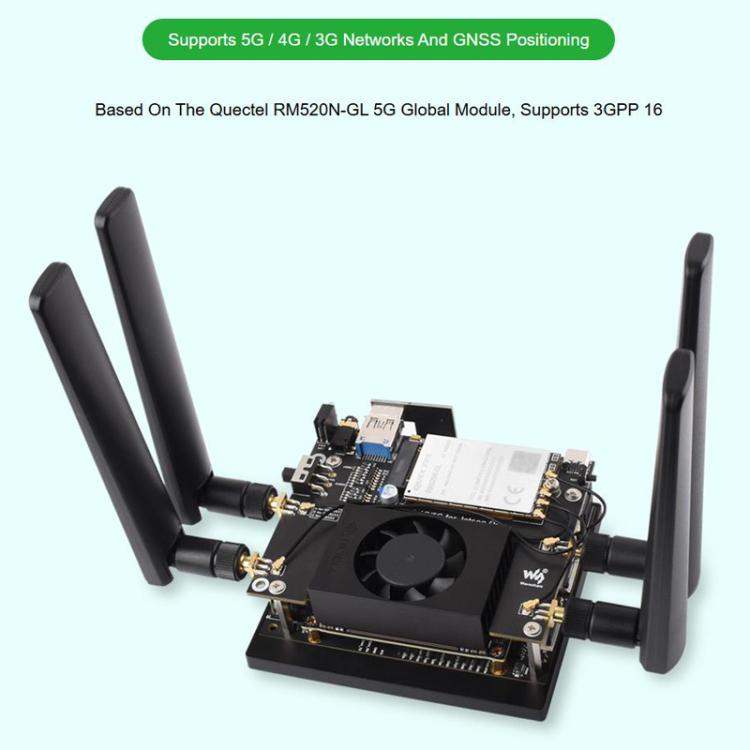

For Jetson Orin WAVESHARE 5G / 4G / 3G Module, Includes RM520N-GL Module, Supports 5G NSA And SA Networking, GNSS Positioning


1. 5G standard: 3GPP Release 16
2. Chipset solution: Qualcomm Snapdragon X62
3. LTE: 1.6Gbps (DL) / 200Mbps (UL)
4. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)

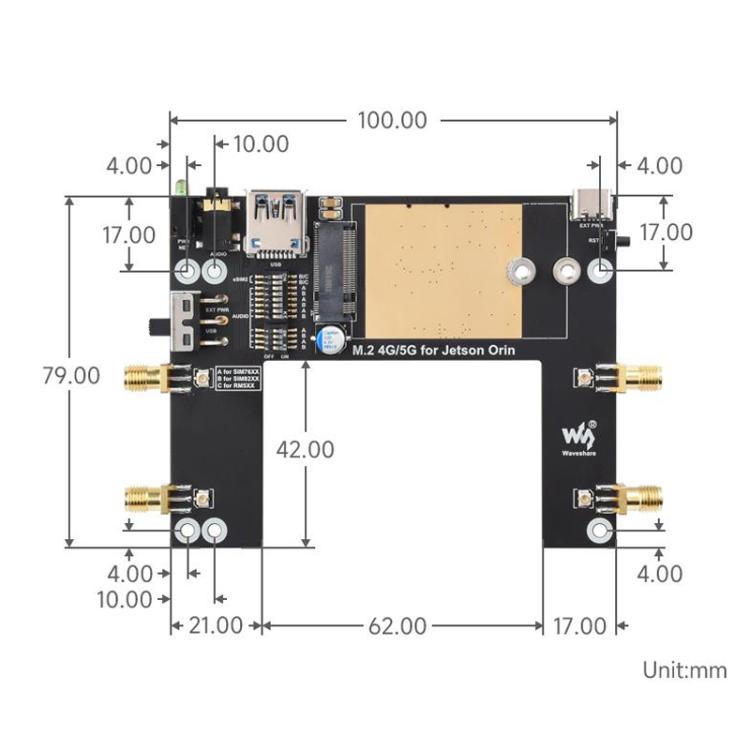

5. Size: about 10 x 7.9cm

Features:

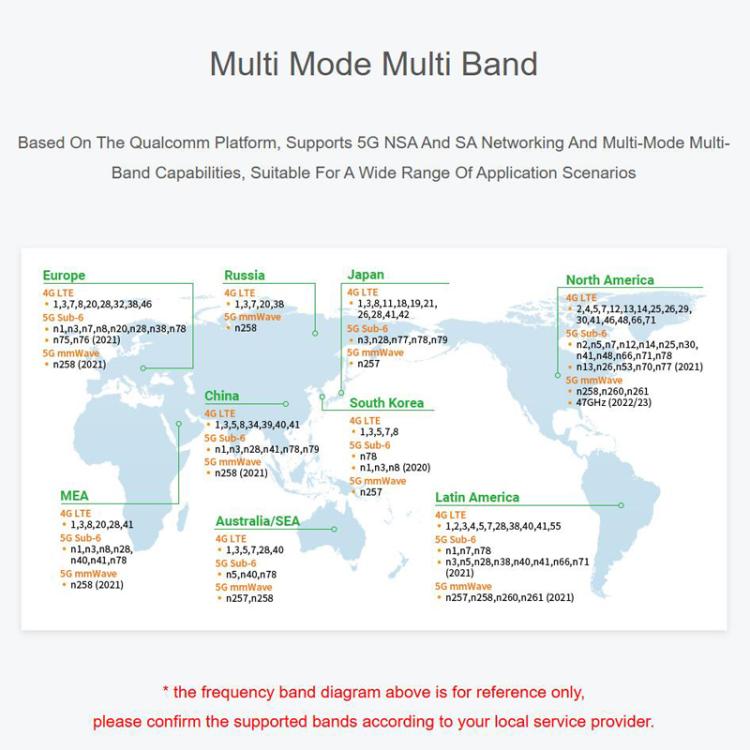

1. Based on Qualcomm platform, supports 5G NSA and SA networking, with multi-mode and multi-band capabilities
2. Integrated dual-frequency positioning across multiple satellite constellations: GPS, GLONASS, BeiDou, Galileo, and QZSS

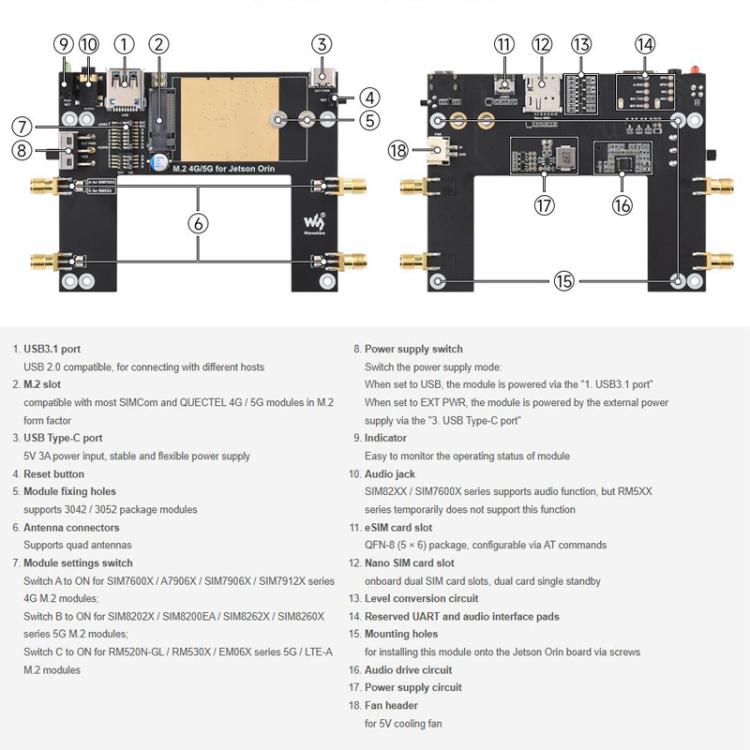

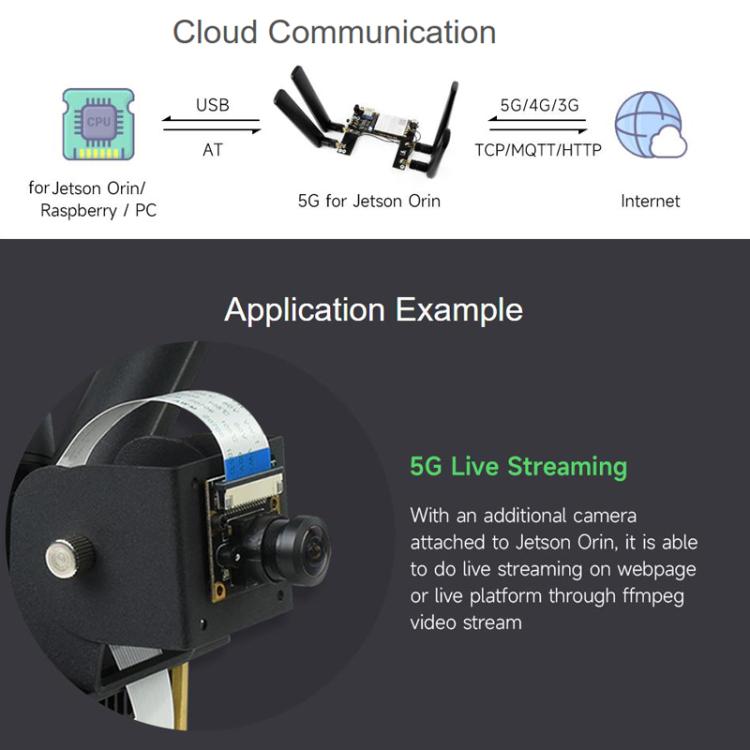

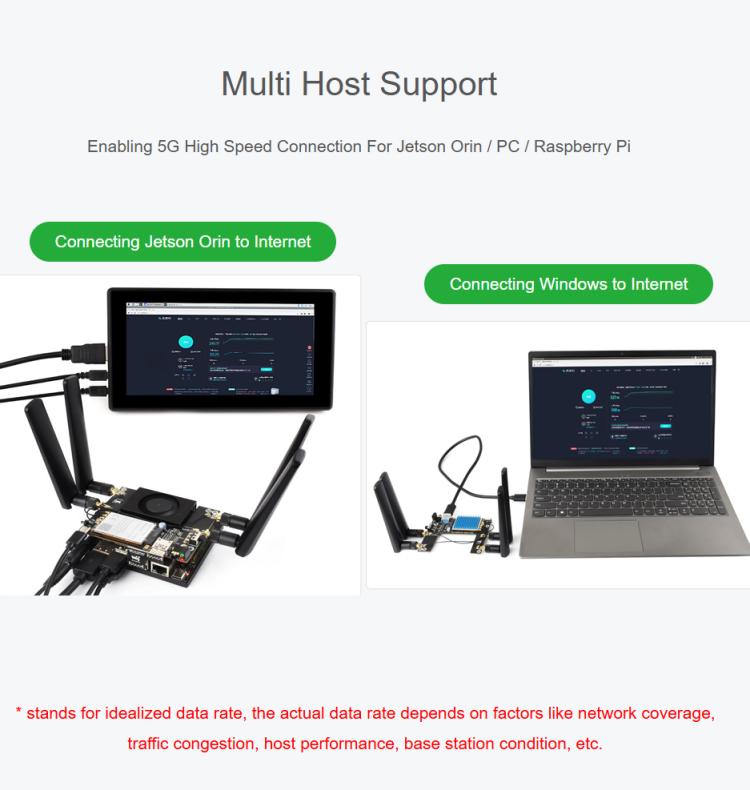

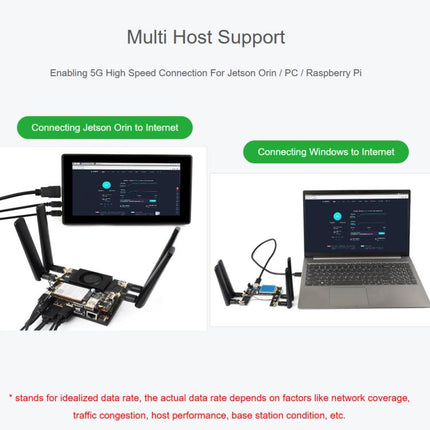

3. Onboard USB 3.1 interface, backward compatible with USB 2.0, enabling high-speed 5G connectivity when connected to Jetson Orin motherboards, computers, or Raspberry Pi
4. Onboard M.2 B KEY standard interface with pin configuration switch
5. Onboard 4x SMA-to-IPEX antenna conversion ports for simplified antenna installation
6. Reserved UART solder pad interface for data transmission with select modules
7. Onboard 1 Nano SIM card slot and 1 eSIM slot packaged as QFN-8 (5 x 6), supporting dual-SIM single-standby with AT command switching
8. Onboard power switch, reset button, and LED indicator for module power control and status monitoring
9. Onboard high-efficiency power circuit capable of delivering up to 3A current

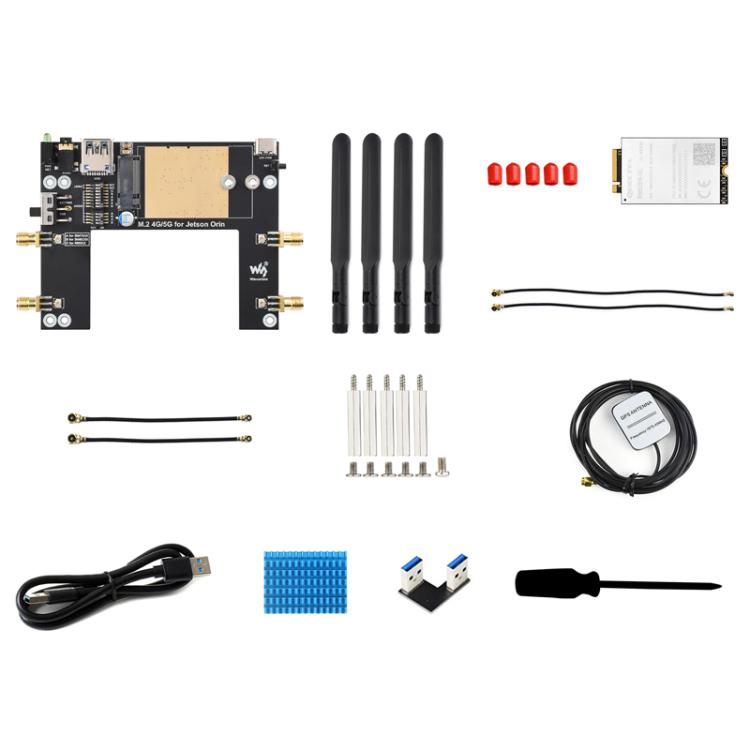

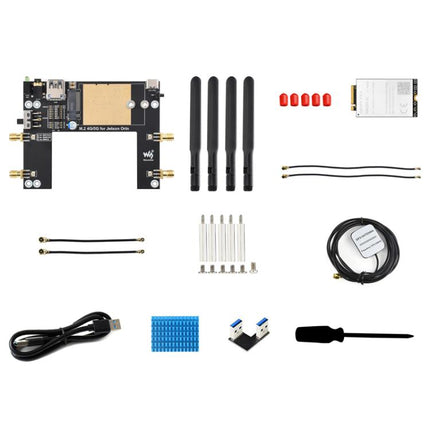

Package list:
- Expansion board x 1
- Module x 1
- 5G antennas x 4
- SMA dust caps x 5
- 13cm IPEX1 to IPEX4 cables x 2
- 5cm IPEX1 to IPEX4 cables x 2
- Screw set x 1
- GPS antenna x 1
- Dual-ended USB cable x 1
- Heat sink x 1
- USB 3.0 adapter x 1
- Screwdriver x 1


Specification:
Package Weight
One Package Weight 0.15kgs / 0.34lb
One Package Size 18cm * 12cm * 4cm / 7.09inch * 4.72inch * 1.57inch
Qty per Carton 60
Carton Weight 10.00kgs / 22.05lb
Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
Loading Container 20GP: 412 cartons * 60 pcs = 24720 pcs
40HQ: 958 cartons * 60 pcs = 57480 pcs

For Jetson Orin WAVESHARE 5G / 4G / 3G Module, Includes RM520N-GL Module, Supports 5G NSA And SA Networking, GNSS Positioning

Product form

SKU: TBD0606655101

  • In stock (Processing Time 1 - 72 hours)

€449,87

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. 5G standard: 3GPP Release 16
    2. Chipset solution: Qualcomm Snapdragon X62
    3. LTE: 1.6Gbps (DL) / 200Mbps (UL)
    4. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)
    5. Size: about 10 x 7.9cm

    Features:
    1. Based on Qualcomm platform, supports 5G NSA and SA networking, with multi-mode and multi-band capabilities
    2. Integrated dual-frequency positioning across multiple satellite constellations: GPS, GLONASS, BeiDou, Galileo, and QZSS
    3. Onboard USB 3.1 interface, backward compatible with USB 2.0, enabling high-speed 5G connectivity when connected to Jetson Orin motherboards, computers, or Raspberry Pi
    4. Onboard M.2 B KEY standard interface with pin configuration switch
    5. Onboard 4x SMA-to-IPEX antenna conversion ports for simplified antenna installation
    6. Reserved UART solder pad interface for data transmission with select modules
    7. Onboard 1 Nano SIM card slot and 1 eSIM slot packaged as QFN-8 (5 x 6), supporting dual-SIM single-standby with AT command switching
    8. Onboard power switch, reset button, and LED indicator for module power control and status monitoring
    9. Onboard high-efficiency power circuit capable of delivering up to 3A current

    Package list:
    - Expansion board x 1
    - Module x 1
    - 5G antennas x 4
    - SMA dust caps x 5
    - 13cm IPEX1 to IPEX4 cables x 2
    - 5cm IPEX1 to IPEX4 cables x 2
    - Screw set x 1
    - GPS antenna x 1
    - Dual-ended USB cable x 1
    - Heat sink x 1
    - USB 3.0 adapter x 1
    - Screwdriver x 1


    Specification:
    Package Weight
    One Package Weight 0.15kgs / 0.34lb
    One Package Size 18cm * 12cm * 4cm / 7.09inch * 4.72inch * 1.57inch
    Qty per Carton 60
    Carton Weight 10.00kgs / 22.05lb
    Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
    Loading Container 20GP: 412 cartons * 60 pcs = 24720 pcs
    40HQ: 958 cartons * 60 pcs = 57480 pcs
