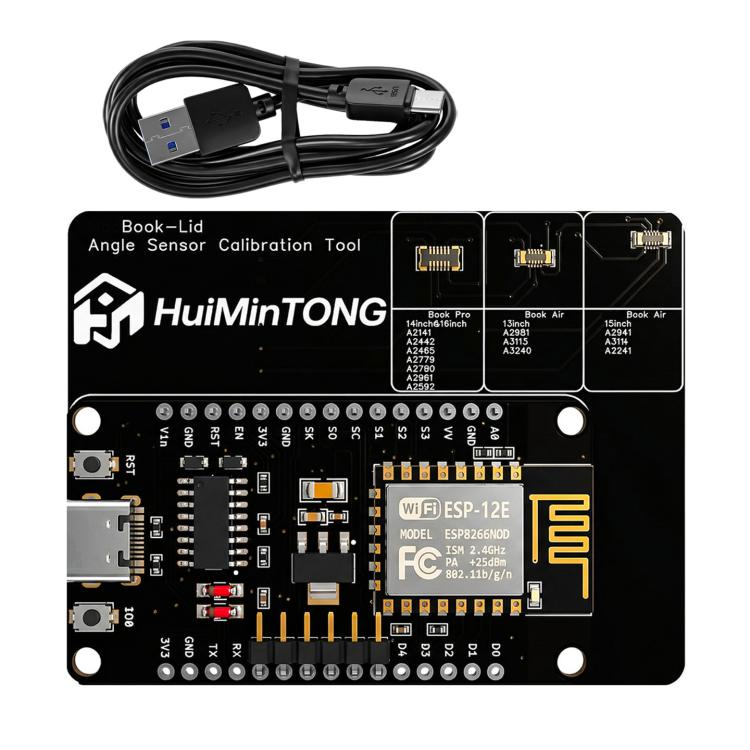

For Macbook Pro / Air HuiMinTONG HMT-AP85 Angle Sensor Calibration Tool

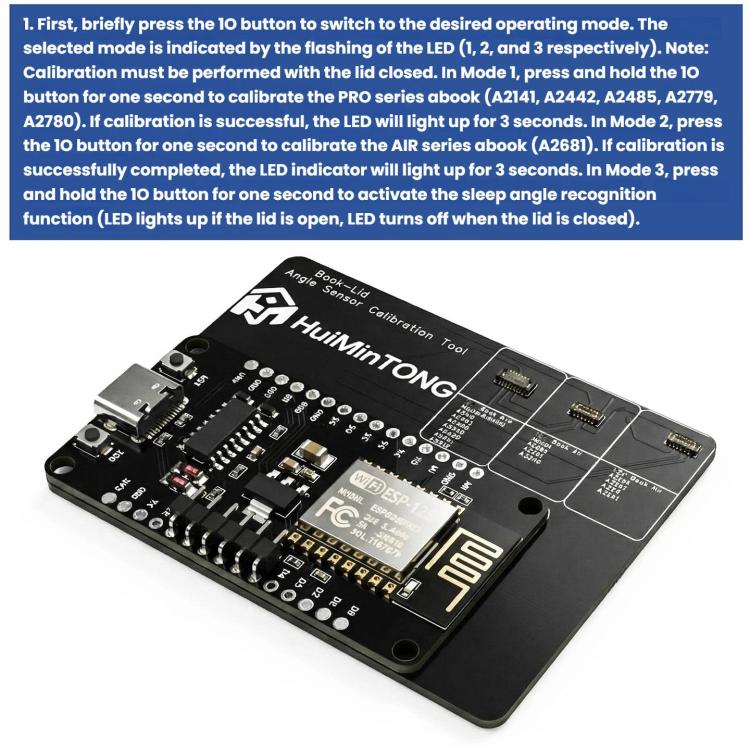

1. Briefly press the 10 key to switch to the desired operating mode. Determine the currently selected mode by the LED flash pattern (1, 2, or 3 respectively). Note: Calibration must be performed with the cover closed. In Mode 1, press and hold the IO key for one second to calibrate PRO series models A2141, A2442, A2485, A2779, and A2780. If calibration succeeds, the LED will illuminate for 3 seconds. In Mode 2, press the IO key for one second to calibrate AIR series model A2681. If the calibration record is successfully completed, the LED will illuminate for 3 seconds. A2780. If calibration succeeds, the LED will illuminate for 3 seconds. In Mode 2, press the IO button for one second to calibrate the AIR series A2681. If calibration records are successfully completed, the LED indicator will illuminate for 3 seconds. In Mode 3, press and hold the 10 key for one second to activate the sleep angle recognition function (LED illuminates when the cover is open; LED turns off when the cover is closed)

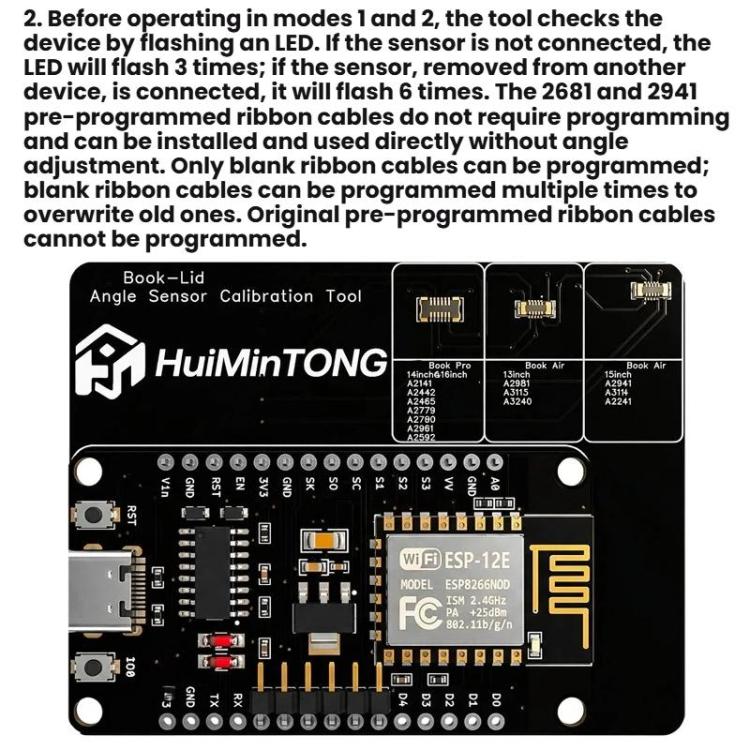

2. Before operating in Modes 1 and 2, the tool checks the device via LED flashes. If no sensor is connected, the LED flashes 3 times. If a sensor removed from another device is connected, it flashes 6 times. 2681 and 2941 models with pre-programmed ribbon cables require no programming and can be installed directly without angle adjustment. Only blank ribbon cables support reprogramming; these can be reprogrammed multiple times to overwrite previous settings. Original pre-programmed ribbon cables cannot be reprogrammed
3. Compatible Models:
- For MacBook Pro 14-inch / 16-inch: A2141, A2442, A2465, A2779, A2780, A2961, A2592
- For MacBook Air 13-inch: A2981, A3115, A3240
- For MacBook Air 15-inch: A2941, A3114, A2241
4. Weight: about 19.7g

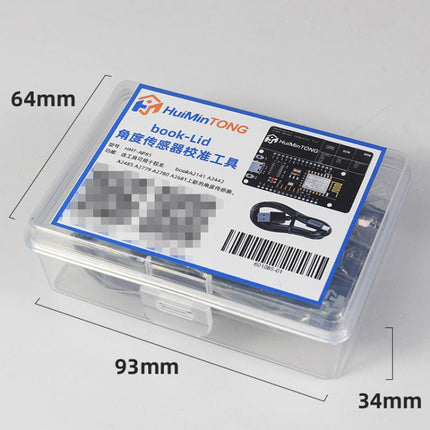

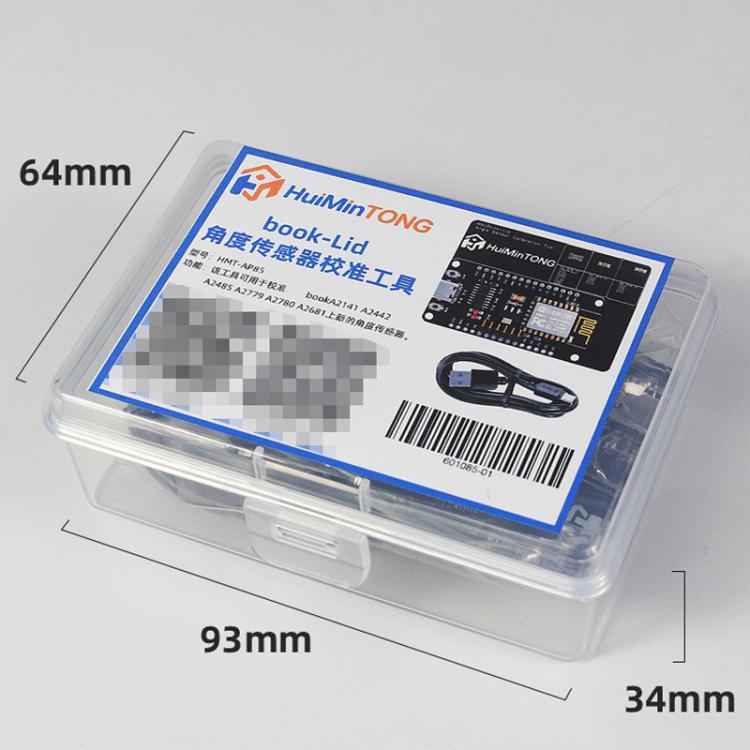

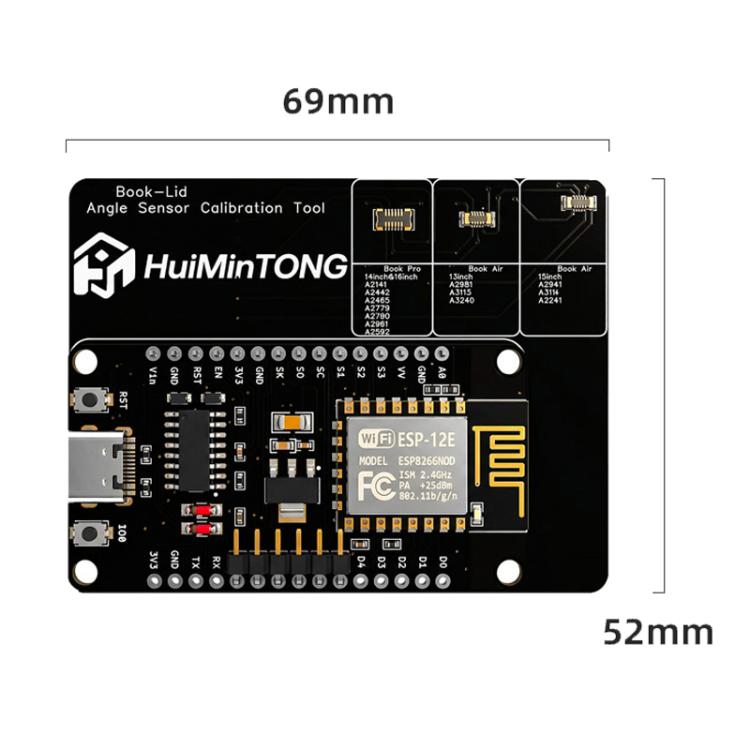

5. Size: about 6.9 x 5.2cm


Specification:
General
Compatible with
Apple:  MacBook Air 13.6 inch A3240 2025 (M4) , MacBook Air 15.3 inch A3114 (2024) , MacBook Pro 16.2 inch A2780 (2023) , MacBook Pro 14.2 inch A2779 (2023) , MacBook Pro 14.2 inch A2442 (2021) , MacBook Pro 16 inch (2141)
Package Weight
One Package Weight 0.05kgs / 0.12lb
One Package Size 11cm * 8cm * 5cm / 4.33inch * 3.15inch * 1.97inch
Qty per Carton 190
Carton Weight 10.50kgs / 23.15lb
Carton Size 51cm * 38cm * 33cm / 20.08inch * 14.96inch * 12.99inch
Loading Container 20GP: 416 cartons * 190 pcs = 79040 pcs
40HQ: 967 cartons * 190 pcs = 183730 pcs

For Macbook Pro / Air HuiMinTONG HMT-AP85 Angle Sensor Calibration Tool

Product form

SKU: TBD06065883

  • In stock (Processing Time 1 - 72 hours)

€137,56

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Briefly press the 10 key to switch to the desired operating mode. Determine the currently selected mode by the LED flash pattern (1, 2, or 3 respectively). Note: Calibration must be performed with the cover closed. In Mode 1, press and hold the IO key for one second to calibrate PRO series models A2141, A2442, A2485, A2779, and A2780. If calibration succeeds, the LED will illuminate for 3 seconds. In Mode 2, press the IO key for one second to calibrate AIR series model A2681. If the calibration record is successfully completed, the LED will illuminate for 3 seconds. A2780. If calibration succeeds, the LED will illuminate for 3 seconds. In Mode 2, press the IO button for one second to calibrate the AIR series A2681. If calibration records are successfully completed, the LED indicator will illuminate for 3 seconds. In Mode 3, press and hold the 10 key for one second to activate the sleep angle recognition function (LED illuminates when the cover is open; LED turns off when the cover is closed)
    2. Before operating in Modes 1 and 2, the tool checks the device via LED flashes. If no sensor is connected, the LED flashes 3 times. If a sensor removed from another device is connected, it flashes 6 times. 2681 and 2941 models with pre-programmed ribbon cables require no programming and can be installed directly without angle adjustment. Only blank ribbon cables support reprogramming; these can be reprogrammed multiple times to overwrite previous settings. Original pre-programmed ribbon cables cannot be reprogrammed
    3. Compatible Models:
    - For MacBook Pro 14-inch / 16-inch: A2141, A2442, A2465, A2779, A2780, A2961, A2592
    - For MacBook Air 13-inch: A2981, A3115, A3240
    - For MacBook Air 15-inch: A2941, A3114, A2241
    4. Weight: about 19.7g
    5. Size: about 6.9 x 5.2cm


    Specification:
    General
    Compatible with
    Apple:  MacBook Air 13.6 inch A3240 2025 (M4) , MacBook Air 15.3 inch A3114 (2024) , MacBook Pro 16.2 inch A2780 (2023) , MacBook Pro 14.2 inch A2779 (2023) , MacBook Pro 14.2 inch A2442 (2021) , MacBook Pro 16 inch (2141)
    Package Weight
    One Package Weight 0.05kgs / 0.12lb
    One Package Size 11cm * 8cm * 5cm / 4.33inch * 3.15inch * 1.97inch
    Qty per Carton 190
    Carton Weight 10.50kgs / 23.15lb
    Carton Size 51cm * 38cm * 33cm / 20.08inch * 14.96inch * 12.99inch
    Loading Container 20GP: 416 cartons * 190 pcs = 79040 pcs
    40HQ: 967 cartons * 190 pcs = 183730 pcs
