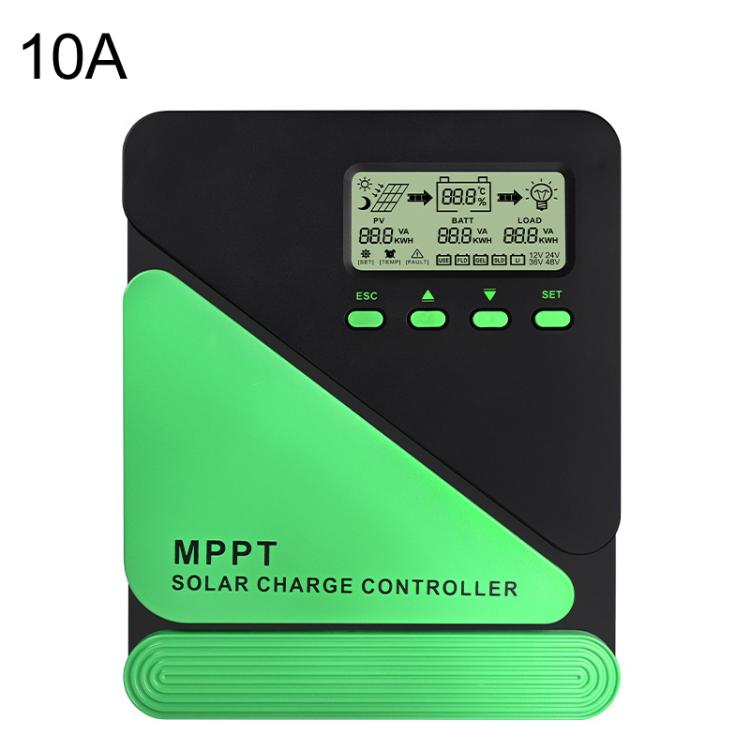

GM-D 10A MPPT Solar Charge Controller 12V/24V Auto Recognition With Dual 5V/3A USB Ports

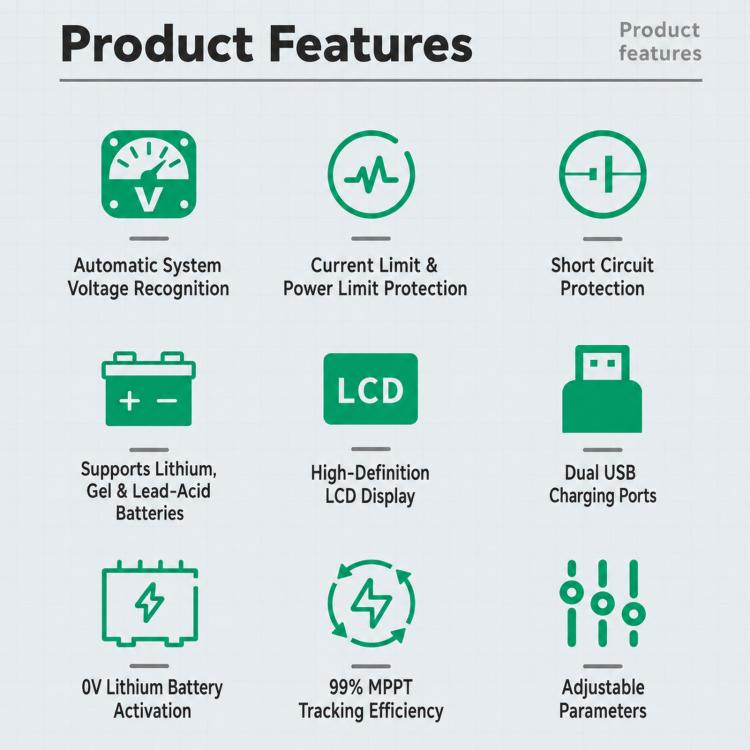

1. Equipped with a high-precision MPPT (Maximum Power Point Tracking) algorithm, achieving a tracking efficiency greater than 99% and a conversion efficiency up to 98%. Maximizes energy capture from solar panels even on rainy days or in frequently changing light conditions.
2. Automatically recognizes 12V-24V system voltages and is fully compatible with Gel, Sealed, Flooded lead-acid batteries, and Lithium batteries. Features a 0V lithium battery activation function and supports customizable operating parameters to flexibly adapt to various energy storage systems.

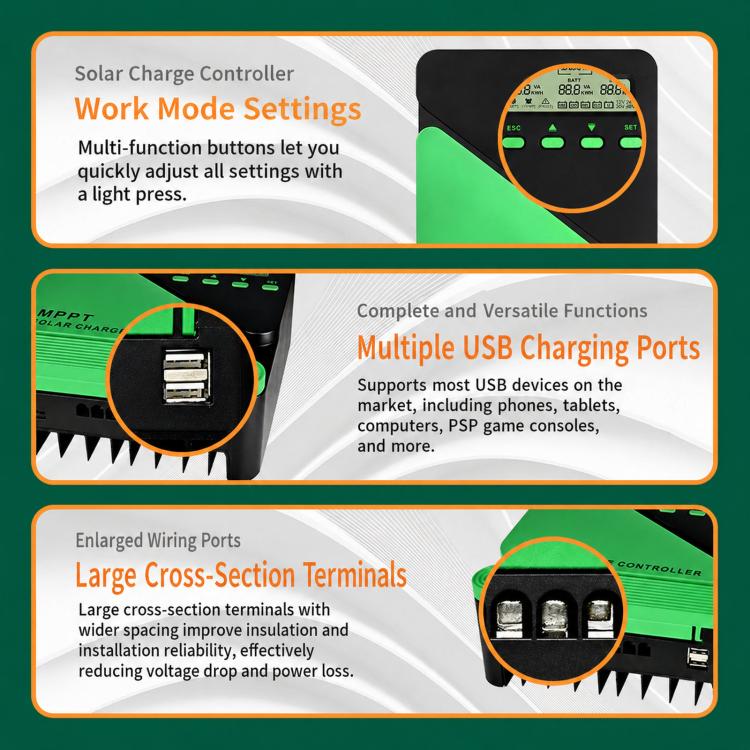

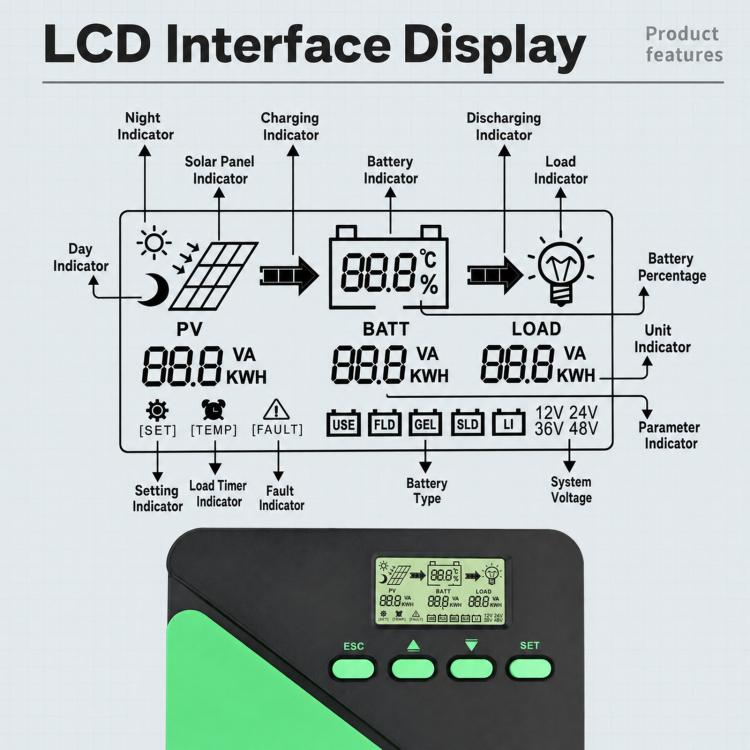

3. Features a clear and intuitive LCD screen with 4 independent buttons for real-time monitoring of PV voltage, charging current, and system status. Built-in dual USB ports (total output 5V 3A) provide convenient direct charging for mobile phones and digital devices.
4. Upgraded with large-cross-section, widely spaced wiring terminals to significantly improve insulation performance and installation reliability while effectively reducing line voltage drop and heat loss. Aluminum alloy heat sink on the back ensures stable full-power operation under high currents.
5. Integrated with multiple safety protections, including current and power limiting, short circuit, reverse polarity, and overcharge protection. Reserved RS485 communication interface allows optional WiFi/Bluetooth module connection for mobile APP remote monitoring.

Specifications:
1. Model: GM-D10 / GM-D20 / GM-D30 / GM-D40 / GM-D50 / GM-D60
2. System Voltage: 12V/24V Auto Recognition
3. No-Load Loss: <=0.4W
4. Max Solar Input Voltage: 50V VOC for GM-D10/D20; 100V VOC for GM-D30/D40/D50/D60
5. Battery Voltage: 9-32V
6. Max Power Voltage Range: Battery Voltage +2V to 50V for GM-D10/D20; Battery Voltage +2V to 100V for GM-D30~D60
7. Rated Charge Current: GM-D10 (10A) / GM-D20 (20A) / GM-D30 (30A) / GM-D40 (40A) / GM-D50 (50A) / GM-D60 (60A)
8. Rated Load Current: 20A
9. USB Output: 5V/3A
10. Max Solar Panel Input Power:
-- GM-D10: 120W/12V, 240W/24V
-- GM-D20: 240W/12V, 480W/24V
-- GM-D30: 360W/12V, 720W/24V
-- GM-D40: 480W/12V, 960W/24V
-- GM-D50: 600W/12V, 1200W/24V
-- GM-D60: 720W/12V, 1440W/24V

General Electrical & Physical Parameters:
1. Conversion Efficiency: <=98%
2. MPPT Tracking Efficiency: >99%
3. Temperature Compensation Coefficient: -2mV/deg C/2V (Default)
4. Operating Temperature: -10deg C ~ +65deg C
5. Protection Degree: IP21
6. Electromagnetic Compatibility: Complies with EN61000, EN55022, EN55024
7. Communication Method: RS485 (Optional)
8. Altitude: <=3000m
9. Net Weight: GM-D10/D20 (400g) / GM-D30/D40 (1080g) / GM-D50/D60 (1430g)

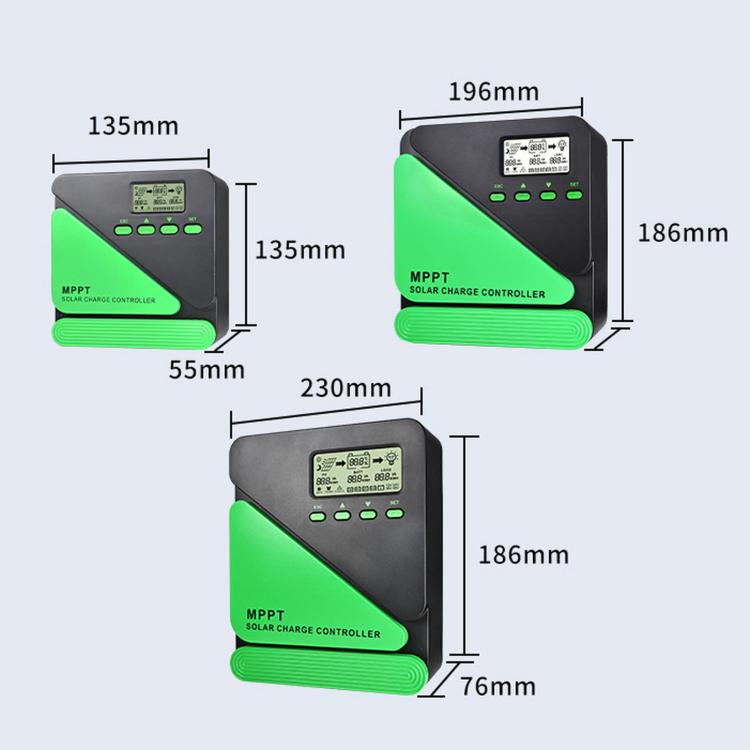

10. Product Dimensions: GM-D10/D20 (135x135x55mm) / GM-D30/D40 (196x186x76mm) / GM-D50/D60 (230x186x76mm)
Specification:
Package Weight
One Package Weight 0.52kgs / 1.16lb
One Package Size 20cm * 19cm * 11cm / 7.87inch * 7.48inch * 4.33inch
Qty per Carton 30
Carton Weight 13.50kgs / 29.76lb
Carton Size 54cm * 44cm * 35cm / 21.26inch * 17.32inch * 13.78inch
Loading Container 20GP: 320 cartons * 30 pcs = 9600 pcs
40HQ: 744 cartons * 30 pcs = 22320 pcs

GM-D 10A MPPT Solar Charge Controller 12V/24V Auto Recognition With Dual 5V/3A USB Ports

Product form

SKU: TBD0607169901

  • In stock (Processing Time 1 - 72 hours)

€43,15

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Equipped with a high-precision MPPT (Maximum Power Point Tracking) algorithm, achieving a tracking efficiency greater than 99% and a conversion efficiency up to 98%. Maximizes energy capture from solar panels even on rainy days or in frequently changing light conditions.
    2. Automatically recognizes 12V-24V system voltages and is fully compatible with Gel, Sealed, Flooded lead-acid batteries, and Lithium batteries. Features a 0V lithium battery activation function and supports customizable operating parameters to flexibly adapt to various energy storage systems.
    3. Features a clear and intuitive LCD screen with 4 independent buttons for real-time monitoring of PV voltage, charging current, and system status. Built-in dual USB ports (total output 5V 3A) provide convenient direct charging for mobile phones and digital devices.
    4. Upgraded with large-cross-section, widely spaced wiring terminals to significantly improve insulation performance and installation reliability while effectively reducing line voltage drop and heat loss. Aluminum alloy heat sink on the back ensures stable full-power operation under high currents.
    5. Integrated with multiple safety protections, including current and power limiting, short circuit, reverse polarity, and overcharge protection. Reserved RS485 communication interface allows optional WiFi/Bluetooth module connection for mobile APP remote monitoring.

    Specifications:
    1. Model: GM-D10 / GM-D20 / GM-D30 / GM-D40 / GM-D50 / GM-D60
    2. System Voltage: 12V/24V Auto Recognition
    3. No-Load Loss: <=0.4W
    4. Max Solar Input Voltage: 50V VOC for GM-D10/D20; 100V VOC for GM-D30/D40/D50/D60
    5. Battery Voltage: 9-32V
    6. Max Power Voltage Range: Battery Voltage +2V to 50V for GM-D10/D20; Battery Voltage +2V to 100V for GM-D30~D60
    7. Rated Charge Current: GM-D10 (10A) / GM-D20 (20A) / GM-D30 (30A) / GM-D40 (40A) / GM-D50 (50A) / GM-D60 (60A)
    8. Rated Load Current: 20A
    9. USB Output: 5V/3A
    10. Max Solar Panel Input Power:
    -- GM-D10: 120W/12V, 240W/24V
    -- GM-D20: 240W/12V, 480W/24V
    -- GM-D30: 360W/12V, 720W/24V
    -- GM-D40: 480W/12V, 960W/24V
    -- GM-D50: 600W/12V, 1200W/24V
    -- GM-D60: 720W/12V, 1440W/24V

    General Electrical & Physical Parameters:
    1. Conversion Efficiency: <=98%
    2. MPPT Tracking Efficiency: >99%
    3. Temperature Compensation Coefficient: -2mV/deg C/2V (Default)
    4. Operating Temperature: -10deg C ~ +65deg C
    5. Protection Degree: IP21
    6. Electromagnetic Compatibility: Complies with EN61000, EN55022, EN55024
    7. Communication Method: RS485 (Optional)
    8. Altitude: <=3000m
    9. Net Weight: GM-D10/D20 (400g) / GM-D30/D40 (1080g) / GM-D50/D60 (1430g)
    10. Product Dimensions: GM-D10/D20 (135x135x55mm) / GM-D30/D40 (196x186x76mm) / GM-D50/D60 (230x186x76mm)
    Specification:
    Package Weight
    One Package Weight 0.52kgs / 1.16lb
    One Package Size 20cm * 19cm * 11cm / 7.87inch * 7.48inch * 4.33inch
    Qty per Carton 30
    Carton Weight 13.50kgs / 29.76lb
    Carton Size 54cm * 44cm * 35cm / 21.26inch * 17.32inch * 13.78inch
    Loading Container 20GP: 320 cartons * 30 pcs = 9600 pcs
    40HQ: 744 cartons * 30 pcs = 22320 pcs
