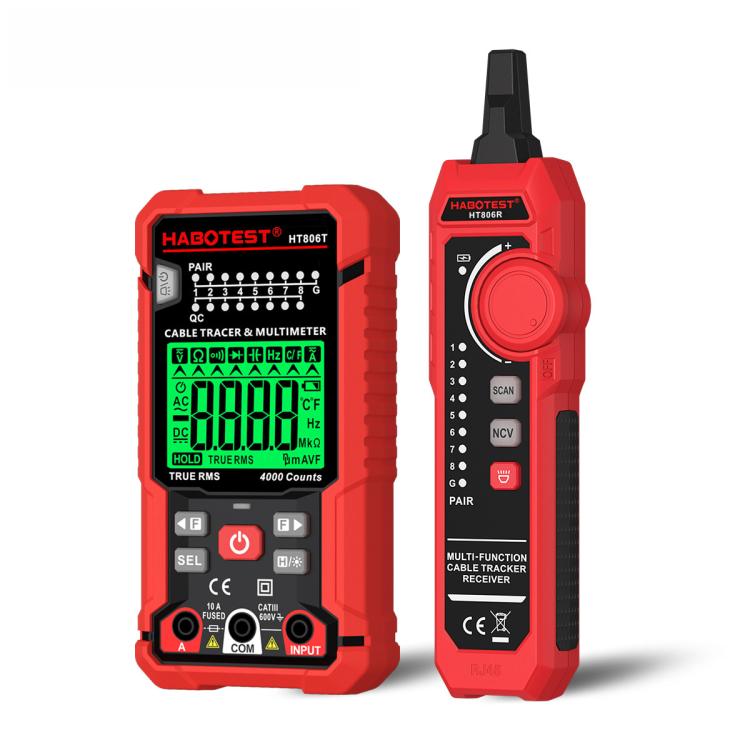

HABOTEST HT806TR 2-In-1 Network Cable Tracer & Multimeter Anti-Interference Wire Tracker(Red)

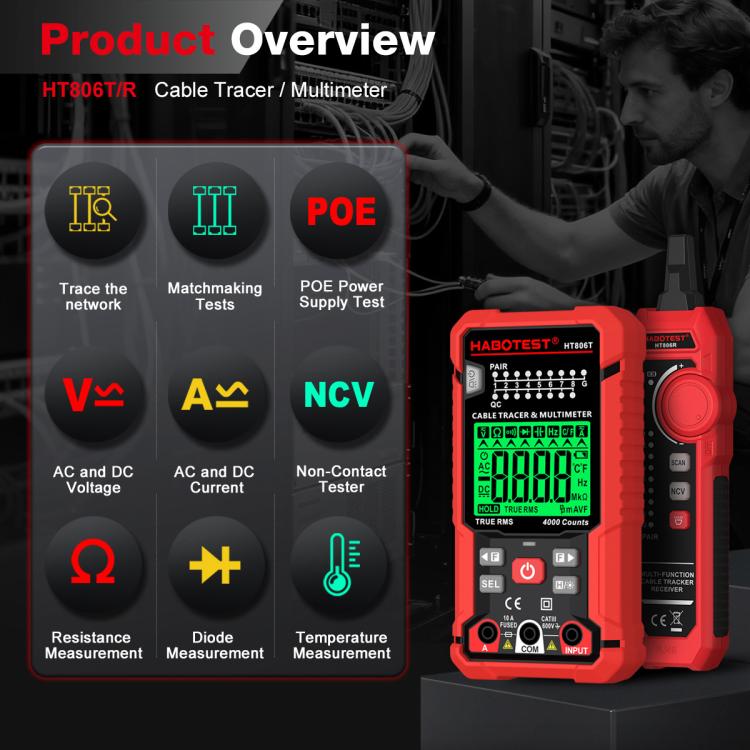

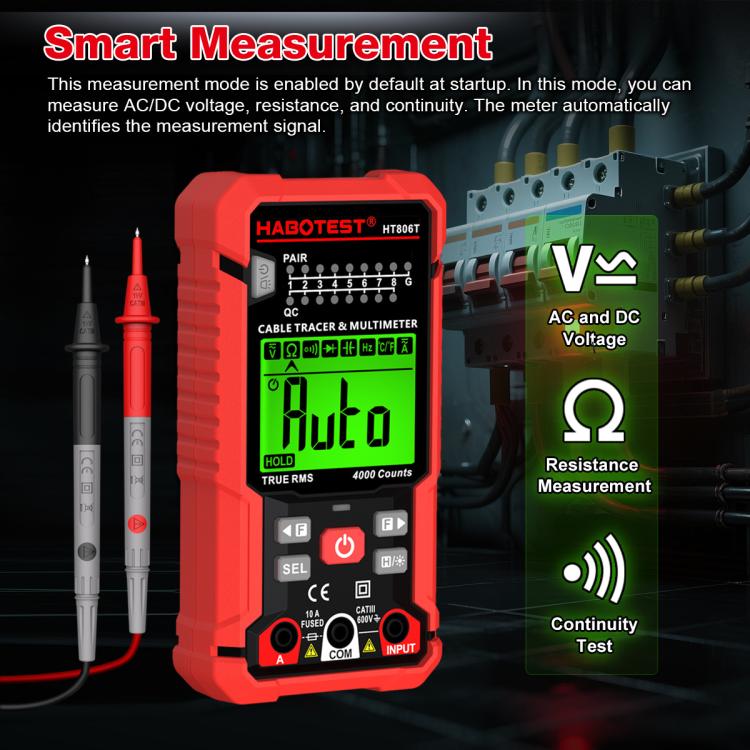

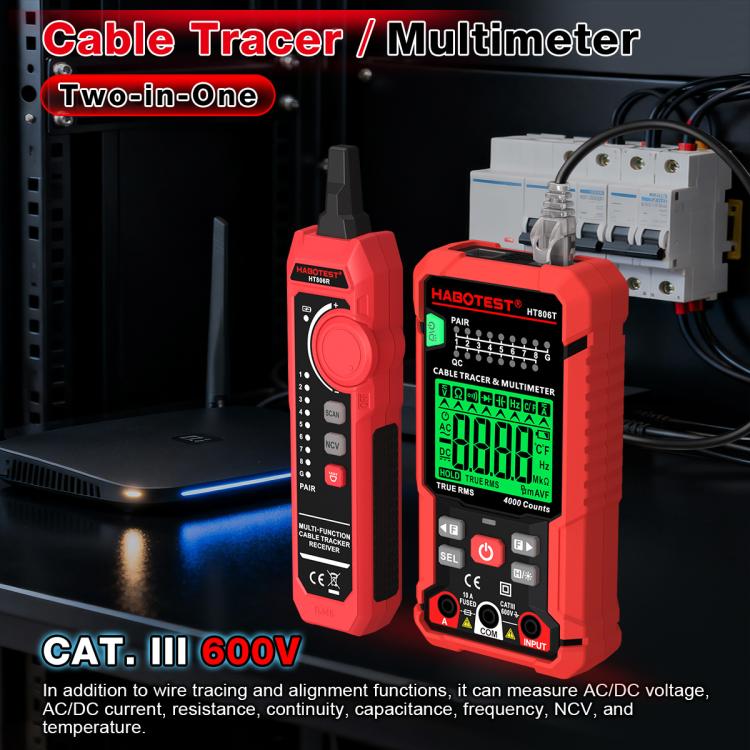

Overview: Innovatively combines an anti-interference network wire tracker with a True RMS 6000 counts digital multimeter. Effortlessly trace RJ45 ethernet cables, RJ11 telephone wires, and measure AC/DC voltage, current, resistance, capacitance, frequency, and temperature without carrying multiple heavy instruments.

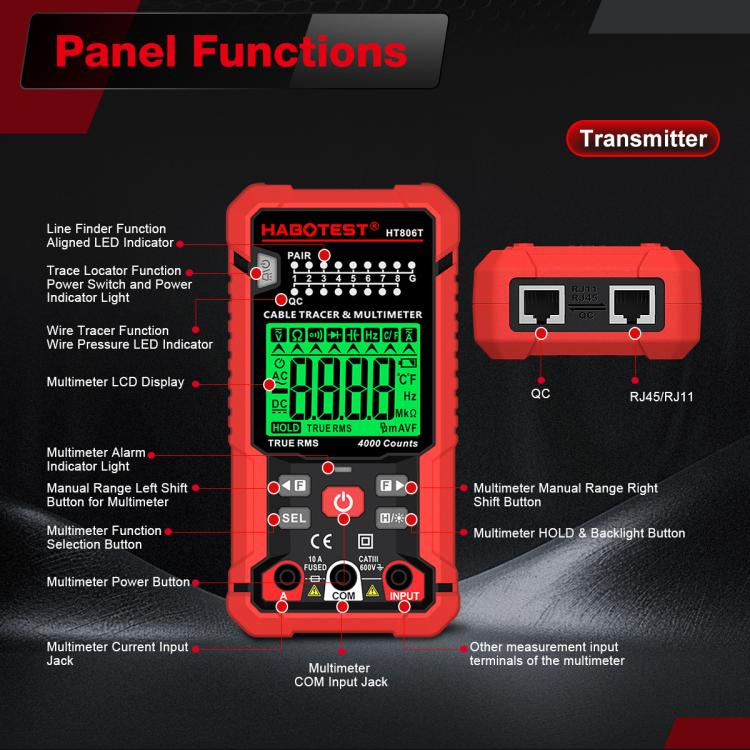

HT806T Transmitter:
1. Cable Types: CAT 5, CAT 6

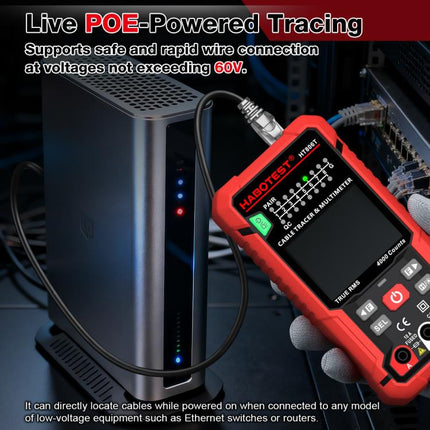

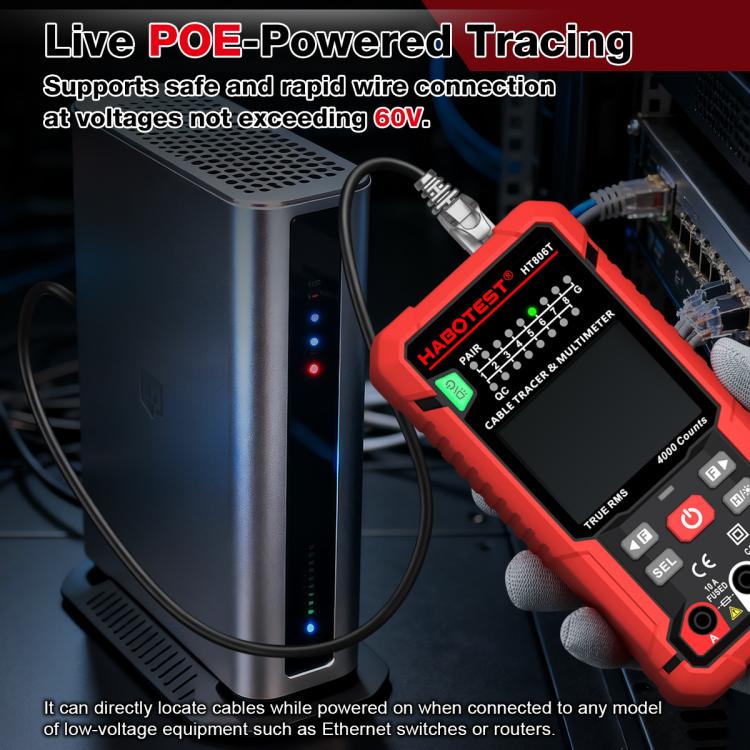

2. Anti-burn Protection: Withstand Voltage 60V

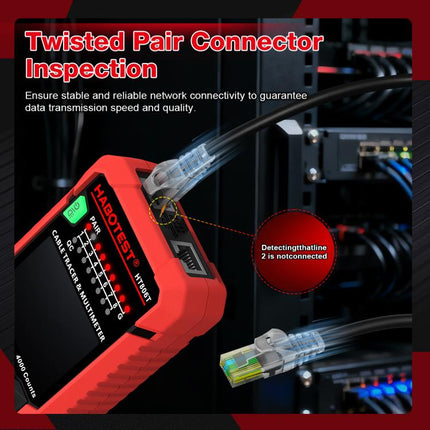

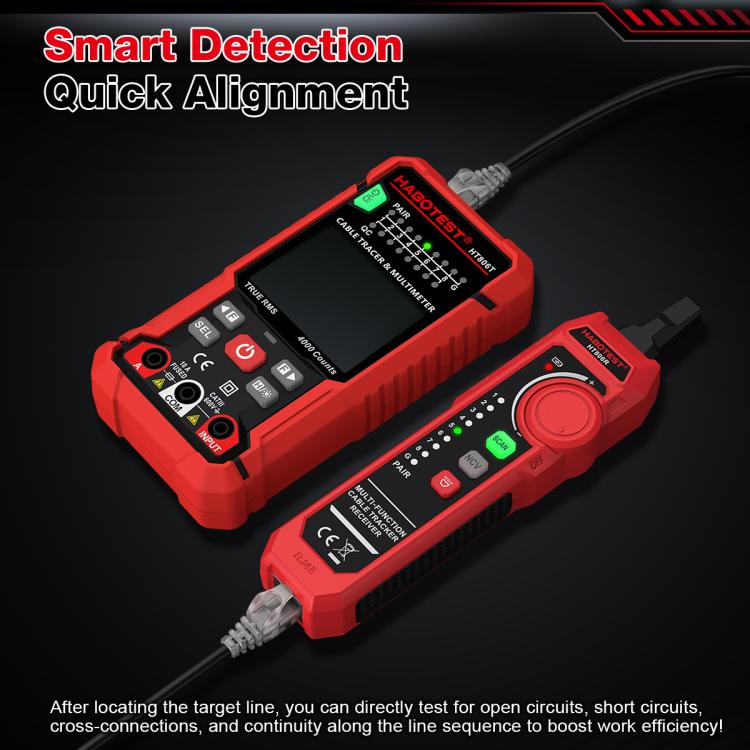

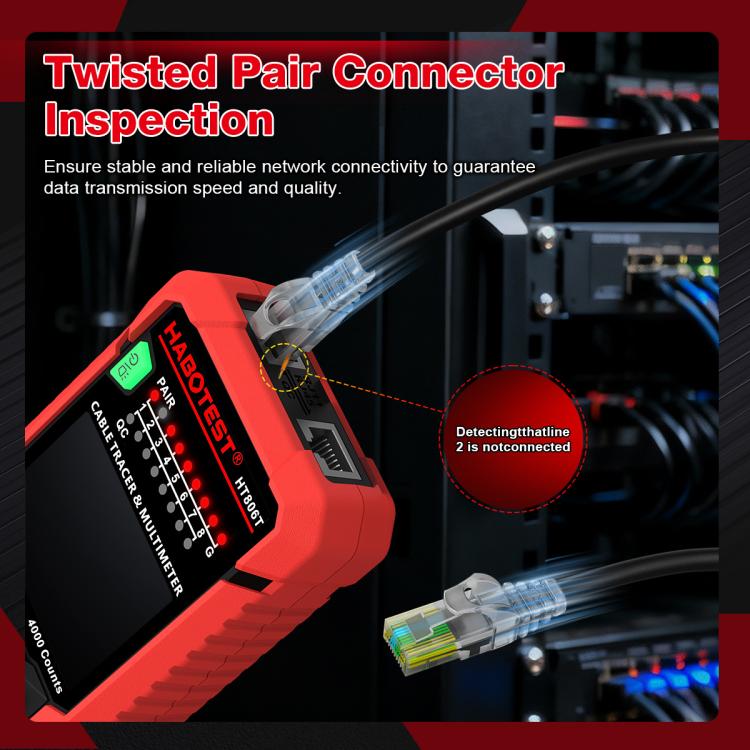

3. Main Functions: Cable Tracing, Wire Alignment, Crimping Test, Telephone Line Status Test
4. Crimping Response Speed: Less than 1 sec

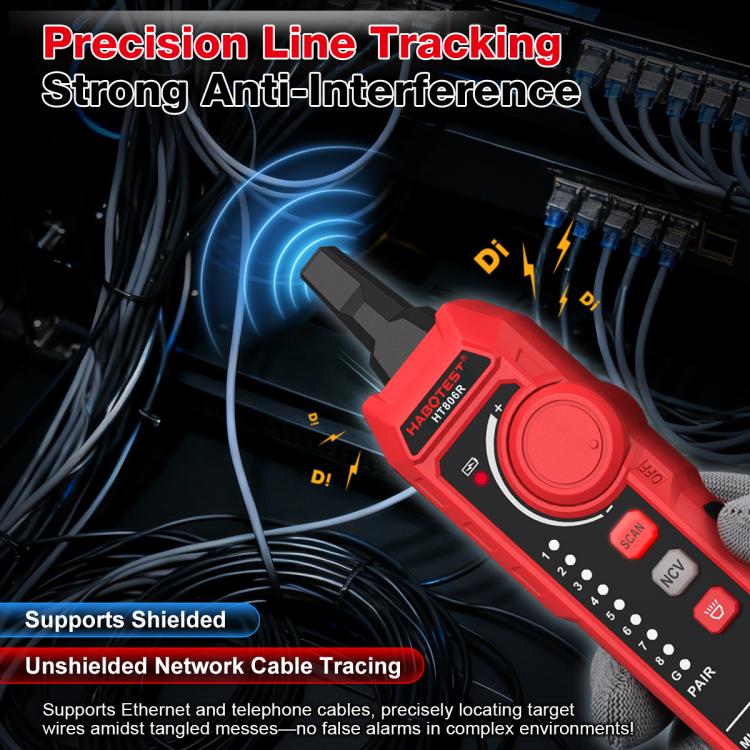

5. Anti-interference Line Tracing: Through technical measures, the receiver only responds to the target cable while ignoring adjacent interference signals
6. Interface Types: RJ11, RJ45
7. Signal Transmission Distance: Greater than 3000m
8. AC Voltage: 4V / 40V / 400V / 600V
9. DC Voltage: 400mV / 4V / 40V / 400V / 600V

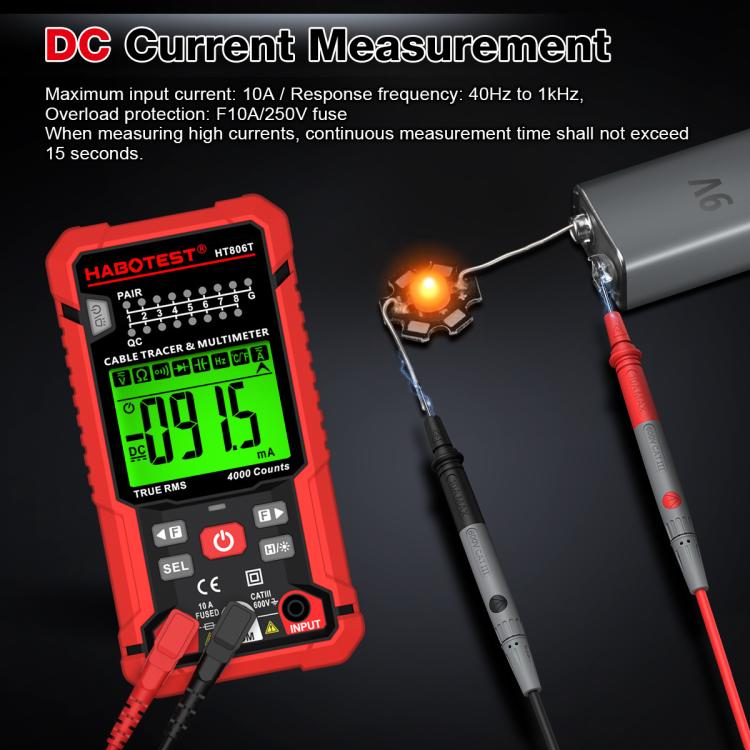

10. AC/DC Current: 400mA / 4A / 10A
11. Frequency: 4Hz / 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz
12. Capacitance: 4nF / 40nF / 400nF / 4uF / 40uF / 400uF / 4mF
13. Resistance: 400 ohm / 4k ohm / 40k ohm / 400k ohm / 4M ohm / 40M ohm
14. Continuity Test: Buzzer sounds and indicator light turns on when resistance is less than approx. 50 ohm
15. Diode: Displays diode forward voltage drop, open circuit voltage approx. 3V

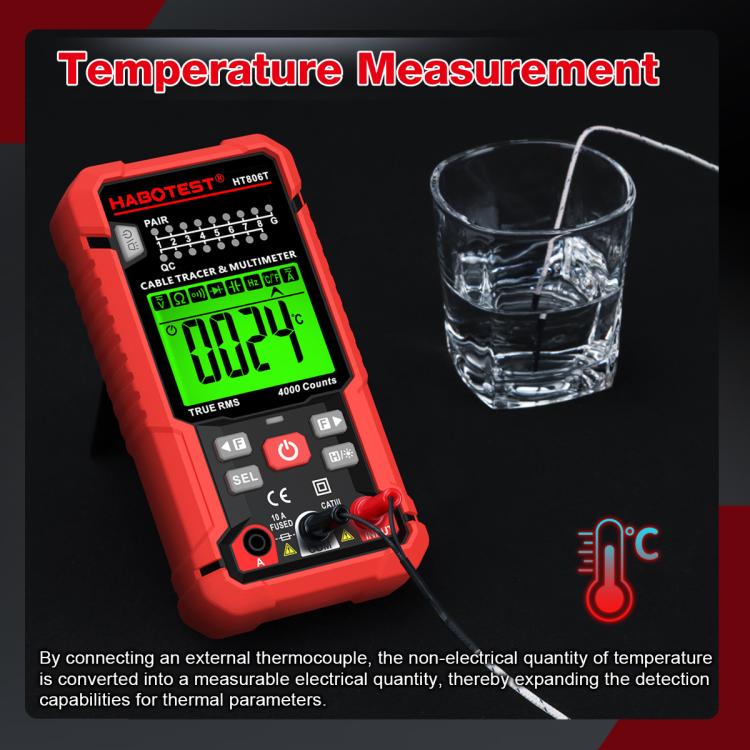

16. Temperature: -40 to 1000 deg C / -40 to 1832 deg F
17. Max Voltage between Terminal and Earth Ground: 600V
18. Display Counts: 6000 counts

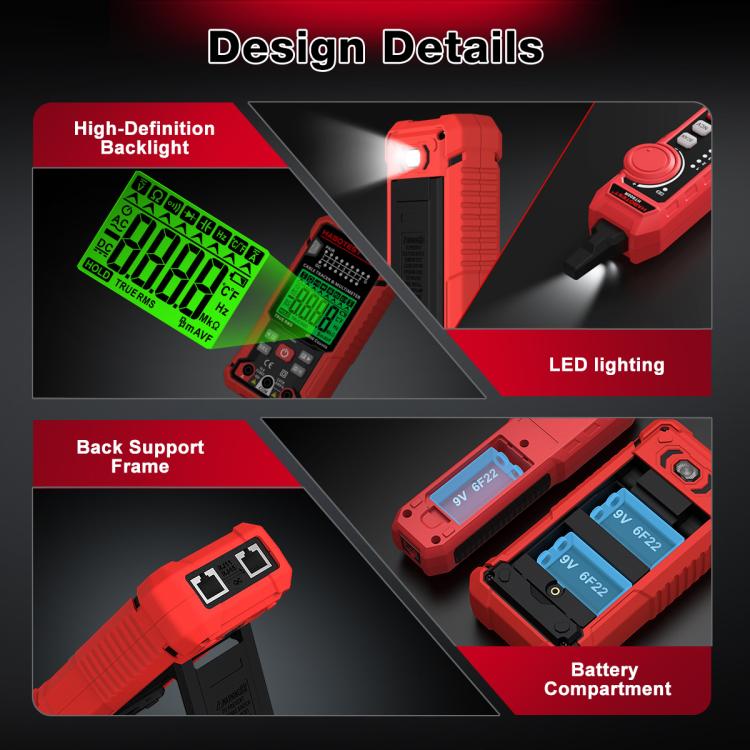

19. Screen: Backlit Display Screen
20. Over-range Indication: Displays "OL"
21. Low Battery Indication: Battery symbol displayed when battery voltage is lower than normal operating voltage
22. Input Polarity Indication: Automatically displays "-" sign
23. Auto Power Off: 30 min
24. Low Battery Alarm: Battery symbol displayed when battery voltage is lower than normal operating voltage

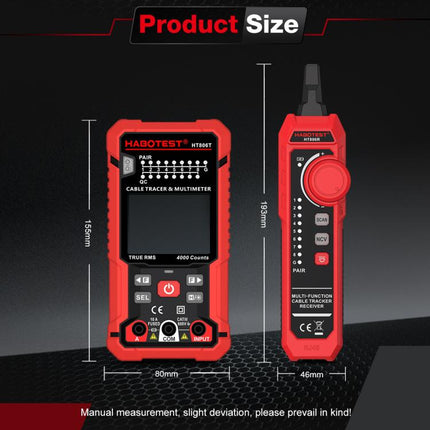

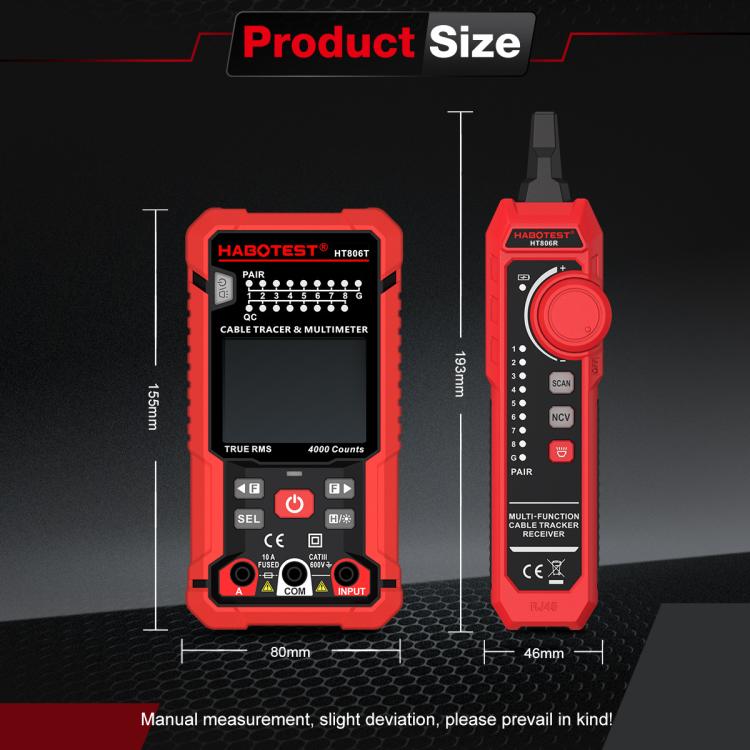

25. Dimensions: 155 mm x 80 mm x 42 mm
26. Product Weight: Approx. 240 g
27. Power Supply: 2 x 9V 6F22 Batteries (Batteries not included)
28. Safety Rating: CAT.III 600V

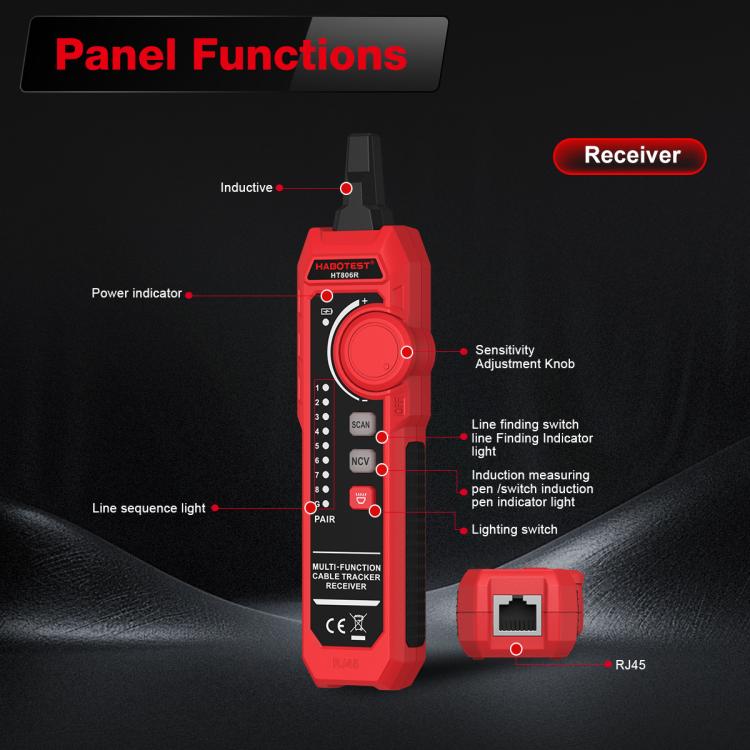

HT806R Receiver:
1. Compatible Network Cables: CAT 5, CAT 6
2. Anti-burn Protection: Withstand Voltage 60V

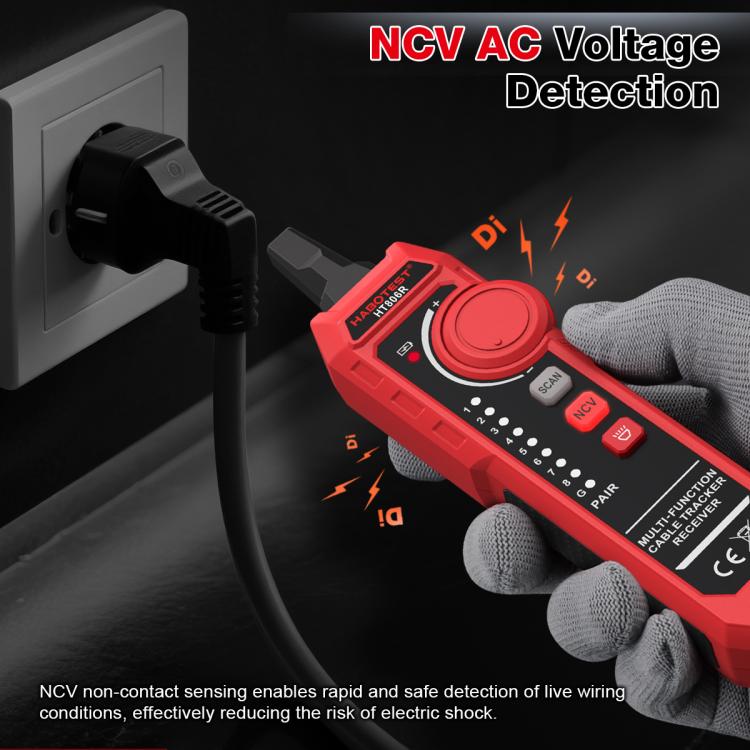

3. Main Functions: Cable Tracing, Wire Alignment, NCV Voltage Detection, Flashlight
4. Sensitivity Adjustment: Knob adjusting sensitivity
5. Interface Type: RJ45
6. Low Battery Alarm: Low battery alert supported
7. Dimensions: 193 mm x 46 mm x 30 mm
8. Product Weight: Approx. 86 g
9. Power Supply: 1 x 9V 6F22 Battery (Battery not included)
Specification:
Package Weight
One Package Weight 0.60kgs / 1.33lb
One Package Size 25cm * 18cm * 8cm / 9.84inch * 7.09inch * 3.15inch
Qty per Carton 28
Carton Weight 18.30kgs / 40.34lb
Carton Size 48cm * 47cm * 33cm / 18.9inch * 18.5inch * 12.99inch
Loading Container 20GP: 358 cartons * 28 pcs = 10024 pcs
40HQ: 831 cartons * 28 pcs = 23268 pcs
