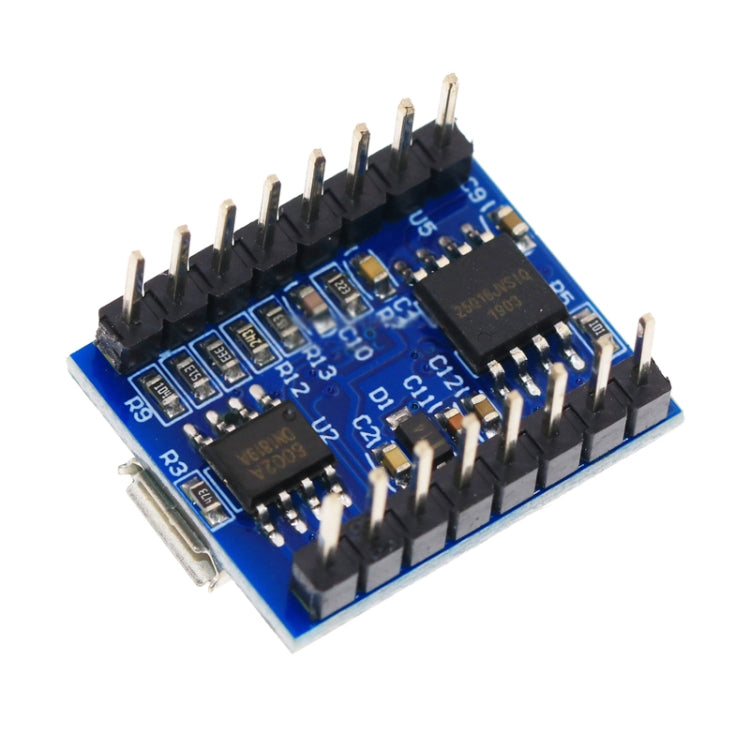

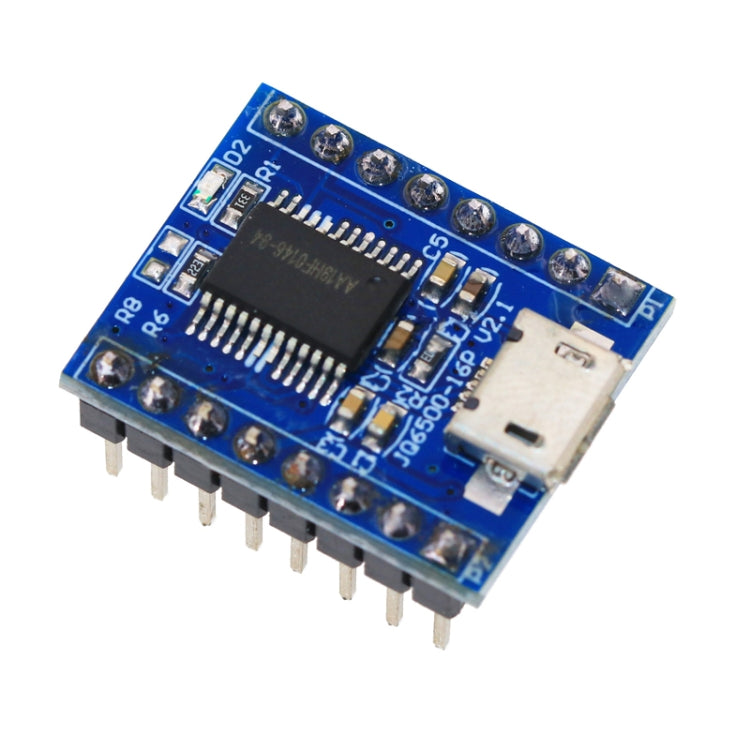

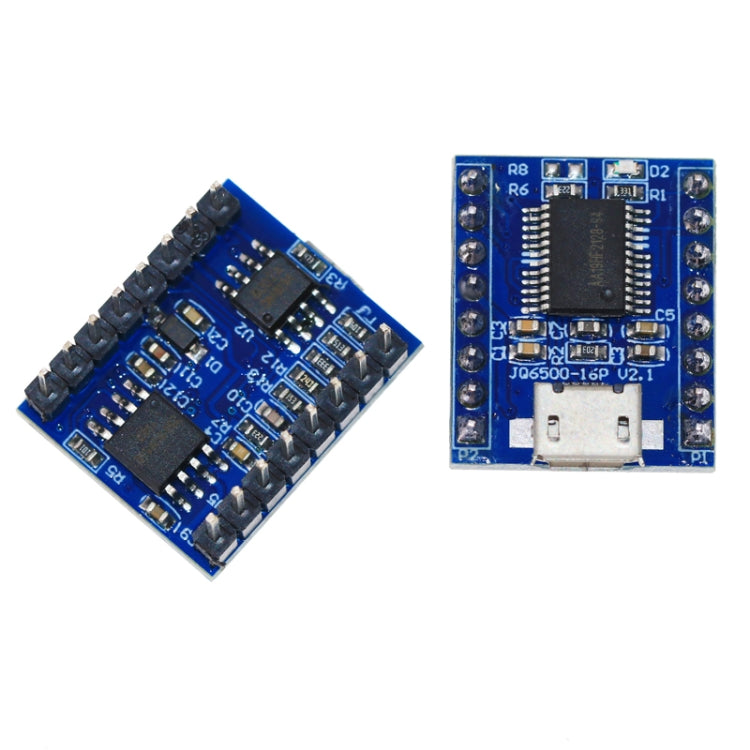

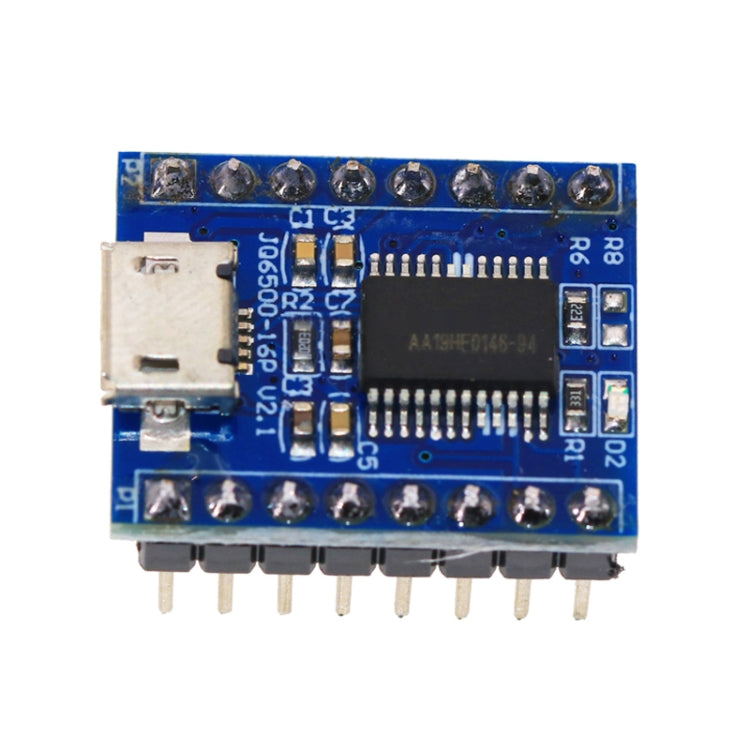

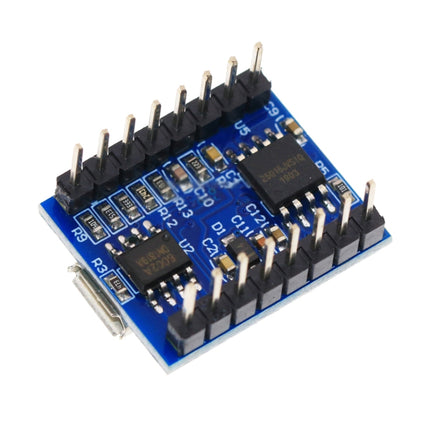

JQ6500 Voice Module MP3 Module MCU Serial Control Announcement 1 To 1 5-Way Control Music IC


-This module uses SPI FLASH, is measured in bits, hard disk is measured in bytes, 8bit = 1byte, 16Mbit = 2Mbyte is equivalent to the computer display 2M, please buy customers to distinguish between good capacity

-Function:
1. Support sample rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48
2. 24-bit DAC output, dynamic range support 90dB, signal-to-noise ratio support 85dB
3. Fully support FAT16, FAT32 file system, large support for 32G TF card, support for 32G U disk, 64M bytes of NORFLASH
4. Multiple control modes, parallel port control mode, serial port mode, AD key control mode
5. Broadcast language interrupt function, can pause the background music being played
6. Audio data sorted by folder, supports up to 100 folders, every other folder can be assigned 1000 songs
7. 30 levels of volume adjustable, 10 levels of EQ adjustable
8. Spi flash can be plugged in, connected to the computer can display the disk of spi flash to update the content
9. You can control the playback of specified music through the serial port of the microcontroller
10. In key mode, you can choose the playback mode: interruptible, non-interruptible, single song cycle, big cycle (interruptible: that is, in the process of playback, press the key will interrupt the current state to perform new; non-interruptible: that is, in the process of playback, press any key is invalid until the end of playback of the current track to be effective)

-Application:
1. Vehicle navigation voice announcement
2. Highway transportation inspection, toll station voice prompts
3. Train station, bus station security check voice prompts
4. Power, communication, financial business hall voice prompts
5. Voice prompts for vehicle entry and exit channel verification
6. Border control channel voice prompts
7. Multi-channel voice alarm or equipment operation guidance voice
8. Electric sightseeing car safe driving voice notification
9. Automatic alarm for electromechanical equipment failure
10. Firefighting voice alarm prompts
11. Automatic broadcasting equipment, timed broadcasting

-Basic parameter description:
1. UART interface: standard serial port, TTL level, baud rate can be set
2. Input voltage: power supply in 3.2V-5V, good for 4.2V
3. Rated current: 20ma
4. Operating temperature: -40 degrees -70 degrees
5. MP3 file format: support for all bit rate 11172-3 and ISO13813-3 layer3 audio decoding, sample rate support (KHZ): 8/11.025/12/16/22.05/24/32/44.1/48, support for Normal, Jazz, Classic, Pop, Rock, and other sound effects


Specification:
Package Weight
One Package Weight 0.01kgs / 0.03lb
One Package Size 8cm * 5cm * 2cm / 3.15inch * 1.97inch * 0.79inch
Qty per Carton 960
Carton Weight 10.70kgs / 23.59lb
Carton Size 50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch
Loading Container 20GP: 490 cartons * 960 pcs = 470400 pcs
40HQ: 1137 cartons * 960 pcs = 1091520 pcs

JQ6500 Voice Module MP3 Module MCU Serial Control Announcement 1 To 1 5-Way Control Music IC

Product form

SKU: TBD06055804

  • In stock (Processing Time 1 - 72 hours)

€8,07

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    -This module uses SPI FLASH, is measured in bits, hard disk is measured in bytes, 8bit = 1byte, 16Mbit = 2Mbyte is equivalent to the computer display 2M, please buy customers to distinguish between good capacity

    -Function:
    1. Support sample rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48
    2. 24-bit DAC output, dynamic range support 90dB, signal-to-noise ratio support 85dB
    3. Fully support FAT16, FAT32 file system, large support for 32G TF card, support for 32G U disk, 64M bytes of NORFLASH
    4. Multiple control modes, parallel port control mode, serial port mode, AD key control mode
    5. Broadcast language interrupt function, can pause the background music being played
    6. Audio data sorted by folder, supports up to 100 folders, every other folder can be assigned 1000 songs
    7. 30 levels of volume adjustable, 10 levels of EQ adjustable
    8. Spi flash can be plugged in, connected to the computer can display the disk of spi flash to update the content
    9. You can control the playback of specified music through the serial port of the microcontroller
    10. In key mode, you can choose the playback mode: interruptible, non-interruptible, single song cycle, big cycle (interruptible: that is, in the process of playback, press the key will interrupt the current state to perform new; non-interruptible: that is, in the process of playback, press any key is invalid until the end of playback of the current track to be effective)

    -Application:
    1. Vehicle navigation voice announcement
    2. Highway transportation inspection, toll station voice prompts
    3. Train station, bus station security check voice prompts
    4. Power, communication, financial business hall voice prompts
    5. Voice prompts for vehicle entry and exit channel verification
    6. Border control channel voice prompts
    7. Multi-channel voice alarm or equipment operation guidance voice
    8. Electric sightseeing car safe driving voice notification
    9. Automatic alarm for electromechanical equipment failure
    10. Firefighting voice alarm prompts
    11. Automatic broadcasting equipment, timed broadcasting

    -Basic parameter description:
    1. UART interface: standard serial port, TTL level, baud rate can be set
    2. Input voltage: power supply in 3.2V-5V, good for 4.2V
    3. Rated current: 20ma
    4. Operating temperature: -40 degrees -70 degrees
    5. MP3 file format: support for all bit rate 11172-3 and ISO13813-3 layer3 audio decoding, sample rate support (KHZ): 8/11.025/12/16/22.05/24/32/44.1/48, support for Normal, Jazz, Classic, Pop, Rock, and other sound effects


    Specification:
    Package Weight
    One Package Weight 0.01kgs / 0.03lb
    One Package Size 8cm * 5cm * 2cm / 3.15inch * 1.97inch * 0.79inch
    Qty per Carton 960
    Carton Weight 10.70kgs / 23.59lb
    Carton Size 50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch
    Loading Container 20GP: 490 cartons * 960 pcs = 470400 pcs
    40HQ: 1137 cartons * 960 pcs = 1091520 pcs
