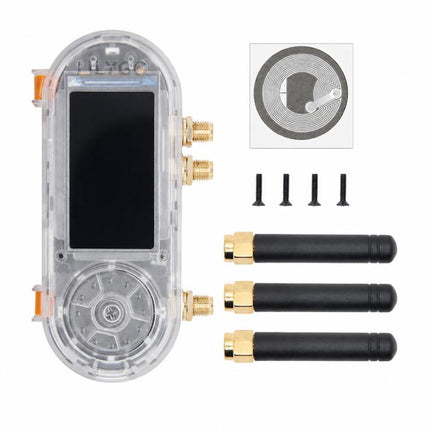

LILYGO T-Embed CC1101 Plus ESP32-S3 1.9 inch LCD PN532 Module, Type:External Antenna(Transparent)

1. Powerful ESP32-S3 Core & Dual Connectivity: Powered by the ESP32-S3 dual-core LX7 microprocessor with 16MB Flash and 8MB PSRAM. Built-in 2.4 GHz Wi-Fi and BLE 5, plus an added nRF24L01 2.4GHz ISM transceiver in the Plus version, providing high-speed processing and versatile wireless development.
2. Multi-Frequency RF & Sub-1GHz Transceiver: Equipped with the CC1101 low-power Sub-1 GHz RF Transceiver, supporting wide frequency bands including 300–348MHz, 387–464MHz, and 779–928MHz. Perfect for IoT protocol analysis, remote control signal testing, and wireless communication projects.
3. Integrated PN532 NFC Module: Features an onboard PN532 NFC (13.56 MHz) I2C transceiver module. Enables quick tag reading/writing, card emulation, and RFID experimentation right out of the box without needing extra external expansion modules.
4. Vibrant 1.9 inch LCD Display & RGB Lighting: Built with a crisp 1.9-inch ST7789V IPS TFT LCD screen featuring a 170x320 resolution for clear UI navigation. Includes 8 x WS2812 RGB LEDs, onboard microphone, IR transceiver, and speaker connector for interactive projects.
5. Flexible Dual Power System & Portable Design: Supports dual power supply options via USB or the built-in 1300mAh LiPo battery (JST GH 1.25mm interface). Features onboard Boot + RST buttons and an IO04 battery detection pin, making it an ideal handheld all-in-one wireless development tool.

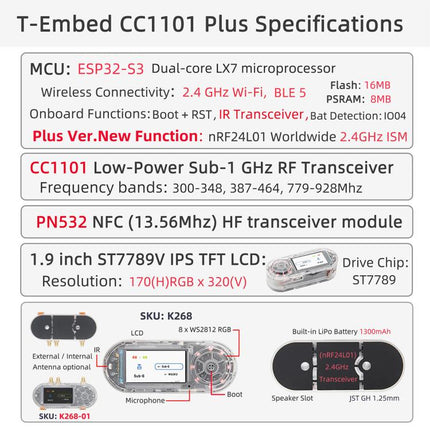

Specifications:
1. MCU: ESP32-S3 dual-core LX7 microprocessor
2. Flash: 16MB
3. PSRAM: 8MB
4. Wireless protocols: 2.4GHz Wi-Fi, Bluetooth Low Energy (BLE 5)
5. Onboard features: Boot & Reset buttons, IR transceiver, battery voltage monitoring (Pin: IO04), nRF24L01 global 2.4GHz ISM transceiver
6. Supported frequency bands: 300–348 MHz, 387–464 MHz, 779–928 MHz
7. Display: 1.9-inch screen; resolution: 170x320
8. Display driver IC: ST7789
9. Power supply: USB / Lithium battery
10. Battery capacity: 1300mAh
Specification:
Package Weight
One Package Weight 0.21kgs / 0.47lb
One Package Size 12cm * 8cm * 5cm / 4.72inch * 3.15inch * 1.97inch
Qty per Carton 96
Carton Weight 21.16kgs / 46.65lb
Carton Size 38cm * 34cm * 42cm / 14.96inch * 13.39inch * 16.54inch
Loading Container 20GP: 491 cartons * 96 pcs = 47136 pcs
40HQ: 1140 cartons * 96 pcs = 109440 pcs

LILYGO T-Embed CC1101 Plus ESP32-S3 1.9 inch LCD PN532 Module, Type:External Antenna(Transparent)

Product form

SKU: EDA010125402A

  • In stock (Processing Time 1 - 72 hours)

€142,33

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    1. Powerful ESP32-S3 Core & Dual Connectivity: Powered by the ESP32-S3 dual-core LX7 microprocessor with 16MB Flash and 8MB PSRAM. Built-in 2.4 GHz Wi-Fi and BLE 5, plus an added nRF24L01 2.4GHz ISM transceiver in the Plus version, providing high-speed processing and versatile wireless development.
    2. Multi-Frequency RF & Sub-1GHz Transceiver: Equipped with the CC1101 low-power Sub-1 GHz RF Transceiver, supporting wide frequency bands including 300–348MHz, 387–464MHz, and 779–928MHz. Perfect for IoT protocol analysis, remote control signal testing, and wireless communication projects.
    3. Integrated PN532 NFC Module: Features an onboard PN532 NFC (13.56 MHz) I2C transceiver module. Enables quick tag reading/writing, card emulation, and RFID experimentation right out of the box without needing extra external expansion modules.
    4. Vibrant 1.9 inch LCD Display & RGB Lighting: Built with a crisp 1.9-inch ST7789V IPS TFT LCD screen featuring a 170x320 resolution for clear UI navigation. Includes 8 x WS2812 RGB LEDs, onboard microphone, IR transceiver, and speaker connector for interactive projects.
    5. Flexible Dual Power System & Portable Design: Supports dual power supply options via USB or the built-in 1300mAh LiPo battery (JST GH 1.25mm interface). Features onboard Boot + RST buttons and an IO04 battery detection pin, making it an ideal handheld all-in-one wireless development tool.

    Specifications:
    1. MCU: ESP32-S3 dual-core LX7 microprocessor
    2. Flash: 16MB
    3. PSRAM: 8MB
    4. Wireless protocols: 2.4GHz Wi-Fi, Bluetooth Low Energy (BLE 5)
    5. Onboard features: Boot & Reset buttons, IR transceiver, battery voltage monitoring (Pin: IO04), nRF24L01 global 2.4GHz ISM transceiver
    6. Supported frequency bands: 300–348 MHz, 387–464 MHz, 779–928 MHz
    7. Display: 1.9-inch screen; resolution: 170x320
    8. Display driver IC: ST7789
    9. Power supply: USB / Lithium battery
    10. Battery capacity: 1300mAh
    Specification:
    Package Weight
    One Package Weight 0.21kgs / 0.47lb
    One Package Size 12cm * 8cm * 5cm / 4.72inch * 3.15inch * 1.97inch
    Qty per Carton 96
    Carton Weight 21.16kgs / 46.65lb
    Carton Size 38cm * 34cm * 42cm / 14.96inch * 13.39inch * 16.54inch
    Loading Container 20GP: 491 cartons * 96 pcs = 47136 pcs
    40HQ: 1140 cartons * 96 pcs = 109440 pcs
