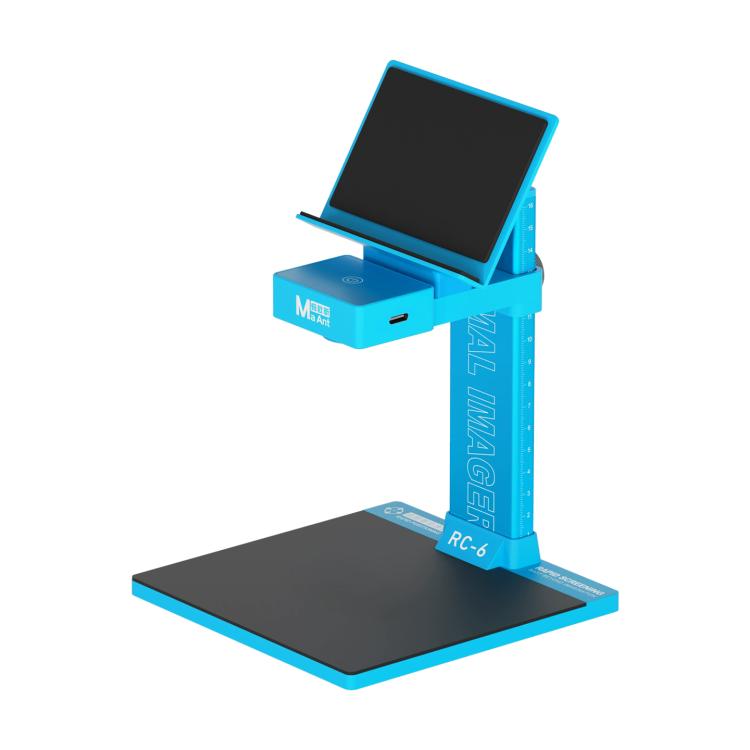

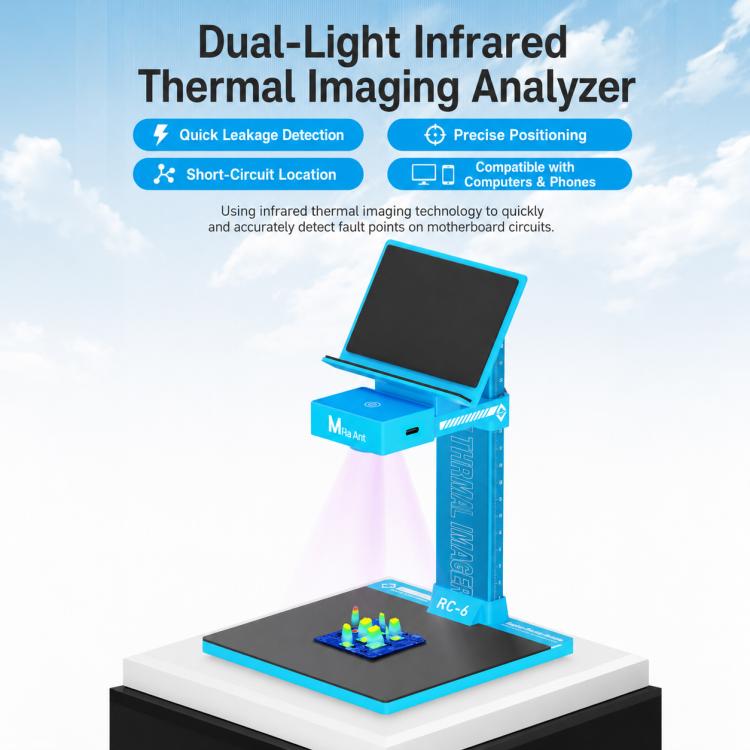

MaAnt RC-6 4K HD PCB Motherboard 3D Dual Light Infrared Thermal Imaging Diagnosis Analyser

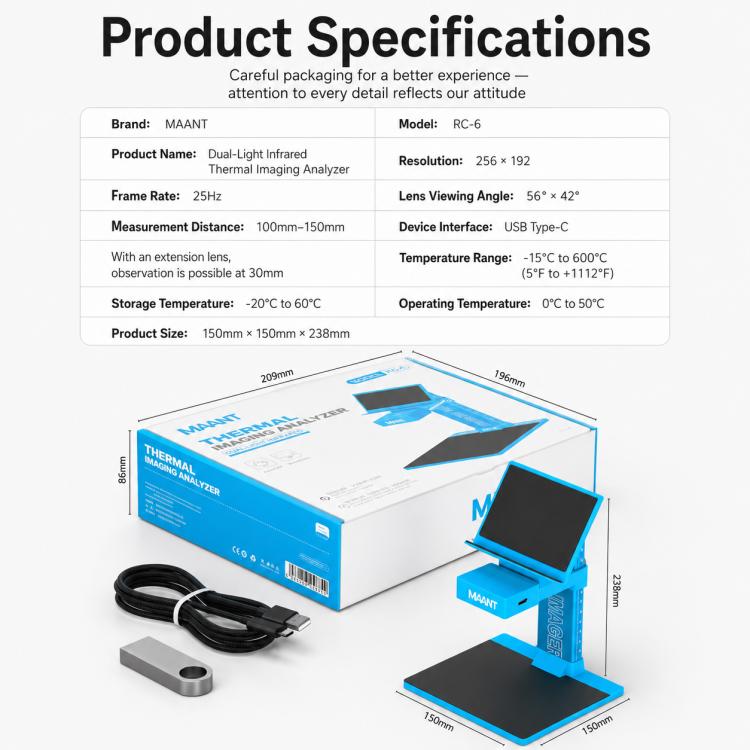

Specifications:
1. Product model: RC-6
2. Resolution rate: 256 x 192
3. Frame rate: 25Hz
4. Lens perspective: 56 x 42
5. Temperature measurement distance: 100mm-150mm
6. Device interface: USB Type-C
7. A teleconverter lens can be used to observe at a distance of 30mm
8. Temperature measurement range: -15-600 degrees Celsius
9. Storage temperature: -20-60 degrees Celsius
10. Working temperature: 0-50 degrees Celsius
11. Product size: 15 x 15 x 23.8cm
12. Net weight: 412g

Features:
1. Quick check for leakage / Short-circuit location / Precise positioning/ Compatible with computers and mobile phones
2. Through infrared thermal imaging technology, the fault points on the mainboard circuit can be detected quickly and accurately

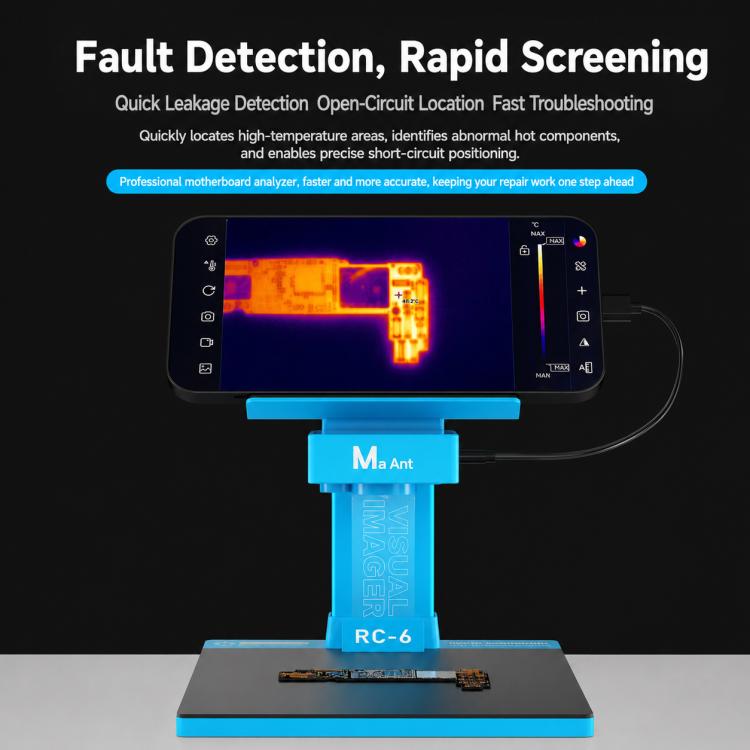

3. Quickly locate high-temperature areas, color plates of abnormally high-temperature components, and adjust the stable range, and short-circuit location
4. Professional motherboard testing instruments are faster and more accurate, allowing your maintenance to be one step ahead

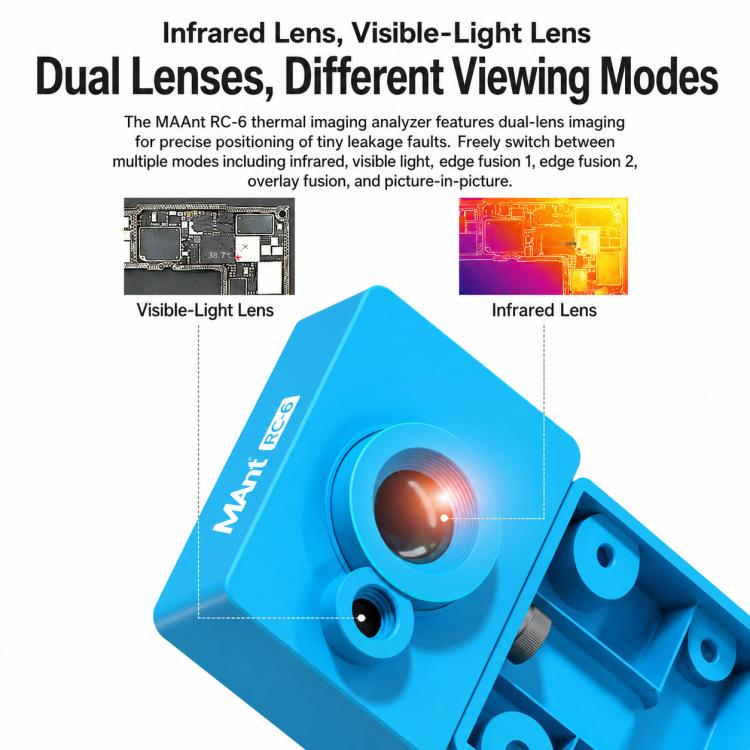

5. Equipped with the Antxin RC-6 thermal imaging analyzer, it features dual-lens imaging and precise positioning of 4mA micro-particles, Leakage defect, dual-mode switching at will, infrared, visible light, edge fusion 1, and edge fusion 2. Superimposition and fusion, picture within a picture
6. One-click leakage detection, capable of detecting leakage currents as low as 6mA, supports detailed comparison of color changes in images from different regions, and supports dual-board comparison of good and bad images. Quickly locate the faulty circuit board

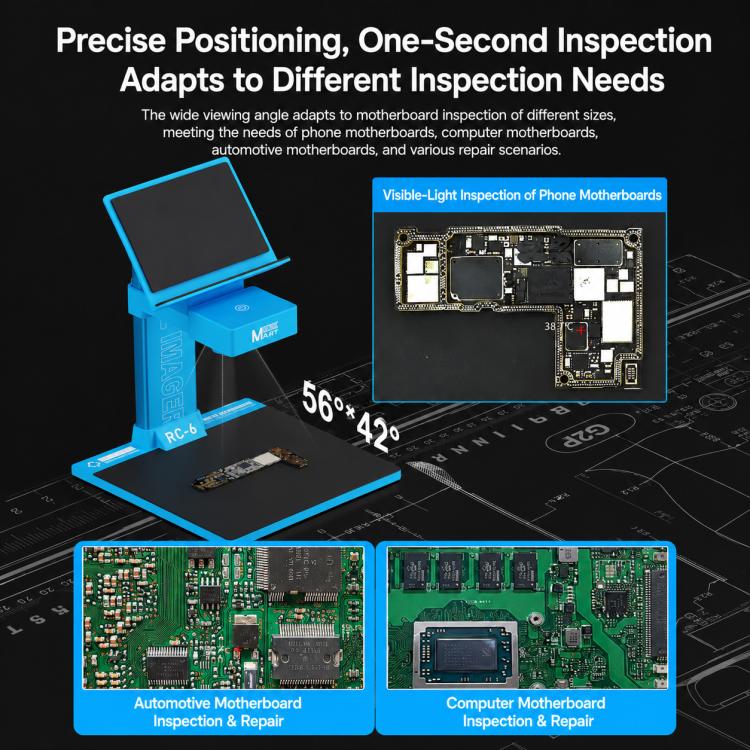

7. It can be adapted to the detection of motherboards of different sizes, meeting the requirements of mobile phone motherboards, computer motherboards, and automotive motherboards. Detection requirements for different scenarios, such as maintenance

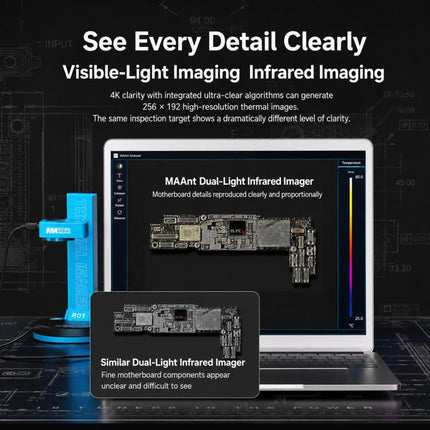

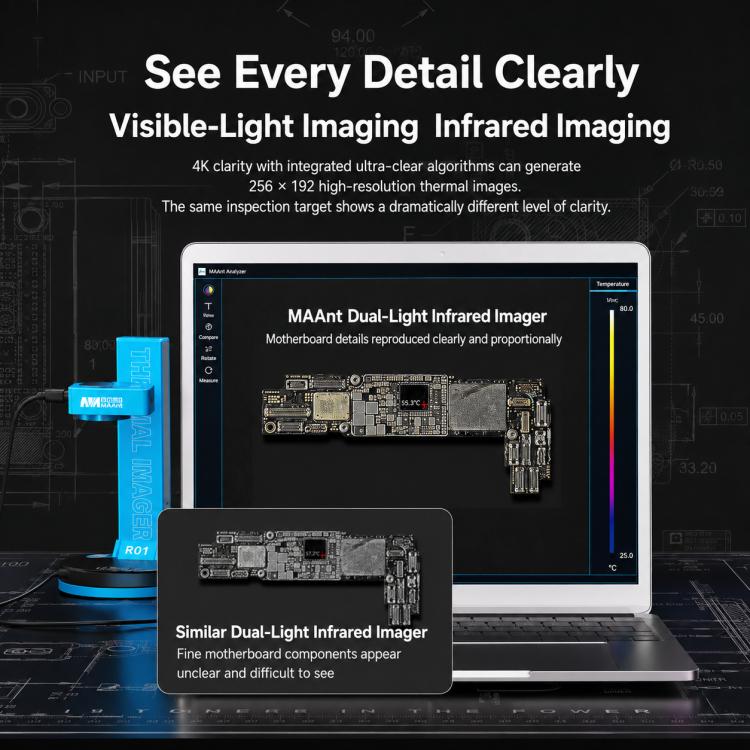

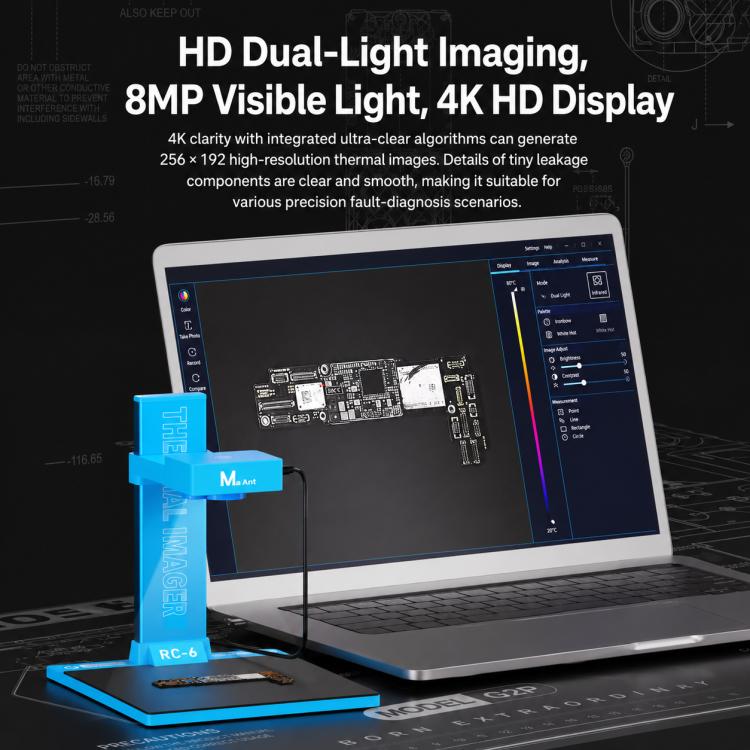

8. 4K clarity, integrated super-clearing method, capable of generating high-resolution thermal imaging of 256*192. The details of tiny leakage devices are high-definition and smooth, suitable for various precise fault diagnosis scenarios
9. Quickly and accurately locate the position of high-temperature devices and display the details of faults in real time and in high definition. Dual-light imaging for precise positioning leaves no place for leakage points to hide

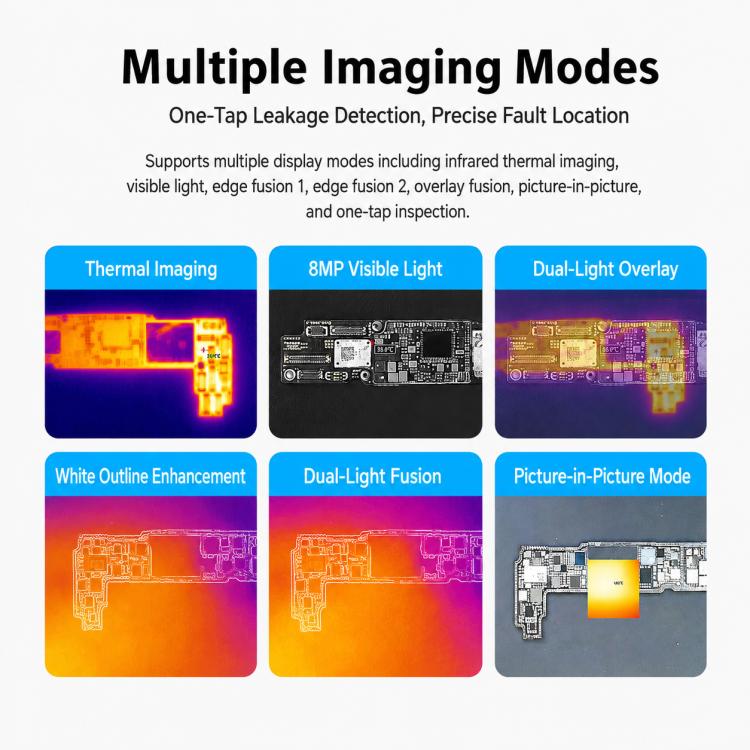

10. Supports infrared thermal imaging, visible light, edge fusion 1, and edge fusion 2. Multiple image display modes, such as overlay and fusion, picture-in-picture, and one-click quick search

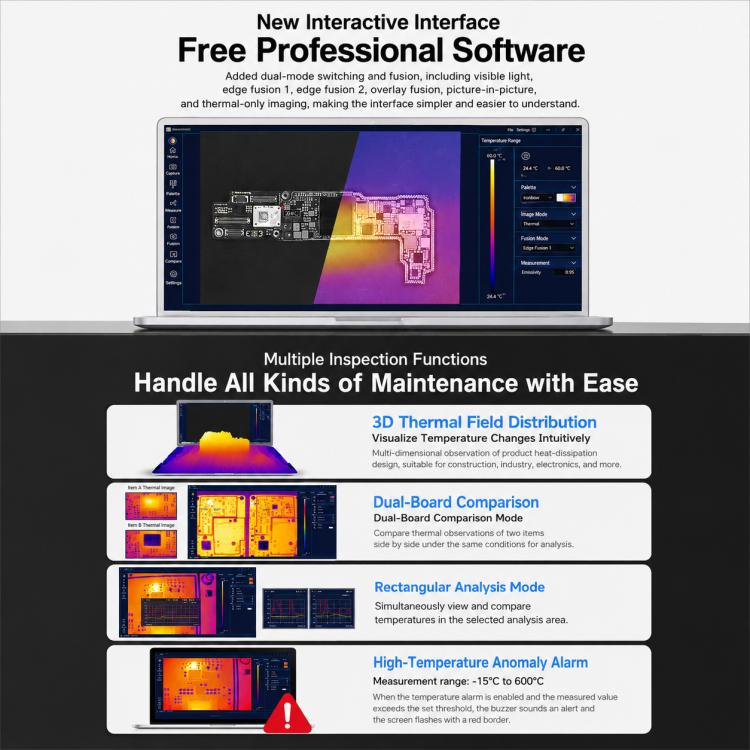

11. New dual-mode switching and fusion have been added: Visible light edge fusion 1 and edge fusion 2. Superimposed fusion, picture-in-picture, and single thermal imaging make the interface simpler and easier to understand
12. After opening the software, connect the infrared thermal imaging to the computer and mobile phone via a USB cable. Press the power button at the top, and an infrared effect will appear on the software interface. It supports Windows 10 and above systems
13. The position can be quickly adjusted according to the requirements of the items. Observe the details of the items at zero distance
Specification:
Package Weight
One Package Weight 0.90kgs / 1.99lb
One Package Size 23cm * 22cm * 10cm / 9.06inch * 8.66inch * 3.94inch
Qty per Carton 20
Carton Weight 19.00kgs / 41.89lb
Carton Size 48cm * 46cm * 52cm / 18.9inch * 18.11inch * 20.47inch
Loading Container 20GP: 232 cartons * 20 pcs = 4640 pcs
40HQ: 539 cartons * 20 pcs = 10780 pcs

MaAnt RC-6 4K HD PCB Motherboard 3D Dual Light Infrared Thermal Imaging Diagnosis Analyser

Product form

SKU: EDA0101615

  • In stock (Processing Time 1 - 72 hours)

€583,91

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    Specifications:
    1. Product model: RC-6
    2. Resolution rate: 256 x 192
    3. Frame rate: 25Hz
    4. Lens perspective: 56 x 42
    5. Temperature measurement distance: 100mm-150mm
    6. Device interface: USB Type-C
    7. A teleconverter lens can be used to observe at a distance of 30mm
    8. Temperature measurement range: -15-600 degrees Celsius
    9. Storage temperature: -20-60 degrees Celsius
    10. Working temperature: 0-50 degrees Celsius
    11. Product size: 15 x 15 x 23.8cm
    12. Net weight: 412g

    Features:
    1. Quick check for leakage / Short-circuit location / Precise positioning/ Compatible with computers and mobile phones
    2. Through infrared thermal imaging technology, the fault points on the mainboard circuit can be detected quickly and accurately
    3. Quickly locate high-temperature areas, color plates of abnormally high-temperature components, and adjust the stable range, and short-circuit location
    4. Professional motherboard testing instruments are faster and more accurate, allowing your maintenance to be one step ahead
    5. Equipped with the Antxin RC-6 thermal imaging analyzer, it features dual-lens imaging and precise positioning of 4mA micro-particles, Leakage defect, dual-mode switching at will, infrared, visible light, edge fusion 1, and edge fusion 2. Superimposition and fusion, picture within a picture
    6. One-click leakage detection, capable of detecting leakage currents as low as 6mA, supports detailed comparison of color changes in images from different regions, and supports dual-board comparison of good and bad images. Quickly locate the faulty circuit board
    7. It can be adapted to the detection of motherboards of different sizes, meeting the requirements of mobile phone motherboards, computer motherboards, and automotive motherboards. Detection requirements for different scenarios, such as maintenance
    8. 4K clarity, integrated super-clearing method, capable of generating high-resolution thermal imaging of 256*192. The details of tiny leakage devices are high-definition and smooth, suitable for various precise fault diagnosis scenarios
    9. Quickly and accurately locate the position of high-temperature devices and display the details of faults in real time and in high definition. Dual-light imaging for precise positioning leaves no place for leakage points to hide
    10. Supports infrared thermal imaging, visible light, edge fusion 1, and edge fusion 2. Multiple image display modes, such as overlay and fusion, picture-in-picture, and one-click quick search
    11. New dual-mode switching and fusion have been added: Visible light edge fusion 1 and edge fusion 2. Superimposed fusion, picture-in-picture, and single thermal imaging make the interface simpler and easier to understand
    12. After opening the software, connect the infrared thermal imaging to the computer and mobile phone via a USB cable. Press the power button at the top, and an infrared effect will appear on the software interface. It supports Windows 10 and above systems
    13. The position can be quickly adjusted according to the requirements of the items. Observe the details of the items at zero distance
    Specification:
    Package Weight
    One Package Weight 0.90kgs / 1.99lb
    One Package Size 23cm * 22cm * 10cm / 9.06inch * 8.66inch * 3.94inch
    Qty per Carton 20
    Carton Weight 19.00kgs / 41.89lb
    Carton Size 48cm * 46cm * 52cm / 18.9inch * 18.11inch * 20.47inch
    Loading Container 20GP: 232 cartons * 20 pcs = 4640 pcs
    40HQ: 539 cartons * 20 pcs = 10780 pcs
