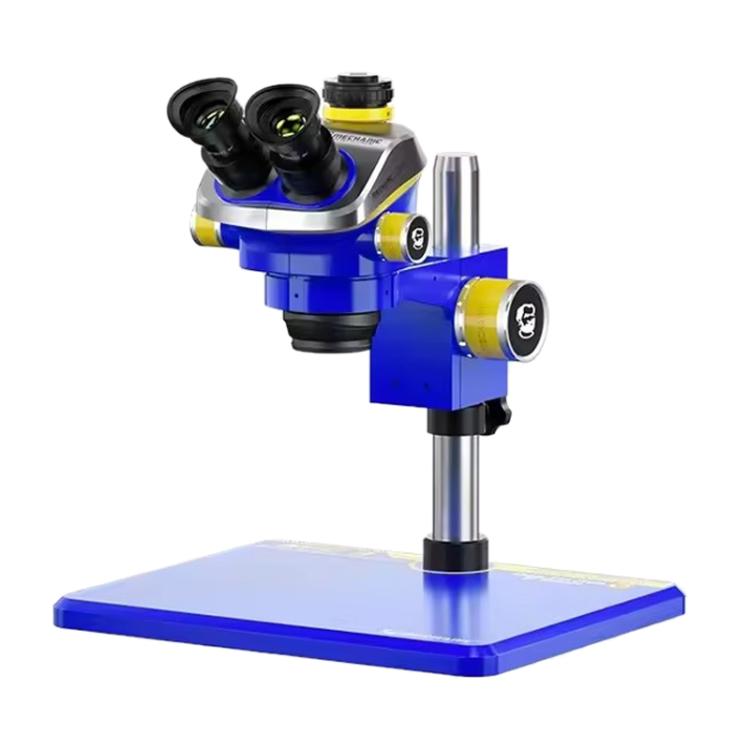

Mechanic Mic3 7X-50X CTV 0.45X Trinocular Stereo Microscope

Specification:
1. Non-adjustable eyepieces: WF10X/25MM
2. Zoom ratio: 1:7.1
3. Not adjustable eyepiece: Standard equipment: WF10X/25; high-eyepoint wide-angle eyepiece for the convenience of spectacled observers
4. Observation head: 45 degrees inclination, 360 degrees rotation, interpupillary distance 54~76mm bilateral vision adjustment+-5 diopters
5. Objective: 0.7X-5X continuous zoom, objective zoom ratio 1:7.1 to ensure image surface focus
6. Magnification: 7X-50X, optional eyepiece, and auxiliary objective can be expanded to 3.5X-270X, continuous zoom
7. Working distance: 100mm
8. Focus bracket: The inner diameter is 76mm, and the column bore diameter is 32mm
9. Work platform: 320 x 260mm

Features:
1. High field wide-angle eyepiece, explore, one step forward
2. Mic 3 microscope with standard WF10X/25MM high field wide-angle eyepiece, the view is wide and the image is clear, whether it is a mobile phone motherboard, circuit board, or more precise and smaller chips, all you can have a full view
3. The high field of view design makes the observation more comfortable and reduces eye fatigue caused by prolonged observation. Even more surprising is that the wide-angle eyepiece is designed with the wearers needs in mind

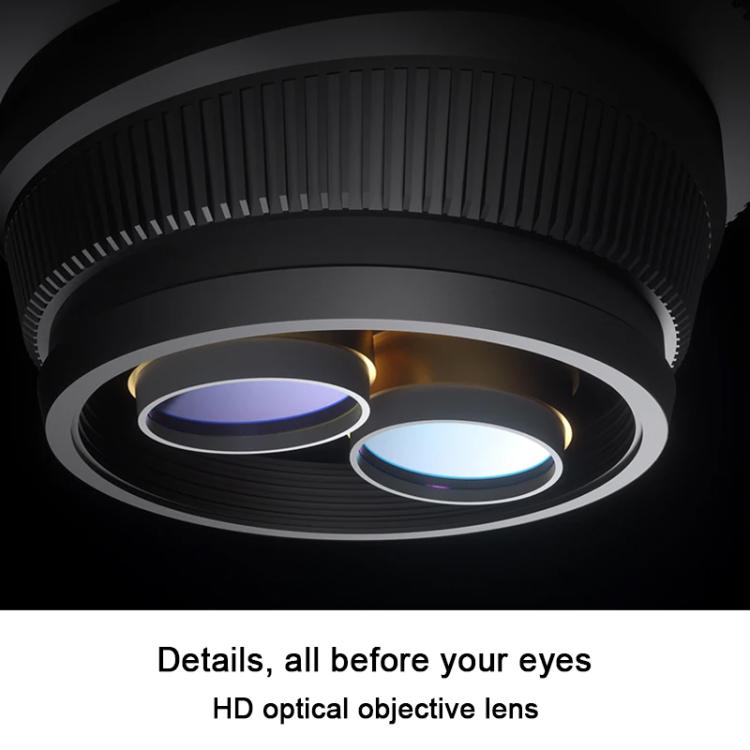

4. The high-definition coated objective is one of the core advantages of the Mic 3 trinocular stereo microscope. Through advanced coating technology, the objective lens can effectively reduce light scattering and improve image contrast and clarity

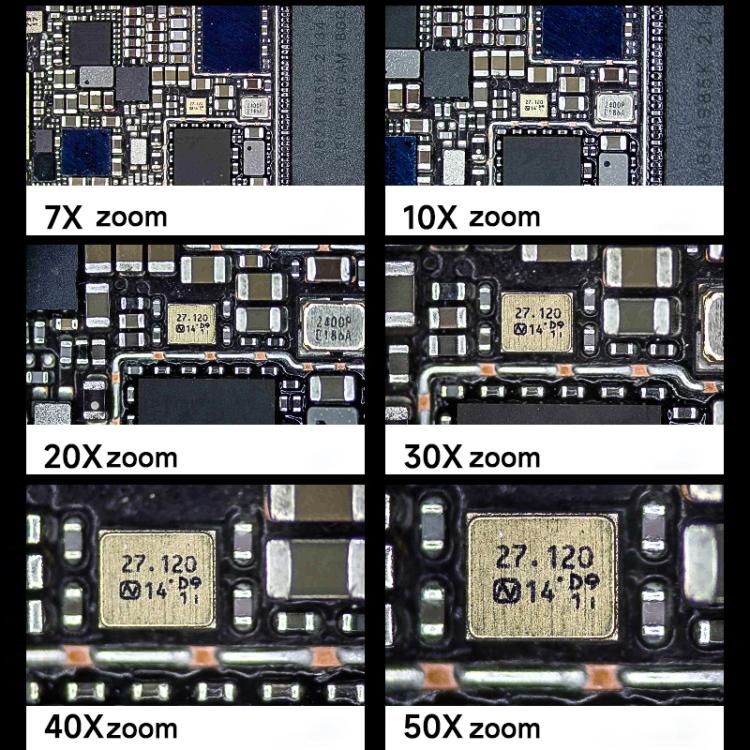

5. Mic 3 microscope adopts the advanced design of variable magnification prism group, realized from 7X to 50X large magnification continuous fixed multiple and gear functions, accurately lock the magnification you need

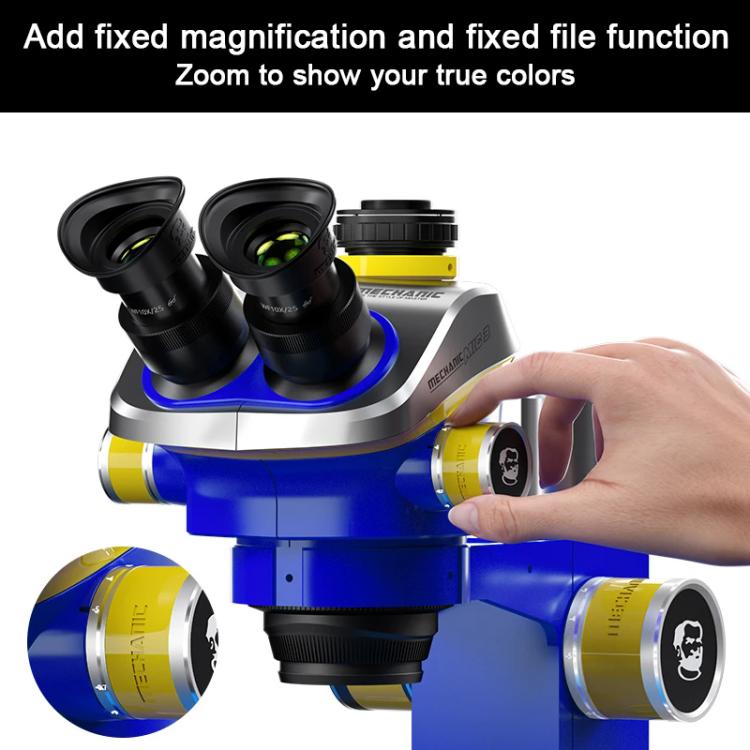

6. MECHANIC is a newly designed zoom handwheel breaks the shortcomings of traditional mechanical design such as rough hand-feeling, frequent use of zoom handwheels it easier to fatigue, therefore, MECHANIC adopts a more comfortable non-slip silicone design

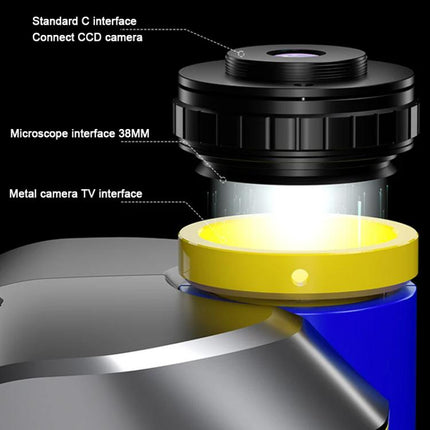

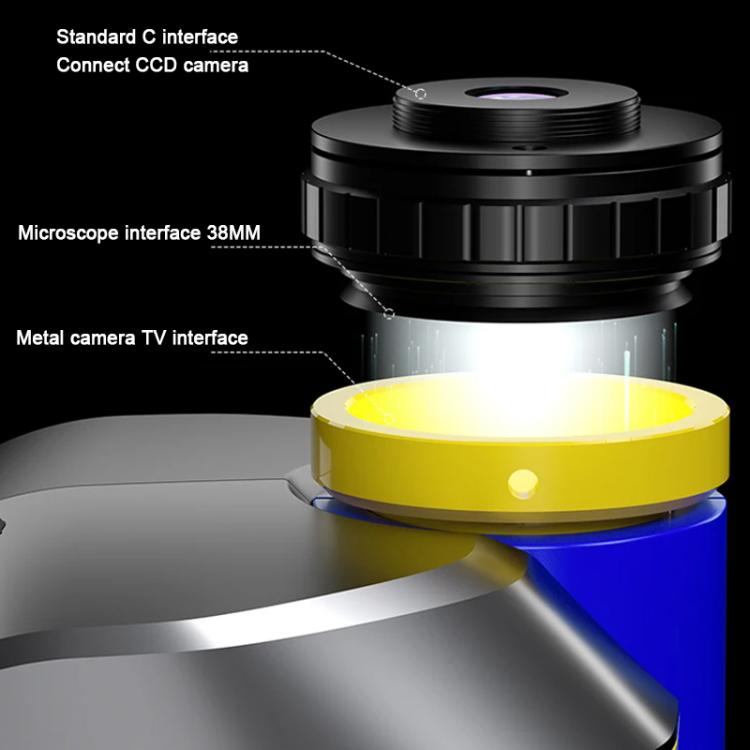

7. With the Mic3 trinocular microscope with the CTV 0.45X adapter, the imaging effect is significantly improved, this adapter delivers sharper, more detailed images than regular CTV interfaces, more effectively eliminating the phenomenon of dark angle, ensuring that the image is clear and bright across the entire field of view

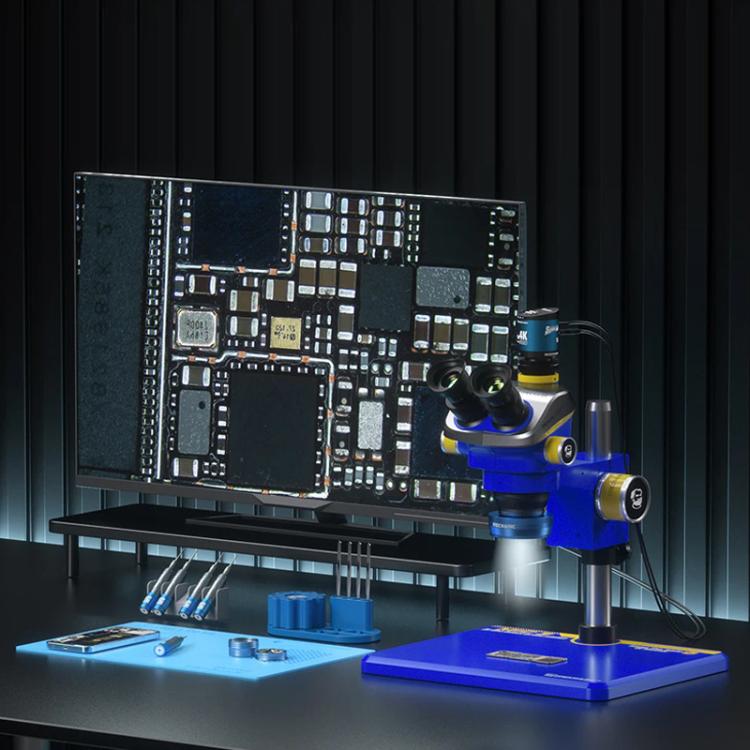

8. In the exquisite technique of microscopic observation, Mic3 trinocular microscope and 4K Pro industrial-grade HD camera (Not includes) perfect combination, bringing you an unprecedented visual experience
9. This excellent combination not only allows external HD display, to achieve the synchronization of eye observation and screen display content but also with its high-definition large screen without shadow characteristics, makes the microscopic world visible

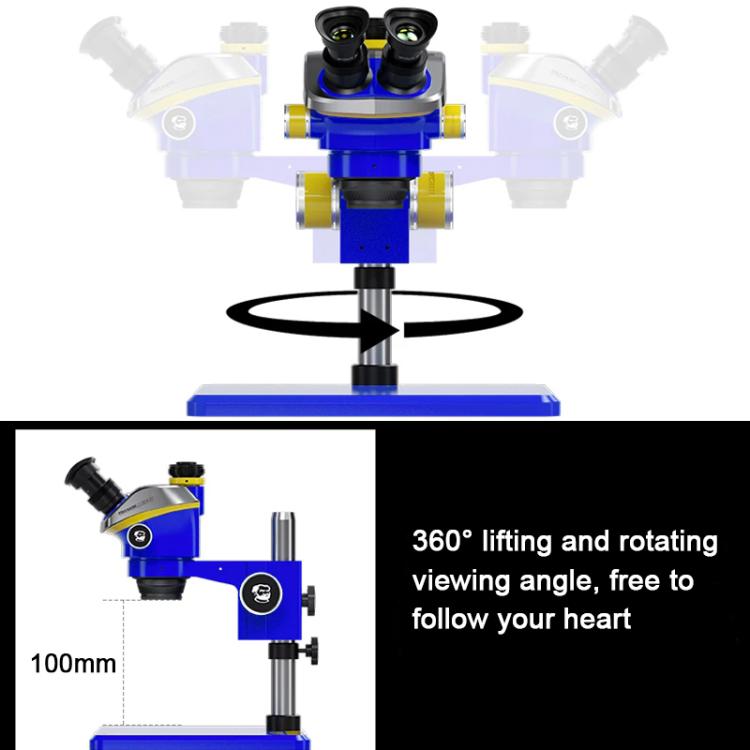

10. 360 degrees rotation allows you to adjust the microscopes viewing angle according to your needs, it is easy to deal with whether it is positive observation or site inspection
11. Mic3 trinocular microscope has a lifting function, and a lifting range up to 100mm, whether you need to see the details up close or the big picture from a distance, you can adjust the height of the microscope to find the most suitable viewing position for you

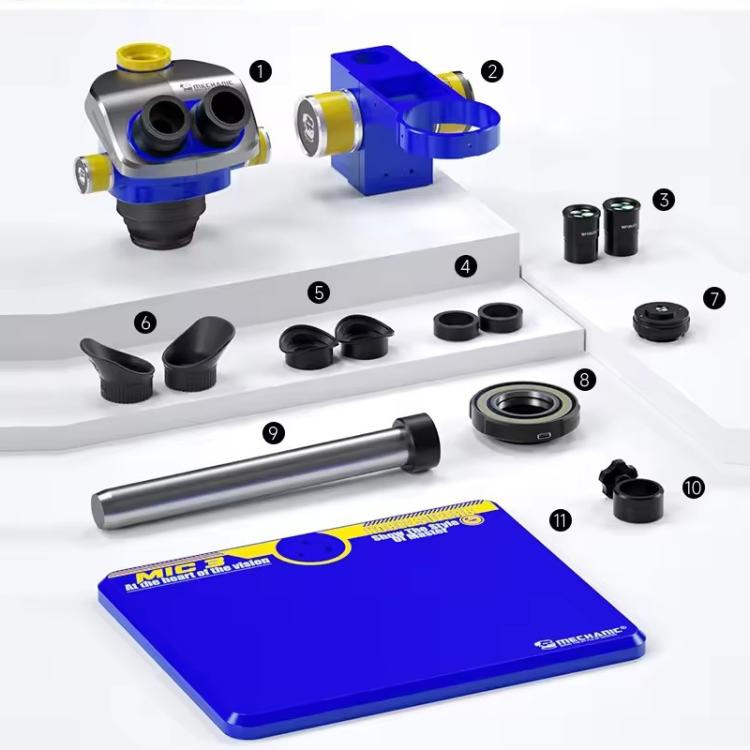

Package includes:
1 x Microscope Head
1 x Microscope Frame
2 x WF10 X25MM Eyepiece
2 x Flat Angle Eye Mask
2 x Silicone Eye Mask
2 x Horn Eye Mask
1 x CTV 0.45X Adapter
1 x Ring Light
1 x Column
1 x Limit Block
1 x Base


Specification:
Package Weight
One Package Weight 5.00kgs / 11.03lb
One Package Size 45cm * 35cm * 25cm / 17.72inch * 13.78inch * 9.84inch
Qty per Carton 1
Carton Weight 5.00kgs / 11.02lb
Carton Size 45cm * 35cm * 25cm / 17.72inch * 13.78inch * 9.84inch
Loading Container 20GP: 677 cartons * 1 pcs = 677 pcs
40HQ: 1572 cartons * 1 pcs = 1572 pcs

Mechanic Mic3 7X-50X CTV 0.45X Trinocular Stereo Microscope

Product form

SKU: EDA0075653

  • In stock (Processing Time 1 - 72 hours)

€456,22

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    Specification:
    1. Non-adjustable eyepieces: WF10X/25MM
    2. Zoom ratio: 1:7.1
    3. Not adjustable eyepiece: Standard equipment: WF10X/25; high-eyepoint wide-angle eyepiece for the convenience of spectacled observers
    4. Observation head: 45 degrees inclination, 360 degrees rotation, interpupillary distance 54~76mm bilateral vision adjustment+-5 diopters
    5. Objective: 0.7X-5X continuous zoom, objective zoom ratio 1:7.1 to ensure image surface focus
    6. Magnification: 7X-50X, optional eyepiece, and auxiliary objective can be expanded to 3.5X-270X, continuous zoom
    7. Working distance: 100mm
    8. Focus bracket: The inner diameter is 76mm, and the column bore diameter is 32mm
    9. Work platform: 320 x 260mm

    Features:
    1. High field wide-angle eyepiece, explore, one step forward
    2. Mic 3 microscope with standard WF10X/25MM high field wide-angle eyepiece, the view is wide and the image is clear, whether it is a mobile phone motherboard, circuit board, or more precise and smaller chips, all you can have a full view
    3. The high field of view design makes the observation more comfortable and reduces eye fatigue caused by prolonged observation. Even more surprising is that the wide-angle eyepiece is designed with the wearers needs in mind
    4. The high-definition coated objective is one of the core advantages of the Mic 3 trinocular stereo microscope. Through advanced coating technology, the objective lens can effectively reduce light scattering and improve image contrast and clarity
    5. Mic 3 microscope adopts the advanced design of variable magnification prism group, realized from 7X to 50X large magnification continuous fixed multiple and gear functions, accurately lock the magnification you need
    6. MECHANIC is a newly designed zoom handwheel breaks the shortcomings of traditional mechanical design such as rough hand-feeling, frequent use of zoom handwheels it easier to fatigue, therefore, MECHANIC adopts a more comfortable non-slip silicone design
    7. With the Mic3 trinocular microscope with the CTV 0.45X adapter, the imaging effect is significantly improved, this adapter delivers sharper, more detailed images than regular CTV interfaces, more effectively eliminating the phenomenon of dark angle, ensuring that the image is clear and bright across the entire field of view
    8. In the exquisite technique of microscopic observation, Mic3 trinocular microscope and 4K Pro industrial-grade HD camera (Not includes) perfect combination, bringing you an unprecedented visual experience
    9. This excellent combination not only allows external HD display, to achieve the synchronization of eye observation and screen display content but also with its high-definition large screen without shadow characteristics, makes the microscopic world visible
    10. 360 degrees rotation allows you to adjust the microscopes viewing angle according to your needs, it is easy to deal with whether it is positive observation or site inspection
    11. Mic3 trinocular microscope has a lifting function, and a lifting range up to 100mm, whether you need to see the details up close or the big picture from a distance, you can adjust the height of the microscope to find the most suitable viewing position for you

    Package includes:
    1 x Microscope Head
    1 x Microscope Frame
    2 x WF10 X25MM Eyepiece
    2 x Flat Angle Eye Mask
    2 x Silicone Eye Mask
    2 x Horn Eye Mask
    1 x CTV 0.45X Adapter
    1 x Ring Light
    1 x Column
    1 x Limit Block
    1 x Base


    Specification:
    Package Weight
    One Package Weight 5.00kgs / 11.03lb
    One Package Size 45cm * 35cm * 25cm / 17.72inch * 13.78inch * 9.84inch
    Qty per Carton 1
    Carton Weight 5.00kgs / 11.02lb
    Carton Size 45cm * 35cm * 25cm / 17.72inch * 13.78inch * 9.84inch
    Loading Container 20GP: 677 cartons * 1 pcs = 677 pcs
    40HQ: 1572 cartons * 1 pcs = 1572 pcs
