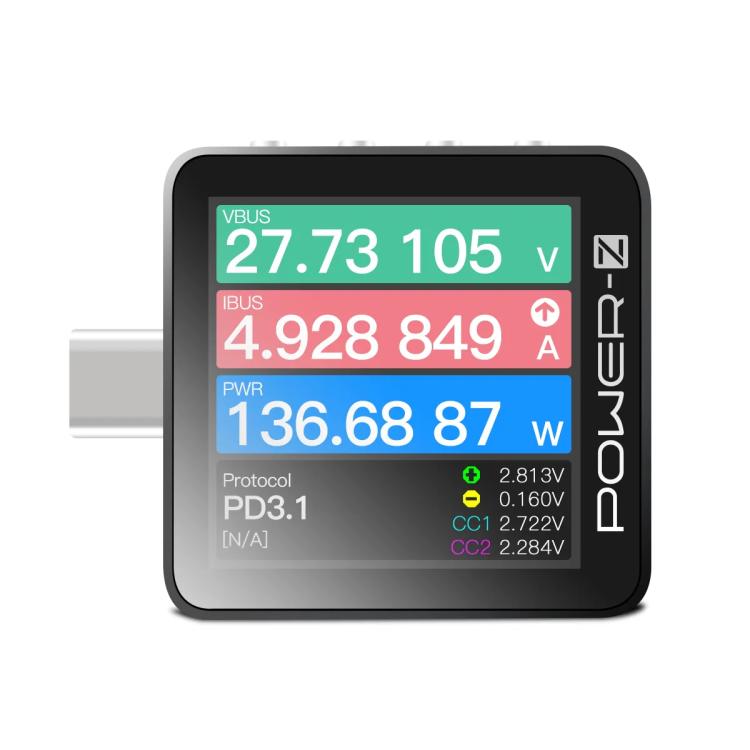

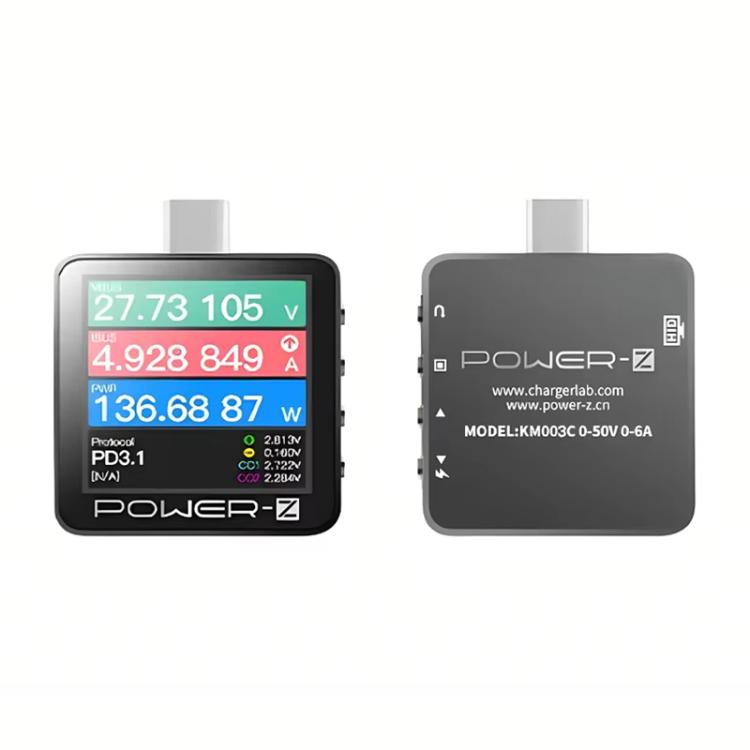

POWER-Z KM003C USB-C Fast Charging Tester PD3.1 & Protocol Analyzer(Black)

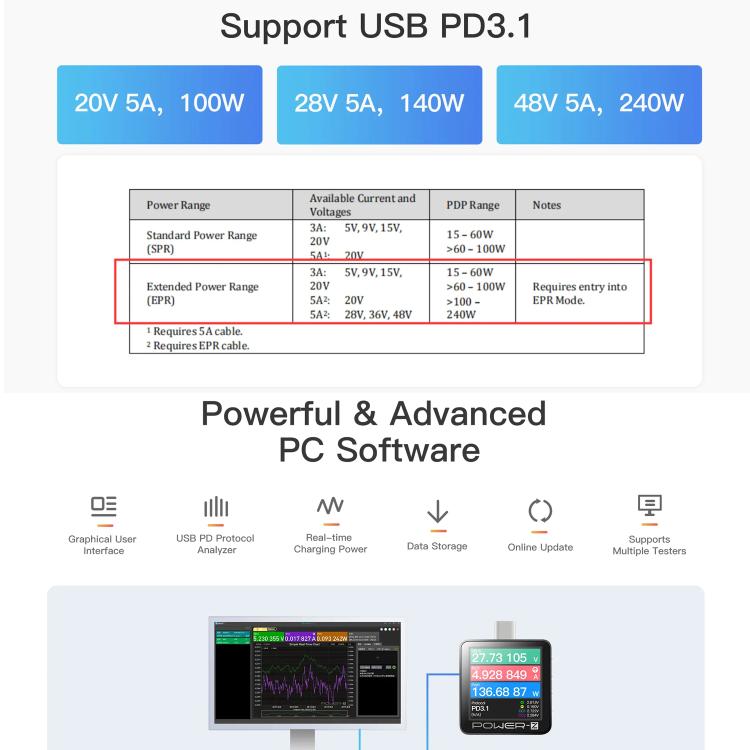

1. The upgraded POWER-Z KM003C fast charging tester supports the USB PD3.1 protocol.
2. It is equipped with a 1.54-inch LCD display and supports gravity rotation. The high-contrast user interface makes it easier to find the information you need.

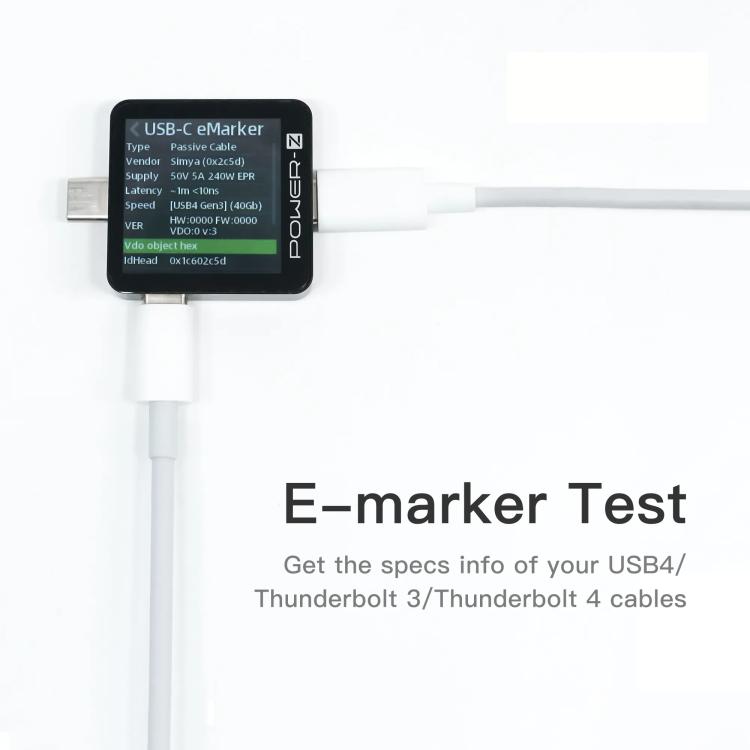

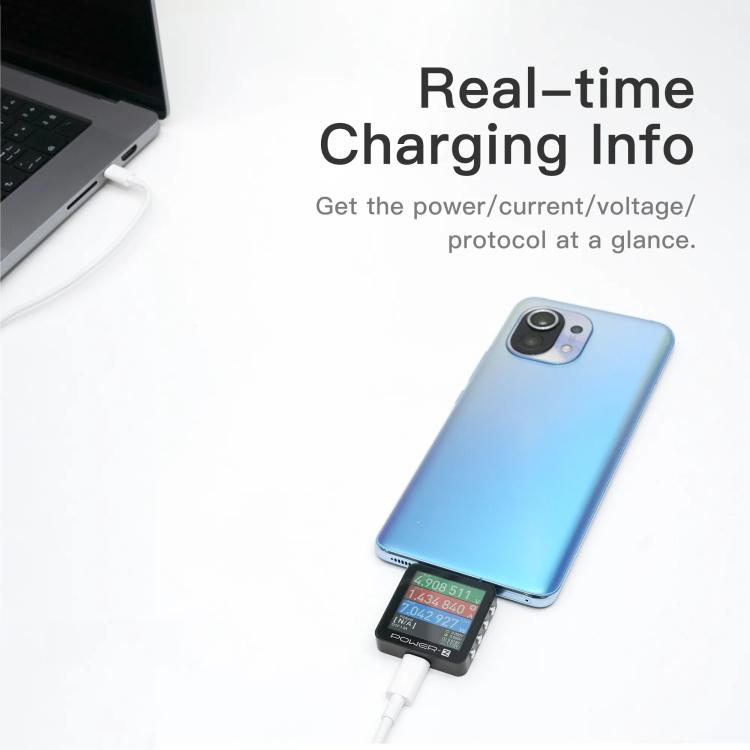

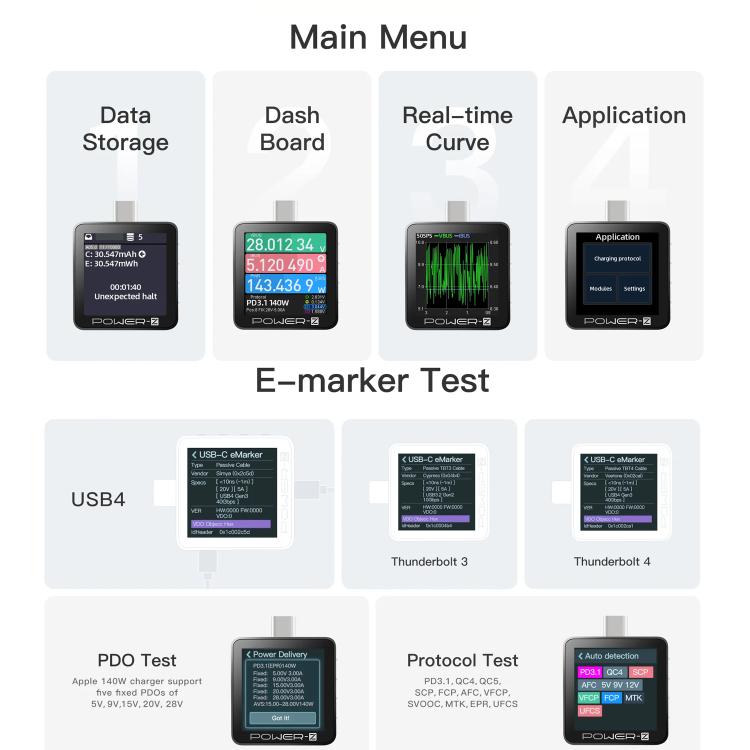

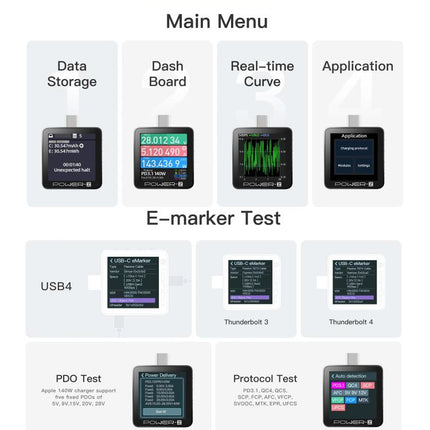

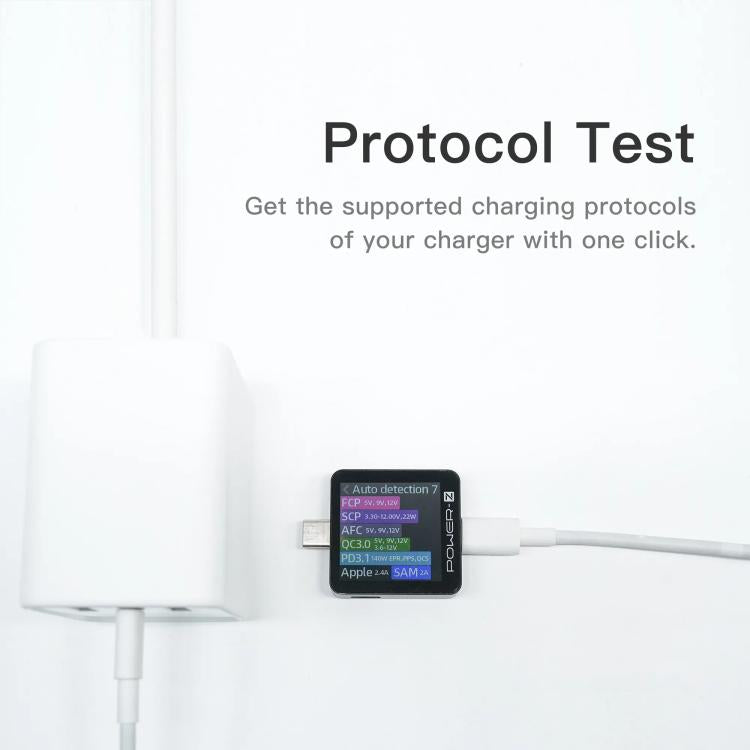

3. This tester supports multiple tests, including voltage/current detection, capacity/energy testing, E-marker testing, PDO testing, protocol testing, etc.

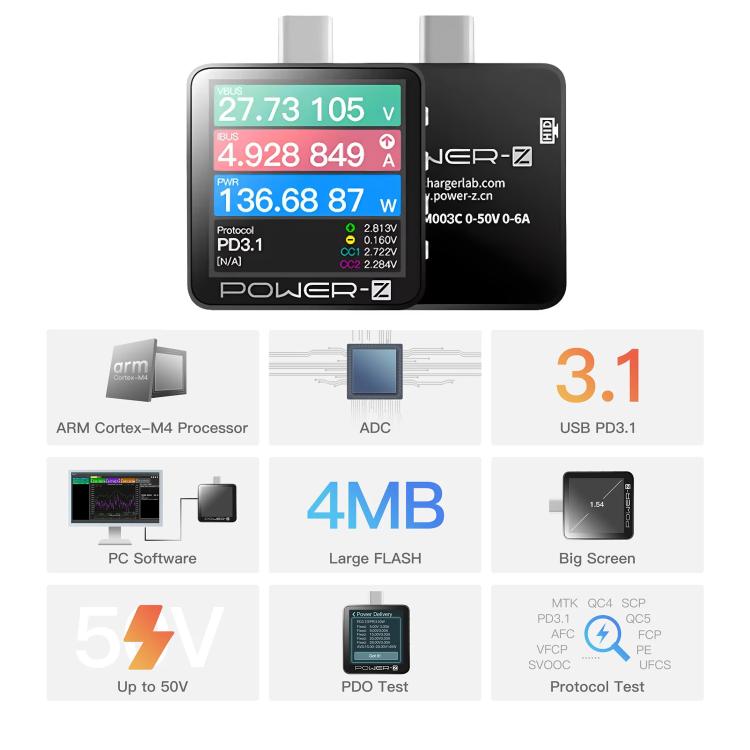

4. This tester integrates an ARM Cortex-M4 processor and a 20-bit ADC. It supports power output up to 50V 6A (240W in PD mode) and features USB PD protocol analysis. The PC software can collect 10 million data points in one go.

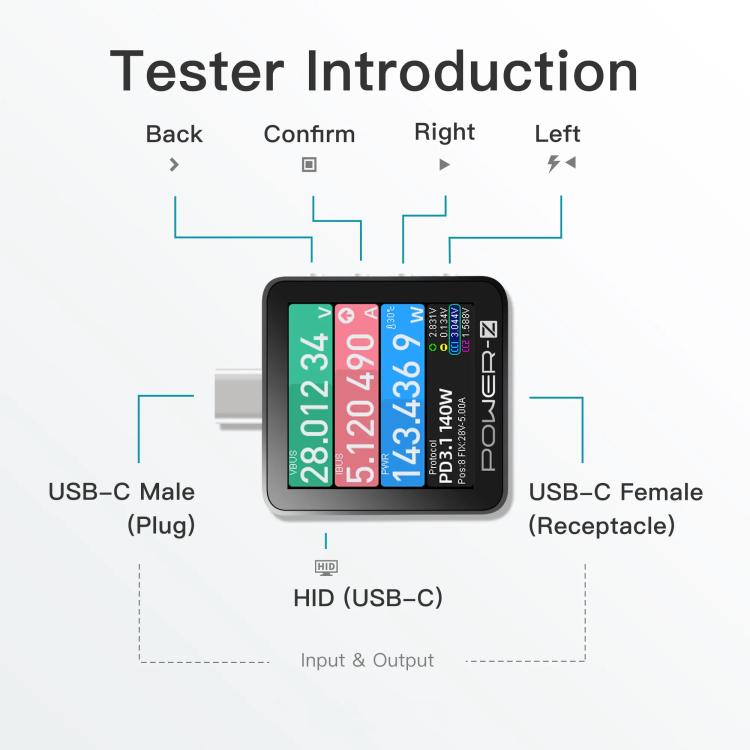

5. Designed for USB-C: It features two USB-C ports for current input and output, plus an additional HID interface (USB-C) for connecting to a PC and power source.

Specifications:

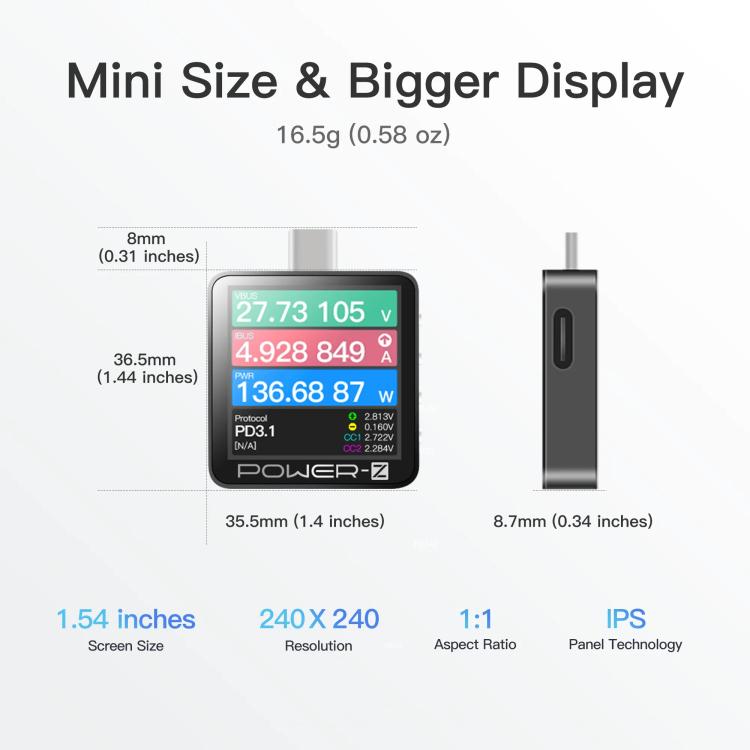

1. Dimensions: 36 x 37 x 8mm
2. Screen Size: 1.54-inch
3. Screen Material: IPS
4. Screen Resolution: 240 x 240
5. Language: English/Chinese
6. Operation Type: Button
7. Power Supply & Communication Port: Type-C (5V)
8. Interface Internal Resistance: Approx. 20mΩ
9. Typical Operating Current: 15~50mA
10. Voltage Accuracy: 0.00002V
11. Current Accuracy: 0.00003A
12. Voltage Range: 0-50V
13. Current Range: 0-6A
14. Offline Recording Groups: 4MB built-in storage
15. Maximum Capacity/Energy Test Groups: 15-40
16. Housing Material: CNC aluminum alloy


Specification:
Package Weight
One Package Weight 0.08kgs / 0.19lb
One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
Qty per Carton 96
Carton Weight 8.80kgs / 19.40lb
Carton Size 42cm * 34cm * 32cm / 16.54inch * 13.39inch * 12.6inch
Loading Container 20GP: 583 cartons * 96 pcs = 55968 pcs
40HQ: 1354 cartons * 96 pcs = 129984 pcs

POWER-Z KM003C USB-C Fast Charging Tester PD3.1 & Protocol Analyzer(Black)

Product form

SKU: TBD0606464201A

  • In stock (Processing Time 1 - 72 hours)

€134,08

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. The upgraded POWER-Z KM003C fast charging tester supports the USB PD3.1 protocol.
    2. It is equipped with a 1.54-inch LCD display and supports gravity rotation. The high-contrast user interface makes it easier to find the information you need.
    3. This tester supports multiple tests, including voltage/current detection, capacity/energy testing, E-marker testing, PDO testing, protocol testing, etc.
    4. This tester integrates an ARM Cortex-M4 processor and a 20-bit ADC. It supports power output up to 50V 6A (240W in PD mode) and features USB PD protocol analysis. The PC software can collect 10 million data points in one go.
    5. Designed for USB-C: It features two USB-C ports for current input and output, plus an additional HID interface (USB-C) for connecting to a PC and power source.

    Specifications:
    1. Dimensions: 36 x 37 x 8mm
    2. Screen Size: 1.54-inch
    3. Screen Material: IPS
    4. Screen Resolution: 240 x 240
    5. Language: English/Chinese
    6. Operation Type: Button
    7. Power Supply & Communication Port: Type-C (5V)
    8. Interface Internal Resistance: Approx. 20mΩ
    9. Typical Operating Current: 15~50mA
    10. Voltage Accuracy: 0.00002V
    11. Current Accuracy: 0.00003A
    12. Voltage Range: 0-50V
    13. Current Range: 0-6A
    14. Offline Recording Groups: 4MB built-in storage
    15. Maximum Capacity/Energy Test Groups: 15-40
    16. Housing Material: CNC aluminum alloy


    Specification:
    Package Weight
    One Package Weight 0.08kgs / 0.19lb
    One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
    Qty per Carton 96
    Carton Weight 8.80kgs / 19.40lb
    Carton Size 42cm * 34cm * 32cm / 16.54inch * 13.39inch * 12.6inch
    Loading Container 20GP: 583 cartons * 96 pcs = 55968 pcs
    40HQ: 1354 cartons * 96 pcs = 129984 pcs
