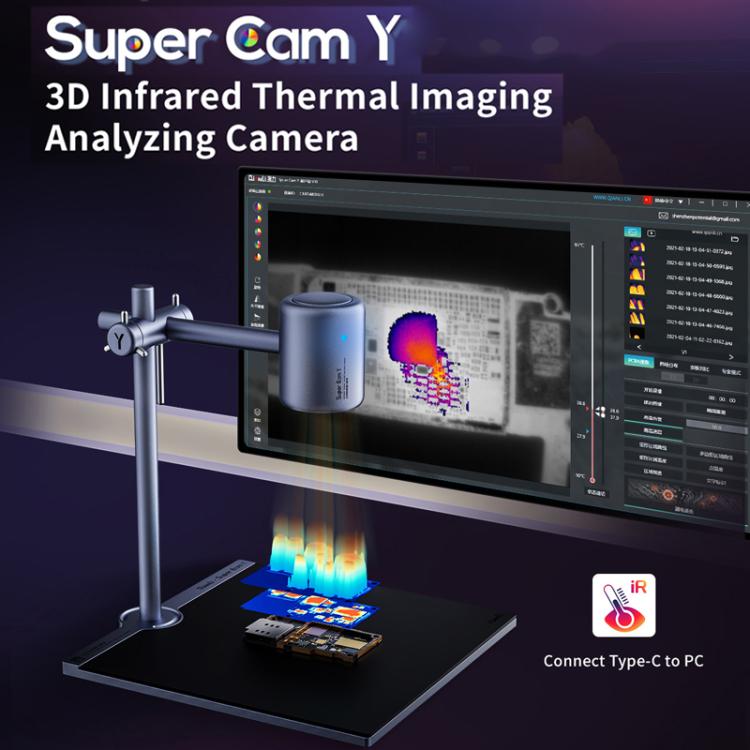

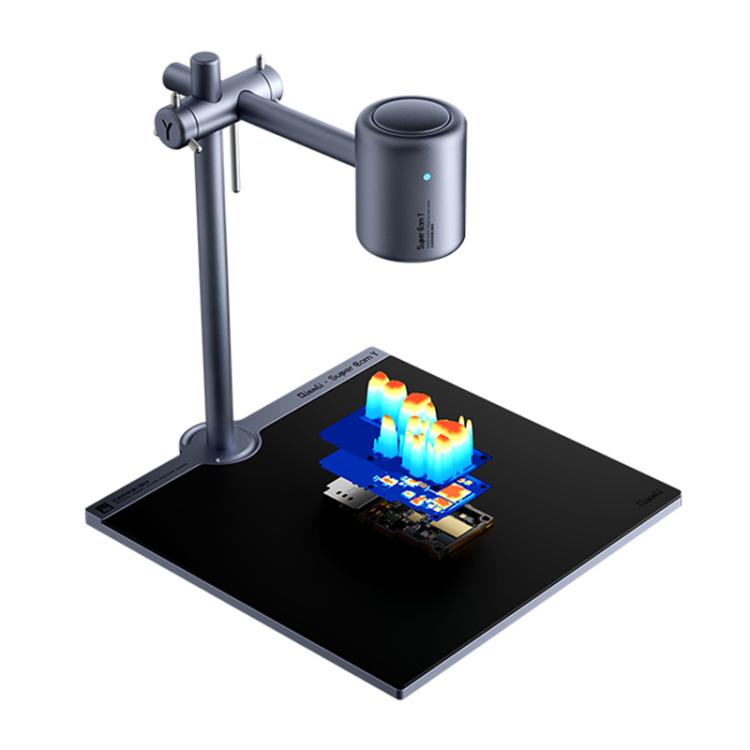

QianLi Super Cam Y 3D Infrared Thermal lmaging Analyzing Camera

1. Professional motherboard testing device, to help improve work efficiency
2. Say goodbye to dated and complicated motherboard testing methods, always at the cutting edge of advanced maintenance

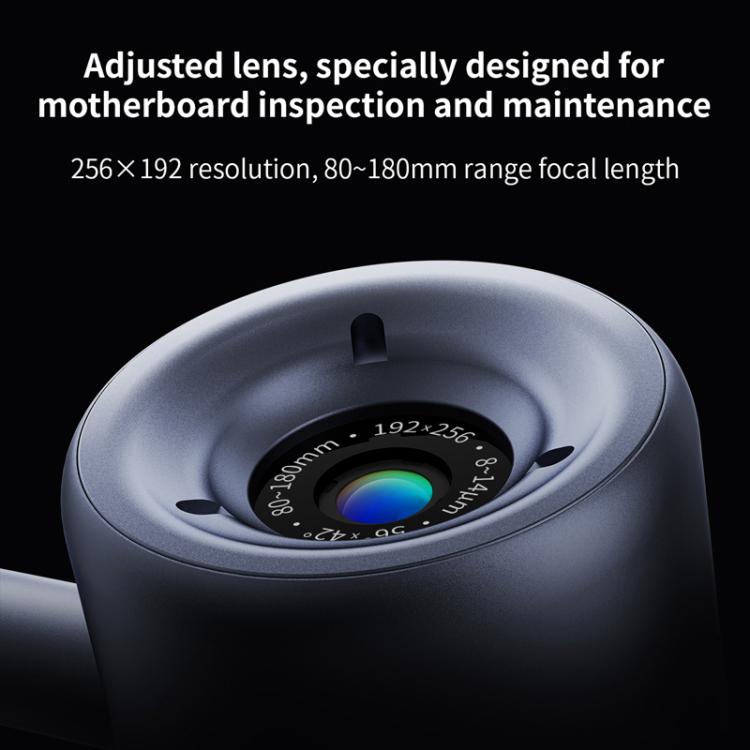

3. Adjusted lens, specially designed for motherboard inspection and maintenance, 256 x192 resolution, 80~180mm range focal length

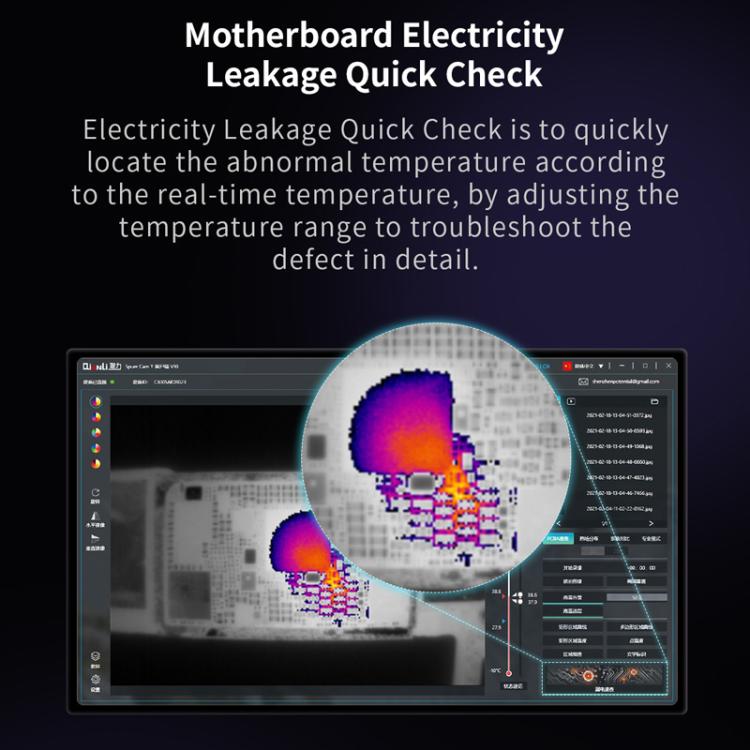

4. Electricity Leakage Quick Check is to quickly locate the abnormal temperature according to the real-time temperature, by adjusting the temperature range to troubleshoot the defect in detail

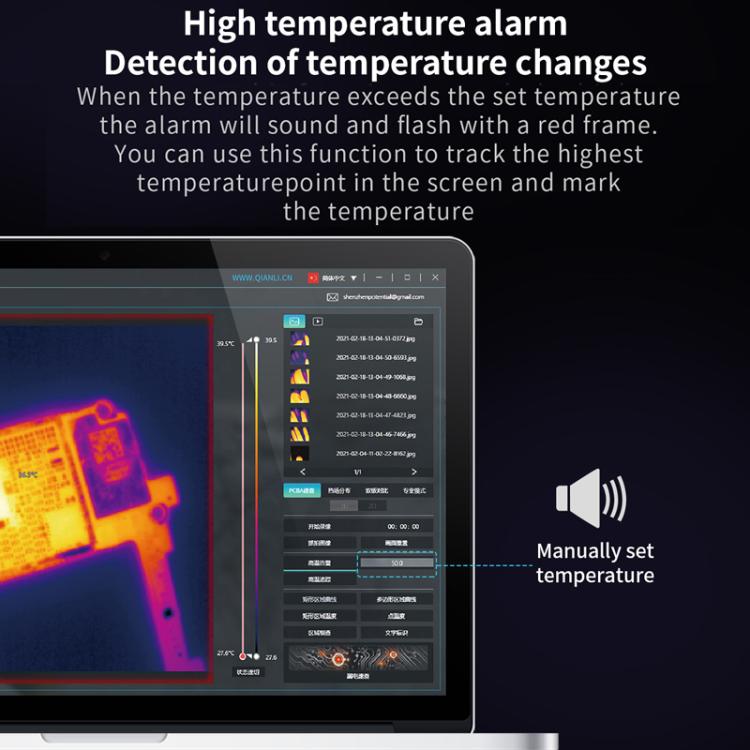

5. When the temperature exceeds the set temperature the alarm will sound and flash with a red frame.
6. You can use this function to track the highest temperature point on the screen and mark the temperature
7. Professional mode focuses on product evaluation and heat distribution analysis, such as the rationality analysis of the thermal structure design of the circuit board, and the design of the heat dissipation efficiency of the product, etc

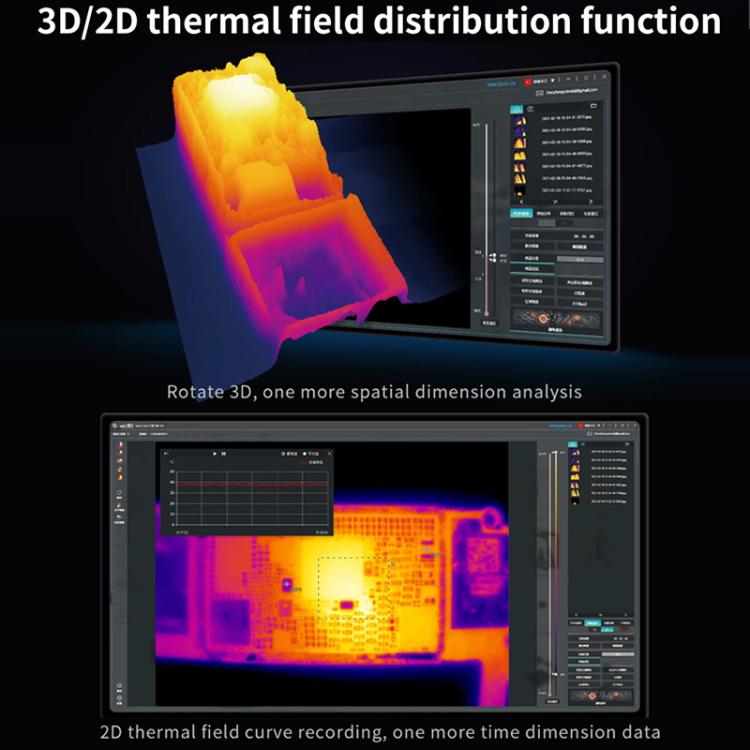

8. Rotate 3D, one more spatial dimension analysis, 2D thermal field curve recording, one more time dimension data

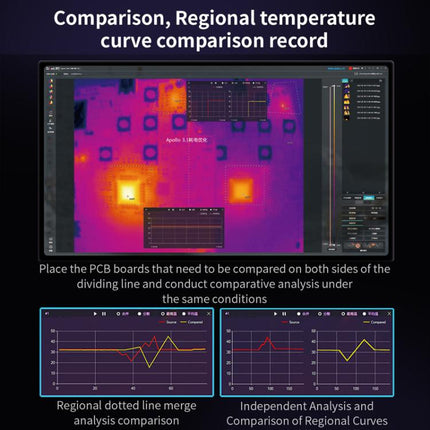

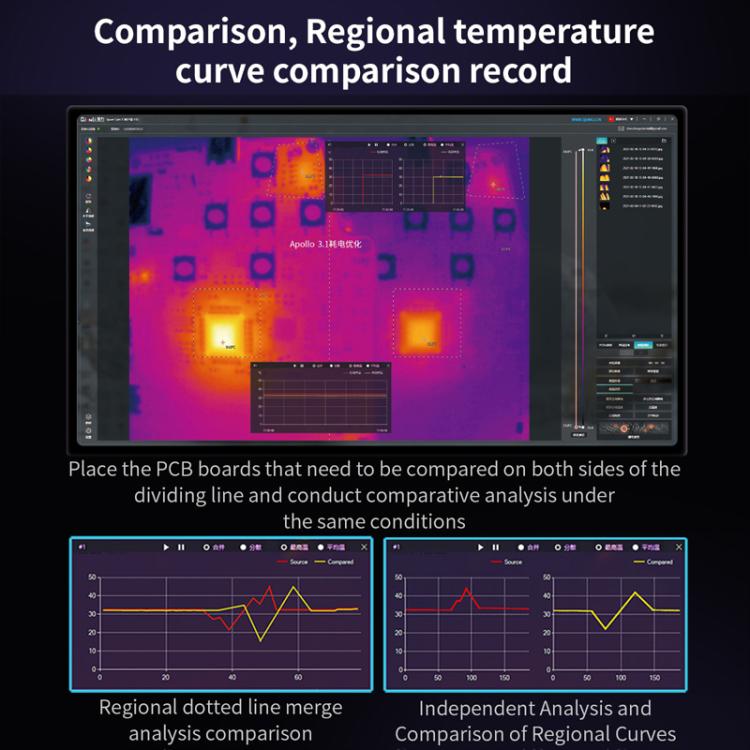

9. Design and Optimization for thermal distribution comparison and verification of defects differentiation Regional temperature curve comparison records, overlay comparison, etc
10. Place the PCB boards that need to be compared on both sides of the dividing line and conduct a comparative analysis under the same conditions

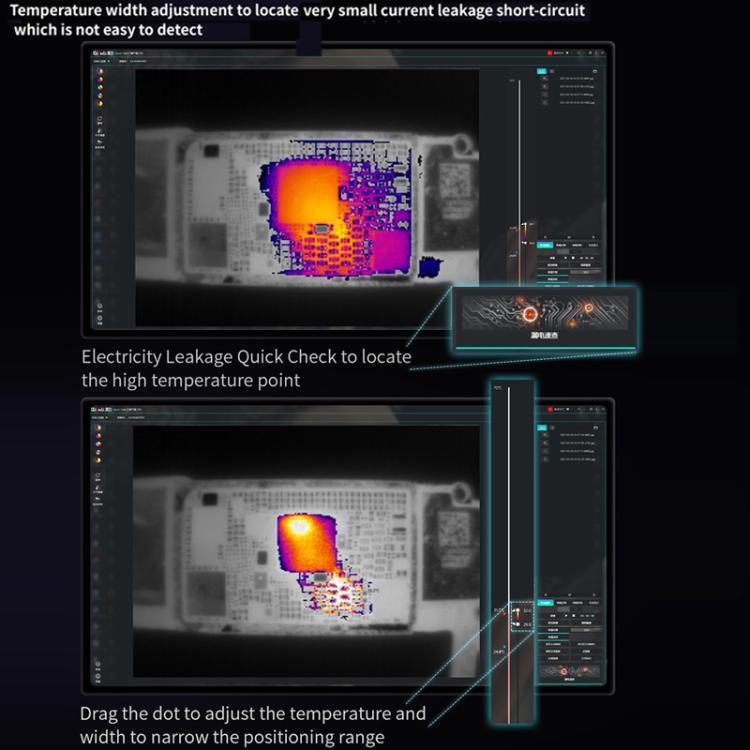

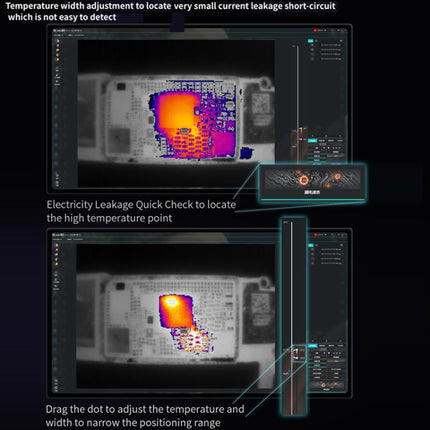

11. When there is a very small current leakage or a large interference source is nearby, the (Electricity Leakage Quick Check) cannot easily locate the leakage component, you may adjust the temperature range to change the image contrast to locate the leakage component

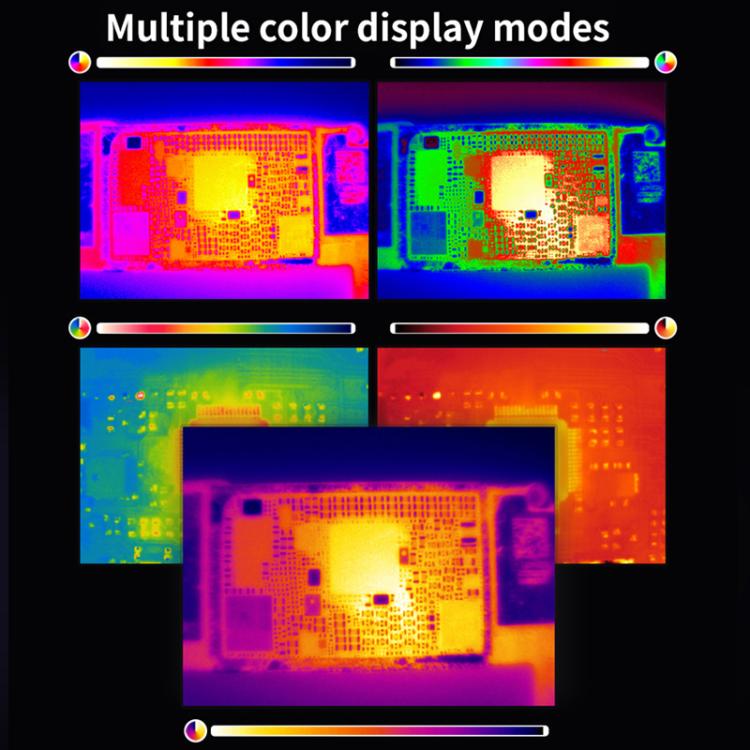

12. Switch between different color palettes according to different applications,5 different color palettes

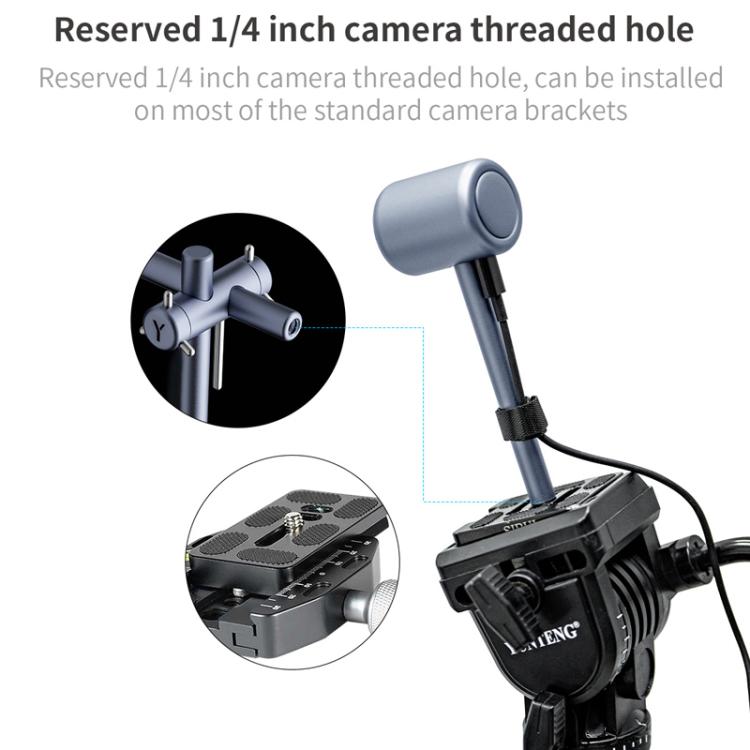

13. Reserved 1/4 inch camera threaded hole, which can be installed on most of the standard camera brackets

Specification:
1. Detector Type: Uncooled Vanadium Oxide Detector
2. Resolution: 256 × 192
3. Wavelength Range: 8~14um
4. Camera Angle: 56 × 42 degrees
5. Frame Frequency: 25Hz

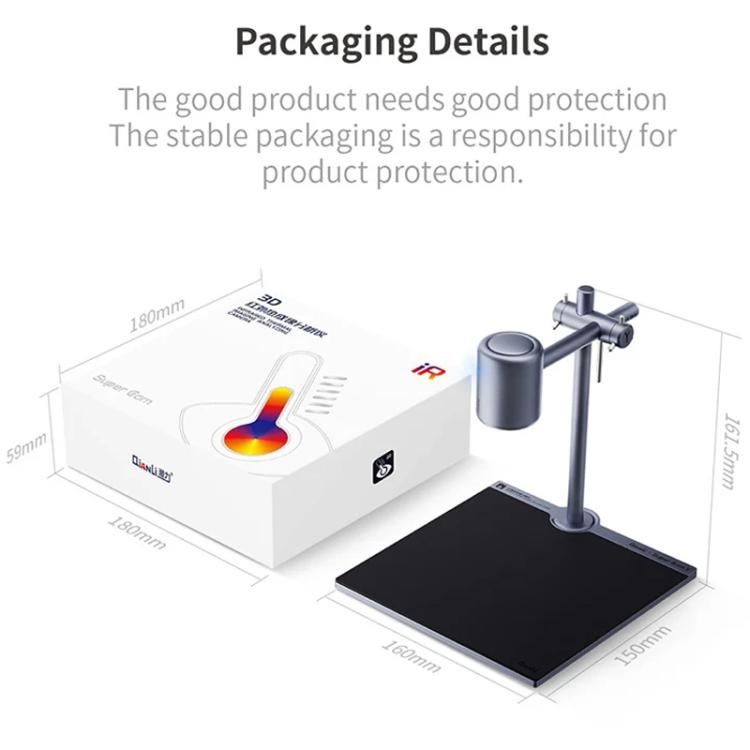

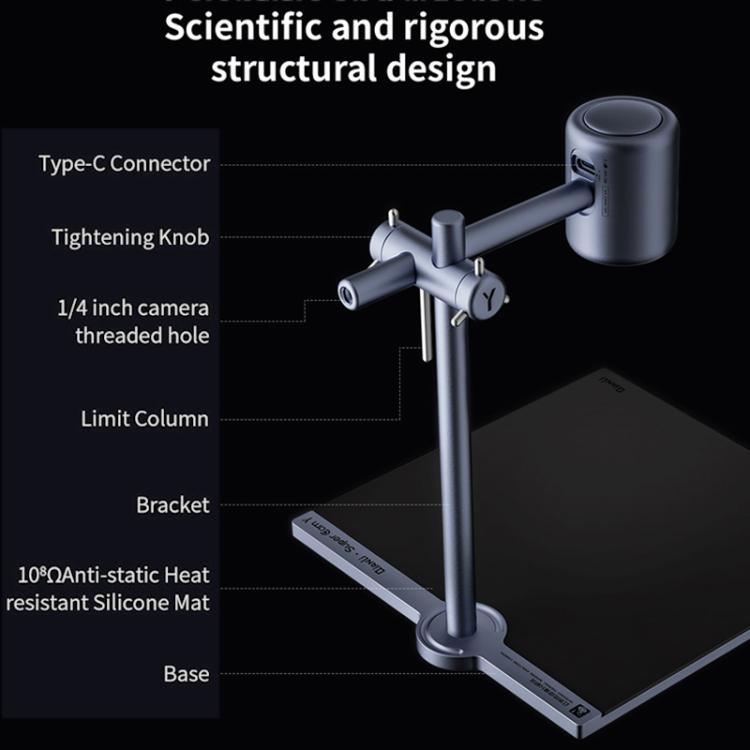

6. Bracket Size: 150mm × 160mm × 161.5mm
7. Weight: 435g
8. Installation: Removable Installation
9. Input Voltage: 5V DC
10. Power Consumption: <250mw
11. Display Mode: Infrared Thermal Imaging
12. Port Type: Type-C
13. Image Storage Format: JPG(640×480)
14. Video Storage Format: MP4
15. Temperature Measurement Function: Full Frame Temperature Measurement
16. Temperature Measurement Distance: 80~180mm
17. Temperature Measurement Accuracy: +-5 or +-5%
18. Temperature Range: 0~120 degrees Celsius
19. Storage Temperature Range: -15~60 degrees Celsius
20. Humidity: Relative Temperature


Specification:
Package Weight
One Package Weight 0.60kgs / 1.33lb
One Package Size 20cm * 20cm * 8cm / 7.87inch * 7.87inch * 3.15inch
Qty per Carton 20
Carton Weight 10.00kgs / 22.05lb
Carton Size 42cm * 42cm * 37cm / 16.54inch * 16.54inch * 14.57inch
Loading Container 20GP: 408 cartons * 20 pcs = 8160 pcs
40HQ: 948 cartons * 20 pcs = 18960 pcs

QianLi Super Cam Y 3D Infrared Thermal lmaging Analyzing Camera

Product form

SKU: EDA0081371

  • In stock (Processing Time 1 - 72 hours)

€832,54

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    1. Professional motherboard testing device, to help improve work efficiency
    2. Say goodbye to dated and complicated motherboard testing methods, always at the cutting edge of advanced maintenance
    3. Adjusted lens, specially designed for motherboard inspection and maintenance, 256 x192 resolution, 80~180mm range focal length
    4. Electricity Leakage Quick Check is to quickly locate the abnormal temperature according to the real-time temperature, by adjusting the temperature range to troubleshoot the defect in detail
    5. When the temperature exceeds the set temperature the alarm will sound and flash with a red frame.
    6. You can use this function to track the highest temperature point on the screen and mark the temperature
    7. Professional mode focuses on product evaluation and heat distribution analysis, such as the rationality analysis of the thermal structure design of the circuit board, and the design of the heat dissipation efficiency of the product, etc
    8. Rotate 3D, one more spatial dimension analysis, 2D thermal field curve recording, one more time dimension data
    9. Design and Optimization for thermal distribution comparison and verification of defects differentiation Regional temperature curve comparison records, overlay comparison, etc
    10. Place the PCB boards that need to be compared on both sides of the dividing line and conduct a comparative analysis under the same conditions
    11. When there is a very small current leakage or a large interference source is nearby, the (Electricity Leakage Quick Check) cannot easily locate the leakage component, you may adjust the temperature range to change the image contrast to locate the leakage component
    12. Switch between different color palettes according to different applications,5 different color palettes
    13. Reserved 1/4 inch camera threaded hole, which can be installed on most of the standard camera brackets

    Specification:
    1. Detector Type: Uncooled Vanadium Oxide Detector
    2. Resolution: 256 × 192
    3. Wavelength Range: 8~14um
    4. Camera Angle: 56 × 42 degrees
    5. Frame Frequency: 25Hz
    6. Bracket Size: 150mm × 160mm × 161.5mm
    7. Weight: 435g
    8. Installation: Removable Installation
    9. Input Voltage: 5V DC
    10. Power Consumption: <250mw
    11. Display Mode: Infrared Thermal Imaging
    12. Port Type: Type-C
    13. Image Storage Format: JPG(640×480)
    14. Video Storage Format: MP4
    15. Temperature Measurement Function: Full Frame Temperature Measurement
    16. Temperature Measurement Distance: 80~180mm
    17. Temperature Measurement Accuracy: +-5 or +-5%
    18. Temperature Range: 0~120 degrees Celsius
    19. Storage Temperature Range: -15~60 degrees Celsius
    20. Humidity: Relative Temperature


    Specification:
    Package Weight
    One Package Weight 0.60kgs / 1.33lb
    One Package Size 20cm * 20cm * 8cm / 7.87inch * 7.87inch * 3.15inch
    Qty per Carton 20
    Carton Weight 10.00kgs / 22.05lb
    Carton Size 42cm * 42cm * 37cm / 16.54inch * 16.54inch * 14.57inch
    Loading Container 20GP: 408 cartons * 20 pcs = 8160 pcs
    40HQ: 948 cartons * 20 pcs = 18960 pcs
