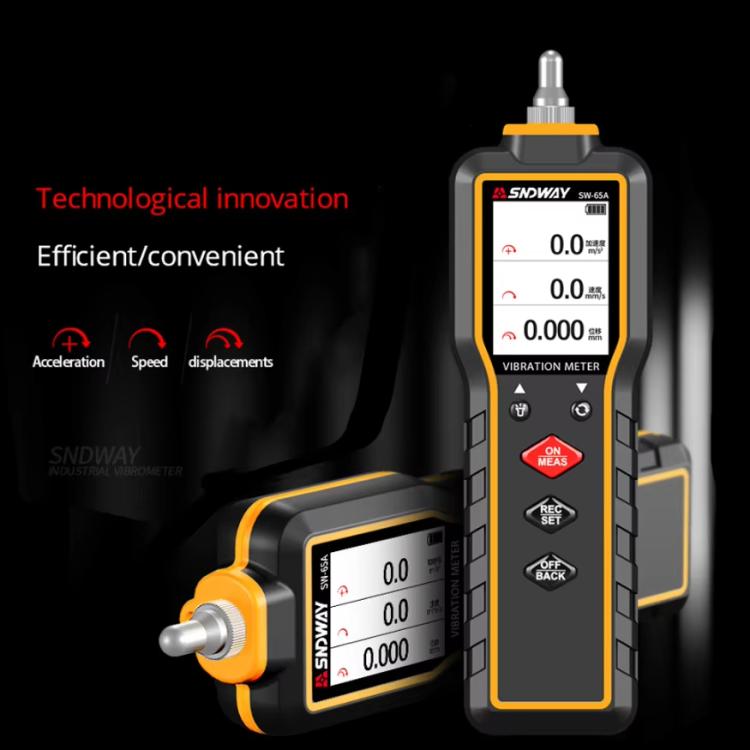

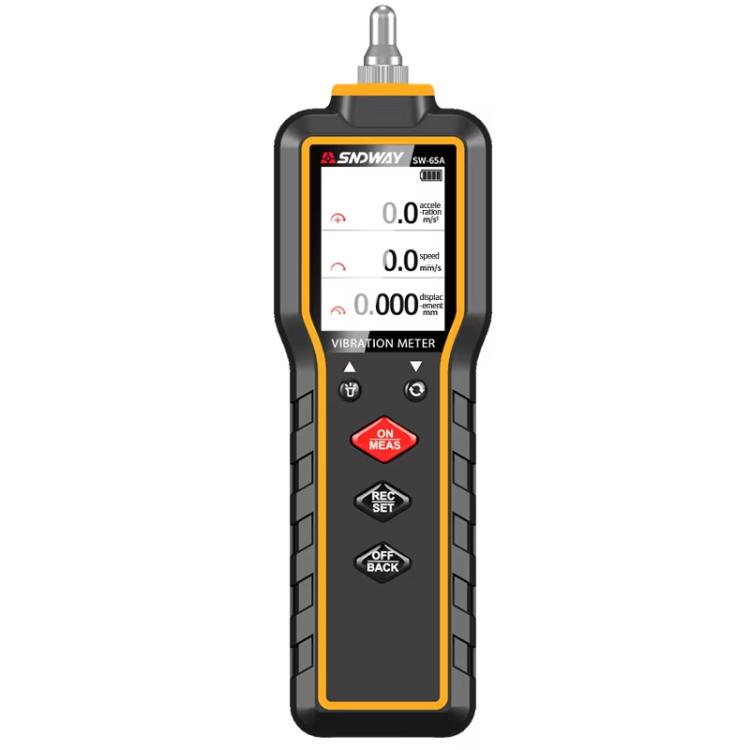

SNDWAY SW-65A Digital Vibrometer Motor Fault Vibration Detector Vibration Pen


1. Sensor: piezoelectric accelerometer
2. Acceleration measurement range: 0.1-199.9m/s2 (peak value)
3. Velocity measurement range: 0.1-199.9mm/s (true effective value)
4. Displacement measurement range: 0.001-1.999mm (peak-to-peak value)
5. Measurement error: +/-(5%+2dgts)
6. Low-frequency acceleration measurement frequency range: 10Hz-1KHz
7. High-frequency acceleration measurement frequency range: 1ΚΗz-10ΚΗz
8. Velocity measurement frequency range: 10Hz-1KHz
9. Displacement measurement frequency range: 10Hz-500Hz
10. Data refresh time: 500ms
11. Number of storage records: 200 records
12. Working temperature: 0 - 50 degrees Celsius
13. Working/storage humidity: 20%RH - 80%RH
14. Storage temperature: -20 - 60 degrees Celsius
15. Power supply: 2 x 1.5V AAA batteries (not included)
16. Battery life: more than 4 hours of continuous use
17. Altitude: less than 2000m

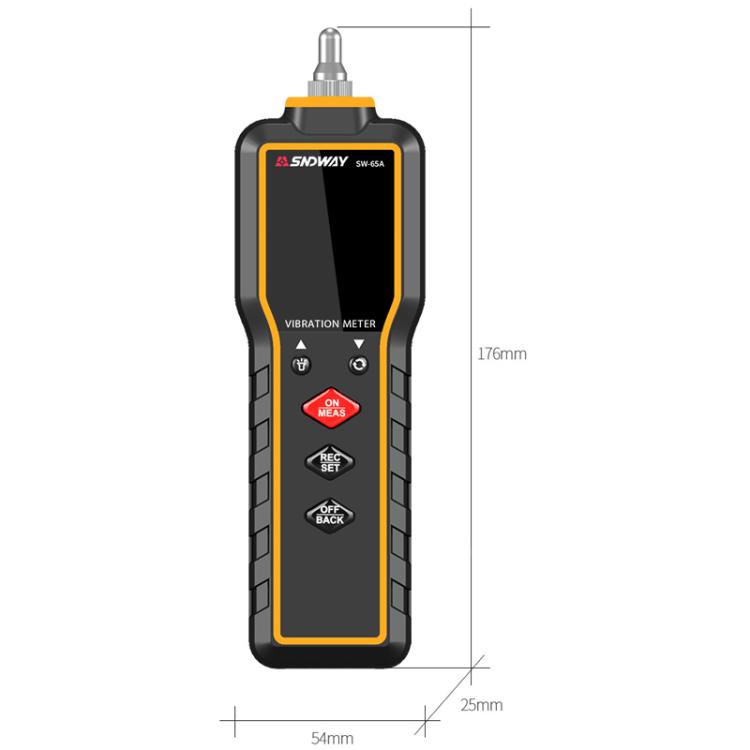

18. Size: about 17.6 x 5.4 x 2.5cm
19. Weight: about 121g

Features:

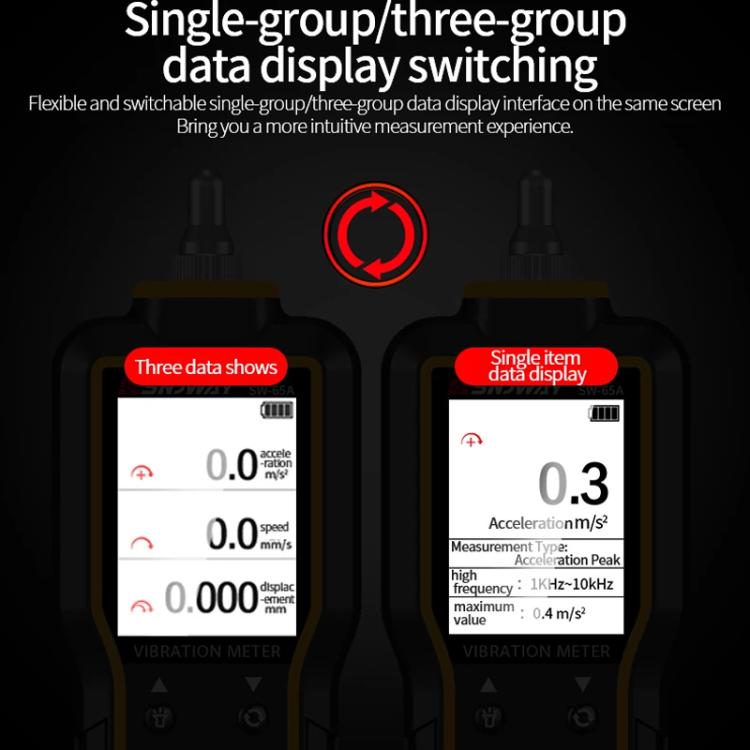

1. Single/three-group data display switch

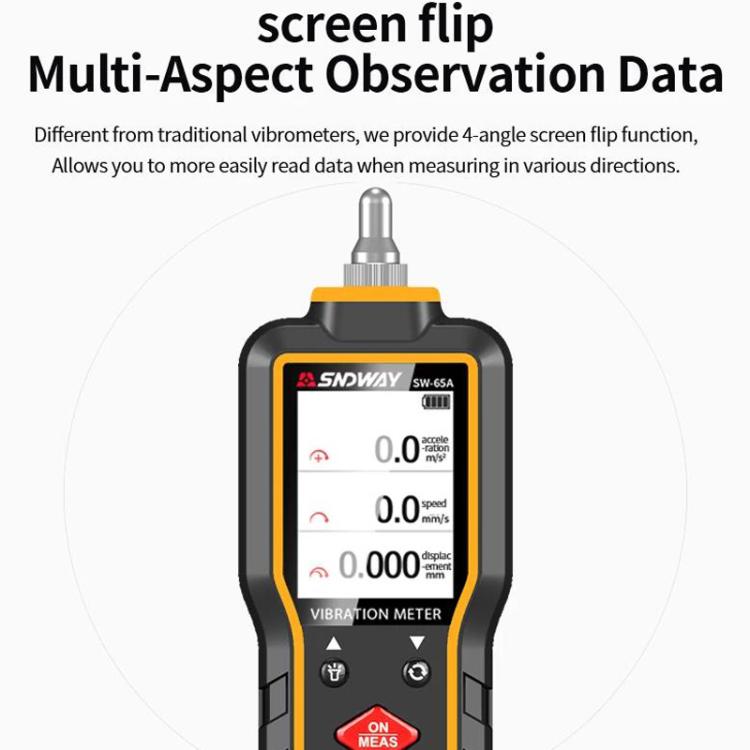

2. Screen flip, multi-directional observation data

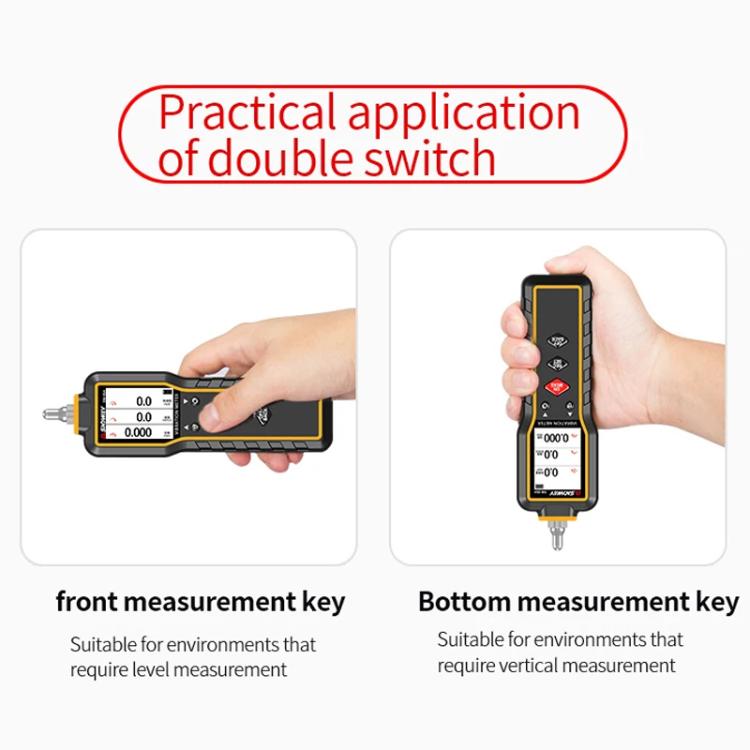

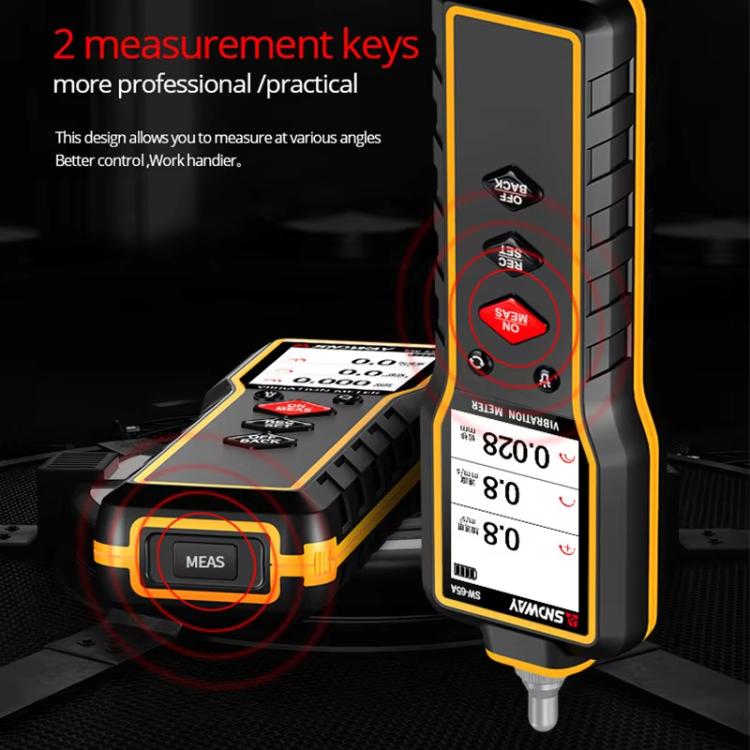

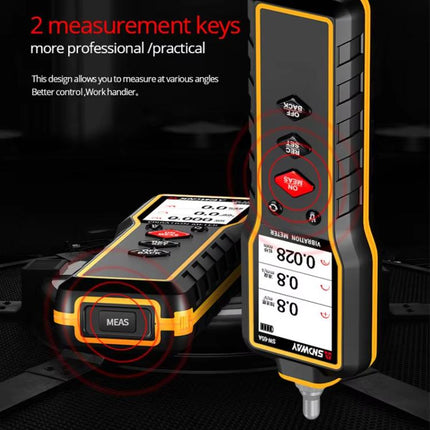

3. Dual measurement keys, better control direction and contact with the object to be measured

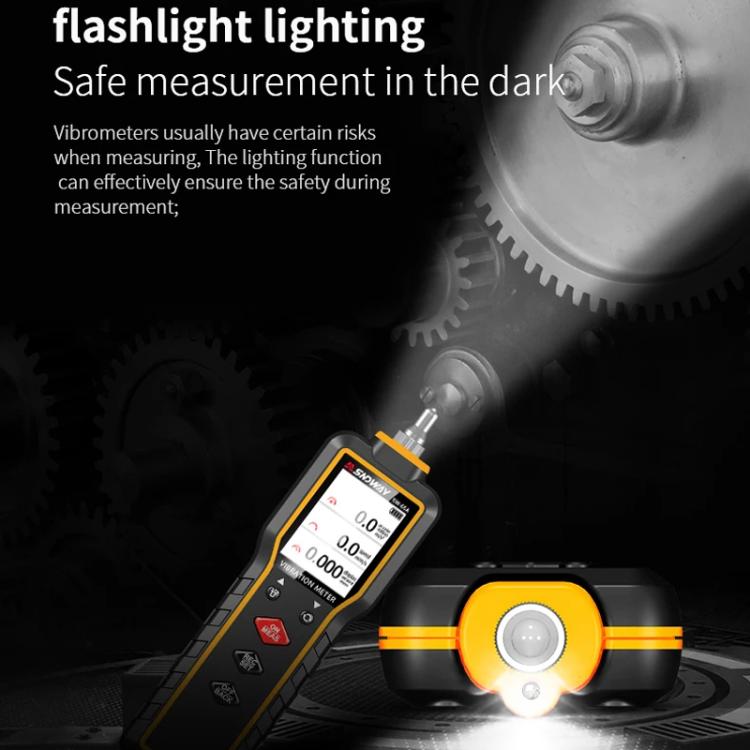

4. With flashlight lighting, safe measurement in dark conditions

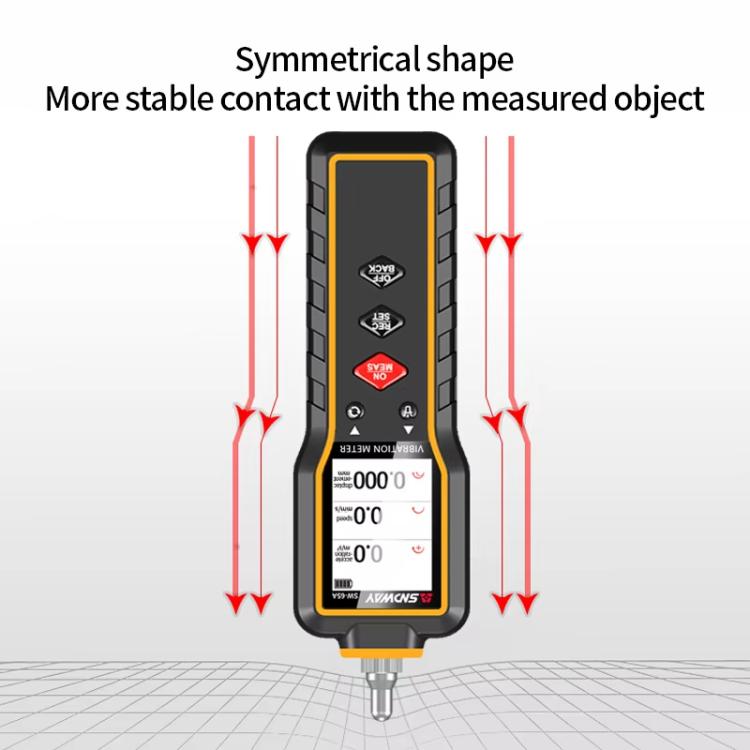

5. Symmetrical shape, more stable contact with the object to be measured, more uniform force

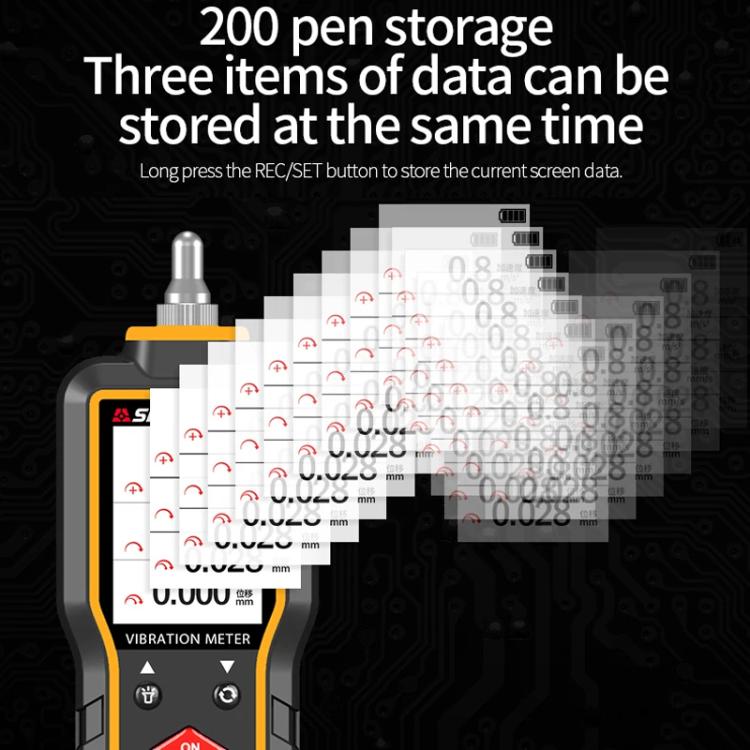

6. 200 records of storage, can store three items of data at the same time

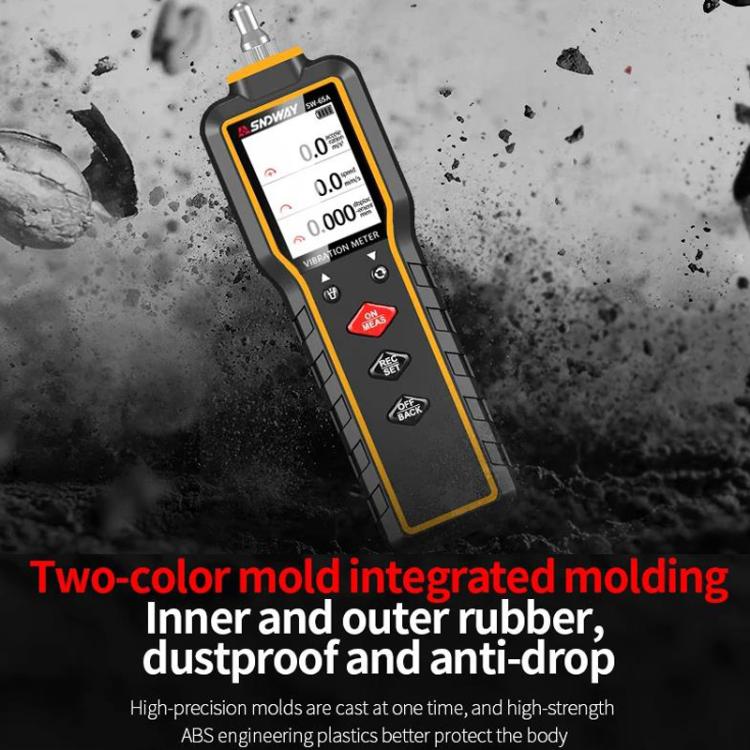

7. Two-color mold one-piece molding, internal and external rubber coating, dustproof and drop-proof

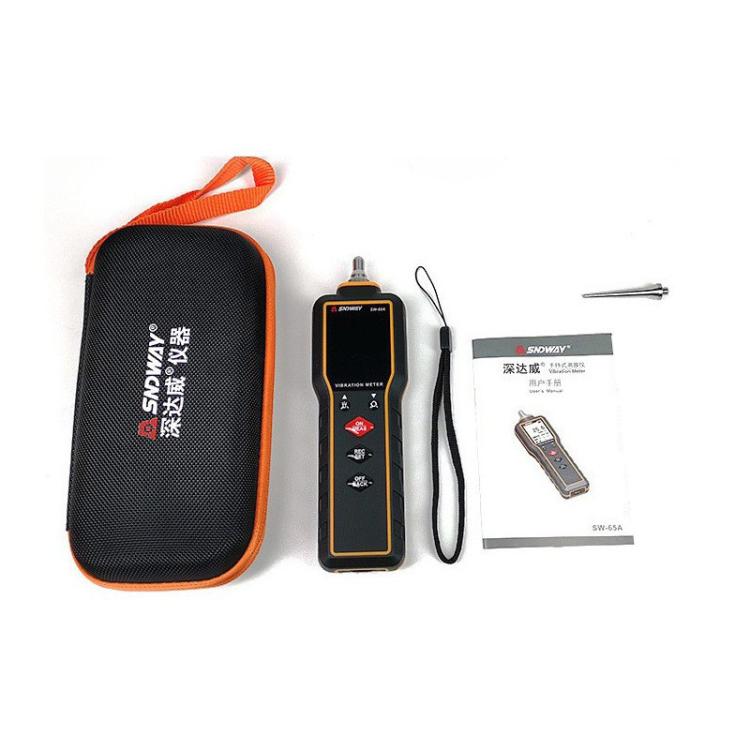

Packing list:
- Vibration meter x 1
- Manual x 1
- Long probe x 1
- Short probe x 1
- Carrying bag x 1
- Lanyard x 1


Specification:
Package Weight
One Package Weight 0.34kgs / 0.76lb
One Package Size 23cm * 12cm * 7cm / 9.06inch * 4.72inch * 2.76inch
Qty per Carton 10
Carton Weight 3.80kgs / 8.38lb
Carton Size 31cm * 24cm * 24cm / 12.2inch * 9.45inch * 9.45inch
Loading Container 20GP: 1493 cartons * 10 pcs = 14930 pcs
40HQ: 3466 cartons * 10 pcs = 34660 pcs

SNDWAY SW-65A Digital Vibrometer Motor Fault Vibration Detector Vibration Pen

Product form

SKU: TBD0605947901

  • In stock (Processing Time 1 - 72 hours)

€144,57

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Sensor: piezoelectric accelerometer
    2. Acceleration measurement range: 0.1-199.9m/s2 (peak value)
    3. Velocity measurement range: 0.1-199.9mm/s (true effective value)
    4. Displacement measurement range: 0.001-1.999mm (peak-to-peak value)
    5. Measurement error: +/-(5%+2dgts)
    6. Low-frequency acceleration measurement frequency range: 10Hz-1KHz
    7. High-frequency acceleration measurement frequency range: 1ΚΗz-10ΚΗz
    8. Velocity measurement frequency range: 10Hz-1KHz
    9. Displacement measurement frequency range: 10Hz-500Hz
    10. Data refresh time: 500ms
    11. Number of storage records: 200 records
    12. Working temperature: 0 - 50 degrees Celsius
    13. Working/storage humidity: 20%RH - 80%RH
    14. Storage temperature: -20 - 60 degrees Celsius
    15. Power supply: 2 x 1.5V AAA batteries (not included)
    16. Battery life: more than 4 hours of continuous use
    17. Altitude: less than 2000m
    18. Size: about 17.6 x 5.4 x 2.5cm
    19. Weight: about 121g

    Features:
    1. Single/three-group data display switch
    2. Screen flip, multi-directional observation data
    3. Dual measurement keys, better control direction and contact with the object to be measured
    4. With flashlight lighting, safe measurement in dark conditions
    5. Symmetrical shape, more stable contact with the object to be measured, more uniform force
    6. 200 records of storage, can store three items of data at the same time
    7. Two-color mold one-piece molding, internal and external rubber coating, dustproof and drop-proof

    Packing list:
    - Vibration meter x 1
    - Manual x 1
    - Long probe x 1
    - Short probe x 1
    - Carrying bag x 1
    - Lanyard x 1


    Specification:
    Package Weight
    One Package Weight 0.34kgs / 0.76lb
    One Package Size 23cm * 12cm * 7cm / 9.06inch * 4.72inch * 2.76inch
    Qty per Carton 10
    Carton Weight 3.80kgs / 8.38lb
    Carton Size 31cm * 24cm * 24cm / 12.2inch * 9.45inch * 9.45inch
    Loading Container 20GP: 1493 cartons * 10 pcs = 14930 pcs
    40HQ: 3466 cartons * 10 pcs = 34660 pcs
