Standard BSIDE SH9 Infrared Thermal Imaging Multimeter Touchscreen High-Definition Thermal Imaging Thermometer Electrical Floor Heating Inspection


Thermal imaging:
1. Sensor type: Vanadium oxide (VOx) microbolometer
2. Response band: 8-14um
3. Thermal image resolution: 320 x 428 pixels
4. Noise equivalent temperature difference (NETD): less than or equal to 50 mK (@25 degrees Celsius, F 1.0)
5. Field of view (FOV): 50.0 degrees (H) x 37.2 degrees (V) 163.6 degrees (D)
6. Spatial resolution (IFOV): 8.89 mrad
7. Frame rate: 25Hz
8. Preview mode: thermal imaging, fusion, visible light
9. Temperature measurement focal length: about 0.3m-3m adjustable
10. Temperature measurement range: -20 - 550 degrees Celsius
11. Temperature measurement accuracy: +/-2 degrees Celsius or +/-2 degrees Celsius of reading (the larger value of reading)
12. Temperature measurement unit: Celsius, Fahrenheit, Kelvin
13. Temperature measurement resolution: 0.1 degrees Celsius
14. Emissivity: 0.01-1.00 adjustable
15. Temperature measurement display: center point temperature measurement, high and low temperature tracking
16. Temperature alarm: screen font color alarm
17. Display: 3.98 inch TFT capacitive touch screen
18. Display resolution: 320 x 480
19. Color palette: Iron Red 2, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue
20. Image storage: built-in memory card
21. Number of image files: 15,000
22. Image format: BMP picture
23. Shock/Vibration: GB/T2423.5-2019, GB/T2423.10-2008
24. Electromagnetic Compatibility (EMC): GBIT17799.2, GB17799.3-2012
25. Focusing mode: Focus-free
26. Hardware interface: Type-C
27. Battery type: Rechargeable lithium battery (3.7V/2500mAh)
28. Battery working time: more than 5H @25 degrees Celsius
29. Charging time: less than 3h@25 degrees Celsius
30. Boot speed: about 3 seconds to boot
31. Automatic shutdown: off (default) (optional 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, off)
32. Working temperature: -20 - 50 degrees Celsius
33. Storage temperature: -40 - 70 degrees Celsius
34. Storage humidity: 25%-40%RH (non-condensing)
35. Operating humidity: less than 85%RH (non-condensing)
36. Dimensions: about 16.9 x 8.1 x 2.68cm
37. Weight: about 274.3g

Multimeter:

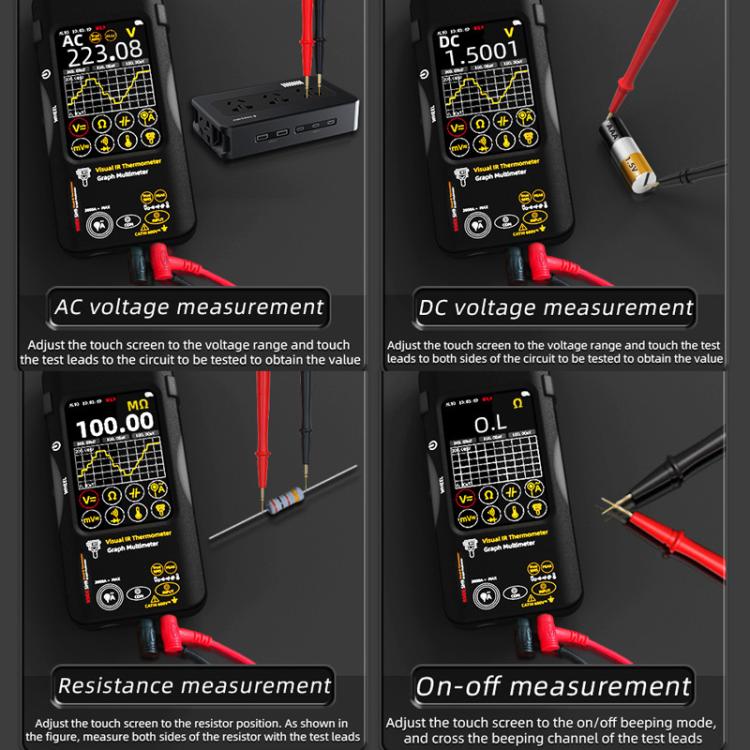

1. DC voltage (V) range/resolution: 2.0000V/0.0001V, 20.000V/0.001V, 200.00V/0.01V, 1000V/0.1V
2. AC voltage (V) range/resolution: 2.0000V/0.0001V, 20.000V/0.001V, 200.00V/0.01V, 750V/0.1V

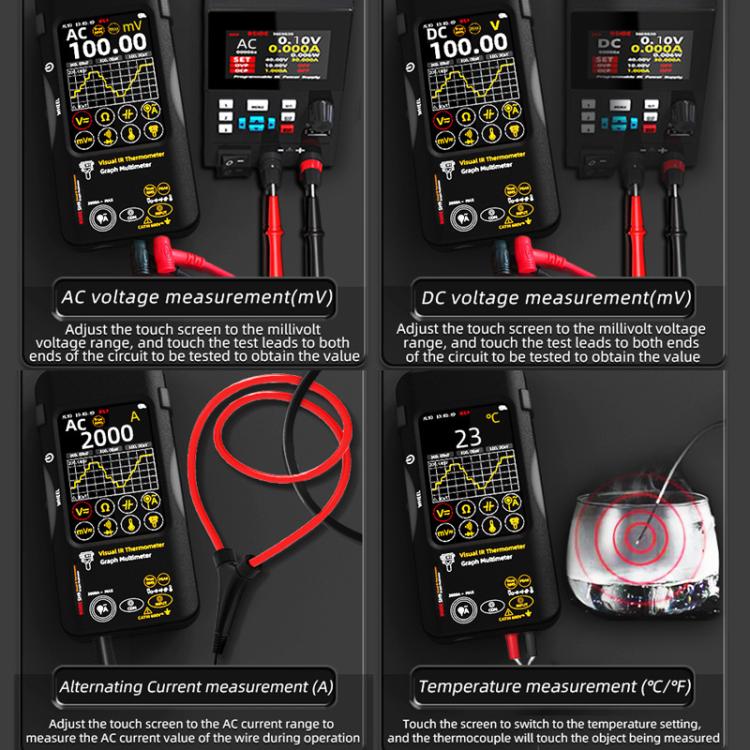

3. DC/AC voltage (mV) range/resolution: 20.000mV/0.001mV, 200.00mV/0.01mV
4. Resistance range/resolution: 200.00ohm/0.01ohm, 2.0000kohm/0.0001kohm, 20.000kohm/0.001kohm, 200.00kohm/0.01kohm, 2.0000megohm/0.0001megohm, 20.000megohm/0.001megohm, 200.00megohm/0.01megohm
5. Capacitance range/resolution: 999.99nF/0.01nF, 9.999uF/0.001uF, 999.99uF/0.01uF, 99.999mF/0.001mF
6. Flexible current clamp range/resolution: 200.0A/0.1A
7. AC current range/resolution: 2000A/1A
8. Temperature range/resolution: -20 - 1300 degrees Celsius/1 degree Celsius, -4 - 2372 degrees Fahrenheit/1 degree Fahrenheit
9. Function: diode, on/off

Features:

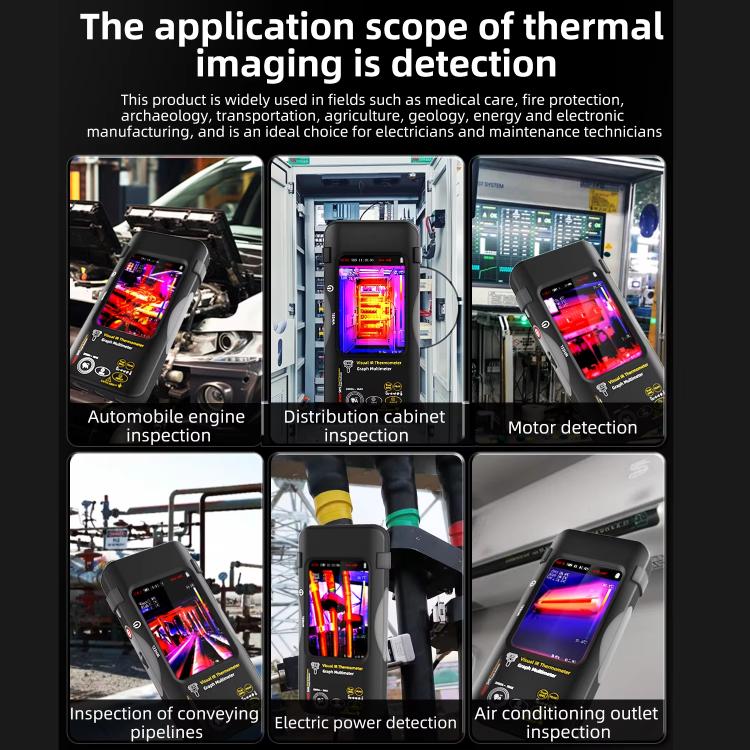

1. Widely used in medical/firefighting/archaeology/transportation/agriculture/geology/energy/electronic manufacturing and other fields, it is an ideal choice for electricians and maintenance technicians

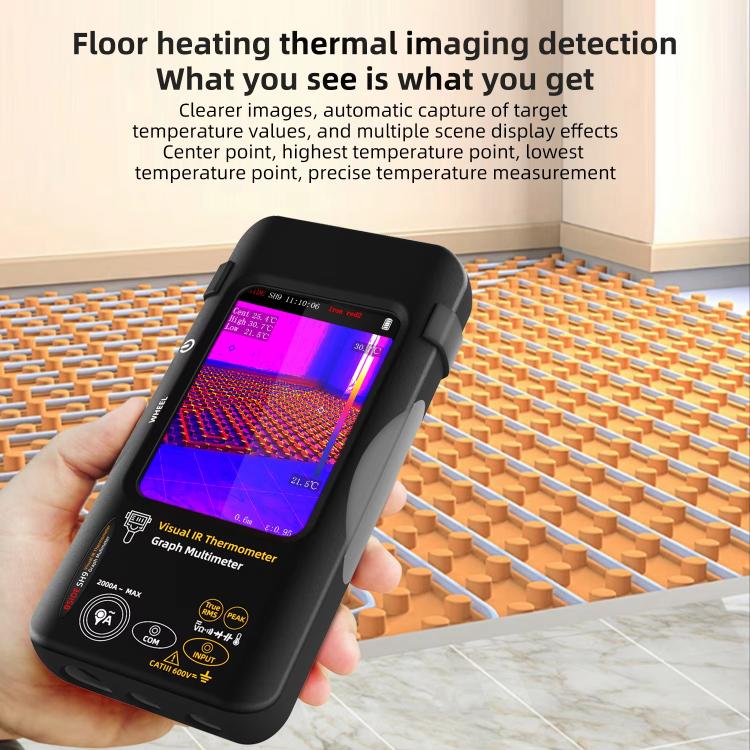

2. The image is clearer, automatically captures the target temperature value, and multiple scenes display the effect center point, highest temperature point, lowest temperature point, and accurate temperature measurement

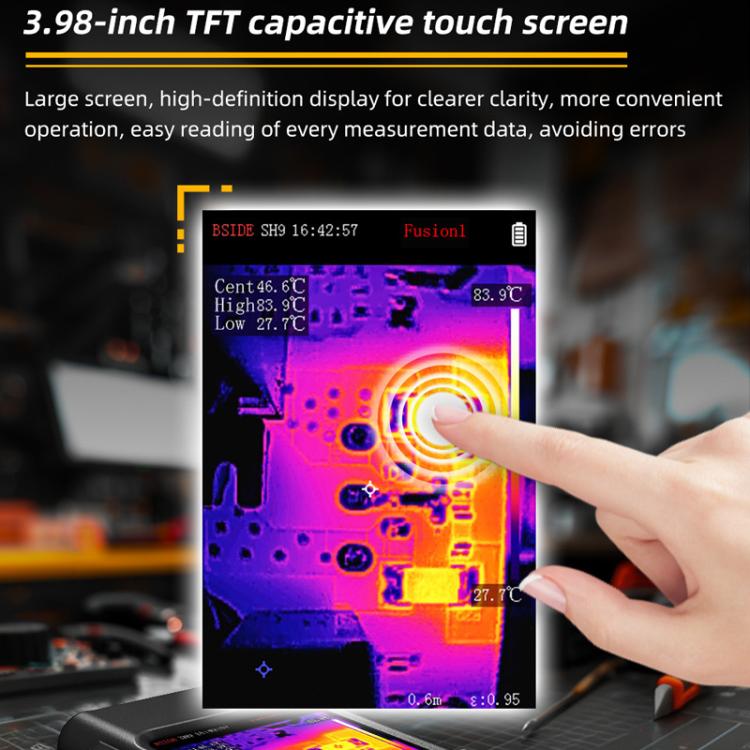

3. 3.98-inch TFT capacitive touch screen, clearer HD display, more convenient operation, easy to read every measurement data, avoid errors

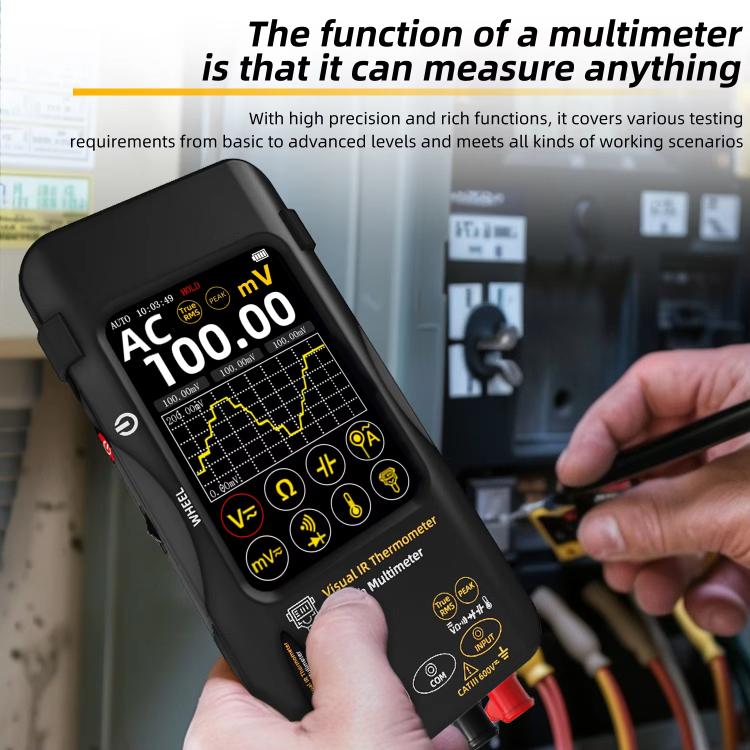

4. High accuracy, rich functions, covering all kinds of test needs from basic to advanced, meeting various work scenarios

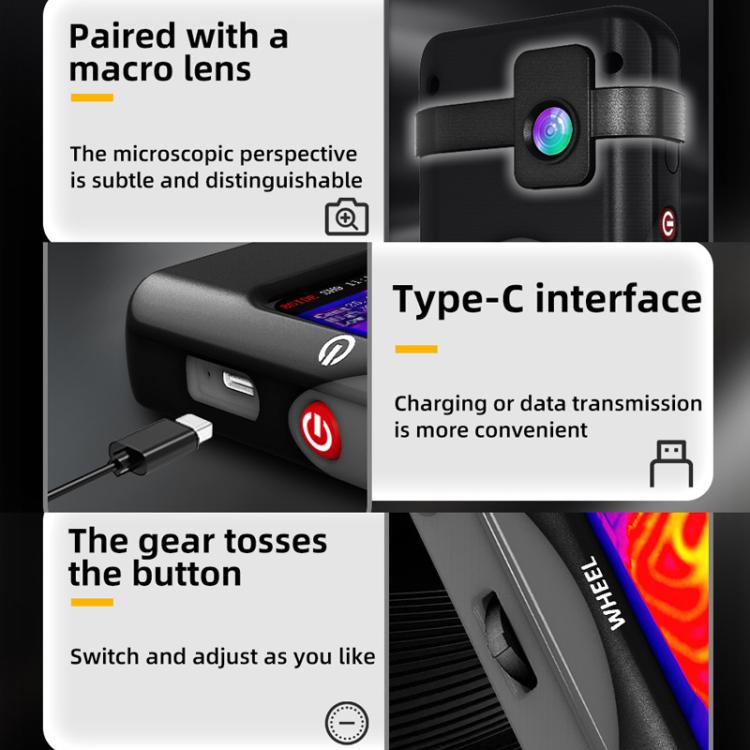

5. Type-C interface, charging or data transmission is more convenient
6. Gear toggle button, switch and adjust at will

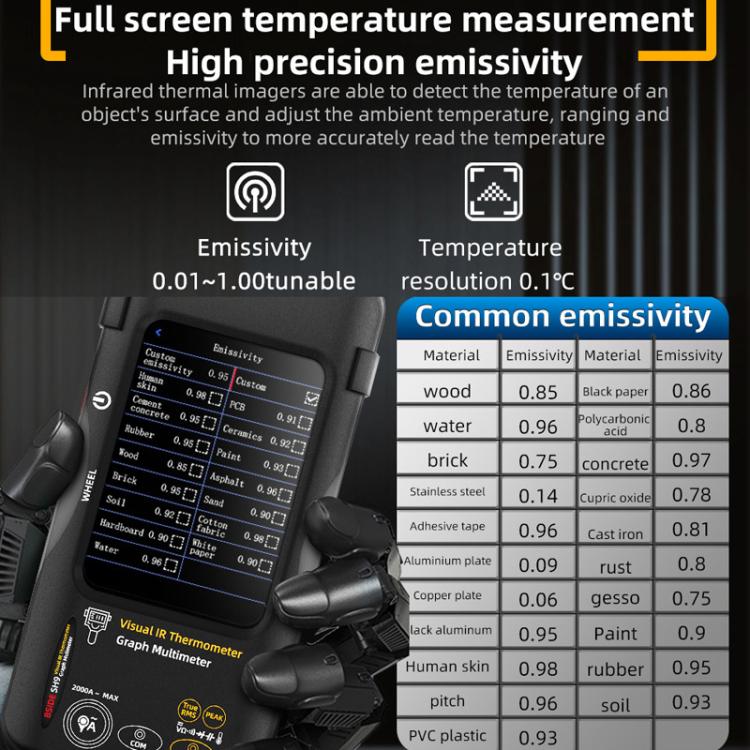

7. Full-screen temperature measurement, high-precision emissivity

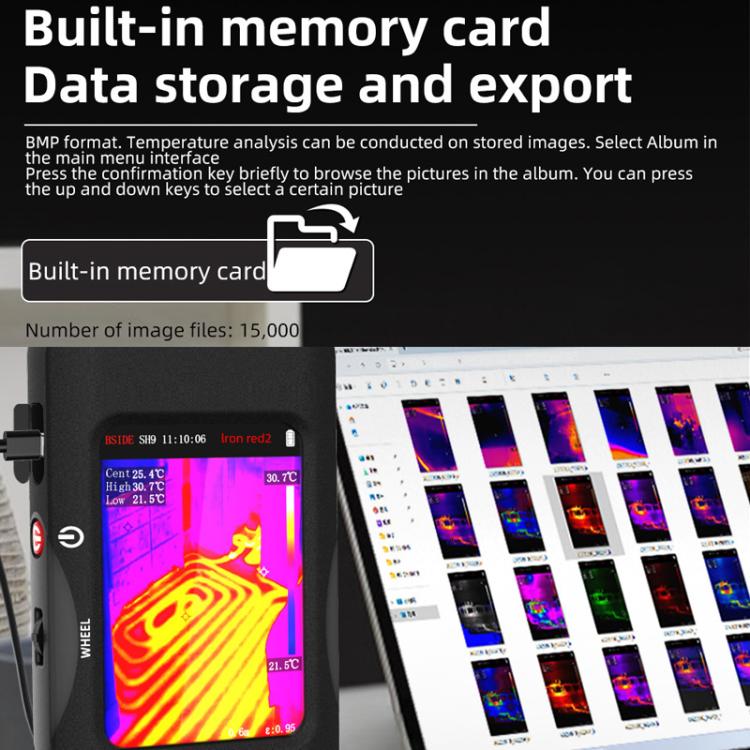

8. Built-in memory card, data storage and export
9. Lightweight, more convenient to carry
10. Sturdy body, wear-resistant and durable

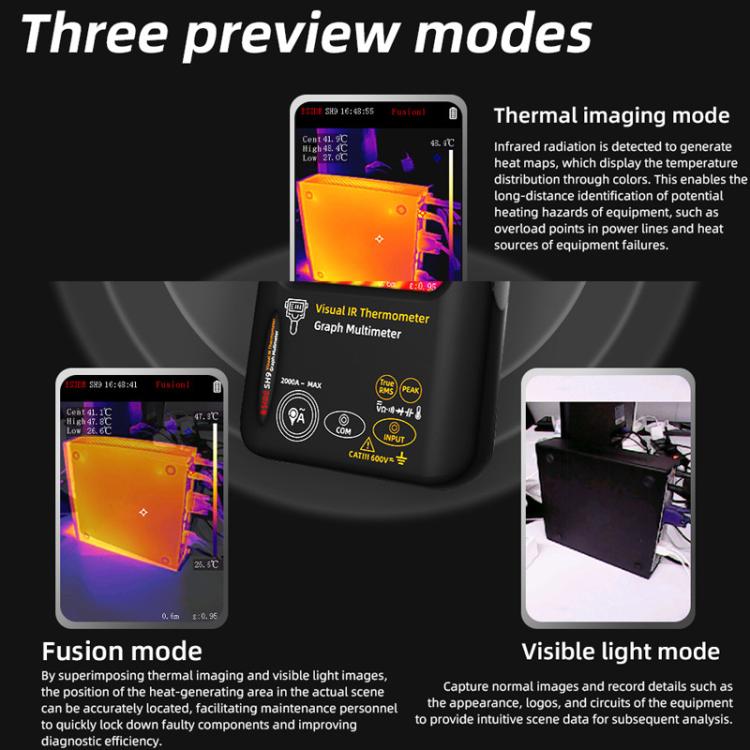

11. Three preview modes of thermal imaging/fusion/visible light
12. Low light + thermal imager dual-channel dual light fusion

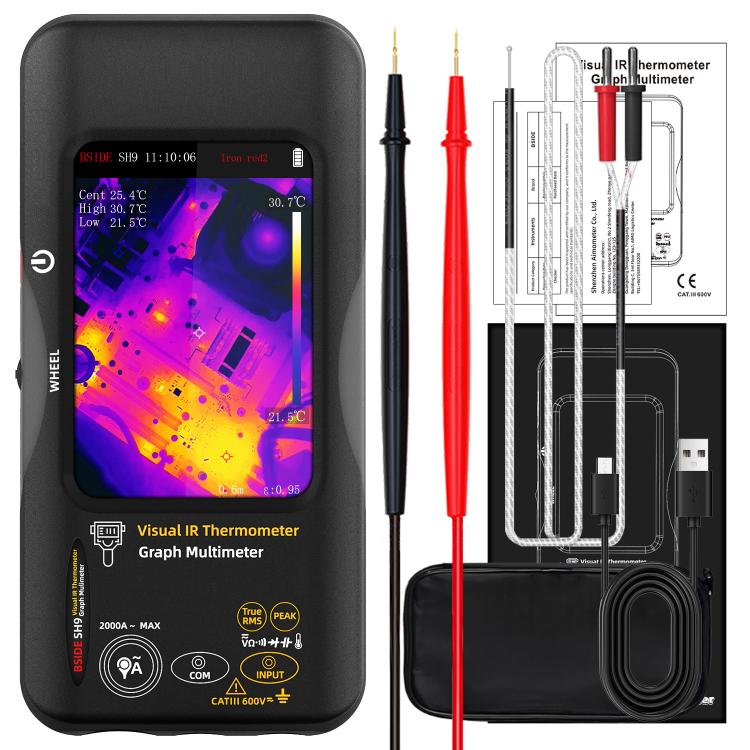

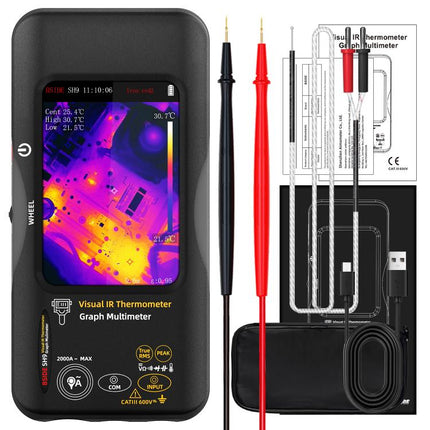

Standard packing list:
- Thermal imaging multimeter x 1
- Data cable x 1
- Manual x 1
- Thermocouple x 1
- Storage bag x 1
- Special tip probe x 1

Note: flexible coil red/black is random delivery


Specification:
Package Weight
One Package Weight 0.46kgs / 1.02lb
One Package Size 22cm * 13cm * 5cm / 8.66inch * 5.12inch * 1.97inch
Qty per Carton 30
Carton Weight 14.80kgs / 32.63lb
Carton Size 46cm * 37cm * 31cm / 18.11inch * 14.57inch * 12.2inch
Loading Container 20GP: 505 cartons * 30 pcs = 15150 pcs
40HQ: 1173 cartons * 30 pcs = 35190 pcs
