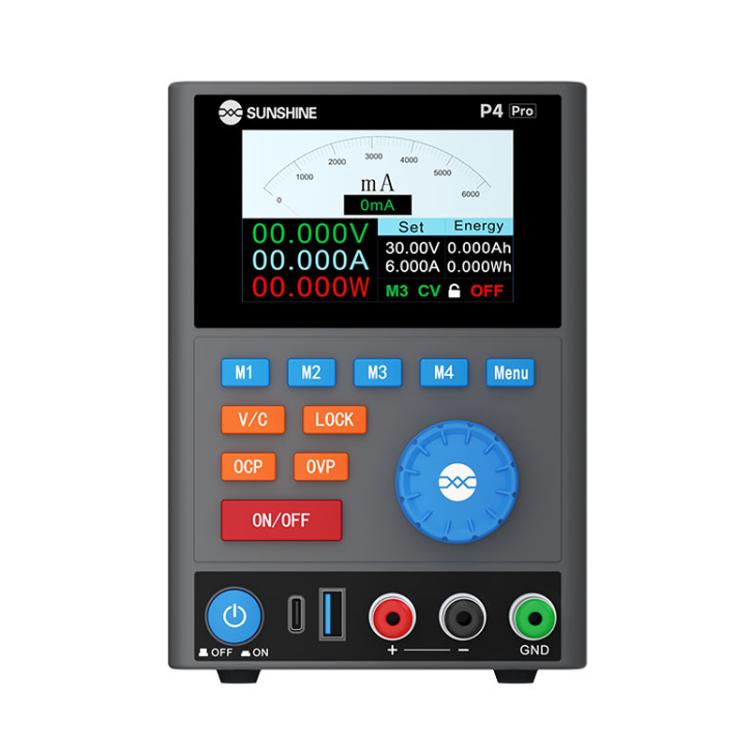

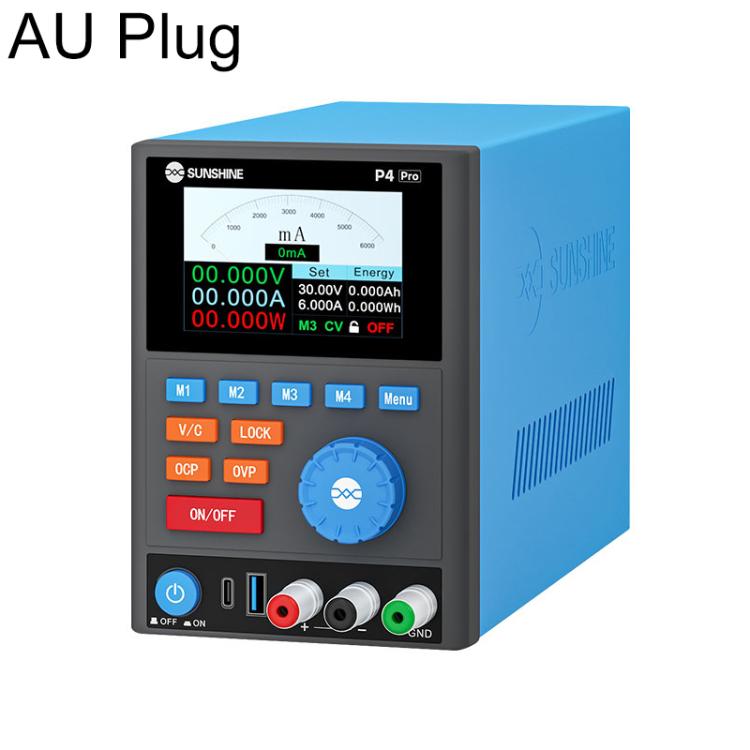

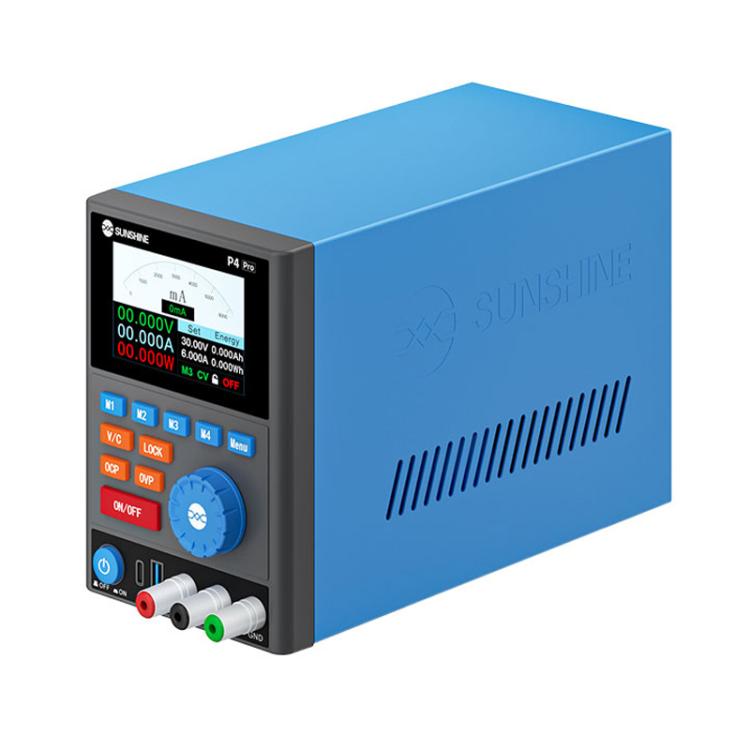

SUNSHINE P4 Pro 30V / 6A Smart DC Regulated Power Supply, Plug:AU Plug

Specifications:
1. Model: P4 Pro

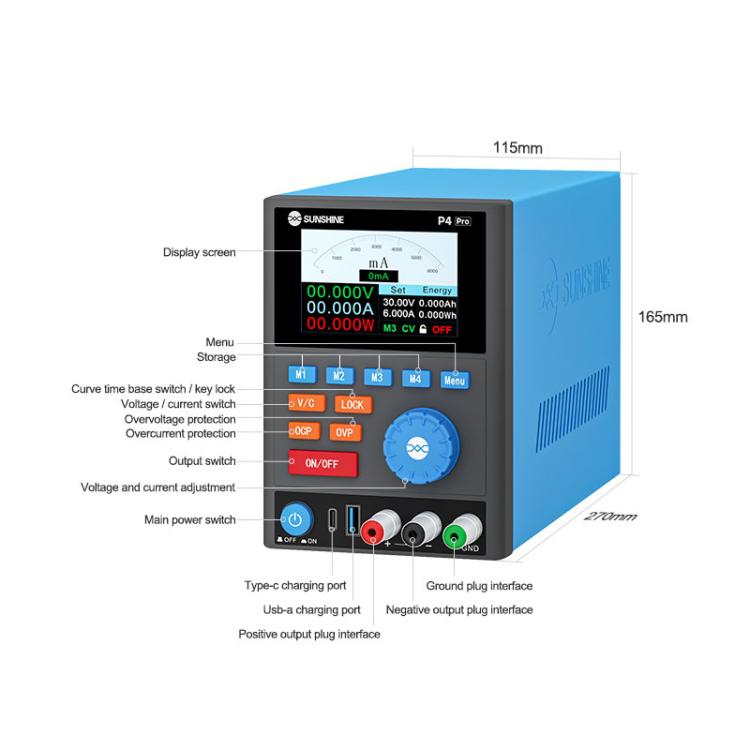

2. Product size: 11.5 x 27 x 16.5cm
3. Net weight: about 3.8kg
4. Voltage range: 0-30V
5. Current range: 0-6A
6. Load effect: <=0.01%+2mV/<=0.02%+10mA
7. Power effect: <=0.01%+3mV/<=0.1%+3mA
8. Output resolution: 10mV/1mA
9. Setting accuracy: <=0.5%+20mV/<=0.5%+5mA
10. Ripple (20-20m): <=2mVrms/<=3mArms
11. Output temperature coefficient: 150ppm
12. Readback resolution: 1mV/1mA
13. Readback temperature coefficient: <=100ppm+10mV/<=100ppm+5mA
14. Response time(10%rated load): <=100ms
15. USB-C: PD3.0/PPS/QC2.0/QC3.0/QC3+/IP 5V@2.4A/AFC/FCP/SCP/HSCP
16. USB-A: QC2.0/QC3.0/IP 5V@2.4A/AFC/FCP/SCP/HSCP

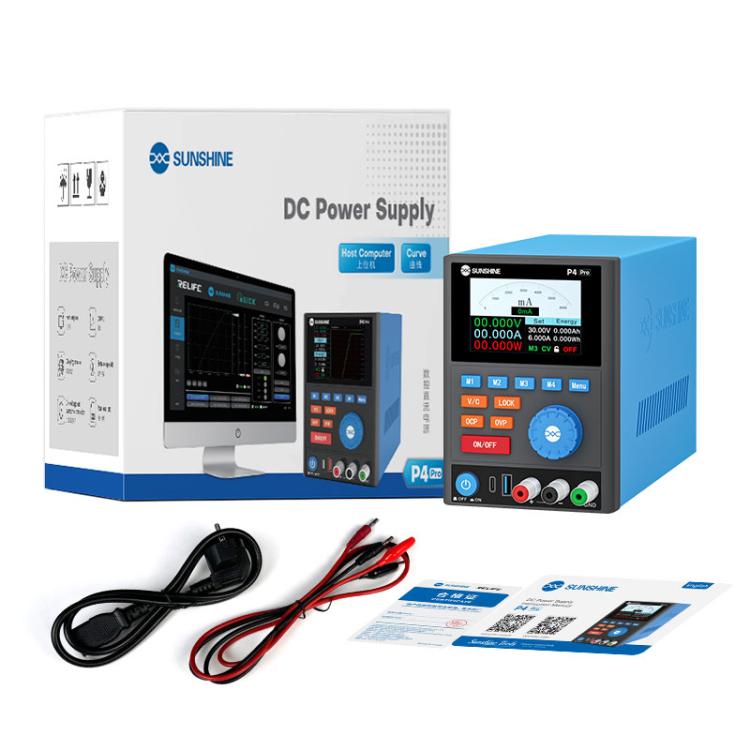

17. Package includes:
1 x Power Supply
1 x Test Cable
1 x Power Cable

Features:

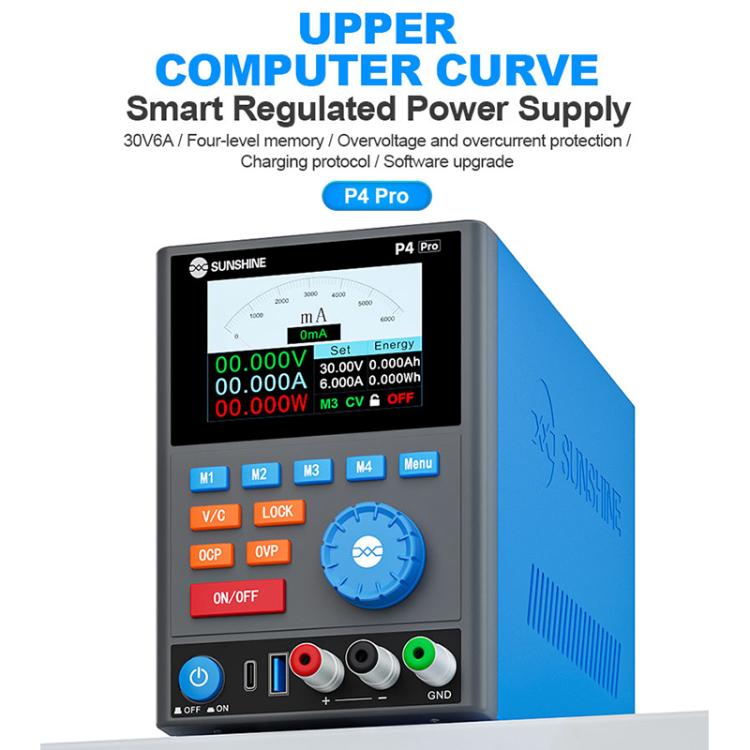

1. P4 Pro upper computer curve smart regulated power supply, 30V/6A, four-level memory, over-voltage and over-current protection, charging protocol, software upgrade

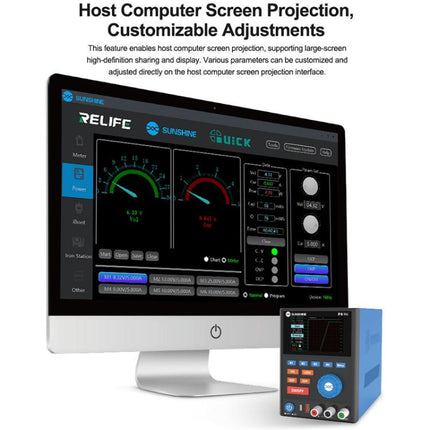

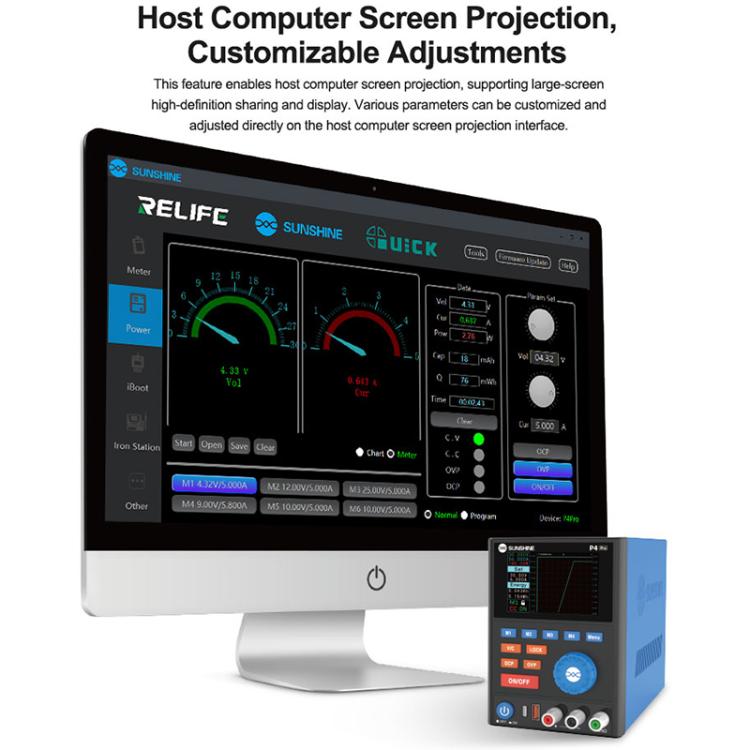

2. Host Computer Screen Projection, Customizable Adjustments: This feature enables host computer screen projection, supporting large-screen high-definition sharing and display. Various parameters can be customized and adjusted directly on the host computer screen projection interface

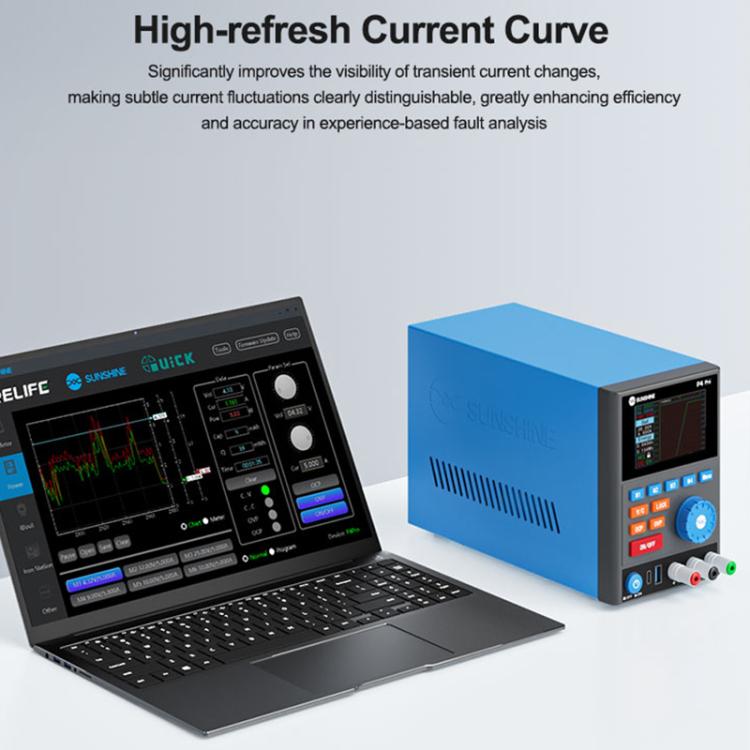

3. High-Refresh Current Curve: Significantly improves the visibility of transient current changes, making subtle current fluctuations clearly distinguishable, greatly enhancing efficiency and accuracy in experience-based fault analysis

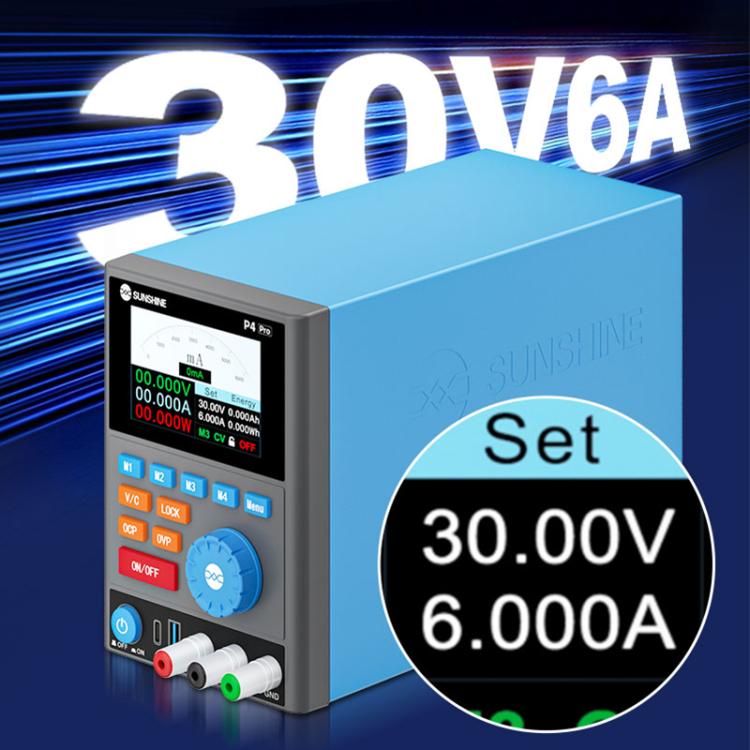

4. 30V/6A High-frequency Output: Accurate values, adjustable DC regulated power supply

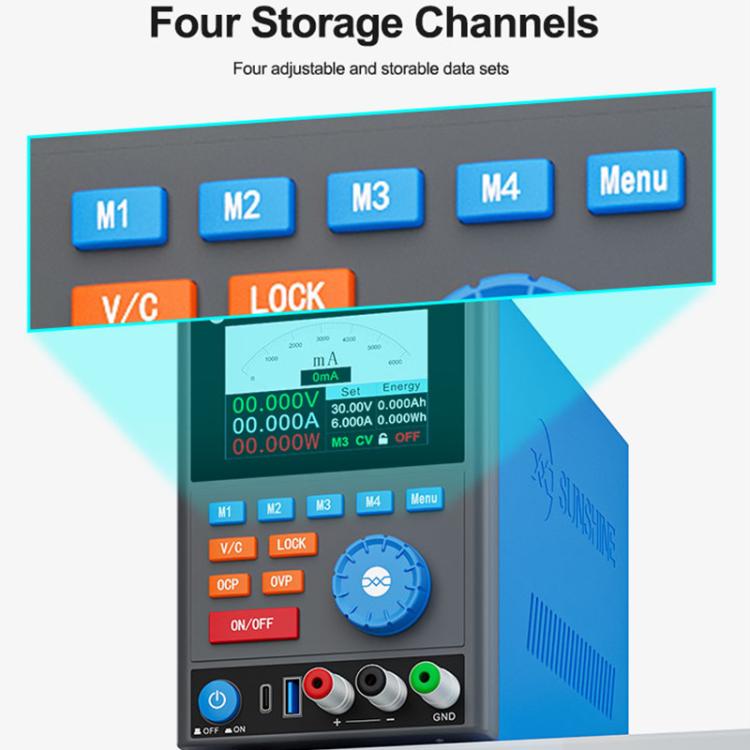

5. Four Storage Channels: Four adjustable and storable data sets

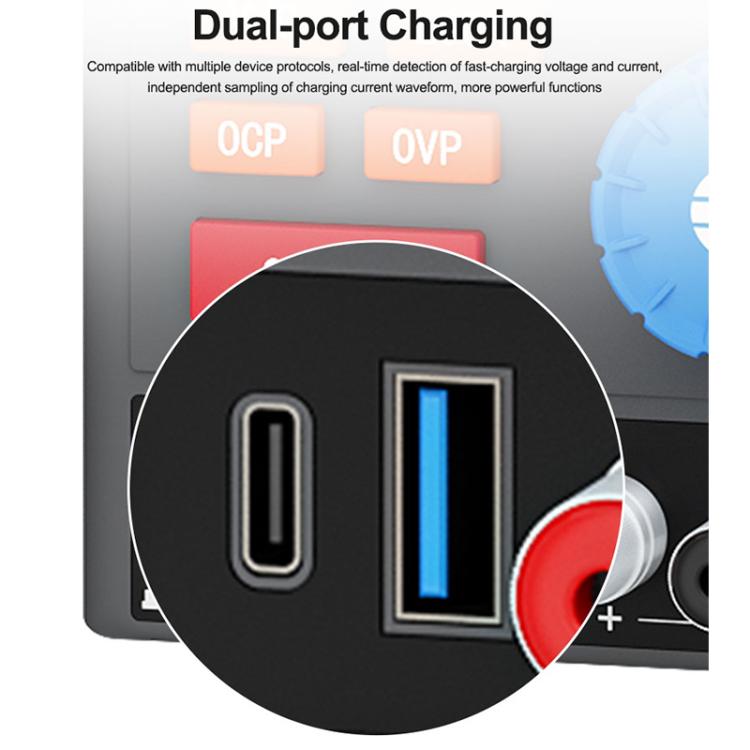

6. Dual-port Charging: Compatible with multiple device protocols, real-time detection of fast-charging voltage and current, independent sampling of charging current waveform, and more powerful functions

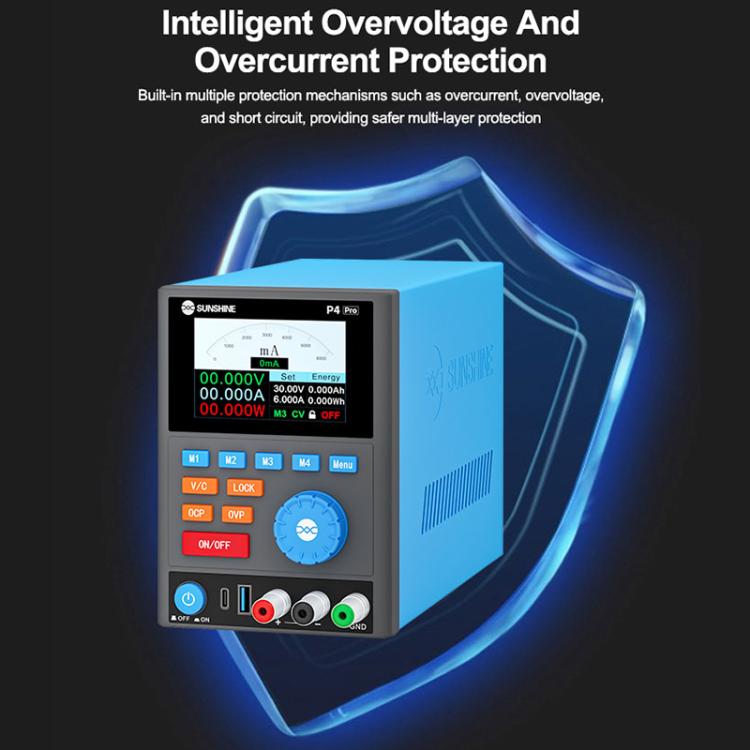

7. Intelligent Overvoltage and Overcurrent Protection: Built-in multiple protection mechanisms such as overcurrent, overvoltage, and short circuit, providing safer multi-layer protection

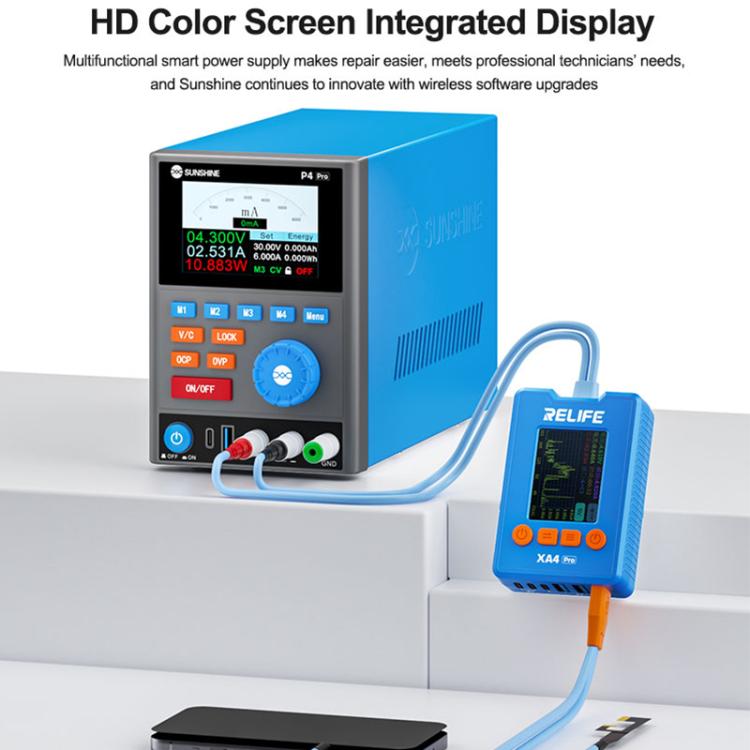

8. HD Color Screen Integrated Display: Multifunctional smart power supply makes repair easier, meets professional technicians needs, and Sunshine continues to innovate with wireless software upgrades


Specification:
Package Weight
One Package Weight 5.00kgs / 11.03lb
One Package Size 36cm * 23cm * 28cm / 14.17inch * 9.06inch * 11.02inch
Qty per Carton 1
Carton Weight 5.00kgs / 11.02lb
Carton Size 36cm * 23cm * 28cm / 14.17inch * 9.06inch * 11.02inch
Loading Container 20GP: 1150 cartons * 1 pcs = 1150 pcs
40HQ: 2670 cartons * 1 pcs = 2670 pcs

SUNSHINE P4 Pro 30V / 6A Smart DC Regulated Power Supply, Plug:AU Plug

Product form

SKU: EDA009909701

  • In stock (Processing Time 1 - 72 hours)

€167,54

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    Specifications:
    1. Model: P4 Pro
    2. Product size: 11.5 x 27 x 16.5cm
    3. Net weight: about 3.8kg
    4. Voltage range: 0-30V
    5. Current range: 0-6A
    6. Load effect: <=0.01%+2mV/<=0.02%+10mA
    7. Power effect: <=0.01%+3mV/<=0.1%+3mA
    8. Output resolution: 10mV/1mA
    9. Setting accuracy: <=0.5%+20mV/<=0.5%+5mA
    10. Ripple (20-20m): <=2mVrms/<=3mArms
    11. Output temperature coefficient: 150ppm
    12. Readback resolution: 1mV/1mA
    13. Readback temperature coefficient: <=100ppm+10mV/<=100ppm+5mA
    14. Response time(10%rated load): <=100ms
    15. USB-C: PD3.0/PPS/QC2.0/QC3.0/QC3+/IP 5V@2.4A/AFC/FCP/SCP/HSCP
    16. USB-A: QC2.0/QC3.0/IP 5V@2.4A/AFC/FCP/SCP/HSCP
    17. Package includes:
    1 x Power Supply
    1 x Test Cable
    1 x Power Cable

    Features:
    1. P4 Pro upper computer curve smart regulated power supply, 30V/6A, four-level memory, over-voltage and over-current protection, charging protocol, software upgrade
    2. Host Computer Screen Projection, Customizable Adjustments: This feature enables host computer screen projection, supporting large-screen high-definition sharing and display. Various parameters can be customized and adjusted directly on the host computer screen projection interface
    3. High-Refresh Current Curve: Significantly improves the visibility of transient current changes, making subtle current fluctuations clearly distinguishable, greatly enhancing efficiency and accuracy in experience-based fault analysis
    4. 30V/6A High-frequency Output: Accurate values, adjustable DC regulated power supply
    5. Four Storage Channels: Four adjustable and storable data sets
    6. Dual-port Charging: Compatible with multiple device protocols, real-time detection of fast-charging voltage and current, independent sampling of charging current waveform, and more powerful functions
    7. Intelligent Overvoltage and Overcurrent Protection: Built-in multiple protection mechanisms such as overcurrent, overvoltage, and short circuit, providing safer multi-layer protection
    8. HD Color Screen Integrated Display: Multifunctional smart power supply makes repair easier, meets professional technicians needs, and Sunshine continues to innovate with wireless software upgrades


    Specification:
    Package Weight
    One Package Weight 5.00kgs / 11.03lb
    One Package Size 36cm * 23cm * 28cm / 14.17inch * 9.06inch * 11.02inch
    Qty per Carton 1
    Carton Weight 5.00kgs / 11.02lb
    Carton Size 36cm * 23cm * 28cm / 14.17inch * 9.06inch * 11.02inch
    Loading Container 20GP: 1150 cartons * 1 pcs = 1150 pcs
    40HQ: 2670 cartons * 1 pcs = 2670 pcs
