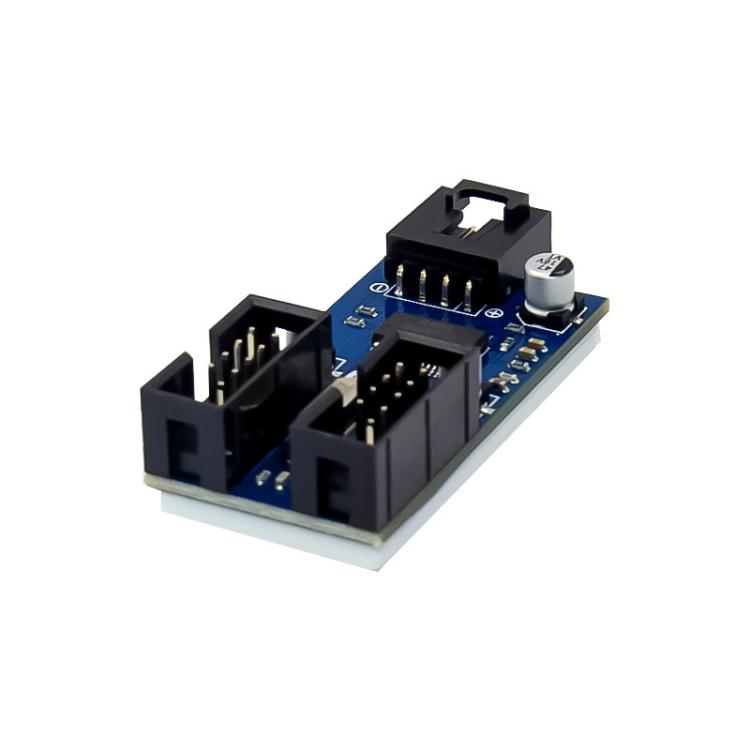

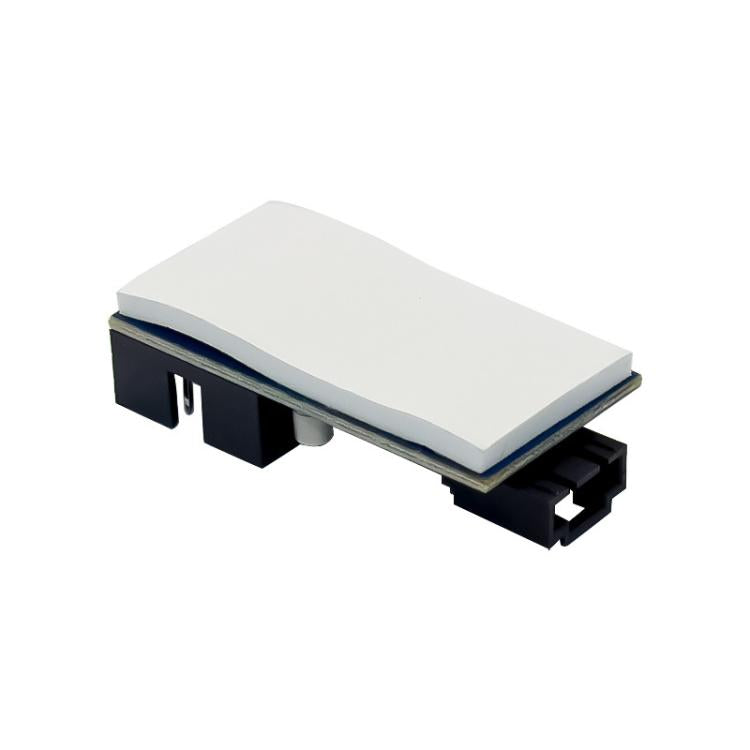

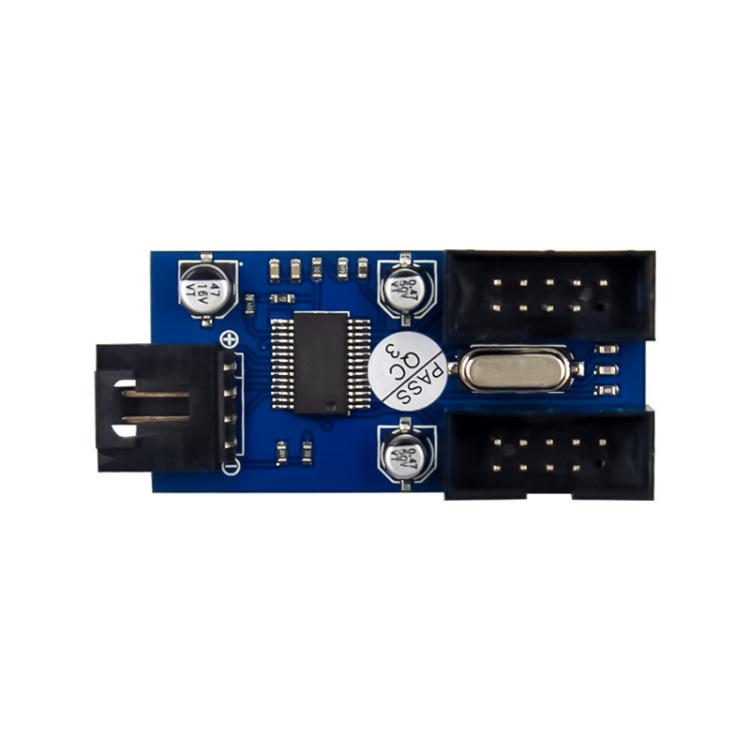

SUNWEIT ST650 GL850 USB2.0 9P To Dual Port Built-in 9P USB2.0 Motherboard Hub


1. Compliant with USB specification revision 2.0, backward compatible with USB specification revision 1.1
2. Support 4/3/2 downstream ports through I/O pin configuration
3. Upstream port supports high-speed (HS) and full-speed (FS) traffic, downstream port supports HS, FS and low-speed (LS) traffic
4. 1 control pipe (endpoint 0, 64-byte data payload) and 1 interrupt pipe (endpoint 1, 1-byte data payload)
5. On-chip 8-bit microprocessor, RISC-like architecture, USB optimized instruction set
6. Performance: 6 MIPS@12MHz
7. With 64-byte RAM and 2K Mask ROM
8. Support customized PID, VID, and support downstream port configuration by reading external EEPROM
9. Low power consumption, built-in 5V to 3.3V regulator
10. Each downstream port supports two-color status indicators, and its automatic and manual modes are compliant with USB specification revision 2.0
11. Built-in upstream 1.5K pull-up and downstream 15K pull-down
12. Embedded serial resistor for USB signal
13. Supports separate and joint modes of power management and overcurrent detection of downstream ports
14. Power enable pin supports low/high enable power switch
15. Complies with bus power requirements
16. Automatically switches between self-powered and bus-powered modes
17. Supports composite devices through I/O pin configuration (downstream ports are not removable)
18. Built-in PLL supports external 12MHz crystal/oscillator clock input
19. Improved output driver through slew rate control to reduce EMI, internal power failure detection to recover ESD
20. The number of downstream ports can be configured through GPIO without external EEPROM
21. Application range: independent USB hub, PC motherboard USB hub, laptop docking, game console, LCD monitor hub, composite device supporting USB hub function
22. Chip: Genesys GL850

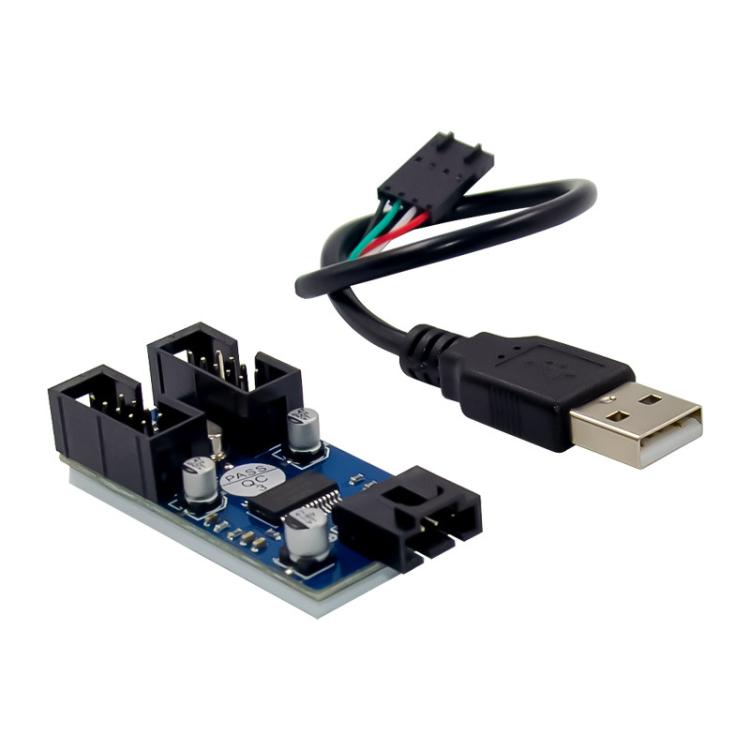

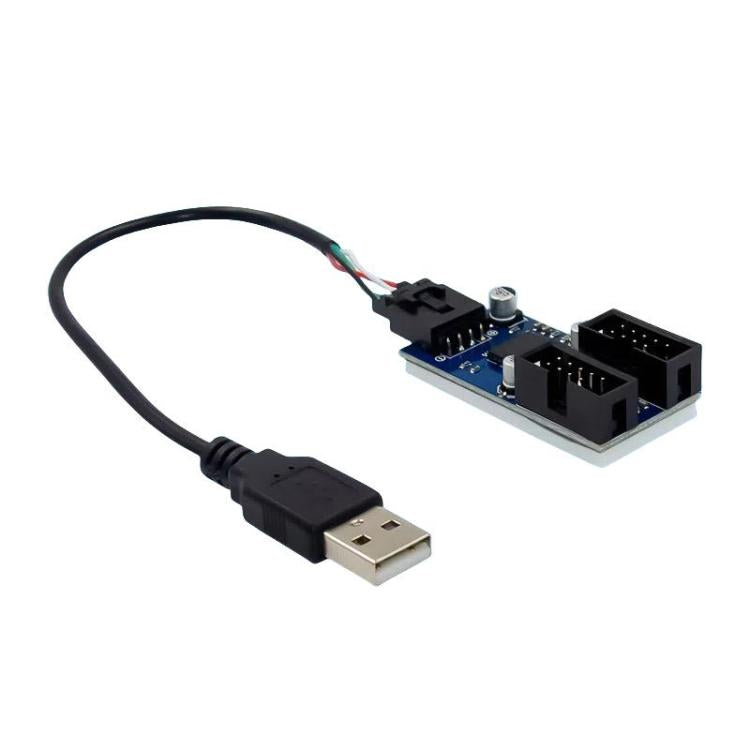

Packing list:
- GL850 independent USB 2.0 hub x 1
- USB2.0 to 4 Pin cable x 1


Specification:
Package Weight
One Package Weight 0.05kgs / 0.12lb
One Package Size 15cm * 14cm * 3cm / 5.91inch * 5.51inch * 1.18inch
Qty per Carton 60
Carton Weight 4.00kgs / 8.82lb
Carton Size 50cm * 32cm * 30cm / 19.69inch * 12.6inch * 11.81inch
Loading Container 20GP: 555 cartons * 60 pcs = 33300 pcs
40HQ: 1289 cartons * 60 pcs = 77340 pcs

SUNWEIT ST650 GL850 USB2.0 9P To Dual Port Built-in 9P USB2.0 Motherboard Hub

Product form

SKU: TBD06060310

  • In stock (Processing Time 1 - 72 hours)

€9,73

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Compliant with USB specification revision 2.0, backward compatible with USB specification revision 1.1
    2. Support 4/3/2 downstream ports through I/O pin configuration
    3. Upstream port supports high-speed (HS) and full-speed (FS) traffic, downstream port supports HS, FS and low-speed (LS) traffic
    4. 1 control pipe (endpoint 0, 64-byte data payload) and 1 interrupt pipe (endpoint 1, 1-byte data payload)
    5. On-chip 8-bit microprocessor, RISC-like architecture, USB optimized instruction set
    6. Performance: 6 MIPS@12MHz
    7. With 64-byte RAM and 2K Mask ROM
    8. Support customized PID, VID, and support downstream port configuration by reading external EEPROM
    9. Low power consumption, built-in 5V to 3.3V regulator
    10. Each downstream port supports two-color status indicators, and its automatic and manual modes are compliant with USB specification revision 2.0
    11. Built-in upstream 1.5K pull-up and downstream 15K pull-down
    12. Embedded serial resistor for USB signal
    13. Supports separate and joint modes of power management and overcurrent detection of downstream ports
    14. Power enable pin supports low/high enable power switch
    15. Complies with bus power requirements
    16. Automatically switches between self-powered and bus-powered modes
    17. Supports composite devices through I/O pin configuration (downstream ports are not removable)
    18. Built-in PLL supports external 12MHz crystal/oscillator clock input
    19. Improved output driver through slew rate control to reduce EMI, internal power failure detection to recover ESD
    20. The number of downstream ports can be configured through GPIO without external EEPROM
    21. Application range: independent USB hub, PC motherboard USB hub, laptop docking, game console, LCD monitor hub, composite device supporting USB hub function
    22. Chip: Genesys GL850

    Packing list:
    - GL850 independent USB 2.0 hub x 1
    - USB2.0 to 4 Pin cable x 1


    Specification:
    Package Weight
    One Package Weight 0.05kgs / 0.12lb
    One Package Size 15cm * 14cm * 3cm / 5.91inch * 5.51inch * 1.18inch
    Qty per Carton 60
    Carton Weight 4.00kgs / 8.82lb
    Carton Size 50cm * 32cm * 30cm / 19.69inch * 12.6inch * 11.81inch
    Loading Container 20GP: 555 cartons * 60 pcs = 33300 pcs
    40HQ: 1289 cartons * 60 pcs = 77340 pcs
