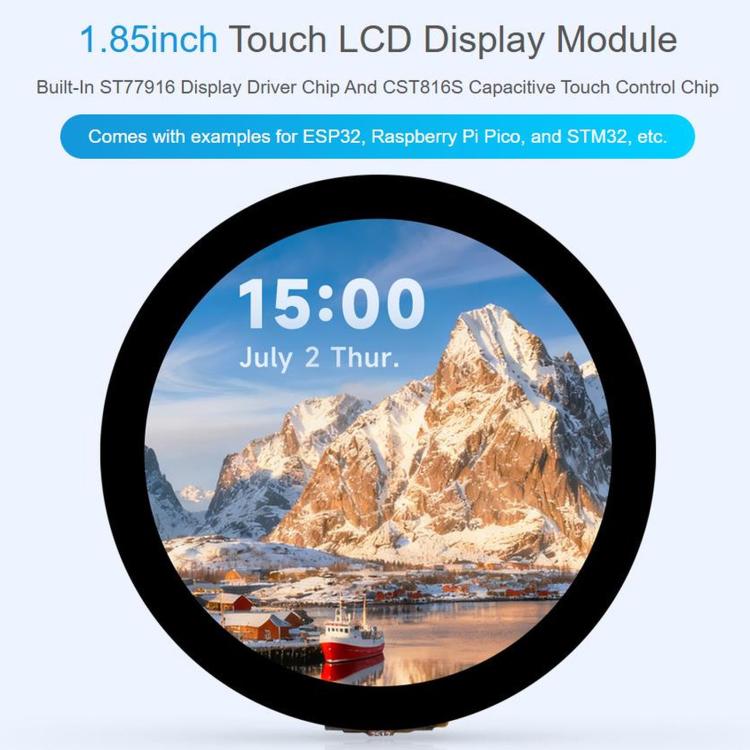

WAVESHARE 1.85 inch Touch LCD Display Module, 360 x 360 Resolution, 262K Color, QSPI And I2C Communication, Built-in ST77916 Display Driver Chip And CST816S Touch Control Chip

1. Operating voltage: 3.3V/5V
2. Resolution: 360 x 360 pixels
3. Brightness: 450 cd/square meters
4. Contrast ratio: 1200:1
5. Display driver IC: ST77916
6. Touch controller IC: CST816S
7. Display interface: QSPI
8. Touch interface: I2C
9. Display panel: IPS
10. Touch type: Capacitive
11. Display colors: 262K
12. Display size: Approx. 45.68 x 45.68 mm

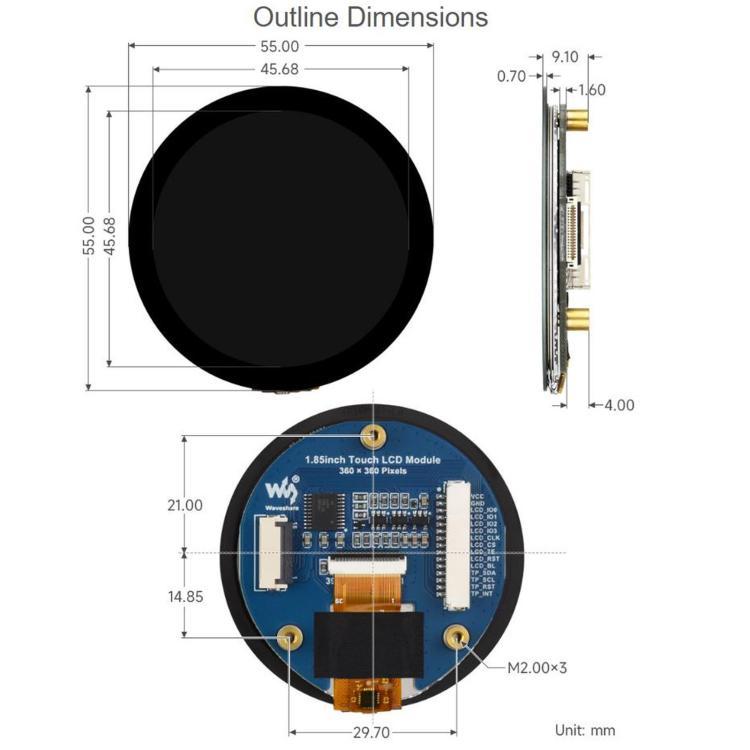

13. Dimensions: Approx. 55 x 55 x 9.1 mm

Features:
1. 360 x 360 resolution, 262K colors; capable of clearly displaying color images.
2. High-transmittance touchscreen with fast response and long service life.

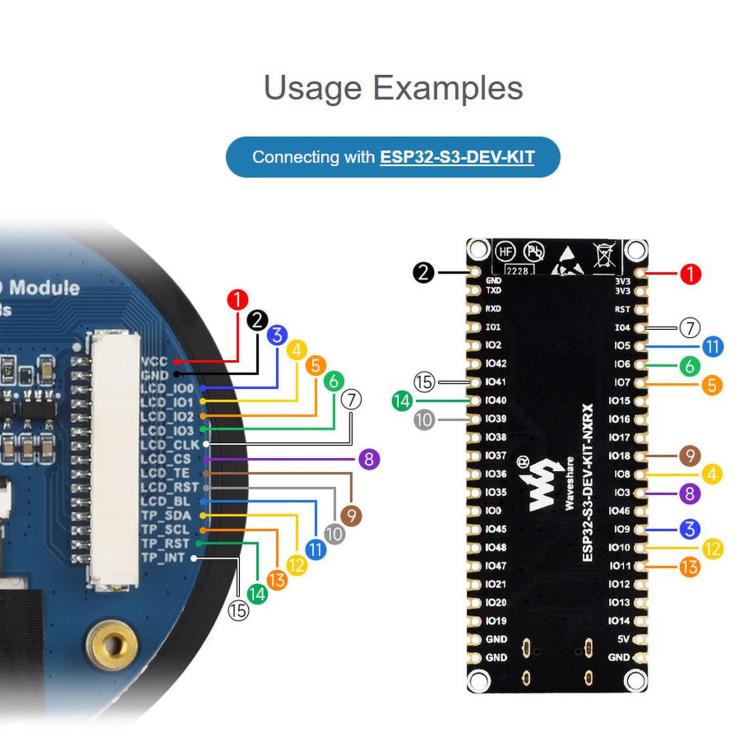

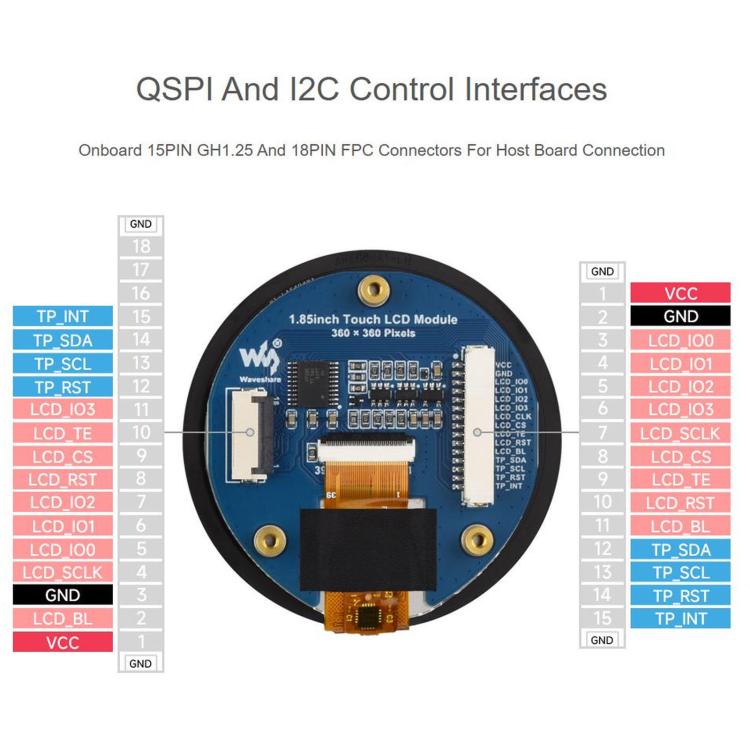

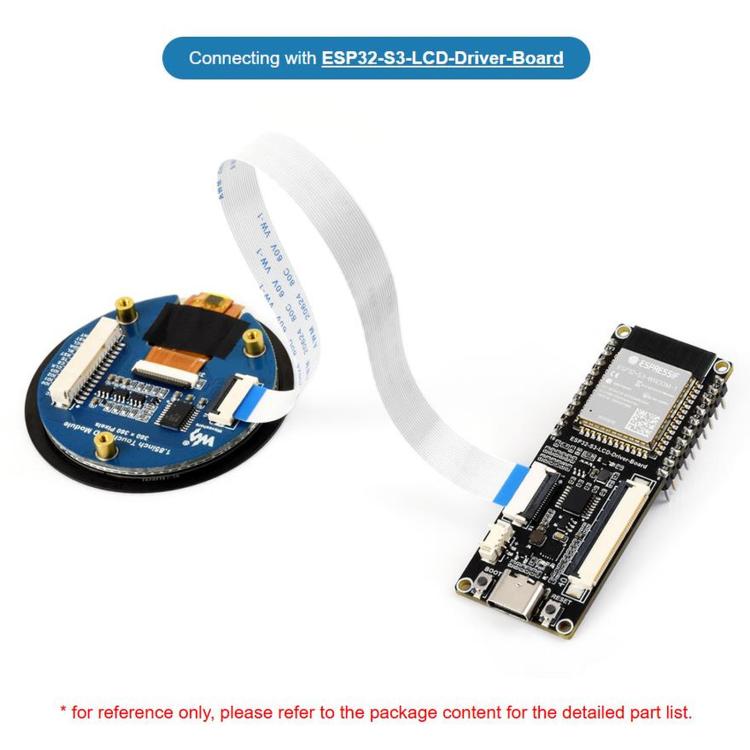

3. Built-in ST77916 display driver and CST816S capacitive touch controller; communicates via QSPI and I2C interfaces respectively, minimizing pin usage; compatible with main control boards such as ESP32-S3, Raspberry Pi Pico, and STM32.
4. Includes example code and resources for ESP32, Pico, STM32, and more.

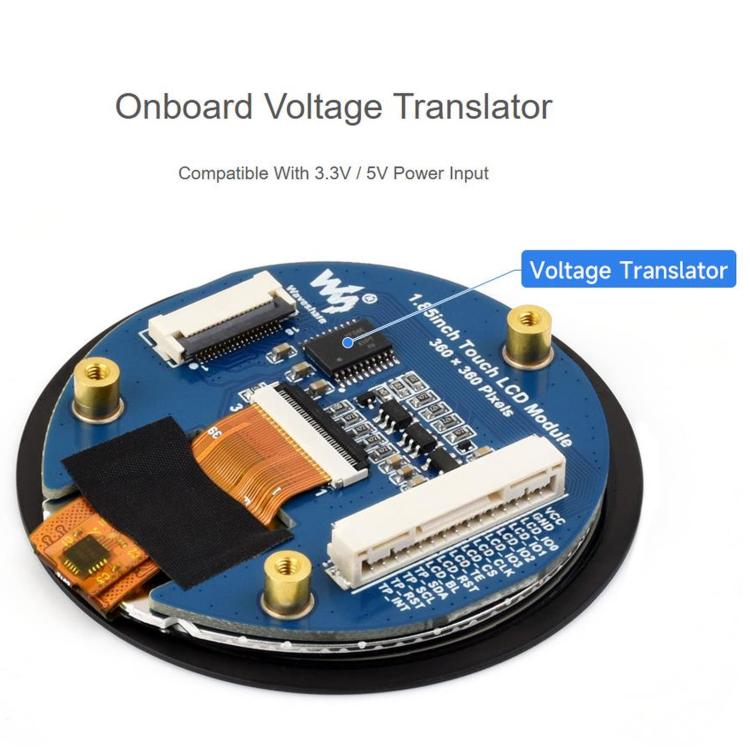

5. Onboard level-shifting chip; compatible with 3.3V/5V power inputs.
Specification:
Package Weight
One Package Weight 0.05kgs / 0.12lb
One Package Size 10cm * 8cm * 3cm / 3.94inch * 3.15inch * 1.18inch
Qty per Carton 100
Carton Weight 6.00kgs / 13.23lb
Carton Size 40cm * 32cm * 30cm / 15.75inch * 12.6inch * 11.81inch
Loading Container 20GP: 694 cartons * 100 pcs = 69400 pcs
40HQ: 1612 cartons * 100 pcs = 161200 pcs

WAVESHARE 1.85 inch Touch LCD Display Module, 360 x 360 Resolution, 262K Color, QSPI And I2C Communication, Built-in ST77916 Display Driver Chip And CST816S Touch Control Chip

Product form

SKU: TBD0607108601

  • In stock (Processing Time 1 - 72 hours)

€38,24

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description

    1. Operating voltage: 3.3V/5V
    2. Resolution: 360 x 360 pixels
    3. Brightness: 450 cd/square meters
    4. Contrast ratio: 1200:1
    5. Display driver IC: ST77916
    6. Touch controller IC: CST816S
    7. Display interface: QSPI
    8. Touch interface: I2C
    9. Display panel: IPS
    10. Touch type: Capacitive
    11. Display colors: 262K
    12. Display size: Approx. 45.68 x 45.68 mm
    13. Dimensions: Approx. 55 x 55 x 9.1 mm

    Features:
    1. 360 x 360 resolution, 262K colors; capable of clearly displaying color images.
    2. High-transmittance touchscreen with fast response and long service life.
    3. Built-in ST77916 display driver and CST816S capacitive touch controller; communicates via QSPI and I2C interfaces respectively, minimizing pin usage; compatible with main control boards such as ESP32-S3, Raspberry Pi Pico, and STM32.
    4. Includes example code and resources for ESP32, Pico, STM32, and more.
    5. Onboard level-shifting chip; compatible with 3.3V/5V power inputs.
    Specification:
    Package Weight
    One Package Weight 0.05kgs / 0.12lb
    One Package Size 10cm * 8cm * 3cm / 3.94inch * 3.15inch * 1.18inch
    Qty per Carton 100
    Carton Weight 6.00kgs / 13.23lb
    Carton Size 40cm * 32cm * 30cm / 15.75inch * 12.6inch * 11.81inch
    Loading Container 20GP: 694 cartons * 100 pcs = 69400 pcs
    40HQ: 1612 cartons * 100 pcs = 161200 pcs
