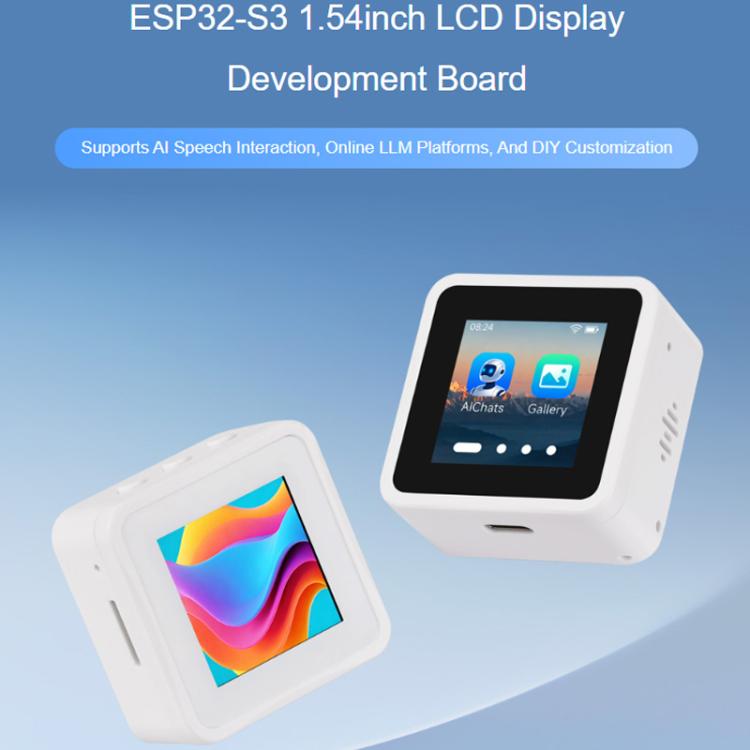

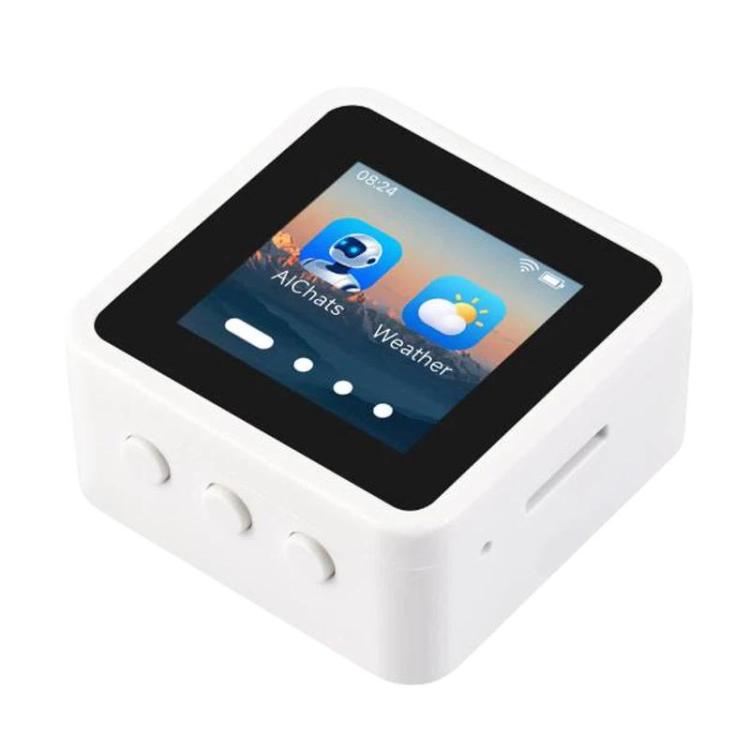

Waveshare 33868 ESP32-S3 1.54 Inch LCD Display Development Board 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi And BLE 5 No Battery

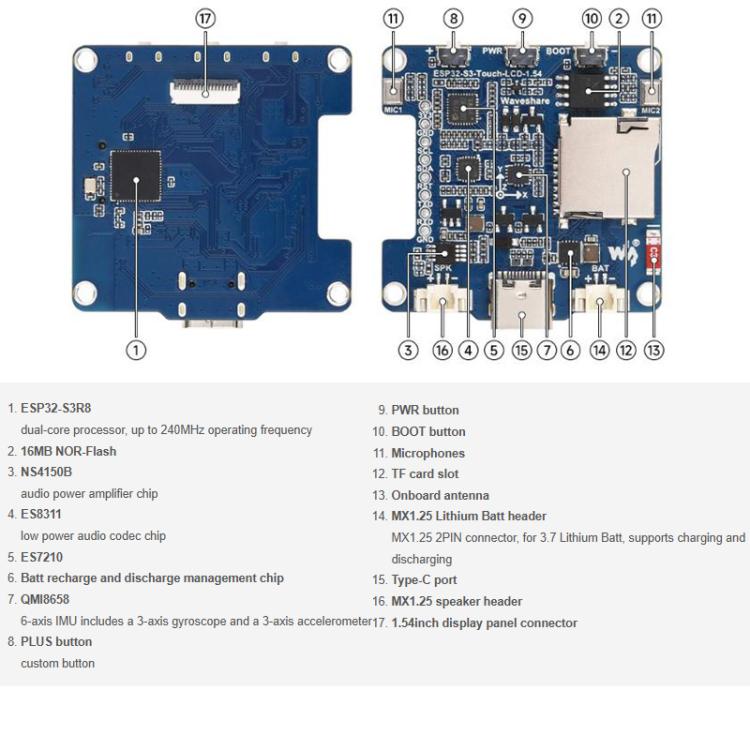

1. Equipped with the high-performance Xtensa 32-bit LX7 dual-core processor of ESP32-S3R8, with a main frequency of up to 240 MHz

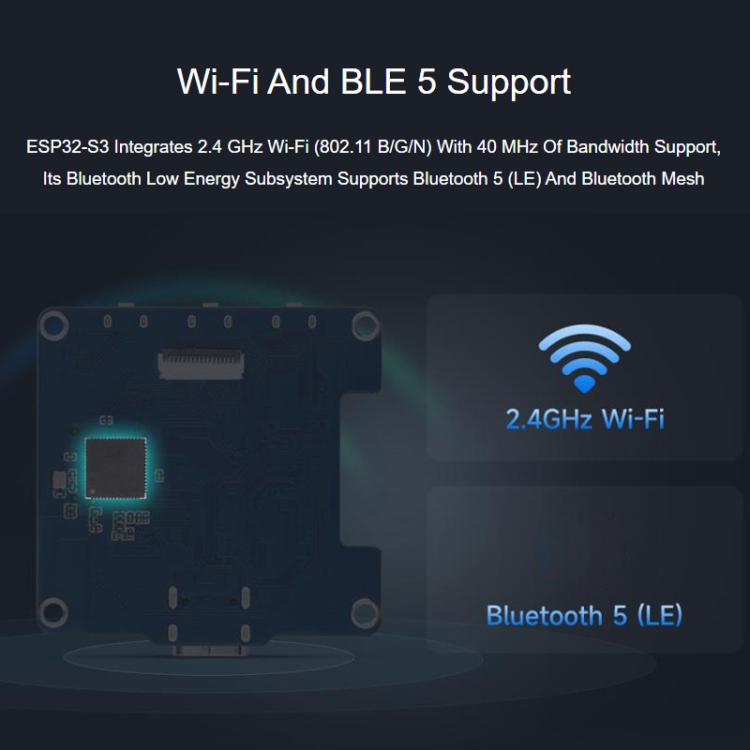

2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with built-in antenna
3. Equipped with 512KB of SRAM and 384KB of ROM, and stacked 8MB PSRAM and externally connected 16MB Flash
4. Uses Type-C interface, eliminating the need to worry about the front or back insertion, improving the users convenience and device compatibility
5. Equipped with a 1.54-inch LCD screen, 240 x 240 resolution, 262K color, capable of clearly displaying color images
6. Equipped with ES7210 audio encoding chip, supporting dual-microphone audio acquisition and echo cancellation function
7. Equipped with ES8311 audio codec chip, NS4150B power amplifier chip, microphone and speaker, enabling smooth gaming with Xiaozhi AI
8. Equipped with QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), capable of detecting motion posture to expand applications
9. Exposed I2C, UART and other pads, available for external devices and debugging use, flexible configuration of peripheral functions
10. Equipped with 3 customizable function buttons, capable of achieving single-click, double-click, long press and other operations
11. Equipped with 3.7V MX1.25 lithium battery charging and discharging interface
12. Equipped with Micro SD card slot, enabling storage expansion, high-speed data transmission, improving flexibility of use, suitable for data recording and media playback, simplifying circuit design

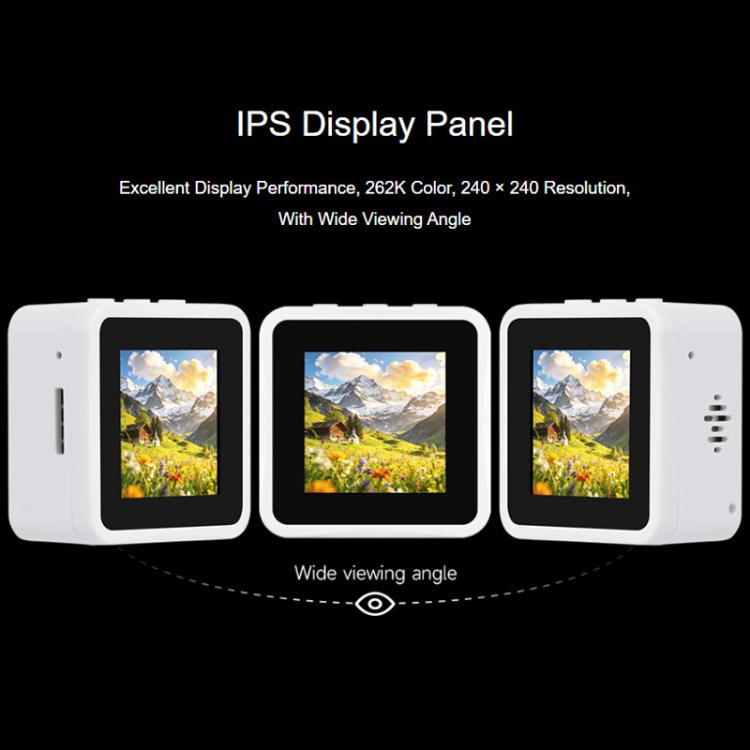

LCD screen parameters
1. Display panel: IPS
2. Display resolution: 240 x 240 pixels
3. Display size: 1.54 inches
4. Communication interface: 4-Wire SPI
5. Touch type: capacitive sensing
6. Display colors: 262K
9. Driving IC: ST7789
10. Touch IC: CST816

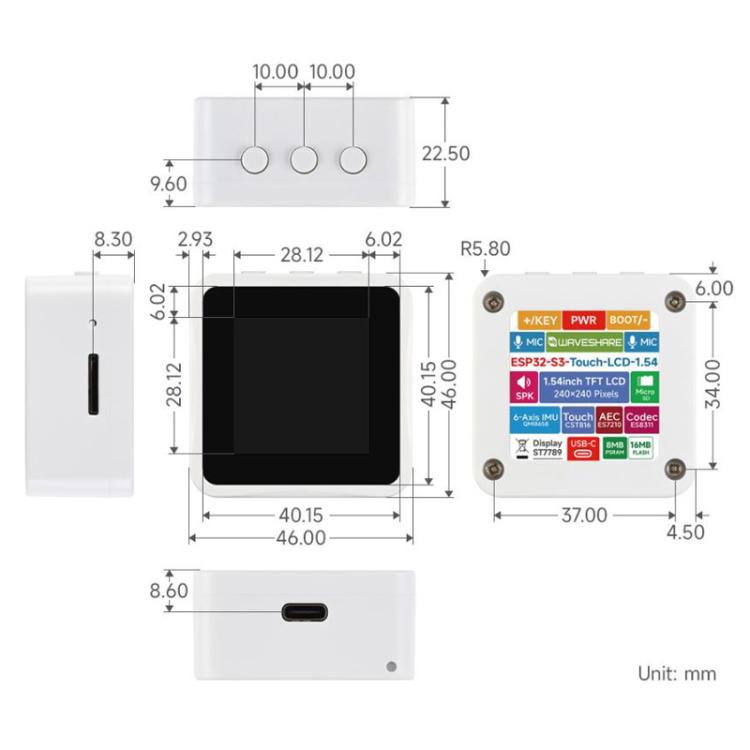

11. Effective screen size: about 2.772 x 2.772 cm


Specification:
Package Weight
One Package Weight 0.05kgs / 0.12lb
One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
Qty per Carton 126
Carton Weight 8.00kgs / 17.64lb
Carton Size 50cm * 37cm * 32cm / 19.69inch * 14.57inch * 12.6inch
Loading Container 20GP: 450 cartons * 126 pcs = 56700 pcs
40HQ: 1045 cartons * 126 pcs = 131670 pcs

Waveshare 33868 ESP32-S3 1.54 Inch LCD Display Development Board 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi And BLE 5 No Battery

Product form

SKU: TBD0606833601

  • In stock (Processing Time 1 - 72 hours)

€37,21

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Equipped with the high-performance Xtensa 32-bit LX7 dual-core processor of ESP32-S3R8, with a main frequency of up to 240 MHz
    2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with built-in antenna
    3. Equipped with 512KB of SRAM and 384KB of ROM, and stacked 8MB PSRAM and externally connected 16MB Flash
    4. Uses Type-C interface, eliminating the need to worry about the front or back insertion, improving the users convenience and device compatibility
    5. Equipped with a 1.54-inch LCD screen, 240 x 240 resolution, 262K color, capable of clearly displaying color images
    6. Equipped with ES7210 audio encoding chip, supporting dual-microphone audio acquisition and echo cancellation function
    7. Equipped with ES8311 audio codec chip, NS4150B power amplifier chip, microphone and speaker, enabling smooth gaming with Xiaozhi AI
    8. Equipped with QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), capable of detecting motion posture to expand applications
    9. Exposed I2C, UART and other pads, available for external devices and debugging use, flexible configuration of peripheral functions
    10. Equipped with 3 customizable function buttons, capable of achieving single-click, double-click, long press and other operations
    11. Equipped with 3.7V MX1.25 lithium battery charging and discharging interface
    12. Equipped with Micro SD card slot, enabling storage expansion, high-speed data transmission, improving flexibility of use, suitable for data recording and media playback, simplifying circuit design

    LCD screen parameters
    1. Display panel: IPS
    2. Display resolution: 240 x 240 pixels
    3. Display size: 1.54 inches
    4. Communication interface: 4-Wire SPI
    5. Touch type: capacitive sensing
    6. Display colors: 262K
    9. Driving IC: ST7789
    10. Touch IC: CST816
    11. Effective screen size: about 2.772 x 2.772 cm


    Specification:
    Package Weight
    One Package Weight 0.05kgs / 0.12lb
    One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
    Qty per Carton 126
    Carton Weight 8.00kgs / 17.64lb
    Carton Size 50cm * 37cm * 32cm / 19.69inch * 14.57inch * 12.6inch
    Loading Container 20GP: 450 cartons * 126 pcs = 56700 pcs
    40HQ: 1045 cartons * 126 pcs = 131670 pcs
