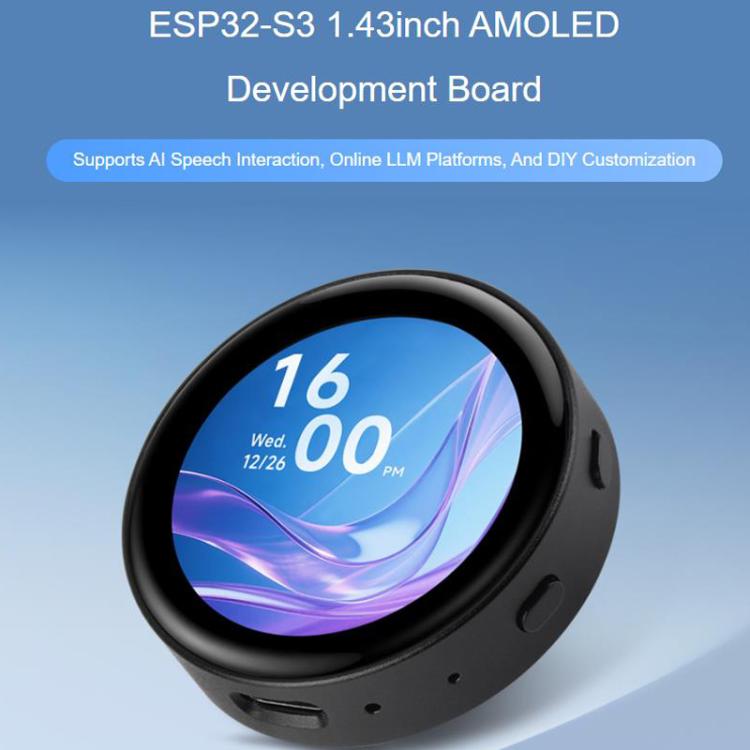

Waveshare 34384 ESP32-S3 1.43 Inch AMOLED Round Touch Display Development Board Supports AI Speech Interaction And Online LLM Platforms Without Lithium Batteries

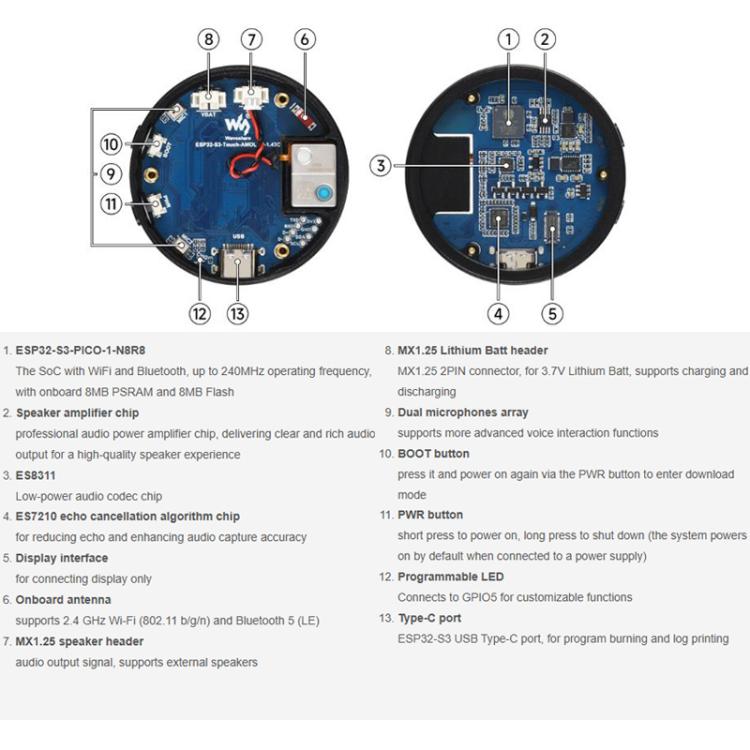

1. Equipped with the ESP32-S3-PICO-1-N8R8 high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240 MHz

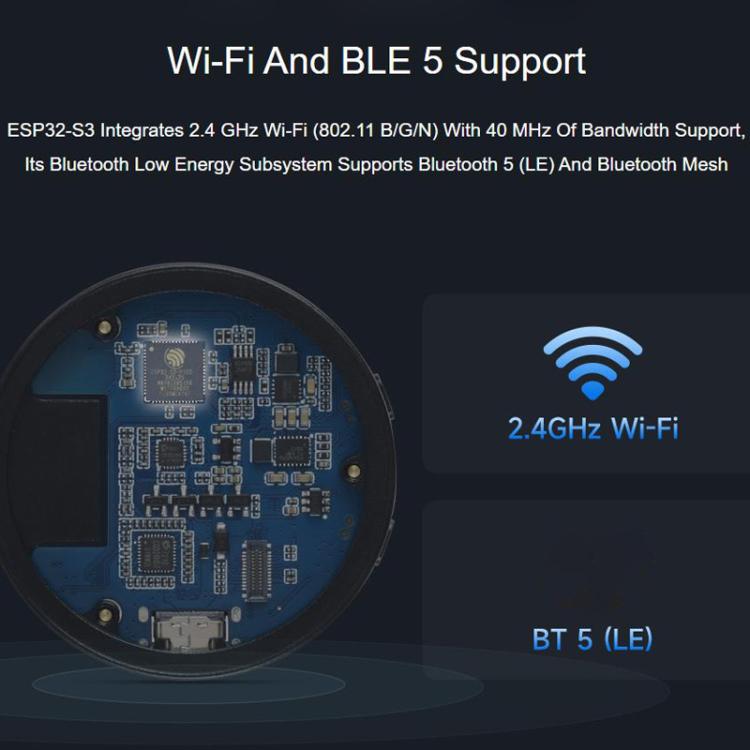

2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with built-in antenna
3. Equipped with 512KB SRAM and 384KB ROM, and stacked 8MB Flash and 8MB PSRAM
4. Adopting Type-C interface, enhancing the user usage convenience and device compatibility

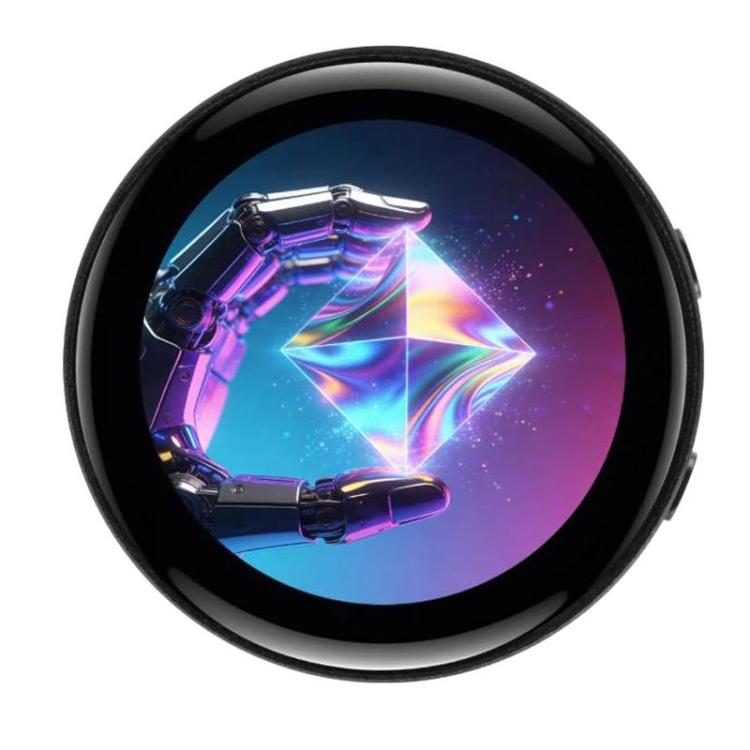

5. Equipped with a 1.43-inch capacitive touch high-definition AMOLED screen, with a resolution of 466 x 466, 16.7M colors, capable of clearly displaying color images

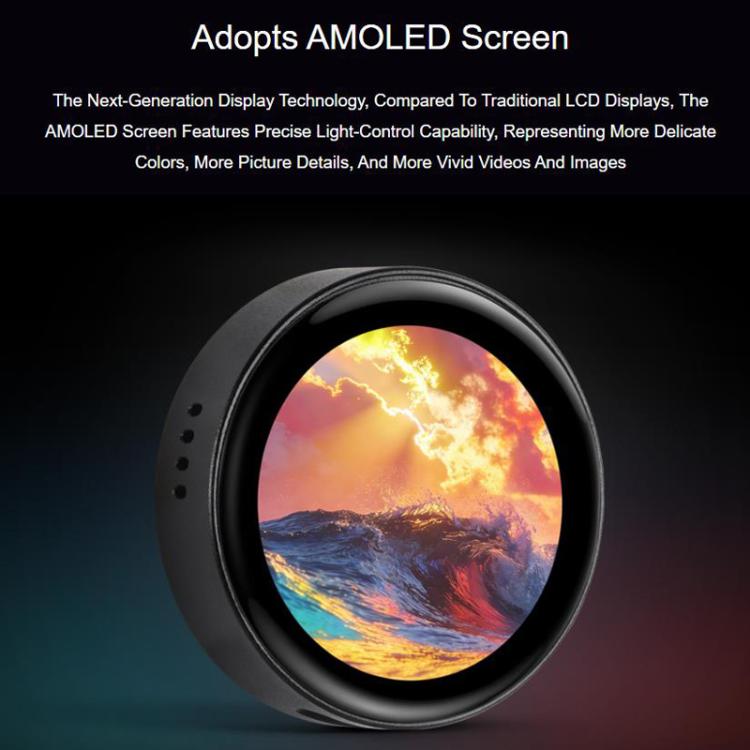

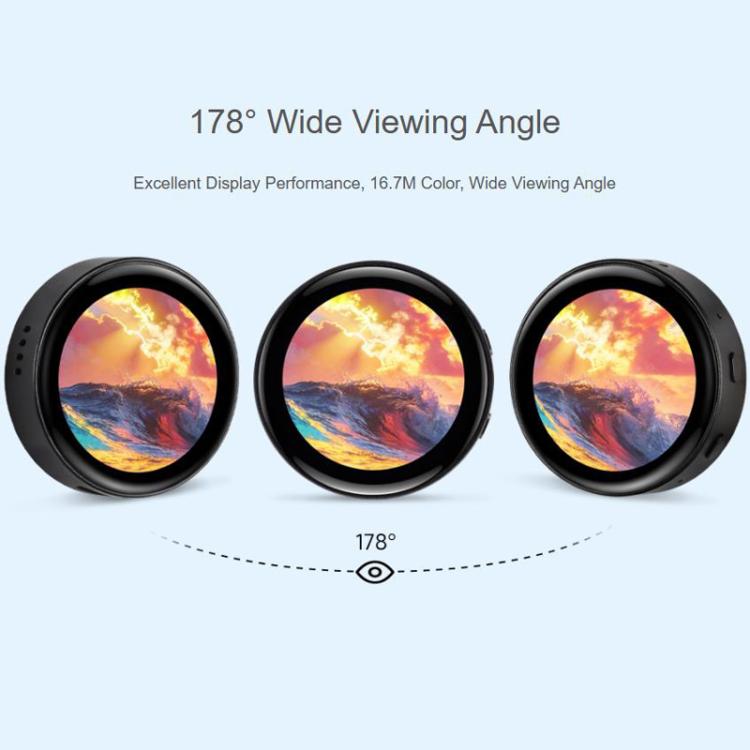

6. Using AMOLED screen, featuring higher contrast, wider viewing angle, rich colors, and superior visual effect. It also has the advantages of a slim design, low power consumption, fast response, and high flexibility
7. Equipped with the CO5300 driver chip and the CST820 capacitive touch chip, communicating via QSPI and I2C interfaces respectively, without occupying too many interface pin resources

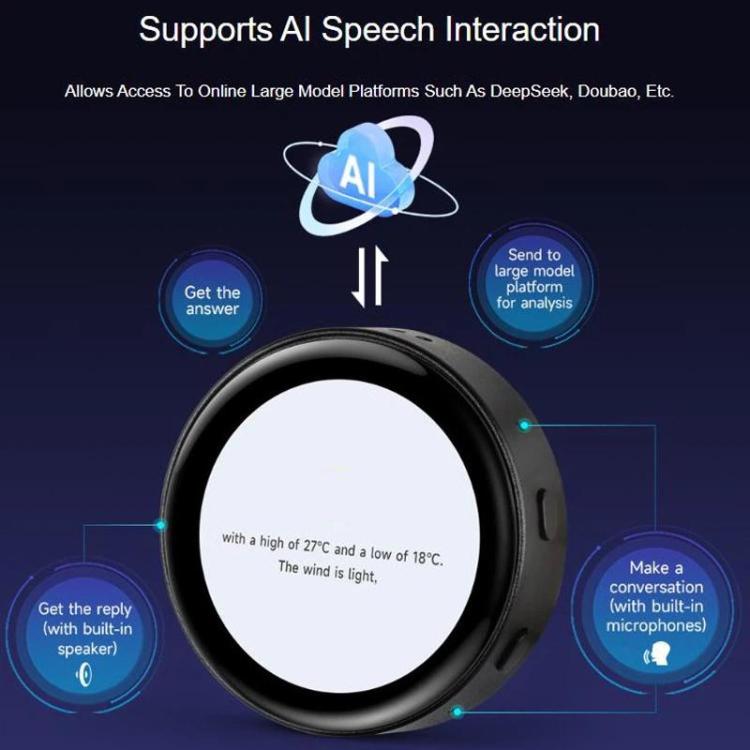

8. Equipped with a dual microphone array, capable of implementing audio algorithms such as noise reduction and echo cancellation, suitable for precise voice recognition and near-field/far-field voice wake-up applications

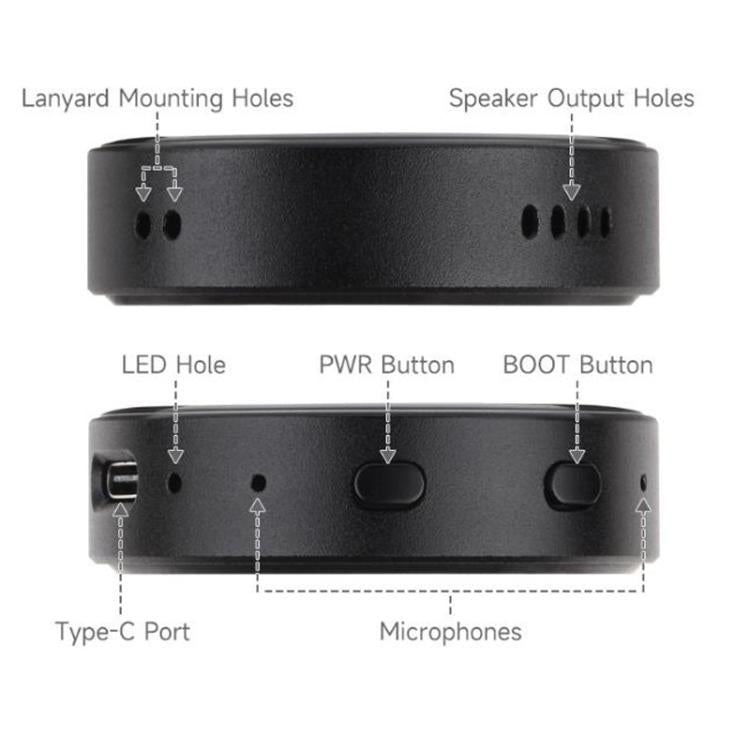

9. Equipped with a BOOT custom function side button, facilitating the development of custom functions by using the button
10. Equipped with a 3.7V MX1.25 lithium battery charging and discharging interface
11. Exports 1 I2C, 1 UART and 1 USB pad, available for external devices and debugging use, allowing flexible configuration of peripheral functions
12. Packaging list: ESP32-S3-Touch-AMOLED-1.43C host x 1; silver polyester drawstring x 1


Specification:
Package Weight
One Package Weight 0.08kgs / 0.19lb
One Package Size 8cm * 8cm * 4cm / 3.15inch * 3.15inch * 1.57inch
Qty per Carton 215
Carton Weight 19.00kgs / 41.89lb
Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
Loading Container 20GP: 412 cartons * 215 pcs = 88580 pcs
40HQ: 958 cartons * 215 pcs = 205970 pcs

Waveshare 34384 ESP32-S3 1.43 Inch AMOLED Round Touch Display Development Board Supports AI Speech Interaction And Online LLM Platforms Without Lithium Batteries

Product form

SKU: TBD0606800101

  • In stock (Processing Time 1 - 72 hours)

€60,84

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Equipped with the ESP32-S3-PICO-1-N8R8 high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240 MHz
    2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with built-in antenna
    3. Equipped with 512KB SRAM and 384KB ROM, and stacked 8MB Flash and 8MB PSRAM
    4. Adopting Type-C interface, enhancing the user usage convenience and device compatibility
    5. Equipped with a 1.43-inch capacitive touch high-definition AMOLED screen, with a resolution of 466 x 466, 16.7M colors, capable of clearly displaying color images
    6. Using AMOLED screen, featuring higher contrast, wider viewing angle, rich colors, and superior visual effect. It also has the advantages of a slim design, low power consumption, fast response, and high flexibility
    7. Equipped with the CO5300 driver chip and the CST820 capacitive touch chip, communicating via QSPI and I2C interfaces respectively, without occupying too many interface pin resources
    8. Equipped with a dual microphone array, capable of implementing audio algorithms such as noise reduction and echo cancellation, suitable for precise voice recognition and near-field/far-field voice wake-up applications
    9. Equipped with a BOOT custom function side button, facilitating the development of custom functions by using the button
    10. Equipped with a 3.7V MX1.25 lithium battery charging and discharging interface
    11. Exports 1 I2C, 1 UART and 1 USB pad, available for external devices and debugging use, allowing flexible configuration of peripheral functions
    12. Packaging list: ESP32-S3-Touch-AMOLED-1.43C host x 1; silver polyester drawstring x 1


    Specification:
    Package Weight
    One Package Weight 0.08kgs / 0.19lb
    One Package Size 8cm * 8cm * 4cm / 3.15inch * 3.15inch * 1.57inch
    Qty per Carton 215
    Carton Weight 19.00kgs / 41.89lb
    Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
    Loading Container 20GP: 412 cartons * 215 pcs = 88580 pcs
    40HQ: 958 cartons * 215 pcs = 205970 pcs
