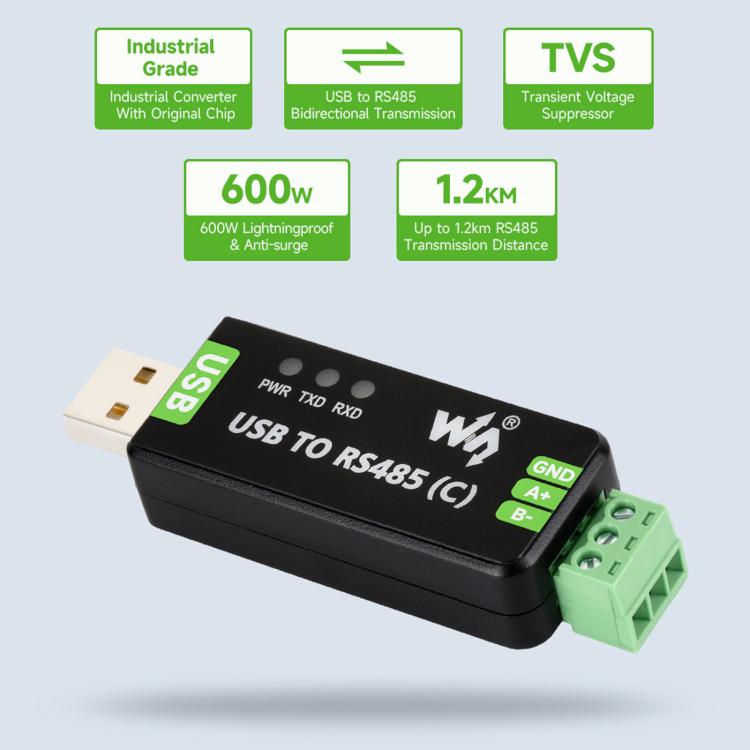

Waveshare 34620 USB To RS485 C Industrial Grade Isolated Bidirectional Converter


1. The USB TO RS485 (C) is an industrial-grade, isolated, bidirectional USB-to-RS485 converter based on the FT232RNL chip. It converts a hosts USB port into an RS485 differential bus interface and is suitable for applications such as industrial control, device debugging, Modbus device communication, and long-distance serial communication. 2. Supports USB to RS485 communication

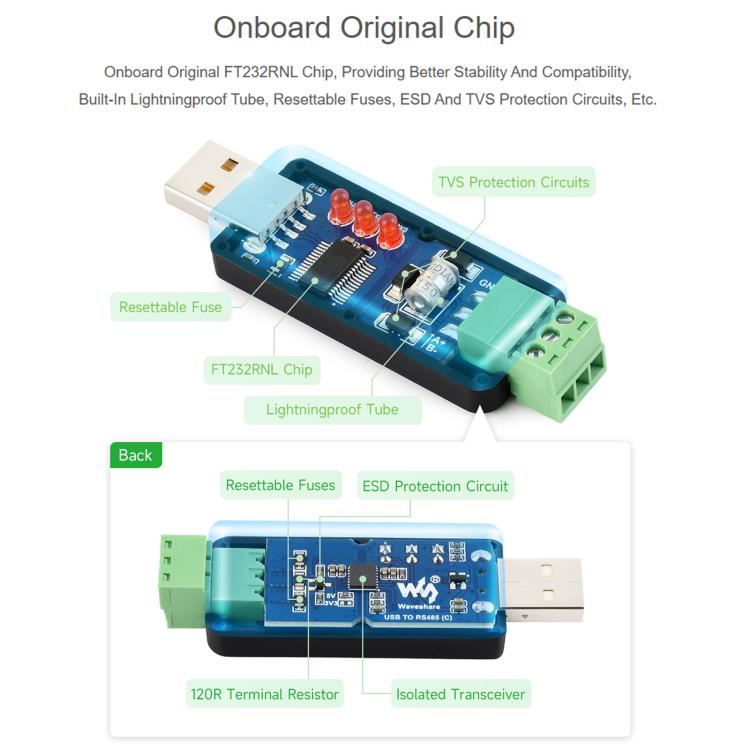

3. Uses the original FT232RNL chip; offers high-speed, stable, and reliable communication with excellent compatibility
4. Features an onboard isolated transceiver with integrated electrical isolation and ESD protection, effectively enhancing communication stability and interference resistance in industrial environments
5. Includes onboard TVS (Transient Voltage Suppressor) to effectively suppress surge voltages and transient voltage spikes; provides lightning and ESD protection
6. Equipped with a resettable fuse and protection diodes to ensure stable current and voltage output, prevent overcurrent and overvoltage, and improve surge resistance
7. Features 3 onboard LED indicators for easy monitoring of power and signal transmission/reception status

Specifications:
1. Communication rate: FT232RNL chip, 300bps ~ 512000bps
2. Host interface: USB
3. Device interface: RS485
4. Operating systems: Compatible with Mac, Linux, Android, WinCE, and Windows

USB Interface
1. Operating voltage: 5V
2. Connector type: USB-A
3. Interface protection: 200mA resettable fuse, ESD protection
4. Transmission distance: Approx. 5 meters

RS485 Interface
1. Connector type: Screw terminal
2. Interface pins: A+, B-, GND
3. Direction control: Hardware automatically detects and controls data transmission direction
4. Interface protection: 600W lightning/surge protection and 15kV ESD protection (onboard 120Ω termination resistor)
5. Isolation voltage: Opto-isolation, up to 2.5kV

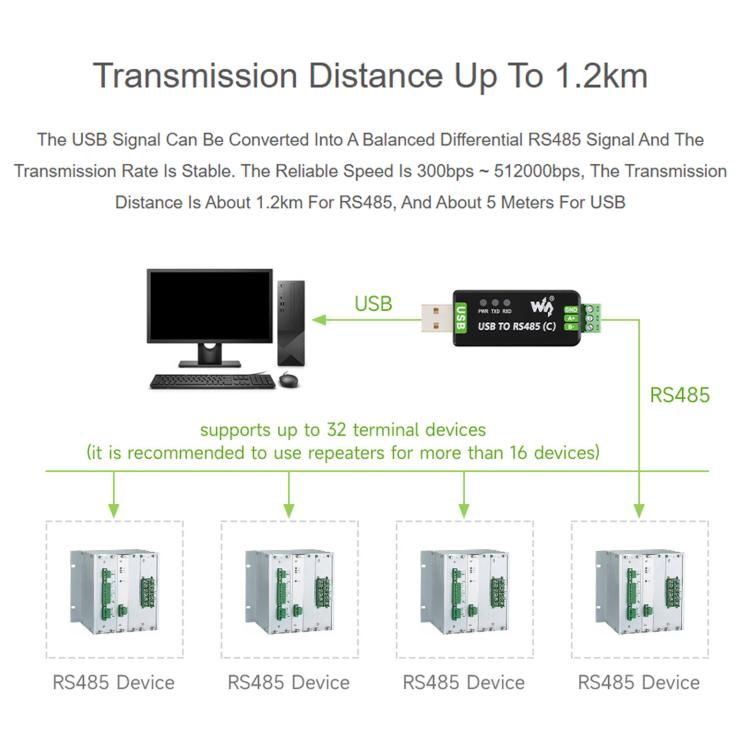

6. Transmission distance: Approx. 1200 meters (at low data rates)
7. Transmission mode: Point-to-multipoint (up to 32 nodes; repeaters recommended for more than 16 nodes)

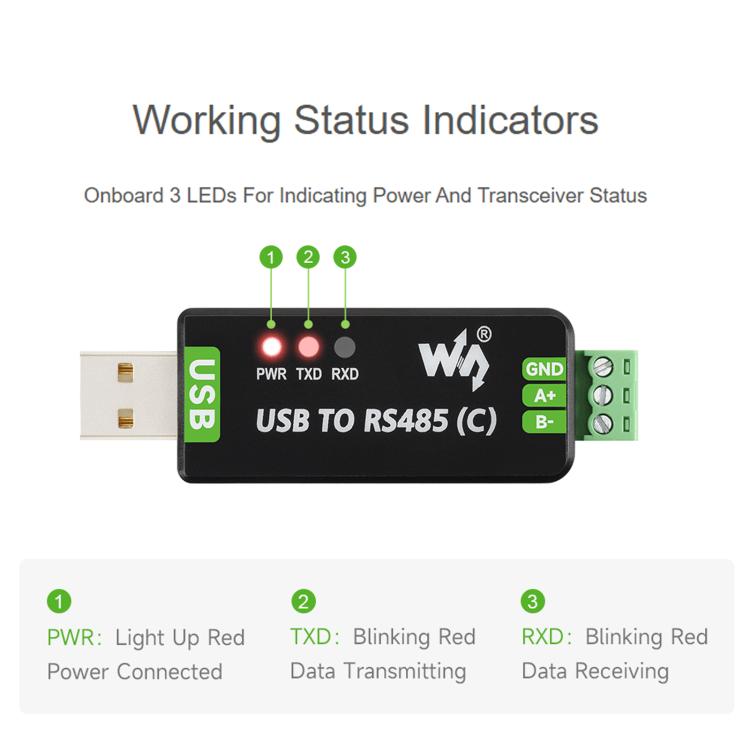

Indicators
PWR: Power indicator; lights up red when connected to USB and voltage is detected
TXD: Transmit indicator; lights up when data is sent from USB Lights up red when data is transmitted from the port.
RXD: Receive indicator; lights up red when data is received from the device interface.


Specification:
Package Weight
One Package Weight 0.08kgs / 0.19lb
One Package Size 8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch
Qty per Carton 200
Carton Weight 15.10kgs / 33.29lb
Carton Size 40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch
Loading Container 20GP: 740 cartons * 200 pcs = 148000 pcs
40HQ: 1719 cartons * 200 pcs = 343800 pcs

Waveshare 34620 USB To RS485 C Industrial Grade Isolated Bidirectional Converter

Product form

SKU: TBD06070239

  • In stock (Processing Time 1 - 72 hours)

€26,34

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. The USB TO RS485 (C) is an industrial-grade, isolated, bidirectional USB-to-RS485 converter based on the FT232RNL chip. It converts a hosts USB port into an RS485 differential bus interface and is suitable for applications such as industrial control, device debugging, Modbus device communication, and long-distance serial communication. 2. Supports USB to RS485 communication
    3. Uses the original FT232RNL chip; offers high-speed, stable, and reliable communication with excellent compatibility
    4. Features an onboard isolated transceiver with integrated electrical isolation and ESD protection, effectively enhancing communication stability and interference resistance in industrial environments
    5. Includes onboard TVS (Transient Voltage Suppressor) to effectively suppress surge voltages and transient voltage spikes; provides lightning and ESD protection
    6. Equipped with a resettable fuse and protection diodes to ensure stable current and voltage output, prevent overcurrent and overvoltage, and improve surge resistance
    7. Features 3 onboard LED indicators for easy monitoring of power and signal transmission/reception status

    Specifications:
    1. Communication rate: FT232RNL chip, 300bps ~ 512000bps
    2. Host interface: USB
    3. Device interface: RS485
    4. Operating systems: Compatible with Mac, Linux, Android, WinCE, and Windows

    USB Interface
    1. Operating voltage: 5V
    2. Connector type: USB-A
    3. Interface protection: 200mA resettable fuse, ESD protection
    4. Transmission distance: Approx. 5 meters

    RS485 Interface
    1. Connector type: Screw terminal
    2. Interface pins: A+, B-, GND
    3. Direction control: Hardware automatically detects and controls data transmission direction
    4. Interface protection: 600W lightning/surge protection and 15kV ESD protection (onboard 120Ω termination resistor)
    5. Isolation voltage: Opto-isolation, up to 2.5kV
    6. Transmission distance: Approx. 1200 meters (at low data rates)
    7. Transmission mode: Point-to-multipoint (up to 32 nodes; repeaters recommended for more than 16 nodes)

    Indicators
    PWR: Power indicator; lights up red when connected to USB and voltage is detected
    TXD: Transmit indicator; lights up when data is sent from USB Lights up red when data is transmitted from the port.
    RXD: Receive indicator; lights up red when data is received from the device interface.


    Specification:
    Package Weight
    One Package Weight 0.08kgs / 0.19lb
    One Package Size 8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch
    Qty per Carton 200
    Carton Weight 15.10kgs / 33.29lb
    Carton Size 40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch
    Loading Container 20GP: 740 cartons * 200 pcs = 148000 pcs
    40HQ: 1719 cartons * 200 pcs = 343800 pcs
