WAVESHARE ESP32-C6 1.32 Inch AMOLED Round Touch Display Development Board


1. Display panel: AMOLED
2. Display resolution: 466 x 466
3. Display brightness: 500cd/square meter
4. Communication interface: QSPI
5. Touch: support
6. Display size: 1.32 inch
7. Display color: 16.7M
8. Contrast ratio: 10000:1
9. Driver IC: CO5300
10. Touch IC: CST820

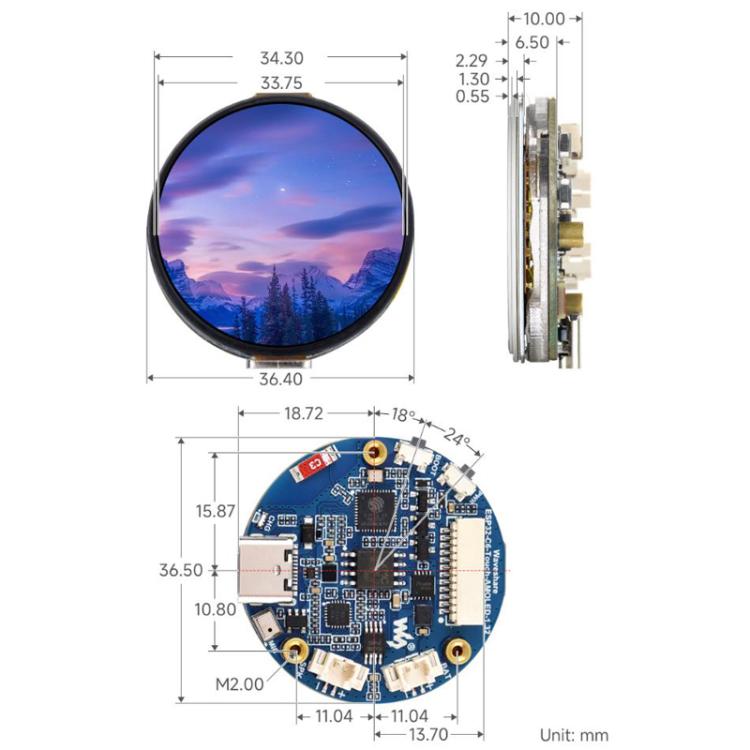

11. Size: about 3.64 x 1cm

Features:

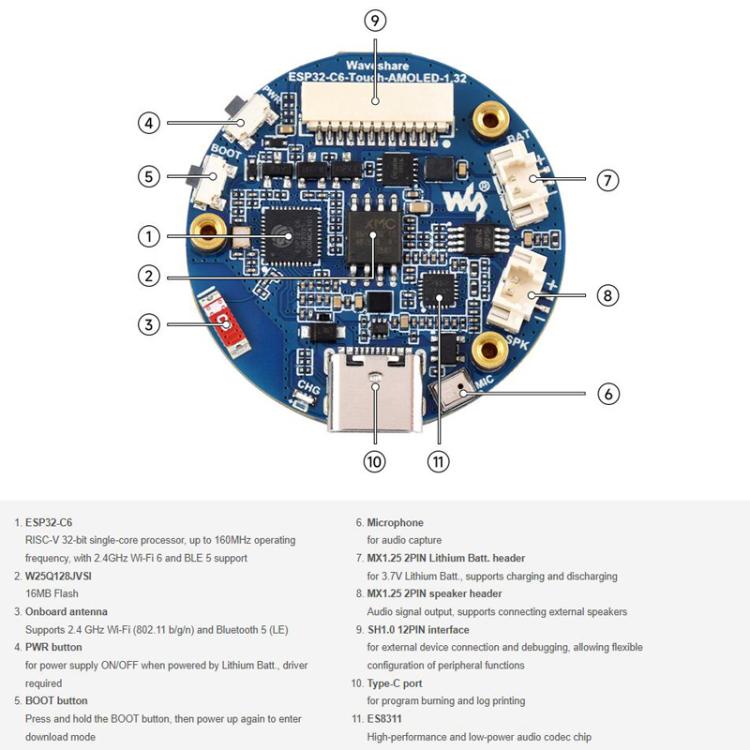

1. Equipped with ESP32-C6 high-performance 32-bit RISC-V processor up to 160MHz

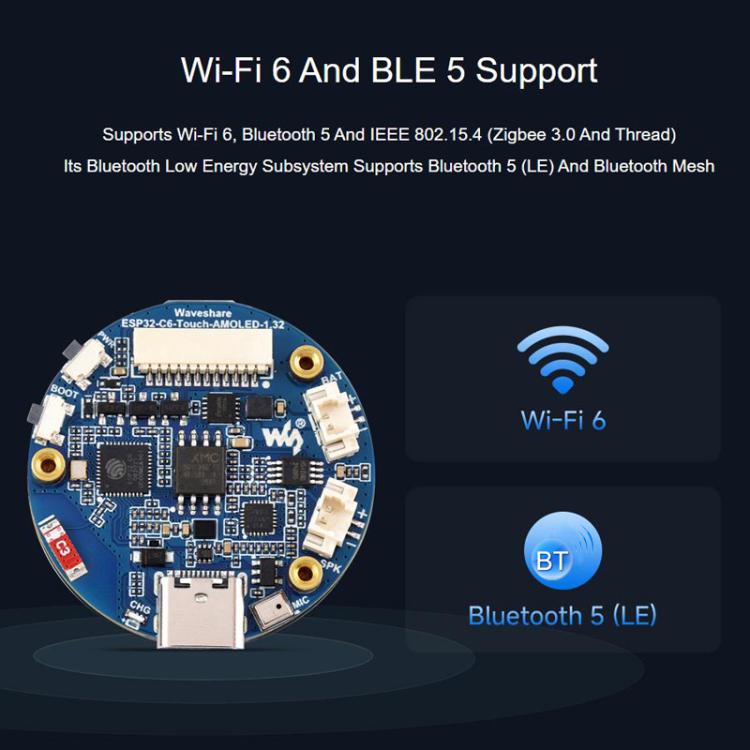

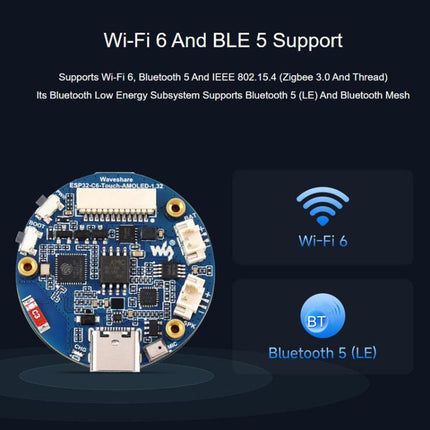

2. Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with excellent RF performance
3. Built-in 512KB HP SRAM, 16KB LP SRAM and 320KB ROM with 16MB Flash overlay

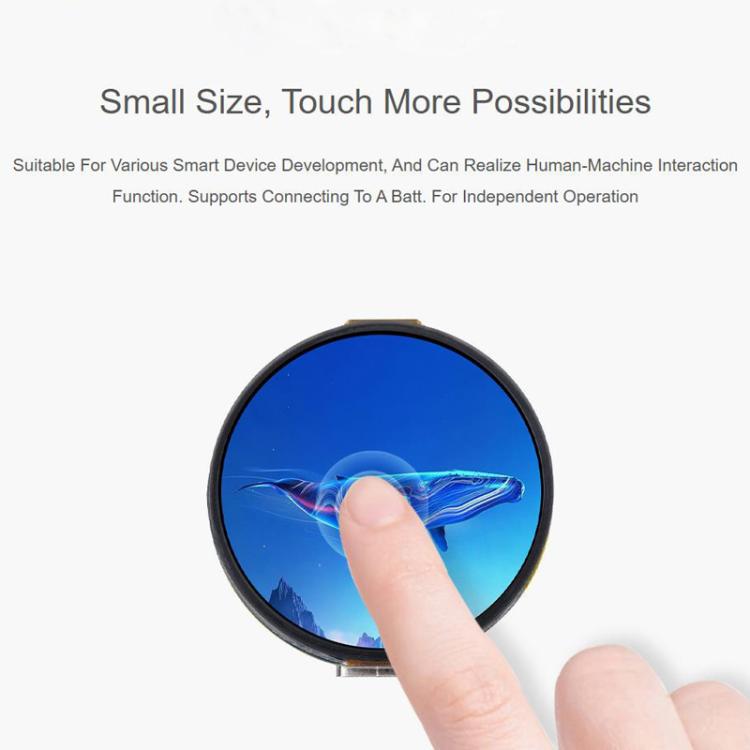

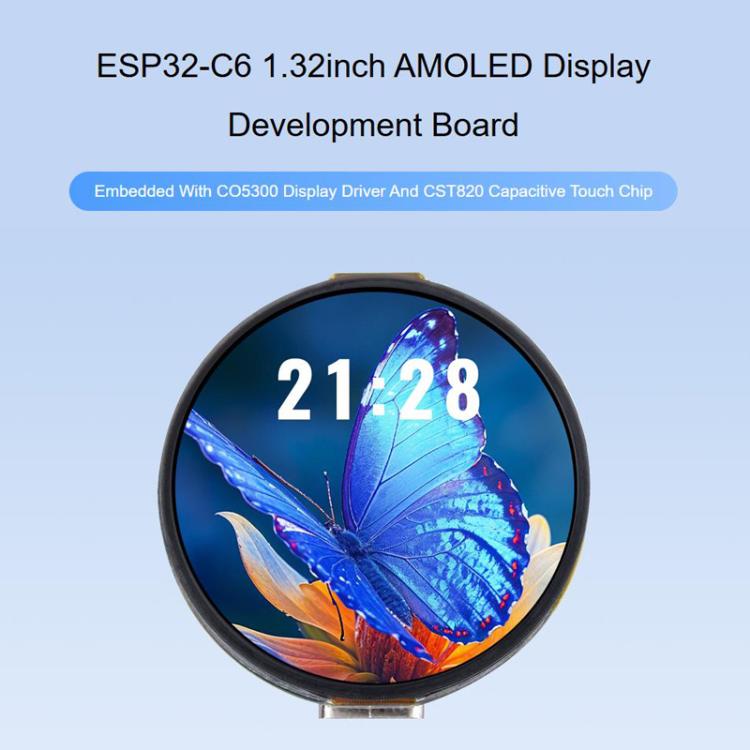

4. 1.32 inch capacitive touch HD AMOLED screen on board, 466 x 466 resolution, 16.7 M color, can display color pictures clearly

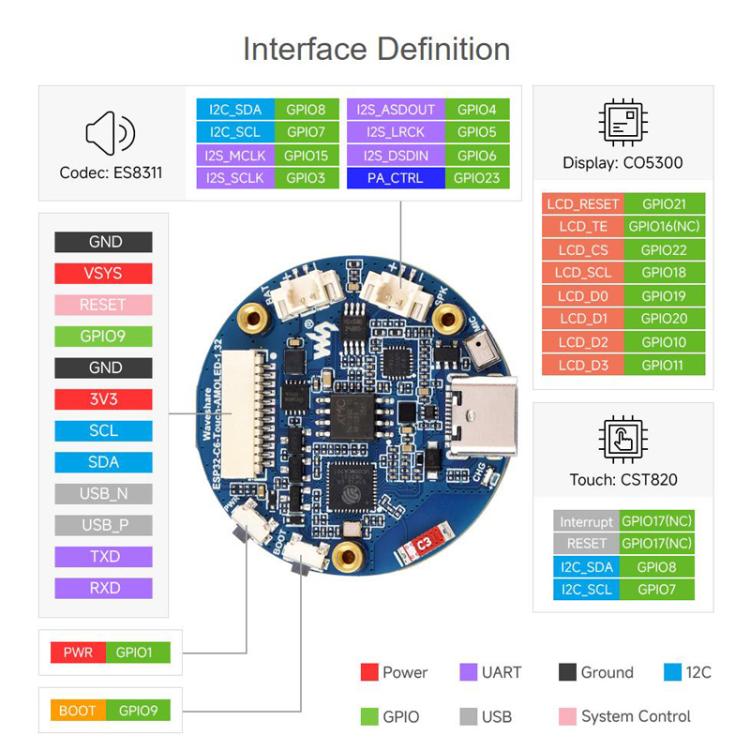

5. Built-in CO5300 driver chip and CST820 capacitive touch chip, respectively, using QSPI and I2C interface communication, does not take up too much interface pin resources
6. On-board PWR, BOOT two customizable functions of the side button, easy to use the button for custom function development
7 Onboard 3.7V MX1.25 lithium battery charging and discharging interface

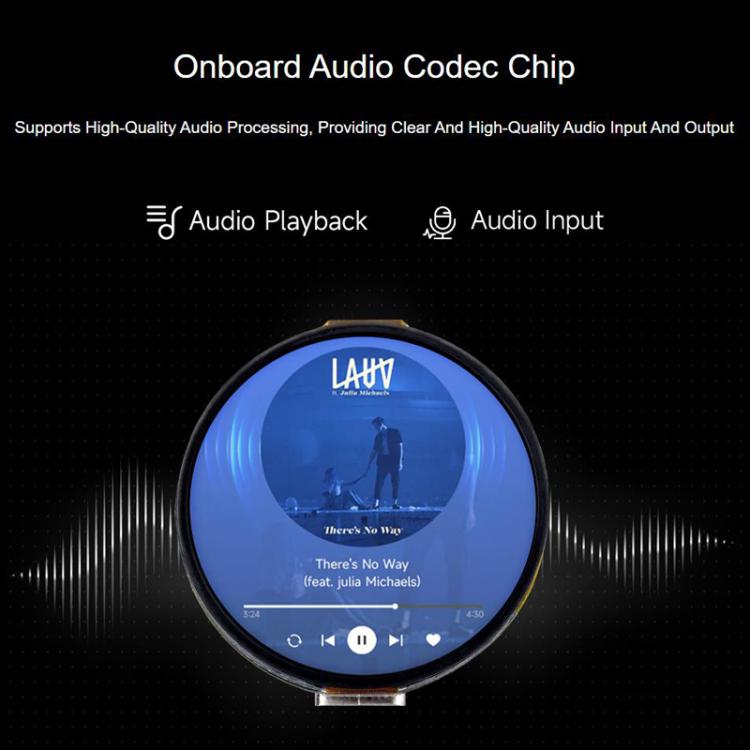

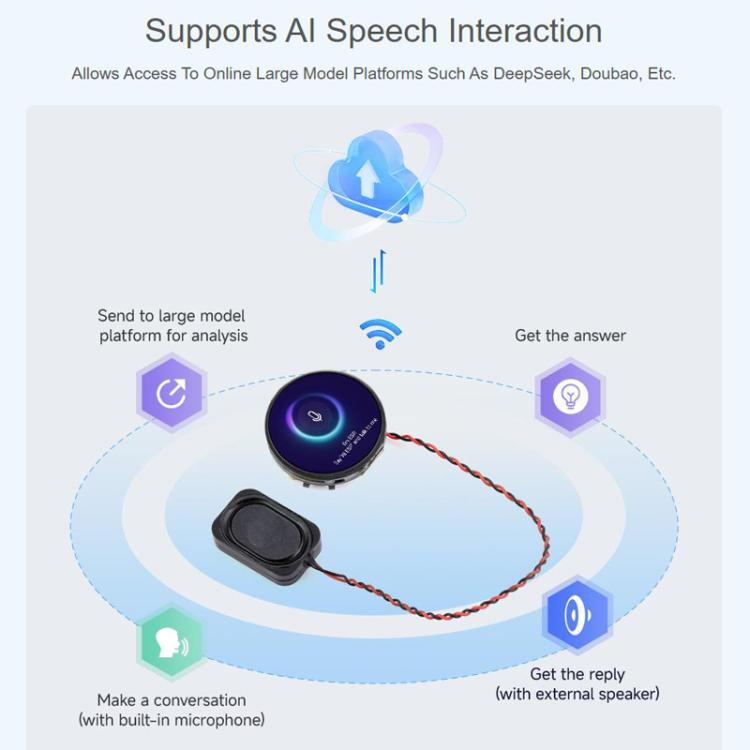

8. Equipped with ES8311 low-power audio codec chip, supports high-quality audio input and output, to meet the voice interaction and audio playback and other application requirements
9. SH1.0 12PIN expansion interface, can be used for DIY expansion of functions

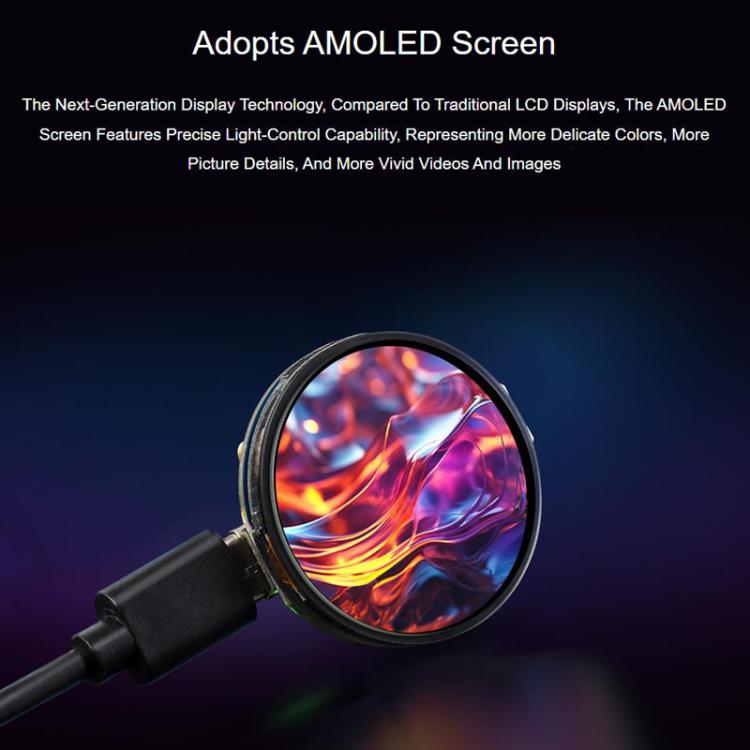

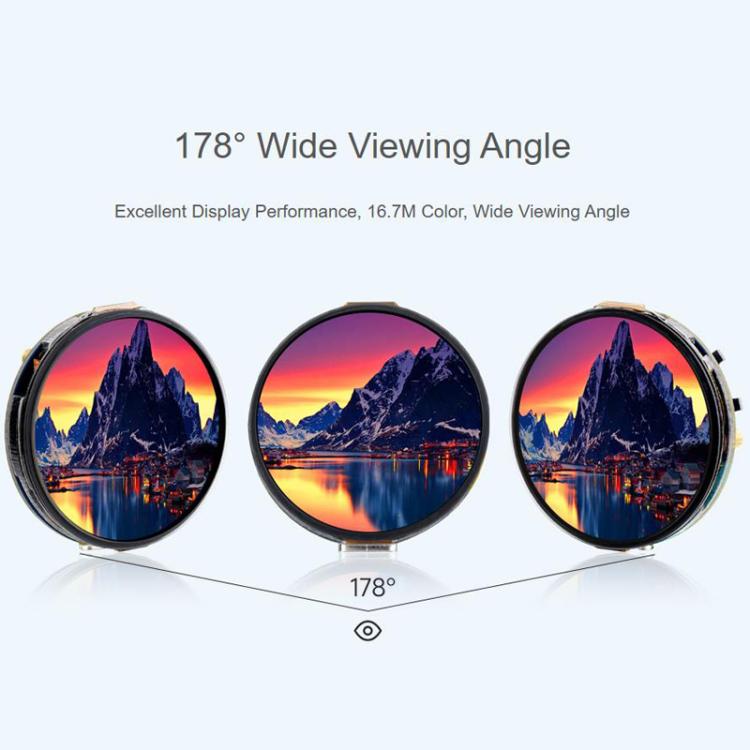

10. AMOLED screen with higher contrast ratio, wider viewing angle, richer colors, faster response and better visual effects, slim design, low power consumption, flexible


Specification:
Package Weight
One Package Weight 0.10kgs / 0.23lb
One Package Size 8cm * 8cm * 3cm / 3.15inch * 3.15inch * 1.18inch
Qty per Carton 280
Carton Weight 29.00kgs / 63.93lb
Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
Loading Container 20GP: 412 cartons * 280 pcs = 115360 pcs
40HQ: 958 cartons * 280 pcs = 268240 pcs

WAVESHARE ESP32-C6 1.32 Inch AMOLED Round Touch Display Development Board

Product form

SKU: TBD0606486401

  • In stock (Processing Time 1 - 72 hours)

€43,91

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Display panel: AMOLED
    2. Display resolution: 466 x 466
    3. Display brightness: 500cd/square meter
    4. Communication interface: QSPI
    5. Touch: support
    6. Display size: 1.32 inch
    7. Display color: 16.7M
    8. Contrast ratio: 10000:1
    9. Driver IC: CO5300
    10. Touch IC: CST820
    11. Size: about 3.64 x 1cm

    Features:
    1. Equipped with ESP32-C6 high-performance 32-bit RISC-V processor up to 160MHz
    2. Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with excellent RF performance
    3. Built-in 512KB HP SRAM, 16KB LP SRAM and 320KB ROM with 16MB Flash overlay
    4. 1.32 inch capacitive touch HD AMOLED screen on board, 466 x 466 resolution, 16.7 M color, can display color pictures clearly
    5. Built-in CO5300 driver chip and CST820 capacitive touch chip, respectively, using QSPI and I2C interface communication, does not take up too much interface pin resources
    6. On-board PWR, BOOT two customizable functions of the side button, easy to use the button for custom function development
    7 Onboard 3.7V MX1.25 lithium battery charging and discharging interface
    8. Equipped with ES8311 low-power audio codec chip, supports high-quality audio input and output, to meet the voice interaction and audio playback and other application requirements
    9. SH1.0 12PIN expansion interface, can be used for DIY expansion of functions
    10. AMOLED screen with higher contrast ratio, wider viewing angle, richer colors, faster response and better visual effects, slim design, low power consumption, flexible


    Specification:
    Package Weight
    One Package Weight 0.10kgs / 0.23lb
    One Package Size 8cm * 8cm * 3cm / 3.15inch * 3.15inch * 1.18inch
    Qty per Carton 280
    Carton Weight 29.00kgs / 63.93lb
    Carton Size 50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
    Loading Container 20GP: 412 cartons * 280 pcs = 115360 pcs
    40HQ: 958 cartons * 280 pcs = 268240 pcs
