Waveshare ESP32-C6 1.54-Inch LCD Development Board 240×240 Resolution Supports Dual Microphones, Version: Non-touch Control


1. Equipped with a high-performance ESP32-C6 32-bit RISC-V processor with a clock speed of up to 160MHz.
2. Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5, and integrates an onboard antenna for excellent RF performance.
3. Built-in 512KB SRAM and 320KB ROM, with an external 16MB Flash memory.
4. Uses a Type-C interface, eliminating the hassle of reversible insertion and improving user convenience and device compatibility.

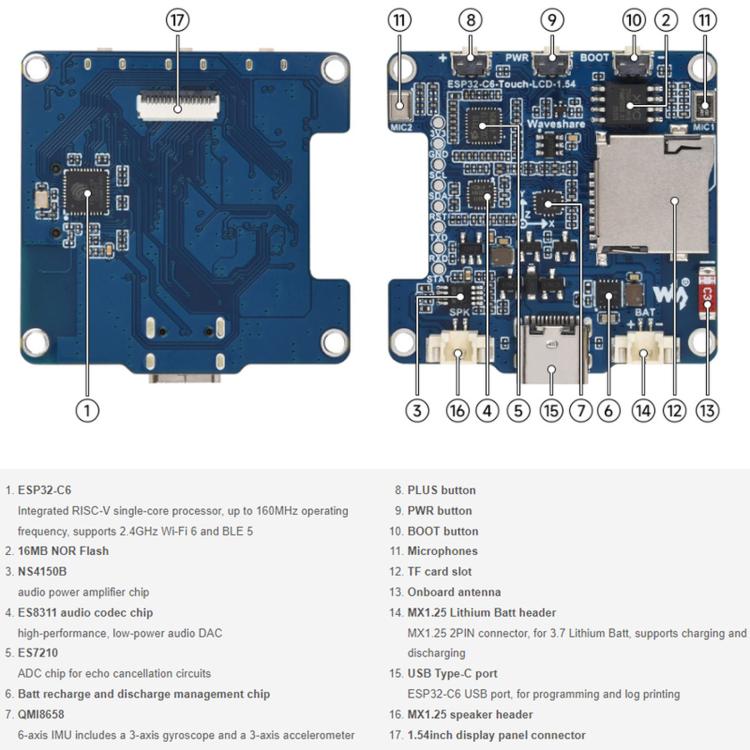

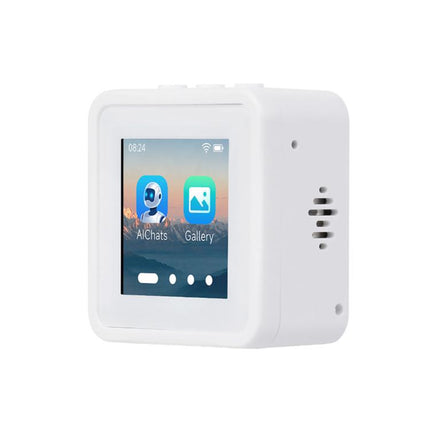

5. Onboard 1.54-inch capacitive LCD screen with 240 × 240 resolution and 262K color, capable of clearly displaying color images.
6. Onboard ES7210 audio codec chip, supporting dual-microphone audio capture.
7. Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker.
8. Onboard QMI8658. 9. Six-axis inertial measurement unit (3-axis accelerometer, 3-axis gyroscope) for motion attitude detection and expanded applications.
10. Built-in ST7789 driver chip for SPI interface communication.
11. Built-in CST816 capacitive touch chip for I2C interface communication (touch version only).
12. Onboard PLUS and BOOT buttons with customizable functions for easy custom function development.
13. Onboard 3.7V MX1.25 lithium battery charging/discharging interface.
14. One I2C, one UART, and one USB pad are provided for external device connection and debugging, allowing for flexible configuration of peripheral functions.
15. Onboard Micro SD card slot supports storage expansion and fast data transfer, facilitating data recording and media playback, and simplifying system circuit design.
16. Display resolution: 240 x 240 pixels.
17. Display colors: 262K. Communication Interface: 4-wire SPI
18. Driver IC: ST7789

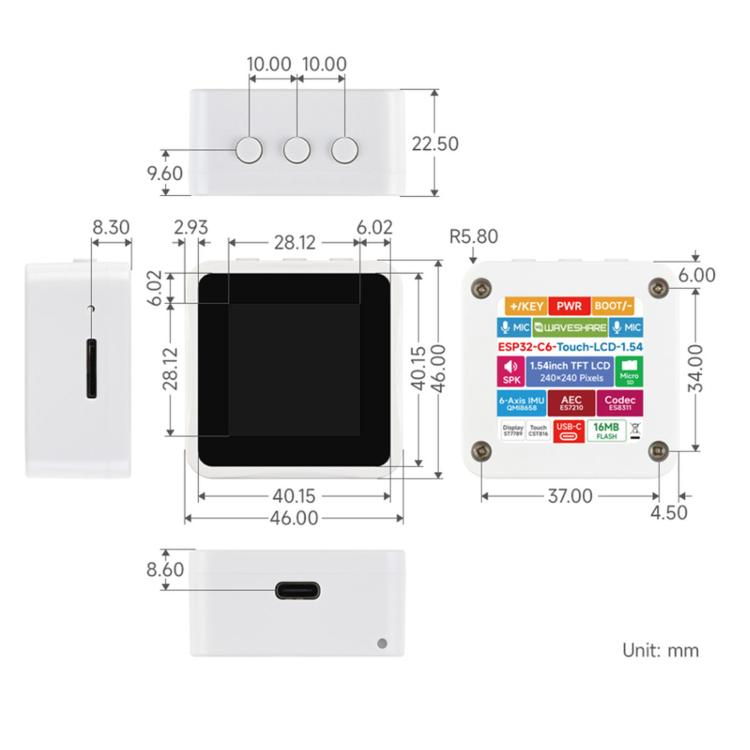

19. Effective Screen Size: 27.72 x 27.72 mm
Specification:
Package Weight
One Package Weight 0.05kgs / 0.12lb
One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
Qty per Carton 126
Carton Weight 8.00kgs / 17.64lb
Carton Size 50cm * 37cm * 32cm / 19.69inch * 14.57inch * 12.6inch
Loading Container 20GP: 450 cartons * 126 pcs = 56700 pcs
40HQ: 1045 cartons * 126 pcs = 131670 pcs

Waveshare ESP32-C6 1.54-Inch LCD Development Board 240×240 Resolution Supports Dual Microphones, Version: Non-touch Control

Product form

SKU: TBD0606142501

  • In stock (Processing Time 1 - 72 hours)

€31,57

    • Guaranteed secure & safe checkout.

    Icon for truckShipping Methods

    To find out all available shipping methods, and the exact delivery time add the product to the cart and verify it using our shipping calculator.

    Icon for 24_hour_clockOrder Processing Time

    All orders are shipped within a maximum of 72 hours from the order's arrival.

    Icon for coinMoney Back Guarantee

    Garmade Money Back Guarantee- Get the item you ordered or your money back, it's that simple.

    Icon for image_placeholderMismatched Product

    Product doesn't match the description? Contact us within 31 days after you receive it!

    Icon for mobile_paymentRefunds

    In case of cancellation, money will be refunded to your account within 14 days.

    Description


    1. Equipped with a high-performance ESP32-C6 32-bit RISC-V processor with a clock speed of up to 160MHz.
    2. Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5, and integrates an onboard antenna for excellent RF performance.
    3. Built-in 512KB SRAM and 320KB ROM, with an external 16MB Flash memory.
    4. Uses a Type-C interface, eliminating the hassle of reversible insertion and improving user convenience and device compatibility.
    5. Onboard 1.54-inch capacitive LCD screen with 240 × 240 resolution and 262K color, capable of clearly displaying color images.
    6. Onboard ES7210 audio codec chip, supporting dual-microphone audio capture.
    7. Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker.
    8. Onboard QMI8658. 9. Six-axis inertial measurement unit (3-axis accelerometer, 3-axis gyroscope) for motion attitude detection and expanded applications.
    10. Built-in ST7789 driver chip for SPI interface communication.
    11. Built-in CST816 capacitive touch chip for I2C interface communication (touch version only).
    12. Onboard PLUS and BOOT buttons with customizable functions for easy custom function development.
    13. Onboard 3.7V MX1.25 lithium battery charging/discharging interface.
    14. One I2C, one UART, and one USB pad are provided for external device connection and debugging, allowing for flexible configuration of peripheral functions.
    15. Onboard Micro SD card slot supports storage expansion and fast data transfer, facilitating data recording and media playback, and simplifying system circuit design.
    16. Display resolution: 240 x 240 pixels.
    17. Display colors: 262K. Communication Interface: 4-wire SPI
    18. Driver IC: ST7789
    19. Effective Screen Size: 27.72 x 27.72 mm
    Specification:
    Package Weight
    One Package Weight 0.05kgs / 0.12lb
    One Package Size 10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
    Qty per Carton 126
    Carton Weight 8.00kgs / 17.64lb
    Carton Size 50cm * 37cm * 32cm / 19.69inch * 14.57inch * 12.6inch
    Loading Container 20GP: 450 cartons * 126 pcs = 56700 pcs
    40HQ: 1045 cartons * 126 pcs = 131670 pcs
